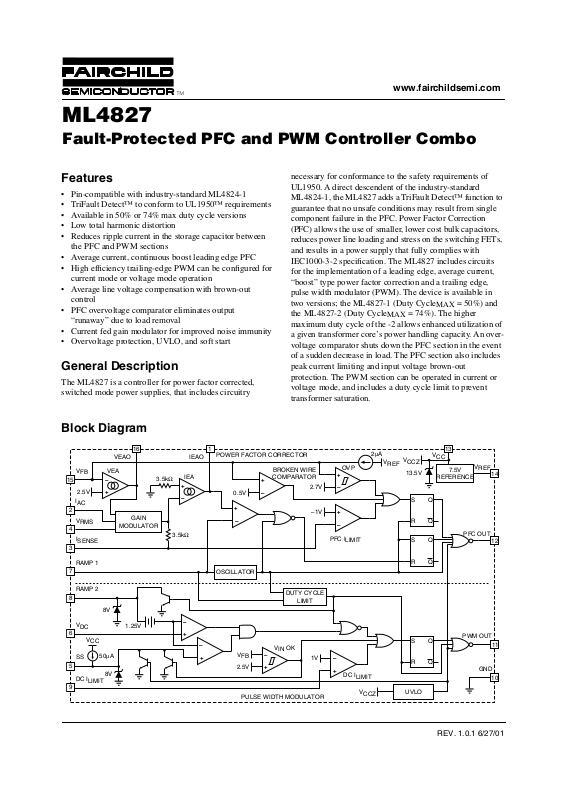

www.fairchildsemi.com
REV. 1.0.1 6/27/01
Features
• Pin-compatible with industry-standard ML4824-1
• TriFault Detect™ to conform to UL1950™ requirements
• Available in 50% or 74% max duty cycle versions
• Low total harmonic distortion
• Reduces ripple current in the storage capacitor between
the PFC and PWM sections
• Average current, continuous boost leading edge PFC
• High efficiency trailing-edge PWM can be configured for
current mode or voltage mode operation
• Average line voltage compensation with brown-out
control
• PFC overvoltage comparator eliminates output
“runaway” due to load removal
• Current fed gain modulator for improved noise immunity
• Overvoltage protection, UVLO, and soft start
General Description
The ML4827 is a controller for power factor corrected,
switched mode power supplies, that includes circuitry
necessary for conformance to the safety requirements of
UL1950. A direct descendent of the industry-standard
ML4824-1, the ML4827 adds a TriFault Detect™ function to
guarantee that no unsafe conditions may result from single
component failure in the PFC. Power Factor Correction
(PFC) allows the use of smaller, lower cost bulk capacitors,
reduces power line loading and stress on the switching FETs,
and results in a power supply that fully complies with
IEC1000-3-2 specification. The ML4827 includes circuits
for the implementation of a leading edge, average current,
“boost” type power factor correction and a trailing edge,
pulse width modulator (PWM). The device is available in
two versions; the ML4827-1 (Duty Cycle
MAX
= 50%) and
the ML4827-2 (Duty Cycle
MAX
= 74%). The higher
maximum duty cycle of the -2 allows enhanced utilization of
a given transformer core’s power handling capacity. An overvoltage comparator shuts down the PFC section in the event
of a sudden decrease in load. The PFC section also includes
peak current limiting and input voltage brown-out
protection. The PWM section can be operated in current or
voltage mode, and includes a duty cycle limit to prevent
transformer saturation.
Block Diagram
VEAO IEAO
V
FB
I
AC
V
RMS
I
SENSE
RAMP 1
OSCILLATOR
OVP
PFC I
LIMIT
UVLO
V
REF
PULSE WIDTH MODULATOR
POWER FACTOR CORRECTOR
BROKEN WIRE
COMPARATOR
2.5V
+
–
–
+
7.5V
REFERENCE
V
CC
V
CCZV
REF
VEA
+
–
IEA
+
–
+
–
+
–
PFC OUT
SRQ
Q
SRQ
Q
2.7V
–1V
0.5V
2µA
RAMP 2
PWM OUT
SRQ
Q
V
DC
SS
DC I
LIMIT
V
CC
DUTY CYCLE
LIMIT
–
+
1V
–
+
2.5V
V
FB
–
+
8V
8V
VIN OK
GAIN
MODULATOR
V
CCZ
3.5kΩ
3.5kΩ
1.25V
50µA
–
+
13.5V
DC I
LIMIT
14
12
11
GND
10
15
2
4
3
7
8
6
5
9
16 1 13
ML4827
Fault-Protected PFC and PWM Controller Combo
Page 2
ML4827 PRODUCT SPECIFICATION
2 REV. 1.0.1 6/27/01
Pin Configuration
Pin Description
Absolute Maximum Ratings
Absolute Maximum Ratings are those values, beyond which the device could be permanently damaged. Absolute maximum
ratings are stress ratings only and functional device operation is not implied.
PIN NAME FUNCTION
1 IEAO PFC transconductance current error amplifier output
2IACPFC gain control reference input
3I
SENSE
Current sense input to the PFC current limit comparator
4V
RMS
Input for PFC RMS line voltage compensation
5 SS Connection point for the PWM soft start capacitor
6VDCPWM voltage feedback input
7 RAMP 1 PFC (master) oscillator input; f
OSC
set by RTC
T
8 RAMP 2 When in current mode, this pin functions as as the current sense input; when in
voltage mode, it is the PWM (slave) oscillator input.
9 DC I
LIMIT
PWM current limit comparator input
10 GND Ground
11 PWM OUT PWM driver output
12 PFC OUT PFC driver output
13 V
CC
Positive supply (connected to an internal shunt regulator)
14 V
REF
Buffered output for the internal 7.5V reference
15 V
FB
PFC transconductance voltage error amplifier input, and TriFault Detect input
16 VEAO PFC transconductance voltage error amplifier output
Parameter Min. Max. Units
V
CC
Shunt Regulator Current 55 mA
I
SENSE
Voltage –35 V
Voltage on any other Pin GND-0.3 V
CCZ +0.3
V
I
REF
20 mA
IAC Input Current 10 mA
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
IEAO
I
AC
I
SENSE
V
RMS
SS
V
DC
RAMP 1
RAMP 2
VEAO
V
FB
V
REF
V
CC
PFC OUT
PWM OUT
GND
DC I
LIMIT
TOP VIEW
ML4827
16-Pin PDIP (P16)
16-Pin Wide SOIC (S16W)
Page 3
PRODUCT SPECIFICATION ML4827
REV. 1.0.1 6/27/01 3
Operating Conditions
Electrical Characteristics
Unless otherwise specified, ICC = 25mA, RT = 21.8kΩ, CT = 1000pF, TA = Operating Temperature Range (Note 1)
Peak PFC OUT Current, Source or Sink 500 mA
Peak PWM OUT Current, Source or Sink 500 mA
PFC OUT, PWM OUT Energy Per Cycle 1.5 µJ
Junction Temperature 150 °C
Storage Temperature Range –65 150 °C
Lead Temperature (soldering, 10s) 260 °C
Thermal Resistance (θ
JA
)
Plastic DIP
Plastic SOIC
80
105
°C/W
°C/W
Parameter Min. Max. Units
Temperature Range
ML4827CP, CS
ML4827IP, IS
0
–40
70
85
°C
°C
Symbol Parameter Conditions Min. Typ. Max. Units
Voltage Error Amplifier
Input Voltage Range 0 7 V
Transconductance V
NON INV
= V
INV
, VEAO = 3.75V 50 85 120 µΩ
Feedback Reference Voltage 2.48 2.55 2.62 V
Input Bias Current Note 2 –1 –2µA
Output High Voltage 6.0 6.7 V
Output Low Voltage 0.6 1.0 V
Source Current ∆VIN = ±0.5V, V
OUT
= 6V –40 –80 µA
Sink Current ∆VIN = ±0.5V, V
OUT
= 1.5V 40 80 µA
Open Loop Gain 60 75 dB
Power Supply Rejection Ratio V
CCZ
- 3V < VCC < V
CCZ
- 0.5V 60 75 dB
Current Error Amplifier
Input Voltage Range –1.5 2 V
Transconductance V
NON INV
= V
INV
, VEAO = 3.75V 130 195 310 µΩ
Input Offset Voltage 2 10 17 mV
Input Bias Current –0.5 –1.0 µA
Output High Voltage 6.0 6.7 V
Output Low Voltage 0.6 1.0 V
Source Current ∆VIN = ±0.5V, V
OUT
= 6V –40 –90 µA
Sink Current ∆VIN = ±0.5V, V
OUT
= 1.5V 40 90 µA
Open Loop Gain 60 75 dB
Power Supply Rejection Ratio V
CCZ
- 3V < VCC < V
CCZ
- 0.5V 60 75 dB
OVP Comparator
Threshold Voltage 2.6 2.7 2.8 V
Hysteresis 80 115 150 mV
Ω
Ω
Page 4
ML4827 PRODUCT SPECIFICATION
4 REV. 1.0.1 6/27/01
Tri-Fault Detect
Fault Detect HIGH 2.6 2.7 2.8 V
Time to Fault Detect HIGH V
FB
= V
FAULT DETECT LOW
to VFB =
OPEN 1nF from V
FB
to GND
12ms
Fault Detect LOW 0.4 0.5 0.6 V
PFC I
LIMIT
Comparator
Threshold Voltage –0.8 –1.0 –1.15 V
∆(PFC I
LIMIT VTH
- Gain
Modulator Output)
100 190 mV
Delay to Output 150 300 ns
DC I
LIMIT
Comparator
Threshold Voltage 0.9 1.0 1.1 V
Input Bias Current ±0.3 ±1 µA
Delay to Output 150 300 ns
VIN OK Comparator
Threshold Voltage 2.45 2.55 2.65 V
Hysteresis 0.8 1.0 1.2 V
Gain Modulator
Gain (Note 3) IAC = 100µA, V
RMS
= VFB = 0V 0.36 0.55 0.66
IAC = 50µA, V
RMS
= 1.2V, VFB = 0V 1.20 1.80 2.24
IAC = 50µA, V
RMS
= 1.8V, VFB = 0V 0.55 0.80 1.01
IAC = 100µA, V
RMS
= 3.3V, VFB = 0V 0.14 0.20 0.26
Bandwidth IAC = 100µA 10 MHz
Output Voltage IAC = 250µA, V
RMS
= 1.15V, VFB = 0V 0.74 0.82 0.90 V
Oscillator
Initial Accuracy TA = 25°C 75 80 85 kHz
Voltage Stability V
CCZ
- 3V < VCC < V
CCZ
- 0.5V 1 %
Temperature Stability 2 %
Total Variation Line, Temp 72 88 kHz
Ramp Valley to Peak Voltage 2.5 V
Dead Time PFC Only 450 600 750 ns
CT Discharge Current V
RAMP 2
= 0V, V
RAMP 1
= 2.5V 4.5 7.5 9.5 mA
Reference
Output Voltage TA = 25°C, I(V
REF
) = 1mA 7.4 7.5 7.6 V
Line Regulation V
CCZ
- 3V < VCC < V
CCZ
- 0.5V 2 10 mV
Load Regulation 1mA < I(V
REF
) < 20mA 2 15 mV
Temperature Stability 0.4 %
Total Variation Line, Load, Temp 7.35 7.65 V
Long Term Stability TJ = 125°C, 1000 Hours 5 25 mV
Symbol Parameter Conditions Min. Typ. Max. Units
Electrical Characteristics (Continued)
Page 5
ML4827 PRODUCT SPECIFICATION
5 REV. 1.0.1 6/27/01
Notes:
1. Limits are guaranteed by 100% testing, sampling, or correlation with worst-case test conditions.
2. Includes all bias currents to other circuits connected to the V
FB
pin.
3. Gain = K x 5.3V; K = (I
GAINMOD
- I
OFFSET
) x IAC x (VEAO - 1.5V)-1.
PFC
Minimum Duty Cycle V
IEAO
> 4.0V 0 %
Maximum Duty Cycle V
IEAO
< 1.2V 90 95 %
Output Low Voltage I
OUT
= –20mA 0.4 0.8 V
I
OUT
= –100mA 0.8 2.0 V
I
OUT
= 10mA, VCC = 8V 0.7 1.5 V
Output High Voltage I
OUT
= 20mA 10 10.5 V
I
OUT
= 100mA 9.5 10 V
Rise/Fall Time CL = 1000pF 50 ns
PWM
Duty Cycle Range ML4827-1 0-44 0-47 0-50 %
ML4827-2 0-64 0-70 0-74 %
Output Low Voltage I
OUT
= -20mA 0.4 0.8 V
I
OUT
= -100mA 0.8 2.0 V
I
OUT
= 10mA, VCC = 8V 0.7 1.5 V
Output High Voltage I
OUT
= 20mA 10 10.5 V
I
OUT
= 100mA 9.5 10 V
Rise/Fall Time CL = 1000pF 50 ns
Supply
Shunt Regulator Voltage
(V
CCZ
)
12.8 13.5 14.2 V
V
CCZ
Load Regulation 25mA < ICC < 55mA ±100 ±300 mV
V
CCZ
Total Variation Load, Temp 12.4 14.6 V
Start-up Current VCC = 11.8V, CL = 0 0.7 1.0 mA
Operating Current VCC < V
CCZ
- 0.5V, CL = 0 16 19 mA
Undervoltage Lockout
Threshold
12 13 14 V
Undervoltage Lockout
Hysteresis
2.7 3.0 3.3 V
Symbol Parameter Conditions Min. Typ. Max. Units
Electrical Characteristics (Continued)
Page 6
ML4827 PRODUCT SPECIFICATION
6 REV. 1.0.1 6/27/01
Typical Performance

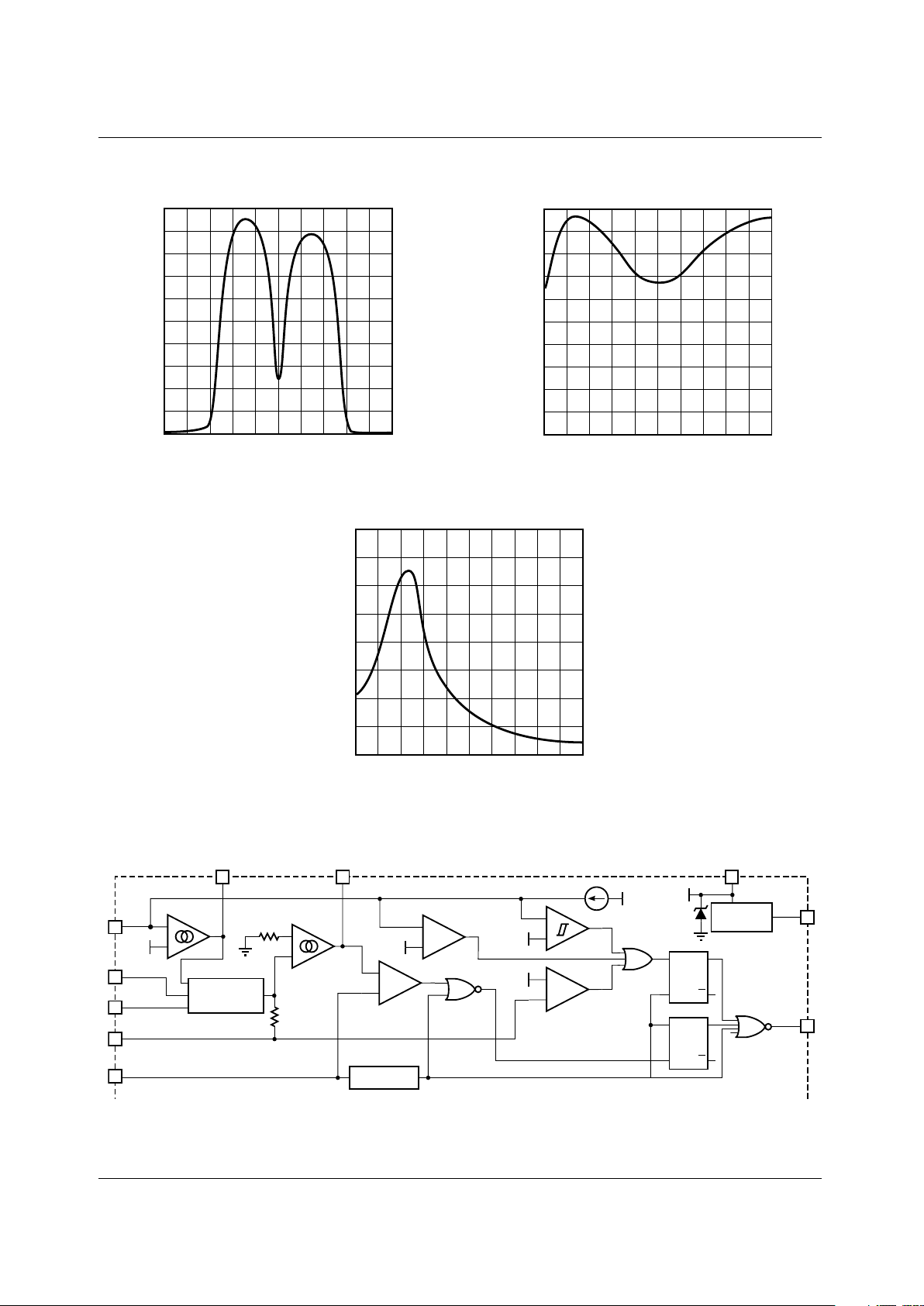

Figure 1. PFC Section Block Diagram
250
200
150
100
50
0
TRANSCONDUCTANCE (µ )
VFB (V)
053
Ω
142
400
300
200
100
0
VARIABLE GAIN BLOCK CONSTANT - K
V
RMS
(mV)
05314
2
250
200
150
100
50
0
TRANSCONDUCTANCE (µ )
IEA INPUT VOLTAGE (mV)
–500 5000
Ω
Voltage Error Amplifier (VEA) Transconductance (gm) Current Error Amplifier (IEA) Transconductance (gm)
Gain Modulator Transfer Characteristic (K)
VEAO IEAO
V
FB
I
AC
V
RMS
I
SENSE
RAMP 1
OSCILLATOR
OVP
PFC I
LIMIT
V
REF
POWER FACTOR CORRECTOR
BROKEN WIRE
COMPARATOR
2.5V
+
–
–
+
7.5V
REFERENCE
V
CC
V
CCZ
VEA
+
–
IEA
+
–
+
–
+
–
PFC OUT
SRQ
Q
SRQ
Q
2.7V
–1V
1V
GAIN
MODULATOR
3.5kΩ
3.5kΩ
13.5V
14
12
15
2
4
3
7
16 1 13
V
REF
2µA
Page 7
PRODUCT SPECIFICATION ML4827
REV. 1.0.1 6/27/01 7
Functional Description
The ML4827 consists of an average current controlled, continuous boost Power Factor Corrector (PFC) front end and a
synchronized Pulse Width Modulator (PWM) back end. The
PWM can be used in either current or voltage mode. In voltage mode, feedforward from the PFC output buss can be
used to improve the PWM’s line regulation. In either mode,
the PWM stage uses conventional trailing-edge duty cycle
modulation, while the PFC uses leading-edge modulation.
This patented leading/trailing edge modulation technique
results in a higher useable PFC error amplifier bandwidth,
and can significantly reduce the size of the PFC DC buss
capacitor.
The synchronization of the PWM with the PFC simplifies the
PWM compensation due to the controlled ripple on the PFC
output capacitor (the PWM input capacitor). The PWM section of both the ML4827-1 and the ML4827-2 run at the
same frequency as the PFC.
A number of protection features have been built into the
ML4827 to insure the final power supply will be as reliable
as possible. These include TriFault Detect, soft-start, PFC
over-voltage protection, peak current limiting, brown-out
protection, duty cycle limit, and under-voltage lockout.
Tri-Fault Detect protection
Many power supplies manufactured for sale in the US must
meet Underwriter’s Laboratories (UL) standards. UL’s specification UL1950 requires that no unsafe condition may result
from the failure of any single circuit component. Typical system designs include external active and passive circuitry to
meet this requirement. TriFault Detect is an on-chip feature
of the ML4827 that monitors the VFB pin for overvoltage,
undervoltage, or floating conditions which indicate that a
component of the feedback path may have failed. In such an
event, the PFC supply output will be disabled. These integrated redundant protections assure system compliance with
UL1950 requirements.
Power Factor Correction
Power factor correction makes a nonlinear load look like a
resistive load to the AC line. For a resistor, the current drawn
from the line is in phase with and proportional to the line
voltage, so the power factor is unity (one). A common class
of nonlinear load is the input of most power supplies, which
use a bridge rectifier and capacitive input filter fed from the
line. The peak-charging effect which occurs on the input filter capacitor in these supplies causes brief high-amplitude
pulses of current to flow from the power line, rather than a
sinusoidal current in phase with the line voltage. Such supplies present a power factor to the line of less than one (i.e.
they cause significant current harmonics of the power line
frequency to appear at their input). If the input current drawn
by such a supply (or any other nonlinear load) can be made
to follow the input voltage in instantaneous amplitude, it will
appear resistive to the AC line and a unity power factor will
be achieved.
To hold the input current draw of a device drawing power
from the AC line in phase with and proportional to the input
voltage, a way must be found to prevent that device from
loading the line except in proportion to the instantaneous line
voltage. The PFC section of the ML4827 uses a boost-mode
DC-DC converter to accomplish this. The input to the converter is the full wave rectified AC line voltage. No bulk filtering is applied following the bridge rectifier, so the input
voltage to the boost converter ranges (at twice line frequency) from zero volts to the peak value of the AC input
and back to zero. By forcing the boost converter to meet two
simultaneous conditions, it is possible to ensure that the current which the converter draws from the power line agrees
with the instantaneous line voltage. One of these conditions
is that the output voltage of the boost converter must be set
higher than the peak value of the line voltage. A commonly
used value is 385VDC, to allow for a high line of
270VAC
rms
. The other condition is that the current which the
converter is allowed to draw from the line at any given
instant must be proportional to the line voltage. The first of
these requirements is satisfied by establishing a suitable voltage control loop for the converter, which in turn drives a current error amplifier and switching output driver. The second
requirement is met by using the rectified AC line voltage to
modulate the output of the voltage control loop. Such modulation causes the current error amplifier to command a power
stage current which varies directly with the input voltage. In
order to prevent ripple which will necessarily appear at the
output of the boost circuit (typically about 10VAC on a 385V
DC level) from introducing distortion back through the voltage error amplifier, the bandwidth of the voltage loop is
deliberately kept low. A final refinement is to adjust the overall gain of the PFC such to be proportional to 1/V
IN
2
, which
linearizes the transfer function of the system as the AC input
voltage varies.
Since the boost converter topology in the ML4827 PFC is of
the current-averaging type, no slope compensation is
required.
PFC Section
Gain Modulator

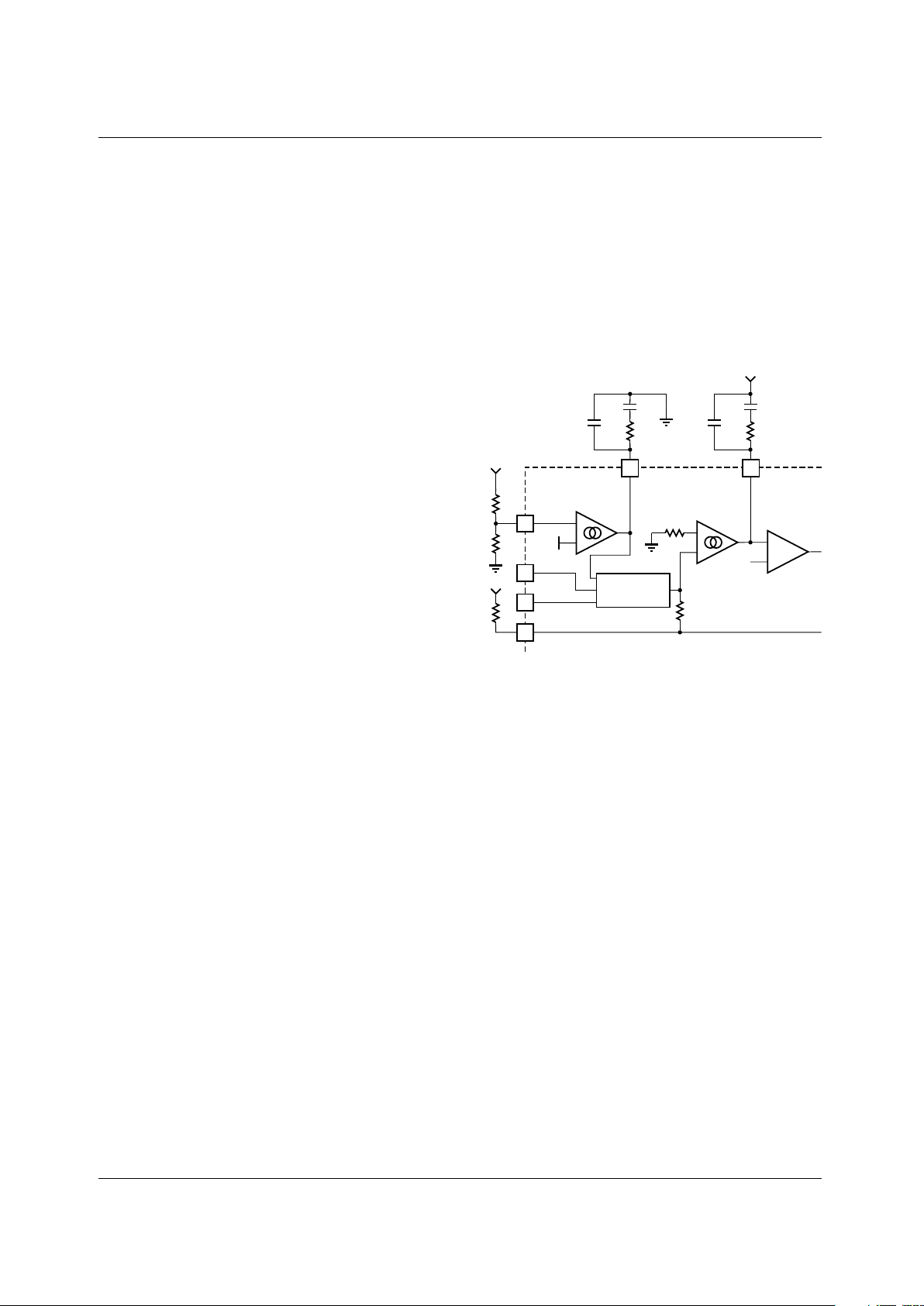

Figure 1 shows a block diagram of the PFC section of the
ML4827. The gain modulator is the heart of the PFC, as it is
this circuit block which controls the response of the current
loop to line voltage waveform and frequency, RMS line voltage, and PFC output voltage. There are three inputs to the
gain modulator. These are:
1. A current representing the instantaneous input voltage
(amplitude and waveshape) to the PFC. The rectified AC
input sine wave is converted to a proportional current
via a resistor and is then fed into the gain modulator at
IAC. Sampling current in this way minimizes ground
noise, as is required in high power switching power conversion environments. The gain modulator responds linearly to this current.
Page 8
ML4827 PRODUCT SPECIFICATION
8 REV. 1.0.1 6/27/01
2. A voltage proportional to the long-term RMS AC line
voltage, derived from the rectified line voltage after
scaling and filtering. This signal is presented to the gain
modulator at V
RMS
. The gain modulator’s output is
inversely proportional to V
RMS
2
(except at unusually
low values of V
RMS
where special gain contouring takes
over, to limit power dissipation of the circuit components under heavy brownout conditions). The relationship between V
RMS
and gain is termed K, and is
illustrated in the Typical Performance Characteristics.
3. The output of the voltage error amplifier, VEAO. The
gain modulator responds linearly to variations in this
voltage.
The output of the gain modulator is a current signal, in the
form of a full wave rectified sinusoid at twice the line frequency. This current is applied to the virtual-ground (negative) input of the current error amplifier. In this way the gain
modulator forms the reference for the current error loop, and
ultimately controls the instantaneous current draw of the
PFC from the power line. The general form for the output of
the gain modulator is:
More exactly, the output current of the gain modulator is
given by:
where K is in units of V-1.
Note that the output current of the gain modulator is limited
to ≅ 200µA.
Current Error Amplifier
The current error amplifier’s output controls the PFC duty
cycle to keep the average current through the boost inductor
a linear function of the line voltage. At the inverting input to
the current error amplifier, the output current of the gain
modulator is summed with a current which results from a
negative voltage being impressed upon the I
SENSE
pin (cur-
rent into I
SENSE
≅ V
SENSE
/3.5kΩ). The negative voltage on
I
SENSE
represents the sum of all currents flowing in the PFC
circuit, and is typically derived from a current sense resistor
in series with the negative terminal of the input bridge rectifier. In higher power applications, two current transformers
are sometimes used, one to monitor the ID of the boost MOS-
FET(s) and one to monitor the IF of the boost diode. As
stated above, the inverting input of the current error amplifier
is a virtual ground. Given this fact, and the arrangement of
the duty cycle modulator polarities internal to the PFC, an
increase in positive current from the gain modulator will
cause the output stage to increase its duty cycle until the
voltage on I
SENSE
is adequately negative to cancel this
increased current. Similarly, if the gain modulator’s output
decreases, the output duty cycle will decrease, to achieve a
less negative voltage on the I
SENSE
pin.
Figure 2. Compensation Network Connections for the
Voltage and Current Error Amplifiers
Cycle-By-Cycle Current Limiter
The I
SENSE
pin, as well as being a part of the current feedback loop, is a direct input to the cycle-by-cycle current limiter for the PFC section. Should the input voltage at this pin
ever be more negative than -1V, the output of the PFC will be
disabled until the protection flip-flop is reset by the clock
pulse at the start of the next PFC power cycle.
Overvoltage Protection
The OVP comparator serves to protect the power circuit
from being subjected to excessive voltages if the load should
suddenly change. A resistor divider from the high voltage
DC output of the PFC is fed to VFB. When the voltage on VFB
exceeds 2.7V, the PFC output driver is shut down. The PWM
section will continue to operate. The OVP comparator has
125mV of hysteresis, and the PFC will not restart until the
voltage at VFB drops below 2.58V. The VFB should be set at a
level where the active and passive external power components and the ML4827 are within their safe operating voltages, but not so low as to interfere with the boost voltage
regulation loop.
I
GAINMOD
IACVEAO×
V
RMS
2
--------------------------------= 1V×
(1)
I
GAINMOD
K= VEAO 1.5V–()× IAC×
15
VEAO
IEAO
V
FB
I
AC
V
RMS
I
SENSE
2.5V
–
+
16
2
4
3
VEA
+
–
IEA
+
–
V
REF
1
PFC
OUTPUT
GAIN
MODULATOR
Page 9
PRODUCT SPECIFICATION ML4827
REV. 1.0.1 6/27/01 9
Error Amplifier Compensation
The PWM loading of the PFC can be modeled as a negative
resistor; an increase in input voltage to the PWM causes a
decrease in the input current. This response dictates the
proper compensation of the two transconductance error
amplifiers. Figure 2 shows the types of compensation networks most commonly used for the voltage and current error
amplifiers, along with their respective return points. The current loop compensation is returned to V
REF
to produce a softstart characteristic on the PFC: as the reference voltage
comes up from zero volts, it creates a differentiated voltage
on IEAO which prevents the PFC from immediately
demanding a full duty cycle on its boost converter.
There are two major concerns when compensating the voltage loop error amplifier; stability and transient response.
Optimizing interaction between transient response and stability requires that the error amplifier’s open-loop crossover
frequency should be 1/2 that of the line frequency, or 23Hz
for a 47Hz line (lowest anticipated international power frequency). The gain vs. input voltage of the ML4827’s voltage
error amplifier has a specially shaped nonlinearity such that
under steady-state operating conditions the transconductance
of the error amplifier is at a local minimum. Rapid perturbations in line or load conditions will cause the input to the
voltage error amplifier (V
FB
) to deviate from its 2.5V (nominal) value. If this happens, the transconductance of the voltage error amplifier will increase significantly, as shown in the
Typical Performance Characteristics. This raises the gainbandwidth product of the voltage loop, resulting in a much
more rapid voltage loop response to such perturbations than
would occur with a conventional linear gain characteristic.
The current amplifier compensation is similar to that of the
voltage error amplifier with the exception of the choice of
crossover frequency. The crossover frequency of the current
amplifier should be at least 10 times that of the voltage
amplifier, to prevent interaction with the voltage loop. It
should also be limited to less than 1/6th that of the switching
frequency, e.g. 16.7kHz for a 100kHz switching frequency.
There is a modest degree of gain contouring applied to the
transfer characteristic of the current error amplifier, to
increase its speed of response to current-loop perturbations.
However, the boost inductor will usually be the dominant
factor in overall current loop response. Therefore, this contouring is significantly less marked than that of the voltage
error amplifier.
For more information on compensating the current and voltage control loops, see Application Notes 33 and 34. Application Note 16 also contains valuable information for the
design of this class of PFC.
Oscillator (RAMP 1)
The oscillator frequency is determined by the values of RT
and CT, which determine the ramp and off-time of the oscillator output clock:
The deadtime of the oscillator is derived from the following
equation:
at V
REF
= 7.5V:
The deadtime of the oscillator may be determined using:
The deadtime is so small (t
RAMP
>> t
DEADTIME
) that the oper-
ating frequency can typically be approximated by:
EXAMPLE:
For the application circuit shown in the data sheet, with the
oscillator running at:

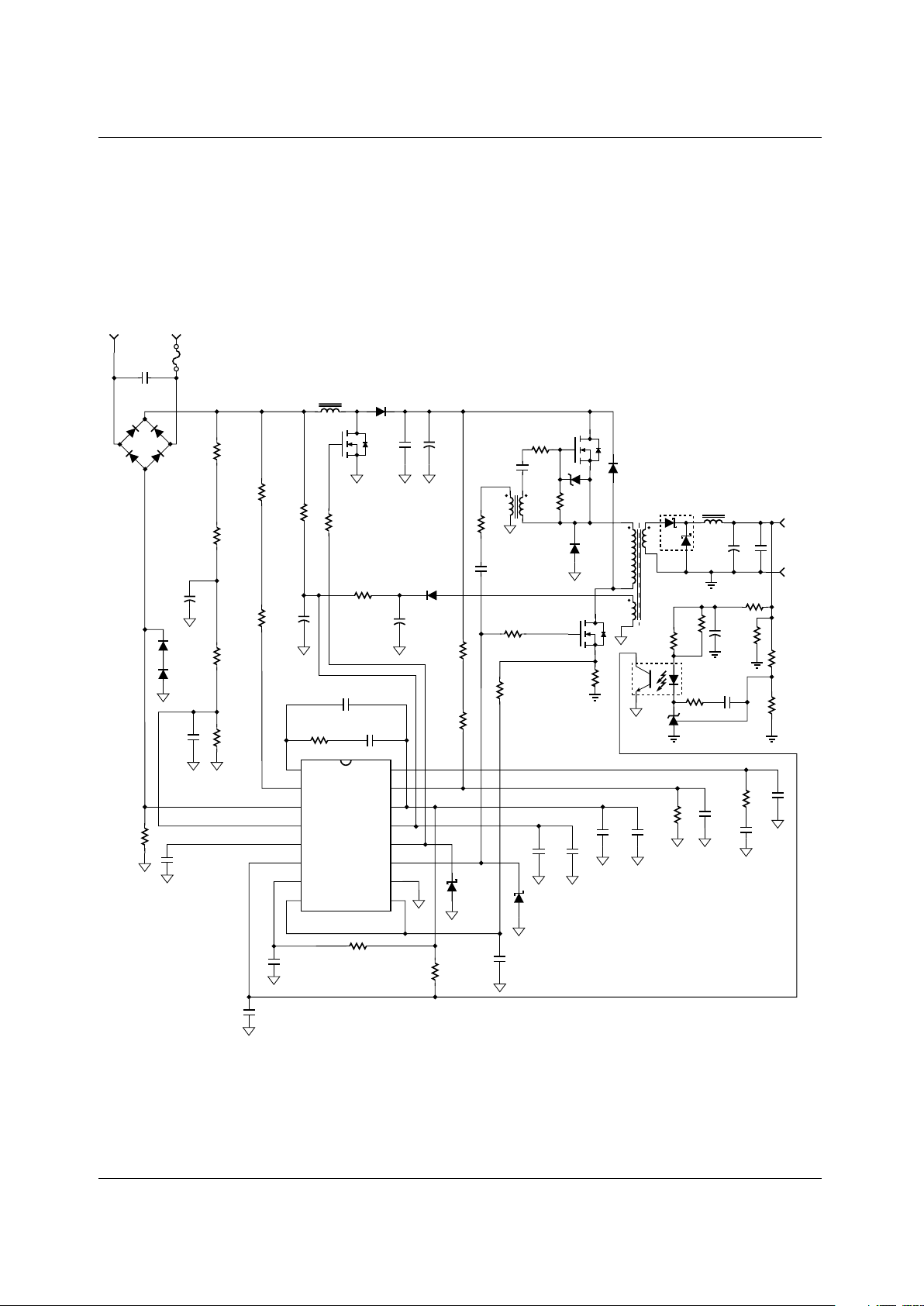

Solving for RT x CT yields 2 x 10-4. Selecting standard components values, C
T
= 470pF, and RT = 41.2kΩ.
The deadtime of the oscillator adds to the Maximum PWM
Duty Cycle (it is an input to the Duty Cycle Limiter). With
zero oscillator deadtime, the Maximum PWM Duty Cycle is
typically 45% for the ML4827-1. In many applications of the
ML4827-1, care should be taken that CT not be made so
large as to extend the Maximum Duty Cycle beyond 50%.
This can be accomplished by using a stable 470pF capacitor
for CT.
f
OSC
1
t
RAMPtDEADTIME
+
---------------------------------------------------=
(2)
t
RAMPCT
= RT× In
V
REF
1.25–
V
REF
3.75–
--------------------------------
×
(3)
t
RAMPCT
= RT× 0.51×
t
DEADTIME
2.5V
5.1mA
------------------= C
T
× 490= CT×
(4)
f
OSC
1
t
RAMP
----------------=
(5)
f
OSC
100kHz
1
t
RAMP
----------------==
t
RAMPCT
= RT× 0.51× 1= 105–×
Page 10
ML4827 PRODUCT SPECIFICATION
10 REV. 1.0.1 6/27/01
PWM SECTION
Pulse Width Modulator
The PWM section of the ML4827 is straightforward, but
there are several points which should be noted. Foremost
among these is its inherent synchronization to the PFC section of the device, from which it also derives its basic timing.
The PWM is capable of current-mode or voltage mode operation. In current-mode applications, the PWM ramp (RAMP
2) is usually derived directly from a current sensing resistor
or current transformer in the primary of the output stage, and
is thereby representative of the current flowing in the converter’s output stage. DC I
LIMIT
, which provides cycle-bycycle current limiting, is typically connected to RAMP 2 in
such applications. For voltage-mode operation or certain
specialized applications, RAMP 2 can be connected to a separate RC timing network to generate a voltage ramp against
which VDC will be compared. Under these conditions, the
use of voltage feedforward from the PFC buss can assist in
line regulation accuracy and response. As in current mode
operation, the DC I
LIMIT
input would is used for output stage
overcurrent protection.
No voltage error amplifier is included in the PWM stage of
the ML4827, as this function is generally performed on the
output side of the PWM’s isolation boundary. To facilitate
the design of optocoupler feedback circuitry, an offset has
been built into the PWM’s RAMP 2 input which allows VDC
to command a zero percent duty cycle for input voltages
below 1.25V.
Maximum Duty Cycle
In the ML4827-1, the maximum duty cycle of the PWM section is limited to 50% for ease of use and design. In the case
of the ML4827-2, the maximum duty cycle of the PWM section is extended to 70% (typical) for enhanced utilization of
the inductor. Operation at 70% duty cycle requires special
care in circuit design to avoid volt-second imbalances, and/
or high-voltage damage to the PWM switch transistor(s).
Using the ML4827-2
The ML4827-2’s higher PWM duty cycle offers several
design advantages that skilled power supply and magnetics
engineers can take advantage of, including:
• Reduced RMS and peak PWM switch currents
• Reduced RMS and peak PWM transformer currents
• Easier RFI/EMI filtering due to lower peak currents
These reduced currents can result in cost savings by allowing
smaller PWM transformer primary windings and fewer turns
on forward converter reset windings. Long duty cycles, by
allowing greater utilization of the PFC’s stored charge, can
also lower the cost of PFC bus capacitors while still offering
long “hold-up” times.
NOTE: during the time when the PWM switch is off (the
reset or flyback periods), increasing duty cycles will result in
rapidly increasing peak voltages across the switch. This
result of high PWM duty cycles requires greater care be used
in circuit design. Relevant design issues include:
• Higher voltage (>1000V) PWM switches
• More carefully designed and tested PWM transformers
• Clamps and/or snubbers when needed
Also, slope compensation will be required in most current
mode PWM designs.
For those who want to approach the limits of attainable performance (most commonly high-volume, low-cost supplies),
the ML4827-2’s 70% maximum PWM duty cycle offers several desirable design capabilities. Using a 70% duty cycle
makes it essential to perform a careful magnetics design and
component stress analysis before finalizing designs with the
ML4827-2.
The ML4827-2: Special Considerations for
High Duty Cycles
The use of the ML4827-1, especially with the type of PWM
output stage shown in the Application Circuit of Figure 6, is
straightforward due to the limitation of the PWM duty cyle
to 50% maximum. In fact, one of the advantages of the “twotransistor single-ended forward converter” shown in Figure 6
is that it will necessarily reset the core, with no additional
winding required, as long as the core does not go into saturation during the topology's maximum permissible 50% duty
cycle.
For the “-2” version of the ML4827, the maximum duty
cycle (δ) of the PWM is nominally 70%. As the two-transistor single-ended forward converter cannot be used at duty
cycles greater than 50%, high-δ applications require the use
of either a single-transistor forward converter (with a transformer reset winding), or a flyback output stage. In either
case, special concerns arise regarding the peak voltage
appearing on the PWM switch transistor, the PWM output
transformer, and associated power components as the duty
cycle increases. For any output stage topology, the available
on-time (core “set” time) is (1/f
PWM
) x δ, while the reset time
for the core of the PWM output transformer is (1/f
PWM
) x
(1–δ). This means that the magnetizing inductance of the
core charges for a period of (1/f
PWM
) x δ, and must be com-
pletely discharged during a period of (1/f
PWM
) x (1–δ). The
ratio of these two periods, multiplied by the maximum value
of the PFC’s V
BUSS
, yields the minimum voltage for which
the PWM output transistor must be rated. Frequently, the
design of the tranformer’s reset winding, and/or of the output
transistor’s snubbers or clamps, require an additional voltage
margin of 100V to 200V.
Page 11
PRODUCT SPECIFICATION ML4827
REV. 1.0.1 6/27/01 11
To put some numbers into the discussion, with a given
V
BUSS(MAX)
of 400V:
1. For δ = 50%: V
RESET
= {[(1/f
PWM
) x δ]/[(1/f
PWM
) x
(1–δ)]} x 400V = 0.50/0.50 x 400V = 400V
2. For δ = 55%: V
RESET
= 0.55/0.45 x 400V = 489V
3. For δ = 60%: V
RESET
= 0.60/0.40 x 400V = 600V
4. For δ = 64% (Data Sheet Lower Limit Value): V
RESET
=
0.64/0.36 x 400V = 711V
5. For δ = 70%: V
RESET
= 0.70/0.30 x 400V = 933V
6. For δ = 74% (Data Sheet Upper Limit Value): V
RESET
=
0.74/0.26 x 400V = 1138V
It is economically desirable to design for the lowest meaningful voltage on the output MOSFET. It is simultaneously
necessary to design the circuit to operate at the lowest guaranteed value for δ, to ensure that the magnetics will deliver
full output power with any individual ML4827. In actual
operation, the choice of δ
MIN
= 60% will allow some toler-
ance for the timing capacitors and resistors. A tolerance on
(R
RAMP2
x C
RAMP2
) of ±2% is the simplest “brute force” way
to achieve the desired result. This should be combined with
an external duty cycle clamp. This protects the PWM circuitry against the condition in which the output has been
shorted, and the error amplifier output (VDC) would otherwise be driven to its upper rail. One method which works
well when the PWM is used in voltage mode is to limit the
maximum input to the PWM feedback voltage (VDC). If the
voltage available to this pin is derived from the ML4827’s
7.5V V
REF
, it will be in close ratio to the charging time of the
RAMP2 capacitor. This will be true whether the RAMP2
capacitor is charged from V
REF
, or, as is more commonly
done in voltage-mode applications, from the output of the
PFC Stage (the “feedforward” configuration). Figure 3
shows such a duty cycle clamp.
If the ML4827-2’s PWM is to be used in a current-mode
design, the PWM stage will require slope compensation.
This can be done by any of the standard industry techniques.
Note that the ramp to use for this slope compensation is the
voltage on RAMP1.

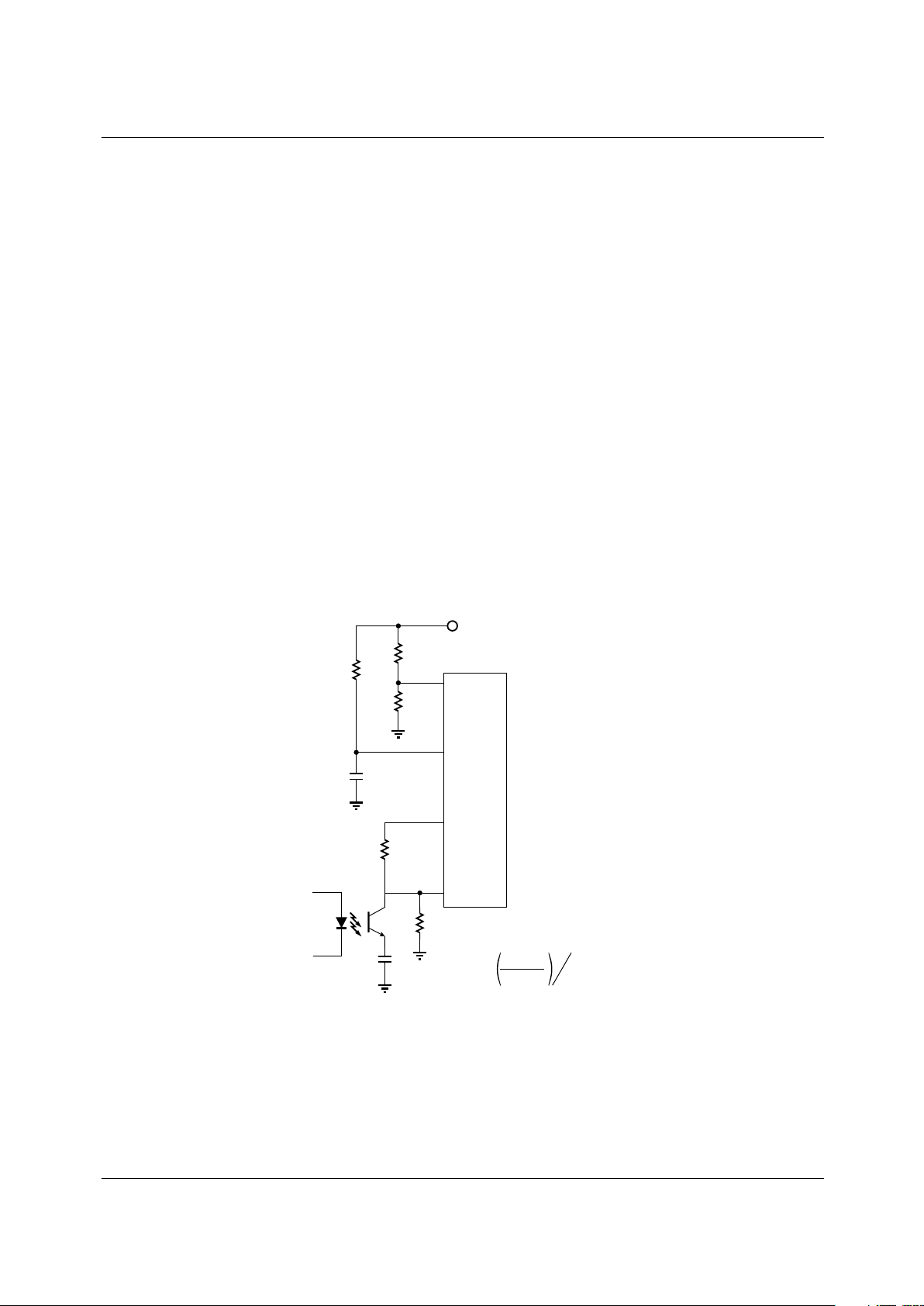

Figure 3. ML4827-PWM Duty Cycle Clamp for Voltage-Made Operation
RAMP2
V
DC
V
FB
PFC V
BUSS
R
FB1
R
RAMP2
C
RAMP2
R
FB2
R1
PWM
ERROR
AMP
R2
V
REF
δ
MAX
= V
RAMP2 (PEAK)
R2 V
REF
R1 + R
2
Page 12
ML4827 PRODUCT SPECIFICATION
12 REV. 1.0.1 6/27/01
Using the recommended values of δ
MIN
= 60% and δ
MAX
=
64% for a high-δ application, a MOSFET switch with a
Drain-Source breakdown voltage of 900V, or in some cases
as low as 800V, can reliably be used. Such parts are readily
and inexpensively available from a number of vendors.
VIN OK Comparator
The V
IN
OK comparator monitors the DC output of the PFC
and inhibits the PWM if this voltage on V
FB
is less than its
nominal 2.5V. Once this voltage reaches 2.5V, which corresponds to the PFC output capacitor being charged to its rated
boost voltage, the soft-start begins.
PWM Control (RAMP 2)
When the PWM section is used in current mode, RAMP 2 is
generally used as the sampling point for a voltage representing the current in the primary of the PWM’s output transformer, derived either by a current sensing resistor or a
current transformer. In voltage mode, it is the input for a
ramp voltage generated by a second set of timing components (R
RAMP2
, C
RAMP2
), which will have a minimum value
of zero volts and should have a peak value of approximately
5V. In voltage mode operation, feedforward from the PFC
output buss is an excellent way to derive the timing ramp for
the PWM stage.
Soft Start
Start-up of the PWM is controlled by the selection of the
external capacitor at SS. A current source of 50µA supplies
the charging current for the capacitor, and start-up of the
PWM begins at 1.25V. Start-up delay can be programmed by
the following equation:
where CSS is the required soft start capacitance, and t
DELAY
is
the desired start-up delay.
It is important that the time constant of the PWM soft-start
allow the PFC time to generate sufficient output power for the
PWM section. The PWM start-up delay should be at least 5ms.
Solving for the minimum value of C
SS
:
Generating V
CC
The ML4827 is a current-fed part. It has an internal shunt
voltage regulator, which is designed to regulate the voltage
internal to the part at 13.5V. This allows a low power dissipation while at the same time delivering 10V of gate drive at
the PWM OUT and PFC OUT outputs. It is important to
limit the current through the part to avoid overheating or
destroying it. This can be easily done with a single resistor in
series with the V
CC
pin, returned to a bias supply of typically
18V to 20V. The resistor’s value must be chosen to meet the
operating current requirement of the ML4827 itself (19mA
max) plus the current required by the two gate driver outputs.
EXAMPLE:
With a V
BIAS
of 20V, a VCC limit of 14.6V (max) and the
ML4827 driving a total gate charge of 110nC at 100kHz
(e.g., 1 IRF840 MOSFET and 2 IRF830 MOSFETs), the
gate driver current required is:
To check the maximum dissipation in the ML4827, find the
current at the minimum V
CC
(12.4V):
The maximum allowable ICC is 55mA, so this is an acceptable design.
CSSt
DELAY
=
50µA
1.25V
----------------
×
(6)
CSS5ms=
50µA
1.25V
----------------
220nF≅×
I
GATEDRIVE
100kHz= 100nC× 11mA=
R
BIAS
20V 14.6V–
19mA 11mA+
--------------------------------------- 180 Ω==
(7)
(8)
I
CC
20V 12.4V–
180Ω
--------------------------------- 42.2 mA==
(9)

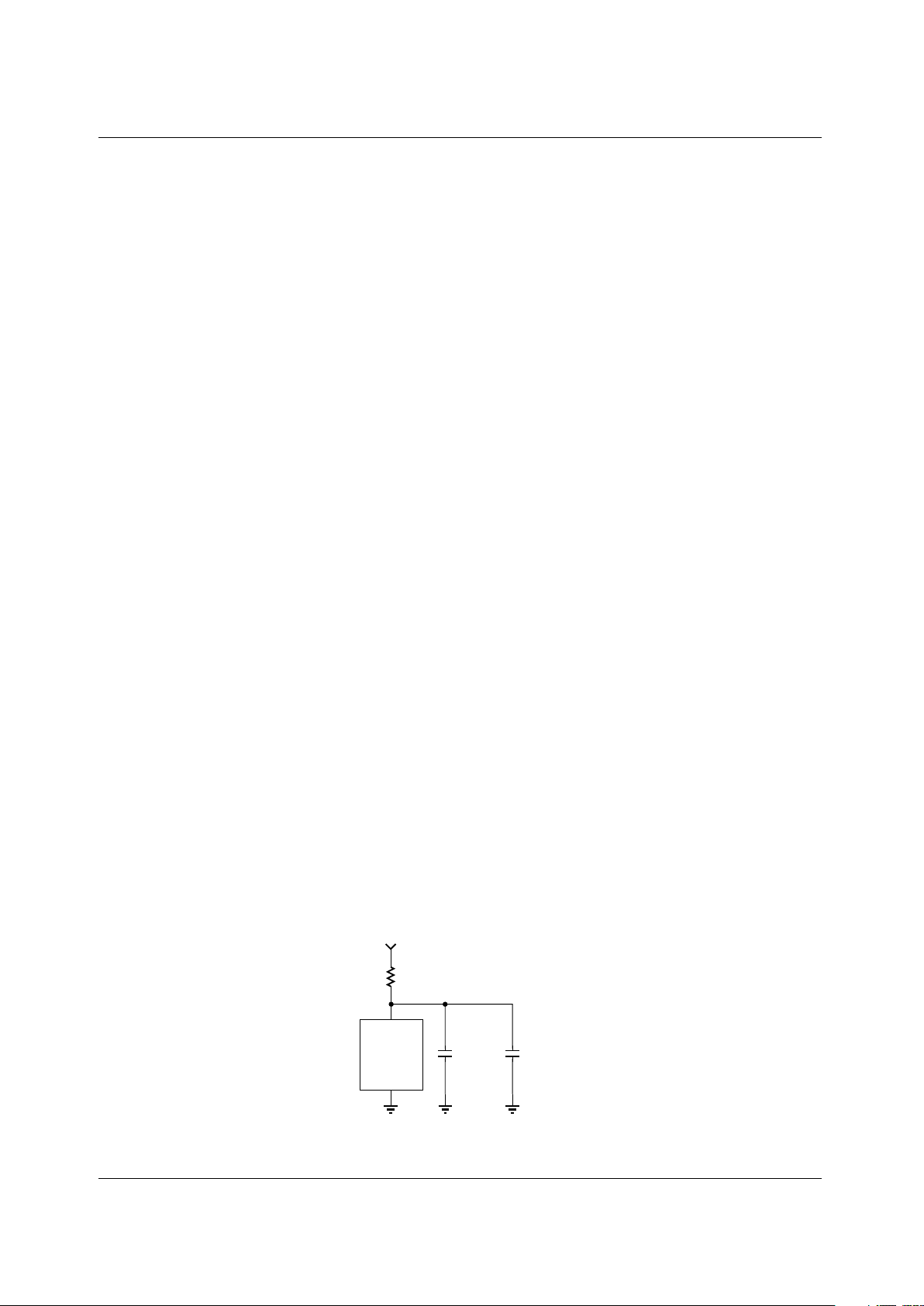

Figure 4. External Component Connections to V
CC
ML4827
V
CC
GND
V
BIAS
10nF
CERAMIC
1µF
CERAMIC
R
BIAS
Page 13
PRODUCT SPECIFICATION ML4827
REV. 1.0.1 6/27/01 13
The ML4827 should be locally bypassed with a 10nF and a
1µF ceramic capacitor. In most applications, an electrolytic
capacitor of between 100µF and 330µF is also required
across the part, both for filtering and as part of the start-up
bootstrap circuitry.
Leading/Trailing Modulation
Conventional Pulse Width Modulation (PWM) techniques
employ trailing edge modulation in which the switch will
turn on right after the trailing edge of the system clock. The
error amplifier output voltage is then compared with the
modulating ramp. When the modulating ramp reaches the
level of the error amplifier output voltage, the switch will be
turned OFF. When the switch is ON, the inductor current will
ramp up. The effective duty cycle of the trailing edge modu-

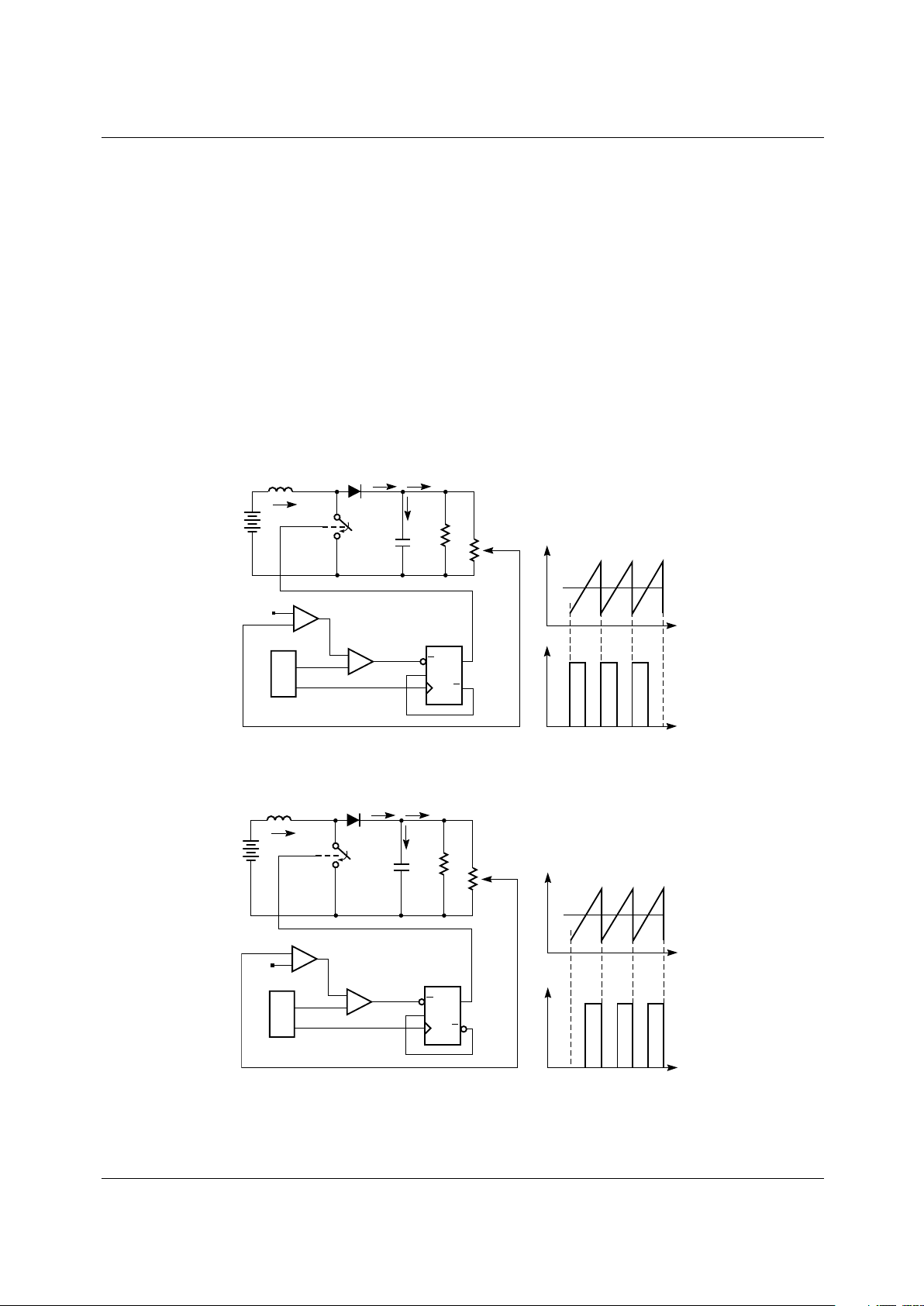

lation is determined during the ON time of the switch. Figure
5 shows a typical trailing edge control scheme.
In the case of leading edge modulation, the switch is turned
OFF right at the leading edge of the system clock. When the
modulating ramp reaches the level of the error amplifier output voltage, the switch will be turned ON. The effective
duty-cycle of the leading edge modulation is determined during the OFF time of the switch. Figure 6 shows a leading
edge control scheme.
One of the advantages of this control technique is that it
requires only one system clock. Switch 1 (SW1) turns off
and switch 2 (SW2) turns on at the same instant to minimize
the momentary “no-load” period, thus lowering ripple voltage generated by the switching action. With such
Figure 5. Typical Trailing Edge Control Scheme
Figure 6. Typical Leading Edge Control Scheme
RAMP
VEAO
TIME
VSW1
TIME
REF
EA
–
+
–
+
OSC
DFF
R
D
Q
Q
CLK
U1
RAMP
CLK
U4
U3
C1
RL
I4
SW2
SW1
+
DC
I1
I2
I3
VIN
L1
U2
REF
EA
–
+
–
+
OSC
DFF
R
D
Q
Q
CLK
U1
RAMP
CLK
U4
U3
C1
RL
I4
SW2
SW1
+
DC
I1
I2
I3
VIN
L1
VEAO
CMP
U2
RAMP
VEAO
TIME
VSW1
TIME
Page 14
ML4827 PRODUCT SPECIFICATION
14 REV. 1.0.1 6/27/01
synchronized switching, the ripple voltage of the first stage
is reduced. Calculation and evaluation have shown that the
120Hz component of the PFC’s output ripple voltage can be
reduced by as much as 30% using this method.
Typical Applications
Figure 7 is the application circuit for a complete 100W
power factor corrected power supply. This circuit was
designed using the methods and topology detailed in Application Note 33.
Figure 7. 100W Power Factor Corrected Power Supply, Designed Using Micro Linear Application Note 33
AC INPUT
85 TO 265VAC
C1
470nF
ML4827-1
F1
3.15A
R5
300mΩ
1W
BR1
4A, 600V
KBL06
D12
1N5401
D13
1N5401
R2A
357kΩ
R2B
357kΩ
R3
75kΩ
R4
13kΩ
R1A
499kΩ
R1B
499kΩ
R12
27kΩ
C6
1nF
C7
220pF
R11
750kΩ
C19
1µF
C2
470nF
R27
39kΩ
2W
C18
470pF
R6
41.2kΩ
R10
6.2kΩ
C11
10nF
C3
470nF
C30
330µF
R21
22Ω
C4
10nF
D1
8A, 600V,
15L9R460P2
C5
100µF
R14
33Ω
D10
1N5818
D8
1N5818
R7A
178kΩ
R7B
178kΩ
C12
10µF
D3
RGF1J
Q1
IRF840
Q2
IRF830
C13
100nF
C14
1µF
IEAO
I
AC
I
SENSE
V
RMS
SS
V
DC
RAMP 1
RAMP 2
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
VEAO
V
FB
V
REF
V
CC
PFC OUT
PWM OUT
GND
DC I
LIMIT
Q3
IRF830
R15
3Ω
C20
1µF
R28
180Ω
12VDC
L1
3.1mH
L2
33µH
C21
1800µF
C24
1µF
RTN
D11
MBR2545CT
D5
RGF1J
D6
RGF1J
C25
100nF
R17
33Ω
R30
4.7kΩ
D7
15V
R22
8.66kΩ
R25
2.26kΩ
R20
1.1Ω
C15
10nF
C16
1µF
C31
1nF
R8
2.37kΩ
C8
82nF
C9
8.2nF
C17
220pF
R19
220Ω
R23
1.5kΩ
10kΩ
R24
1.2kΩ
C22
4.7µF
LM431
R26
10kΩ
MOC
8102
C23
100nF
R18
220Ω
9W
T2
T1
L1: Premier Magnetics #TSD-734
L2: 33µH, 10A DC
T1: Premier Magnetics #TSD-736
T2: Premier Magnetics #TSD-735
Premier Magnetics: (714) 362-4211
Page 15
PRODUCT SPECIFICATION ML4827
REV. 1.0.1 6/27/01 15

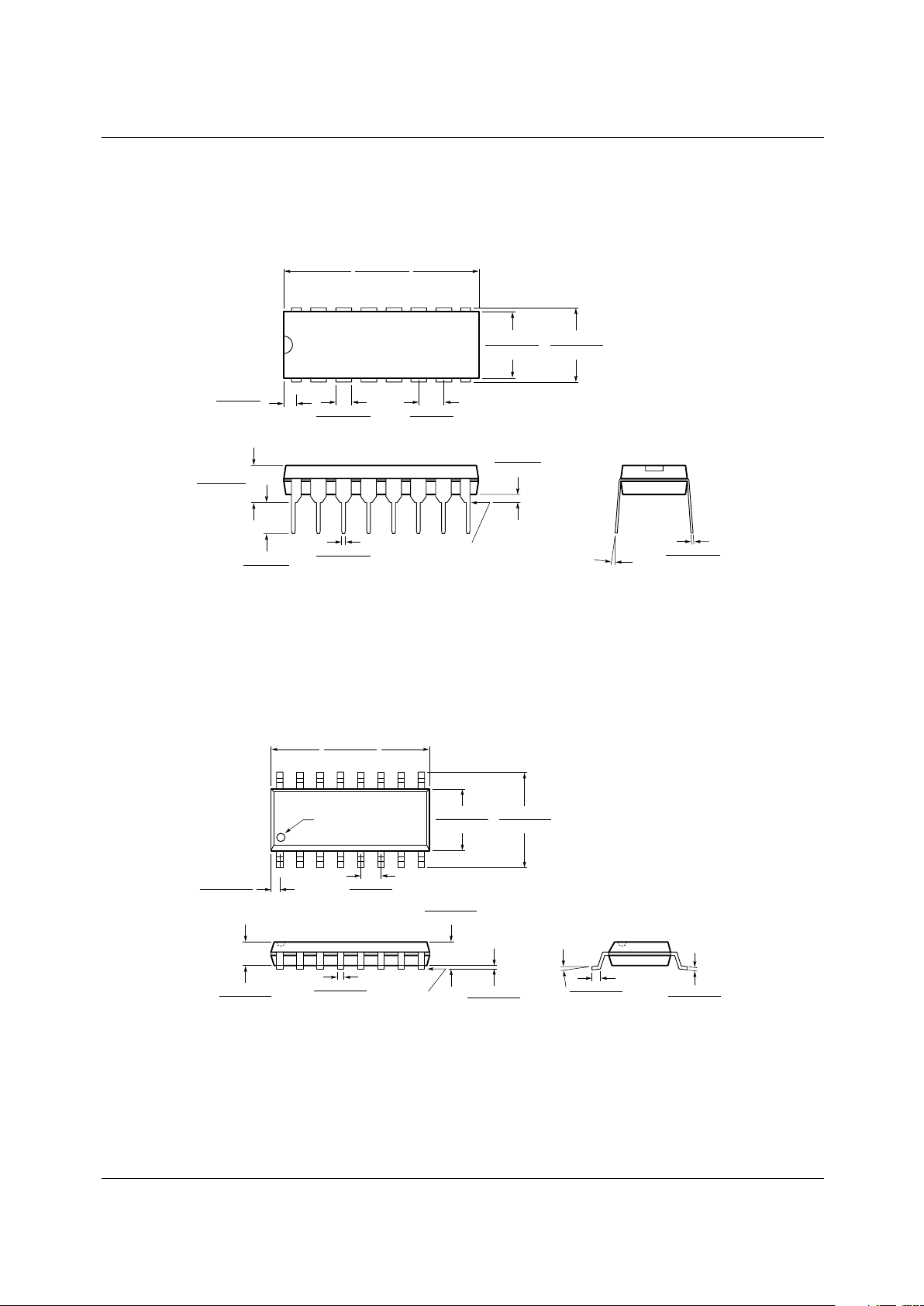

Mechanical Dimensions inches (millimeters)
SEATING PLANE
0.240 - 0.260
(6.09 - 6.61)
PIN 1 ID
0.295 - 0.325
(7.49 - 8.26)
0.740 - 0.760
(18.79 - 19.31)
0.016 - 0.022
(0.40 - 0.56)
0.100 BSC
(2.54 BSC)
0.008 - 0.012
(0.20 - 0.31)
0.015 MIN
(0.38 MIN)
16
0° - 15°
1
0.055 - 0.065
(1.40 - 1.65)
0.170 MAX
(4.32 MAX)
0.125 MIN
(3.18 MIN)
0.02 MIN
(0.50 MIN)
(4 PLACES)
Package: P16
16-Pin PDIP
SEATING PLANE
0.148 - 0.158
(3.76 - 4.01
)
PIN 1 I
D
0.228 - 0.244
(5.79 - 6.20
)
0.386 - 0.396
(9.80 - 10.06
)
0.012 - 0.020
(0.30 - 0.51
)
0.050 BSC
(1.27
BSC)
0.015 - 0.035
(0.38 - 0.89
)
0.059 - 0.069
(1.49 - 1.75
)
0.004 - 0.010
(0.10 - 0.26
)
0.055 - 0.061
(1.40 - 1.55
)
1
6
0.006 - 0.010
(0.15 - 0.26
)
0° - 8
°
1
0.017 - 0.027
(0.43 - 0.69)
(4
PLACES)
Package: S16N
16-Pin Narrow SOIC
Page 16
ML4827 PRODUCT SPECIFICATION
6/27/01 0.0m 003
Stock#DS30004841
© 2001 Fairchild Semiconductor Corporation
LIFE SUPPORT POLICY
FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES
OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF FAIRCHILD SEMICONDUCTOR
CORPORATION. As used herein:
1. Life support devices or systems are devices or systems
which, (a) are intended for surgical implant into the body,
or (b) support or sustain life, and (c) whose failure to
perform when properly used in accordance with
instructions for use provided in the labeling, can be
reasonably expected to result in a significant injury of the
user.
2. A critical component in any component of a life support
device or system whose failure to perform can be
reasonably expected to cause the failure of the life support
device or system, or to affect its safety or effectiveness.
www.fairchildsemi.com
DISCLAIMER
FAIRCHILD SEMICONDUCTOR RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE TO
ANY PRODUCTS HEREIN TO IMPROVE RELIABILITY, FUNCTION OR DESIGN. FAIRCHILD DOES NOT ASSUME
ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT OR CIRCUIT DESCRIBED HEREIN;
NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT RIGHTS, NOR THE RIGHTS OF OTHERS.
Ordering Information
Part Number Max Duty Cycle Temperature Range Package
ML4827CP-1 50% 0°C to 70°C 16-Pin PDIP (P16)
ML4827CP-2 74% 0°C to 70°C 16-Pin PDIP (P16)
ML4827CS-1 50% 0°C to 70°C 16-Pin Narrow SOIC (S16N)
ML4827CS-2 74% 0°C to 70°C 16-Pin Narrow SOIC (S16N)
ML4827IP-2 74% –40°C to 85°C 16-Pin PDIP (P16)
ML4827IS-2 74% –40°C to 85°C 16-Pin Narrow SOIC (S16N)
Loading...
