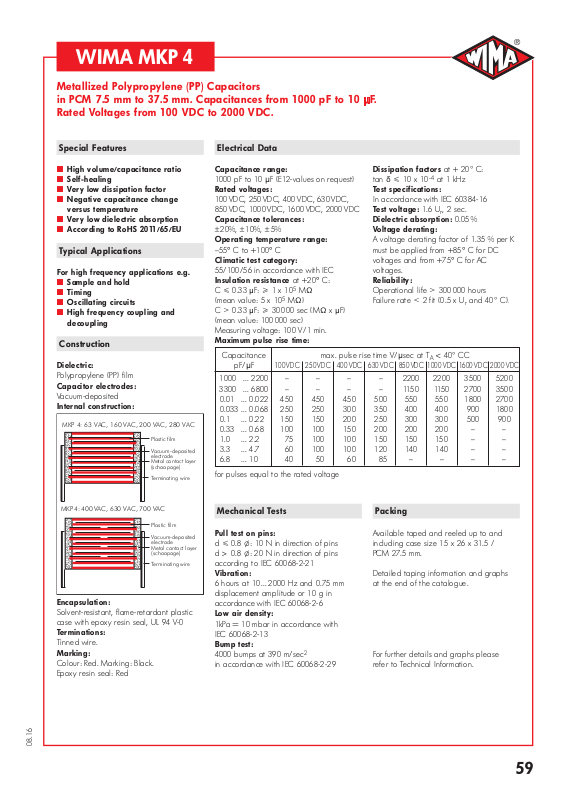

Page 1
WIMA MKP 4
Metallized Polypropylene (PP) Capacitors in PCM 7.5 mm to 37.5 mm. Capacitances from 1000 pF to 10 Rated Voltages from 100 VDC to 2000 VDC.
Special Features Electrical Data
D
mF.
˜ High volume/capacitance ratio ˜ Self-healing ˜ Very low dissipation factor ˜ Negative capacitance change
versus temperature
˜ Very low dielectric absorption ˜ According to RoHS 2011/65/EU
Typical Applications
For high frequency applications e.g.
˜ Sample and hold ˜ Timing ˜ Oscillating circuits ˜ High frequency coupling and
decoupling
Construction
Dielectric:
Polypropylene (PP) film
Capacitor electrodes:
Vacuum-deposited
Internal construction:
MKP4:63VAC,160 VAC, 200 VAC, 280 VAC
Plastic film
Vacuum-deposited electrode Metal contact layer (schoopage)
Terminating wire
Capacitance range:
1000 pF to 10 mF (E12-values on request)
Rated voltages:
100 VDC, 250 VDC, 400 VDC, 630 VDC, 850 VDC, 1000 VDC, 1600 VDC, 2000 VDC
Capacitance tolerances:
± 20%, ± 10%, ± 5%
Operating temperature range:
–55+ C to +100+ C
Climatic test category:
55/100/56 in accordance with IEC Insulation resistance at +20+ C: C 0.33
mF: U 1 x 10
(mean value: 5 x 10 C 0.33
mF: U 30 000 sec (M¸ x mF)
5
5
M¸)
M¸
Dissipation factors at + 20) C: tan
d 10 x 10
-4
at 1 kHz
Test specifications:
, 2 sec.
r
Dielectric absorption: 0.05 % Voltage derating:
A voltage derating factor of 1.35 % per K must be applied from +85+ C for DC voltages and from +75+ C for AC voltages.
Reliability:
Operational life 300 000 hours Failure rate 2 fit (0.5 x U
and 40) C).
r
(mean value: 100 000 sec) Measuring voltage: 100 V/1 min.
Maximum pulse rise time:
Capacitance max. pulse rise time V/msec at T pF/mF 1
00 VDC 250 VDC 400 VDC 630 VDC 850 VDC 1000 VDC 1600 VDC 2000 VDC
< 40) CC
A
1000 ... 2200 – – – – 2200 2200 3500 5200 3300 ... 6800 – – – – 1150 1150 2700 3500
0.01 ... 0.022 450 450 450 500 550 550 1800 2700
0.033 ... 0.068 250 250 300 350 400 400 900 1800
0.1 ... 0.22 150 150 200 250 300 300 500 900
0.33 ... 0.68 100 100 150 200 200 200 – –
1.0 ... 2.2 75 100 100 150 150 150 – –
3.3 ... 4.7 60 100 100 120 140 140 – –
6.8 ... 10 40 50 60 85 – – – –
for pulses equal to the rated voltage
MKP4:400 VAC, 630 VAC, 700 VAC
Encapsulation:
Solvent-resistant, flame-retardant plastic case with epoxy resin seal, UL 94 V-0
Terminations:
Tinned wire.
Marking:
Colour: Red. Marking: Black. Epoxy resin seal: Red
08.16
Plastic film
Vacuum-deposited electrode Metal contact layer (schoopage)
Terminating wire
Mechanical Tests
Pull test on pins:
d 0.8 d > 0.8 according to IEC 60068-2-21
Vibration:
6 hours at 10 ... 2000 Hz and 0.75 mm displacement amplitude or 10 g in accordance with IEC 60068-2-6
Low air density:
1kPa = 10 mbar in accordance with IEC 60068-2-13
Bump test:
4000 bumps at 390 m/sec in accordance with IEC 60068-2-29
l: 10 N in direction of pins l: 20 N in direction of pins
2
Packing
Available taped and reeled up to and including case size 15 x 26 x 31.5 / PCM 27.5 mm.
Detailed taping information and graphs at the end of the catalogue.
For further details and graphs please refer to Technical Information.
59
Page 2
WIMA MKP 4
pin
Continuation
General Data
Capacitance
mF 3 8.5 10
0.01
0.015 „ 3 8.5 10
0.022 „ 3 8.5 10
0.033 „ 3 8.5 10
0.047 „ 4 9 10
0.068 „ 4 9 10
mF 4.5 9.5 10.3
0.1
0.15 „ 5 10.5 10.3
0.22 „ 6 12 13 10 MKP4D032203G00_ _ _ _ 6 12 13 10 MKP4F032203G00_ _ _ _
0.33 „ 6 12.5 18 15 MKP4D033304C00_ _ _ _ 6 12.5 18 15 MKP4F033304C00_ _ _ _
0.47 „ 7 14 18 15 MKP4D034704D00_ _ _ _ 7 14 18 15 MKP4F034704D00_ _ _ _
0.68 „ 8 15 18 15 MKP4D036804F00_ _ _ _ 8 15 18 15 MKP4F036804F00_ _ _ _
mF 7 16.5 26.5 22.5 MKP4D041005D00_ _ _ _ 7 16.5 26.5 22.5 MKP4F041005D00_ _ _ _
1.0
1.5 „ 10.5 19 26.5 22.5 MKP4D041505G00_ _ _ _ 10.5 19 26.5 22.5 MKP4F041505G00_ _ _ _
2.2 „ 11 21 26.5 22.5 MKP4D042205I00_ _ _ _ 11 21 26.5 22.5 MKP4F042205I00_ _ _ _
3.3 „ 13 24 31.5 27.5 MKP4D043306D00_ _ _ _ 13 24 31.5 27.5 MKP4F043306D00_ _ _ _
4.7 „ 13 24 31.5 27.5 MKP4D044706D00_ _ _ _ 15 26 31.5 27.5 MKP4F044706F00_ _ _ _
6.8 „ 15 26 31.5 27.5 MKP4D046806F00_ _ _ _ 17 29 31.5 27.5 MKP4F046806G00_ _ _ _
mF 17 29 41.5 37.5 MKP4D051007E00
10
* AC voltages:
** PCM = Printed circuit module = pin spacing
W H L
4 9 13 10 MKP4D023303C00_ _ _ _ 4 9 13 10 MKP4F023303C00_ _ _ _
4 9 13 10 MKP4D024703C00_ _ _ _ 4 9 13 10 MKP4F024703C00_ _ _ _
4 9 13 10 MKP4D026803C
4 9 13 10 MKP4D031003C00_ _ _ _ 4 9 13 10 MKP4F031003C00_ _ _ _
5 11 13 10 MKP4D031503F00_ _ _ _ 5 11 13 10 MKP4F031503F00_ _ _ _
5 11 18 15 MKP4D032204B00_ _ _ _ 5 11 18 15 MKP4F032204B00_ _ _ _
6 15 26.5 22.5 MKP4D036805B
11 21 31.5 27.5 MKP4D042206B00_ _ _ _ 11 21 31.5 27.5 MKP4F042206B00_ _ _ _
13 24 41.5 37.5 MKP4D046807C
f 400 Hz; 1.4 x U
100 VDC/63 VAC* 250 VDC/160 VAC*
PCM** Part number W H L PCM** Part number
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
+ UDC  U
rms
MKP4D021002B00_ _ _ _ 3 8.5 10 MKP4D021502B00_ _ _ _ 3 8.5 10 MKP4D022202B00_ _ _ _ 3 8.5 10 MKP4D023302B00_ _ _ _ 3 8.5 10
MKP4D024702C00_ _ _ _ 4 9 10
MKP4D026802C00_ _ _ _ 4 9 10
00_ _ _ _
MKP4D031002D00_ _ _ _ 4.5 9.5 10.3
MKP4D031502E00_ _ _ _ 5 10.5 10.3
00_ _ _ _
00_ _ _ _
_ _ _ _
r
4 9 13 10 MKP4F026803C
6 15 26.5 22.5 MKP4F036805B
15 26 41.5 37.5 MKP4F046807D 19 32 41.5 37.5 MKP4F051007F00
7.5
MKP4F021002B00_ _ _ _
7.5
MKP4F021502B00_ _ _ _
7.5
MKP4F022202B00_ _ _ _
7.5
MKP4F023302B00_ _ _ _
7.5
MKP4F024702C00_ _ _ _
7.5
MKP4F026802C00_ _ _ _
7.5
MKP4F031002D00_ _ _ _
7.5
MKP4F031502E00_ _ _ _
00_ _ _ _
00_ _ _ _
00_ _ _ _
_ _ _ _
D
The high values and large box sizes according to main catalogue 2015 are still available on request.
Dims. in mm.
Rights reserved to amend design data without prior notification.
Continuation page 61
60
P d PCM W
0.5 7.5 = 3
0.6 7.5 U 4
0.6 10
0.8 15 - 27.5
1.0 37.5
Part number completion:
Tolerance: 20 % = M 10 % = K 5 % = J Packing: bulk = S Pin length: 6-2 = SD
Taped version see page 145.
04.16
Page 3
WIMA FKP 4
pin
WIMA MKP 4
Continuation
General Data
Capacitance
mF 3 8.5 10
0.01
0.015 „ 4 9 10
0.022 „ 4.5 9.5 10.3
0.033 „ 5 10.5 10.3
0.047 „ 5 10.5 10.3
0.068 „ 5.7 12.5 10.3
mF 6 12 13 10 MKP4G031003G00_ _ _ _ 7 14 18 15 MKP4J031004D00_ _ _ _
0.1
0.15 „ 6 12.5 18 15 MKP4G031504C00_ _ _ _ 8 15 18 15 MKP4J031504F00_ _ _ _
0.22 „ 7 14 18 15 MKP4G032204D00_ _ _ _ 9 16 18 15 MKP4J032204J00_ _ _ _
0.33 „ 8 15 18 15 MKP4G033304F00_ _ _ _ 8.5 18.5 26.5 22.5 MKP4J033305F00_ _ _ _
0.47 „ 7 16.5 26.5 22.5 MKP4G034705D00_ _ _ _ 10.5 19 26.5 22.5 MKP4J034705G00_ _ _ _
0.68 „ 8.5 18.5 26.5 22.5 MKP4G036805F
mF 11 21 26.5 22.5 MKP4G041005I00_ _ _ _ 13 24 31.5 27.5 MKP4J041006D00_ _ _ _
1.0
1.5 „ 11 21 31.5 27.5 MKP4G041506B00_ _ _ _ 15 26 31.5 27.5 MKP4J041506F00_ _ _ _
2.2 „ 15 26 31.5 27.5 MKP4G042206F00_ _ _ _ 17 29 41.5 37.5 MKP4J042207E00_ _ _ _
3.3 „ 17 29 31.5 27.5 MKP4G043306G00_ _ _ _ 19 32 41.5 37.5 MKP4J043307F00_ _ _ _
4.7 „ 19 32 41.5 37.5 MKP4G044707F00_ _ _ _ 20 39.5 41.5 37.5 MKP4J044707G00_ _ _ _
6.8 „ 20 39.5 41.5 37.5 MKP4G046807G
mF 24 45.5 41.5 37.5 MKP4G051007H
10
W H L
4 9 13 10 MKP4G021503C00_ _ _ _ 4 9 13 10 MKP4J021503C00_ _ _ _
4 9 13 10 MKP4G022203C00_ _ _ _ 4 9 13 10 MKP4J022203C00_ _ _ _
4 9 13 10 MKP4G023303C00_ _ _ _ 4 9 13 10 MKP4J023303C00_ _ _ _
5 11 13 10 MKP4G024703F00_ _ _ _ 5 11 13 10 MKP4J024703F00_ _ _ _
5 11 13 10 MKP4G026803F
5 11 18 15 MKP4G031004B00_ _ _ _
6 15 26.5 22.5 MKP4G033305B00_ _ _ _
11 21 31.5 27.5 MKP4G041006B00_ _ _ _
17 29 41.5 37.5 MKP4G043307E00_ _ _ _
400 VDC/220 VAC * 630 VDC/280 VAC *
PCM** Part number W H L PCM** Part number
7.5
MKP4G021002B00_ _ _ _ 3 8.5 10
4 9 13 10 MKP4J021003C00_ _ _ _
7.5
MKP4G021502C00_ _ _ _ 4 9 10
7.5
MKP4G022202D00_ _ _ _ 4.5 9.5 10.3
7.5
MKP4G023302E00_ _ _ _ 5 10.5 10.3
7.5
MKP4G024702E00_ _ _ _ 5.7 12.5 10.3
7.5
MKP4G026802F00_ _ _ _ 6 12 13 10 MKP4J026803G00_ _ _ _
00_ _ _ _
00_ _ _ _
00_ _ _ _
00_ _ _ _
6 12.5 18 15 MKP4J026804C
6 15 26.5 22.5 MKP4J031505B00_ _ _ _
7 16.5 26.5 22.5 MKP4J032205D00_ _ _ _
11 21 31.5 27.5 MKP4J034706B00_ _ _ _ 11 21 31.5 27.5 MKP4J036806B
24 45.5 41.5 37.5 MKP4J046807H 35 50 41.5 37.5 MKP4J051007J
7.5
MKP4J021002B00_ _ _ _
7.5
MKP4J021502C00_ _ _ _
7.5
MKP4J022202D00_ _ _ _
7.5
MKP4J023302E00_ _ _ _
7.5
MKP4J024702F00_ _ _ _
00_ _ _ _
00_ _ _ _
00_ _ _ _
00_ _ _ _
D
* AC voltages:
** PCM = Printed circuit module = pin spacing
The high values and large box sizes according to main catalogue 2015 are still available on request.
Dims. in mm.
Rights reserved to amend design data without prior notification.
Continuation page 62
04.16
f 400 Hz; 1.4 x U
+ UDC  U
rms
r
Part number completion:
Tolerance: 20 % = M 10 % = K
P d PCM W
0.5 7.5 = 3
0.6 7.5 U 4
0.6 10
0.8 15 - 27.5
1.0 37.5
5 % = J Packing: bulk = S Pin length: 6-2 = SD
Taped version see page 145.
61
Page 4
WIMA MKP 4
pin
Continuation
General Data
Capacitance
1000 pF 4 9 13 10 MKP4M011003C00_ _ _ _ 4 9 13 10 MKP4O111003C00_ _ _ _ 1500 „ 4 9 13 10 MKP4M011503C00_ _ _ _ 4 9 13 10 MKP4O111503C00_ _ _ _ 2200 „ 4 9 13 10 MKP4M012203C00_ _ _ _ 4 9 13 10 MKP4O112203C00_ _ _ _ 3300 „ 4 9 13 10 MKP4M013303C00_ _ _ _ 4 9 13 10 MKP4O113303C00_ _ _ _ 4700 „ 4 9 13 10 MKP4M014703C00_ _ _ _ 4 9 13 10 MKP4O114703C00_ _ _ _ 6800 „ 4 9 13 10 MKP4M016803C00
mF 5 11 13 10 MKP4M021003F00_ _ _ _ 5 11 13 10 MKP4O121003F00_ _ _ _
0.01
0.015 „ 5 11 13 10 MKP4M021503F00_ _ _ _ 5 11 13 10 MKP4O121503F00_ _ _ _
0.022 „ 5 11 18 15 MKP4M022204B00_ _ _ _ 5 11 18 15 MKP4O122204B00_ _ _ _
0.033 „ 6 12.5 18 15 MKP4M023304C00_ _ _ _ 6 12.5 18 15 MKP4O123304C00_ _ _ _
0.047 „ 7 14 18 15 MKP4M024704D00_ _ _ _ 7 14 18 15 MKP4O124704D00_ _ _ _
0.068 „ 8 15 18 15 MKP4M026804F00_ _ _ _ 8 15 18 15 MKP4O126804F00_ _ _ _
mF 9 16 18 15 MKP4M031004J00_ _ _ _ 9 16 18 15 MKP4O131004J00_ _ _ _
0.1
0.15 „ 8.5 18.5 26.5 22.5 MKP4M031505F00_ _ _ _ 8.5 18.5 26.5 22.5 MKP4O131505F00_ _ _ _
0.22 „ 11 21 26.5 22.5 MKP4M032205I00_ _ _ _ 11 21 26.5 22.5 MKP4O132205I00_ _ _ _
0.33 „ 11 21 31.5 27.5 MKP4M033306B00_ _ _ _ 11 21 31.5 27.5 MKP4O133306B00_ _ _ _
0.47 „ 13 24 31.5 27.5 MKP4M034706D00_ _ _ _ 13 24 31.5 27.5 MKP4O134706D00_ _ _ _
0.68 „ 17 29 31.5 27.5 MKP4M036806G00
mF 17 29 41.5 37.5 MKP4M041007E00_ _ _ _ 17 29 41.5 37.5 MKP4O141007E00_ _ _ _
1.0
1.5 „ 20 39.5 41.5 37.5 MKP4M041507G00_ _ _ _ 20 39.5 41.5 37.5 MKP4O141507G00_ _ _ _
2.2 „ 24 45.5 41.5 37.5 MKP4M042207H00_ _ _ _ 24 45.5 41.5 37.5 MKP4O142207H00_ _ _ _
3.3 „ 31 46 41.5 37.5 MKP4M043307I00_ _ _ _ 31 46 41.5 37.5 MKP4O143307I00_ _ _ _
4.7 „ 35 50 41.5 37.5 MKP4M044707J00
* AC voltages: f T 400 Hz; 1.4 x U
New values and range
** PCM = Printed circuit module = pin spacing
W H L
5 11 18 15 MKP4M021504B00_ _ _ _ 5 11 18 15 MKP4O121504B00_ _ _ _
6 15 26.5 22.5 MKP4M026805B00
7 16.5 26.5 22.5 MKP4M031005D00_ _ _ _ 7 16.5 26.5 22.5 MKP4O131005D00_ _ _ _
11 21 31.5 27.5 MKP4M032206B00_ _ _ _ 11 21 31.5 27.5 MKP4O132206B00_ _ _ _
850 VDC/400 VAC
PCM** Part number
+ UDC T U
rms
* 1000 VDC/400 VAC *
W H L
_ _ _ _
_ _ _ _
_ _ _ _
_ _ _ _
r
5 11 13 10 MKP4O116803F00
6 15 26.5 22.5 MKP4O126805B00
17 29 31.5 27.5 MKP4O136806G00
35 50 41.5 37.5 MKP4O144707J00
PCM** Part number
_ _ _ _
_ _ _ _
_ _ _ _
_ _ _ _
D
The high values and large box sizes according to main catalogue 2015 are still available on request.
Dims. in mm.
Rights reserved to amend design data without prior notification.
Continuation page 63
62
P d PCM W
0.5 7.5 = 3
0.6 7.5 U 4
0.6 10
0.8 15 - 27.5
1.0 37.5
Part number completion:
Tolerance: 20 % = M 10 % = K 5 % = J Packing: bulk = S Pin length: 6-2 = SD
Taped version see page 145.
08.16
Page 5
pin
WIMA MKP 4
Continuation
General Data
Capacitance
1000 pF 4 9 13 10 MKP4T011003C00_ _ _ _ 4 9 13 10 MKP4U011003C00_ _ _ _ 1500 „ 4 9 13 10 MKP4T011503C00_ _ _ _ 4 9 13 10 MKP4U011503C00_ _ _ _ 2200 „ 4 9 13 10 MKP4T012203C00_ _ _ _ 4 9 13 10 MKP4U012203C00_ _ _ _ 3300 „ 4 9 13 10 MKP4T013303C00_ _ _ _ 4 9 13 10 MKP4U013303C00_ _ _ _ 4700 „ 4 9 13 10 MKP4T014703C00_ _ _ _ 4 9 13 10 MKP4U014703C00_ _ _ _ 6800 „ 5 11 13 10 MKP4T016803F00_ _ _ _ 5 11 13 10 MKP4U016803F00_ _ _ _
mF 5 11 13 10 MKP4T021003F00_ _ _ _ 6 12.5 18 15 MKP4U021004C00_ _ _ _
0.01
0.015 „ 5 11 18 15 MKP4T021504B00_ _ _ _ 7 14 18 15 MKP4U021504D00_ _ _ _
0.022 „ 6 12.5 18 15 MKP4T022204C00_ _ _ _ 8 15 18 15 MKP4U022204F00_ _ _ _
0.033 „ 7 14 18 15 MKP4T023304D00_ _ _ _ 9 16 18 15 MKP4U023304J00_ _ _ _
0.047 „ 9 16 18 15 MKP4T024704J00_ _ _ _ 7 16.5 26.5 22.5 MKP4U024705D00_ _ _ _
0.068 „ 7 16.5 26.5 22.5 MKP4T026805D00_ _ _ _ 8.5 18.5 26.5 22.5 MKP4U026805F00_ _ _ _
mF 8.5 18.5 26.5 22.5 MKP4T031005F00_ _ _ _ 11 21 26.5 22.5 MKP4U031005I00_ _ _ _
0.1
* AC voltages: f 400 Hz; 1.4 x U
New ranges
** PCM = Printed circuit module = pin spacing
Dims in mm
W H L
6 15 26.5 22.5 MKP4T023305B00_ _ _ _ 6 15 26.5 22.5 MKP4U023305B00_ _ _ _
6 15 26.5 22.5 MKP4T024705B00_ _ _ _
1600 VDC/630 VAC
PCM** Part number
+ UDC  U
rms
* 2000 VDC/700 VAC *
W H L
5 11 18 15 MKP4U016804B00_ _ _ _
r
P d PCM W
0.5 7.5 = 3
0.6 7,5 U 4
0.6 10
0.8 15 - 27.5
1.0 37.5
PCM** Part number
Part number completion:
Tolerance: 20 % = M 10 % = K 5 % = J Packing: bulk = S Pin length: 6-2 = SD
Taped version see page 145.
D
Rights reserved to amend design data without prior notification.
Permissible AC voltage in relation to frequency at 10) C internal temperature rise (general guide).
08.16
63
Page 6
Recommendation for Processing
HS 2011/65/EU
and Application of Through-Hole Capacitors
Soldering Process
Internal temperature of the capacitor must be kept as follows:
Polyester: preheating: T soldering: T
Polypropylene: preheating: T soldering: T
Single wave soldering
Soldering bath temperature: T  260 ° C Dwell time: t 5 sec
Double wave soldering
Soldering bath temperature: T  260 ° C Dwell time: St 5 sec
T 125° C
max.
T 135° C
max.
T 100° C
max.
T 110° C
max.
D
Due to different soldering processes and heat requirements the graphs are to be regarded as a recommendation only.
WIMA Quality and Environmental Philosophy
ISO 9001:2008 Certification
ISO 9001:2008 is an international basic standard of quality assurance systems for all branches of industry. The approval according to ISO 9001:2008 of our facto­ries by the infaz (Institut für Auditierung und Zertifizierung) certifies that organisation, equipment and monitoring of quality assu­rance in our factories correspond to inter­nationally recognized standards.
WIMA WPCS
The WIMA Process Control System (WPCS) is a quality surveillance and optimization system developed by WIMA. WPCS is a major part of the quality-oriented WIMA production. Points of application during production process:
” incoming material inspection ” metallization ” film inspection ” schoopage ” pre-healing ” pin attachment ” cast resin preparation/
encapsulation
” 100% final inspection ” Testing as per customer requirements
WIMA Environmental Policy
All WIMA capacitors, irrespective of whether through-hole devices or SMD, are made of environmentally friendly materials. Neither during manufacture nor in the product itself any toxic sub­stances are used, e.g.
– Lead – PBB/PBDE – PCB – Arsenic – CFC – Cadmium – Hydrocarbon chloride – Mercury – Chromium 6+ – etc.
We merely use pure, recyclable materials for packing our components, such as:
” carton ” cardboard ” adhesive tape made of paper ” polystyrene
We almost completely refrain from using packing materials such as:
” foamed polystyrene (Styropor®) ” adhesive tapes made of plastic ” metal clips
RoHS Compliance
According to the RoHS Directive 2011/65/EU certain hazardous substances like e.g. lead, cadmium, mercury must not be used any longer in electronic equipment as of July 1st,
2006. For the sake of the environment WIMA has refraind from using such substances since years already.
WIMA Kondensatoren sind bleifrei
konform RoHS 2011/65/EU
WIMA capacitors are lead free
in accordance with Ro
Tape for lead-free WIMA capacitors
DIN EN ISO 14001:2004
WIMA’s environmental management has been established in accordance with the guidelines of DIN EN ISO 14001:2004 to optimize the production processes with regard to energy and resources.
04.16
15
Page 7
Vh
*PCM 27.5taping possiblewithtwo feed holesbetween components
Di
Typical Dimensions for Taping Configuration
P
1
1
H
H
0
W
D
P
P
2
2
W
t
Diagram 1: PCM2.5/5/7.5mm
P
P
1
1
W
W
D
0
F
P
0
d
P
1
P
1
H
H
d
P
0
agram 2: PCM10/15mm
d
F
P
0
P
2
P
2
F
Diagram3:PCM 22.5and 27.5*mm
Dimensions for Radial Taping
Designation Symbol PCM 2.5 taping PCM 5 taping PCM 7.5 taping PCM 10 taping* PCM 15 taping* PCM 22.5 taping PCM 27.5 taping
p0.5
Carrier tape width W 18.0
Hold-down tape width W
adhesive tape adhesive tape adhesive tape adhesive tape adhesive tape adhesive tape adhesive tape
Hole position W
6.0
0
9.0
1
18.0
for hot-sealing
p0.5
9.0
Hold-down tape position W2 0.5 to 3.0 max. 0.5 to 3.0 max. 0.5 to 3.0 max. 0.5 to 3.0 max. 0.5 to 3.0 max. 0.5 to 3.0 max. 0.5 to 3.0 max.
Feed hole diameter D
Pitch of component P 12.7
Feed hole pitch P0 12.7
Feed hole centre to pin
Hole centre to component centre
Feed hole centre to bottom H edge of the component
Feed hole centre to top edge of the component 32.25 max. 32.25 max. 24.5 to 31.5 25.0 to 31.5 26.0 to 37.0 30.0 to 43.0 35.0 to 45.0
Pin spacing at upper edge of carrier tape
Pin diameter d 0.4
4.0
p0.2
0
p1.0
p0.3 error max.
P
5.1
p0.5
1
P
6.35
p1.3
2
16.5
p0.3
p0.5
18.5
H+H
component
H
1
F 2.5
p0.5
p0.05
4.0
12.7
cumulative pitch
1.0 mm/20 pitch
3.85
6.35
16.5
18.5
< H1 H+H
5.0
0.5
Component alignment Dh p 2.0 max. p 2.0 max. p 3.0 max. p 3.0 max. p 3.0 max. p 3.0 max. p 3.0 max.
Total tape thickness t 0.7
ROLL/AMMO AMMO
Package (see also page 146)
p0.2
0.7
P 360 max.
REEL
P 30 p1 58 p2 comp. dimensions
Unit see details page 147.
Dims in mm.
„
Diameter of pins see General Data. Please clarify customer-specific deviations with the manufacturer.
* PCM 10 and PCM 15 can be crimped to PCM 7.5. Position of components according to PCM 7.5 (sketch 1). P
04.16
p0.5
18.0
for hot-sealing
6.0
p0.5
9.0
p0.2
4.0
p1.0
12.7
cumulative pitch
12.7
p0.3 error max.
1.0 mm/20 pitch
p0.7
2.6
p1.3
6.35
p0.3
16.5
p0.5
18.5
< H1 H+H
component
+0.8
7.5
–0.2
p0.05
p0.2
0.7
52 p2 depending on
B
= 12.7 or 15.0 is possible
0
p0.5
for hot-sealing
12.0
p0.5
p0.2
p1.0
12.7
p0.3 error max.
p0.7
p1.3
p0.5
p0.5
component
p0.8
+0.06 +0,06 +0,08 +0,08 +0.08
„
0.5
p0.05 or
p0.2
18.0
9.0
4.0
25.4
cumulative pitch
1.0 mm/20 pitch
7.7
12.7
16.5
18.5
< H1 H+H
10.0
0.6
–0.05
0.7
p0.5
18.0
for hot-sealing
12.0
p0.5
9.0
p0.2
4.0
p1.0
25.4
cumulative pitch
12.7
p0.3 error max.
1.0 mm/20 pitch
p0.7
5.2
p1.3
12.7
p0.5
16.5
p0.5
18.5
< H1 H+H
component
p0.8
15
„ 0.5
p0.05 or
0.6
0.8
–0.05
p0.2
0.7
52 p2 54 p2 depending
P 360 max. P 30 p1
B 58 p2
66 p2
REEL
p0.5
18.0
for hot-sealing
12.0
p0.5
9.0
p0.2
4.0
p1.0
38.1
cumulative pitch
12.7
p0.3 error max.
1.0 mm/20 pitch
p0.7
7.8
p1.3
19.05
p0.5
16.5
p0.5
18.5
component
p0.8
22.5
0.8
–0.05
p0.2
0.7
P 500 max.
or
REEL
P 25 p1
12.0
p0.5
p0.2
12.7
p0.7
< H1 H+H
–0.05
p0.2
B 60 p2 on PCM and
68 p2 component dimensions
p0.5
18.0
for hot-sealing
9.0
4.0
p1.5
3*8.1
cumulative pitch
p0.3 error max.
1.0 mm/20 pitch
5.3
p1.3
19.05
p0.5
16.5
p0.5
18.5
< H1 H+H
component
p0.8
27.5
0.8
0.7
p0.5
for hot-sealing
12.0
p0.5
p0.2
p1.5
12.7
p0.3 error max.
p0.7
p1.3
p0.5
p0.5
component
p0.8
–0.05
p0.2
or 50.8
cumulative pitch
1.0 mm/20 pitch
< H1
p1.5
145
Page 8
50 max. 70 max.
500 max.

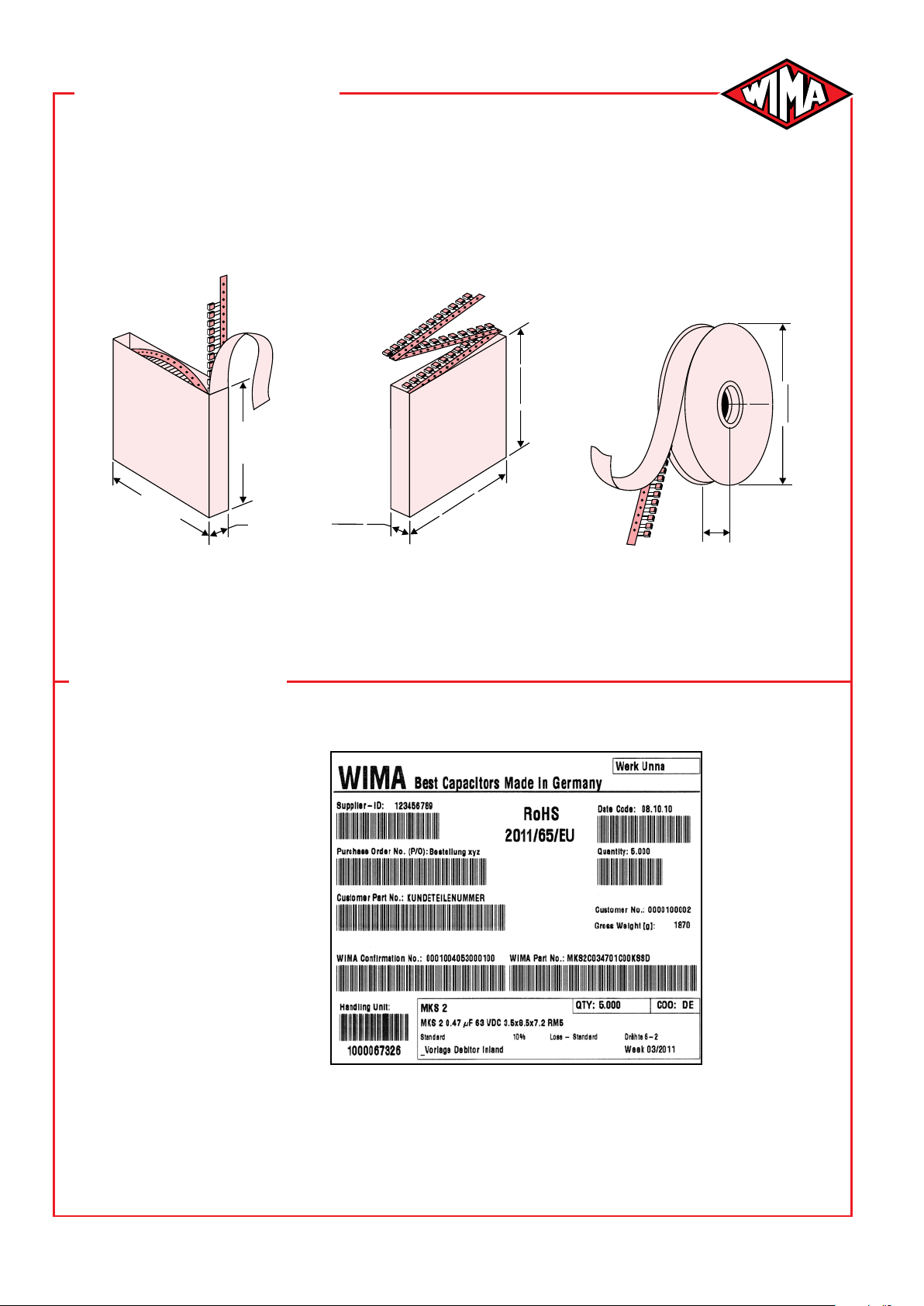

Types of Tape Packaging of Capacitors for Automatic Radial Insertion
˜ ROLL Packaging ˜ AMMO Packaging ˜ REEL Packaging
340 max.
370 max.
340 max.
30 1± 25 1±
D
360 max.
340 max.
50 max.
BAR CODE (Labelling)
Labelling of package units in plain text and with alphanumerical Bar Code
Scanner decoding of
„ WIMA supplier number „ Customer‘s P/O number „ Customer‘s part number „ WIMA confirmation number „ WIMA part number „ Lot number „ Date code „ Quantity
In addition part description of
– article – capacitance value – rated voltage – dimensions – capacitance tolerance – packing
as well as gross weight and customer‘s name are indicated in plain text.
340 max.
490 max.
B
BARCODE „Code 39”
04.16
146
Page 9
Packing Quantities for Capacitors with Radial Pins in PCM 2.5 mm to 22.5 mm
D
PCM
W H L Codes
2.5 7 4.6 3 7.5 4.6
2.5 mm
5 mm
7.5 mm
10 mm
15 mm
22.5 mm
* TPS (Tray-Packing-System). Plate versions may have different packing units. Moulded versions. Rights reserved to amend design data without prior notification.
Samples and pre-production needs on request.
3.8 8.5 4.6
4.6 9 4.6
5.5 10 4.6
2.5 6.5 7.2 3 7.5 7.2
3.5 8.5 7.2
4.5 6 7.2
4.5 9.5 7.2 5 10 7.2
5.5 7 7.2
5.5 11.5 7.2
6.5 8 7.2
7.2 8.5 7.2
7.2 13 7.2
8.5 10 7.2
8.5 14 7.2 11 16 7.2
2.5 7 10 3 8.5 10 4 9 10
4.5 9.5 10.3 5 10.5 10.3
5.7 12.5 10.3
7.2 12.5 10.3 3 9 13 4 8.5 13.5
4 9 13 4 9.5 13 5 10 13.5 5 11 13 6 12 13 6 12.5 13 8 12 13
5 11 18 5 13 19 6 12.5 18 6 14 19 7 14 18 7 15 19 8 15 18 8 17 19 9 14 18 9 16 18 10 18 19
11 14 18 5 14 26.5 6 15 26.5
7 16.5 26.5 8 20 28
8.5 18.5 26.5 10 22 28
10.5 19 26.5
10.5 20.5 26.5 11 21 26.5 12 24 28
Size
0B 0C 0D 0E 0F 1A 1B 1C 1D 1E 1F 1G 1H 1I 1J 1K 1L 1M 1N 2A 2B 2C 2D 2E 2F 2G 3A FA 3C 3D FB 3F 3G 3H 3I 4B FC 4C FD 4D FE 4F FF 4H 4J FG 4M 5A 5B 5D FH 5F FI 5G 5H 5I FJ
bulk
S N O F I H J A C B D
5000 5000 2000 2300 – 2300 – 5000 1500 1800 – 1800 – 5000 1200 1500 – 1500 – 5000 5000 5000 2000 2300 – 2300 – 5000 1600 2000 – 2000 – 6000 1300 1500 – 1500 – 4000 1300 1500 – 1500 – 3500 1100 1400 – 1400 – 4000 1000 1200 – 1200 – 2500 1000 1200 – 1200 – 2500 800 1000 – 1000 – 2500 700 1000 – 1000 – 2000 700 950 – 1000 – 2000 600 800 – 800 – 1500 600 800 – 800 – 1000 5000 5000 – 2200 4300 2300 4150 4000 – 1700 3200 1700 3100 3500 – 1500 2900 1400 2700 3000 – 1300 2500 1300 – 2000 – 1000 2200 1100 – 1500 3000 3000 – 900 1600 – 1450 3000 – 900 1600 – 1450 3000 – 900 1600 – 1400 2000 – 700 1300 – 1200 3000 – 700 1300 – 1200 2400 – 550 1100 – 1000 2400 – 550 1100 – 1000 2000 2400 1000 – 600 1200 – 1200 2000 – 500 1000 – 1000 1000 – 500 1000 – 1000 1600 – 450 900 – 850 1000 – 450 900 – 850 1200 – 400 800 – 740 500 – 400 800 – 740 1200 – 350 700 – 650 900 – 350 700 – 650 500 – 300 650 – 590 1000 1200 1000 – – 700 – 640 760 – – 600 – 550 500 – – 500 – 480 500 – – 480 – 450
570* – – 420 – 380 594* – – 400 – 360 594* – – 400 – 360 561* – – 380 – 350 480*
ROLL REEL AMMO
H16.5 H18.5 H16.5 H18.5 H16.5 H18.5 H16.5 H18.5 H16.5 H18.5
2200 2500 – 2800 –
900 1200 – 1200 – 2200 2500 – 2800 –
500 600 – 400 –
– 2500 4400 2500 –
– 900 1800 1000 – – 1100 2200 – 1900
– 400 800 – 740 – 600 1200 – 1150
– 300 600 – 540 – – 800 – 770
– – 350 – 310
pcs. per packing unit
P 360 P 500 340 x 340 490 x 370
04.16
147
Page 10
Packing Quantities for Capacitors with Radial Pins in PCM 27.5 mm to 52.5 mm
PCM
27.5 mm
37.5 mm
48.5 mm
52.5 mm
W H L Codes
9 19 31.5 11 21 31.5
13 24 31.5 13 25 33 15 26 31.5 15 26 33 17 29 31.5 17 34.5 31.5 20 32 33 20 39.5 31.5
9 19 41.5 11 22 41.5 13 24 41.5 15 26 41.5 17 29 41.5 19 32 41.5 20 39.5 41.5 24 45.5 41.5 31 46 41.5 35 50 41.5 40 55 41.5
19 31 56 23 34 56 27 37.5 56 33 48 56 37 54 56
25 45 57 30 45 57 35 50 57 45 55 57 45 65 57
Size
6A 6B
6D FK 6F FL 6G 6I FM 6J
7A 7B 7C 7D 7E 7F 7G 7H 7I 7J 7K
8D 8E 8H 8J 8L
9D 9E 9F 9H 9J
bulk
S N O F I H J A C B D
567* 459* – – 380/280* – 350
378* – – 300 – 290 405* – – – – – 324* – – 324* – – – – – 198* – – – – – 198* – – – – – 162* – – – – – 162* – – – – –
441* – – – – – 357* – – – – – 294* – – – – – 252* – – – – – 154* – – – – – 140* – – – – – 126* – – – – –
11 2 * – – – – – 84* – – – – – 35* – – – – – 28* – – – – –
120* – – – – – 80* – – – – – 84* – – – – – 25* – – – – – 25* – – – – –
70* – – – – – 60* 25* 20* – – – – – 20* – – – – –
D
pcs. per packing unit
ROLL REEL AMMO
P 360 P 500 340 x 340 490 x 370
H16.5 H18.5 H16.5 H18.5 H16.5 H18.5 H16.5 H18.5 H16.5 H18.5
– – 460/340* – 420
270 – 250
* for 2-inch transport pitches. Moulded versions. Rights reserved to amend design data without prior notification.
* TPS (Tray-Packing-System). Plate versions may have different packing units.
Samples and pre-production needs on request.
Updated data on www.wima.com
04.16
148
Page 11
WIMA Part Number System
A WIMA part number consists of 18 digits and is composed as follows:
Field 1 - 4: Type description Field 5 - 6: Rated voltage Field 7 - 10: Capacitance Field 11 - 12: Size and PCM Field 13 - 14: Version code (e.g. Snubber versions) Field 15: Capacitance tolerance Field 16: Packing Field 17 - 18: Pin length (untaped)
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
M K S 2 C 0 2 1 0 0 1 A 0 0 M S S D
D
MKS 2 63 VDC
Type description: Rated voltage: Capacitance: Size: Tolerance:
SMD-PET = SMDT 50 VDC = B0 22 pF = 0022 4.8 x 3.3 x 3 Size 1812 = KA ±20 % = M SMD-PEN = SMDN 63 VDC = C0 47 pF = 0047 4.8 x 3.3 x 4 Size 1812 = KB ±10 % = K SMD-PPS = SMDI 100 VDC = D0 100 pF = 0100 5.7 x 5.1 x 3.5 Size 2220 = QA ±5 % = J FKP 02 = FKP0 250 VDC = F0 150 pF = 0150 5.7 x 5.1 x 4.5 Size 2220 = QB ±2.5 % = H MKS 02 = MKS0 400 VDC = G0 220 pF = 0220 7.2 x 6.1 x 3 Size 2824 = TA ±1 % = E FKS 2 = FKS2 450 VDC = H0 330 pF = 0330 7.2 x 6.1 x 5 Size 2824 = TB ... FKP 2 = FKP2 520 VDC = H2 470 pF = 0470 10.2 x 7.6 x 5 Size 4030 = VA FKS 3 = FKS3 600 VDC = I0 680 pF = 0680 12.7 x 10.2 x 6 Size 5040 = XA FKP 3 = FKP 3 630 VDC = J0 1000 pF = 1100 15.3 x 13.7 x 7 Size 6054 = YA MKS 2 = MKS2 700 VDC = K0 1500 pF = 1150 2.5 x 7 x 4.6 PCM 2.5 = 0B AMMO H16.5 340 x 340 = A MKP 2 = MKP2 800 VDC = L0 2200 pF = 1220 3 x 7.5 x 4.6 PCM 2.5 = 0C AMMO H16.5 490 x 370 = B MKS 4 = MKS4 850 VDC = M0 3300 pF = 1330 2.5 x 6.5 x 7.2 PCM 5 = 1A AMMO H18.5 340 x 340 = C MKP 4C = MKPC 900 VDC = N0 4700 pF = 1470 3 x 7.5 x 7.2 PCM 5 = 1B AMMO H18.5 490 x 370 = D MKP 4 = MKP4 1000 VDC = O1 6800 pF = 1680 2.5 x 7 x 10 PCM 7.5 = 2A REEL H16.5 360 = F MKP 10 = MKP1 1100 VDC = P0
FKP 1 = FKP1 1200 VDC = Q0 MKP-X2 = MKX2 1250 VDC = R0 MKP-X1 R = MKX1 1500 VDC = S0 MKP-Y2 = MKY2 1600 VDC = T0 MP 3-X2 = MPX2
MP 3-X1 = MPX1 2500 VDC = V0
MP 3-Y2 = MPY2 3000 VDC = W0
MP 3R-Y2 = MPRY 4000 VDC = X0
MKP 4F = MKPF 6000 VDC = Y0
Snubber MKP = SNMP 250 VAC = 0W
Snubber FKP = SNFP 275 VAC = 1W
GTO MKP = GTOM 300 VAC = 2W
DC-LINK MKP 3 = DCP3 305 VAC = AW
DC-LINK MKP 4 = DCP4 350 VAC = BW
DC-LINK MKP 4S = DCPS 440 VAC = 4W
DC-LINK MKP 5 = DCP5 500 VAC = 5W ...
DC-LINK MKP 6 = DCP6 ... Standard = 00 3.5 ±0.5 = C9 DC-LINK HC = DCHC Version A1 = 1A 6 -2 = SD DC-LINK HY = DCHY Version A1.1.1 = 1B 16 ±1 = P1
2000 VDC = U0
0.01 mF 2.5 x 6.5 x 7.2
0.01 mF
0.022 mF
0.047 mF
0.1 mF
0.22 mF
0.47 mF 1 mF
2.2 mF
4.7 mF 10 mF 22 mF 47 mF 100 mF 220 mF 1000 mF 1500 mF
= 2100 3 x 8.5 x 10 PCM 7.5 = 2B REEL H16.5 500 = H = 2220 3 x 9 x 13 PCM 10 = 3A REEL H18.5 360 = I = 2470 4 x 9 x 13 PCM 10 = 3C REEL H18.5 500 = J = 3100 5 x 11 x 18 PCM 15 = 4B ROLL H16.5 = N = 3220 6 x 12.5 x 18 PCM 15 = 4C ROLL H18.5 = O = 3470 5 x 14 x 26.5 PCM 22.5 = 5A BLISTER W12 180 = P = 4100 6 x 15 x 26.5 PCM 22.5 = 5B BLISTER W12 330 = Q = 4220 9 x 19 x 31.5 PCM 27.5 = 6A BLISTER W16 330 = R = 4470 11 x21 x 31.5 PCM 27.5 = 6B BLISTER W24 330 = T = 5100 9 x 19 x 41.5 PCM 37.5 = 7A Bulk/TPS Standard = S = 5220 11 x 22 x 41.5 PCM 37.5 = 7B ... = 5470 19 x 31 x 56 PCM 48.5 = 8D = 6100 25 x 45 x 57 PCM 52.5 = 9D = 6220 ... = 7100 = 7150
Version code: Pin length (untaped)
Version A2 = 2A ... ...
-
20 %
Packing:
Pin length (taped)
none = 00
bulk 6 -2
The data on this page is not complete and serves only to explain the part number system. Part number information is listed on the pages of the respective WIMA range.
04.16
143
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
