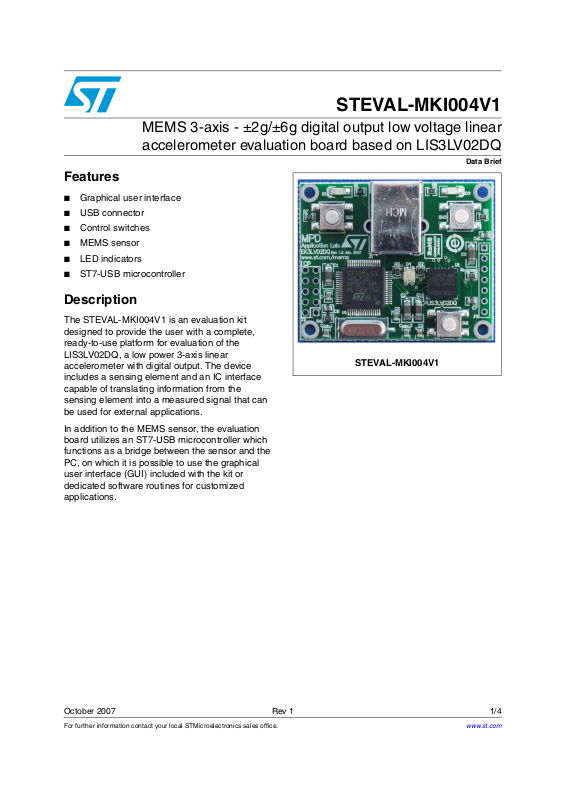

Datasheet MKI004V1 Datasheet (ST)

MEMS 3-axis - ±2g/±6g digital output low voltage linear
accelerometer evaluation board based on LIS3LV02DQ

Features

■ Graphical user interface

■ USB connector

■ Control switches

■ MEMS sensor

■ LED indicators

■ ST7-USB microcontroller

Description

The STEVAL-MKI004V1 is an evaluation kit
designed to provide the user with a complete,
ready-to-use platform for evaluation of the
LIS3LV02DQ, a low power 3-axis linear
accelerometer with digital output. The device
includes a sensing element and an IC interface
capable of translating information from the
sensing element into a measured signal that can
be used for external applications.

STEVAL-MKI004V1

Data Brief

STEVAL-MKI004V1

In addition to the MEMS sensor, the evaluation
board utilizes an ST7-USB microcontroller which
functions as a bridge between the sensor and the
PC, on which it is possible to use the graphical
user interface (GUI) included with the kit or
dedicated software routines for customized
applications.

October 2007 Rev 1 1/4

For further information contact your local STMicroelectronics sales office.

www.st.com

4

Board schematic STEVAL-MKI004V1

1 Board schematic

Figure 1. Scheme

USB_B

J1

GND

DM

DP

V+

4

3

2

1

47n

C8

1K5

R6

220n

C9

10u

+

10u

C10

10K

R7

SW2

SW3

cs_pad

10K

R8

dat a_ready

Vddf

miso
mosi
sck

4u7

C3

+

100n

C6

16

15

14

13

PB5

PB4

PB3

PB2

17

PB6

18

PB7

19

PA 0

20

PA 1

21

PA 2

22

PA 3

23

PA 4

24

PA 5

25

PA 6

26

PA 7

27

SS

28

MISO

29

MOSI

30

SCK

31

Vdd1

32

Vss1

PC7

PC6

PC5

PC4

36

35

34

33

CS2

VCC

CS1

Vddf

Rled

Gled

12

11

10

9

8

7

6

5

4

3

2

PB1

PB0

PE7

PE6

PE5

OCM P1

PD3

PD2

PD1

PD0

41

40

39

38

37

1

Vssf

Vddf

UV dd

UV cc

UDP

UDM

UV ss

64

OSCOU T

oscout

63

OSCIN

oscin

62

V ss2

61

Vssa

60

Vdda

59

Vdd2

iccdata

58

ICCDATA

Vpp/ICCSEL

OCM P2

AIN6

AIN5

AIN4

AIN3

AIN2

46

45

44

43

42

ICCCL K

USBEN

RESET

PWM 0

PWM 1

48

47

AIN1

AIN0

SDA

SCL

iccclk

57

56

55

54

53

52

51

nRESET

iccsel

50

49

ST7265X_TQFP64

U2

C1

VCC

+

100n

C4

4u7

C2

+

100n

C5

D1

180R

R1

8

NC

9

SDO

10

SDA / SD I / SDO

11

Vdd_IO

12

SCL/ SPC

13

CS

14

NC

D4

100R

GR

data_r eady

NC

NC

R2

Vddf

100R

R3

D3

100R

R5

Vddf

7

6

5

4

3

2

1

RDY/I NT

GND

Reserved

Vdd

GND

NC

28

NC

27

NC

26

NC

25

NC

24

NC

23

NC

22

Reserved

Reserved

NC

GND

Vdd

NC

CK

21

20

19

18

17

16

15

LIS3LV02DQ

U1

Vddf

33p

Cosc1

SPI

J3

CS2
CS1

7

6

sck

5

mi so

4

mosi

3

dat a_ready

2

cs_pad

1

VCC

TP1

ICP

10K

Riccsel

NReset

100n

J2

9

7

5

3

1

10

8

6

4

2

nRESET

iccsel

ic cdat a

iccclk

SW1

C7

osci n oscout

12M H z

Yoscm1

33p

Cosc2

miso

Vddf

mosi

sck
cs_pad

RledGled

2/4

STEVAL-MKI004V1 Revision history

2 Revision history

Table 1. Document revision history

Date Revision Changes

16-Oct-2007 1 Initial release

3/4

STEVAL-MKI004V1
