MK2772-01
ICRO
C
LOCK
Description

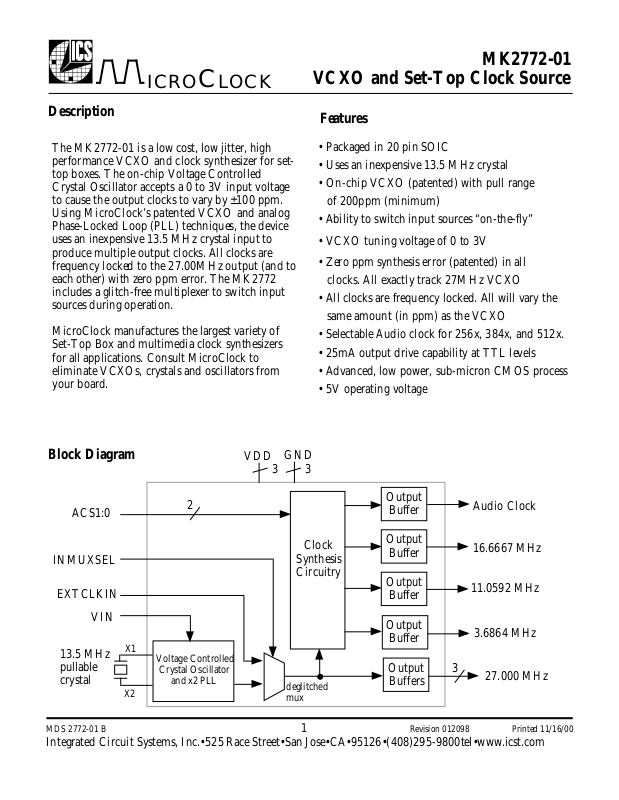

The MK2772-01 is a low cost, low jitter, high
performance VCXO and clock synthesizer for settop boxes. The on-chip Voltage Controlled
Crystal Oscillator accepts a 0 to 3V input voltage
to cause the output clocks to vary by ±100 ppm.
Using MicroClock’s patented VCXO and analog
Phase-Locked Loop (PLL) techniques, the device
uses an inexpensive 13.5 MHz crystal input to
produce multiple output clocks. All clocks are
frequency locked to the 27.00MHz output (and to
each other) with zero ppm error. The MK2772
includes a glitch-free multiplexer to switch input
sources during operation.
MicroClock manufactures the largest variety of
Set-Top Box and multimedia clock synthesizers
for all applications. Consult MicroClock to
eliminate VCXOs, crystals and oscillators from
your board.
VCXO and Set-Top Clock Source
Features
• Packaged in 20 pin SOIC
• Uses an inexpensive 13.5 MHz crystal
• On-chip VCXO (patented) with pull range
of 200ppm (minimum)
• Ability to switch input sources “on-the-fly”
• VCXO tuning voltage of 0 to 3V
• Zero ppm synthesis error (patented) in all
clocks. All exactly track 27MHz VCXO
• All clocks are frequency locked. All will vary the
same amount (in ppm) as the VCXO
• Selectable Audio clock for 256x, 384x, and 512x.
• 25mA output drive capability at TTL levels
• Advanced, low power, sub-micron CMOS process
• 5V operating voltage
Block Diagram
ACS1:0
INMUXSEL
EXTCLKIN
VIN
13.5 MHz
pullable
crystal
MDS 2772-01 B 1 Revision 012098 Printed 11/16/00
Integrated Circuit Systems, Inc.•525 Race Street•San Jose•CA•95126•(408)295-9800tel•www.icst.com
X1
Voltage Controlled
X2
2
Crystal Oscillator
and x2 PLL
VDD
GND
33
Clock
Synthesis
Circuitry
deglitched
mux
Output
Buffer
Output
Buffer
Output
Buffer
Output
Buffer
Output
Buffers
Audio Clock
16.6667 MHz
11.0592 MHz
3.6864 MHz
3
27.000 MHz
Page 2
MK2772-01
Pin Assignment
ACS1
X2
X1
VDD
VIN
VDD
GND
16.67M
1
2
3
4
5
6
7
8
93.68M
10
ICRO
20
19
18
17
16
15
14
13
12
11
C
LOCK
ACS0
EXTCLKIN
27M
GND
27M
VDD
GND
27M
11.06M
INMUXSELACLK
VCXO and Set-Top Clock Source
Audio Clock Select
ACS1 ACS0 ACLK (MHz)
0 0 8.192
0 M 16.384
0 1 11.2896
M 0 16.9344
M M 22.5792
M 1 18.432
1 0 12.288
1 M 24.576
1 1 5.6448
Input Source Select
INMUXSEL 27 MHz Input
0 EXTCLKIN
1 Internal VCXO
Pin Descriptions
Number Name Type Description
1 ACS1 TI Audio Clock Select 1. Determines ACLK frequency, as per table above.
2 X2 X Crystal connection. Connect to a pullable 13.5 MHz crystal.
3 X1 X Crystal connection. Connect to a pullable 13.5 MHz crystal.
4 VDD P Connect to +5V, and other VDDs.
5 VIN VI Voltage Input to VCXO. Zero to 3V signal which controls the frequency of the VCXO.
6 VDD P Connect to +5V.
7 GND P Connect to ground.
8 16.67M O 16.6667 MHz processor clock output.
9 3.68M O 3.6864 MHz clock output.
10 ACLK O Audio Clock Output determined by ACS1,0. Per table above.
11 INMUXSEL I Input Multiplexer Select. Selects either the internal VCXO/PLL output, or the clock on pin 19.
12 11.06M O 11.0592 MHz clock output.
13 27M O 27.00 MHz clock output.
14 GND P Connect to ground.
15 VDD P Connect to +5V.
16 27M O 27.00 MHz clock output.
17 GND P Connect to ground.
18 27M O 27.00 MHz clock output.
19 EXTCLKIN I External Clock Input. Connect an external 27 MHz clock to this pin for glitch free switching.
20 ACS0 TI Audio Clock Select 0. Determines ACLK frequency, as per table above.
Key: I = Input, TI = tri-level input, VI = VCXO input, O = output, P = power supply connection, X = crystal connection
MDS 2772-01 B 2 Revision 012098 Printed 11/16/00
Integrated Circuit Systems, Inc.•525 Race Street•San Jose•CA•95126•(408)295-9800tel•www.icst.com
Page 3
MK2772-01
ABSOLUTE MAXIMUM RATINGS (note 1)
DC CHARACTERISTICS (VDD = 5.0V unless noted)
AC CHARACTERISTICS (VDD = 5.0V unless noted)
exposure to levels above the operating limits but below the Absolute Maximums may affect device reliability.
2. With ACLK at 12.288 MHz.
3. With a recommended crystal.
ICRO
C
LOCK
VCXO and Set-Top Clock Source
Electrical Specifications
Parameter Conditions Minimum Typical Maximum Units
Supply voltage, VDD Referenced to GND 7 V
Inputs and Clock Outputs Referenced to GND -0.5 VDD+0.5 V
Ambient Operating Temperature 0 70 °C
Soldering Temperature Max of 10 seconds 260 °C
Storage temperature -65 150 °C
Operating Voltage, VDD 4.75 5.25 V
Input High Voltage, VIH, X1 pin only 3.5 2.5 V
Input Low Voltage, VIL, X1 pin only 2.5 1.5 V
Input High Voltage, VIH ACS1, ACS0 VDD-0.5 V
Input High Voltage, VIH INMUXSEL 2 V
Input Low Voltage, VIL 0.8 V
Output High Voltage, VOH IOH=-25mA 2.4 V
Output Low Voltage, VOL IOL=25mA 0.4 V
Output High Voltage, VOH, CMOS level IOH=-8mA VDD-0.4 V
Operating Supply Current, IDD No Load, note 2 45 mA
Pull-up Resistor value pin 11 only 250k Ω
Input Capacitance 7 pF
Frequency synthesis error All clocks as shown 0 1 ppm
VIN, VCXO control voltage 0 3 V
Input Crystal Frequency 13.50000 MHz
Input Crystal Accuracy ±30 ppm
Output Clock Rise Time 0.8 to 2.0V 1.5 ns
Output Clock Fall Time 2.0 to 0.8V 1.5 ns
Output Clock Duty Cycle At 1.4V 40 60 %
Maximum Absolute Jitter, short term 300 ps
27 MHz output pullability, note 3 0V VIN 3V ±100 ppm
Notes: 1. Stresses beyond those listed under Absolute Maximum Ratings could cause permanent damage to the device. Prolonged
≤≤
External Components/Crystal Selection
The MK2772-01 requires a minimum number of external components for proper operation. Decoupling capacitors of 0.1µF
should be connected between VDD (pin 15) and GND (14), and between VDD (4) and GND (7), as close to the MK2772-01 as
possible. A series termination resistor of 33Ω may be used for each clock output. The input crystal must be connected as close to the
chip as possible. The 13.5 MHz input crystal should be a parallel mode, pullable, AT cut with 14.0pF load capacitance. See
Application Note MAN05 for more details on crystal selection and layout. Recommended crystal is from Ecliptek Corporation,
P/N ECX-4665-13.500M. Contact Ecliptek at 714 433 1200tel, 714 433 1234fax.
MDS 2772-01 B 3 Revision 012098 Printed 11/16/00
Integrated Circuit Systems, Inc.•525 Race Street•San Jose•CA•95126•(408)295-9800tel•www.icst.com
Page 4
MK2772-01
Inches
Millimeters
ICRO
C
LOCK

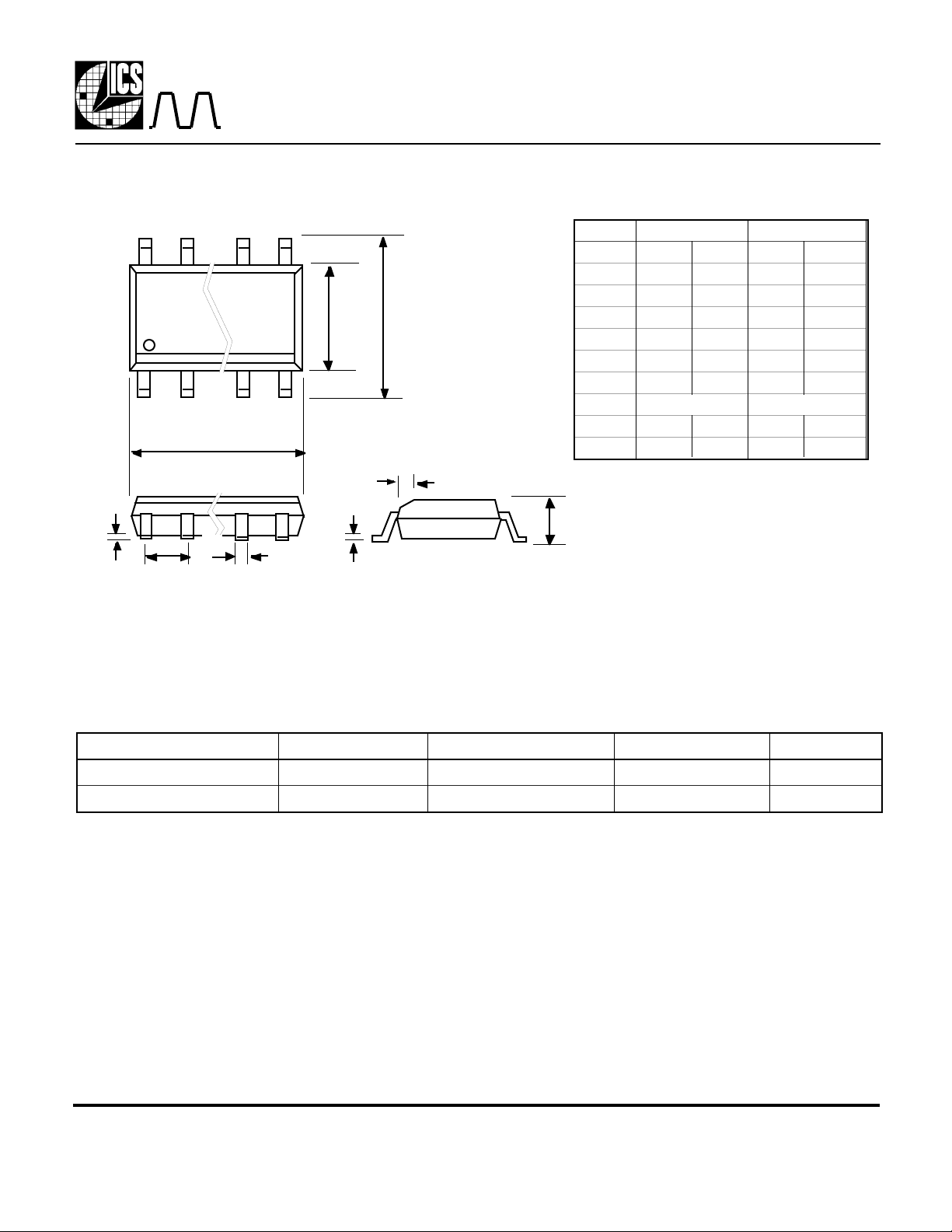

Package Outline and Package Dimensions
E H
h x 45°
D
Q
e
b
c
VCXO and Set-Top Clock Source
20 pin SOIC
Symbol Min Max Min Max
A 0.092 0.104 2.3368 2.6416
b 0.014 0.019 0.356 0.483
c 0.009 0.012 0.229 0.305
D 0.490 0.512 12.446 13.005
E 0.290 0.300 7.366 7.620
H 0.394 0.419 10.008 10.643
e
h 0.016 0.406
Q 0.003 0.011 0.076 0.279
A
Ordering Information
Part/Order Number Marking Shipping packaging Package Temperature
MK2772-01S MK2772-01S tubes 20 pin SOIC 0-70°C
MK2772-01STR MK2772-01S tape and reel 20 pin SOIC 0-70°C
