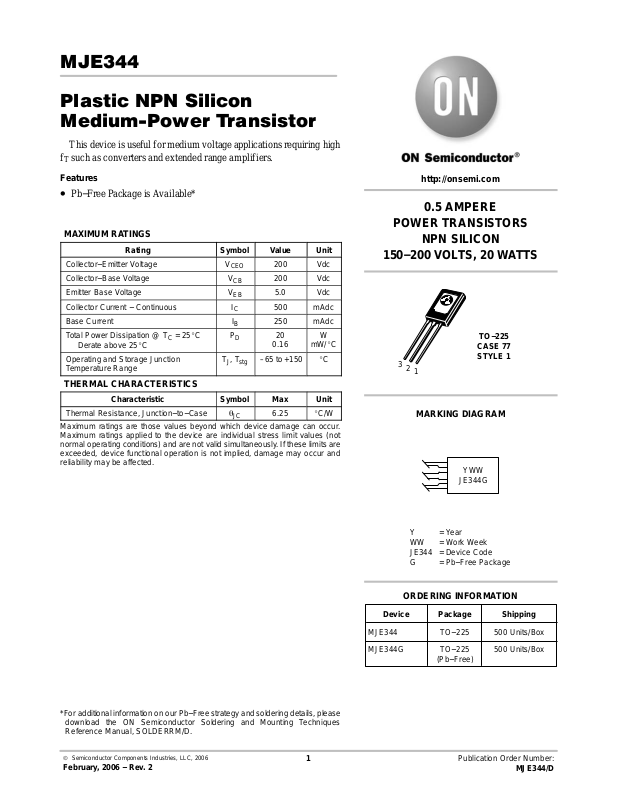

Page 1

MJE344

Plastic NPN Silicon Medium−Power Transistor

This device is useful for medium voltage applications requiring high

fT such as converters and extended range amplifiers.

Features

• Pb−Free Package is Available*

MAXIMUM RATINGS

Rating Symbol Value Unit

Collector−Emitter Voltage Collector−Base Voltage Emitter Base Voltage Collector Current − Continuous Base Current Total Power Dissipation @ TC = 25_C

Derate above 25_C

Operating and Storage Junction Temperature Range

ООООООООО

THERMAL CHARACTERISTICS

Characteristic Symbol Max Unit

Thermal Resistance, Junction−to−Case

Maximum ratings are those values beyond which device damage can occur. Maximum ratings applied to the device are individual stress limit values (not normal operating conditions) and are not valid simultaneously. If these limits are exceeded, device functional operation is not implied, damage may occur and reliability may be affected.

CEO

TJ, T

stg

ÎÎ

200 200

5.0 500 250

0.16

–65 to +150

ÎÎ

6.25

Vdc Vdc

Vdc mAdc mAdc

mW/_C

_C/W

http://onsemi.com

0.5 AMPERE

POWER TRANSISTORS

NPN SILICON

150−200 VOLTS, 20 WATTS

TO−225

CASE 77

MARKING DIAGRAM

STYLE 1

YWW

JE344G

*For additional information on our Pb−Free strategy and soldering details, please

download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D.

February, 2006 − Rev. 2

Y = Year WW = Work Week JE344 = Device Code G = Pb−Free Package

ORDERING INFORMATION

Device Package Shipping

MJE344 TO−225 500 Units/Box MJE344G

TO−225

(Pb−Free)

1 Publication Order Number:

500 Units/Box

MJE344/D

Page 2

MJE344

ELECTRICAL CHARACTERISTICS (T

Characteristic

OFF CHARACTERISTICS

Collector−Emitter Sustaining Voltage (IC = 1.0 mAdc, IB = 0) Collector Cutoff Current (VCE = 200 Vdc, IB = 0) Collector Cutoff Current (VCB = 200 Vdc, IE = 0) Emitter Cutoff Current (VEB = 5.0 Vdc, IC = 0)

ON CHARACTERISTICS

DC Current Gain (IC = 50 mAdc, VCE = 10 Vdc) Collector−Emitter Saturation Voltage (IC = 50 mAdc, IB = 5.0 mAdc) Base−Emitter On Voltage (IC = 50 mAdc, VCE = 10 Vdc)

DYNAMIC CHARACTERISTICS

Current−Gain − Bandwidth Product (IC = 50 mAdc, VCE = 25 Vdc, f = 10 MHz) Output Capacitance (VCB = 20 Vdc, IE = 0, f = 100 kHz) Small−Signal Current Gain (IC = 50 mAdc, VCE = 10 Vdc, f = 1.0 kHz)

1.0

0.5

TJ = 150°C

0.2

= 25_C unless otherwise noted)

500ms

a transistor: average junction temperature and second breakdown. Safe operating area curves indicate IC − V

ALL

1.0ms

ALL

limits of the transistor that must be observed for reliable operation; i.e., the transistor must not be subjected to greater

There are two limitations on the power handling ability of

dissipation then the curves indicate.

0.1

0.05

, COLLECTOR CURRENT (AMP) C

0.02

SECOND BREAKDOWN LIMIT BONDING WIRE LIMIT THERMAL LIMIT TC = 25°C

The data of Figure 1 is based on T variable depending on conditions. Second breakdown pulse limits are valid for duty cycles to 10% provided T v 150_C. At high case temperatures, thermal limitations will reduce the power that can be handled to values less then the limitations imposed by second breakdown.

0.01 10

Figure 1. Active Region Safe Operating Area

20 40 60 100 300

30 200

VCE, COLLECTOR−EMITTER VOLTAGE (VOLTS)

Symbol

CEO(sus)

CEO

CBO

EBO

CE(sat)

BE(on)

Min

200

−

Max

−

1.0

0.1

300

1.0

−

= 150_C; TC is

J(pk)

Unit

Vdc mAdc mAdc mAdc

− Vdc Vdc

MHz

−

J(pk)

, CURRENT GAIN

300

200

100

VOLTAGE (VOLTS)

1.0

0.8

0.6

0.4

0.2

@ IC/IB = 10

BE(sat)

VBE @ VCE = 10 V

@ IC/IB = 10

CE(sat)

TJ = +25°C

IC/IB = 5.0

IC, COLLECTOR CURRENT (mA)

100 300 500

Figure 3. “On” Voltages

VCE = 2.0 V VCE = 10 V

TJ = +150°C

+100°C

+25 °C

−55 °C

2.0

5.0 70 300 500

3.0 7.0 501.0 100 20 30 200 IC, COLLECTOR CURRENT (mA)

20 200

Figure 2. DC Current Gain

http://onsemi.com

Page 3

MJE344

TO−225

PACKAGE DIMENSIONS

CASE 77−09

ISSUE Z

−B−

−A−

132

2 PL

0.25 (0.010) B

NOTES:

1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982.

2. CONTROLLING DIMENSION: INCH.

3. 077−01 THRU −08 OBSOLETE, NEW STANDARD 077−09.

DIM MIN MAX MIN MAX

A 0.425 0.435 10.80 11.04 B 0.295 0.305 7.50 7.74 C 0.095 0.105 2.42 2.66 D 0.020 0.026 0.51 0.66 F 0.115 0.130 2.93 3.30 G 0.094 BSC 2.39 BSC H 0.050 0.095 1.27 2.41 J 0.015 0.025 0.39 0.63 K 0.575 0.655 14.61 16.63 M 5 TYP 5 TYP

Q 0.148 0.158 3.76 4.01 R 0.045 0.065 1.15 1.65 S 0.025 0.035 0.64 0.88 U 0.145 0.155 3.69 3.93 V 0.040 −−− 1.02 −−−

STYLE 1:

PIN 1. EMITTER

2. COLLECTOR

3. BASE

MILLIMETERSINCHES
