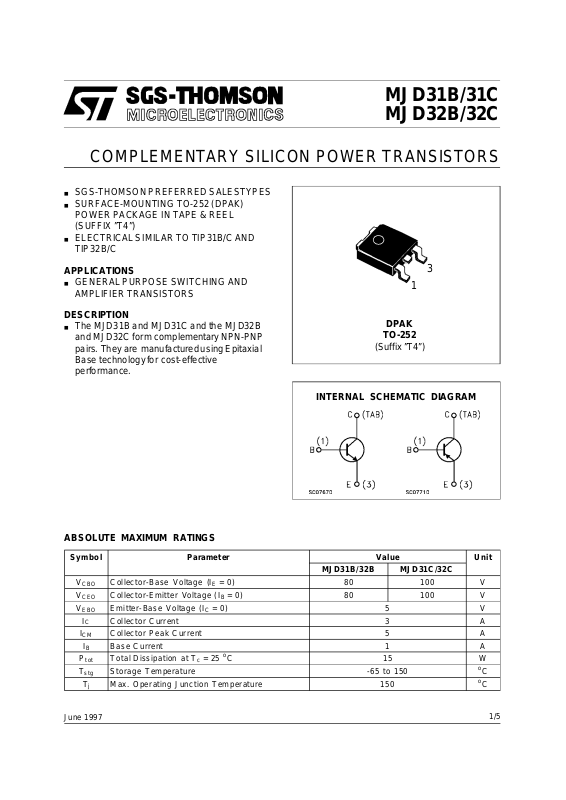

MJD31B/31C
MJD32B/32C
COMPLEMENTARY SILICON POWER TRANSISTORS
■ SGS-THOMSON PREFERRED SALESTYPES
■ SURFACE-MOUNTING TO-252 (DPAK)
POWERPACKAGEIN TAPE& REEL
(SUFFIX”T4”)
■ ELECTRICALSIMILARTO TIP31B/C AND
TIP32B/C
APPLICATIONS
■ GENERALPURPOSE SWITCHING AND
AMPLIFIERTRANSISTORS
DESCRIPTION
■ The MJD31Band MJD31Cand the MJD32B
and MJD32C form complementaryNPN-PNP
pairs. They are manufacturedusingEpitaxial
Base technologyfor cost-effective
performance.
ABSOLUTE MAXIMUM RATINGS
3
1
DPAK
TO-252
(Suffix ”T4”)
INTERNAL SCHEMATIC DIAGRAM
Symb o l Parameter Val u e Uni t
MJD31B/ 32 B MJD31C /3 2C
V
V
V
I
P
T
June 1997
Collect or- B as e Voltage (IE=0) 80 100 V
CBO
Collector-Emitter Voltage ( IB=0) 80 100 V
CEO
Emitter-Base Voltage (IC=0) 5 V
EBO
Collect or Current 3 A
I
C
Collect or Peak C urr ent 5 A
CM
Base Current 1 A
I
B
Tot al Diss ipa t ion at Tc=25oC15W
tot
Storage Temperature -65 to 150
stg
Max. Operat ing J unc t i on Tem per at u re 150
T
j
o
C
o
C
1/5
Page 2
MJD31B/31C- MJD32B/32C
THERMAL DATA
R
thj-case
R
thj-amb
Ther mal Resistance Junctio n-c as e Max
Ther mal Resistance Junctio n-am bien t Max
8.33
100
o
C/W
o
C/W
ELECTRICAL CHARACTERISTICS (T
=25oC unlessotherwise specified)
case
Symbol Parameter Test Condition s Min. Typ. Max. Unit
I
Ces
I
CEO
I
EBO
V
CEO(sus)
V
CE(sat)
Collector C ut -off
Current (v
bE
=0)
Collector C ut -off
Current (i
B
=0)
Emit ter Cut - o f f Current
=0)
(I
C
Collector-Emitter
Sust aining V olt ag e
∗ Collector-Emitter
= Ma x R ating 20 µA
V
CB
V
=60V 50 µA
CB
V
=5V 0.1 mA
EB
IC=30mA
for MJD31B/32B
for MJD31C/32C
80
100
IC=3A IB=375mA 1.2 V
Saturation Voltage
∗ Base-Emitt er V oltage IC=3A VCE=4V 1.8 V
V
BE(on)
h
∗ DC Current G ain IC=1A VCE=4V
FE
h
∗
Pulsed: Pulse duration = 300 µs, duty cycle ≤ 2%
For PNP type voltage and currentvalues are negative.
Dynamic Current Gain IC=0.5A VCE=10V f=1KHz
fe
=3A VCE=4V
I
C
=0.5A VCE=10V f=1MHz203
I
C
25
10 50
v
V
Safe Operating Area DeratingCurves
2/5
Page 3
MJD31B/31C - MJD32B/32C

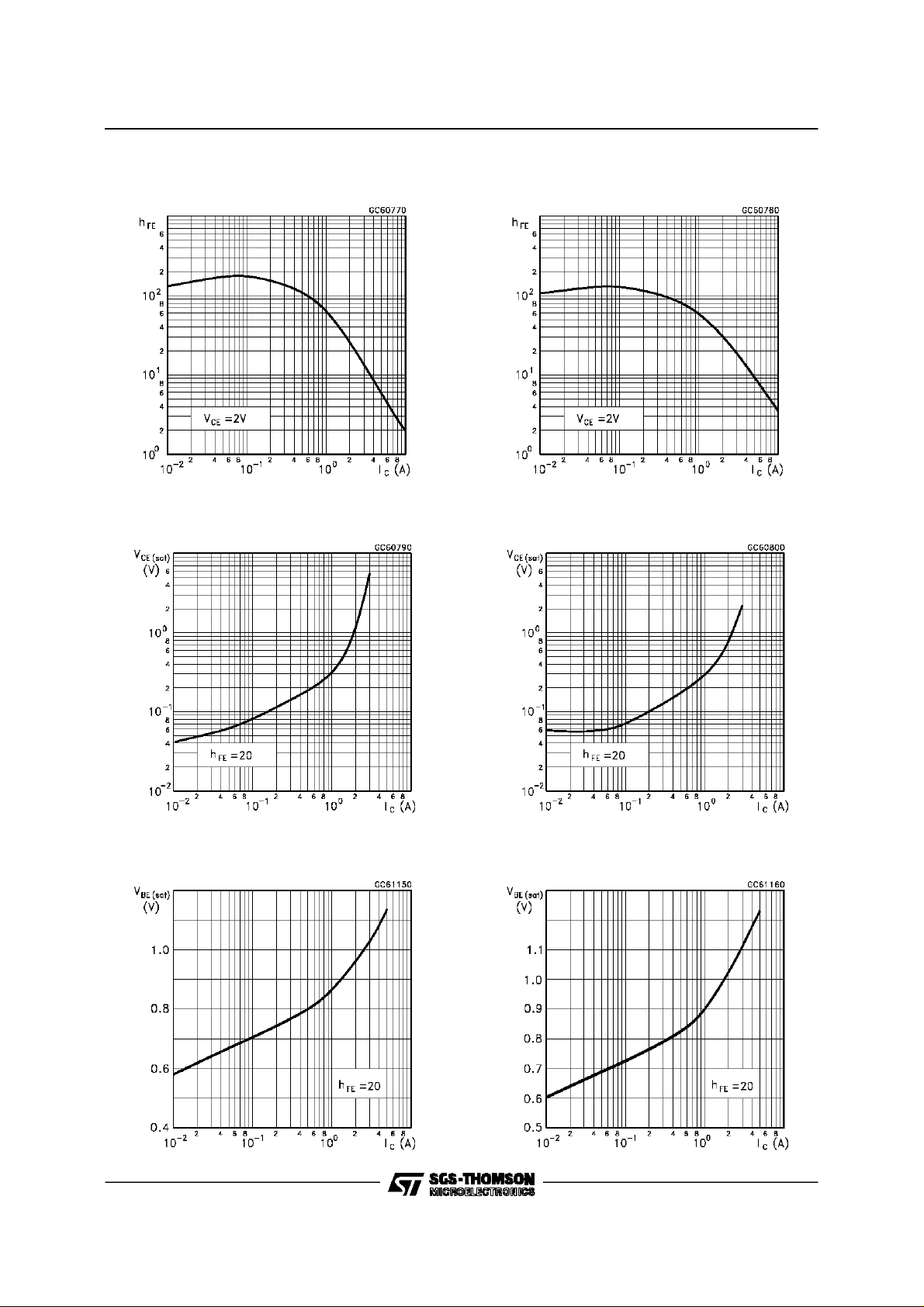

DCCurrent Gain (NPNtype)
Collector-Emitter Saturation Voltage (NPN type)
DC Current Gain (PNPtype)
Collector-EmitterSaturation Voltage (PNPtype)
Base-EmitterSaturation Voltage (NPNtype)
Collector-BaseCapacitance (PNP type)
3/5
Page 4
MJD31B/31C- MJD32B/32C
TO-252 (DPAK) MECHANICAL DATA
DIM.
mm inch
MIN. TYP. MAX. MIN. TYP. MAX.
A 2.2 2.4 0.086 0.094
A1 0.9 1.1 0.035 0.043
A2 0.03 0.23 0.001 0.009
B 0.64 0.9 0.025 0.035
B2 5.2 5.4 0.204 0.212
C 0.45 0.6 0.017 0.023
C2 0.48 0.6 0.019 0.023
D 6 6.2 0.236 0.244
E 6.4 6.6 0.252 0.260
G 4.4 4.6 0.173 0.181
H 9.35 10.1 0.368 0.397
L2 0.8 0.031
L4 0.6 1 0.023 0.039
4/5
H
A
E
C2
L2
B2
==
==
DETAIL”A”
D
2
13
L4
A1
C
A2
DETAIL”A”
B
G
==
0068772-B
