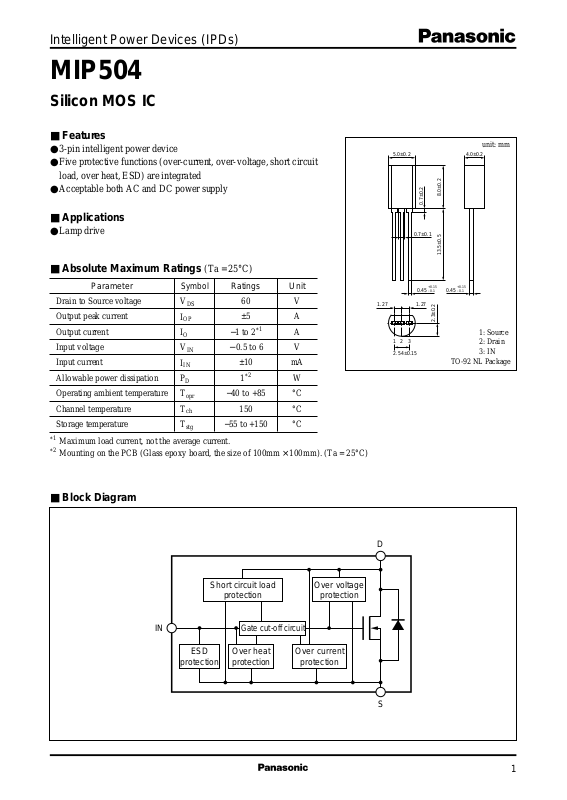

Page 1
Intelligent Power Devices (IPDs)
MIP504
Silicon MOS IC
■ Features
●3-pin intelligent power device
●Five protective functions (over-current, over-voltage, short circuit
load, over heat, ESD) are integrated
●Acceptable both AC and DC power supply
■ Applications
●Lamp drive
■ Absolute Maximum Ratings (Ta = 25°C)
Parameter
Drain to Source voltage
Output peak current
Output current
Input voltage
Input current
Allowable power dissipation
Operating ambient temperature
Channel temperature
Storage temperature
1
*
Maximum load current, not the average current.
2
*
Mounting on the PCB (Glass epoxy board, the size of 100mm × 100mm). (Ta = 25°C)
Symbol
V
DS
I
OP
I
O
V
IN
I
IN
P
D
T
opr
T
ch
T
stg
Ratings
60
±5
1
*
−1 to 2
− 0.5 to 6
±10
2
*
1
−40 to +85
150
−55 to +150
Unit
V
A
A
V
mA
W
°C
°C
°C
1.27
5.0±0.2
123
2.54±0.15
0.7±0.2
0.7±0.1
0.45
1.27
8.0±0.2
13.5±0.5
+0.15
–0.1
0.45
2.3±0.2
TO-92 NL Package
+0.15
–0.1
unit: mm
4.0±0.2
1: Source
2: Drain
3: IN
■ Block Diagram
IN
Short circuit load
ESD
protection
protection
Gate cut-off circuit
Over heat
protection
D
Over voltage
protection
Over current
protection
S
1
Page 2
Intelligent Power Devices (IPDs)
MIP504
■ Electrical Characteristics (T
Parameter
Drain to Source ON-resistance
Drain to Source ON-voltage
Drain clamp voltage
Drain OFF current (1)
Drain OFF current (2)
Drain OFF current (3)
Input voltage (High)
Input voltage (Low)
Input current
Over current protection limit
Short circuit load protection limit
C
Symbol
R
DS(on)
V
DS(on)
V
DS(CLP)
I
DS(off)1
I
DS(off)2
I
DS(off)3
V
IN(H)
V
IN(L)
I
IN(on)
I
OCP
V
DS(SHT)
= 25 ± 2°C)
VIN = 5V, IDS = 1.5A
VIN = 5V, IDS = 1.5A
VIN = 0, IDS = 3mA
VIN = 0, VDS = 12V
VIN = 0, VDS = 25V
VIN = 0, VDS = 40V
IDS = 1.5A
IDS = 0.1mA
VIN = 5V, VDS = 0
VIN = 5V, VDS = 3V
VIN = 5V
Conditions
min
60
4
3.8
3
typ
0.38
0.57
70
50
0.1
0.16
0.15
5
max
0.5
0.75
80
0.16
0.26
0.8
0.5
Unit
Ω
V
V
µA
mA
mA
V
V
mA
A
V
Note: The oscillation of the output current is caused when the drain voltage exceeds the short circuit load detection voltage under
the ON state of output.
■ Electrical Characteristics (T
Parameter
Over heat protection temperature
C
Symbol
T
SHD
= 25 ± 2°C)
VIN = 5V
Conditions
min typ
140
max Unit
°C
Note 1: The above values of characteristics are not guaranteed values and are only references for designing.
Note 2: If the chip temperature exceeds the "Over Heat Protection Temperature", output current is shut down.
2
