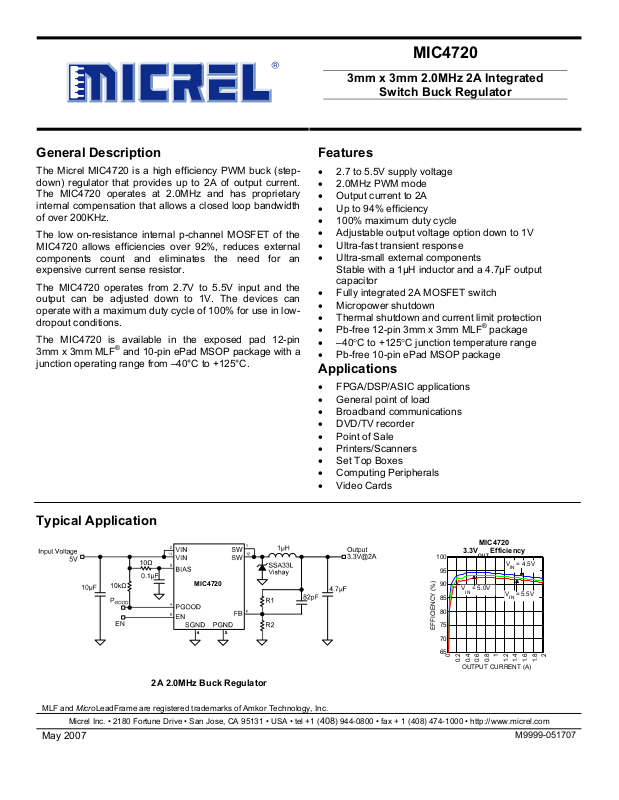

General Description

MIC4720

3mm x 3mm 2.0MHz 2A Integrated

Features

Switch Buck Regulator

The Micrel MIC4720 is a high efficiency PWM buck (stepdown) regulator that provides up to 2A of output current. The MIC4720 operates at 2.0MHz and has proprietary internal compensation that allows a closed loop bandwidth of over 200KHz.

The low on-resistance internal p-channel MOSFET of the MIC4720 allows efficiencies over 92%, reduces external components count and eliminates the need for an expensive current sense resistor.

The MIC4720 operates from 2.7V to 5.5V input and the output can be adjusted down to 1V. The devices can operate with a maximum duty cycle of 100% for use in lowdropout conditions.

The MIC4720 is available in the exposed pad 12-pin 3mm x 3mm MLF

and 10-pin ePad MSOP package with a

junction operating range from –40°C to +125°C.

Typical Application

• 2.7 to 5.5V supply voltage

• 2.0MHz PWM mode

• Output current to 2A

• Up to 94% efficiency

• 100% maximum duty cycle

• Adjustable output voltage option down to 1V

• Ultra-fast transient response

• Ultra-small external components

Stable with a 1µH inductor and a 4.7µF output capacitor

• Fully integrated 2A MOSFET switch

• Micropower shutdown

• Thermal shutdown and current limit protection

• Pb-free 12-pin 3mm x 3mm MLF

package

• –40°C to +125°C junction temperature range

• Pb-free 10-pin ePad MSOP package

Applications

• FPGA/DSP/ASIC applications

• General point of load

• Broadband communications

• DVD/TV recorder

• Point of Sale

• Printers/Scanners

• Set Top Boxes

• Computing Peripherals

• Video Cards

MIC4720

2A 2.0MHz Buck Regulator

MLF and MicroLeadFrame are registered trademarks of Amkor Technology, Inc.

Micrel Inc. • 2180 Fortune Drive • San Jose, CA 95131 • USA • tel +1 (

May 2007

MIC4720

3.3V

Efficiency

100

EFFICIENCY (%)

OUT

VIN = 5.0V

0.2

0.4

0.6

0.811.2

OUTPUT CURRENT (A)

VIN = 4.5V

VIN = 5.5V

408

) 944-0800 • fax + 1 (408) 474-1000 • http://www.micrel.com

1.4

1.6

1.8

M9999-051707

Page 2

Micrel, Inc. MIC4720

Ordering Information

Part Number Voltage Junction Temp. Range Package Lead Finish

MIC4720YML Adj. –40° to +125°C 12-Pin 3x3 MLF

MIC4720YMME Adj. –40° to +125°C

Pin Configuration

VIN

PGND

SGND

BIAS EN

FB NC

12-Pin 3mm x 3mm MLF® (ML)

VIN

PGND

PGOOD

10-Pin ePad

MSOP

1SW

VIN

SGND

BIAS

FB EN65

10-Pin ePad MSOP (MM)

Pb-Free

10 SW

VIN

PGND

PGOOD

May 2007

M9999-051707

Page 3

Micrel, Inc. MIC4720

Pin Description

Pin Number

MLF

1,12 1, 10 SW Switch (Output): Internal power P-Channel MOSFET output switch

2,11 2, 9 VIN

3,10 8 PGND Power Ground. Provides the ground return path for the high-side drive current.

4 3 SGND

5 4 BIAS

6 5 FB

7 — NC

8 6 EN

9 7 PGOOD

EP — GND Connect to ground.

Pin Number

MSOP

Pin Name Pin Function

Supply Voltage (Input): Supply voltage for the source of the internal P-channel MOSFET and driver.

Requires bypass capacitor to GND.

Signal (Analog) Ground. Provides return path for control circuitry and internal reference.

Internal circuit bias supply. Must be bypassed with a 0.1µF ceramic capacitor to SGND.

Feedback. Input to the error amplifier, connect to the external resistor divider network to set the output voltage.

No Connect. Not internally connected to die. This pin can be tied to any other pin if desired.

Enable (Input). Logic level low, will shutdown the device, reducing the current draw to less than 5µA.

Power Good. Open drain output that is pulled to ground when the output voltage is within +/- 7.5% of the set regulation voltage

May 2007

M9999-051707

Page 4

Micrel, Inc. MIC4720

Absolute Maximum Ratings

(1)

Operating Ratings

(2)

Supply Voltage (VIN).......................................................+6V

Output Switch Voltage (V Output Switch Current ( Logic Input Voltage (V

). .........................................+6V

).............................................11A

) ..................................–0.3V to V

Storage Temperature (Ts) .........................–60°C to +150°C

Supply voltage (VIN) ..................................... +2.7V to +5.5V

Logic Input Voltage (V

) ....................................... 0V to V

Junction Temperature (TJ) ........................–40°C to +125°C

Junction Thermal Resistance

3mm×3mm MLF-12 (θ 3mm×3mm MLF-12 (θ 10 pin ePad MSOP (θ 10 pin ePad MSOP (θ

) ................................... 60°C/W

)...................................10°C/W

).................................... 76°C/W

)....................................28°C/W

Electrical Characteristics

VIN = VEN = 3.6V; L = 1µH; C

Parameter Condition Min Typ Max Units

Supply Voltage Range

Under-Voltage Lockout Threshold (turn-on)

UVLO Hysteresis 100 mV

Quiescent Current VFB = 0.9 × V

Shutdown Current VEN = 0V 2

[Adjustable] Feedback Voltage

FB pin input current 1 nA

Current Limit VFB = 0.9 × V

Output Voltage Line Regulation

Output Voltage Load Regulation 20mA < I

Maximum Duty Cycle

Switch ON-Resistance

Oscillator Frequency

Enable Threshold

Enable Hysteresis

Enable Input Current 0.1

Power Good Range ±7 ±10 %

Power Good Resistance I

Over-Temperature Shutdown 160

Over-Temperature Hysteresis 25

Notes:

1. Exceeding the absolute maximum rating may damage the device.

2. The device is not guaranteed to function outside its operating rating.

3. Specification for packaged product only.

(3)

= 4.7µF; TA = 25°C, unless noted. Bold values indicate –40°C< TJ < +125°C.

OUT

(not switching) 570

NOM

± 2% (over temperature) I

3.5 5

NOM

> 2V; VIN = V

OUT

< 2V; VIN = 2.7V to 5.5V; I

OUT

< 2A 0.2

LOAD

≤ 0.4V

= 200mA VFB = GND (High Side Switch)

+500mV to 5.5V; I

OUT

LOAD

= 100mA

LOAD

= 100mA

2.7

2.45

0.98

0.07 %

100

95 200

2.55

= 500µA 150

PGOOD

1.8

0.5

2.0

0.85

5.5

2.65

900

1.02

300

2.2

1.3

2.3

250

µA

mΩ

MHz

µA

Ω

°C °C

May 2007

M9999-051707

Page 5

Micrel, Inc. MIC4720

Typical Characteristics

1.8V

93 91 89 87 85

VIN = 3.3V

83 81 79 77 75 73

EFFICIENCY (%)

71 69 67 65

0.2

0.4

OUTPUT CURRENT (A)

2.5V

VIN = 3.3V

EFFICIENCY (%)

0.2

0.4

OUTPUT CURRENT (A)

3.3V

100

VIN = 5.0V

EFFICIENCY (%)

0.2

0.4

OUTPUT CURRENT (A)

1.2V

VIN =3.3V

EFFICIENCY (%)

0.2

0.4

OUTPUT CURRENT (A)

MIC4720

Efficiency

OUT

VIN = 3.6V

0.6

0.811.2

MIC4720

Efficiency

OUT

0.6

0.811.2

MIC4720

Efficiency

OUT

0.6

0.811.2

MIC4720

Efficiency

OUT

0.6

0.811.2

VIN = 3.0V

1.4

VIN = 3.6V

1.4

VIN = 4.5V

VIN = 5.5V

1.4

VIN =3.0V

VIN =3.6V

1.4

1.6

1.8

MIC4720

Efficiency

1.8V

EFFICIENCY (%)

OUT

VIN = 4.5V

VIN = 5.0V

0.2

0.4

OUTPUT CURRENT (A)

0.6

0.811.2

VIN = 5.5V

1.4

1.6

1.8

EFFICIENCY (%)

MIC4720

1.5V

Efficiency

EFFICIENCY (%)

OUT

VIN = 3.0V

VIN = 3.3V

VIN = 3.6V

0.2

0.4

0.6

0.811.2

OUTPUT CURRENT (A)

1.4

1.6

1.8

EFFICIENCY (%)

MIC4720

Efficiency

EFFICIENCY (%)

OUT

VIN = 5.0V

0.2

0.4

0.6

0.811.2

OUTPUT CURRENT (A)

MIC4720

Efficiency

1.2V

OUT

VIN = 5.0V

0.2

0.4

0.6

0.811.2

OUTPUT CURRENT (A)

VIN = 4.5V

VIN = 5.5V

1.4

1.6

VIN = 4.5V

VIN = 5.5V

1.4

1.6

1.8

EFFICIENCY (%)

1.0010

1.0008

1.0006

1.0004

1.0002

1.0000

0.9998

0.9996

0.9994

0.9992

0.9990

2.7 3.2 3.7 4.2 4.7 5.2

MIC4720

Efficiency

2.5V

OUT

VIN = 5.0V

0.2

0.4

0.6

OUTPUT CURRENT (A)

VIN = 4.5V

VIN = 5.5V

0.811.2

1.4

MIC4720

Efficiency

1.5V

OUT

VIN = 4.5V

VIN = 5.0V

0.2

0.4

OUTPUT CURRENT (A)

0.6

0.811.2

VIN = 5.5V

1.4

MIC4720

Efficiency

OUT

VIN = 3.0V

VIN = 3.3V

0.2

0.4

OUTPUT CURRENT (A)

0.6

0.811.2

VIN = 3.6V

1.4

Line Regulation

SUPPLY VOLTAGE (V)

1.6

1.8

May 2007

M9999-051707

Page 6

Micrel, Inc. MIC4720

Typical Characteristics (cont.)

Feedback Voltage

1.010

1.008

1.006

1.004

1.002

1.000

0.998

0.996

0.994

0.992

0.990

vs. Temperature

VIN = 3.3V

20 40 60 80

TEMPERATURE (°C)

Quiescent Current vs. Supply Voltage

800

700

600

500

400

300

200

100

0123456

SUPPLY VOLTAGE (V)

VEN= V

Enable Threshold

vs. Supply Voltage

1.2

Frequency

2.5

2.4

2.3

2.2

2.1

2.0

1.9

1.8

1.7

1.6

1.5

120

115

110

105

100

vs. Temperature

VIN = 3.3V

20 40 60 80

TEMPERATURE (°C)

DSON

vs. Supply Voltage

2.7 3.2 3.7 4.2 4.7 5.2 SUPPLY VOLTAGE (V)

Feedback Voltage

vs. Supply Voltage

1.2

1.0

0.8

0.6

0.4

0.2 VEN = V

012345

160

140

120

100

SUPPLY VOLTAGE (V)

DSON

vs. Temperature

VIN = 3.3V

20 40 60 80

TEMPERATURE (°C)

Enable Threshold

1.2

vs. Temperature

1.0

0.8

0.6

0.4

0.2

2.7 SUPPLY VOLTAGE (V)

3.73.2 4.2 4.7

1.0

0.8

0.6

0.4

0.2

VIN = 3.3V

20 40 60 80

TEMPERATURE (°C)

May 2007

M9999-051707

Page 7

Micrel, Inc. MIC4720

Functional Characteristics

Continuous Current

(500mA/div)

Inductor Current

(2V/div)

Switch Voltage

Time (200ns/div)

VIN = 3.3V

= 1V

OUT

L = 1µH

= 4.7µF

OUT

= 1.3A

OUT

(20mV/div)

Output Volta

(1A/div)

Output Current

Output Ripple

(2V/div)

Switch Voltage

Load Transient

VIN = 3.3V

= 1.0V

OUT

Time (100µs/div)

(10mV/div)

AC Coupled

Output Volta

VIN = 3.3V

= 1.0V

OUT

= 2A

OUT

Output Current

(2A/div)

Time (200ns/div)

May 2007

M9999-051707

Page 8

Micrel, Inc. MIC4720

Functional Diagram

VIN

P-Channel

Current Limit

BIAS

HSD

PWM

Control

SW SW

Bias,

UVLO,

Thermal

Shutdown

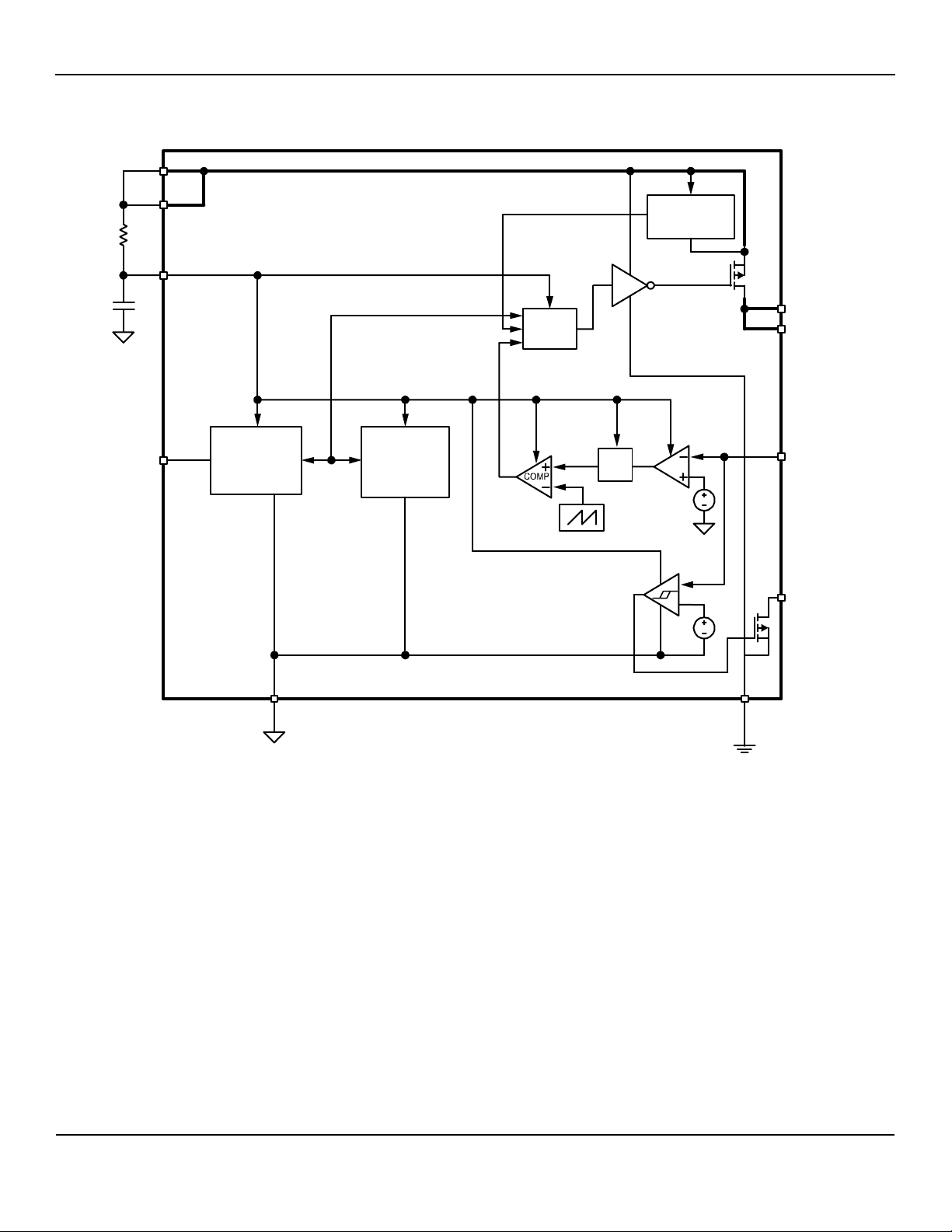

MIC4720 Block Diagram

Soft

Start

1.0V

PGOOD

PGND

Enable and

Control Logic

SGND

May 2007

M9999-051707

Page 9

Micrel, Inc. MIC4720

Pin Description

VIN

Two pins for VIN provide power to the source of the internal P-channel MOSFET along with the current limiting sensing. The VIN operating voltage range is from

2.7V to 5.5V. Due to the high switching speeds, a 10µF capacitor is recommended close to VIN and the power ground (PGND) for each pin for bypassing. Please refer to layout recommendations.

BIAS

The bias (BIAS) provides power to the internal reference and control sections of the MIC4720. A 10Ω resistor from VIN to BIAS and a 0.1µF from BIAS to SGND is required for clean operation.

The enable pin provides a logic level control of the output. In the off state, supply current of the device is greatly reduced (typically <1µA). Do not drive the enable pin above the supply voltage.

The feedback pin (FB) provides the control path to control the output. For adjustable versions, a resistor divider connecting the feedback to the output is used to adjust the desired output voltage. The output voltage is calculated as follows:

REFOUT

where V

A feedforward capacitor is recommended for most designs using the adjustable output voltage option. To reduce current draw, a 10K feedback resistor is recommended from the output to the FB pin (R1). Also, a feedforward capacitor should be connected between the output and feedback (across R1). The large resistor value and the parasitic capacitance of the FB pin can cause a high frequency pole that can reduce the overall system phase margin. By placing a feedforward capacitor, these effects can be significantly reduced. Feedforward capacitance (C follows:

is equal to 1.0V.

REF

The switch (SW) pin connects directly to the inductor and provides the switching current necessary to operate in PWM mode. Due to the high speed switching on this pin, the switch node should be routed away from sensitive nodes. This pin also connects to the cathode of the free-wheeling diode.

PGOOD

Power good is an open drain pull down that indicates when the output voltage has reached regulation. For a power good low, the output voltage is within ±10% of the set regulation voltage. For output voltages greater or less than 10%, the PGOOD pin is high. This should be connected to the input supply through a pull up resistor. A delay can be added by placing a capacitor from PGOOD to ground.

PGND

Power ground (PGND) is the ground path for the MOSFET drive current. The current loop for the power ground should be as small as possible and separate from the Signal ground (SGND) loop. Refer to the layout considerations for more details.

SGND

Signal ground (SGND) is the ground path for the biasing and control circuitry. The current loop for the signal ground should be separate from the power ground

+×= 1

⎞ ⎟

⎠

(PGND) loop. Refer to the layout considerations for more details.

⎛ ⎜

⎝

) can be calculated as

May 2007

200kHzR12

××

M9999-051707

Page 10

Micrel, Inc. MIC4720

(

−

Application Information

The MIC4720 is a 2A PWM non-synchronous buck regulator. By switching an input voltage supply, and filtering the switched voltage through an Inductor and capacitor, a regulated DC voltage is obtained. Figure 1 shows a simplified example of a non-synchronous buck converter.

Figure 1. Example of non-synchronous buck converter

For a non-synchronous buck converter, there are two modes of operation; continuous and discontinuous. Continuous or discontinuous refer to the inductor current. If current is continuously flowing through the inductor throughout the switching cycle, it is in continuous operation. If the inductor current drops to zero during the off time, it is in discontinuous operation. Critically continuous is the point where any decrease in output current will cause it to enter discontinuous operation. The critically continuous load current can be calculated as follows;

⎡ ⎢

OUT

⎢

OUT

⎣

−

Continuous or discontinuous operation determines how we calculate peak inductor current.

Continuous Operation

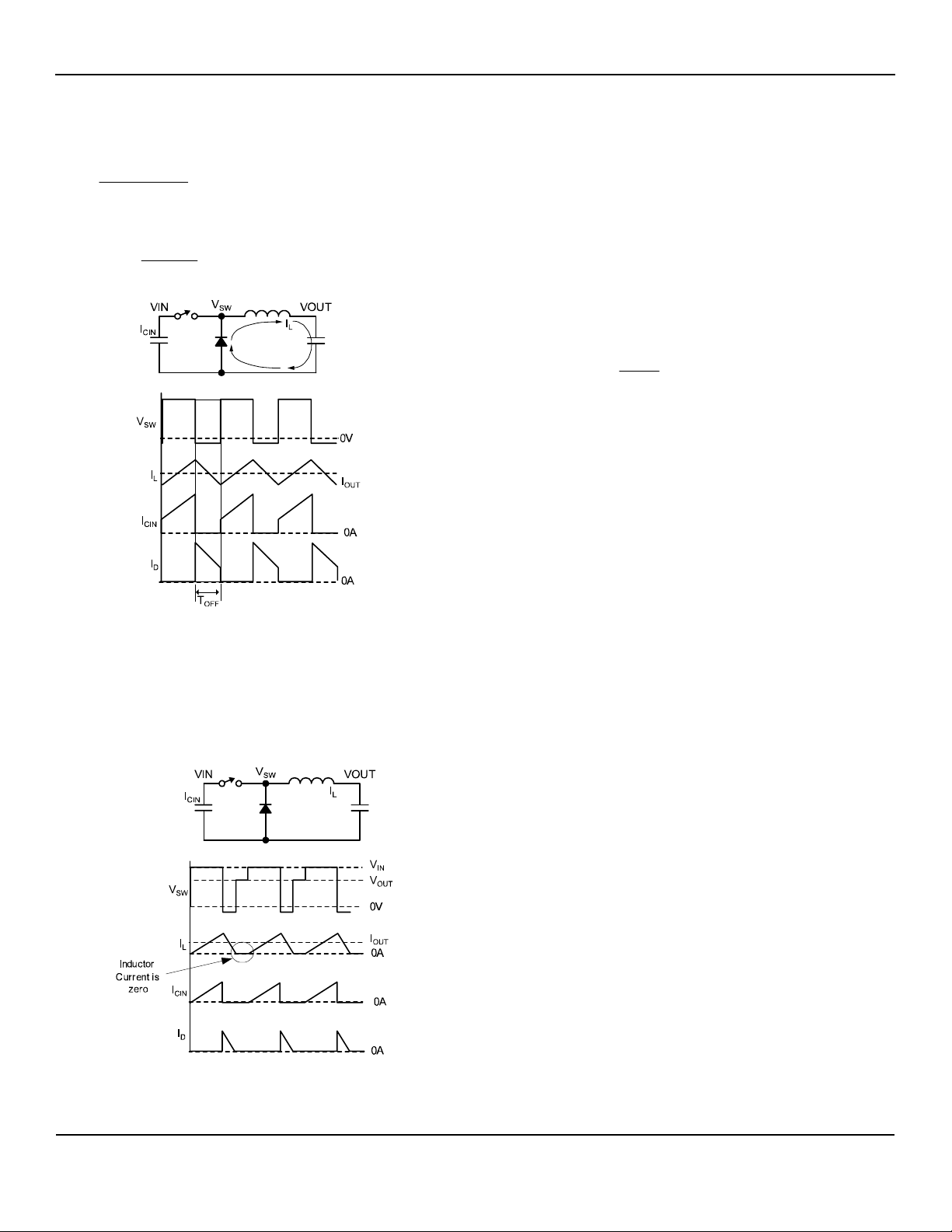

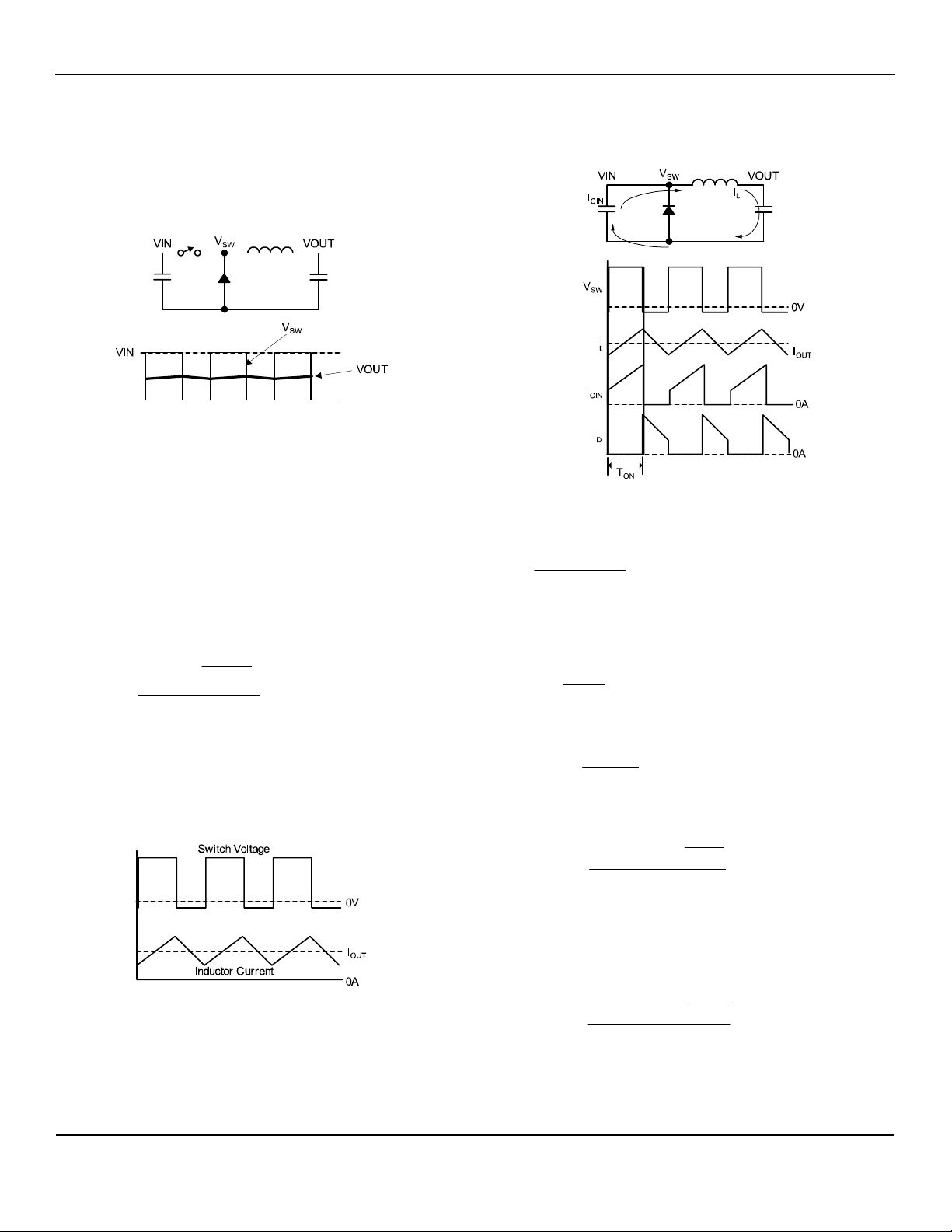

Figure 2 illustrates the switch voltage and inductor current during continuous operation.

OUT

⎤ ⎥ ⎥

⎦

L22.0MHz

××

During the on-time,

current flows from the input supply through the inductor and to the output. The inductor current is

charged at the rate;

OUTIN

To determine the total on-time, or time at which the inductor charges, the duty cycle needs to be calculated. The duty cycle can be calculated as;

OUT

D =

and the On time is;

2.0MHz

Therefore, peak to peak ripple current is;

()

pkpk

−

the high side switch is turned on,

Figure 3. On-Time

)

OUTIN

OUT

×−

L2.0MHz

Since the average peak to peak current is equal to the load current. The actual peak (or highest current the inductor will see in a steady state condition) is equal to the output current plus ½ the peak-to-peak current.

Figure 2. Continuous Operation

The output voltage is regulated by pulse width modulating (PWM) the switch voltage to the average required output voltage. The switching can be broken up into two cycles; On and Off.

May 2007

()

OUTIN

OUTpk

Figure 4 demonstrates the off-time. During the off-time, the high-side internal P-channel MOSFET turns off. Since the current in the inductor has to discharge, the

OUT

×−

L2.0MHz2

××

M9999-051707

Page 11

Micrel, Inc. MIC4720

(

××=

current flows through the free-wheeling Schottky diode to the output. In this case, the inductor discharge rate is (where V

is the diode forward voltage);

()

−

DOUT

The total off time can be calculated as;

OFF

−

2.0MHz

discharged, the voltage on the switch node rings at the frequency determined by the parasitic capacitance and the inductor value. In Figure 5, it is drawn as a DC voltage, but to see actual operation (with ringing) refer to the functional characteristics.

Discontinuous mode of operation has the advantage over full PWM in that at light loads, the MIC4720 will skip pulses as nessasary, reducing gate drive losses, drastically improving light load efficiency.

Efficiency Considerations

Calculating the efficiency is as simple as measuring power out and dividing it by the power in;

OUT

Efficiency

100

×=

Figure 4. Off-Time

Discontinuous Operation

Discontinuous operation is when the inductor current discharges to zero during the off cycle. Figure 5 demonstrates the switch voltage and inductor currents during discontinuous operation.

Where input power (P

IVP

INININ

and output power (P

) is;

) is calculated as;

OUT

IVP

OUTOUTOUT

The Efficiency of the MIC4720 is determined by several factors.

• Rdson (Internal P-channel Resistance)

• Diode conduction losses

• Inductor Conduction losses

• Switching losses

Rdson losses are caused by the current flowing through the high side P-channel MOSFET. The amount of power loss can be approximated by;

DIRP

××=

OUTDSONSW

Where D is the duty cycle.

Since the MIC4720 uses an internal P-channel MOSFET, Rdson losses are inversely proportional to supply voltage. Higher supply voltage yields a higher gate to source voltage, reducing the Rdson, reducing the MOSFET conduction losses. A graph showing typical Rdson vs input supply voltage can be found in the typical characteristics section of this datasheet.

Diode conduction losses occur due to the forward voltage drop (V

) and the output current. Diode power

losses can be approximated as follows;

)

D1IVP

−

OUTFD

For this reason, the Schottky diode is the rectifier of

Figure 5. Discontinuous Operation

When the inductor current (IL) has completely

May 2007

choice. Using the lowest forward voltage drop will help reduce diode conduction losses, and improve efficiency.

Duty cycle, or the ratio of output voltage to input voltage,

M9999-051707

Page 12

Micrel, Inc. MIC4720

determines whether the dominant factor in conduction losses will be the internal MOSFET or the Schottky diode. Higher duty cycles place the power losses on the high side switch, and lower duty cycles place the power losses on the Schottky diode.

Inductor conduction losses (P

) can be calculated by

multiplying the DC resistance (DCR) times the square of the output current;

IDCRP ×=

OUTL

Also, be aware that there are additional core losses associated with switching current in an inductor. Since most inductor manufacturers do not give data on the type of material used, approximating core losses becomes very difficult, so verify inductor temperature rise.

Switching losses occur twice each cycle, when the switch turns on and when the switch turns off. This is caused by a non-ideal world where switching transitions are not instantaneous, and neither are currents. Figure 6 demonstrates how switching losses due to the transitions dissipate power in the switch.

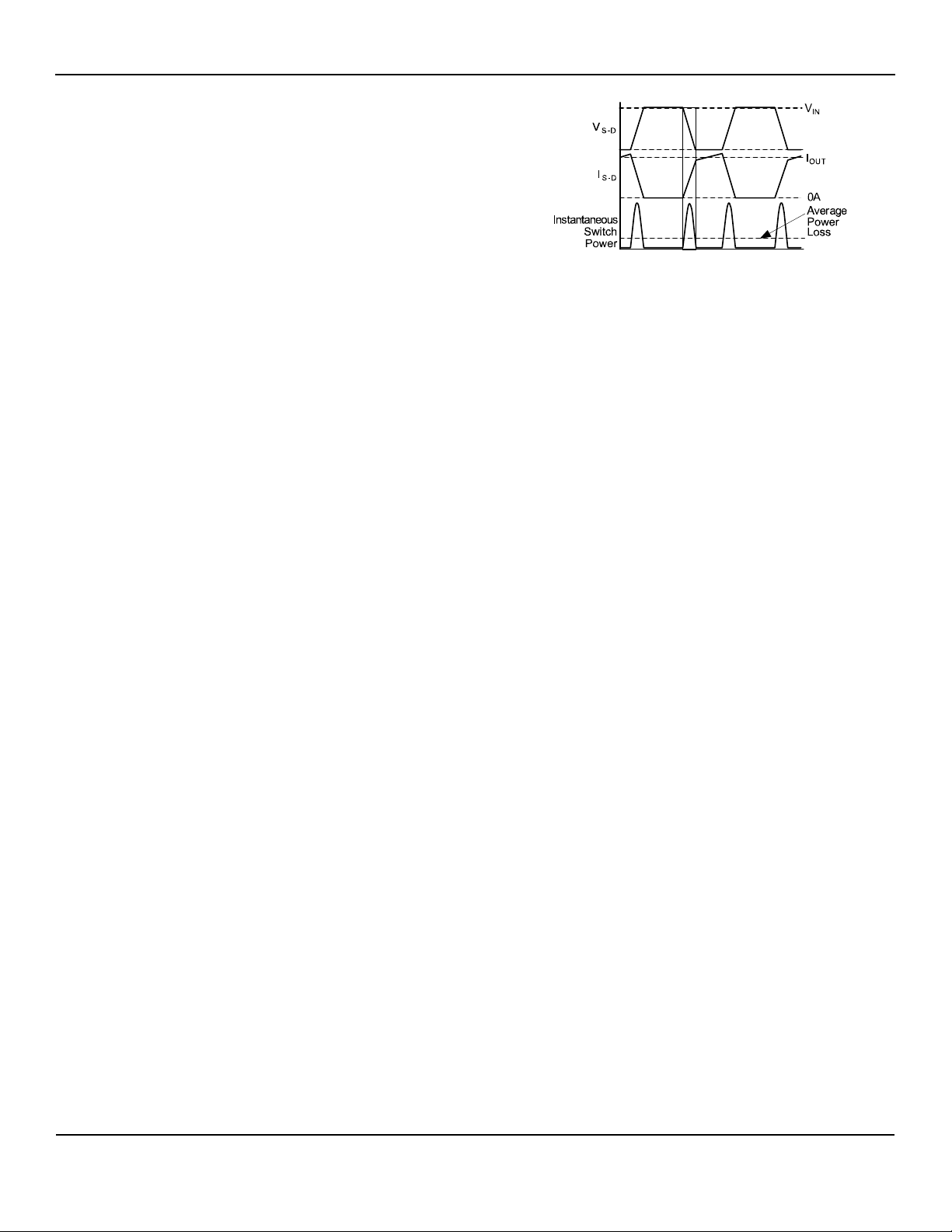

Figure 6. Switching Transition Losses

Normally, when the switch is on, the voltage across the switch is low (virtually zero) and the current through the switch is high. This equates to low power dissipation. When the switch is off, voltage across the switch is high and the current is zero, again with power dissipation being low. During the transitions, the voltage across the switch (V

) and the current through the switch (I

S-D

) are at middle, causing the transition to be the highest instantaneous power point. During continuous mode, these losses are the highest. Also, with higher load currents, these losses are higher. For discontinuous operation, the transition losses only occur during the “off” transition since the “on” transitions there is no current flow through the inductor.

May 2007

M9999-051707

Page 13

Micrel, Inc. MIC4720

Component Selection

Input Capacitor

A 10µF ceramic is recommended on each VIN pin for bypassing. X5R or X7R dielectrics are recommended for the input capacitor. Y5V dielectrics lose most of their capacitance over temperature and are therefore not recommended. Also, tantalum and electrolytic capacitors alone are not recommended due their reduced RMS current handling, reliability, and ESR increases.

An additional 0.1µF is recommended close to the VIN and PGND pins for high frequency filtering. Smaller case size capacitors are recommended due to their lower ESR and ESL. Please refer to layout recommendations for proper layout of the input capacitor.

Output Capacitor

The MIC4720 is designed for a 4.7µF output capacitor. X5R or X7R dielectrics are recommended for the output capacitor. Y5V dielectrics lose most of their capacitance over temperature and are therefore not recommended.

In addition to a 4.7µF, a small 0.1µF is recommended close to the load for high frequency filtering. Smaller case size capacitors are recommended due to there lower equivalent series ESR and ESL.

The MIC4720 utilizes type III voltage mode internal compensation and utilizes an internal zero to compensate for the double pole roll off of the LC filter. For this reason, larger output capacitors can create instabilities. In cases where a 4.7µF output capacitor is not sufficient, the MIC4720 offers the ability to externally control the compensation, allowing for a wide range of output capacitor types and values.

Inductor Selection

The MIC4720 is designed for use with a 1µH inductor. Proper selection should ensure the inductor can handle the maximum average and peak currents required by the load. Maximum current ratings of the inductor are generally given in two methods; permissible DC current and saturation current. Permissible DC current can be rated either for a 40°C temperature rise or a 10% to 20% loss in inductance. Ensure the inductor selected can handle the maximum operating current. When saturation current is specified, make sure that there is enough margin that the peak current will not saturate the inductor.

Diode Selection

Since the MIC4720 is non-synchronous, a free-wheeling diode is required for proper operation. A Schottky diode is recommended due to the low forward voltage drop and their fast reverse recovery time. The diode should be rated to be able to handle the average output current. Also, the reverse voltage rating of the diode should exceed the maximum input voltage. The lower the forward voltage drop of the diode the better the efficiency. Please refer to the layout recommendations to minimize switching noise.

Feedback Resistors

The feedback resistor set the output voltage by dividing down the output and sending it to the feedback pin. The feedback voltage is 1.0V. Calculating the set output voltage is as follows;

R1 R2

+= 1

⎞ ⎟

⎠

⎛

⎜

FBOUT

⎝

Where R1 is the resistor from VOUT to FB and R2 is the resistor from FB to GND. The recommended feedback resistor values for common output voltages are available in the bill of materials on page 19. Although the range of resistance for the FB resistors is very wide, R1 is recommended to be 10K. This minimizes the effect the parasitic capacitance of the FB node.

Feedforward Capacitor (CFF)

A capacitor across the resistor from the output to the feedback pin (R1) is recommended for most designs. This capacitor can give a boost to phase margin and increase the bandwidth for transient response. Also, large values of feedforward capacitance can slow down the turn-on characteristics, reducing inrush current. For maximum phase boost, C

can be calculated as follows;

R1200kHz2

××

Bias filter

A small 10Ω resistor is recommended from the input supply to the bias pin along with a small 0.1µF ceramic capacitor from bias to ground. This will bypass the high frequency noise generated by the violent switching of high currents from reaching the internal reference and control circuitry. Tantalum and electrolytic capacitors are not recommended for the bias, these types of capacitors lose their ability to filter at high frequencies.

May 2007

M9999-051707

Page 14

Micrel, Inc. MIC4720

Loop Stability and Bode Analysis

Bode analysis is an excellent way to measure small signal stability and loop response in power supply designs. Bode analysis monitors gain and phase of a control loop. This is done by breaking the feedback loop and injecting a signal into the feedback node and comparing the injected signal to the output signal of the control loop. This will require a network analyzer to sweep the frequency and compare the injected signal to the output signal. The most common method of injection is the use of transformer. Figure 7 demonstrates how a transformer is used to inject a signal into the feedback network.

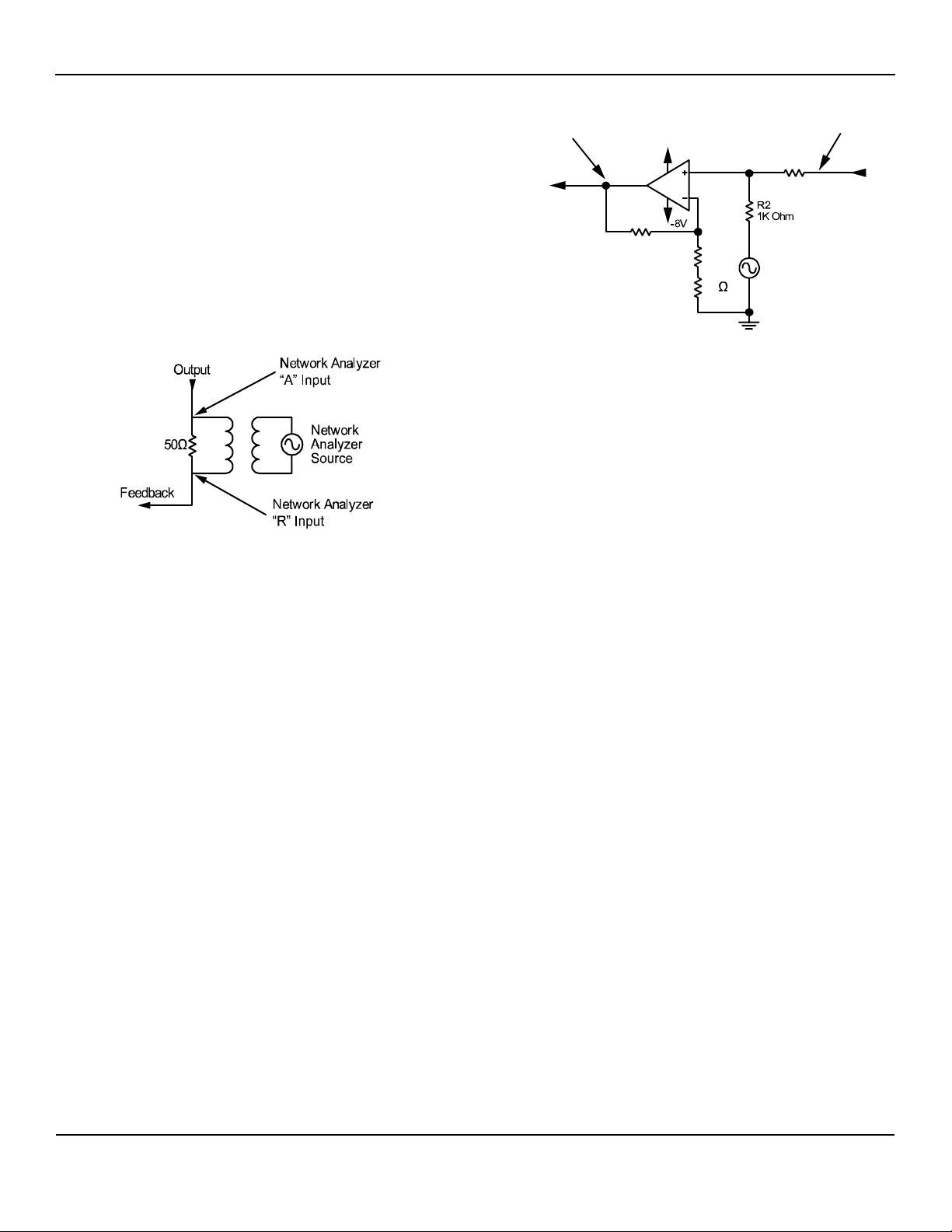

Figure 7. Transformer Injection

A 50Ω resistor allows impedance matching from the network analyzer source. This method allows the DC loop to maintain regulation and allow the network analyzer to insert an AC signal on top of the DC voltage. The network analyzer will then sweep the source while monitoring A and R for an A/R measurement. While this is the most common method for measuring the gain and phase of a power supply, it does have significant limitations. First, to measure low frequency gain and phase, the transformer needs to be high in inductance. This makes frequencies <100Hz require an extremely large and expensive transformer. Conversely, it must be able to inject high frequencies. Transformers with these wide frequency ranges generally need to be custom made and are extremely expensive (usually in the tune of several hundred dollars!). By using an op-amp, cost and frequency limitations used by an injection transformer are completely eliminated. Figure 8 demonstrates using an op-amp in a summing amplifier configuration for signal injection.

Network Analyzer “R” Input

Feedback

+8V

MIC922BC5

R3 1k

Figure 8. Op Amp Injection

R4 1k

Netw or k Anal yzer Source

R1 1k

R1 and R2 reduce the DC voltage from the output to the non-inverting input by half. The network analyzer is generally a 50Ω source. R1 and R2 also divide the AC signal sourced by the network analyzer by half. These two signals are “summed” together at half of their original input. The output is then gained up by 2 by R3 and R4 (the 50Ω is to balance the network analyzer’s source impedance) and sent to the feedback signal. This essentially breaks the loop and injects the AC signal on top of the DC output voltage and sends it to the feedback. By monitoring the feedback “R” and output “A”, gain and phase are measured. This method has no minimum frequency. Ensure that the bandwidth of the op-amp being used is much greater than the expected bandwidth of the power supplies control loop. An op-amp with >100MHz bandwidth is more than sufficient for most power supplies (which includes both linear and switching) and are more common and significantly cheaper than the injection transformers previously mentioned. The one disadvantage to using the op-amp injection method; is the supply voltages need to below the maximum operating voltage of the op-amp. Also, the maximum output voltage for driving 50Ω inputs using the MIC922 is 3V. For measuring higher output voltages, 1MΩ input impedance is required for the A and R channels. Remember to always measure the output voltage with an oscilloscope to ensure the measurement is working properly. You should see a single sweeping sinusoidal waveform without distortion on the output. If there is distortion of the sinusoid, reduce the amplitude of the source signal. You could be overdriving the feedback causing a large signal response.

Network Analyzer “A” Input

Output

May 2007

M9999-051707

Page 15

Micrel, Inc. MIC4720

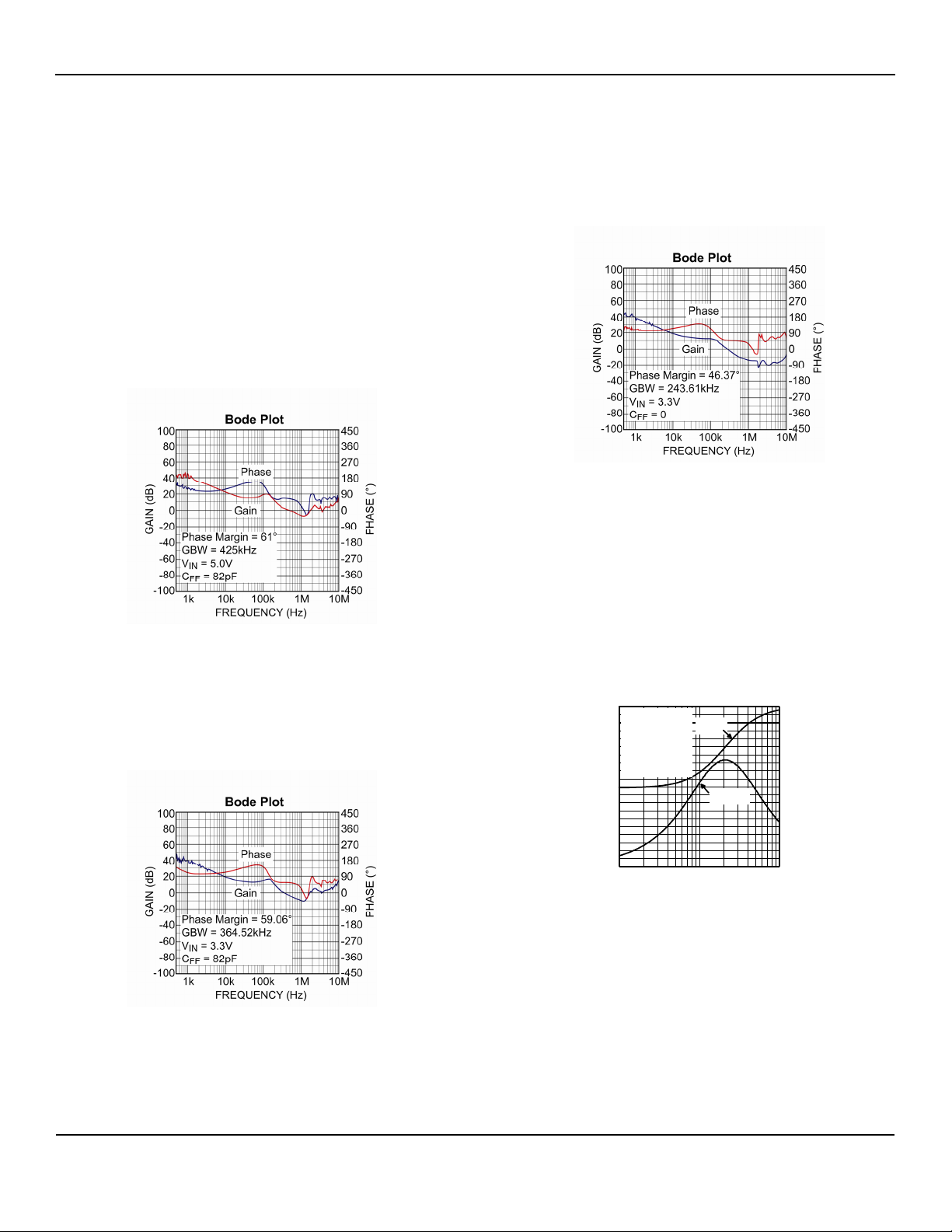

The following Bode analysis show the small signal loop stability of the MIC4720, it utilizes type III compensation. This is a dominant low frequency pole, followed by 2 zeros and finally the double pole of the inductor capacitor filter, creating a final 20dB/decade roll off. Bode analysis gives us a few important data points; speed of response (Gain Bandwidth or GBW) and loop stability. Loop speed or GBW determines the response time to a load transient. Faster response times yield smaller voltage deviations to load steps.

Instability in a control loop occurs when there is gain and positive feedback. Phase margin is the measure of how stable the given system is. It is measured by determining how far the phase is from crossing zero when the gain is equal to 1 (0dB).

Being that the MIC4720 is non-synchronous; the regulator only has the ability to source current. This means that the regulator has to rely on the load to be able to sink current. This causes a non-linear response at light loads. The following plot shows the effects of the pole created by the nonlinearity of the output drive during light load (discontinuous) conditions.

3.3Vin, 1.8Vout Iout=50mA;

•

Phase Margin=90.5 Degrees

•

GBW= 64.4KHz

Typically for 3.3Vin and 1.8Vout at 2A;

•

Phase Margin=47 Degrees

•

GBW=156KHz

Gain will also increase with input voltage. The following graph shows the increase in GBW for an increase in supply voltage.

5Vin, 1.8Vout at 2A load;

•

Phase Margin=43.1 Degrees

•

GBW= 218KHz

Feed Forward Capacitor

The feedback resistors are a gain reduction block in the overall system response of the regulator. By placing a capacitor from the output to the feedback pin, high frequency signal can bypass the resistor divider, causing a gain increase up to unity gain.

Gain and Phase

vs. Frequency

L=1µH

-1

-2 R1 = 10k

-3

R2 = 12.4k C

-4

-5

-6

GAIN (dB)

-7

-8

-9

-10 100 1k

= 4.7µF

OUT

= 82pF

FREQUENCY (Hz)

GAIN

PHASE

10k 100k

PHASE BOOST (°)

The graph above shows the effects on the gain and phase of the system caused by feedback resistors and a feedforward capacitor. The maximum amount of phase boost achievable with a feedforward capacitor is graphed below.

May 2007

M9999-051707

Page 16

Micrel, Inc. MIC4720

Max. Amount of Phase Boost

Obtainable using C

PAHSE BOOST (°)

12345

OUTPUT VOLTAGE (V)

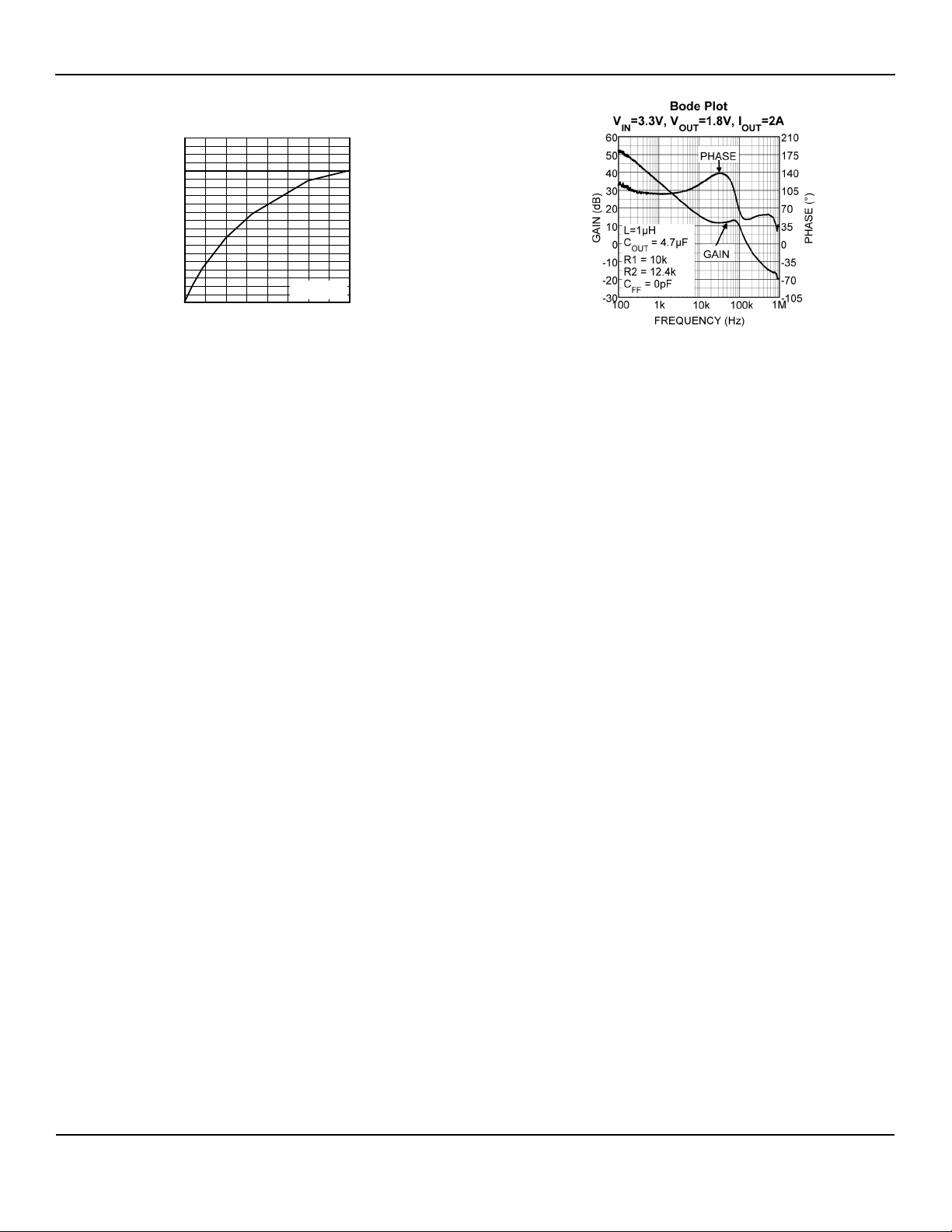

By looking at the graph, phase margin can be affected to a greater degree with higher output voltages.

The next bode plot shows the phase margin of a 1.8V output at 2A without a feedforward capacitor.

Voltage

vs. Output

= 1V

REF

As you can see the typical phase margin, using the same resistor values as before without a feedforward capacitor results in 33.6 degrees of phase margin. Our prior measurement with a feedforward capacitor yielded a phase margin of 47 degrees. The feedforward capacitor has given us a phase boost of 13.4 degrees (47 degrees- 33.6 Degrees = 13.4 Degrees).

May 2007

M9999-051707

Page 17

Micrel, Inc. MIC4720

×∆=

∆

Output Impedance and Transient

and peak to peak current;

Response

Output impedance, simply stated, is the amount of output voltage deviation vs. the load current deviation. The lower the output impedance, the better.

∆

OUT

Output impedance for a buck regulator is the parallel impedance of the output capacitor and the MOSFET and inductor divided by the gain;

TOTAL

To measure output impedance vs. frequency, the load current must be load current must be swept across the frequencies measured, while the output voltage is monitored. Figure 9 shows a test set-up to measure output impedance from 10Hz to 1MHz using the MIC5190 high speed controller.

OUT

∆

OUT

XDCRR

LDSON

GAIN

COUT

The following graph shows output impedance vs frequency at 2A load current sweeping the AC current from 10Hz to 10MHz, at 1A peak to peak amplitude.

From this graph, you can see the effects of bandwidth and output capacitance. For frequencies <200KHz, the output impedance is dominated by the gain and inductance. For frequencies >200KHz, the output impedance is dominated by the capacitance. A good approximation for transient response can be calculated from determining the frequency of the load step in amps per second;

dBm

=∆

OUTPUT IMPEDANCE (Ohms)

0.001

R707.0

Output Impedance

=1.8V

OUT

L=1µH

=4.7µF + 0.1µ

OUT

0.1

0.01

100

LOAD

vs. Frequency

3.3VIN

FREQUENCY (Hz)

×××

250Ω1mW10

10k 100k

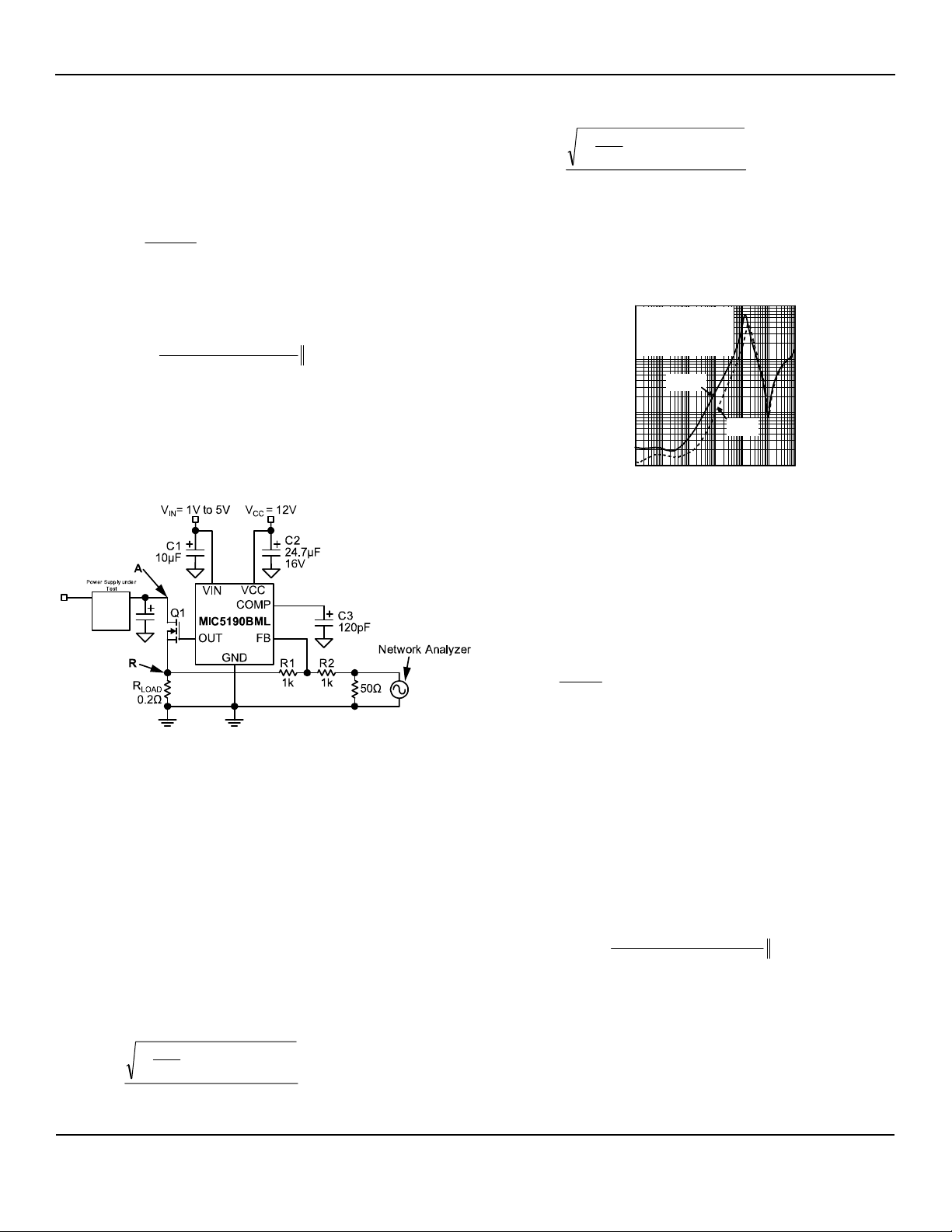

Figure 9. Output Impedance Measurement

By setting up a network analyzer to sweep the feedback current, while monitoring the output of the voltage regulator and the voltage across the load resistance, output impedance is easily obtainable. To keep the current from being too high, a DC offset needs to be applied to the network analyzer’s source signal. This can be done with an external supply and 50Ω resistor. Make sure that the currents are verified with an oscilloscope first, to ensure the integrity of the signal measurement. It is always a good idea to monitor the A and R measurements with a scope while you are sweeping it. To convert the network analyzer data from dBm to something more useful (such as peak to peak voltage and current in our case);

dBm

=∆

707.0

250Ω1mW10

×××

A/sec

Then, determine the output impedance by looking at the output impedance vs frequency graph. Then calculating the voltage deviation times the load step;

ZIV

OUTOUTOUT

The output impedance graph shows the relationship between supply voltage and output impedance. This is caused by the lower Rdson of the high side MOSFET and the increase in gain with increased supply voltages. This explains why higher supply voltages have better transient response.

++↓

XDCRR

TOTAL

=↓

↑

GAIN

LDSON

COUT

May 2007

M9999-051707

Page 18

Micrel, Inc. MIC4720

Ripple measurements

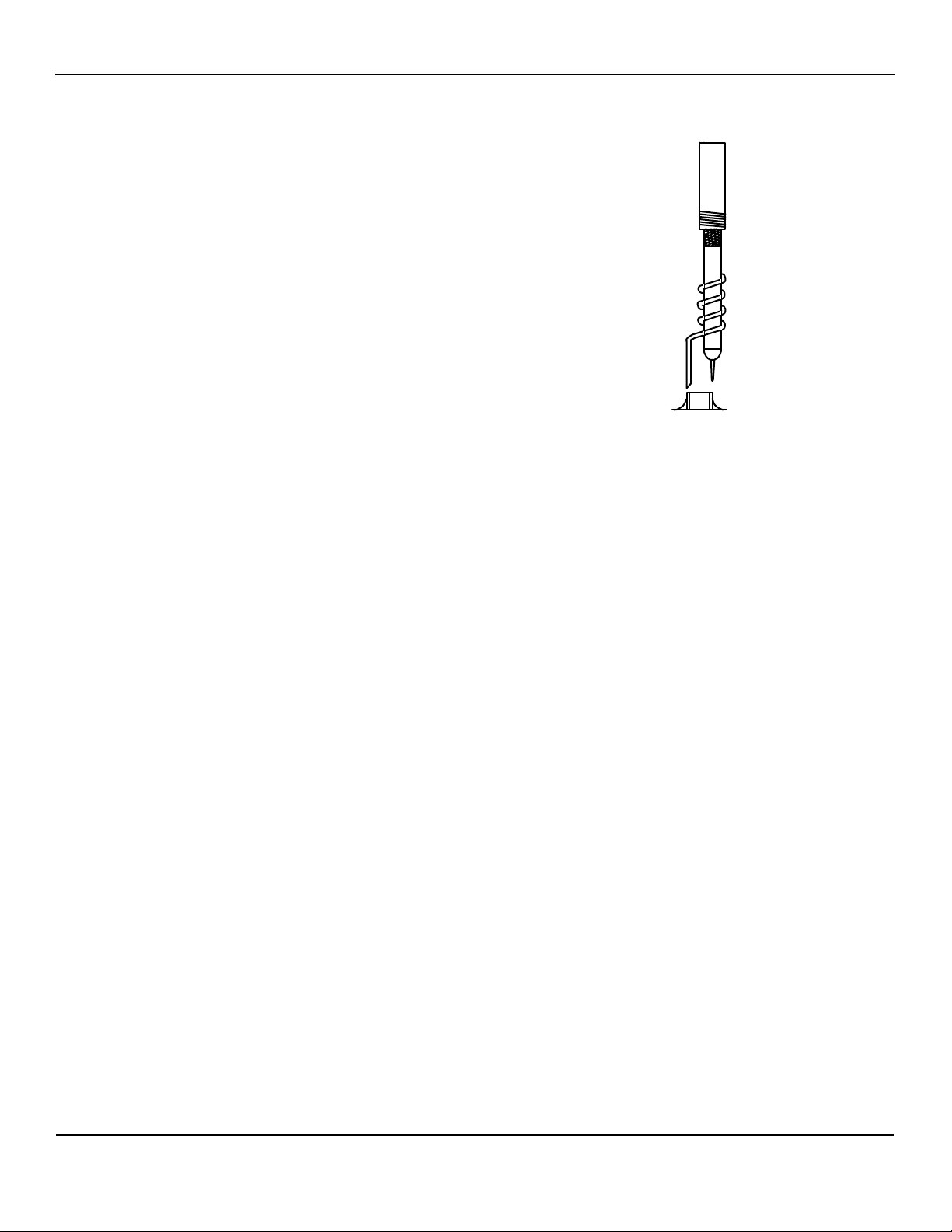

To properly measure ripple on either input or output of a switching regulator, a proper ring in tip measurement is required. Standard oscilloscope probes come with a grounding clip, or a long wire with an alligator clip. Unfortunately, for high frequency measurements, this ground clip can pick-up high frequency noise and erroneously inject it into the measured output ripple.

The standard evaluation board accommodates a home made version by providing probe points for both the input and output supplies and their respective grounds. This requires the removing of the oscilloscope probe sheath and ground clip from a standard oscilloscope probe and wrapping a non-shielded bus wire around the oscilloscope probe. If there does not happen to be any non shielded bus wire immediately available, the leads from axial resistors will work. By maintaining the shortest possible ground lengths on the oscilloscope probe, true ripple measurements can be obtained.

May 2007

M9999-051707

Page 19

Micrel, Inc. MIC4720

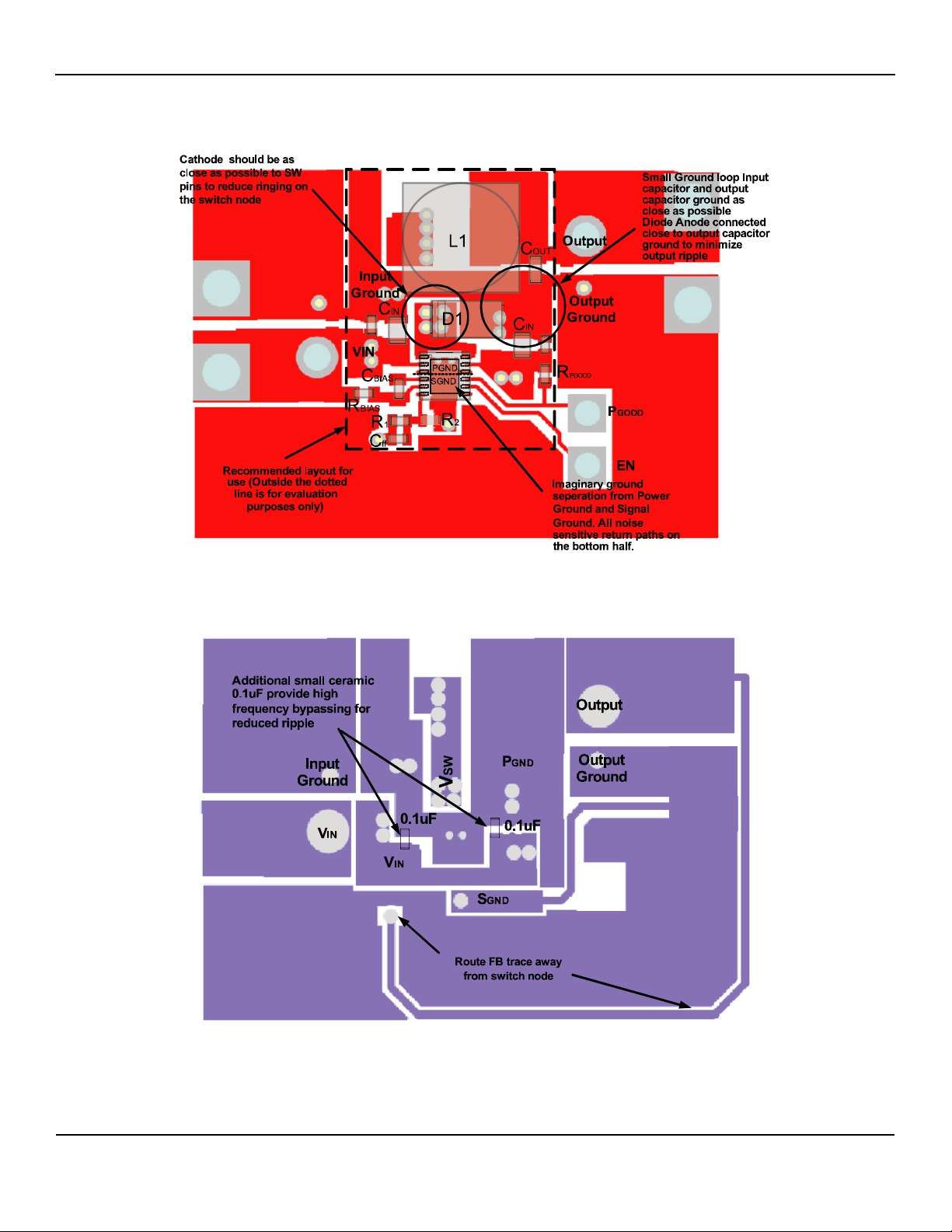

Recommended Layout: 2A Evaluation Board

Recommended Top Layout

May 2007

Recommended Bottom Layout

M9999-051707

Page 20

Micrel, Inc. MIC4720

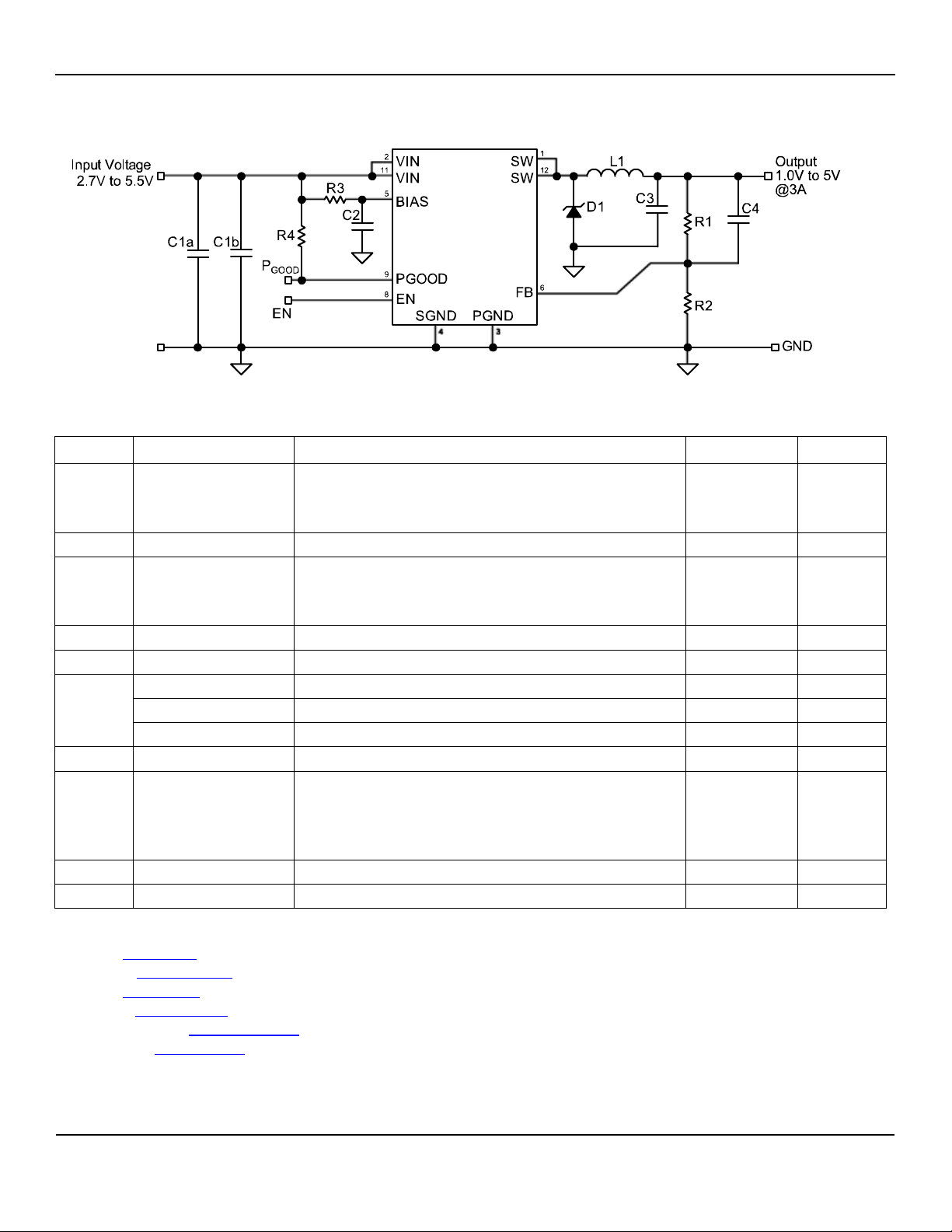

MIC4720 Schematic and BOM for 2A Output

Item Part Number Description Manufacturer Qty

C1a,C1b C2012JB0J106K

GRM219R60J106KE19

08056D106MAT

C2 0402ZD104MAT 0.1µF Ceramic Capacitor X5R 0402 10V AVX 1

C3 C2012JB0J475K

GRM188R60J475KE19

06036D475MAT

C4 VJ0402A820KXAA 82pF Ceramic Capacitor 0402 Vishay VT 1

D1 SSA33L 3A Schottky 30V SMA Vishay Semi 1

RLF7030-1R0N6R4 1µH Inductor 8.8mΩ 7.1mm(L) x 6.8mm (W)x 3.2mm(H) TDK 1

744 778 9001 1µH Inductor 12mΩ 7.3mm(L)x7.3mm(W)x3.2mm(H) Wurth Elektronik 1

IHLP2525AH-01 1 1µH Inductor 17.5mΩ 6.47mm(L)x6.86mm(W)x1.8mm(H) Vishay Dale 1

R1,R4 CRCW04021002F 10KΩ1% 0402 resistor Vishay Dale 1

CRCW04026651F CRCW04021242F CRCW04022002F CRCW04024022F

R3 CRCW040210R0F 10Ω1% 0402 resistor Vishay Dale 1

MIC4720BML

10µF Ceramic Capacitor X5R 0805 6.3V

4.7µF Ceramic Capacitor X5R 0603 6.3V

6.65kΩ 1% 0402 For 2.5V

12.4kΩ 1% 0402 For 1.8 V 20kΩ 1% 0402 For 1.5 V

40.2kΩ 1% 0402 For 1.2 V Open For 1.0 V

OUT

2.0MHz 2A Buck Regulator

TDK

Murata

AVX

TDK

Murata

AVX 1

Vishay Dale Vishay Dale Vishay Dale Vishay Dale Vishay Dale

Micrel, Inc.

Notes:

1. TDK: www.tdk.com

2. Murata:

3. AVX:

4. Vishay:

5. Wurth Elektronik:

6. Micrel, Inc:

www.murata.com

www.avx.com

www.vishay.com

www.micrel.com

May 2007

www.we-online.com

M9999-051707

Page 21

Micrel, Inc. MIC4720

Package Information

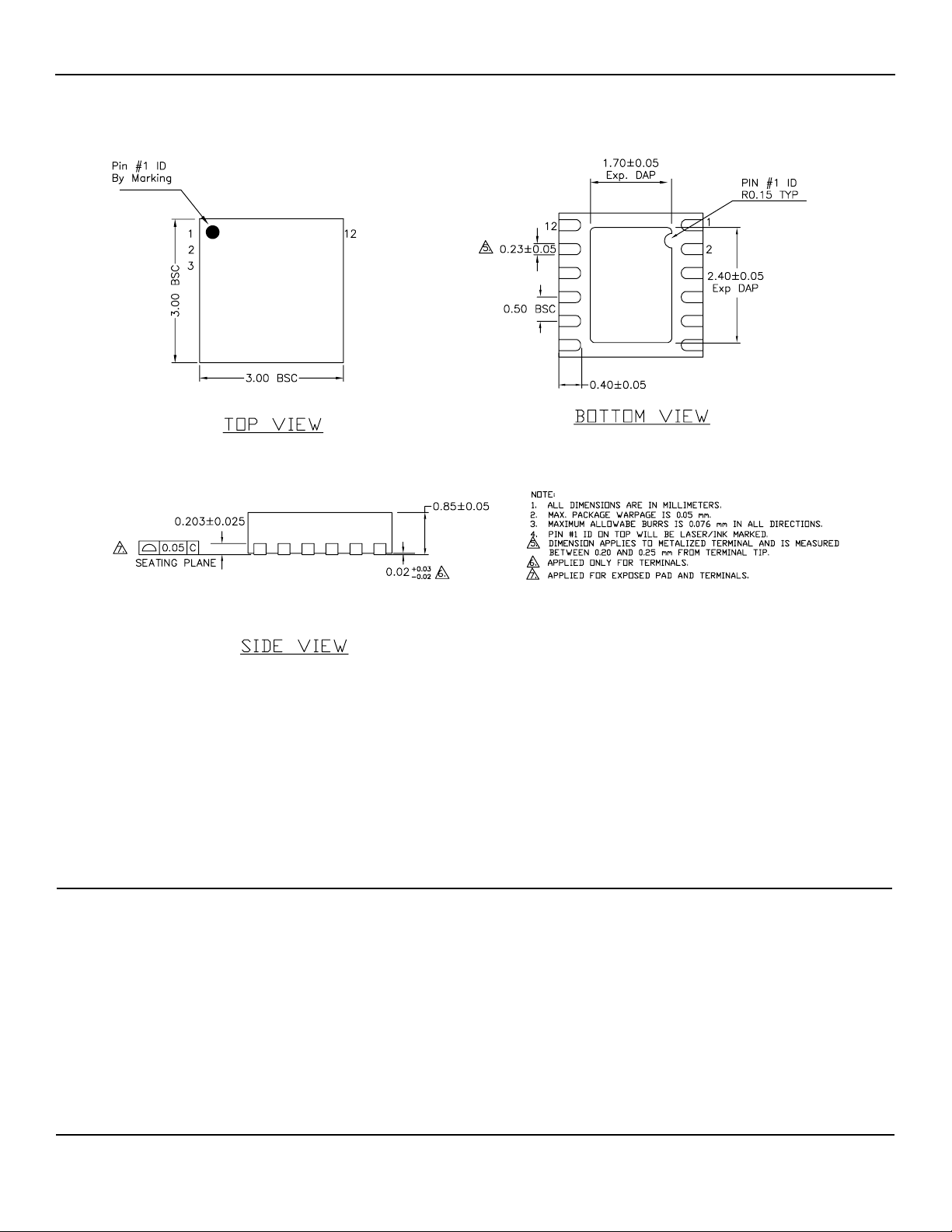

12-Pin 3mm x 3mm MLF® (ML)

MICREL, INC. 2180 FORTUNE DRIVE SAN JOSE, CA 95131 USA

TEL +1 (408) 944-0800 FAX +1 (408) 474-1000 WEB http:/www.micrel.com

The information furnished by Micrel in this data sheet is believed to be accurate and reliable. However, no responsibility is assumed by Micrel for its

Micrel Products are not designed or authorized for use as components in life support appliances, devices or systems where malfunction of a product

reasonably be expected to result in personal injury. Life support devices or systems are devices or systems that (a) are intended for surgical impla

can nt

into the body or (b) support or sustain life, and whose failure to perform can be reasonably expected to result in a significant injury to the user. A

Purchaser’s use or sale of Micrel Products for use in life support appliances, devices or systems is a Purchaser’s own risk and Purchaser agrees to fully

use. Micrel reserves the right to change circuitry and specifications at any time without notification to the customer.

indemnify Micrel for any damages resulting from such use or sale.

May 2007

M9999-051707
