Datasheet MIC2183BM, MIC2183BQS Datasheet (MICREL)

MIC2183 Micrel

MIC2183

Low Voltage Synchronous Buck PWM Control IC

Final Information

General Description

Micrel’s MIC2183 is a high efficiency PWM synchronous
buck control IC. With its wide input voltage range of 2.9V to
14V, the MIC2183 can be used to efficiently step voltages
down in 1- or 2-cell Li Ion battery powered applications, as
well as in fixed 3.3V, 5V, or 12V systems.

Efficiencies over 90% are achievable over a wide range of
load conditions with the MIC2183’s PWM control scheme.
The operating frequency can be divided by two by raising the
FREQ/2 pin to VDD. This allows the user to optimize efficiency
versus board space. It also allows the MIC2183 to be exter­nally synchronized to frequencies below its nominal 400KHz.

The MIC2183 features an oscillator output, FreqOut, which
can be used to implement a simple charge pump in low
voltage applications. The output of the charge pump can be
fed into the gate drive power circuitry via the V
feature allows enhanced gate drive, hence higher efficiencies
at low input voltages.

MIC2183 also features a 1µA shutdown mode, and a pro­grammable undervoltage lockout, making it well-suited for
portable applications.

The MIC2183 is available in 16-pin SOP and QSOP packag­ing options with a junction temperature range from -40°C to
+125°C.

P pin. This

IN

Features

• Input voltage range: 2.9V to 14V

• >90% efficiency

• Oscillator frequency of 400kHz

• Frequency divide-by-two pin

• Frequency sync to 600kHz

• FreqOut oscillator output allows simple charge pump
implementation in low voltage systems

• Front edge blanking

•5Ω output drivers (typical)

• Soft start

• PWM current mode control

•1µA shutdown current

• Cycle-by-cycle current limiting

• Frequency foldback short circuit protection

• Adjustable under-voltage lockout

• 16-pin narrow-body SOP and QSOP package options

Applications

• 3.3V to 2.5V/1.8V/1.5V conversion

• DC power distribution systems

• Wireless modems

• ADSL line cards

• 1-and 2-cell Li Ion battery operated equipment

• Satellite Phones

T ypical Application

= 3.3V

V

IN

120µF (x2)

6.3V

1

VINA

7

EN/UVLO

2

FreqOut

15

FREQ/2

10

VDD

4

COMP

3

SS

11

SYNC

Adjustable Output Synchronous Buck Converter

Micrel, Inc. • 1849 Fortune Drive • San Jose, CA 95131 • USA • tel + 1 [phone] • fax + 1 [phone] • http://www.micrel.com

December 10, 2001 1 MIC2183

16

VINP

MIC2183

SGND

5

CSH

CSL

OUTP

OUTN

PGND

FB

9

1nF

8

14

Si9804DY

(x2)

13

12

6

15m

Ω

Si9803DY(x2)

4.7µH

B130

V

OUT

2.5V @5A

220µF (x2)

6.3V

MIC2183 EFFICIENCY

100

95
90
85
80
75
70
65

EFFICIENCY (%)

60
55
50

012345

OUTPUT CURRENT (A)

VIN = 3.3V

= 2.5V

V

OUT

= 200kHz

f

S

MIC2183 Micrel

Ordering Information

Part Number Output Voltage Frequency Junction Temp. Range Package

MIC2183BM Adjustable 200/400KHz –40°C to +125°C 16-lead SOP
MIC2183BQS Adjustable 200/400KHz –40°C to +125°C 16-lead QSOP

Pin Configuration

FreqOut

SS

COMP

SGND

FB

EN/UVLO

CSL

1VINA
2
3
4
5
6
7
8

16 Lead SOIC (M)

16 Lead QSOP (QS)

16 VINP

FREQ/2

15

OUTP

14

OUTN

13

PGND

12

SYNC

11

VDD

10

CSH

9

MIC2183 2 December 10, 2001

MIC2183 Micrel

Pin Description

Pin Number Pin Name Pin Function

1 VINA Analog voltage input voltage to the circuit. This powers up the analog

sections of the die and does not need to be the same voltage as Pin 16
(VINP).

2 FreqOut This provides a digital signal output signal at half the switching frequency.

This signal swings from 0 to 3V, and can be used to drive an external
capacitive doubler to provide a higher voltage to the VINP input.

3 SS Soft start reduces the inrush current and delays and slows the output voltage

rise time. A 5µA current source will charge the capacitor up to V
capacitor will soft start the switching regulator in 1.5ms.

4 COMP Compensation (Output): Internal error amplifier output. Connect to a

capacitor or series RC network to compensate the regulator’s control loop.

5 SGND Small signal ground: must be routed separately from other grounds to the (-)

terminal of C

OUT

.

6 FB Feedback Input - the circuit regulates this pin to 1.245V.
7 EN/UVLO Enable/UnderVoltage Lockout (input): A low level on this pin will power down

the device, reducing the quiescent current to under 5uA. This pin has two
separate thresholds, below 1.5V the output switching is disabled, and below

0.9V the part is forced into a complete micropower shutdown. The 1.5V
threshold functions as an accurate undervoltage lockout (UVLO) with 140mV
hysteresis.

8 CSL The (-) input to the current limit comparator. A built in offset of 100mV

between CSH and CSL in conjunction with the current sense resistor sets
the current limit threshold level. This is also the (-) input to the current
amplifier.

9 CSH The (+) input to the current limit comparator. A built in offset of 100mV

between CSH and CSL in conjunction with the current sense resistor sets
the current limit threshold level. This is also the (+) input to the current
amplifier.

10 VDD 3V internal linear-regulator output. VDD is also the supply voltage bus for the

chip. Bypass to SGND with 1µF.

11 SYNC Frequency Synchronization (Input): Connect an external clock signal to

synchronize the oscillator. Leading edge of signal above 1.5V starts the
switching cycle. Connect to SGND if not used.

12 PGND MOSFET driver power ground, connects to source of synchronous MOSFET

and the (-) terminal of CIN.

13 OUTN High current drive for synchronous N channel MOSFET. Voltage swing is

from ground to V

. On-resistance is typically 5Ω.

INP

14 OUTP High current drive for high side P channel MOSFET. Voltage swing is from

ground to VINP. On-resistance is typically 5Ω.

15 FREQ/2 When this is low, the oscillator frequency is 400KHz. When this pin is raised

to VDD, the oscillator frequency is 200KHz.

16 VINP Power Input voltage to the circuit. The output gate drivers are powered from

this supply. The current sense resistor R
possible to this pin.

should be connected as close as

CS

. A 1µF

DD

December 10, 2001 3 MIC2183

MIC2183 Micrel

Absolute Maximum Ratings (Note 1)

Supply Voltage (V

Digital Supply Voltage (VDD) ...........................................7V

Comp Pin Voltage (V

Feedback Pin Voltage (VFB) .......................... –0.3V to +3V

Enable Pin Voltage (V
Current Sense Voltage (V
Sync Pin Voltage (V
Freq/2 Pin Voltage (V

A, VINP) .........................................15V

IN

)............................ –0.3V to +3V

COMP

EN/UVLO

SYNC

FREQ/2

) ..................... –0.3V to 15V

CSH–VCSL

)............... –0.3V to 1V

) ................................ –0.3V to 7V

) ............................ -0.3V to 7V

Operating Ratings (Note 2)

Supply Voltage (V

Ambient Operating Temperature.........–40°C ≤ TA ≤ +85°C

Junction Temperature ....................... –40°C ≤ TJ ≤ +125°C

Output Voltage Range...................................... 1.3V to 12V

PackageThermal Resistance

θJA 16-lead SOP ...............................................100°C/W

θJA 16-lead QSOP.............................................163°C/W

A, VINP) ........................ +2.9V to +14V

IN

Power Dissipation (PD)

16 lead SOIC.................................400mW @ TA = 85°C

16 lead QSOP ....................................... 245mW @ 85°C

Ambient Storage Temp ............................–65°C to +150°C

ESD Rating, Note 3

Electrical Characteristics

VINA = VINP = V
–40ºC < TJ < +125ºC.

Parameter Condition Min Typ Max Units
Regulation

Feedback Voltage Reference (±1%) 1.233 1.245 1.257 V

Feedback Bias Current 50 nA
Output Voltage Line Regulation 5V ≤ VIN ≤ 12V 0.04 % / V
Output Voltage Load Regulation 0mV < (V
Output Voltage Total Regulation 5V ≤ VINA ≤ 12V, 0mV < (V

Input & VDD Supply

VINA Input Current 0.7 mA
VINP Input Current, Note 4 (Excluding external MOSFET gate current) 1.0 mA
Shutdown Quiescent Current V
Digital Supply Voltage (VDD)I
Digital Supply load regulation IL = 0 to 1mA 0.03 V
Undervoltage Lockout VDD upper threshold (turn on threshold) 2.75 V
UVLO Hysteresis 100 mV

Enable/UVLO

Enable Input Threshold 0.6 0.9 1.2 V
UVLO Threshold (turn-on threshold) 1.4 1.5 1.6 V
UVLO Hysteresis 140 mV
Enable Input Current V

Soft Start

Soft Start Current 5 µA

Current Limit

Current Limit Threshold Voltage Voltage on CSH-CSL to trip current limit 100 mV

Error Amplifier

Error Amplifier Gain 20 V/V

Current Amplifier

Current Amplifier Gain 3.0 V/V

CSH

= 5V, V

= 3.3V, V

OUT

EN/UVLO

(±2%) 1.22 1.27 V

EN/UVLO

= 0 2.82 3.0 3.18 V

L

EN/UVLO

= 5V, V

– V

CSH

CSL

= 0V; (I

VINA

= 5V 0.2 5 µA

= 0V, TJ = 25ºC, unless otherwise specified. Bold values indicate

FREQ/2

) < 75mV 0.9 %

– V

CSH

+ I

) 0.5 5 µA

VINP

) < 75mV (±3%) 1.208 1.282 V

CSL

MIC2183 4 December 10, 2001

MIC2183 Micrel

Parameter Condiion Min Typ Max Units
Oscillator Section

Oscillator Frequency (fO) 360 400 440 kHz
Maximum Duty Cycle VFB = 1.0V 100 %
Minimum On Time VFB = 1.5V 165 ns
Freq/2 Frequency (fO)V
Frequency Foldback Threshold Measured on FB 0.3 V
Frequency Foldback Frequency 90 kHz
SYNC Threshold Level 0.6 1.4 2.2 V
SYNC Input Current 0.1 5 µA
SYNC Minimum Pulse Width 200 ns
SYNC Capture Range Note 5

FreqOut Output

FreqOut Frequency Note 6 fO / 2 kHz
FreqOut Current Drive Sink 8mA

Gate Drivers

Rise/Fall Time CL = 3300pF 50 ns
Output Driver Impedance Source; VINP = 12V 4 8 Ω

Driver Non-Overlap Time VINP = 12V 50 ns

= 5V 170 200 230 kHz

Freq/2

fO +15 %

600 kHz

Source –6mA

Sink; VINP = 12V 3 7 Ω
Source; VINP = 5V 5 11 Ω
Sink; VINP = 5V 5 11 Ω

VINP = 5V 80 ns

Note 1: Absolute maximum ratings indicate limits beyond which damage to the component may occur. Electrical specifications do not apply when

Note 2. The device is not guaranteed to function outside its operating rating.
Note 3. Devices are ESD sensitive. Handling precautions recommended.
Note 4: See application information for I(VINP) vs. VINP.
Note 5: See application information for limitations on maximum operating frequency.
Note 6: The frequency on FreqOut is half the frequency of the oscillator, or half the frequency of the external Sync signal.

operating the device outside of its operating ratings. The maximum allowable power dissipation is a function of the maximum junction
temperature, TJ(Max), the junction-to-ambient thermal resistance, θJA, and the ambient temperature, TA.

December 10, 2001 5 MIC2183

MIC2183 Micrel

Typical Characteristics

Quiescent Current

vs. Input Voltage

6

IQ = I

+ I

VINA

5

4

3

2

1

QUIESCENT CURRENT (mA)

0

0 5 10 15

3.005

3.000

2.995

2.990

(V)

DD

2.985

V

2.980

2.975

2.970
0 0.2 0.4 0.6 0.8 1 1.2

VDD LOAD CURRENT (mA)

VINP

INPUT VOLTAGE (V)

VDDvs. Load

VINA = VINP = 5V

400kHz

200kHz

I

STANDBY

Quiescent Current

vs. Temperature

1.4

1.2

1.0

0.8

0.6

0.4

IQ = I

= I

VINA

VINP

V

V

0.2

INA

=

QUIESCENT CURRENT (mA)

0

-40 -20 0 20 40 60 80 100120140

3.04

3.03

3.02

3.01

3.00

VDD (V)

2.99

2.98

2.97

2.96

-40 -20 0 20 40 60 80 100120140

INP = 3.3V

TEMPERATURE (°C)

VDDvs. Temperature

VINA = VINP = 3.3V

TEMPERATURE (°C)

400kHz

200kHz

I

STANDBY

VDDvs. Input Voltage

3.15

3.10

3.05

3.00

(V)

DD

2.95

V

2.90

2.85

2.80
0 5 10 15

INPUT VOLTAGE (V)

VINA = VINP

Error Amp Reference Voltage

1.246

1.245

1.244

1.243

1.242

1.241

1.240

REFERENCE VOLTAGE (V)

1.239

vs. Temperature

-40 -20 0 20 40 60 80 100120140

TEMPERATURE (°C)

Switching Frequency

vs. Input Voltage

2.5

2.0

1.5

1.0

0.5
0

-0.5

-1.0

-1.5

FREQUENCY VARIATION (%)

-2.0

0 5 10 15

INPUT VOLTAGE (V)

Overcurrent Threshold vs.

102

100

98

96

94

THRESHOLD (mV)

92

90

Input Voltage

0 5 10 15

INPUT VOLTAGE (V)

200kHz

400kHz

Switching Frequency

vs. Temperature

5

0

-5

-10

-15

FREQUENCY VARIATION (%)

-20

-40 -20 0 20 40 60 80 100120140

TEMPERATURE (°C)

Overcurrent Threshold

110.0

108.0

106.0

104.0

102.0

100.0

98.0

96.0

THRESHOLD (mV)

94.0

92.0

90.0

vs. Temperatue

-40 -20 0 20 40 60 80 100120140

TEMPERATURE (°C)

200kHz

400kHz

Soft Start Current vs.

5.40

5.35

5.30

5.25

5.20

5.15

5.10

5.05

SOFT START CURRENT (µA)

5.00

-40 -20 0 20 40 60 80 100120140

9
8
7
6
5
4
3

IMPEDANCE (Ω)

2
1
0

Temperature

TEMPERATURE (°C)

OUTN Drive Impedance vs.

Input Voltage

SOURCE

0 5 10 15

INPUT VOLTAGE (V)

SINK

MIC2183 6 December 10, 2001

MIC2183 Micrel

OUTP Drive Impedance vs.

Input Voltage

9
8
7
6
5
4
3

IMPEDANCE (Ω)

2
1
0

0 5 10 15

INPUT VOLTAGE (V)

SINK

SOURCE

December 10, 2001 7 MIC2183

MIC2183 Micrel

Functional Diagram

V

IN

C

DECOUP

VINA

C

IN

1

OVERCURRENT

VREF

1.245V

COMPARATOR

0.1V
CSH9

EN/UVLO 7

VDD 10

SYNC

FREQ/2

FreqOut

SS

COMP

R

Q1

Q2

SENSE

D1

L1

V

OUT

C

OUT

BIAS

VDD

CURRENT

fs/4

∑

100k

SENSE

AMP

gm = 0.0002
gain = 20

ON

fs/4

11

15

2

÷2

3

4

OSC

COMPARATOR

CONTROL

RESET

SLOPE

COMPENSATION

PWM

GAIN

3.7

V

ERROR

AMP

0.3V

PGND

REF

12

CSL8
VINP16

OUTP14

OUTN13

PGND

FB6

FREQUENCY

FOLDBACK

SGND5

Figure 1. MIC2183 Block Diagram

Functional Characteristics

Controller Overview and Functional Description

The MIC2183 is a BiCMOS, switched mode, synchronous,
step down (buck) converter controller. It uses both N and P­Channel MOSFETs, which allows the controller to operate at
100% duty cycle and eliminates the need for a high side drive
bootstrap circuit. Current mode control is used to achieve
superior transient line and load regulation. An internal correc­tive ramp provides slope compensation for stable operation
above a 50% duty cycle. The controller is optimized for high
efficiency, high performance DC-DC converter applications.

Figure 1 is a block diagram of the MIC2183 configured as a
synchronous buck converter. At the beginning of the switch-

P-Channel MOSFET, Q1. Current flows from the input to the
output through the current sense resistor, MOSFET and
inductor. The current amplitude increases, controlled by the
inductor. The voltage developed across the current sense
resistor, R

, is amplified inside the MIC2183 and com-

SENSE

bined with an internal ramp for stability. This signal is com­pared to the output of the error amplifier. When the current
signal equals the error voltage signal, the P-channel MOSFET
is turned off. The inductor current flows through the diode, D1,
until the synchronous, N-Channel MOSFET turns on. The
voltage drop across the MOSFET is less than the forward
voltage drop of the diode, which improves the converter
efficiency. At the end of the switching period, the synchro­nous MOSFET is turned off and the switching cycle repeats.

ing cycle, the OUTP pin pulls low and turns on the high-side

MIC2183 8 December 10, 2001

MIC2183 Micrel

The MIC2183 controller is broken down into 7 functions.

• Control loop

• PWM operation

• Current mode control

• Current limit

• Reference, enable and UVLO

• FreqOut

• MOSFET gate drive

• Oscillator and Sync

• Soft-start

Control Loop

PWM Control Loop

The MIC2183 uses current mode control to regulate the
output voltage. This dual control loop method (illustrated in
Figure 2) senses the output voltage (outer loop) and the
inductor current (inner loop). It uses inductor current and
output voltage to determine the duty cycle of the buck
converter. Sampling the inductor current effectively removes
the inductor from the control loop, which simplifies compen­sation.

V

IN

Switching
Converter

Switch

Driver

I

INDUCTOR

V

ERROR

t

ON

t

PER

V

ERROR

D = tON/t

PER

I

INDUCTOR

V

REF

V

OUT

Voltage

Divider

Figure 2. Current Mode Control Example

As shown in Figure 1, the inductor current is sensed by
measuring the voltage across the resistor, R

SENSE

. A ramp is
added to the amplified current sense signal to provide slope
compensation, which is required to prevent unstable opera­tion at duty cycles greater than 50%.

A transconductance amplifier is used for the error amplifier,
which compares an attenuated sample of the output voltage
with a reference voltage. The output of the error amplifier is
the compensation pin (Comp), which is compared to the
current sense waveform in the PWM block. When the current
signal becomes greater than the error signal, the comparator
turns off the high side drive. The COMP pin provides access
to the output of the error amplifier and allows the use of
external components to stabilize the voltage loop.

Current Limit

The output current is detected by the voltage drop across the
external current sense resistor (R

in Figure 1.). The

SENSE

current sense resistor must be sized using the minimum
current limit threshold. The external components must be
designed to withstand the maximum current limit. The current
sense resistor value is calculated by the equation below:

MIN CURRENT SENSE THRESHOLD

R

SENSE

___

=

I

_

OUT MAX

The maximum output current is:

MAX CURRENT SENSE THRESHOLD

I

OUT MAX

_

___

=

R

SENSE

The current sense pins CSH (pin 9) and CSL (pin 8) are noise
sensitive due to the low signal level and high input imped­ance. The PCB traces should be short and routed close to
each other. A small (1nF) capacitor across the pins will
attenuate high frequency switching noise.

When the peak inductor current exceeds the current limit
threshold, the overcurrent comparator turns off the high side
MOSFET for the remainder of the switching cycle, effectively
decreasing the duty cycle. The output voltage drops as
additional load current is pulled from the converter. When the
voltage at the feedback pin (FB) reaches approximately 0.3V,
the circuit enters frequency foldback mode and the oscillator
frequency will drop to 1/4 of the switching frequency. This
limits the maximum output power delivered to the load under
a short circuit condition.

Reference, Enable and UVLO Circuits

The output drivers are enabled when the following conditions
are satisfied:

• The VDD voltage (pin 10) is greater than its
undervoltage threshold.

• The voltage on the enable pin (pin 7) is greater
than the enable UVLO threshold.

The enable pin (pin 7) has two threshold levels, allowing the
MIC2183 to shut down in a low current mode, or turn off output
switching in standby mode. An enable pin voltage lower than
the shutdown threshold turns off all the internal circuitry and
places the MIC2183 in a micropower shutdown mode.

If the enable pin voltage is between the shutdown and
standby thresholds, the internal bias, VDD and reference
voltages are turned on. The soft start pin is forced low by an
internal discharge MOSFET. The output drivers are inhibited
from switching. The OUTP pin is in a high state and the OUTN
pin remains in a low state. Raising the enable voltage above
the standby threshold allows the soft start capacitor to charge
and enables the output drivers. The standby threshold is
specified in the electrical characteristics. A resistor divider
can be used with the enable pin to prevent the power supply
from turning on until a specified input voltage is reached. The
circuit in Figure 3 shows how to connect the resistors.

December 10, 2001 9 MIC2183

MIC2183 Micrel

MIC2183

1.5V

Typical

V

IN

R1

R2

EN/UVLO
(7)

140mV

Hysteresis

(typical)

Bias

Circuitry

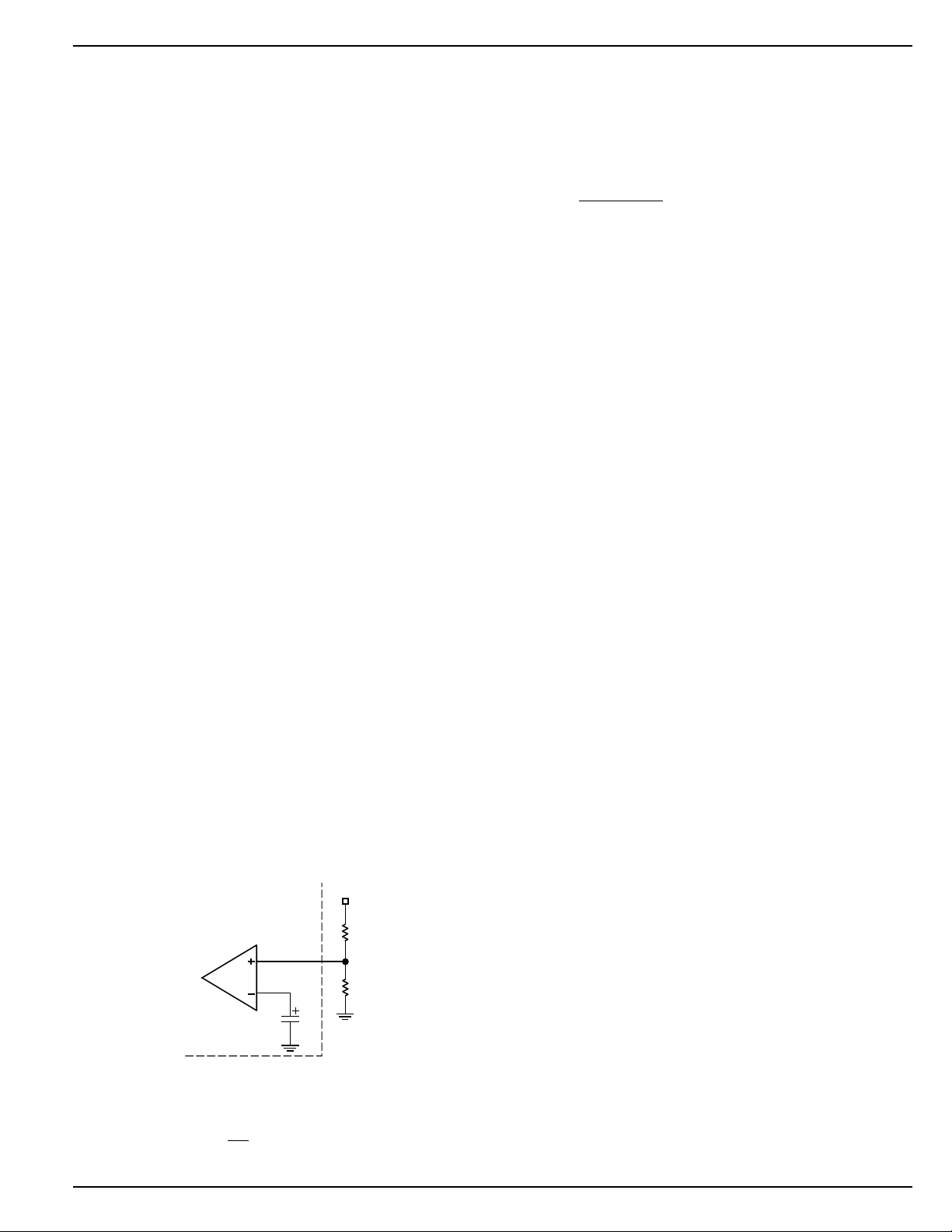

Figure 3. UVLO Circuitry

The line voltage turn on trip point is:

VV

INPUT ENABLE

_

=×

THRESHOLD

R

RR

+212

where:

V

THRESHOLD

is the voltage level of the internal

comparator reference, typically 1.5V
The input voltage hysteresis is equal to:

RR

VV

INPUT HYST HYST_

=×

+12

R

2

where:

V

is the internal comparator hysteresis level,

HYST

typically 140mV.

V

INPUT_HYST

is the hysteresis at the input voltage

The MIC2183 will be disabled when the input voltage drops
back down to:

V

INPUT_OFF

V

INPUT_ENABLE

(V

THRESHOLD

=

– V

– V

INPUT_HYST

×

)

HYST

=

2

+RRR

12

Either of 2 UVLO conditions will pull the soft start capacitor
low.

• When the VDD voltage drops below its
undervoltage lockout level.

• When the enable pin drops below the its enable
threshold

The internal bias circuit generates an internal 1.245V band­gap reference voltage for the voltage error amplifier and a 3V
VDD voltage for the internal control circuitry. The VDD pin must
be decoupled with a 1µF ceramic capacitor. The capacitor
must be placed close to the VDD pin. The other end of the
capacitor must be connected directly to the ground plane.

MOSFET Gate Drive

The MIC2183 is designed to drive a high side P-channel
MOSFET and a low side N-channel MOSFET. The source pin
of the P-channel MOSFET is connected to the input of the
power supply. It is turned on when OUTP pulls the gate of the
MOSFET low. The advantage of using a P-channel MOSFET
is that it does not required a bootstrap circuit to boost the gate
voltage higher than the input, as would be required for an N­channel MOSFET.

The VINP pin (pin 16) supplies the drive voltage to both gate
drive pins, OUTN and OUTP. VINP pin is usually connected

to the input supply. The VINP pin and CSH pin must be
connected to the same potential.

A non-overlap time is built into the MOSFET driver circuitry.
This dead-time prevents the high-side and low-side MOSFET
drivers from being on at the same time. Either an external
diode or the low-side MOSFET internal parasitic diode con­ducts the inductor current during the dead-time.

MOSFET Selection

The P-channel MOSFET must have a VGS threshold voltage
equal to or lower than the input voltage when used in a buck
converter topology. There is a limit to the maximum gate
charge the MIC2183 will drive. Higher gate charge MOSFETs
will slow down the turn-on and turn-off times of the MOSFETs.
Slower transition times will cause higher power dissipation in
the MOSFETs due to higher switching transition losses. The
MOSFETs must be able to completely turn on and off within
the driver non-overlap time If both MOSFETs are conducting
at the same time, shoot-through will occur, which greatly
increases power dissipation in the MOSFETs and reduces
converter efficiency.

The MOSFET gate charge is also limited by power dissipation
in the MIC2183. The power dissipated by the gate drive
circuitry is calculated below:

P

GATE_DRIVE

=

QVPf

××

GATE

IN

S

where: Qgate is the total gate charge of both the N and P­channel MOSFETs.

fS is the switching frequency
VINP is the gate drive voltage at the VINP pin

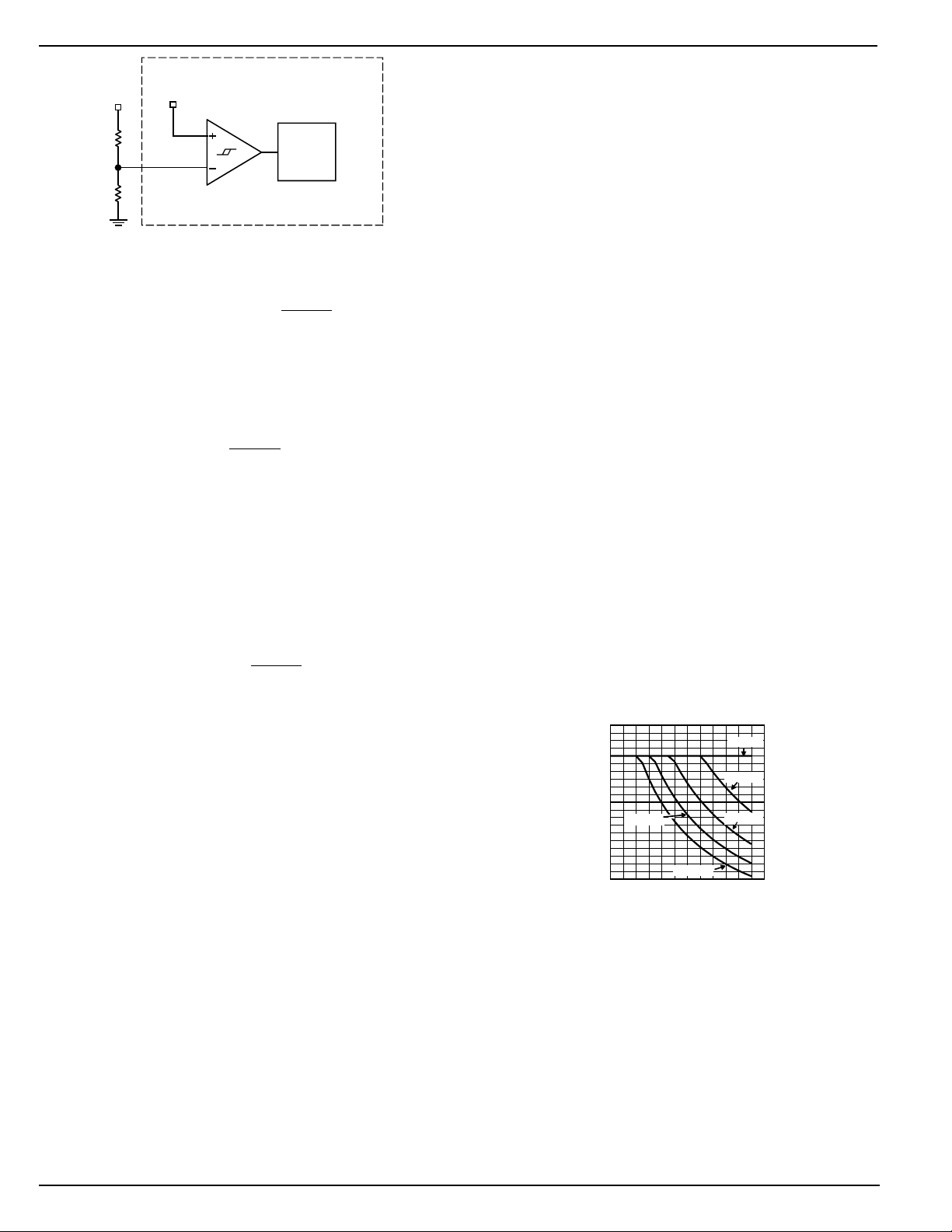

The graph in Figure 4 shows the total gate charge that can be
driven by the MIC2183 over the input voltage range, for
different values of switching frequency.

Frequency vs.

Max. Gate Charge

140
130
120
110
100

90
80

500kHz

70
60
50

TOTAL GATE CHARGE (nC)

40

3 5 7 9 11 13 15

600kHz

INPUT VOLTAGE (V)

200kH

300kHz

400kHz

Figure 4. MIC2183 Frequency vs Max. Gate Charge

Oscillator & Sync

The internal oscillator is free running and requires no external
components. The f/2 pin allows the user to select from two
switching frequencies. A low level set the oscillator frequency
to 400kHz and a high level set the oscillator frequency to
200kHz. The maximum duty cycle for both frequencies is
100%. This is another advantage of using a P-channel
MOSFET for the high-side drive; it can continuously turned
on.

A frequency foldback mode is enabled if the voltage on the
feedback pin (pin 6) is less than 0.3V. In frequency foldback,

MIC2183 10 December 10, 2001

MIC2183 Micrel

the oscillator frequency is reduced by approximately a factor
of 4. Frequency foldback is used to limit the energy delivered
to the output during a short circuit fault condition.

The SYNC input (pin 11) lets the MIC2183 synchronize with
an external clock signal. The rising edge of the sync signal
generates a reset signal in the oscillator, which turns off the
low side gate drive output. The high side drive then turns on,
restarting the switching cycle. The sync signal is inhibited
when the controller operates in frequency foldback. The sync
signal frequency must be greater than the maximum speci­fied free running frequency of the MIC2183. If the synchroniz­ing frequency is lower, double pulsing of the gate drive
outputs will occur. When not used, the sync pin must be
connected to ground.

The maximum recommended output switching frequency is
600kHz. Synchronizing to higher frequencies may be pos­sible, however, higher power dissipation in the internal gate
drive circuits will occur. The MOSFET gates require charge
to turn on the device. The average current required by the
MOSFET gate increases with switching frequency.

Soft Start

Soft start reduces the power supply input surge current at
start up by controlling the output voltage risetime. The input
surge appears while the output capacitance is charged up. A
slower output risetime will draw a lower input surge current.
Soft start may also be used for power supply sequencing.

The soft start voltage is applied directly to the PWM compara­tor. A 5µA internal current source is used to charge up the soft
start capacitor. The capacitor is discharged when either the
enable pin voltage drops below the standby threshold or the
VDD voltage drops below its UVLO level.

The part switches at a low duty cycle when the soft start pin
voltage is zero. As the soft start voltage rises from 0V to 0.7V,
the duty cycle increases from the minimum duty cycle to the
operating duty cycle. The oscillator runs at the foldback
frequency (1/4 of the switching frequency) until the feedback
voltage rises above 0.3V. The risetime of the output is
dependent of the soft start capacitor output capacitance,
input and output voltage and load current.

Voltage Setting Components

The MIC2183 requires two resistors to set the output voltage
as shown in Figure 5.

V

MIC2183

Voltage

Amplifier

OUT

R1

Lower values of R1 are preferred to prevent noise from
appearing on the FB pin. A typically recommended value is
10kΩ. If R1 is too small in value it will decrease the efficiency
of the power supply, especially at low output loads.

Once R1 is selected, R2 can be calculated with the following
formula.

VR

×

R

REF

21=

VV

–

OUT

REF

Efficiency Considerations

Efficiency is the ratio of output power to input power. The
difference is dissipated as heat in the buck converter. Under
light output load, the significant contributors are:

• The VINA supply current

• The VINP supply current, which includes the current

required to switch the external MOSFETs

• Core losses in the output inductor

To maximize efficiency at light loads:

• Use a low gate charge MOSFET or use the smallest
MOSFET, which is still adequate for maximum output
current.

• Use a ferrite material for the inductor core, which has
less core loss than an MPP or iron power core.

Under heavy output loads the significant contributors to
power loss are (in approximate order of magnitude):

• Resistive on time losses in the MOSFETs

• Switching transition losses in the high side MOSFET

• Inductor resistive losses

• Current sense resistor losses

• Input capacitor resistive losses (due to the capacitors

ESR)

To minimize power loss under heavy loads:

• Use low on resistance MOSFETs. Use low threshold
logic level MOSFETs when the input voltage is below
5V. Multiplying the gate charge by the on resistance
gives a figure of merit, providing a good balance
between low load and high load efficiency.

• Slow transition times and oscillations on the voltage
and current waveforms dissipate more power during
the turn on and turn off of the MOSFETs. A clean
layout will minimize parasitic inductance and capaci
tance in the gate drive and high current paths. This
will allow the fastest transition times and waveforms
without oscillations. Low gate charge MOSFETs will
transition faster than those with higher gate charge
requirements.

• For the same size inductor, a lower value will have

Pin 6

R2

fewer turns and therefore, lower winding resistance.
However, using too small of a value will require more
output capacitors to filter the output ripple, which will

V

REF

1.245V

force a smaller bandwidth, slower transient response
and possible instability under certain conditions.

Figure 5

• Lowering the current sense resistor value will de
crease the power dissipated in the resistor. However,

The output voltage is determined by the equation below.

R

VV

OUT

Where: V

=×+1

REF

for the MIC2183 is typically 1.245V.

REF

1

R

2

it will also increase the overcurrent limit and will
require larger MOSFETs and inductor components.

• Use low ESR input capacitors to minimize the power
dissipated in the capacitors ESR.

December 10, 2001 11 MIC2183

MIC2183 Micrel

Package Information

PIN 1

0.157 (3.99)

0.150 (3.81)

0.020 (0.51)
REF

0.0648 (1.646)

0.0434 (1.102)

0.009 (0.2286)

0.0098 (0.249)

0.0040 (0.102)

SEATING

PLANE

0.050 (1.27)

0.157 (3.99)

0.150 (3.81)

REF

0.0688 (1.748)

0.0532 (1.351)

BSC

0.394 (10.00)

0.386 (9.80)

0.025 (0.635)
BSC

0.020 (0.51)

0.013 (0.33)

0.0098 (0.249)

0.0040 (0.102)

SEATING

PLANE

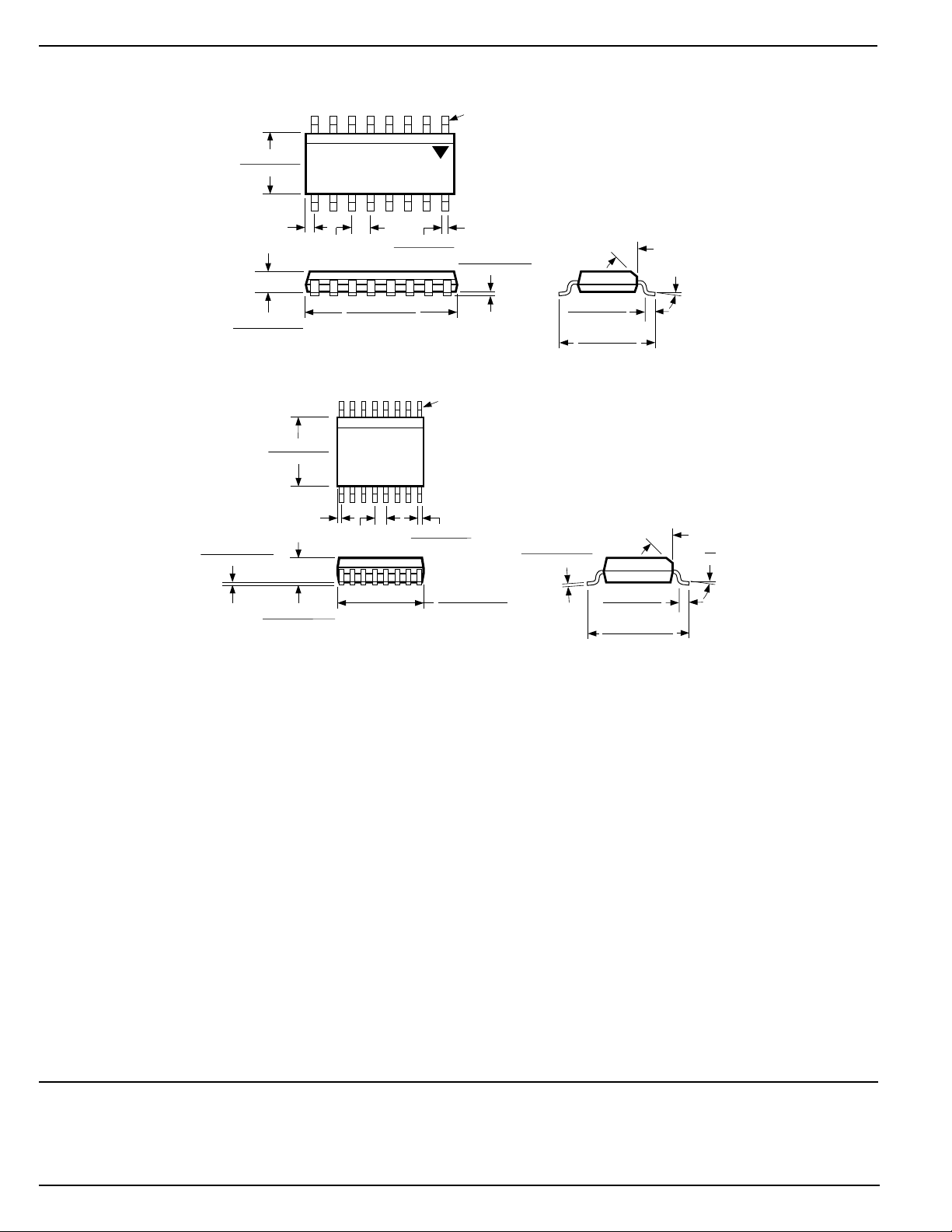

16-Pin SOP (M)

PIN 1

0.012 (0.30)

0.008 (0.20)

0.196 (4.98)

0.189 (4.80)

DIMENSIONS:

INCHES (MM)

0.050 (1.27)

0.016 (0.40)

0.244 (6.20)

0.228 (5.79)

DIMENSIONS:

INCHES (MM)

0.0098 (0.249)

0.0075 (0.190)

45°

45°

0.050 (1.27)

0.016 (0.40)

0.2284 (5.801)

0.2240 (5.690)

0°–8°

8°
0°

16-Pin QSOP (QS)

MICREL INC. 1849 FORTUNE DRIVE SAN JOSE, CA 95131 USA

TEL + 1 [phone] FAX + 1 [phone] WEB http://www.micrel.com

This information is believed to be accurate and reliable, however no responsibility is assumed by Micrel for its use nor for any infringement of patents or

other rights of third parties resulting from its use. No license is granted by implication or otherwise under any patent or patent right of Micrel Inc.

© 2001 Micrel Incorporated

MIC2183 12 December 10, 2001
