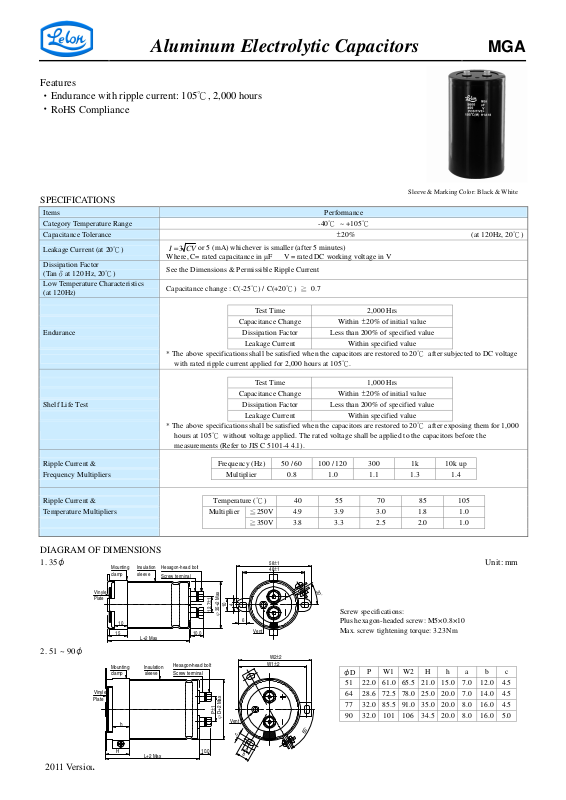

Aluminum Electrolytic Capacitors
Features
‧
Endurance with ripple current: 105℃, 2,000 hours
‧
RoHS Compliance
SPECIFICATIONS
Items Performance
Category Temperature Range
Capacitance Tolerance
or 5 (mA) whichever is smaller (after 5 minutes)
Leakage Current (at 20℃)
Dissipation Factor
(Tanδat 120 Hz, 20℃)
Low Temperature Characteristics
(at 120Hz)
Endurance
Shelf Life Test
CVI 3=
Where, C= rated capacitance in µF V = rated DC working voltage in V
See the Dimensions & Permissible Ripple Current
Capacitance change : C(-25℃) / C(+20℃) ≧ 0.7
Test Time 2,000 Hrs
Capacitance Change
Dissipation Factor Less than 200% of specified value
Leakage Current Within specified value
* The above specifications shall be satisfied when the capacitors are restored to 20℃ after subjected to DC voltage
with rated ripple current applied for 2,000 hours at 105℃.
Test Time 1,000 Hrs
Capacitance Change
Dissipation Factor Less than 200% of specified value
Leakage Current Within specified value
* The above specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 1,000
hours at 105℃ without voltage applied. The rated voltage shall be applied to the capacitors before the
measurements (Refer to JIS C 5101-4 4.1).
Ripple Current & Frequency (Hz) 50 / 60 100 / 120
Frequency Multipliers Multiplier 0.8 1.0 1.1 1.3 1.4
Ripple Current &
Temperature Multipliers Multiplier
Temperature (℃)
≦
250V
≧
350V
DIAGRAM OF DIMENSIONS
1. 35
φ
2. 51 ~ 90
φ
2011 Version
Vinyle
Plate
Vinyle
Plate
Mounting
clamp
10
Mounting
clamp
h
H
Insulation
sleeve
L+2 Max
Insulation
sleeve
L+2 Max
Hexagon-head bo lt
Screw termina l
Hexagon-head bolt
Screw terminal
1
±
4
10
35+2 Max
12.7
φ
10.015
1
±
P
D+2 Max
φ
Vent
c
10.0
58±1
48±1
6
Vent
W2±2
W1±2
a
b
-40℃ ~ +105℃
±
20% (at 120Hz, 20℃)
Within ±20% of initial value
Within ±20% of initial value
300 1k 10k up
40 55 70 85 105
4.9 3.9 3.0 1.8 1.0
3.8 3.3 2.5 2.0 1.0
Screw specifications:
Plus hexagon-headed screw: M5×0.8×10
Max. screw tightening torque: 3.23Nm
P W1 W2 H h a b c
φD
51 22.0 61.0 65.5 21.0 15.0 7.0 12.0 4.5
64 28.6 72.5 78.0 25.0 20.0 7.0 14.0 4.5
77 32.0 85.5 91.0 35.0 20.0 8.0 16.0 4.5
90 32.0 101 106 34.5 20.0 8.0 16.0 5.0
°
0
6
Sleeve & Marking Color: Black & White
MGA
Unit: mm
Page 2
Aluminum Electrolytic Capacitors
MGA
Dimension: φD×L(mm)
Tanδ: 120 Hz, 20℃
DIMENSION & PERMISSIBLE RIPPLE CURRENT
V. DC
Size
Item
µ
F
3,900
4,700 A053 35×53 0.25 3.1
5,600
6,800 A053 35×53 0.25 3.3
8,200 A053 35×53 0.30 3.3 A065 35×65 0.25 3.8
10,000 A053 35×53 0.30 3.6 A083 35×83 0.25 4.6
12,000 A053 35×53 0.35 3.7 A065 35×65 0.30 4.2 A083 35×83 0.30 5.1
15,000 A053 35×53 0.35 4.1 A065 35×65 0.30 4.7 A083 35×83 0.30 5.7
18,000 A053 35×53 0.40 4.2 A065 35×65 0.35 4.8 A083 35×83 0.35 5.7 A100 35×100 0.35 6.7
22,000 A053 35×53 0.40 4.7 A065 35×65 0.35 5.3 A083 35×83 0.35 6.3 A121 35×121 0.35 8.1
27,000 A053 35×53 0.40 5.5 A083 35×83 0.40 6.4 A100 35×100 0.40 7.5 B075 51×75 0.40 9.1
33,000 A065 35×65 0.45 5.7 A083 35×83 0.40 6.7 A121 35×121 0.40 9.0 B100 51×100 0.40 11.1
39,000 A065 35×65 0.45 6.8 A100 35×100 0.40 7.8 B075 51×75 0.45 9.2 B121 51×121 0.40 13.1
47,000 A083 35×83 0.50 7.1 A121 35×121 0.40 9.3 B100 51×100 0.45 11.2 B121 51×121 0.40 13.9
56,000 A100 35×100 0.50 8.4 B075 51×75 0.50 9.7 B100 51×100 0.50 11.4 C100 64×100 0.45 13.9
68,000 A121 35×121 0.55 8.8 B100 51×100 0.50 11.2 B121 51×121 0.50 13.6 C121 64×121 0.45 16.6
82,000 B083 51×83 0.55 10.7 B100 51×100 0.60 11.2 C100 64×100 0.60 14.8 D121 77×121 0.50 18.9
100,000 B083 51×83 0.65 10.8 B121 51×121 0.60 14.8 C121 64×121 0.60 17.6 D121 77×121 0.50 19.5
120,000 B100 51×100 0.65 13.1 C100 64×100 0.80 14.9 C121 64×121 0.70 17.6 D121 77×121 0.50 19.5
150,000 B121 51×121 0.70 15.3 C121 64×121 0.80 17.9 D121 77×121 0.70 19.8 E130 90×130 0.50 22.5
180,000 B121 51×121 0.80 15.7 C121 64×121 1.00 17.9 D121 77×121 0.70 19.8 E157 90×157 0.50 23.9
220,000 C121 64×121 0.85 19.2 D121 77×121 1.00 21.3 D144 77×144 0.70 23.4
270,000 C121 64×121 1.00 19.6 D121 77×121 1.00 21.7 E157 90×157 0.70 25.5
330,000 D121 77×121 1.30 21.1 D144 77×144 1.00 23.4
390,000 D121 77×121 1.50 21.3 E130 90×130 1.00 24.9
470,000 D144 77×144 1.60 24.2
µ
F
560 A053 35×53 0.15 1.2
680 A053 35×53 0.15 1.3
820 A065 35×65 0.15 1.4
1,000 A083 35×83 0.15 1.8
1,200 A083 35×83 0.15 1.9
1,500 A083 35×83 0.15 2.1
1,800 A053 35×53 0.15 2.7 A083 35×83 0.15 2.5
2,200 A053 35×53 0.15 2.4 A053 35×53 0.15 3.0 A100 35×100 0.15 2.8
2,700 A053 35×53 0.20 2.3 A053 35×53 0.15 2.7 A065 35×65 0.15 3.5 A100 35×100 0.15 3.3
3,300 A053 35×53 0.20 2.5 A053 35×53 0.15 3.0 A083 35×83 0.15 4.2 B075 51×75 0.15 3.8
3,900 A053 35×53 0.20 2.8 A065 35×65 0.15 3.4 A083 35×83 0.15 4.2 B075 51×75 0.15 3.8
4,700 A053 35×53 0.20 3.1 A065 35×65 0.15 3.7 A100 35×100 0.15 5.0 B096 51×96 0.15 4.6
5,600 A065 35×65 0.20 3.5 A083 35×83 0.20 4.5 A100 35×100 0.15 5.4 B096 51×96 0.15 5.1
6,800 A065 35×65 0.20 3.9 A083 35×83 0.20 4.9 A121 35×121 0.15 5.8 C096 64×96 0.15 6.1
8,200 A083 35×83 0.25 4.4 A100 35×100 0.20 5.1 B075 51×75 0.15 6.4 C096 64×96 0.15 7.0
10,000 A083 35×83 0.25 4.7 A121 35×121 0.20 6.1 B100 51×100 0.15 7.8 D096 77×96 0.15 8.4
12,000 A100 35×100 0.25 5.5 B075 51×75 0.25 6.7 B121 51×121 0.20 9.3 D115 77×115 0.15 9.4
15,000 A121 35×121 0.25 6.6 B100 51×100 0.25 8.3 B121 51×121 0.20 10.4 D130 77×130 0.15 11.4
18,000 B075 51×75 0.30 7.4 B121 51×121 0.25 9.9 C100 64×100 0.20 10.4 D144 77×144 0.15 13.4
22,000 B100 51×100 0.30 9.0 B121 51×121 0.25 11.0 C121 64×121 0.20 12.5 E130 90×130 0.15 14.5
27,000 B121 51×121 0.30 10.9 C100 64×100 0.30 11.4 D121 77×121 0.25 13.7 E157 90×157 0.15 16.0
33,000 B121 51×121 0.30 12.0 D100 77×100 0.30 13.9 D121 77×121 0.25 15.2
39,000 C100 64×100 0.35 12.5 D100 77×100 0.30 13.9 D144 77×144 0.25 16.1
47,000 C121 64×121 0.35 14.9 D121 77×121 0.30 16.5 E130 90×130 0.25 19.3
56,000 C121 64×121 0.40 16.3 D121 77×121 0.30 18.1 E157 90×157 0.25 21.1
68,000 D121 77×121 0.40 18.4 D144 77×144 0.30 19.7
82,000 D144 77×144 0.40 20.0 E130 90×130 0.30 22.1
100,000 D144 77×144 0.40 20.0
120,000 E157 90×157 0.40 21.8
V. DC
Item
Code
Size
Code
16V (1C) 25V (1E) 35V (1V) 50V (1H)
φD×L
Tan δ
Ripple
Current
Size
Code
63V (1J) 80V (1K) 100V (2A) 160V (2C)
φD×L
Tan δ
Ripple
Current
Size
Code
Ripple Current: A/rms at 120 Hz, 105℃
φD×L
φD×L
Tan δ
Tan δ
Ripple
Current
Ripple
Current
Size
Code
Size
Code
φD×L
φD×L
Tan δ
Tan δ
Ripple
Current
Ripple
Current
Size
φD×L
Code
A053 35×53
A053 35×53
Size
φD×L
Code
Tan δ
0.25
0.25
Tan δ
Ripple
Current
2.8
3.3
Ripple
Current
2011 Verison
Page 3
WV
Aluminum Electrolytic Capacitors
MGA
Dimension: φD×L(mm)
Tanδ: 120 Hz, 20℃
DIMENSION & PERMISSIBLE RIPPLE CURRENT
V. DC
Size
Item
µ
F
180 A053 35×53 0.15 0.8 A053 35×53 0.15 0.8
220 A053 35×53 0.15 0.9 A053 35×53 0.15 0.9
270 A053 35×53 0.15 0.8 A053 35×53 0.15 1.0 A065 35×65 0.15 1.1
330 A053 35×53 0.15 0.9 A053 35×53 0.15 0.9 A065 35×65 0.15 1.2 A065 35×65 0.15 1.2
390 A053 35×53 0.15 1.0 A053 35×53 0.15 1.0 A065 35×65 0.15 1.3 A083 35×83 0.15 1.3
470 A053 35×53 0.15 1.1 A053 35×53 0.15 1.1 A083 35×83 0.15 1.5 A083 35×83 0.15 1.4
560 A053 35×53 0.15 1.2 A065 35×65 0.15 1.4 A083 35×83 0.15 1.6 A100 35×100 0.15 1.6
680 A053 35×53 0.15 1.3 A083 35×83 0.15 1.5 A100 35×100 0.15 1.7 A100 35×100 0.15 1.7
820 A065 35×65 0.15 1.5 A083 35×83 0.15 1.6 A100 35×100 0.15 1.8 A121 35×121 0.15 2.0
1,000 A083 35×83 0.15 1.7 A100 35×100 0.15 1.8 B075 51×75 0.15 2.2 B075 51×75 0.15 2.2
1,200 A083 35×83 0.15 1.9 A100 35×100 0.15 1.9 B075 51×75 0.15 2.3 B096 51×96 0.15 2.7
1,500 A100 35×100 0.15 2.3 B075 51×75 0.15 2.3 B096 51×96 0.15 3.0 B115 51×115 0.15 3.3
1,800 A100 35×100 0.15 2.5 B075 51×75 0.15 2.5 B115 51×115 0.15 3.6 B130 51×130 0.15 3.7
2,200 B075 51×75 0.15 3.0 B096 51×96 0.15 3.0 B130 51×130 0.15 4.0 C096 64×96 0.15 4.2
2,700 B096 51×96 0.15 3.6 B115 51×115 0.15 3.5 C096 64×96 0.15 4.6 C115 64×115 0.15 4.8
3,300 B096 51×96 0.15 4.1 C096 64×96 0.15 4.2 C115 64×115 0.15 5.6 C130 64×130 0.15 5.5
3,900 B115 51×115 0.15 4.9 C096 64×96 0.15 4.6 C130 64×130 0.15 6.7 D115 77×115 0.15 6.5
4,700 C096 64×96 0.15 5.3 C115 64×115 0.15 5.7 D121 77×121 0.15 7.5 D130 77×130 0.15 7.6
5,600 C096 64×96 0.15 5.8 C130 64×130 0.15 6.3 D130 77×130 0.15 8.3 D155 77×155 0.15 9.4
6,800 C115 64×115 0.15 6.9 D115 77×115 0.15 7.7 D155 77×155 0.15 9.4 E157 90×157 0.15 10.4
8,200 C130 64×130 0.15 7.6 D130 77×130 0.15 8.4 E157 90×157 0.15 11.4 E157 90×157 0.15 11.8
10,000 D115 77×115 0.15 9.6 D155 77×155 0.15 10.0
12,000 D130 77×130 0.15 10.2 E140 90×140 0.15 11.9
15,000 E130 90×130 0.15 12.2 E157 90×157 0.15 12.5
18,000 E157 90×157 0.15 13.1
*Special requirements are available upon request.
Case Code
L
53 A053
65 A065
75 - B075 - - -
83 A083 B083 - - -
96 - B096 C096 D096
100 A100 B100 C100 D100
115 - B115 C115 D115 -
121 A121 B121 C121 D121
130 - B130 C130 D130 E130
140 - - - - E140
144 - - - D144
155 - - - D155
157 - - - - E157
Code
Unit: mm
φD
200V (2D) 250V (2E) 350V (2V) 400V (2G)
Tan δ
φD×L
35 51 64 77 90
- - - -
- - - -
Ripple
Current
Size
Code
-
-
-
-
-
Ripple Current: A/rms at 120 Hz, 105℃
φD×L
Tan δ
Ripple
Current
Size
Code
φD×L
Tan δ
Ripple
Current
Size
Code
φD×L
Tan δ
Part numbering system
MGA series 1000µF
MGA
Series name Capacitance
102
±
20%
M
Capacitance
tolerance
200V
2D
Rated voltage Case Type
Plain case +
Mounting clamp
Example: Example: Example:
Cap. Symbol
470 471
4,700 472
Note: For more details, please refer to “Product Code Guide– Screw Type” on page 16.
12,000 123
M = ±20%
K = ±10%
Symbol
200 2D
350 2V
400 2G
M5 Post
- -
Terminal
type
35φ×83L
A083
Case size
φD×L Code
35×53 A053
77×121 D121
90×157 E157
Pb-free Terminal
+ PVC Sleeve
Terminal and
Sleeve Type
Ripple
Current
2011 Version
