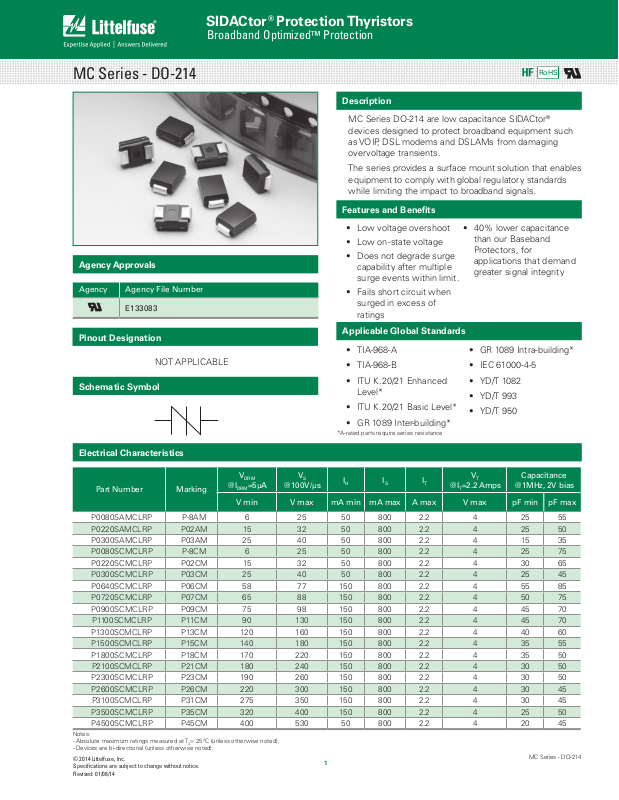

Page 1
®
SIDACtor
Protection Thyristors
Broadband Optimized™ Protection
MC Series - DO-214
Agency Approvals
Agency Agency File Number
Pinout Designation
Schematic Symbol
E133083
NOT APPLICABLE
RoHS
Description
MC Series DO-214 are low capacitance SIDACtor®
devices designed to protect broadband equipment such
as VOIP, DSL modems and DSLAMs from damaging
overvoltage transients.
The series provides a surface mount solution that enables
equipment to comply with global regulatory standards
while limiting the impact to broadband signals.
Features and Benefits
• Low voltage overshoot
• Low on-state voltage
• Does not degrade surge
capability after multiple
surge events within limit.
• 40% lower capacitance
than our Baseband
Protectors, for
applications that demand
greater signal integrity
• Fails short circuit when
surged in excess of
ratings
Applicable Global Standards
• TIA-968-A
• TIA-968-B
• ITU K.20/21 Enhanced
Level*
• ITU K.20/21 Basic Level*
• GR 1089 Intra-building*
• IEC 61000-4-5
• YD/T 1082
• YD/T 993
• YD/T 950
• GR 1089 Inter-building*
*A-rated parts require series resistance
Electrical Characteristics
V
DRM
@l
=5µA
Part Number Marking
P0080SAMCLRP P-8AM 6 25 50 800 2.2 4 25 55
P0220SAMCLRP P02AM 15 32 50 800 2.2 4 25 50
P0300SAMCLRP P03AM 25 40 50 800 2.2 4 15 35
P0080SCMCLRP P-8CM 6 25 50 800 2.2 4 25 75
P0220SCMCLRP P02CM 15 32 50 800 2.2 4 30 65
P0300SCMCLRP P03CM 25 40 50 800 2.2 4 25 45
P0640SCMCLRP P06CM 58 77 150 800 2.2 4 55 85
P0720SCMCLRP P07CM 65 88 150 800 2.2 4 50 75
P0900SCMCLRP P09CM 75 98 150 800 2.2 4 45 70
P1100SCMCLRP P11CM 90 130 150 800 2.2 4 45 70
P1300SCMCLRP P13CM 120 160 150 800 2.2 4 40 60
P1500SCMCLRP P15CM 140 180 150 800 2.2 4 35 55
P1800SCMCLRP P18CM 170 220 150 800 2.2 4 35 50
P2100SCMCLRP P21CM 180 240 150 800 2.2 4 30 50
P2300SCMCLRP P23CM 190 260 150 800 2.2 4 30 50
P2600SCMCLRP P26CM 220 300 150 800 2.2 4 30 45
P3100SCMCLRP P31CM 275 350 150 800 2.2 4 30 45
P3500SCMCLRP P35CM 320 400 150 800 2.2 4 25 50
P4500SCMCLRP P45CM 400 530 50 800 2.2 4 20 45
Notes:
- Absolute maximum ratings measured at T
- Devices are bi-directional (unless otherwise noted).
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 01/08/14
= 25ºC (unless otherwise noted).
A
DRM
V min V max mA min mA max A max V max pF min pF max
V
S
@100V/µs
V
I
H
1
I
S
I
T
T
@IT=2.2 Amps
Capacitance
@1MHz, 2V bias
MC Series - DO-214
Page 2
®
-8
-40 -20 020406080100 120140 160
-6
-4
0
2
4
6
8
10
12
14
Junction Temperature (TJ) – °C
Percent of V
S
Change – %
25 °C
25°C
Case Temperature (TC) - ºC
2.0
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
-40 -20 020406080100 120140 160
Ratio of
I
H
I
H
(T
C
= 25ºC)
I
H
I
T
I
S
I
DRM
V
DRM
V
T
+
V
-V
+I
-I
V
S
50
100
0
t
r
t
d
0
Peak
Value
Half Value
t – Time (µs)
I
PP
– Peak Pulse Current – %I
PP
tr = rise time to peak value
t
d
= decay time to half value
Waveform = t
r
x t
d
SIDACtor
Protection Thyristors
Broadband Optimized™ Protection
Surge Ratings
I
PP
10x560
10x560
1
2
5x320
9x720
1
2
10x360
10x360
1
2
10x10 00
10x10 00
1
2
5x310
10x700
Series
0.2x310
0.5x700
1
2
2x10
2x10
1
2
8x20
1.2x50
1
2
10x160
10x160
1
2
A min A min A min A min A min A min A min A min A min A min A/µs max
A 20 15 0 150 90 50 75 75 45 75 20 500
C 50 500 400 200 150 200 175 10 0 200
Notes:
1 Current waveform in µs
2 Volt age waveform in µs
3 For surge rating of P4500SCMCLRP 10x700µs min=150A
- Peak pulse current rating (IPP) is repetitive and guaranteed for the life of the product.
- IPP ratings applicable over temperature range of -40ºC to +85ºC
- The device must initially be in thermal equilibrium with -40°C < TJ < +150°C
Thermal Considerations
Package Symbol Parameter Value Unit
DO-214AA
T
J
Operating Junction Temperature Range -40 to +150 °C
3
1
2
I
TSM
50/60 Hz
30 500
di/dt
T
S
R
0JA
Storage Temperature Range -65 to +150 °C
Thermal Resistance: Junction to Ambient 90 °C/W
V-I Characteristics tr x td Pulse Waveform
Normalized VS Change vs. Junction Temperature
Normalized DC Holding Current vs. Case Temperature
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 01/08/14
2
MC Series - DO-214
Page 3
Soldering Parameters
Time
Temperature
T
P
T
L
T
S(max)
T
S(min)
25
t
P
t
L
t
S
time to peak temperature
(t 25ºC to peak)
Ramp-down
Ramp-up
Preheat
Critical Zone
T
L
to T
P
Figure 1
®
SIDACtor
Protection Thyristors
Broadband Optimized™ Protection
Reflow Condition
Pre Heat
- Temperature Min (T
- Temperature Max (T
- Time (Min to Max) (ts)
s(min)
s(max)
)
)
Average ramp up rate (Liquidus Temp (T
to peak)
to TL - Ramp-up Rate
T
S(max)
Reflow
- Temperature (TL) (Liquidus)
- Temperature (tL)
Pb-Free assembly
(see Fig. 1)
+150°C
+200°C
60-180 secs.
)
L
3°C/sec. Max.
3°C/sec. Max.
+217°C
60-150 secs.
Peak Temp (TP) +260(+0/-5)°C
Time within 5°C of actual Peak Temp (t
)
p
30 secs. Max.
Ramp-down Rate 6°C/sec. Max.
Time 25°C to Peak Temp (T
)
P
8 min. Max.
Do not exceed +260°C
Physical Specifications
Lead Material Copper Alloy
Terminal Finish 100% Matte-Tin Plated
Body Material
UL recognized epoxy meeting flammability
classification 94V-0
Environmental Specifications
High Temp Voltage
Blocking
Temp Cycling
Biased Temp &
Humidity
High Temp Storage
Low Temp Storage -65°C, 1008 hrs.
Thermal Shock
Autoclave (Pressure
Cooker Test)
Resistance to Solder
Heat
Moisture Sensitivity
Level
80% Rated V
504 or 1008 hrs. MIL-STD-750 (Method 1040)
JEDEC, JESD22-A-101
-65°C to +150°C, 15 min. dwell, 10 up to 100
cycles. MIL-STD-750 (Method 1051) EIA/JEDEC,
JESD22-A104
52 V
JEDEC, JESD22-A-101
+150°C 1008 hrs. MIL-STD-750 (Method 1031)
JEDEC, JESD22-A-101
0°C to +100°C, 5 min. dwell, 10 sec. transfer,
10 cycles. MIL-STD-750 (Method 1056) JEDEC,
JESD22-A-106
+121°C, 100%RH, 2atm, 24 up to 168 hrs. EIA/
JEDEC, JESD22-A-102
+260°C, 30 secs. MIL-STD-750 (Method 2031)
85%RH, +85°C, 168 hrs., 3 reflow cycles
(+260°C Peak). JEDEC-J-STD-020, Level 1
DRM
(+85°C) 85%RH, 504 up to 1008 hrs. EIA/
DC
(V
Peak ) +125°C or +150°C,
AC
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 01/08/14
3
MC Series - DO-214
Page 4
Dimensions — DO-214AA
®
SIDACtor
Protection Thyristors
Broadband Optimized™ Protection
B
D
E
Part Numbering
TYPE
P = SIDACtor
MEDIAN VOLTAGE
CONSTRUCTION VARIABLE
PACKAGE TYPE
Packing Options
K
P
xxx 0S
Case
Temperature
Measurement
Point
AC
H
F
G
MCLRP
C
Pad Outline
0.079
(2.0)
0.110
(2.8)
0.079
(2.0)
REEL PACK
RoHS COMPLIANT
MC Series
RATING
I
PP
inch
(millimeter)
Dimensions
A 0.130 0.156 3.30 3.95
B 0.201 0.220 5.10 5.60
C 0.077 0.087 1.95 2.20
D 0.159 0.181 4.05 4.60
E 0.030 0.063 0.75 1.60
F 0.075 0.096 1.90 2.45
G 0.002 0.008 0.05 0.20
H 0.077 0.104 1.95 2.65
K 0.006 0.016 0.15 0.41
Inches Millimeters
Min Max Min Max
Part Marking
Pxxxx
xxxxx
Part Marking Code
(Refer to Electrical Characteristics Table)
Date Code
Package Type Description Quantity Added Suffix
S
DO-214AA
Tape & Reel Pack
2500 N/A EIA-481-D
Tape and Reel Specification — DO-214AA
0.157
(4.0)
0.472
0.36
(12.0)
(9.2)
0.315
(8.0)
12.99
(330.0)
0.512 (13.0)
Arbor Hole Dia.
0.49
(12.4)
Industry Standard
0.059
(1.5)
Dimensions are in inches
(and millimeters).
Direction of Feed
DIA
Cover tape
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 01/08/14
4
MC Series - DO-214
