Datasheet MC68HC705J1 Specification

MC68HC705J1A

Freescale Semiconductor

© Freescale Semiconductor, Inc., 2004. All rights reserved.

MC68HRC705J1A

..

.

MC68HSC705J1A

nc

Freescale Semiconductor, I

M68HC05

Microcontrollers

MC68HSR705J1A

Technical Data

MC68HC705J1A/D
Rev. 4, 5/2002

For More Information On This Product,

Go to: www.freescale.com

..

.
nc

Freescale Semiconductor, Inc.

Freescale Semiconductor, I

For More Information On This Product,

Go to: www.freescale.com

Freescale Semiconductor, Inc.

MC68HC705J1A

..

.
nc

Freescale Semiconductor, I

MC68HRC705J1A
MC68HSC705J1A
MC68HSR705J1A

Technical Data

To provide the most up-to-date information, the revision of our
documents on the World Wide Web will be the most current. Your printed
copy may b e an earlier revision. To ve rify you have the latest information
available, refer to:

http://www.freescale.com

The following revision history table summarizes changes contained in
this document. For your convenience, the page number designators
have been linked to the appropriate location.

MC68HC705J1A — Rev. 4.0 Technical Data

For More Information On This Product,

Go to: www.freescale.com

Technical Data

Freescale Semiconductor, Inc.

Revision History

..

.
nc

Date

May , 2002 4.0

Revision

Level

Description

Figure 2-2. I/O Register Summary — Corrected reset state for

last entry (Mask Option Register)

Figure 2-4. Mask Option Register (MOR) — Corrected reset

state

6.3.3 Pulldown Register A — Corrected note 91

6.4.3 Pulldown Register B — Corrected note 94

Page

Number(s)

37

41

Freescale Semiconductor, I

Technical Data MC68HC705J1A — Rev. 4.0

For More Information On This Product,

Go to: www.freescale.com

..

.
nc

Freescale Semiconductor, Inc.

Technical Data — MC68HC705J1A

Section 1. General Description . . . . . . . . . . . . . . . . . . . .21

Section 2. Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Section 3. Central Processor Unit (CPU) . . . . . . . . . . . .45

Section 4. Resets and Interrupts . . . . . . . . . . . . . . . . . . .69

List of Sections

Section 5. Low-Power Modes. . . . . . . . . . . . . . . . . . . . . .79

Section 6. Parallel Input/Output (I/O) Ports . . . . . . . . . .87

Section 7. Computer Oper at in g Pro pe rl y

(COP) Module . . . . . . . . . . . . . . . . . . . . . . . . .97

Section 8. External Interrupt Module (IRQ). . . . . . . . . .101

Section 9. Multifunction Timer Module . . . . . . . . . . . . .109

Section 10. Electrical Specifications. . . . . . . . . . . . . . .117

Section 11. Mechanical Specifications . . . . . . . . . . . . .131

Section 12. Ordering Information . . . . . . . . . . . . . . . . .135

Freescale Semiconductor, I

Appendix A. MC68HRC705J1A . . . . . . . . . . . . . . . . . . .137

Appendix B. MC68HSC705J1A . . . . . . . . . . . . . . . . . . .141

Appendix C. MC68HSR705J1A . . . . . . . . . . . . . . . . . . .145

Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

MC68HC705J1A — Rev . 4.0 Technical Data

For More Information On This Product,

Go to: www.freescale.com

List of Sections

List of Sec ti o ns

..

.
nc

Freescale Semiconductor, Inc.

Freescale Semiconductor, I

Technical Data MC68HC705J1A — Rev. 4.0

For More Information On This Product,

Go to: www.freescale.com

List of Sections

Freescale Semiconductor, Inc.

Technical Data — MC68HC705J1A

Section 1. General Description

1.1 Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Table of Contents

..

.
nc

1.2 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

1.3 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

1.4 Programmable Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

1.5 Pin Assignments. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

1.5.1 V

1.5.2 OSC1 and OSC2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

1.5.2.1 Crystal Oscillator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

1.5.2.2 Ceramic Resonator Oscillator . . . . . . . . . . . . . . . . . . . . .28

1.5.2.3 RC Oscillator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

1.5.2.4 External Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

1.6 RESET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

1.7 IRQ/VPP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

1.8 PA0–PA7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 1

1.9 PB0–PB5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 1

and VSS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

DD

Freescale Semiconductor, I

2.1 Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

2.2 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

2.3 Memory Map. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

2.4 Input/Output Register Summary. . . . . . . . . . . . . . . . . . . . . . . .35

2.5 RAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

MC68HC705J1A — Rev . 4.0 Technical Data

For More Information On This Product,

Go to: www.freescale.com

Table of Contents

Section 2. M em o ry

Table of Contents

Freescale Semiconductor, Inc.

2.6 EPROM/OTPROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

2.6.1 EPROM/OTPROM Programming. . . . . . . . . . . . . . . . . . . . .38

2.6.2 EPROM Programming Register . . . . . . . . . . . . . . . . . . . . .39

2.6.3 EPROM Erasing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 0

2.7 Mask Option Register. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

2.8 EPROM Programming Characteristics. . . . . . . . . . . . . . . . . . .43

Section 3. Central Processor Unit (CPU)

..

.
nc

Freescale Semiconductor, I

3.1 Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

3.2 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

3.3 CPU Control Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

3.4 Arithmetic/Logic Unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

3.5 CPU Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

3.5.1 Accumulator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

3.5.2 Index Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

3.5.3 Stack Pointer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

3.5.4 Program Counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

3.5.5 Condition Code Register . . . . . . . . . . . . . . . . . . . . . . . . . . .50

3.6 Instruction Set. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

3.6.1 Addressing Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

3.6.1.1 Inherent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 2

3.6.1.2 Immediate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 2

3.6.1.3 Direct . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

3.6.1.4 Extended . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

3.6.1.5 Indexed, No Offset. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

3.6.1.6 Indexed, 8-Bit Offset . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

3.6.1.7 Indexed, 16-Bit Offset . . . . . . . . . . . . . . . . . . . . . . . . . . .54

3.6.1.8 Relative . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 4

3.6.2 Instruction Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

3.6.2.1 Register/Memory Instructions . . . . . . . . . . . . . . . . . . . . .55

3.6.2.2 Read-Modify-Write Instructions . . . . . . . . . . . . . . . . . . . .56

3.6.2.3 Jump/Branch Instructions . . . . . . . . . . . . . . . . . . . . . . . .57

3.6.2.4 Bit Manipulation Instructions . . . . . . . . . . . . . . . . . . . . . .59

3.6.2.5 Control Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

Technical Data MC68HC705J1A — Rev. 4.0

For More Information On This Product,

Go to: www.freescale.com

Table of Contents

..

.
nc

Freescale Semiconductor, Inc.

3.7 Instruction Set Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

3.8 Opcode Map. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66

Table of Contents

Section 4. Resets and In ter rup ts

4.1 Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69

4.2 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69

4.3 Resets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

4.3.1 Power-On Reset. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 1

4.3.2 External Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 2

4.3.3 COP Watchdog Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72

4.3.4 Illegal Address Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72

4.4 Interrupts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

4.4.1 Software Interrupt. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

4.4.2 External Interrupt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

4.4.3 Timer Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76

4.4.3.1 Real-Time Interrupt . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76

4.4.3.2 Timer Overflow Interrupt . . . . . . . . . . . . . . . . . . . . . . . . .76

4.4.4 Interrupt Processing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76

Section 5. Low-Power Modes

5.1 Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79

5.2 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79

5.3 Exiting Stop and Wait Modes . . . . . . . . . . . . . . . . . . . . . . . . . .80

5.4 Effects of Stop and Wait Modes . . . . . . . . . . . . . . . . . . . . . . . .81

Freescale Semiconductor, I

5.4.1 Clock Generation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

5.4.2 CPU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82

5.4.3 COP Watchdog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82

5.4.4 Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83

5.4.5 EPROM/OTPROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 4

5.4.6 Data-Retention Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84

5.5 Timing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85

MC68HC705J1A — Rev. 4.0 Technical Data

For More Information On This Product,

Go to: www.freescale.com

Table of Contents

Table of Contents

..

.
nc

Freescale Semiconductor, Inc.

Section 6. Parallel Input/Output (I/O) Ports

6.1 Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87

6.2 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87

6.3 Port A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .89

6.3.1 Port A Data Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .89

6.3.2 Data Direction Register A. . . . . . . . . . . . . . . . . . . . . . . . . . .90

6.3.3 Pulldown Register A. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91

6.3.4 Port A LED Drive Capability. . . . . . . . . . . . . . . . . . . . . . . . .92

6.3.5 Port A I/O Pin Interrupts. . . . . . . . . . . . . . . . . . . . . . . . . . . .92

6.4 Port B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92

6.4.1 Port B Data Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92

6.4.2 Data Direction Register B. . . . . . . . . . . . . . . . . . . . . . . . . . .93

6.4.3 Pulldown Register B. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .94

6.5 5.0-Volt I/O Port Electrical Characteristics . . . . . . . . . . . . . . . .95

6.6 3.3-Volt I/O Port Electrical Characteristics . . . . . . . . . . . . . . . .95

Section 7. Computer Operating Properly

(COP ) Module

7.1 Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .97

7.2 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .97

7.3 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .98

7.3.1 COP Watchdog Timeout . . . . . . . . . . . . . . . . . . . . . . . . . . .98

7.3.2 COP Watchdog Timeout Period. . . . . . . . . . . . . . . . . . . . . .98

7.3.3 Clearing the COP Watchdog . . . . . . . . . . . . . . . . . . . . . . . .98

Freescale Semiconductor, I

7.4 Interrupts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .99

7.5 COP Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .99

7.6 Low-Power Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100

7.6.1 Stop Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100

7.6.2 Wait Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100

Technical Data MC68HC705J1A — Rev. 4.0

For More Information On This Product,

Go to: www.freescale.com

Table of Contents

Freescale Semiconductor, Inc.

Table of Contents

Section 8. External Inter r upt Module (IRQ)

8.1 Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101

8.2 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101

8.3 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .102

8.3.1 IRQ/VPP Pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .104

8.3.2 Optional External Interrupts . . . . . . . . . . . . . . . . . . . . . . . .104

8.4 IRQ Status and Control Register . . . . . . . . . . . . . . . . . . . . . .106

..

.
nc

8.5 External Interrupt Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . .107

8.5.1 5.0-Volt External Interrupt Timing Characteristics . . . . . . .107

8.5.2 3.3-Volt External Interrupt Timing Characteristics . . . . . . .107

Sectio n 9. Mu ltifunc tio n Timer Modu l e

9.1 Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .109

9.2 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .109

9.3 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .111

9.4 Interrupts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .112

9.5 I/O Registers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .112

9.5.1 Timer Status and Control Register. . . . . . . . . . . . . . . . . . .112

9.5.2 Timer Counter Register . . . . . . . . . . . . . . . . . . . . . . . . . . .114

9.6 Low-Power Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .115

9.6.1 Stop Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .115

9.6.2 Wait Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .115

Freescale Semiconductor, I

10.1 Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .117

10.2 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .117

10.3 Maximum Ratings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118

10.4 Operating Temperature Range. . . . . . . . . . . . . . . . . . . . . . . .119

10.5 Thermal Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . .119

MC68HC705J1A — Rev. 4.0 Technical Data

For More Information On This Product,

Section 10. Electrical Specifications

Table of Contents

Go to: www.freescale.com

Table of Contents

..

.
nc

Freescale Semiconductor, Inc.

10.6 Power Considerations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .120

10.7 5.0-Volt DC Electrical Characteristics. . . . . . . . . . . . . . . . . . .121

10.8 3.3-Volt DC Electrical Characteristics . . . . . . . . . . . . . . . . . .122

10.9 Driver Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .123

10.10 Typical Supply Currents . . . . . . . . . . . . . . . . . . . . . . . . . . . . .125

10.11 EPROM Programming Characteristics. . . . . . . . . . . . . . . . . .126

10.12 5.0-Volt Control Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . .126

10.13 3.3-Volt Control Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . .127

Section 11. Mechanical Sp ecifications

11.1 Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .131

11.2 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .131

11.3 Plastic Dual In-Line Package (Case 738). . . . . . . . . . . . . . . .132

11.4 Small Outline Integrated Circuit (Case 751). . . . . . . . . . . . . .132

11.5 Ceramic Dual In-Line Package (Case 732) . . . . . . . . . . . . . .133

Section 12. Ordering Information

12.1 Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .135

12.2 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .135

12.3 MCU Order Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .135

Freescale Semiconductor, I

A.1 Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .137

A.2 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .137

Appendix A. MC68HRC705J1A

A.3 RC Oscillator Connections . . . . . . . . . . . . . . . . . . . . . . . . . . .138

A.4 Typical Internal Operating Frequency

for RC Oscillator Option. . . . . . . . . . . . . . . . . . . . . . . . . . .139

A.5 Package Types and Order Numbers . . . . . . . . . . . . . . . . . . .140

Technical Data MC68HC705J1A — Rev. 4.0

For More Information On This Product,

Go to: www.freescale.com

Table of Contents

Freescale Semiconductor, Inc.

Table of Contents

Appendix B. MC68HSC705J1A

B.1 Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .141

B.2 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .141

B.3 5.0-Volt DC Electrical Characteristics. . . . . . . . . . . . . . . . . . .142

B.4 3.3-Volt DC Electrical Characteristics. . . . . . . . . . . . . . . . . . .142

B.5 Typical Supply Currents . . . . . . . . . . . . . . . . . . . . . . . . . . . . .142

B.6 Package Types and Order Numbers . . . . . . . . . . . . . . . . . . .144

..

.
nc

Freescale Semiconductor, I

Appendix C. MC68HSR705J1A

C.1 Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .145

C.2 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .145

C.3 RC Oscillator Connections (External Resistor). . . . . . . . . . . .145

C.4 Typical Internal Operating Frequency at 25°C

for High-Speed RC Oscillator Option. . . . . . . . . . . . . . . . .146

C.5 RC Oscillator Connections (No External Resistor). . . . . . . . .147

C.6 Typical Internal Operating Frequency versus Temperature

(No External Resistor). . . . . . . . . . . . . . . . . . . . . . . . . . . .148

C.7 Package Types and Order Numbers . . . . . . . . . . . . . . . . . . .149

Index

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .151

MC68HC705J1A — Rev. 4.0 Technical Data

For More Information On This Product,

Go to: www.freescale.com

Table of Contents

Table of Contents

..

.
nc

Freescale Semiconductor, Inc.

Freescale Semiconductor, I

Technical Data MC68HC705J1A — Rev. 4.0

For More Information On This Product,

Go to: www.freescale.com

Table of Contents

..

.
nc

Freescale Semiconductor, Inc.

Technical Data — MC68HC705J1A

Figure Title Page

1-1 Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

1-2 Pin Assignments. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

1-3 Bypassing Layout Recommendation . . . . . . . . . . . . . . . . . .26

1-4 Crystal Connections with

Oscillator Internal Resistor Mask Option. . . . . . . . . . . . .28

List of Figures

1-5 Crystal Connections without

Oscillator Internal Resistor Mask Option. . . . . . . . . . . . .28

1-6 Ceramic Resonator Connections

with Oscillator Internal Resistor Mask Option . . . . . . . . .29

1-7 Ceramic Resonator Connections

without Oscillator Internal Resistor Mask Option. . . . . . .29

1-8 External Clock Connections. . . . . . . . . . . . . . . . . . . . . . . . .30

2-1 Memory Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

2-2 I/O Register Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

2-3 EPROM Programming Register (EPROG). . . . . . . . . . . . . .39

2-4 Mask Option Register (MOR). . . . . . . . . . . . . . . . . . . . . . . .41

Freescale Semiconductor, I

3-1 Programming Model. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

3-2 Accumulator (A) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 8

3-3 Index Register (X) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

3-4 Stack Pointer (SP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

3-5 Program Counter (PC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

3-6 Condition Code Register (CCR). . . . . . . . . . . . . . . . . . . . . .50

4-1 Reset Sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

4-2 Power-On Reset Timing. . . . . . . . . . . . . . . . . . . . . . . . . . . .7 1

MC68HC705J1A — Rev . 4.0 Technical Data

For More Information On This Product,

Go to: www.freescale.com

List of Figures

List of Figu r es

..

.

Freescale Semiconductor, Inc.

Figure Title Page

4-3 External Reset Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 2

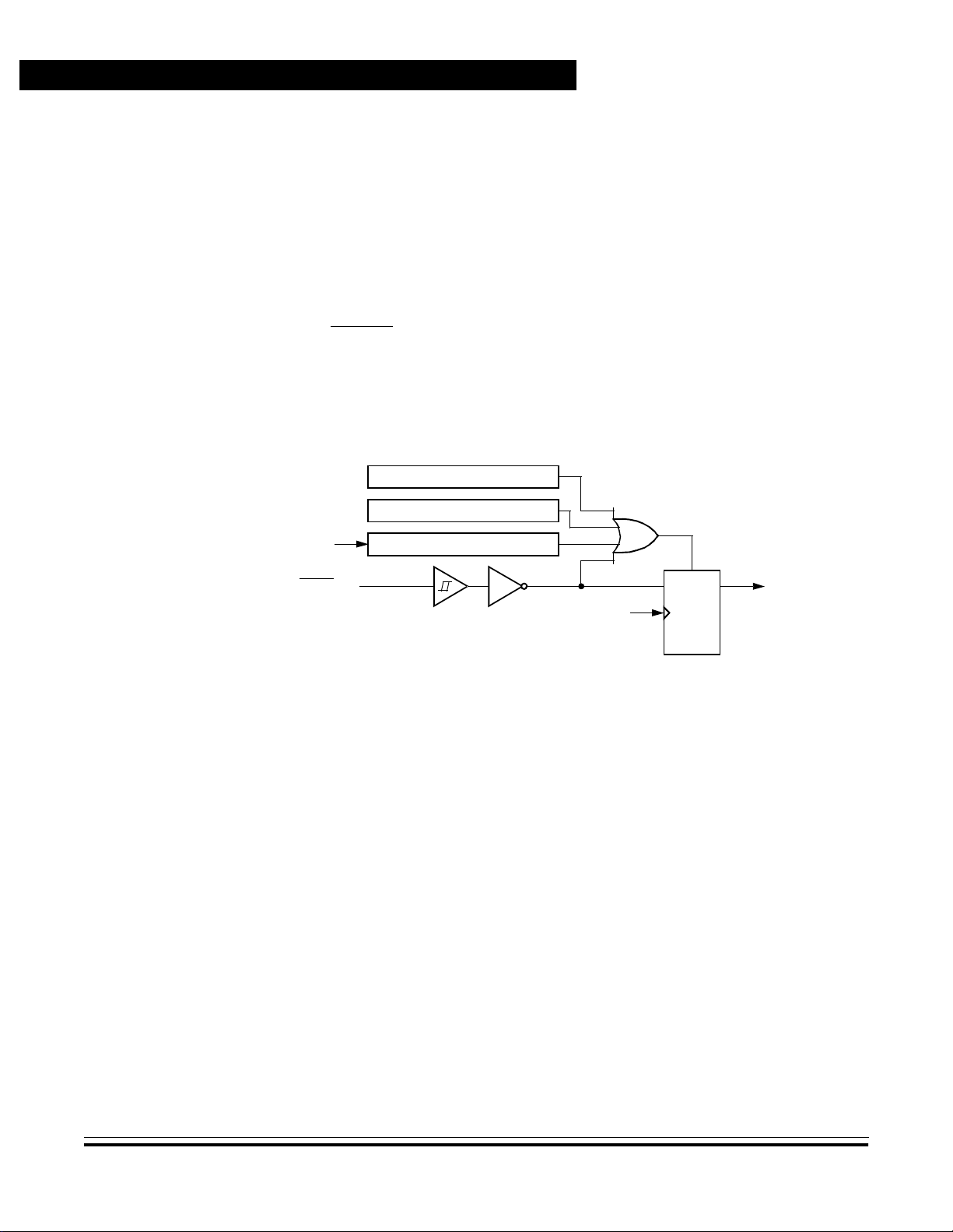

4-4 External Interrupt Logic . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

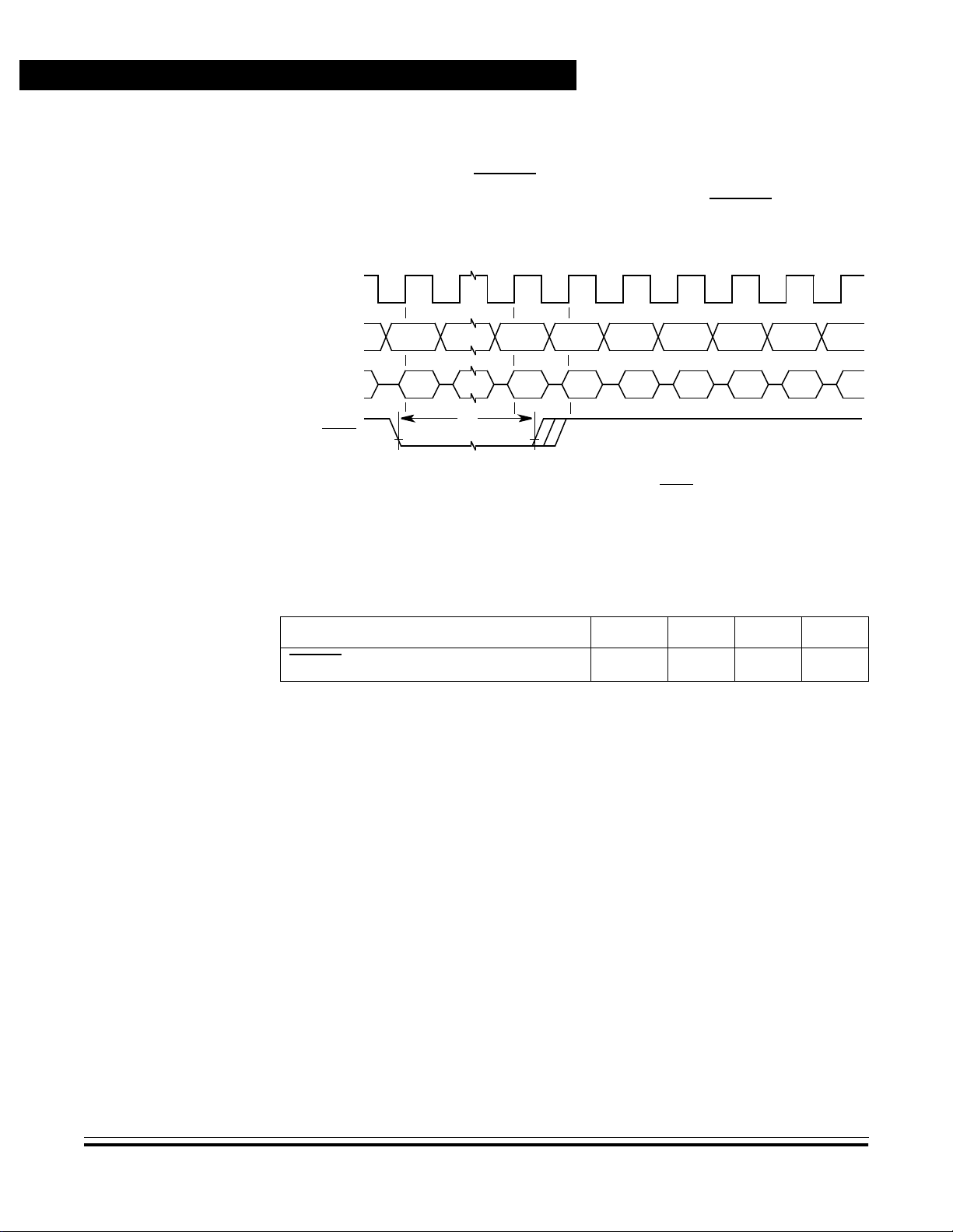

4-5 External Interrupt Timing . . . . . . . . . . . . . . . . . . . . . . . . . .75

4-6 Interrupt Stacking Order. . . . . . . . . . . . . . . . . . . . . . . . . . . .77

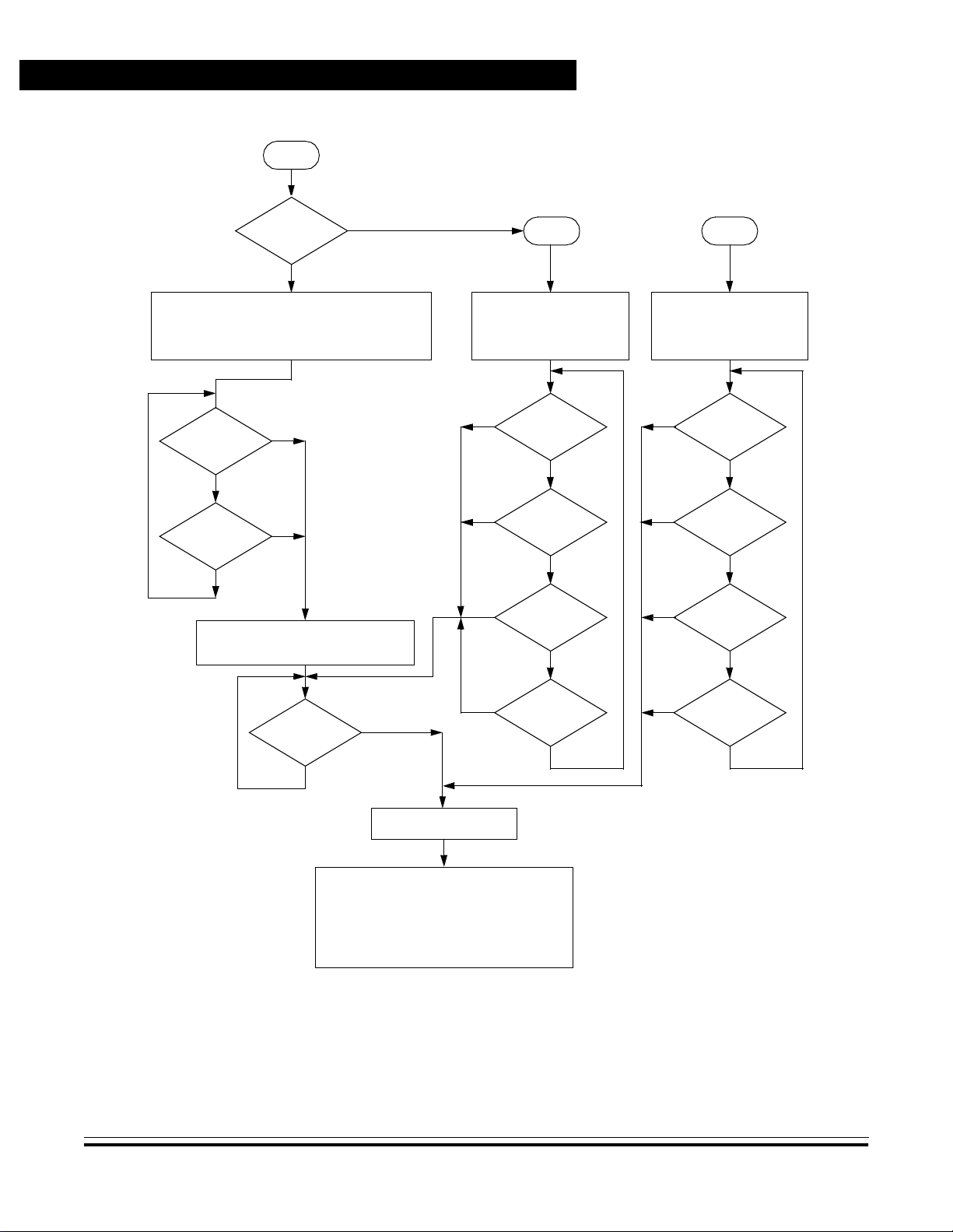

4-7 Interrupt Flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78

5-1 Stop Mode Recovery Timing . . . . . . . . . . . . . . . . . . . . . . . .85

5-2 Stop/Halt/Wait Flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . .86

nc

Freescale Semiconductor, I

6-1 Parallel I/O Port Register Summary. . . . . . . . . . . . . . . . . . .88

6-2 Port A Data Register (PORTA). . . . . . . . . . . . . . . . . . . . . . .89

6-3 Data Direction Register A (DDRA). . . . . . . . . . . . . . . . . . . .90

6-4 Port A I/O Circuitry. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90

6-5 Pulldown Register A (PDRA) . . . . . . . . . . . . . . . . . . . . . . . .91

6-6 Port B Data Register (PORTB). . . . . . . . . . . . . . . . . . . . . . .92

6-7 Data Direction Register B (DDRB). . . . . . . . . . . . . . . . . . . .93

6-8 Port B I/O Circuitry. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93

6-9 Pulldown Register B (PDRB) . . . . . . . . . . . . . . . . . . . . . . . .94

7-1 COP Register (COPR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .99

8-1 IRQ Module Block Diagram . . . . . . . . . . . . . . . . . . . . . . . .102

8-2 Interrupt Flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .103

8-3 IRQ Status and Control Register (ISCR) . . . . . . . . . . . . . .106

8-4 External Interrupt Timing . . . . . . . . . . . . . . . . . . . . . . . . . .107

9-1 Multifunction Timer Block Diagram. . . . . . . . . . . . . . . . . . .110

9-2 I/O Register Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . .111

9-3 Timer Status and Control Register (TSCR) . . . . . . . . . . . . 112

9-4 Timer Counter Register (TCR). . . . . . . . . . . . . . . . . . . . . .114

Technical Data MC68HC705J1A — Rev. 4.0

For More Information On This Product,

Go to: www.freescale.com

List of Figures

..

.
nc

Freescale Semiconductor, Inc.

Figure Title Page

10-1 PA0–PA7, PB0–PB5 Typical High-Side

10-2 PA0–PA3, PB0–PB5 Typical Low-Side

10-3 PA4–PA7 Typical Low-Side Driver Characteristics . . . . . .124

10-4 Typical Operating IDD (25°C) . . . . . . . . . . . . . . . . . . . . . . .125

10-5 Typical Wait Mode IDD (25°C) . . . . . . . . . . . . . . . . . . . . . . 125

10-6 External Interrupt Timing . . . . . . . . . . . . . . . . . . . . . . . . . . 128

10-7 Stop Mode Recovery Timing . . . . . . . . . . . . . . . . . . . . . . .128

10-8 Power-On Reset Timing. . . . . . . . . . . . . . . . . . . . . . . . . . .129

10-9 External Reset Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . .129

List of Figures

Driver Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . .123

Driver Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . .123

A-1 RC Oscillator Connections. . . . . . . . . . . . . . . . . . . . . . . . .138

A-2 Typical Internal Operating Frequency

for Various VDD at 25°C — RC Oscillator

Option Only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .139

B-1 Typical High-Speed Operating I

B-2 Typical High-Speed Wait Mode IDD (25°C) . . . . . . . . . . . .143

C-1 Typical Internal Operating Frequency

at 25°C for High-Speed RC Oscillator Option. . . . . . . .146

C-2 RC Oscillator Connections (No External Resistor). . . . . . .147

C-3 Typical Internal Operating Frequency

versus Temperature (OSCRES Bit = 1) . . . . . . . . . . . .148

(25°C) . . . . . . . . . . . . .142

DD

Freescale Semiconductor, I

MC68HC705J1A — Rev. 4.0 Technical Data

For More Information On This Product,

Go to: www.freescale.com

List of Figures

List of Figu r es

..

.
nc

Freescale Semiconductor, Inc.

Freescale Semiconductor, I

Technical Data MC68HC705J1A — Rev. 4.0

For More Information On This Product,

Go to: www.freescale.com

List of Figures

..

.
nc

Freescale Semiconductor, Inc.

Technical Data — MC68HC705J1A

Table Title Page

1-1 Programmable Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

3-1 Register/Memory Instructions. . . . . . . . . . . . . . . . . . . . . . . . .55

3-2 Read-Modify-Write Instructions . . . . . . . . . . . . . . . . . . . . . . .56

3-3 Jump and Branch Instructions . . . . . . . . . . . . . . . . . . . . . . . .58

3-4 Bit Manipulation Instructions. . . . . . . . . . . . . . . . . . . . . . . . . .59

3-5 Control Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

3-6 Instruction Set Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

3-7 Opcode Map. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

4-1 External Reset Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72

4-2 External Interrupt Timing (V
4-3 External Interrupt Timing (V

4-4 Reset/Interrupt Vector Addresses . . . . . . . . . . . . . . . . . . . . .77

6-1 Port A Pin Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91

6-2 Port B Pin Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .94

9-1 Real-Time Interrupt Rate Selection . . . . . . . . . . . . . . . . . . . 114

List of Tables

= 5.0 Vdc) . . . . . . . . . . . . . . .75

DD

= 3.3 Vdc) . . . . . . . . . . . . . . .75

DD

Freescale Semiconductor, I

MC68HC705J1A — Rev . 4.0 Technical Data

12-1 Order Numbers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .135

A-1 MC68HRC705J1A (RC Oscillator Option)

Order Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .140

B-1 MC68HSC705J1A (High Speed) Order Numbers . . . . . . . .144

C-1 MC68HSR705J1A (High-Speed RC Oscillator Option)

Order Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .149

For More Information On This Product,

Go to: www.freescale.com

List of Tables

List of Tables

..

.
nc

Freescale Semiconductor, Inc.

Freescale Semiconductor, I

Technical Data MC68HC705J1A — Rev. 4.0

For More Information On This Product,

Go to: www.freescale.com

List of Tables

Freescale Semiconductor, Inc.

Technical Data — MC68HC705J1A

1.1 Contents

1.2 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Section 1. General Description

..

.
nc

1.3 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

1.4 Programmable Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

1.5 Pin Assignments. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

1.5.1 V

1.5.2 OSC1 and OSC2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

1.5.2.1 Crystal Oscillator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

1.5.2.2 Ceramic Resonator Oscillator . . . . . . . . . . . . . . . . . . . . .28

1.5.2.3 RC Oscillator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

1.5.2.4 External Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

1.6 RESET

1.7 IRQ/VPP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

1.8 PA0–PA7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 1

1.9 PB0–PB5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 1

and VSS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

DD

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Freescale Semiconductor, I

MC68HC705J1A — Rev . 4.0 Technical Data

For More Information On This Product,

General Description

Go to: www.freescale.com

General Description

1.2 Introduction

..

.
nc

Freescale Semiconductor, Inc.

The MC68HC705J1A is a member of Motorola’s low-cost,
high-performance M68HC05 Family of 8-bit microcontroller units
(MCUs). The M68HC05 Fami ly is based on the customer-specified
integrated circuit (C SIC) design strategy. All MCUs in the family use the
popular M68HC05 centr al processor unit (CP U) and are available wit h a
variety of subsystems, memory sizes and types, and package types.

On-chip memory of the MC68HC705J1A includes 1240 bytes of
erasable, programmable read-only memory (EPROM). In packages
without the transparent window for EPROM erasure, the 1240 EPROM
bytes serve as one-time programmable read-only memory (OTPROM).

The MC68HRC705J1A is a resistor-capacitor (RC) oscillator mask
option version of the M C68HC705J1 A and is discussed in Appendix A.

MC68HRC705J1A.

A high-spee d version o f the MC 68HC705J1A , the MC68 HSC70 5J1A, is
discussed in Appendix B. MC68HSC705J1A.

The MC68HSR705J1A, discussed in Appendix C. MC68HSR705J1A,
is a high-speed version of the MC68HRC705J1A.

A functional block diagram of the MC68HC705J1A is shown in

Figure 1-1.

Freescale Semiconductor, I

Technical Data MC68HC705J1A — Rev. 4.0

For More Information On This Product,

General Descri ptio n

Go to: www.freescale.com

Freescale Semiconductor, Inc.

General Description

Introduction

..

.
nc

Freescale Semiconductor, I

OSC1

OSC2

RESET

IRQ/V

PP

INTERNAL

OSCILLATOR

DIVIDE

BY ³2

68HC05 CPU

CPU REGISTERS

0000000011

PROGRAM COUNTER

CONDITION CODE

REGISTER

STATIC RAM (SRAM) — 64 BYTES

USER EPROM — 1240 BYTES

MASK OPTION REGISTER (EPROM)

15-STAGE

MULTIFUNCTION

TIMER SYSTEM

WATCHDOG AND

ILLEGAL ADDRESS

DETECT

ALUCPU CONTROL

ACCUMULATOR

INDEX REGISTER

STK PTR

111HINZC

Figure 1-1. Block Diagram

PB5

GISTER B

PORT B

PORT A

DATA DIRECTION REGISTER A DATA DIRECTION RE

*10-m A si nk capabil i ty
**External interrupt capability

PB4

PB3

PB2

PB1

PB0

PA7*

PA6*

PA5*

PA4*

PA3* *

PA2* *

PA1* *

PA0* *

MC68HC705J1A — Rev. 4.0 Technical Data

For More Information On This Product,

General Description

Go to: www.freescale.com

General Description

1.3 Features

..

.
nc

Freescale Semiconductor, Inc.

Features of the MC68HC705J1A include:

• Periphera l modules:

• 14 bidirectional input/output (I/O) lines, including:

– 15-stage multifunction timer
– Computer operating properly (COP) watchdog

– 10-mA sink capability on four I/O pins
– Mask option register (MOR) and software programmable

pulldowns on all I/O pins

– MOR selectable interrupt on four I/O pins, a keyboard scan

feature

• MOR selectable sensitivity on external interrupt (edge- and
level-sensitive or edge-sensitive only)

• On-chip oscillator with connections for:
– Crystal
– Ceramic resonator
– Resistor-capacitor (RC) oscillator
– External clock

• 1240 bytes of EPROM/OTPROM, including eight bytes for user
vectors

• 64 bytes of user random-access memory (RAM)

• Memory-mapped I/O registers

Freescale Semiconductor, I

• Fully static operation with no minimum clock speed

• Power-saving stop, halt, wait, and data-retention modes

• External interrupt mask bit and acknowledge bit

• Illegal address reset

• Internal steer ing d iode a nd p ul lup r esistor fro m RE SET

Technical Data MC68HC705J1A — Rev. 4.0

For More Information On This Product,

General Descri ptio n

Go to: www.freescale.com

pin to V

DD

Freescale Semiconductor, Inc.

1.4 Programmable Options

The options in Table 1-1 are progr ammabl e in the mask option register
(MOR).

COP watchdog timer Enabled or disabled
External interrupt triggering Edge-sensitive only or edge- and level-sensitive

General Description

Programmable Options

Table 1-1. Programmable Options

Feature Option

..

.
nc

1.5 Pin A ssignments

1.5.1 VDD and V

Freescale Semiconductor, I

SS

Port A IRQ
Port pulldown resistors Enabled or disabled
STOP instruction mode Stop mode or halt mode
Crystal oscillator internal resistor Enabled or disabled
EPROM security Enabled or disabled
Short oscillator delay counter Enabled or disabled

pin interrupts Enabled or disabled

Figure 1-2 shows the MC68HC705J1A pin assignments.

VDD and VSS are the power supply and g round pi ns. The MCU opera tes
from a single power supply.

Very fast signal transitions occur on the MCU pins, placing high,
short-duration current demands on the power supply. To prevent noise
problems, take special care as Figure 1-3 shows, by placing the bypas s
capacitors as close as possible to the MCU. C2 is an optional bulk
current bypass capaci tor for use in appl ications that requi re the port pi ns
to source high current levels.

MC68HC705J1A — Rev. 4.0 Technical Data

For More Information On This Product,

General Description

Go to: www.freescale.com

General Description

Freescale Semiconductor, Inc.

..

.
nc

Freescale Semiconductor, I

MCU

V

DD

C1

0.1 µF

V

SS

OSC1

OSC2 2

PB5 3

PB4 4

PB3 5

PB2 6

PB1 7

PB0 8

V

DD

V

SS

1

9

10

RESET

20

IRQ/V

19

PA018

PA117

PA216

PA315

PA414

PA513

PA6

12

PA7

11

Figure 1-2. Pin Assignments

V+

C2

+

C2

C1

PP

V

DD

V

SS

Figure 1-3. Bypassing Layout Recommendation

Technical Data MC68HC705J1A — Rev. 4.0

For More Information On This Product,

General Descri ptio n

Go to: www.freescale.com

1.5.2 OSC1 and OSC2

Freescale Semiconductor, Inc.

The OSC1 and OSC2 pins are the connections for the on-chip oscillator.
The oscillator can be driven by any of these:

1. Crystal (See Figure 1-4 and Figure 1-5.)

2. Ceramic resonator (See Figure 1-6 and Figure 1-7.)

3. Resistor/capacitor (RC) oscillator (Refer to Appendix A.

General Description

Pin Assignments

MC68HRC705J1A and Appendix C. MC68HSR705J1A.)

..

.
nc

1.5.2.1 Crystal Oscillator

Freescale Semiconductor, I

4. External clock signal (See Figure 1-8.)

The frequency, f
by two to produce the internal operating frequency, fop.

Figure 1-4 and Figur e 1- 5 show a typica l crystal oscillator circuit for an

AT-cut, parallel resonant crystal. Follow the crystal supplier’s
recommendations, as the crystal parameters determine the external
component values required to provide reliable startup and maximum
stability. The loa d capacitance values used in the oscillator circuit design
should include all stray layout capacitances.

To minimize out put distortion, mount the crystal an d capacitors a s close
as possible to the pins. An internal startup resistor of approximately
2MΩ is provided between OSC1 and OSC2 for the crystal oscillator as
a programmable mask option.

, of the oscillator or external clock source is divided

osc

NOTE: Use an AT-cut crystal and not an AT-stri p crystal becau se the MCU can

overdrive an AT-strip crystal.

MC68HC705J1A — Rev. 4.0 Technical Data

For More Information On This Product,

General Description

Go to: www.freescale.com

General Description

Freescale Semiconductor, Inc.

OSC1

MCU

V

SS

C3

XTAL

OSC2

OSC1

OSC2

..

.
nc

C3

27 pF

C3

27 pF

XTAL

C4

27 pF

C4

C1C2

Figure 1-4. Crystal Connections with

Oscillator Internal Resistor Mask Option

V

SS

MCU

R

OSC1

10 M¾Ω

XTAL

OSC2

27 pF

C4

C3

XTAL

C4

R

C1C2

Figure 1-5. Crystal Connections without

Oscillator Internal Resistor Mask Option

V

DD

V

SS

OSC1

OSC2

V

DD

V

SS

Freescale Semiconductor, I

1.5.2.2 Ceramic Resonator Oscillator

To reduce cost, use a ceramic resonator instead of the crystal. The
circuits shown in Figure 1-6 and Figure 1-7 show ceramic resonator
circuits. Follow the resonator manufacturer’s recommendations, as the
resonator parameters determine the external component values
required for maximum stability and reliable starting. The load
capacitance values used in t he oscillator circui t design should include all
stray capacitances.

Technical Data MC68HC705J1A — Rev. 4.0

For More Information On This Product,

General Descri ptio n

Go to: www.freescale.com

Freescale Semiconductor, Inc.

General Description

Pin Assignments

Mount the resonator and components as close as possible to the pins for
startup stabilization and to minimize o utput distortion. An internal startup
resistor of approximat ely 2 MΩ is provided between OSC1 and OSC2 as
a programmable mask option.

V

SS

MCU

C3

OSC1

..

.
nc

C3

27 pF

OSC1

CERAMIC

RESON ATOR

OSC2

C4

27 pF

C4

CERAMIC

RESON ATOR

C1C2

OSC2

V

DD

V

SS

Figure 1-6. Ceramic Resonator Connections

with Oscillator Internal Resistor Mask Option

V

SS

C3

OSC1

R

CERAMIC

RESON ATOR

OSC2

OSC1

MCU

R

10 M¾Ω

OSC2

Freescale Semiconductor, I

CERAMIC

C3

27 pF

RESON ATOR

C4

27 pF

C4

V

DD

C1C2

V

SS

Figure 1-7. Ceramic Resonator Connections

without Oscillator Internal Resistor Mask Option

MC68HC705J1A — Rev. 4.0 Technical Data

For More Information On This Product,

General Description

Go to: www.freescale.com

General Description

1.5.2.3 RC Oscillator

1.5.2.4 External Clock

..

.
nc

Freescale Semiconductor, Inc.

Refer to Appendix A. MC68HRC705J1A and Appendix C.

MC68HSR705J1A.

An external clock from another complementary metal-oxide
semiconductor (CMOS)-compatible device can be connected to the
OSC1 input, with the OSC2 input not connected, as shown in

Figure 1-8. This configuration is possible regardless of whether the

crystal/ceramic resonator or the RC oscillator is enabled.

1.6 RESET

Freescale Semiconductor, I

MCU

OSC1

EXTERNAL

CMOS CLOCK

OSC2

Figure 1-8. External Clock Connections

Applying a logic 0 to the RE SET pin for ces the M CU to a known startup
state. An internal r eset also pulls the RESET pin low. An internal resist or
to VDD pulls the RESE T pin high. A steeri n g diode b etw een the RESE T
and V

pins discharges any RESET pin voltage when power is

DD

removed from the MCU. The RESET pin contains an internal Schmitt
trigger to improve its noise immunity as an input. Refer to Section 4.

Resets and Interrupts for more information.

Technical Data MC68HC705J1A — Rev. 4.0

For More Information On This Product,

General Descri ptio n

Go to: www.freescale.com

Freescale Semiconductor, Inc.

General Description

IRQ/V

PP

1.7 IRQ/V

..

.
nc

1.8 PA0–PA7

1.9 PB0–PB5

Freescale Semiconductor, I

PP

The external interrupt/programming voltage pin (IRQ/VPP) drives the
asynchronous IRQ interrupt function of the CPU. Additionally, it is used
to progra m t he u ser EPR OM and ma sk op tion r egi ste r. ( See Sect ion 2.

Memory and Section 8. External Interrupt Module (IRQ).)

The LEVEL bit in the mask option register provides negative
edge-sensitive triggering or both negative edge-sensitive and low
level-sensitive triggering for the interrupt function.

If level-sensitive triggering is selected, the IRQ/VPP input requires an
external resistor to VDD for wired- OR operat ion. I f the IR Q/VPP pin is no t
used, it must be tied to the VDD supply.

The IRQ/VPP pin contains an internal Schmitt trigge r as part of its input
to improve noise immunity. The voltage on this pin should not exceed
V

except when the pin is being used for programming the EPROM.

DD

NOTE: The mask option register can enable the PA0–PA3 pins to function as

external interrupt pins.

These eight input/ou tput (I/O) l ines comprise por t A, a genera l-purpose,
bidirectional I/O port. See Sectio n 8. E xte rnal In ter rupt Module ( IRQ)
for information on PA0–PA3 external interrupts.

These six I/O lines comprise port B, a general-purp ose, bidirectiona l I/O
port.

MC68HC705J1A — Rev. 4.0 Technical Data

For More Information On This Product,

General Description

Go to: www.freescale.com

General Description

..

.
nc

Freescale Semiconductor, Inc.

Freescale Semiconductor, I

Technical Data MC68HC705J1A — Rev. 4.0

For More Information On This Product,

General Descri ptio n

Go to: www.freescale.com

Freescale Semiconductor, Inc.

Technical Data — MC68HC705J1A

2.1 Contents

2.2 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Section 2. Memory

..

.
nc

2.2 Introduction

Freescale Semiconductor, I

2.3 Memory Map. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

2.4 Input/Output Register Summary. . . . . . . . . . . . . . . . . . . . . . . .35

2.5 RAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

2.6 EPROM/OTPROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

2.6.1 EPROM/OTPROM Programming. . . . . . . . . . . . . . . . . . . . .38

2.6.2 EPROM Programming Register . . . . . . . . . . . . . . . . . . . . .39

2.6.3 EPROM Erasing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 0

2.7 Mask Option Register. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

2.8 EPROM Programming Characteristics. . . . . . . . . . . . . . . . . . .43

This section describes the organization of the on-chip memory
consisting of:

• 1232 bytes of user erasable, programmable read-only memory
(EPROM), plus eight bytes for user vectors

• 64 bytes of user random-access memory (RAM)

MC68HC705J1A — Rev . 4.0 Technical Data

For More Information On This Product,

Go to: www.freescale.com

Memory

Memory

2.3 Memory Map

..

.
nc

Freescale Semiconductor, I

$0000

↓

$001F ↓

$0020

↓ Pulldown Register Port A (PDRA) $0010

$00BF Pulldown Register Port B (PDRB) $0011

$00C0

↓ ↓

$00FF $0017

$0100

↓

$02FF ↓

$0300

↓ Reserved $001F

$07CF

$07D0

↓ Mask Option Register (MOR) $07F1

$07ED

$07EE

$07EF $07F7

$07F0

↓ Timer Interrupt Vector Low $07F9

$07FF External Interrupt Vector High $07FA

Freescale Semiconductor, Inc.

I/O Registers

32 Bytes

Unimplemented

160 Bytes

RAM

64 Bytes

Unimplemented

512 Bytes

EPROM

1232 Bytes

Unimplemented

30 Bytes

Test ROM

2 Bytes

Registers and EPROM

16 Bytes

(1)

Writing to bit 0 of $07F0 clears the computer
operating properly (COP) watchdog.

Port A Data Register (PORTA) $0000

Port B Data Register (PORTB) $0001

Unimplemented

Data Direction Register A (DDRA) $0004

Data Direction Register B (DDRB) $0005

Unimplemented

Timer Status and Control Register (TSCR) $0008

Timer Control Register (TCR) $0009

IRQ Status and Control Register (ISCR) $000A

Unimplemented

Unimplemented

EPROM Programming Register (EPROG) $0018

Unimplemented

COP Register (COPR)

Reserved

Timer Interrupt Vector High $07F8

External Interrupt Vector Low $07FB

Software Interrupt Vector High $07FC

Software Interrupt Vector Low $07FD

Reset Vector High $07FE

Reset Vector Low $07FF

(1)

$0002

$0003

$0006

$0007

$000B

$000F

$0012

$0019

$001E

$07F0

$07F2

↓

Figure 2-1. Memory Map

Technical Data MC68HC705J1A — Rev. 4.0

For More Information On This Product,

Go to: www.freescale.com

Memory

Freescale Semiconductor, Inc.

Memory

Input/Output Register Summary

2.4 Input/Output Regist er Summary

Addr.Register Name Bit 7654321Bit 0

..

.
nc

Port A Data Register

$0000

Port B Data Register

$0001

$0002 Unimplemented

$0003 Unimplemented

Data Direction Register A

$0004

Data Direction Register B

$0005

$0006 Unimplemented

$0007 Unimplemented

(PORTA)

See page 89.

(PORTB)

See page 92.

(DDRA)

See page 90.

(DDRB)

See page 93.

Read:

PA7 PA6 PA5 PA4 PA3 PA2 PA1 PA0

Write:

Reset: Unaffected by reset

Read: 0 0

PB5 PB4 PB3 PB2 PB1 PB0

Write:

Reset: Unaffected by reset

Read:

DDRA7 DDRA6 DDRA5 DDRA4 DDRA3 DDRA2 DDRA1 DDRA0

Write:

Reset:00000000

Read: 0 0

DDRB5 DDRB4 DDRB3 DDRB2 DDRB1 DDRB0

Write:

Reset:00000000

Freescale Semiconductor, I

Read: TOF RTIF

TOIE RTIE

Write: TOFR RTIFR

Reset:00000011

= Unimplemented R = Reserved

$0008

Timer Status and Control

Register (TSCR)

See page 112.

Figure 2-2. I/O Register Summary (Sheet 1 of 3)

MC68HC705J1A — Rev. 4.0 Technical Data

For More Information On This Product,

Go to: www.freescale.com

Memory

00

RT1 RT0

Freescale Semiconductor, Inc.

Memory

Addr.Register Name Bit 7654321Bit 0

..

.
nc

Freescale Semiconductor, I

Timer Counter Register

$0009

See page 114.

IRQ Status and Control

$000A

$000B Unimplemented

↓

$000F Unimplemented

$0010

$0011

$0012 Unimplemented

↓

$0017 Unimplemented

$0018

Register (ISCR)

See page 106.

Pulldown Register A

Pulldown Register B

EPROM Programming

Register (EPROG)

(TCR)

(PDRA)

See page 91.

(PDRB)

See page 94.

See page 39.

Read: TMR7 TMR6 TMR5 TMR4 TMR3 TMR2 TMR1 TMR0

Write:

Reset:00000000

Read:

IRQE

Write:

Reset:10000000

Read:

Write: PDIA7 PDIA6 PDIA5 PDIA4 PDIA3 PDIA2 PDIA1 PDIA0

Reset:00000000

Read:

Write: PDIB5 PDIB4 PDIB3 PDIB2 PDIB1 PDIB0

Reset:00000000

Read: 0 0 0 0 0

Write: RRRR

Reset:00000000

000IRQF000

R IRQR

ELAT MPGM EPGM

= Unimplemented R = Reserved

Figure 2-2. I/O Register Summary (Sheet 2 of 3)

Technical Data MC68HC705J1A — Rev. 4.0

For More Information On This Product,

Go to: www.freescale.com

Memory

Freescale Semiconductor, Inc.

Addr.Register Name Bit 7654321Bit 0

$0019 Unimplemented

↓

$001E Unimplemented

$001F Reserved RRRRRRRR

Memory

RAM

..

.
nc

Freescale Semiconductor, I

$07F0

Mask Option Register

$07F1

2.5 RAM

COP Register

(COPR)

See page 99.

(MOR)

See page 41.

Figure 2-2. I/O Register Summary (Sheet 3 of 3)

Read:

Write: COPC

Reset: 0

Read:

SOSCD EPMSEC OSCRES SWAIT SWPDI PIRQ LEVEL COPEN

Write:

Reset: Unaffected by reset

= Unimplemented R = Reserved

The 64 addresse s from $00C0 to $00FF serve as bo th the user RAM and
the stack RAM. Before processing an interrupt, the central processor
unit (CPU) uses five bytes of the stack to save the contents of the CPU
registers. During a sub rout ine cal l, th e CP U uses two bytes o f the stack
to store the re turn address. The stack po inter decrements when the CPU
stores a byte on the stack and increments when the CPU retrieves a byte
from the stack.

NOTE: Be careful when using nested subroutines or multiple interrupt levels.

The CPU may overwrite data in the RAM during a subroutine or during
the interrupt stacking operation.

MC68HC705J1A — Rev. 4.0 Technical Data

For More Information On This Product,

Go to: www.freescale.com

Memory

Memory

2.6 EPROM/OTPROM

NOTE: Keep the quartz window covered with an opaque material except when

..

.
nc

Freescale Semiconductor, Inc.

A microcontroller unit (MCU) with a quartz window has 1240 bytes of
erasable, programmable ROM (EPROM). The quartz window allows
EPROM erasure with ultraviolet light.

programming the MCU. Ambient light can affect MCU operation.

In an MCU without the quartz window, the EPROM cannot be erased
and serves as 1240 bytes of one- time pr ogra mma ble RO M (OT PROM ).

These addresses are user EPROM/OTPROM locations:

• $0300–$07CF

• $07F8–$07FF, used for user-defined interrupt and reset vectors

The computer operating properly (COP) register (COPR) is an
EPROM/OTPROM location at address $07F0.

The mask option register (MOR) is an EPROM/OTPROM location at
address $07F1.

2.6.1 EPROM/OTPROM Programming

The two ways to program the EPROM/OTPROM are:

1. Manipulatin g the contr ol bits in th e EPROM pro gramming register

2. Programming the EPROM/OTPROM with the M68HC705J

Freescale Semiconductor, I

to program the EPROM/OTPROM on a byte-by-byte basis

in-circuit simulator (M68HC705JICS) available from Freescale

Technical Data MC68HC705J1A — Rev. 4.0

For More Information On This Product,

Go to: www.freescale.com

Memory

Freescale Semiconductor, Inc.

2.6.2 EPROM Programming Register

The EPROM programming register (EPROG) contains the control bits
for programming the EPROM/OTPROM.

Address: $0018

Bit 7654321Bit 0

Read: 0 0 0 0 0

Write:

Memory

EPROM/OTPROM

ELAT MPGM EPGM

RRRR

..

.
nc

Reset:00000000

= Unimplemented R = Reserved

Figure 2-3. EPROM Programming Register (EPROG)

ELAT — EPROM Bus Latch Bit

This read/write bit latches the address and data buses for
EPROM/OTPROM p rogramming. Cleari ng the ELAT bit automatically
clears the EPGM bit. EPROM/OTPROM data cannot be read while
the ELAT bit is set. Reset clears the ELAT bit.

1 = Address and data buses configured for EPROM/OTPROM

programming the EPROM

0 = Address and data buses configured for normal operation

MPGM — MOR Programming Bit

This read/write bi t applies prog ram mi ng power from the IRQ/VPP pin
to the mask option register. Reset clears MPGM.

1 = Programming voltage applied to MOR
0 = Programming voltage not applied to MOR

Freescale Semiconductor, I

EPGM — EPROM Programming Bit

This read/write bit applies the voltage from the IRQ/V

pin to the

PP

EPROM. To write the EPGM bit, the ELAT bit must be set already.
Reset clears EPGM.

1 = Programming voltage (IRQ/VPP pin) applied to EPROM
0 = Programming voltage (IRQ/VPP pin) not applied to EPROM

MC68HC705J1A — Rev. 4.0 Technical Data

For More Information On This Product,

Go to: www.freescale.com

Memory

Memory

Freescale Semiconductor, Inc.

NOTE: Writing logic 1s to both the ELAT and EPGM b its with a s ingle instruction

sets ELAT and clears EPGM. ELAT must be set first by a separate
instruction.

Bits [7:3] — Reserved
Take these steps to program a byte of EPROM/OTPROM:

1. Apply the programming voltage, VPP, to the IRQ/VPP pin.

2. Set the ELAT bit.

..

.
nc

2.6.3 EPROM Erasing

2.7 Ma sk Option Reg ister

3. Write to any EPROM/OTPROM address.

4. Set the EPGM bit and wait for a time, t

5. Clear the ELAT bit.

The erased state of an EPROM bit is logic 0. Erase the EPROM by
exposing it to 15 Ws/cm
2537 angstroms. Position the ultraviolet light source one inch from the
EPROM. Do not use a shortwave filter.

The mask option register (MOR) is an EPROM/OTPROM byte that
controls these options:

• COP watchdog (enable or disable)

2

of ultraviolet light with a wave length of

EPGM

.

Freescale Semiconductor, I

Technical Data MC68HC705J1A — Rev. 4.0

• External in terr upt pin triggering (edge-sensitiv e o nly or ed ge- and
level-sensitive)

• Port A external interrupts (enable or disable)

• Port pulldown resistors (enable or disable)

• STOP instruction (stop mode or halt mode)

• Crystal oscillator internal resistor (enable or disable)

• EPROM security (enable or disable)

• Short oscillator delay (enable or disable)

For More Information On This Product,

Go to: www.freescale.com

Memory

Freescale Semiconductor, Inc.

Take these steps to program the mask option register:

Memory

Mask Option Register

..

.
nc

Freescale Semiconductor, I

1. Apply the programming voltage, V

, to the IRQ/VPP pin.

PP

2. Write to the MOR.

3. Set the MPGM bit and wait for a time, t

MPGM

.

4. Clear the MPGM bit.

5. Reset the MCU.

Address: $07F1

Bit 7654321Bit 0

Read:

Write:

Reset: Unaffected by reset

SOSCD EPMSEC OSCRES SWAIT SWPDI PIRQ LEVEL COPEN

Figure 2-4. Mask Option Register (MOR)

SOSCD — Short Oscillator Delay Bit

The SOSCD bit controls the oscillator stabilization counter. The
normal stabilization delay following reset or exit from stop mode is
4064 t

. Setting SOSCD enables a short oscillator stabilization

cyc

delay.

1 = Short oscillator delay enabled
0 = Short oscillator delay disabled

EPMSEC — EPROM Security Bit

The EPMSEC bit controls access to the EPROM/OTPROM.

1 = External access to EPROM/OTPROM denied
0 = External access to EPROM/OTPROM not denied

OSCRES — Oscillator Internal Resistor Bit

The OSCRES bit enables a 2-MΩ internal resistor in the oscillator
circuit.

1 = Oscillator internal resistor enabled
0 = Oscillator internal resistor disabled

NOTE: Program the OSCRES bit to logic 0 in devices using RC oscillators.

MC68HC705J1A — Rev. 4.0 Technical Data

For More Information On This Product,

Go to: www.freescale.com

Memory

Memory

..

.
nc

Freescale Semiconductor, Inc.

SWAIT — Stop-to-Wait Conversion Bit

The SWAIT bit enables halt mode. When the SWAIT bit is set, the
CPU interprets the STOP instruction as a WAIT instruction, and the
MCU enters halt mo de. Halt mode i s the same as wait mo de, except
that an oscillator stabilization delay of 1 to 4064 t

exiting halt mode.

1 = Halt mode enabled
0 = Halt mode not enabled

SWPDI — Software Pulldown Inhibit Bit

The SWPDI bit inhibits software control of the I/O port pulldown
devices. The SWPDI b i t overri des t he pu lldow n inhib it bits in t he po rt
pulldown inhibit registers.

1 = Software pulldown control inhibited
0 = Software pulldown control not inhibited

occurs after

cyc

PIRQ — Port A External Interrupt Bit

The PIRQ bit enables the PA0–PA3
interrupt pins.

1 = PA0–PA3 enabled as external interrupt pins
0 = PA0–PA3 not enabled as external interrupt pins

LEVEL —External Interrupt Sensitivity Bit

The LEVEL bit controls external interrupt triggering sensitivity.

1 = External interrupts triggered by active edges and active levels
0 = External interrupts triggered only by active edges

COPEN — COP Enable Bit

The COPEN bit enables the COP watchdog.

Freescale Semiconductor, I

1 = COP watchdog enabled
0 = COP watchdog disabled

pins to function as external

Technical Data MC68HC705J1A — Rev. 4.0

For More Information On This Product,

Go to: www.freescale.com

Memory

Freescale Semiconductor, Inc.

2.8 EPROM Programming Characteristics

Memory

EPROM Programming Characteristics

..

.
nc

Characteristic

Programming voltage

/V

IRQ

PP

Programming current

IRQ/V

PP

Program ming time

Per array byte
MOR

1. VDD = 5.0 Vdc ± 10%, VSS = 0 Vdc, TA = –40°C to +105°C

(1)

Symbol Min Typ Max Unit

V

PP

I

PP

t

EPGM

t

MPGM

16.0 16.5 17.0 V

—¦ 3.0 10.0 mA

4
4

—
—

—
—

ms

Freescale Semiconductor, I

MC68HC705J1A — Rev. 4.0 Technical Data

For More Information On This Product,

Go to: www.freescale.com

Memory

Memory

..

.
nc

Freescale Semiconductor, Inc.

Freescale Semiconductor, I

Technical Data MC68HC705J1A — Rev. 4.0

For More Information On This Product,

Go to: www.freescale.com

Memory

Freescale Semiconductor, Inc.

Technical Data — MC68HC705J1A

Section 3. Central Processor Unit (CPU)

3.1 Contents

3.2 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

..

.
nc

Freescale Semiconductor, I

3.3 CPU Control Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

3.4 Arithmetic/Logic Unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

3.5 CPU Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

3.5.1 Accumulator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

3.5.2 Index Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

3.5.3 Stack Pointer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

3.5.4 Program Counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

3.5.5 Condition Code Register . . . . . . . . . . . . . . . . . . . . . . . . . . .50

3.6 Instruction Set. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

3.6.1 Addressing Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

3.6.1.1 Inherent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 2

3.6.1.2 Immediate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 2

3.6.1.3 Direct . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

3.6.1.4 Extended . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

3.6.1.5 Indexed, No Offset. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

3.6.1.6 Indexed, 8-Bit Offset . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

3.6.1.7 Indexed, 16-Bit Offset . . . . . . . . . . . . . . . . . . . . . . . . . . .54

3.6.1.8 Relative . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 4

3.6.2 Instruction Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

3.6.2.1 Register/Memory Instructions . . . . . . . . . . . . . . . . . . . . .55

3.6.2.2 Read-Modify-Write Instructions . . . . . . . . . . . . . . . . . . . .56

3.6.2.3 Jump/Branch Instructions . . . . . . . . . . . . . . . . . . . . . . . .57

3.6.2.4 Bit Manipulation Instructions . . . . . . . . . . . . . . . . . . . . . .59

3.6.2.5 Control Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

3.7 Instruction Set Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

3.8 Opcode Map. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66

MC68HC705J1A — Rev . 4.0 Technical Data

Central Processor Unit (CPU)

For More Information On This Product,

Go to: www.freescale.com

Central Processor Unit (CPU)

3.2 Introduction

The central processor unit (CPU) consists of a CPU control unit, an
arithmetic /logic unit (ALU), and fi ve CPU registers. Th e CPU control unit
fetches and decodes instructions. The ALU executes the instructions.
The CPU registers contain data, addresses, and status bits that reflect
the results of CPU operations. See Figure 3-1.

Features include:

..

.

Freescale Semiconductor, Inc.

• 2.1-MHz bus frequency

• 8-bit accumulator

nc

3.3 CPU Control Unit

Freescale Semiconductor, I

3.4 Arithmetic/Logic Unit

• 8-bit index register

• 11-bit program counter

• 6-bit stack pointer

• Condition code register (CCR) with five status flags

• 62 instructions

• Eight addressing modes

• Power-saving stop, wait, halt, and data-retention modes

The CPU control unit fetches and decodes instructions during program
operation. The control unit selects the memory locations to read and
write and coordinates the timing of all CPU operations.

The arithmetic/logic unit (ALU) performs the arithmetic, logic, and
manipulation operations decoded from the instruction set by the CPU
control unit . The ALU produces the resu lts called for by the program and
sets or clears status and control bits in the condition code register
(CCR).

Technical Data MC68HC705J1A — Rev. 4.0

Central Processor Unit (CPU)

For More Information On This Product,

Go to: www.freescale.com

Freescale Semiconductor, Inc.

Central Processor Unit (CPU)

Arithmetic/Logic Unit

..

.
nc

CPU CONTROL UNIT

0

000000011

0

00

0

0

HALF-CARRY FLAG

INTERRUPT MASK

NEGATIVE FLAG

ZERO FLAG

CARRY/BORROW FLAG

Figure 3-1. Programming Model

ARITHMETIC/LOGIC UNIT

04756 321

04756 321

04756 32181215 1314 11 10 9

04756 32181215 1314 11 10 9

04756 321

111HINZC

ACCUMULATOR (A)

INDEX REGISTER (X)

STACK POINTER (SP)

PROGRAM COUNTER (PC)

CONDITION CODE REGISTER (CCR)

Freescale Semiconductor, I

MC68HC705J1A — Rev. 4.0 Technical Data

Central Processor Unit (CPU)

For More Information On This Product,

Go to: www.freescale.com

Freescale Semiconductor, Inc.

Central Processor Unit (CPU)

3.5 CPU Registers

The M68HC05 CPU contains five registers that control and monitor
microcontroller unit (MCU) operation:

• Accumulator

• Index register

• Stack pointer

• Program counter

..

.
nc

3.5.1 Accumulator

3.5.2 Index Register

Freescale Semiconductor, I

• Condition code register

CPU registers are not memory mapped.

The accumulator (A) is a general-purpose 8-bit register. The CPU uses
the accumulator to hold operands and results of ALU operations.

Bit 7654321Bit 0
Read:
Write:

Res et: Unaff ected by reset

Figure 3-2. Accumulator (A)

In the indexed addr essing (X) modes, the CPU uses the byte i n the index
register to deter mine th e conditi o nal addr ess of the opera nd. The index
register also can serve as a temporary storage location or a counter.

Bit 7654321Bit 0
Read:
Write:

Res et: Unaff ected by reset

Figure 3-3. Index Register (X)

Technical Data MC68HC705J1A — Rev. 4.0

Central Processor Unit (CPU)

For More Information On This Product,

Go to: www.freescale.com

3.5.3 Stack Pointer

Freescale Semiconductor, Inc.

Central Processor Unit (CPU)

CPU Registers

The stack pointer (SP) is a 16-bit register that contains the address of
the next location on the stack. During a reset or after the reset stack
pointer instruction (RSP), the stack pointer is preset to $00FF. The
address in the stack pointer decrements after a byte is stacked and
increments before a byte is unstacked.

..

.
nc

Bit
151413121110987654321

Read:0000000011

Write:

Reset:0000000011111111

= Unimplemented

Bit

0

Figure 3-4. Stack Pointe r (SP)

The 10 most significant bits of th e stack po inter are perman ently f ixed at
0000000011, so the stack pointer produces addresses from $00C0 to
$00FF. If subroutines and interrupts use more than 64 stack locations,
the stack pointer wraps around to address $00FF and begins writing
over the previously stored data. A subroutine uses two stack locations;
an interrupt uses five locations.

Freescale Semiconductor, I

MC68HC705J1A — Rev. 4.0 Technical Data

Central Processor Unit (CPU)

For More Information On This Product,

Go to: www.freescale.com

Central Processor Unit (CPU)

3.5.4 Program Counter

The program counter (P C) is a 16-bit register that contains the address
of the next instruction or operand to be fetch ed. The five most signi ficant
bits of the program counter are ignored and appear as 00000.

Normally, the address in the pr ogra m counte r auto maticall y incre ments
to the next sequential memory location every time an instruction or
operand is fetched. Jump, branch, and interrupt operations load the
program counter with an address other than that of the next sequential

..

.

location.

Freescale Semiconductor, Inc.

nc

3.5.5 Condition Code Register

Freescale Semiconductor, I

Bit
151413121110987654321

Read:

Write:

Reset: 0 0 0 0 0 Loaded with vector from $07FE and $07FF

Figure 3-5. Program Counter (PC)

The condition code r egister (CCR) is a n 8- bit registe r who se t hree mo st
significant bits ar e permanently fixed at 11 1. The condition co de register
contains the interru pt mask and four flags that indica te the results of the
instruction just executed.

Bit 7654321Bit 0
Read: 1 1 1

HINZC

Write:

Bit

0

Reset:111U1UUU

= Unimplemented U = Unaffected

Figure 3-6. Condition Code Register (CCR)

Technical Data MC68HC705J1A — Rev. 4.0

Central Processor Unit (CPU)

For More Information On This Product,

Go to: www.freescale.com

..

.
nc

Freescale Semiconductor, Inc.

H — Half-Carry Flag

The CPU sets the half-carry fla g when a carr y occurs betwee n bits 3
and 4 of the accumulator during an ADD (add without carry) or ADC
(add with carry) operation. The half-carry flag is required for
binary-coded decimal (BCD) arithmetic operations.

I — Interrupt Mask Bit

Setting the interrupt mask disables interrupts. If an interrupt request
occurs while the interrupt mask is logic 0, the CPU saves the CPU
registers on the stack, sets the interrupt mask, and then fetches the
interrupt vector. If an interr upt request occurs while the interrupt mask
is logic 1, the interrupt request is latched. Normally, the CPU
processes the latch ed interrupt request as so on as the interrupt mask
is cleared again.

Central Processor Unit (CPU)

CPU Registers

A return-from-interrupt instruction (RTI) unstacks the CPU registers,
restoring the interrupt mask to its cleared state. After any reset, the
interrupt mask is set and can be cleared only by a software
instruction.

N — Negative Flag

The CPU sets the negative flag when an ALU operation produces a
negative result.

Z — Zero Flag

The CPU sets the zero flag when an ALU operation pr oduces a result
of $00.

C — Carry/Borrow Flag

Freescale Semiconductor, I

The CPU sets the carry/borrow flag when an addition operation
produces a carry out of bit 7 of the accumula tor or when a subtraction
operation requires a borrow. Some logical operations and data
manipulation instructions also clear or set the carry/borrow flag.

MC68HC705J1A — Rev. 4.0 Technical Data

Central Processor Unit (CPU)

For More Information On This Product,

Go to: www.freescale.com

Central Processor Unit (CPU)

3.6 Instruction Set

The MCU instruction set has 62 instructions and uses eight addressing
modes.

3.6.1 Addressing Modes

The CPU uses eight addressing modes for flexibility in accessing data.
The addressing modes provide eight different ways for the CPU to find
the data requir ed to execute an instruction. The eight addressing m odes

..

.

are:

Freescale Semiconductor, Inc.

nc

3.6.1.1 Inherent

Freescale Semiconductor, I

• Inherent

• Immediate

• Direct

• Extended

• Indexed, no offset

• Indexed, 8-bit offset

• Indexed, 16-bit offset

• Relative

Inherent instructions are those that have no operand, such as return
from interr upt ( RTI) a nd sto p (S TOP). So me of the i nh eren t instru cti ons
act on data in the CPU registers, such as set carry flag (SEC) and
increment accum ulator (INCA). Inherent instructi ons require no operand
address and are one byte long.

3.6.1.2 Immediate

Immediate instructions are those that contain a value to be used in an
operation wi th the value in the a ccumulator o r index reg ister. Im mediate
instructions require no operand address and are two bytes long. The
opcode is the first byte, and the i mmediate data valu e is the second byte.

Technical Data MC68HC705J1A — Rev. 4.0

Central Processor Unit (CPU)

For More Information On This Product,

Go to: www.freescale.com

3.6.1.3 Direct

3.6.1.4 Extended

..

.

Freescale Semiconductor, Inc.

Direct instructio ns can access any of the first 256 me mory locations with
two bytes. The first byte i s the opcod e, and the second is the low byte of
the operand address. In direct addr essing, the CPU autom aticall y uses
$00 as the high byte of the operand address.

Extended instructions use three bytes and can access any address in
memory. The fir st byte i s the opco de; the seco nd and th ird bytes ar e the
high and low bytes of the operand address.

Central Processor Unit (CPU)

Instructi on Set

nc

3.6.1.5 Indexed, No Offset

3.6.1.6 Indexed, 8-Bit Offset

Freescale Semiconductor, I

When using the Freescale assembl er, th e prog ram mer does not ne ed to
specify whether an instruction is direct or extended. The assembler
automatically selects the shortest form of the instruction.

Indexed instructions with no offset are 1-byte instructions that can
access data with variable addresses within the first 256 memory
locations. The index register contains the low byte of the effective
address of the operand. The CPU automatically uses $00 as the high
byte, so these instructions can address locations $0000–$00FF.

Indexed, no offset instru ctions are often used to move a pointer thr ough
a table or to hold the address of a frequently used RAM or input/output
(I/O) location.

Indexed, 8-b it offset instru cti ons ar e 2-byte i n structio ns tha t can a ccess
data with variabl e addresses w ithin the fir st 511 m emory locations. The
CPU adds the unsigned byte in the index register to the unsigned byte
following the opcode. The sum is the effective address of the operand.
These instructions can access locations $0000–$01FE.

Indexed 8-bit offset instructions are usefu l for selecting the kth element
in an n-element table. The table can begin anywhe re within the fi rst 256
memory locations and could extend as far as location 510 ($01FE).

MC68HC705J1A — Rev. 4.0 Technical Data

Central Processor Unit (CPU)

For More Information On This Product,

Go to: www.freescale.com

Central Processor Unit (CPU)

The k value is typically in the index register, and the address of the
beginning of the table is in the byte following the opcode.

3.6.1.7 Indexed, 16-Bit Offset

Indexed, 16-b it offset instructions are 3-byte in structions that can access
data with variabl e ad dresse s at any lo cation i n memo ry. T he CP U adds
the unsigned byte in the index register to the two unsigned bytes
following the opcode. The sum is the effective address of the operand.
The first byte after the opcode is the high byte of the 16-bit offset; the

..

.

second byte is the low byte of the offset.

Freescale Semiconductor, Inc.

nc

3.6.1.8 Relative

Freescale Semiconductor, I

Indexed, 16-b it offset instructions are use ful for selecting the kth element
in an n-element table anywhere in memory.

As with direct and extended addressing, the Freescale assembler
determines the shortest form of indexed addressing.

Relative addressing is only for branch instructions. If the branch
condition is true, the CPU finds the effective branch destination by
adding the signed byte following the opcode to the contents of the
program counter. If the br anch condition is not true, the CPU goes to the
next instruction. The offset is a signed, tw o’s complement byte that gives
a branching range of –128 to +127 bytes from the address of the next
location after the branch instruction.

When using the Freescale assembl er, th e prog ram mer does not ne ed to
calculate the offset because the assem bler determines the prop er offset
and verifies that it is within the span of the branch.

Technical Data MC68HC705J1A — Rev. 4.0

Central Processor Unit (CPU)

For More Information On This Product,

Go to: www.freescale.com

3.6.2 Instruct ion Types

The MCU instructions fall into these five categories:

..

.

3.6.2.1 Register/Memory Instructions

nc

These instructions operate on CPU registers and memory locations.
Most of them use two operands. One operand is in either the
accumulator or the index register. The CPU finds the other operand in
memory.

Freescale Semiconductor, Inc.

• Register/memory instructions

• Read-modify-write instructions

• Jump/branch instructions

• Bit manipulation instructions

• Control instructions

Central Processor Unit (CPU)

Instructi on Set

Table 3-1. Register/Memory Instructions

Instruction Mnemonic

Add memory byte and carry bit to accumulator ADC
Add memory byte to accumulator ADD
AND memory byte with accumulator AND
Bit test accumulator BIT
Compare accumulator CMP
Compare index register with memory byte CP X
EXCLUSIVE OR accu mu lator with me mo r y byte EOR

Freescale Semiconductor, I

Load accumulator with memory byte LDA
Load index register with memory byte LDX
Multiply MUL
OR accumulator with memory byte ORA
Subtract memory byte and carry bit from accumulator SBC
Store accu mu lator in memory STA
Store index register in memory STX
Subtract memory byte from accumulator SUB

MC68HC705J1A — Rev. 4.0 Technical Data

Central Processor Unit (CPU)

For More Information On This Product,

Go to: www.freescale.com

Freescale Semiconductor, Inc.

Central Processor Unit (CPU)

3.6.2.2 Read-Modify-Write Instructions

These instructions read a memory location or a register, modify its
contents, and write the modifi ed value b ack to the memor y location o r to
the register.

NOTE: Do not use read-modify-write instructions on registers with write-only

bits.

Table 3-2. Read-Modify-Write Instr uc tions

..

.
nc

Freescale Semiconductor, I

Instruction Mnemonic

Arithmetic shift left (same as LSL) ASL
Arithmetic shift right ASR

Bit clear
Bit set

Clear register CLR
Complement (one’s complement) COM
Decrement DEC
Increment INC
Logical shift left (same as ASL) LSL
Logical shift right LSR
Negate (two’s compl eme nt ) NEG
Rotate left through carry bit ROL
Rotate right through carry bit ROR

Test for negative or zero

1. Unlike other read-modify-write instructions, BCLR and
BSET use only direct addressing.

2. TST is an exception to the read -modify-write seq uence
because it does not write a replacement value.

BCLR
BSET

TST

(1)

(1)

(2)

Technical Data MC68HC705J1A — Rev. 4.0

Central Processor Unit (CPU)

For More Information On This Product,

Go to: www.freescale.com

3.6.2.3 Jump/Branch Instructions

..

.
nc

NOTE: Do not use BRCLR or BRSET instructions on registers with write-only

Freescale Semiconductor, Inc.

Jump instructions allow the CPU to interrupt the norma l sequence of the
program counter. The unconditional jump instruction (JMP) and the
jump-to-subroutine instruction (JSR) have no register operand. Branch
instructions allow the CPU to interrupt the normal sequence of the
program counter when a test condition is met. If the test conditi o n is n ot
met, the branch is not performed.

The BRCLR and BRSET i nstructions cause a br anch based on the state
of any readable bit in the first 256 memory locations. These 3-byte
instructions use a combination of direct addressing and relative
addressing. The direct address of the byte to be tested is in the byte
following the opcode. The third byte is the signed offset byte. The CPU
finds the effective branch destination by adding the third byte to the
program counter i f the specified bit tests true . The bit to be teste d and its
condition (set or clear) is part of the opcode. The span of branching is
from –128 to +127 from the addr ess of the next locatio n after the branch
instruction. The CPU also tr ansfe rs the tested b i t to the carr y/borrow bit
of the condition code register.

bits.

Central Processor Unit (CPU)

Instructi on Set

Freescale Semiconductor, I

MC68HC705J1A — Rev. 4.0 Technical Data

Central Processor Unit (CPU)

For More Information On This Product,

Go to: www.freescale.com

Central Processor Unit (CPU)

..

.

Freescale Semiconductor, Inc.

Table 3-3. Jump and Branch Instructions

Instruction Mnemonic

Branch if carry bit clear BCC
Branch if carry bit set BCS
Branch if equal BEQ
Branch if half-carry bit clear BHCC
Branch if half-carry bit set BHCS
Branch if higher BHI
Branch if higher or same BHS

nc

Freescale Semiconductor, I

Branch if IRQ
Branch if IRQ
Branch if lower BLO
Branch if lower or same BLS
Branch if interrupt mask clear BMC
Branch if minus BMI
Branch if interrupt mask set BMS
Branch if not equal BNE
Branch if plus BPL
Branch always BRA
Branch if bit clear BRCLR
Branch never BRN
Branch if bit set BRSET
Branch to subroutine BSR
Unconditional jump JMP

pin high BIH
pin low BIL

Jump to subroutine JSR

Technical Data MC68HC705J1A — Rev. 4.0

Central Processor Unit (CPU)

For More Information On This Product,

Go to: www.freescale.com

Freescale Semiconductor, Inc.

3.6.2.4 Bit Manipulation Instructions

The CPU can set or clear any writable bit in the first 256 bytes of
memory, which includes I/O registers and on-chip RAM locations. The
CPU can also test and br anch based on th e state of any bit in an y of the
first 256 memory locations.

Central Processor Unit (CPU)

Instructi on Set

Table 3-4. Bit Manipulation Instructions

Instruction Mnemonic

..

.
nc

Bit clear BCLR
Branch if bit clear BRCLR
Branch if bit set BRSET
Bit set BSET

NOTE: Do not use bit manipulation i nstru ctions on r egister s wit h write- only bits.

Freescale Semiconductor, I

MC68HC705J1A — Rev. 4.0 Technical Data

Central Processor Unit (CPU)

For More Information On This Product,

Go to: www.freescale.com

Freescale Semiconductor, Inc.

Central Processor Unit (CPU)

3.6.2.5 Control Instructions

These instructions act on CPU registers and control CPU operation
during program execution.

Table 3-5. Control Instructions

Instruction Mnemonic

Clear carry bit CLC
Clear interrupt mask CLI

..

.
nc

No operation NOP
Reset stack pointer RSP
Return from interrup t RTI
Return from subroutine RT S
Set carry bit SEC
Set interrupt mask SEI
Stop oscillator and enable IR Q
Software interrupt SWI
Transfer accumulator to index register TAX
Transfer index register to accumulator TXA
Stop CPU clock and enable interrupts

pin STOP

WAIT

Freescale Semiconductor, I

Technical Data MC68HC705J1A — Rev. 4.0

Central Processor Unit (CPU)

For More Information On This Product,

Go to: www.freescale.com

Freescale Semiconductor, Inc.

3.7 Instruct ion Set Summary

Table 3-6. Instruction Set Summary (Sheet 1 of 6)

Central Processor Unit (CPU)

Instruction Set Summary

Source

Form

Operation Description

on CCR

HINZC

Effect

ADC #opr
ADC opr
ADC opr
ADC opr,X
ADC opr,X

..

ADC ,X

.

ADD #opr
ADD opr

nc

ADD opr
ADD opr,X
ADD opr,X
ADD ,X

AND #opr
AND opr

opr

AND
AND opr,X
AND opr,X
AND ,X

ASL opr
ASLA
ASLX
ASL opr,X
ASL ,X

ASR opr
ASRA
ASRX
ASR opr,X
ASR ,X

BCC rel Branch if Carry Bit Clear PC ← (PC) + 2 + rel ? C = 0 ————— REL 24 rr 3

Add with Carry A ← (A) + (M) + (C)

Add with ou t C arr y A ← (A) + (M)

Logica l AND A ← (A) ∧ (M) ——

Arithmetic Sh ift Left (Same as LSL) ——

Arithmetic Shift R ight ——

C

b7

b7

b0

b0

—

—

0

C







Freescale Semiconductor, I

BCLR n opr Clear Bit n Mn ← 0 —————

BCS rel Branch if Carry Bit Set (Same as BLO) PC ← (PC) + 2 + rel ? C = 1 ————— REL 25 rr 3
BEQ rel Branch if Equal PC ← (PC) + 2 + rel ? Z = 1 ————— REL 27 rr 3
BHCC rel Branch if Half-Carry Bit Clear PC ← (PC) + 2 + rel ? H = 0 ————— REL 28 rr 3
BHCS rel Branch if Half-Carry Bit Set PC ← (PC) + 2 + rel ? H = 1 ————— REL 29 rr 3

—

IMM

DIR

EXT

IX2
IX1

IX

IMM

DIR

EXT

IX2
IX1

IX

IMM

DIR

EXT

IX2
IX1

IX

DIR
INH
INH

IX1

IX

DIR
INH
INH

IX1

IX

DIR (b0)
DIR (b1)
DIR (b2)
DIR (b3)
DIR (b4)
DIR (b5)
DIR (b6)
DIR (b7)

Address

Mode

A9
B9
C9
D9
E9
F9

AB

BB
CB
DB
EB
FB

A4

B4
C4
D4

E4

F4

38

48

58

68

78

37

47

57

67

77

11
13
15
17
19
1B

1D

1F

ii

dd
hh ll
ee ff

ff

ii

dd
hh ll
ee ff

ff

ii

dd
hh ll
ee ff

ff

dd

ff

dd

ff

dd

dd

dd

dd

dd

dd

dd

dd

Cycles

Operand

2
3
4
5
4
3

2
3
4
5
4
3

2
3
4
5
4
3

5
3
3
6
5

5
3
3
6
5

5
5
5
5
5
5
5
5

Opcode

MC68HC705J1A — Rev . 4.0 Technical Data

Central Processor Unit (CPU)

For More Information On This Product,

Go to: www.freescale.com

Freescale Semiconductor, Inc.

Central Processor Unit (CPU)

Table 3-6. Instruction Set Summary (Sheet 2 of 6)

Source

Form

Operation Description

on CCR

HINZC

BHI rel Branch i f Higher PC ← (PC) + 2 + rel ? C ∨ Z = 0 ————— REL 22 rr 3
BHS rel Branch if High er or Same PC ← (PC) + 2 + rel ? C = 0 ————— REL 24 rr 3
BIH rel Branch if IRQ Pin High PC ← (PC) + 2 + rel ? IRQ = 1 ————— REL 2F rr 3
BIL rel Branch if IRQ Pin Low PC ← (PC) + 2 + rel ? IRQ = 0 ————— REL 2E rr 3

Effect

BIT #opr
BIT opr
BIT opr

..

BIT opr,X

.

BIT opr,X
BIT ,X

nc

BLO rel Branch if Lower (Same as BCS) PC ← (PC) + 2 + rel ? C = 1 ————— REL 25 rr 3
BLS rel Branch if Lower or Same PC ← (PC) + 2 + rel ? C ∨ Z = 1 ————— REL 23 rr 3
BMC rel Branch if Interrupt Mask Clear PC ← (PC) + 2 + rel ? I = 0 ————— REL 2C rr 3
BMI rel Branch if Minus PC ← (PC) + 2 + rel ? N = 1 ————— REL 2B rr 3
BMS rel Branch if Interrupt Mask Set PC ← (PC) + 2 + rel ? I = 1 ————— REL 2D rr 3
BNE rel Branch if Not Equal PC ← (PC) + 2 + rel ? Z = 0 ————— REL 26 rr 3
BPL rel Branch if Plus PC ← (PC) + 2 + rel ? N = 0 ————— REL 2A rr 3
BRA rel Branch Always PC ← (PC) + 2 + rel ? 1 = 1 ————— REL 20 rr 3

BRCLR n opr rel Branch if Bit n Clear PC ← (PC) + 2 + rel ? Mn = 0 ————

BRN rel Branch Never PC ← (PC) + 2 + rel ? 1 = 0 ————— REL 21 rr 3

Freescale Semiconductor, I

BRSET n opr rel Branch if Bit n Set PC ← (PC) + 2 + rel ? Mn = 1 ————

BSET n opr Set Bit n Mn ← 1 —————

Bit Test Accumulator with Memory Byte (A) ∧ (M) ——



—





IMM

DIR

EXT

IX2
IX1

IX

DIR (b0)
DIR (b1)
DIR (b2)
DIR (b3)
DIR (b4)
DIR (b5)
DIR (b6)
DIR (b7)

DIR (b0)
DIR (b1)
DIR (b2)
DIR (b3)
DIR (b4)
DIR (b5)
DIR (b6)
DIR (b7)

DIR (b0)
DIR (b1)
DIR (b2)
DIR (b3)
DIR (b4)
DIR (b5)
DIR (b6)
DIR (b7)

Address

Mode

A5

B5
C5
D5

E5

F5

01

03

05

07

09

0B
0D

0F

00

02

04

06

08

0A
0C

0E

10

12

14

16

18

1A
1C

1E

Opcode

ii

dd
hh ll
ee ff

ff

dd rr
dd rr
dd rr
dd rr
dd rr
dd rr
dd rr
dd rr

dd rr
dd rr
dd rr
dd rr
dd rr
dd rr
dd rr
dd rr

dd

dd

dd

dd

dd

dd

dd

dd

Operand

2
3
4
5
4
3

5
5
5
5
5
5
5
5

5
5
5
5
5
5
5
5

5
5
5
5
5
5
5
5

Cycles

Technical Data MC68HC705J1A — Rev. 4.0

Central Processor Unit (CPU)

For More Information On This Product,

Go to: www.freescale.com

Freescale Semiconductor, Inc.

Central Processor Unit (CPU)

Table 3-6. Instruction Set Summary (Sheet 3 of 6)

Instruction Set Summary

Source

Form

BSR rel Branch to Subroutine

CLC Clear Carry Bit C ← 0 ————0INH98 2
CLI Clear Interrupt Mask I ← 0 — 0 ——— INH 9A 2

CLR opr

..

CLRA

.
nc

Freescale Semiconductor, I

CLRX
CLR opr,X
CLR ,X

CMP #opr
CMP opr
CMP opr
CMP opr,X
CMP opr,X
CMP ,X

COM opr
COMA
COMX
COM opr,X
COM ,X

CPX #opr
CPX opr
CPX opr
CPX opr,X
CPX opr,X
CPX ,X

DEC opr
DECA
DECX
DEC opr ,X
DEC ,X

Clear Byte

Compare Accumulator with Memory Byte (A) – (M) ——

Complement Byte (One’s Complement)

Compare Index Register with Memory Byte (X) – (M) ——

Decrement Byte

Operation Description

PC ← (PC) + 2; push (PCL)
SP ← (SP) – 1; push (PCH)

SP ← (SP) – 1

PC ← (PC) + rel

M ← $00

A ← $00

X ← $00
M ← $00
M ← $00

M) = $FF – (M)

M ← (

A ← (

A) = $FF – (A)

X ← (

X) = $FF – (X)

M ← (

M) = $FF – (M)

M ← (

M) = $FF – (M)

M ← (M) – 1

A ← (A) – 1

X ← (X) – 1
M ← (M) – 1
M ← (M) – 1

on CCR

HINZC

————— REL AD rr 6

—— 01—



——



1





—

——

Address

DIR
INH
INH

IX1

IX

IMM

DIR

EXT

IX2
IX1

IX

DIR
INH
INH

IX1

IX

IMM

DIR

EXT

IX2
IX1

IX

DIR
INH
INH

IX1

IX

Mode

Effect

3F
4F
5F
6F
7F

A1

B1
C1
D1

E1

F1

33

43

53

63

73

A3

B3
C3
D3

E3

F3

3A

4A

5A

6A

7A

Opcode

dd

ff

ii

dd

hh ll

ee ff

ff

dd

ff

ii

dd

hh ll

ee ff

ff

dd

ff

Operand

5
3
3
6
5

2
3
4
5
4
3

5
3
3
6
5

2
3
4
5
4
3

5
3
3
6
5

Cycles

EOR #opr
EOR opr
EOR opr
EOR opr,X
EOR opr,X
EOR ,X

INC opr
INCA
INCX
INC opr,X
INC ,X

EXCLUSIVE OR Accumulator with Memory Byte A ← (A) ⊕ (M) ——

M ← (M) + 1

A ← (A) + 1

Increment Byt e

X ← (X) + 1
M ← (M) + 1
M ← (M) + 1

——





IMM

DIR

EXT

—

IX2
IX1

IX

DIR
INH

—

INH

IX1

IX

A8

B8
C8
D8

E8

F8

3C
4C
5C
6C
7C

ii

dd

hh ll

ee ff

ff

dd

ff

MC68HC705J1A — Rev . 4.0 Technical Data

Central Processor Unit (CPU)

For More Information On This Product,

Go to: www.freescale.com

2
3
4
5
4
3

5
3
3
6
5

Freescale Semiconductor, Inc.

Central Processor Unit (CPU)

Table 3-6. Instruction Set Summary (Sheet 4 of 6)

Source

Form

JMP op r
JMP op r
JMP op r,X
JMP op r,X
JMP ,X

JSR opr
JSR opr
JSR opr,X
JSR opr,X

..

.

JSR ,X
LDA #opr

nc

LDA op r
LDA op r
LDA op r,X
LDA op r,X
LDA ,X

LDX #opr
LDX op r
LDX op r
LDX op r,X
LDX op r,X
LDX ,X

LSL opr
LSLA
LSLX
LSL opr,X
LSL ,X

LSR op r
LSRA
LSRX
LSR op r,X
LSR ,X

MUL Unsigned Multipl y X : A ← (X) × (A) 0 ——— 0INH42 11

Freescale Semiconductor, I

NEG opr
NEGA
NEGX
NEG opr,X
NEG ,X

Unconditional Jump PC ← Jump Address —————

Jump to Subroutine

Load Accumulator with Memory Byte A ← (M) ——

Load Index Regist er with Memo ry Byte X ← (M) ——

Logica l Shift L eft (Same as ASL) ——

Logica l Shift Right —— 0

Negate Byte (Two’s Complement)

Operation Description

PC ← (PC) + n (n = 1, 2, or 3)

Push (PCL); SP ← (SP) – 1

Push (PCH); SP ← (SP) – 1

PC ← Effective Address

C

b7

b7

M ← –(M) = $00 – (M)

A ← –(A) = $00 – (A)

X ← –(X) = $00 – (X)
M ← –(M) = $00 – (M)
M ← –(M) = $00 – (M)

b0

0

b0

C0

on CCR

HINZC

—————

—



—







——



Address

DIR

EXT

IX2
IX1

IX

DIR

EXT

IX2
IX1

IX

IMM

DIR

EXT

IX2
IX1

IX

IMM

DIR

EXT

IX2
IX1

IX

DIR
INH
INH

IX1

IX

DIR
INH
INH

IX1

IX

DIR
INH
INH

IX1

IX

Mode

Effect

BC
CC
DC
EC
FC

BD
CD
DD
ED
FD

A6

B6
C6
D6

E6

F6
AE

BE
CE
DE
EE
FE

38

48

58

68

78

34

44

54

64

74

30

40

50

60

70

Opcode

dd

hh ll

ee ff

ff

dd

hh ll

ee ff

ff

ii

dd

hh ll

ee ff

ff

ii

dd

hh ll

ee ff

ff

dd

ff

dd

ff

dd

ff

Operand

2
3
4
3
2

5
6
7
6
5

2
3
4
5
4
3

2
3
4
5
4
3

5
3
3
6
5

5
3
3
6
5

5
3
3
6
5

Cycles

NOP No Operation ————— INH 9D 2
ORA #opr

ORA opr
ORA opr
ORA opr ,X
ORA opr ,X
ORA ,X

Logical OR Accumul ator wit h Memory A ← (A) ∨ (M) ——



IMM

DIR

EXT

—

IX2
IX1

IX

AA
BA
CA
DA
EA

FA

ii

dd

hh ll

ee ff

ff

Technical Data MC68HC705J1A — Rev. 4.0

Central Processor Unit (CPU)

For More Information On This Product,

Go to: www.freescale.com

2
3
4
5
4
3

Freescale Semiconductor, Inc.

Central Processor Unit (CPU)

Table 3-6. Instruction Set Summary (Sheet 5 of 6)

Instruction Set Summary

Source

Form

ROL opr
ROLA
ROLX
ROL opr,X
ROL ,X

ROR opr
RORA
RORX

..

ROR opr,X

.

ROR ,X

nc

RSP Reset Stack Pointer SP ← $00FF ————— INH 9C 2

RTI Return from Interrupt

RTS Return from Su broutine

SBC #opr
SBC opr
SBC opr
SBC opr,X
SBC opr,X
SBC ,X

SEC Set Carry Bit C ← 1 ————1INH99 2
SEI Set Interrupt Mask I ← 1 — 1 ——— INH 9B 2
STA opr

STA opr
STA opr,X
STA opr,X
STA ,X

Rotate Byte Left thro ug h Carry Bit ——

Rotate Byte Righ t throug h Carr y Bit ——

Subtract Memory Byte and Carry Bit from
Accumulator

Store Accumulato r in Memory M ← (A) ——

Operation Description

C

b7

b7

SP ← (SP) + 1; Pull (CCR)

SP ← (SP) + 1; Pull (A)
SP ← (SP) + 1; Pull (X)

SP ← (SP) + 1; Pull (PCH)

SP ← (SP) + 1; Pull (PCL)

SP ← (SP) + 1; Pull (PCH)

SP ← (SP) + 1; Pull (PCL)

A ← (A) – (M) – (C) ——

b0

b0

C

on CCR

HINZC







————— INH 81 6



—



Mode

Address

DIR
INH
INH

IX1

IX

DIR
INH
INH

IX1

IX

INH 80 9

IMM

DIR

EXT

IX2
IX1

IX

DIR

EXT

IX2
IX1

IX

Effect

39

49

59

69

79

36

46

56

66

76

A2

B2
C2
D2

E2

F2

B7
C7
D7

E7

F7

Opcode

dd

ff

dd

ff

ii

dd

hh ll

ee ff

ff

dd

hh ll

ee ff

ff

Operand

5
3
3
6
5

5
3
3
6
5

2
3
4
5
4
3

4
5
6
5
4

Cycles

STOP Stop Oscillator and Enable IRQ Pin — 0 ——— INH 8E 2

Freescale Semiconductor, I

STX opr
STX opr
STX opr,X
STX opr,X
STX ,X

SUB #opr
SUB opr
SUB opr
SUB opr,X
SUB opr,X
SUB ,X

Store Index Register In Memory M ← (X) ——

Subtract Memory Byte from Accumulator A ← (A) – (M) ——





DIR

EXT

—

IX2
IX1

IX

IMM

DIR

EXT

IX2
IX1

IX

MC68HC705J1A — Rev . 4.0 Technical Data

Central Processor Unit (CPU)

For More Information On This Product,

Go to: www.freescale.com

BF
CF
DF
EF

FF

A0

B0
C0
D0

E0

F0

dd

hh ll

ee ff

ff

ii

dd

hh ll

ee ff

ff

4
5
6
5
4

2
3
4
5
4
3

Freescale Semiconductor, Inc.

Central Processor Unit (CPU)

Table 3-6. Instruction Set Summary (Sheet 6 of 6)

Source

Form

SWI Software Interrupt

TAX Transfer Accumu la tor to Ind e x Reg ister X ← (A) ————— INH 97 2

..

.

TST opr
TSTA

nc

TSTX
TST opr,X
TST ,X

TXA Transfer Index Register to Accumulator A ← (X) ————— INH 9F 2
WAIT Stop CPU Clock and Enable Interrupts —

A Accumulator opr Ope r an d (one or two bytes)
C Carry/borrow flag PC Program counter
CCR Condition code register PCH Program counter high byte
dd Direct address of operand PCL Program counter low byte
dd rr Direct address of operand and relative offset of branch instruction REL Relative addressing mode
DIR Direct addressing mode rel Relative program cou nter of fset byte
ee ff High and low bytes of offset in indexed, 16-bit offset addressing rr Relative program counter offset byte
EXT Extended addressing mode SP Stack pointer
ff Offset byte in indexed, 8-bit offs et addre ssing X Index register
H Half-carry flag Z Zero flag
hh ll High and low bytes of operand address in extended addressing # Immediate value
I Interrupt mask ∧ Lo gi cal AND
ii Immediate operand byte ∨ Lo gi ca l O R
IMM Immediate addressing mode ⊕ Logical EXCL U S IVE OR
INH Inherent addressi ng mode ( ) Cont ents of
IX Indexed, no offset addressing mode –( ) Negation (two’s complement)
IX1 Index ed, 8-bit offset addressing mode ← Loaded with
IX2 Indexed, 16-bit offs et addressing mode ? If

Freescale Semiconductor, I

M Memory location : Concatenated with
N Negative flag
n Any bit — Not affected

Test Memory Byte for Negative or Zero (M) – $00 ——

Operation Description

PC ← (PC) + 1; Push (PCL)
SP ← (SP) – 1; Push (PCH)

SP ← (SP) – 1; Push (X)
SP ← (SP) – 1; Push (A)

SP ← (SP) – 1; Push (CCR)

SP ← (SP) – 1; I ← 1

PCH ← Interrupt Vector High Byte

PCL ← Interrupt Vector Low Byte



Set or cl eared

Effect

on CCR

HINZC

— 1 ——— INH 83 10

DIR
INH

—



——— INH 8F 2



INH

IX1

IX

Address

Mode

3D
4D
5D
6D
7D

dd

ff

Operand

4
3
3
5
4

Cycles

Opcode

3.8 Opcode Map

See Table 3-7.

Technical Data MC68HC705J1A — Rev. 4.0

Central Processor Unit (CPU)

For More Information On This Product,

Go to: www.freescale.com

Freescale Semiconductor, Inc.

Central Processor Unit (CPU)

Opcode Map

LSB

0

1

2

3

4

5

6

7

8

9

A

B

C

D

MSB

3

3

3

3

3

3

3

3

4

3

3

3

2

3

5

F

E

4

..

.
nc

Freescale Semiconductor, I

Table 3-7. Opcode Map

Register/Memory

Control

Read-Modify-Write

DIR EXT IX2 IX1 I X

INH IX1 IX INH INH IMM

SUB

1IX

4

SUB

2IX1

5

SUB

3IX2

4

SUB

3EXT

3

BCDEF

SUB

2DIR

2

SUB

2IMM

9

89A

RTI

1INH

5

NEG

1IX

6

NEG

2IX1

3

NEGX

1INH

3

NEGA

1INH

5

NEG

2DIR

3

4

5

4

3

2

6

3

CMP

1IX

CMP

2IX1

CMP

3IX2

CMP

3EXT

CMP

2DIR

CMP

2IMM

RTS

1INH

4

5

4

3

2

11

3

SBC

1IX

SBC

2IX1

SBC

3IX2

SBC

3EXT

SBC

2DIR

SBC

2IMM

MUL

1INH

CPX

4

CPX

5

CPX

4

CPX

3

CPX

2

CPX

10

SWI

5

COM

6

COM

3

COMX

3

COMA

5

COM

3

AND

1IX

4

AND

2IX1

5

AND

3IX2

4

AND

3EXT

3

AND

2DIR

2

AND

2IMM

1INH

5

LSR

1IX

6

LSR

2IX1

3

LSRX

1INH

3

LSRA

1INH

5

LSR

2DIR

3

BIT

1IX

4

BIT

2IX1

5

BIT

3IX2

4

BIT

3EXT

3

BIT

2DIR

2

BIT

2IMM

1IX

2IX1

1INH

1INH

2DIR

3

LDA

1IX

4

LDA

2IX1

5

LDA

3IX2

4

LDA

3EXT

3

LDA

2DIR

2

LDA

2IMM

5

ROR

6

ROR

3

RORX

3

RORA

5

ROR

3

STA

1IX

5

STA

2IX1

6

STA

3IX2

5

STA

3EXT

4

STA

2DIR

2IMM

2

TAX

5

ASR

1IX

6

ASR

2IX1

3

ASRX

1INH

3

ASRA

1INH

5

ASR

2DIR

3

EOR

1IX

4

EOR

2IX1

5

EOR

3IX2

4

EOR

3EXT

3

EOR

2DIR

2

EOR

2

CLC

1INH

5

ASL/LSL

1IX

6

ASL/LSL

2IX1

3

ASLX/LSLX

1INH

3

ASLA/LSLA

1INH

5

ASL/LSL

2DIR

3

ADC

1IX

4

ADC

2IX1

5

ADC

3IX2

4

ADC

3EXT

3

ADC

2DIR

2

ADC

2IMM

2

SEC

1INH

5

ROL

1IX

6

ROL

2IX1

3

ROLX

1INH

3

ROLA

1INH

5

ROL

2DIR

3

ORA

1IX

4

ORA

2IX1

5

ORA

3IX2

4

ORA

3EXT

3

ORA

2DIR

2

ORA

2IMM

2

CLI

1INH

5

DEC

1IX

6

DEC

2IX1

3

DECX

1INH

3

DECA

1INH

5

DEC

2DIR

3

ADD

1IX

4

ADD

2IX1

5

ADD

3IX2

4

ADD

3EXT

3

ADD

2DIR

2

ADD

2IMM

2

SEI

1INH

1IX

2IX1

1INH

1INH

2DIR

3

JMP

1IX

3

JMP

2IX1

4

JMP

3IX2

3

JMP

3EXT

2

JMP

2DIR

2IMM

2

RSP

1INH

5

INC

6

INC

3

INCX

3

INCA

5

INC

3

JSR

1IX

6

JSR

2IX1

7

JSR

3IX2

6

JSR

3EXT

5

JSR

2DIR

6

BSR

2

NOP

1INH

4

TST

1IX

5

TST

2IX1

3

TSTX

1INH

3

TSTA

1INH

4

TST

2DIR

3

LDX

1IX

4

LDX

2IX1

5

LDX

3IX2

4

LDX

3EXT

3

LDX

2DIR

2

LDX

2REL

1INH

2

STOP

1IX

2IX1

1INH

1INH

2DIR

3

STX

1IX

5

STX

2IX1

6

STX

3IX2

5

STX

3EXT

4

STX

2DIR

2IMM

2

TXA

2

WAIT

1INH

5

CLR

6

CLR

3

CLRX

3

CLRA

5

CLR

3

1IX

2IX1

3IX2

MSB of Opcode in Hexadecimal

3EXT

0

2DIR

MSB

1INH

1INH

1IX

2IX1

1INH

1INH

2DIR

Number of Cycles

Opcode Mnemonic

Number of Bytes/Addressing Mode

5

BRSET0

3DIR

0

LSB

LSB of Opcode in Hexadecimal

BRA

BRN

2REL

5

5

BSET0

BCLR0

2DIR

5

5

01234567

DIR DIR REL DIR INH

Bit Manipulation Branch

BRSET0

BRCLR0

3DIR

MSB

0

1

LSB

2REL

5

2DIR

5

3DIR

BHI

2REL

BSET1

2DIR

BRSET1

3DIR

2

5

5

BLS

2REL

BCLR1

2DIR

BRCLR1

3DIR

3

5

5

BCC

2REL

BSET2

2DIR

BRSET2

3DIR

4

5

5

BCS/BLO

2REL

BCLR2

2DIR

BRCLR2

3DIR

5

5

5

BNE

2REL

BSET3

2DIR

BRSET3

3DIR

6

5

5

BEQ

2REL

BCLR3

2DIR

BRCLR3

3DIR

7

5

5

BHCC

2REL

BSET4

2DIR

BRSET4

3DIR

8

5

5

BHCS

2REL

BCLR4

2DIR

BRCLR4

3DIR

9

5

5

BPL

2REL

BSET5

2DIR

BRSET5

3DIR

A

5

5

BMI

2REL

BCLR5

2DIR

BRCLR5

3DIR

B

5

5

BMC

2REL

BSET6

2DIR

BRSET6

3DIR

C

5

5

BMS

2REL

BCLR6

2DIR

BRCLR6

3DIR

D

5

5

BIL

2REL

BSET7

2DIR

BRSET7

3DIR

E

5

5

BIH

2REL

BCLR7

2DIR

BRCLR7

3DIR

F

INH = Inherent REL = Relative

IMM = Immediate IX = Indexed, No Offset

DIR = Direct IX1 = Indexed, 8-Bit Offset

EXT = Extended IX2 = Indexed, 16-Bit Offset

MC68HC705J1A — Rev . 4.0 Technical Data

Central Processor Unit (CPU)

For More Information On This Product,

Go to: www.freescale.com

Central Processor Unit (CPU)

..

.
nc

Freescale Semiconductor, Inc.

Freescale Semiconductor, I

Technical Data MC68HC705J1A — Rev. 4.0

Central Processor Unit (CPU)

For More Information On This Product,

Go to: www.freescale.com

Freescale Semiconductor, Inc.

Technical Data — MC68HC705J1A

Section 4. Resets and Interrupts

4.1 Contents

4.2 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69

..

.
nc

4.2 Introduction

Freescale Semiconductor, I

4.3 Resets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

4.3.1 Power-On Reset. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 1

4.3.2 External Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 2

4.3.3 COP Watchdog Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72

4.3.4 Illegal Address Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72

4.4 Interrupts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

4.4.1 Software Interrupt. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

4.4.2 External Interrupt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

4.4.3 Timer Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76

4.4.3.1 Real-Time Interrupt . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76

4.4.3.2 Timer Overflow Interrupt . . . . . . . . . . . . . . . . . . . . . . . . .76

4.4.4 Interrupt Processing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76

Reset initiali zes the microcontroll er unit (MCU) by returning the program
counter to a known address and by forcing control and status bits to
known states.

Interrupts temporarily change the sequence of program execution to
respond to events that occur during processing.

MC68HC705J1A — Rev . 4.0 Technical Data

For More Information On This Product,

Resets and Interrupts

Go to: www.freescale.com

Resets and Interrup ts

4.3 Resets

..

.
nc

Freescale Semiconductor, Inc.

A reset immediately stops the operation of the instruction being
executed, initializes certain control and status bits, and loads the
program counter with a user-defined reset vector address. These
sources can generate a reset:

• Power-on reset (POR) circuit

• RESET pin

• Computer operating properly (COP) watchdog

• Illegal address

ILLEGAL ADDRESS

COP WATCHDOG

V

DD

RESET

PIN

POWER-ON RESET

INTERNAL CLOCK

Figure 4-1. Reset Sources

RST

S

DQ

CK

RESET
LATCH

TO CPU AND
PERIPHERAL
MODULES

Freescale Semiconductor, I

Technical Data MC68HC705J1A — Rev. 4.0

For More Information On This Product,

Resets and Interrupts

Go to: www.freescale.com

4.3.1 Power-On Reset

Freescale Semiconductor, Inc.

Resets and Interrupts

Resets

..

.
nc

A positive transition on the V

pin generates a power-on reset.

DD

NOTE: The power-on reset is strictly for power-up conditions and cannot be

used to detect drops in power supply voltage.

A 4064-t
active allows the clock generator to stabilize . If any reset source is active
at the end of this delay, the MCU remains in the reset condition until all
reset sources are inactive.

OSC1 PIN

INTERNAL

CLOCK

INTERNAL

ADDRESS BUS

INTER NAL

DATA BUS

Notes:

1. Power-on reset threshold is typically between 1 V and 2 V.

2. Internal clock, internal address bus, and internal data bus are not available externally.

(internal clock cycle) delay after the oscillator becomes

cyc

V

DD

(NOTE 1)

OSCILLATOR STABILIZATION DELAY

$07FE $07FE $07FE $07FE $07FE $07FE $07FF

NEW PCH

Figure 4-2. Power-On Reset Timing

NEW PCL

Freescale Semiconductor, I

MC68HC705J1A — Rev. 4.0 Technical Data

For More Information On This Product,

Resets and Interrupts

Go to: www.freescale.com

Resets and Interrup ts

4.3.2 External Reset

Freescale Semiconductor, Inc.

..

.
nc

4.3.3 COP Watchdog Reset

Freescale Semiconductor, I

A logic 0 applied to the RESET
reset. A Schmitt trigger senses the logic level at the RESET

INTERNAL

CLOCK

INTERNAL

ADDRESS BUS

INTER NAL

DATA BUS

RESET

Notes:

1. Inter nal clock, internal address bus, and internal data bus are not avail able externally.

2. The next rising edge of the internal clo ck after the rising edge of RESET

$07FE $0 7FE $07FE $07FE $07FF NEW PC

t

RL

pin for 1 1/2 t

NEW

PCH

generates an external

cyc

pin.

NEW PC

NEW

PCL

DUMMY

initiates the reset sequence.

OP

CODE

Figure 4-3. External Reset Timing

Table 4-1. External Reset Timing

Characteristic Symbol Min Max Unit

RESET

pulse width

t

RL

1.5 —

t

cyc

A timeout of the COP watchdog generates a COP reset. The COP
watchdog is part of a software error detection system and must be
cleared periodically to start a new timeout period. To clear the COP
watchdog and pr event a COP reset, wri te a logic 0 to bit 0 (C OPC) of the
COP register at location $07F0.

4.3.4 Illegal Address Reset

An opcode fetch from an address not in ra ndom-access m emory (R AM)
or erasable, programmable read-only memory (EPROM) generates a
reset.

Technical Data MC68HC705J1A — Rev. 4.0

For More Information On This Product,

Resets and Interrupts

Go to: www.freescale.com

4.4 Interrupts

Freescale Semiconductor, Inc.

These sources can generate interrupts:

• Software interrupt (SWI) instruction

• External interrupt pins:

• Timer:

– IRQ/VPP
– PA0–PA3

Resets and Interrupts

Interrupts

..

.
nc

4.4.1 Software Interrupt

4.4.2 External Interrupt

Freescale Semiconductor, I

– Real-time interrupt flag (RTIF)
– Timer overflow flag (TOF)

An interrupt temporarily stops the pr ogram sequence to process a
particular event. An interrupt does not stop the operation of the
instruction bein g exe cuted, but takes effect when the cu rre nt i n struction
completes its execution. Interrupt processing automatically saves the
CPU registers on the stack and loads the program counter with a
user-defined interrupt vector address.

The software interrupt (SWI) instruction causes a non-maskable
interrupt.

An interrupt signal on the IRQ
request. When the CPU co mpletes its curr ent instru ction, it tests th e IRQ
latch. If the IRQ latch is set, the CPU then tests the I bit in the condition
code register. If the I bit is clear, the CPU then begins the interrupt
sequence.

/VPP pin latches an external interrupt

MC68HC705J1A — Rev. 4.0 Technical Data

For More Information On This Product,

Resets and Interrupts

Go to: www.freescale.com

Resets and Interrup ts

..

.
nc

Freescale Semiconductor, Inc.

The CPU clears the IRQ latch during interrupt processing, so that
another interrupt signal on the IRQ

/VPP pin can latch another interrupt
request duri ng the interrupt service routine. As soon a s the I bit is cleare d
during the retur n from interrupt, the CPU can re cognize the new interrupt
request. Figure 4-4 shows the IRQ/VPP pin interrupt logic.

TO BIH & BIL

IRQ

PA3
PA2
PA1

PA0

PIRQ

(MOR)

LEVEL-SENSITIVE TRIGG ER

(MOR LEVEL BIT)

V

DD

IRQ

DQ

LATCH

CK

CLR

IRQF

IRQE

INSTRUCTION
PROCESSING

EXTERNAL
INTERRUPT
REQUEST

IRQ VECTOR FETCH

Figure 4-4. External Interrupt Logic

Setting the I b it in the co ndition code reg ister disables external int errupts.
The port A external interrupt bit (PIRQ) in the mask option register

enables pins PA0–PA3 to function as external interrupt pins.
The external inter rup t sen sitivity bit ( LE VEL) in th e m ask op tion r egister

controls interrupt triggering sensitivity of external interrupt pins. The

/VPP pin can be negative-e dge trigg ered only or nega tive-ed ge and

Freescale Semiconductor, I

IRQ

RESET

IRQR

low-level triggered. Port A external interrupt pins can be positive-edge
triggered only or both positive-edge and high-level triggered. The
level-sensitive trigge ri ng option allo ws multiple extern al interrupt
sources to be wire-ORed to an external interrupt pin. An external
interrupt requ est, shown in Figure 4-5, is latched as long as any source
is holding an external interrupt pin low.

Technical Data MC68HC705J1A — Rev. 4.0

For More Information On This Product,

Resets and Interrupts

Go to: www.freescale.com

Freescale Semiconductor, Inc.

t

ILIL

Resets and Interrupts

Interrupts

..

.
nc

Freescale Semiconductor, I

IRQ PIN

IRQ

.

.
.

IRQ

IRQ (INTERNAL)

t

ILIH

t

1

n

ILIH

Figure 4-5. External Interrupt Timin g

—

—

(1)

(1)

t

t

cyc

cyc

Table 4-2. External Interrupt Timing (V

Characteristic Symbol Min Max Unit

Interrupt pulse width low (edge-triggered)
Interrupt pulse period

1. VDD = 5.0 Vdc ±10%, VSS = 0 Vdc, TA = –40°C to +10 5 °C, unless otherwise noted

2. The minimum, t
plus 19

t

cyc

, should not be less than the number of interrupt service routine cycles

ILIL

.

t

t

ILIH

ILIL

= 5.0 Vdc)

DD

125 — ns

(2)

Note

Table 4-3. External Interrupt Timing (VDD = 3.3 Vdc)

Characteristic Symbol Min Max Unit

Interrupt pulse width low (edge-triggered)
Interrupt pulse period

1. VDD = 3.3 Vdc ±10%, VSS = 0 Vdc, TA = –40°C to +10 5 °C, unless otherwise noted

2. The minimum, t
plus 19

t

cyc

, should not be less than the number of interrupt service routine cycles

ILIL

.

t

t

ILIH

ILIL

250 — ns

(2)

Note

MC68HC705J1A — Rev. 4.0 Technical Data

For More Information On This Product,

Resets and Interrupts

Go to: www.freescale.com

Resets and Interrup ts

4.4.3 Timer Interrupts

The timer can generate these interrupt requests:

Setting the I bit in the condition code register disables timer interrupts.

4.4.3.1 Real-Time Interrupt

Freescale Semiconductor, Inc.

• Real time

• Timer overflow

..

.
nc

4.4.3.2 Timer Overflow Interrupt

4.4.4 Interrupt Processing

A real-time inte rrupt occurs if th e real-time interru pt flag, RTIF, beco mes
set while the real-time interrupt enable bit, RTIE, is also set. RTIF and
RTIE are in the timer status and control register.

A timer overflow inter rupt request occurs i f the timer overflow fl ag, TOF,
becomes set while the timer overflow interrupt enable bit, TOIE, is also
set. TOF and TOIE are in the timer status and control register.

The CPU takes these actions to begin servicing an interrupt:

• Stores the CPU registers on the stack in the order shown in

Figure 4-6

• Sets the I bit in the condition code register to prevent further
interrupts

Freescale Semiconductor, I

Technical Data MC68HC705J1A — Rev. 4.0

• Loads the program counter with the contents of the appropriate
interrupt vector locations:

– $07FC and $07FD (software interrupt vector)
– $07FA and $07FB (external interrupt vector)
– $07F8 and $07F9 (timer interrupt vector)

The return-from-interrupt (RTI) instruction causes the CPU to recover
the CPU registers from the stack as shown in Figure 4-6.

For More Information On This Product,

Resets and Interrupts

Go to: www.freescale.com

Freescale Semiconductor, Inc.

UNSTACKING

ORDER

•

•

•

Resets and Interrupts

Interrupts

$00C0 (BOTTOM OF STACK)

$00C1

$00C2

•

•

•

..

.
nc

5

4

3

2

1

STACKING

ORDER

1

2

3

4

5

Figure 4-6. Interrupt Stacking Order

Table 4-4. Reset/Interrupt Vector Addresses

Function Source

Power-on

RESET

Reset

watchdog

illegal address

pin

COP

CONDITION CODE REGISTER

ACCUMULATOR

INDEX REGISTER

PROGRAM COUNTER (HIGH BYTE)

PROGRAM COUNTER (LOW BYTE)

•

•

•

Local

Mask

None None 1 $07F E–$07FF

(1)

Global

Mask

$00FD

$00FE

$00FF (TOP OF STACK)

Priority

(1 = Highest)

•

•

•

Vector

Address

Freescale Semiconductor, I

MC68HC705J1A — Rev. 4.0 Technical Data

Software

interrupt

(SWI)

External
interrupt

Timer

interrupts

1. The COP watchdog is programmab le in the mask option register .

For More Information On This Product,

User code None None

IRQ

/VPP pin

RTIF bit

TOF bit

Resets and Interrupts

Go to: www.freescale.com

IRQE I bit 2 $07FA–$07FB

RTIE bit

TOIE bit

I bit 3 $07F8–$07F9

Same priority
as instruction

$07FC–$07FD

Resets and Interrup ts

Freescale Semiconductor, Inc.

FROM RESET

..

.
nc

Freescale Semiconductor, I

YES

I BIT SET?

NO

EXTERNAL

INTERRUPT?

NO

TIMER

INTERRUPT?

NO

FETCH NEXT

INSTRUCTION

SWI

INSTRUCTION?

NO

RTI

INSTRUCTION?

NO

YES

YES

YES

YES

CLEAR IRQ LATCH

STACK PC, X, A, CCR

LOAD PC WITH INTERRUPT VECTOR

SET I BIT

UNSTACK CCR, A, X, PC

EXECUTE INSTRUCTION

Figure 4-7. Interrupt Flowchart

Technical Data MC68HC705J1A — Rev. 4.0

For More Information On This Product,

Resets and Interrupts

Go to: www.freescale.com

Freescale Semiconductor, Inc.

Technical Data — MC68HC705J1A

5.1 Contents

5.2 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79

Section 5. Low-Power Modes

..

.
nc

5.2 Introduction

5.3 Exiting Stop and Wait Modes . . . . . . . . . . . . . . . . . . . . . . . . . .80

5.4 Effects of Stop and Wait Modes . . . . . . . . . . . . . . . . . . . . . . . .81

5.4.1 Clock Generation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

5.4.2 CPU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82

5.4.3 COP Watchdog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82

5.4.4 Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83

5.4.5 EPROM/OTPROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 4

5.4.6 Data-Retention Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84

5.5 Timing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85

The microcontroller unit (MCU) can enter these low-power standby
modes:

• Stop mode — The STOP instruction puts the MCU in its lowest
power-consumption mode.

Freescale Semiconductor, I

MC68HC705J1A — Rev . 4.0 Technical Data

• Wait mode — The WAIT instruction puts the MCU in an
intermediate power-consumption mode.

• Halt mode — Halt mode is identical to wait mode, except that an
oscillator stabilization delay of 1 to 4064 internal clock cycles
occurs when the MCU exits halt mode. The stop-to-wait
conversion bit, SWAIT, in the mask option register, enables halt
mode.

For More Information On This Product,

Low-Power Modes

Go to: www.freescale.com

Freescale Semiconductor, Inc.

Low-Power Modes

• Data-retention mode — In data-retention mode, the MCU retains

..

.

5.3 Exiting Stop and Wait Mode s

Enabling halt mode prevents the computer operating properly
(COP) watchdog from being inadvertently turned off by a STOP
instruction.

RAM contents and CPU register contents at V
as 2.0 Vdc. The data-retention feature allows the MCU to remain
in a low power-consu mption state du ring wh ich it reta ins data, but
the CPU cannot execute instructions.

voltages as low

DD

nc

Freescale Semiconductor, I

The events describ ed in this subsection brin g the MCU out of stop mode
and load the program counter with the reset vector or with an interrupt
vector.

Exiting stop mode:

• External reset — A logic 0 on the RESET pin resets the MCU,
starts the CPU clock, and loads the program counter with the
contents of locations $07FE and $07FF.

• External inte rrupt — A high-to-low transition on the IRQ/VPP pin or
a low-to-high transit ion on an enabled port A exte rnal interrupt pin
starts the CPU clock and loads the program counter with the
contents of locations $07FA and $07FB.

Exiting wait mode:

• External reset — A logic 0 on the RESET pin resets the MCU,
starts the CPU clock, and loads the program counter with the
contents of locations $07FE and $07FF.

• External inte rrupt — A high-to-low transition on the IRQ/VPP pin or
a low-to-high transit ion on an enabled port A exte rnal interrupt pin
starts the CPU clock and loads the program counter with the
contents of locations $07FA and $07FB.

Technical Data MC68HC705J1A — Rev. 4.0

For More Information On This Product,

Low-Power Modes

Go to: www.freescale.com

Freescale Semiconductor, Inc.

• COP watchdog rese t — A timeout of the COP watchdog rese ts the
MCU, starts the CPU clock, and loads the program counter with
the contents of locations $07FE and $07FF. Softw are can enable
timer interrupts so that the MCU perio dically can exit wait mode to
reset the COP watchdog.

• Timer int errupt — Real-time interrupt requests an d timer overflow
interrupt requests start the MCU clock and load the program
counter with the contents of locations $07F8 and $07F9.

..

.

5.4 Effects of Stop and Wait Mo des

Low-Power Modes

Effects of Stop and Wait Modes

nc

5.4.1 Clock Generation

Freescale Semiconductor, I

The STOP and WAIT instructions have the effects described in this
subsection on MCU modules.

The STOP instruction:

The STOP instruction disables the internal oscillator, stopping the
CPU clock and all peripheral clocks.

After exiting stop mode, the CPU clock and all enabled peripheral
clocks begin running after the oscillator stabilization delay.

NOTE: The oscillator stabilization delay holds the MCU in reset for the first 406 4

internal clock cycles.

The WAIT instruction:

The WAIT instruction disables the CPU clock.
After exiting wait mode, the CPU clock and all enabled peripheral

clocks immediately begin running.

MC68HC705J1A — Rev. 4.0 Technical Data

For More Information On This Product,

Low-Power Modes

Go to: www.freescale.com

Low-Power Modes

5.4.2 CPU

..

.

Freescale Semiconductor, Inc.

The STOP instruction:

• Clears the interrupt mask (I bit) in the condition code register,

• Disables the CPU clock

After exiting stop mode, the CPU clock begins running after the
oscillator stabilization delay.

After exit from stop mo de by external int errupt, the I bit rema ins clear.
After exit from stop mode by reset, the I bit is set.

enabling external interrupts

nc

5.4.3 COP Watchdog

Freescale Semiconductor, I

The WAIT instruction:

• Clears the interrupt mask (I bit) in the condition code register,
enabling interrupts

• Disables the CPU clock

After exit from wait mode by interrupt, the I bit remains clear.
After exit from wait mode by reset, the I bit is set.

The STOP instruction:

• Clears the COP watchdog counter

• Disables the COP watchdog clock

NOTE: To prevent the STOP instruction from disabling the COP watchdog,

program the stop-to-wait conversion bit (SWAIT) in the mask option
register to logic 1.

After exit from stop mode by external interrupt, the COP watchdog
counter immediately begins counting from $0000 and continues
counting throughout the oscillator stabilization delay.

NOTE: Immediately after exiting stop mode by external interrupt, service the

COP to ensure a full COP timeout period.

Technical Data MC68HC705J1A — Rev. 4.0

For More Information On This Product,

Low-Power Modes

Go to: www.freescale.com

Freescale Semiconductor, Inc.

After exit from stop mode by reset:

• The COP watchdog counter immediately begins counting from

• The COP watchdog counter is cleared at the end of the oscillator

The WAIT instruction:

The WAIT instruction has no effect on the COP watchdog.

Low-Power Modes

Effects of Stop and Wait Modes

$0000.

stabilization delay and begins counting from $0000 again.

..

.
nc

Freescale Semiconductor, I

5.4.4 Timer

NOTE: To prevent a COP timeo ut duri ng wait mode, exit wa it mod e periodical ly

to service the COP.

The STOP instruction:

• Clears the RTIE, TOF E, RTIF, and TOF bits i n the timer status and
control register, disabling timer interrupt requests and removing
any pending timer interrupt requests

• Disables the clock to the timer

After exiting stop mode by external interrupt, the timer immediately
resumes countin g from the last value before the STOP instruction and
continues counting throughout the oscillator stabilization delay.

After exiting stop mode by reset and after the oscillator stabilization
delay, the timer resumes operation from its reset state.

The WAIT instruction:

The WAIT instruction has no effect on the timer.

MC68HC705J1A — Rev. 4.0 Technical Data

For More Information On This Product,

Low-Power Modes

Go to: www.freescale.com

Low-Power Modes

5.4.5 EPROM/OTPROM

..

.
nc

5.4.6 Data-Retention Mode

Freescale Semiconductor, Inc.

The STOP instruction:

The STOP instruction during erasable, programmable read-only
memory (EP ROM) p rogr amm ing cl ear s the EP GM b it in the EP ROM
programming register, removing the programming voltage from the
EPROM.

The WAIT instruction:

The WAIT instruction has no effect on EPROM/one-time
programmable read-only memory (OTPROM) operation.

In data-re tention mode, the M CU retains rando m-access memory (RA M)
contents and CPU registe r conten ts at VDD voltages as low as 2.0 Vdc.
The data-retention feature allows the MCU to remain in a low
power-consumption state during which it retains data, but the CPU
cannot execute instructions.

To put the MCU in data-retention mode:

1. Drive the RESET pin to logic 0.

2. Lower the V
continuously during data-ret ention mode .

To take the MCU out of data-retention mode:

1. Return VDD to normal operating voltage.

2. Return the RESET pin to logic 1.

voltage. The RESET pin must remain low

DD

Freescale Semiconductor, I

Technical Data MC68HC705J1A — Rev. 4.0

For More Information On This Product,

Low-Power Modes

Go to: www.freescale.com

5.5 Timi ng

..

.

OSC

(NOTE 1)

RESET

IRQ/V

(NOTE 2)

IRQ/V

(NOTE 3)

Freescale Semiconductor, Inc.

t

RL

t

PP

PP

ILIH

Low-Power Modes

Timing

OSCILLATOR STABIL IZATION DELAY

nc

Freescale Semiconductor, I

INTERNAL

CLOCK

INTERNAL

ADDRESS

BUS

Notes:

1. Internal clock ing fro m O SC1 pi n

2. Edge-triggered external interrupt mask option

3. Edge- and level-triggered external interrupt mask option

4. Reset vector shown as example

$07FE

(NOTE 4)

$07FE $ 07FE $07FE $07FE $07FF

Figure 5-1. Stop Mode Recovery Timing

RESET OR INTERRUPT

VECTOR FETCH

MC68HC705J1A — Rev. 4.0 Technical Data

For More Information On This Product,

Low-Power Modes

Go to: www.freescale.com

Low-Power Modes

Freescale Semiconductor, Inc.

STOP

..

.
nc

SWAIT

BIT SET?

NO

CLEAR I BIT IN CCR

CLEAR TOF, RTIF, TOIE, AND RTIE BITS IN TSCR

EXTERNAL

EXTERNAL

INTERRUPT?

SET IRQE BIT IN ISCR

TURN OFF INTERNAL OSCILLATOR

YES

RESET?

NO

YES

NO

TURN ON INTERNAL OSCILLATOR

RESET STABILIZATION TIMER

END OF

STABILIZATION

DELAY?

YES

YES

NO

TURN ON CPU CLOCK

HALT

CLEAR I BIT IN CCR

SET IRQE BIT IN ISCR

TURN OFF CPU CLOCK

TIMER CLOCK ACTIVE

YES

YES

YES

YES

EXTERNAL

RESET?

NO

EXTERNAL

INTERRUPT?

NO

TIMER

INTERRUPT?

NO

COP

RESET?

NO

WAIT

CLEAR I BIT IN CCR

SET IRQE BIT IN ISCR

TURN OFF CPU CLOCK

TIMER CLOCK ACTIVE

YES

YES

YES

YES

EXTERNAL

RESET?

NO

EXTERNAL

INTERRUPT?

NO

TIMER

INTERRUPT?

NO

COP

RESET?

NO

Freescale Semiconductor, I

1. LOAD PC WITH RESET VECTOR

2. SERVICE INTERRUPT

a. SAVE CPU REGISTERS ON STACK
b. SET I BIT IN CCR
c. LOAD PC WITH INTERRUPT VECTOR

Figure 5-2. Stop/Halt/Wait Flowchart

Technical Data MC68HC705J1A — Rev. 4.0

For More Information On This Product,

OR

Low-Power Modes

Go to: www.freescale.com

Freescale Semiconductor, Inc.

Technical Data — MC68HC705J1A

Section 6. Parallel Input/Output (I/O) Ports

6.1 Contents

6.2 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87

..

.
nc

6.2 Introduction

Freescale Semiconductor, I

6.3 Port A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .89

6.3.1 Port A Data Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .89

6.3.2 Data Direction Register A. . . . . . . . . . . . . . . . . . . . . . . . . . .90

6.3.3 Pulldown Register A. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91

6.3.4 Port A LED Drive Capability. . . . . . . . . . . . . . . . . . . . . . . . .92

6.3.5 Port A I/O Pin Interrupts. . . . . . . . . . . . . . . . . . . . . . . . . . . .92

6.4 Port B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92

6.4.1 Port B Data Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92

6.4.2 Data Direction Register B. . . . . . . . . . . . . . . . . . . . . . . . . . .93

6.4.3 Pulldown Register B. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .94

6.5 5.0-Volt I/O Port Electrical Characteristics . . . . . . . . . . . . . . . .95

6.6 3.3-Volt I/O Port Electrical Characteristics . . . . . . . . . . . . . . . .95

Fourteen bidirectiona l pins form one 8-bit input/o utput (I/O) port an d one
6-bit I/O port. All the bidirectional port pins are program mable as inputs
or outputs.

NOTE: Connect any unused I/O pins to an app ropriate logic lev el, either V

V

Although the I/O ports do not require termination for proper

SS.

operation, termination reduces excess current consumption and the
possibility of electrostatic damage.

MC68HC705J1A — Rev . 4.0 Technical Data

Parallel Input/Output (I/O) Ports

For More Information On This Product,

Go to: www.freescale.com

DD

or

Freescale Semiconductor, Inc.

Parallel Input/Output (I/O) Ports

Addr.Register Name Bit 7654321Bit 0

..

.
nc

$0000

$0001

$0004

$0005

$0010

$0011

Port A Data Register

(PORTA)

See page 89.

Port B Data Register

(PORTB)

See page 92.

Data Direction Register A

(DDRA)

See page 90.

Data Direction Register B

(DDRB)

See page 93.

Pulldown Register A

(PDRA)

See page 91.

Pulldown Register B

(PDRB)

See page 94.

Figure 6-1. Parallel I/O Port Register Summary

Read:

PA7 PA6 PA5 PA4 PA3 PA2 PA1 PA0

Write:

Reset: Unaffected by reset

Read: 0 0

PB5 PB4 PB3 PB2 PB1 PB0

Write:

Reset: Unaffected by reset

Read:

DDRA7 DDRA6 DDRA5 DDRA4 DDRA3 DDRA2 DDRA1 DDRA0

Write:

Reset:00000000

Read: 0 0

DDRB5 DDRB4 DDRB3 DDRB2 DDRB1 DDRB0

Write:

Reset:00000000

Read:

Write: PDIA7 PDIA6 PDIA5 PDIA4 PDIA3 PDIA2 PDIA1 PDIA0

Reset:00000000

Read:

Write: PDIB5 PDIB4 PDIB3 PDIB2 PDIB1 PDIB0

Reset: 000000

= Unimplemented

Freescale Semiconductor, I

Technical Data MC68HC705J1A — Rev. 4.0

Parallel Input/Output (I/O) Ports

For More Information On This Product,

Go to: www.freescale.com

Freescale Semiconductor, Inc.

6.3 Port A

Port A is an 8-bit bidirectional port.

6.3.1 Port A Data Register

The port A data register (PORTA) contains a latch for each port A pin.

Address: $0000

Parallel Input/Output (I/O) Ports

Port A

..

.
nc

Bit 7654321Bit 0

Read:

PA7 PA6 PA5 PA4 PA3 PA2 PA1 PA0

Write:

Reset: Unaffected by reset

Figure 6-2. Port A Data Register (PORTA)

PA[7:0] — Port A Data Bits

These read/write bits are software programmable. Data direction of
each port A pin is under the control of the corresponding bit in data
direction register A. Reset has no effect on port A data.

Freescale Semiconductor, I

MC68HC705J1A — Rev. 4.0 Technical Data

Parallel Input/Output (I/O) Ports

For More Information On This Product,

Go to: www.freescale.com

Freescale Semiconductor, Inc.

Parallel Input/Output (I/O) Ports

6.3.2 Data Direction Register A

Data direction register A (DDRA) determines whether each port A pin is
an input or an output.

Address: $0004

Bit 7654321Bit 0

Read:

Write:

DDRA7 DDRA6 DDRA5 DDRA4 DDRA3 DDRA2 DDRA1 DDRA0

..

.
nc

Freescale Semiconductor, I

Reset:00000000

Figure 6-3. Data Direction Register A (DDRA)

DDRA[7:0] — Data Direction Register A Bits

These read/write bits control port A data direction. Reset clears
DDRA[7:0], configuring all port A pins as inputs.

1 = Corresponding port A pin configured as output
0 = Corresponding port A pin configured as input

NOTE: Avoid glitches on port A pi ns by writing to the p ort A data register befo re

changing data direction register A bits from 0 to 1.

Figure 6-4 shows the I/O logic of port A.

READ DDRA

WRITE DDRA

WRITE PORTA

READ PORTA

INTERNAL DATA BUS

WRITE PDRA

RESET

DDRAx

PAx

PDRAx

SWPDI

10-mA SINK CAPABILITY

(PINS PA4–PA7 O NLY)

PAx
(PA0–PA3 TO
IRQ MODULE)

100-µA

PULLDOWN

Figure 6-4. Port A I/O Circuitry

Technical Data MC68HC705J1A — Rev. 4.0

Parallel Input/Output (I/O) Ports

For More Information On This Product,

Go to: www.freescale.com

Freescale Semiconductor, Inc.

Parallel Input/Output (I/O) Ports

Port A

Writing a logic 1 to a DDRA bit enables the output buffer for the
corresponding port A pin; a logic 0 disables the output buffer.

When bit DDRAx is a logic 1 , reading address $0 000 reads the PAx data
latch. When bit DDRAx is a logic 0, reading address $0000 reads the
voltage level on the pin . The data latch can always be written, regardl ess
of the sta te of its dat a direction bit. Table 6-1 summarizes the operation
of the port A pins.

Table 6-1. Port A Pin Operation

..

.
nc

6.3.3 Pulldown Register A

NOTE: If the SWPDI bit in the mask option register is programmed to logic 1,

Freescale Semiconductor, I

Data Direction Bit I/O Pin Mode

0 Input, high-impedance Pin Latch
1 Output Latch Latch

1. Writing affects the data regist er but does not affect inpu t.

Accesses to Data Bit
Read Write

(1)

Pulldown registe r A (P DRA) inhib its the p ulldown d evices on por t A pins
programmed as inputs.

reset initializes a ll port A pins as inputs w ith disabled pulld own devices.

Address: $0010

Bit 7654321Bit 0

Read:

Write: PDIA7 PDIA6 PDIA5 PDIA4 PDIA3 PDIA2 PDIA1 PDIA0

Reset:00000000

= Unimplemented

Figure 6-5. Pulldown Register A (PDRA)

PDIA[7:0] — Pulldown Inhibit A Bits

PDIA[7:0] disable the port A pulldown devices. Reset clears
PDIA[7:0].

1 = Corresponding port A pulldown device disabled
0 = Corresponding port A pulldown device not disabled

MC68HC705J1A — Rev. 4.0 Technical Data

Parallel Input/Output (I/O) Ports

For More Information On This Product,

Go to: www.freescale.com

Freescale Semiconductor, Inc.

Parallel Input/Output (I/O) Ports

6.3.4 Port A LED Drive Capability

The outputs for the upper four bits of port A (PA4–PA7) can drive
light-emitti ng diodes (LEDs). P A4–PA7 can sink a pproximately 10 mA of
current to V

6.3.5 Port A I/O Pin Interrupts

If the PIRQ bit in the mask option register is programmed to logic 1,
PA0–PA3 pins function as external interrupt pins. See Section 8.

..

.

External Interrupt Module (IRQ).

nc

6.4 Port B

SS

.

6.4.1 Port B Data Register

Freescale Semiconductor, I

Port B is a 6-bit bidirectional port.

The port B data register (PORTB) contains a latch for each port B pin.

Address: $0001

Bit 7654321Bit 0

Read: 0 0

PB5 PB4 PB3 PB2 PB1 PB0

Write:

Reset: Unaffected by reset

= Unimplemented

Figure 6-6. Port B Data Register (PORTB)

PB[5:0] — Port B Data Bits

These read/write bits are software programmable. Data direction of
each port B pin is under the control of the corresponding bit in data
direction register B. Reset has no effect on port B data.

Technical Data MC68HC705J1A — Rev. 4.0

Parallel Input/Output (I/O) Ports

For More Information On This Product,

Go to: www.freescale.com

Freescale Semiconductor, Inc.

6.4.2 Data Direction Register B

Data direction register B (DDRB) determines whether each port B pin is
an input or an output.

Address: $0005

Read: 0 0

Write:

Parallel Input/Output (I/O) Ports

Port B

Bit 7654321Bit 0

DDRB5 DDRB4 DDRB3 DDRB2 DDRB1 DDRB0

..

.
nc

Freescale Semiconductor, I

Reset:00000000

= Unimplemented

Figure 6-7. Data Direction Register B (DDRB)

DDRB[5:0] — Data Direction Register B Bits

These read/write bits control port B data direction. Reset clears
DDRB[5:0], configuring all port B pins as inputs.

1 = Corresponding port B pin configured as output
0 = Corresponding port B pin configured as input

NOTE: Avoid glitches on port B pi ns by writing to the p ort B data register befo re

changing data direction register B bits from 0 to 1.

Figure 6-8 shows the I/O logic of port B.

READ DDRB

WRITE DDRB

WRITE PORTB

DDRBx

PBx

PBx

READ PORTB

INTERNAL DATA BUS

WRITE PDRB

PDRBx

RESET

SWPDI

100-µA

PULLDOWN

Figure 6-8. Port B I/O Circuitry

MC68HC705J1A — Rev. 4.0 Technical Data

Parallel Input/Output (I/O) Ports

For More Information On This Product,

Go to: www.freescale.com

Freescale Semiconductor, Inc.

Parallel Input/Output (I/O) Ports

Writing a logic 1 to a DDRB bit enables the output buffer for the
corresponding port B pin; a logic 0 disables the output buffer.

When bit DDRBx is a logic 1 , reading address $0 001 reads the PBx data
latch. When bit DDRBx is a logic 0, reading address $0001 reads the
voltage level on the pin . The data latch can always be written, regardl ess
of the sta te of its dat a direction bit. Table 6-2 summarizes the operation
of the port B pins.

Table 6-2. Port B Pin Operation

..

.
nc

6.4.3 Pulldown Register B

NOTE: If the SWPDI bit in the mask option register is programmed to logic 1,

Freescale Semiconductor, I

Data Direction Bit I/O Pin Mode

0 Input, high-impedance Pin Latch
1 Output Latch Latch

1. Writing affects the data regist er, but does not affect i nput.

Accesses to Data Bit
Read Write

(1)

Pulldown registe r B (P DRB) inhib its the p ulldown d evices on por t B pins
programmed as inputs.

reset initializes a ll port B pins as inputs w ith disabled pulld own devices.

Address: $0011

Bit 7654321Bit 0

Read:

Write: PDIB5 PDIB4 PDIB3 PDIB2 PDIB1 PDIB0

Reset: 000000

= Unimplemented

Figure 6-9. Pulldown Register B (PDRB)

PDIB[7:0] — Pulldown Inhibit B Bits

PDIB[7:0] disable the port B pulldown devices. Reset clears
PDIB[7:0].

1 = Corresponding port B pulldown device disabled
0 = Corresponding port B pulldown device not disabled

Technical Data MC68HC705J1A — Rev. 4.0

Parallel Input/Output (I/O) Ports

For More Information On This Product,

Go to: www.freescale.com

Freescale Semiconductor, Inc.

6.5 5.0-Volt I/O Port Electrical Characteristics

Parallel Input/Output (I/O) Ports

5.0-Volt I/O Port Electrical Characteristics

(1)

..

.
nc

Characteristic

Current drain per pin excluding PA4–PA7 I — 25 — mA
Output high voltage

= –0.8 mA) PA 0–PA7, PB0–PB5

(I

Load

Output low voltage

= 1.6 mA) PA0–PA3 , PB0 –PB5

(I

Load

(I

= 10.0 mA) PA4–PA7

Load

Input high voltage

PA0–PA7, PB0–PB5

Input low voltage

PA0–PA7, PB0–PB5

I/O ports hi-z leakage current

PA0–PA7, P B0–PB5 (without individual pulldown activated)

Input pulldown current

PA0–PA7, PB0–PB5 (with individual pulldown activated)

1. VDD = 5.0 Vdc ± 10%, VSS = 0 Vdc, TA = –40°C to +105°C, unles s otherwise noted

2. Typical values reflect average measurements at midpoint of voltage range, 25°C.

6.6 3.3-Volt I/O Port Electrical Characteristics

Characteristic

Current drain per pin excluding PA4–PA7 I — 25 — mA
Output high voltage

= –0.2 mA) PA 0–PA7, PB0–PB5

(I

Load

Output low voltage

= 0.4 mA) PA0–PA3 , PB0 –PB5

(I

Load

(I

= 5.0 mA) PA4–PA7

Load

Freescale Semiconductor, I

Input high voltage

PA0–PA7, PB0–PB5

(1)

Symbol Min

V

OH

V

OL

V

IH

V

IL

I

IL

I

IL

Symbol Min

V

OH

V

OL

V

IH

VDD –0.8

—
—

0.7 x V

V

SS

— 0.2 ±1 µA

35 80 200 µA

V

DD

—
—

0.7 x V

DD

–0.3

DD

(2)

Typ

——V

—
—

—

—

(2)

Typ

——V

—
—

—

Max Unit

0.4

0.4

V

DD

0.2 x V

DD

Max Unit

0.3

0.3

V

DD

V

V

V

V

V

Input low voltage

PA0–PA7, PB0–PB5

I/O ports hi-z leakage current

PA0–PA7, P B0–PB5 (without individual pulldown activated)

Input pulldown current

PA0–PA7, PB0–PB5 (with individual pulldown activated)

1. VDD = 3.3 Vdc ± 10%, VSS= 0 Vdc, TA = –40°C to +105°C, unless otherwise noted

2. Typical values reflect average measurements at midpoint of voltage range, 25°C.

MC68HC705J1A — Rev. 4.0 Technical Data

Parallel Input/Output (I/O) Ports

For More Information On This Product,

Go to: www.freescale.com

V

IL

I

IL

I

IL

V

SS

— 0.1 ±1 µA

12 30 100 µA

—

0.2 x V

DD

V

Freescale Semiconductor, Inc.

Parallel Input/Output (I/O) Ports

..

.
nc

Freescale Semiconductor, I

Technical Data MC68HC705J1A — Rev. 4.0

Parallel Input/Output (I/O) Ports

For More Information On This Product,

Go to: www.freescale.com

Freescale Semiconductor, Inc.

Technical Data — MC68HC705J1A

Section 7. Computer Operating Properly (COP) Module

7.1 Contents

7.2 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .97

..

.
nc

7.2 Introduction

Freescale Semiconductor, I

7.3 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .98

7.3.1 COP Watchdog Timeout . . . . . . . . . . . . . . . . . . . . . . . . . . .98

7.3.2 COP Watchdog Timeout Period. . . . . . . . . . . . . . . . . . . . . .98

7.3.3 Clearing the COP Watchdog . . . . . . . . . . . . . . . . . . . . . . . .98

7.4 Interrupts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .99

7.5 COP Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .99

7.6 Low-Power Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100

7.6.1 Stop Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100

7.6.2 Wait Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100

The computer operating properly (COP) watchdog resets the
microcontroller (MCU) in case of software failure. Software that is
operating proper ly periodically services the COP watchdog and prevents
COP reset. The COP watchdog function is programmable by the
COPEN bit in the mask option register.

Features include:

• Protection from runaway software

• Wait and halt mode operation

MC68HC705J1A — Rev . 4.0 Technical Data

Computer Operating Properly (COP) Module

For More Information On This Product,

Go to: www.freescale.com

Freescale Semiconductor, Inc.

Computer Operating Properly (COP) Module

7.3 Operation

Operation of the COP is described in this subsection.

7.3.1 COP Watchdog Timeout

Four counter stages at the end of the timer make up the COP watchdog.
The COP resets the MCU if the timeout period occurs before the COP
watchdog timer is cleared by application software and the IRQ/VPP pin
voltage is between VSS and VDD. Periodically clearing the count er starts

..

.
nc

a new timeout perio d and prevents COP reset. A COP watchdog timeout
indicates that the software is not executing instructions in the correct
sequence.

NOTE: The internal clock drives the COP watchdog. Therefore, the COP

watchdog cannot gen erate a reset for errors that cause the inte rnal clock
to stop.

The COP watchdog depends on a power supply voltage at or above a
minimum specification and is not guaranteed to protect against
brownout.

7.3.2 COP Watchdog Timeout Period

The COP wa tchdog time r functi on is impl emente d by dividi ng the output
of the real-time int err upt ci rcuit ( RTI) by eight. T he RTI se lect bi ts in the
timer status and control register control RTI output, and the selected
output drives the COP watchdog. See timer status and control register
in Section 9. Multifunction Timer Module.

Freescale Semiconductor, I

NOTE: The minimum COP timeout period is seven times the RTI period. The

COP is cleared a synchronously w ith the value in the RTI divider ; hence,
the COP timeout period will vary between 7x and 8x the RTI period.

7.3.3 Clearing the COP Watchdog

To clear the COP watchdog and prevent a COP reset, write a logic 0 to
bit 0 (COPC) of the COP register at location $07F0 (see Figure 7-1).

Technical Data MC68HC705J1A — Rev. 4.0

Computer Operating Properly (COP) Module

For More Information On This Product,

Go to: www.freescale.com

..

.
nc

7.4 Interrupts

Freescale Semiconductor, Inc.

Clearing the C OP bit disab les the COP watchd og timer rega rdless of the
IRQ

/VPP pin voltage.

If the main p rogram executes within t he COP timeout period , the clearing
routine should be e xecuted onl y o nce. If the main pro gram take s longe r
than the COP timeout period, the clearing routine must be executed
more than once.

Computer Operating Properly (COP) Module

Interrupts

NOTE: Place the clearing routine in the main program and not in an interrupt

routine. Clea ring the COP watchdog in an interrupt routine might pr event
COP watchdog timeouts even th ough the main program is not operati ng
properly.

7.5 COP Register

Freescale Semiconductor, I

The COP watchdog does not generate interrupts.

The COP register (COPR) is a write-only register that returns the
contents of EPROM location $07F0 when read.

Address: $07F0

Bit 7654321Bit 0

Read:

Write: COPC

Reset: 0

= Unimplemented

Figure 7-1. COP Register (COPR)

COPC — COP Clear Bit

This write-only bit resets the C OP watchdog. Reading address $07F 0
returns undefined results.

MC68HC705J1A — Rev. 4.0 Technical Data

Computer Operating Properly (COP) Module

For More Information On This Product,

Go to: www.freescale.com

Freescale Semiconductor, Inc.

Computer Operating Properly (COP) Module

7.6 Low-Power Modes

The STOP and WAIT instructions have these effects on the COP
watchdog.

7.6.1 Stop Mode

The STOP instruction clears the COP watchdog counter and disables
the clock to the COP watchdog.

..

.
nc

NOTE: To prevent the STOP instruction from disabling the COP watchdog,

program the stop-to-wait conversion bit (SWAIT) in the mask option
register to logic 1.

Upon exit from stop mode by external reset:

• The counter begins counting from $0000.

• The counter is cleared again after the oscillator stabilization delay
and begins counting from $0000 again.

Upon exit from stop mode by external interrupt:

• The counter begins counting from $0000.

• The counter is not cleared again after the oscillator stabilization
delay and continues counting throughout the oscillator
stabilization delay.

NOTE: Immediately after exiting stop mode by external interrupt, service the

COP to ensure a full COP timeout period.

Freescale Semiconductor, I

7.6.2 Wait Mode

The WAIT instruction has no effect on the COP watchdog.

NOTE: To prevent a COP timeo ut duri ng wait mode, exit wa it mod e periodical ly

to service the COP.

Technical Data MC68HC705J1A — Rev. 4.0

Computer Operating Properly (COP) Module

For More Information On This Product,

Go to: www.freescale.com
