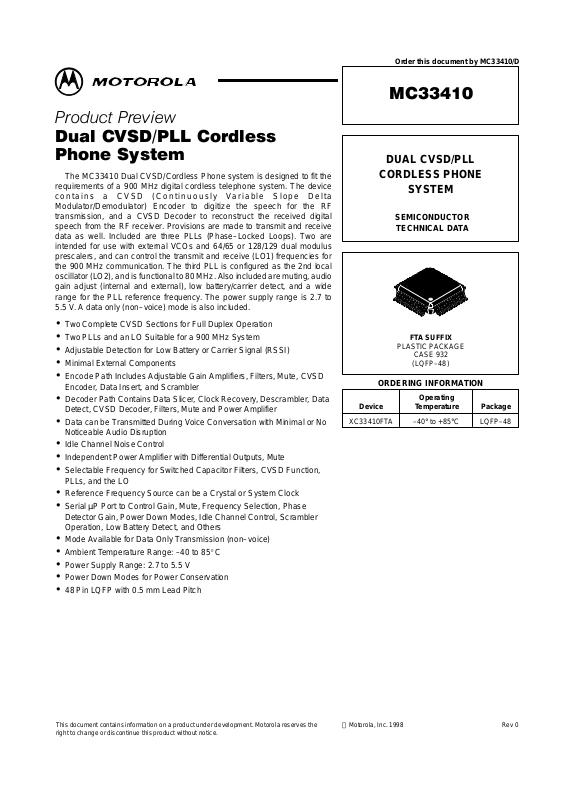

DUAL CVSD/PLL

CORDLESS PHONE

SYSTEM

FTA SUFFIX

PLASTIC PACKAGE

CASE 932

(LQFP–48)

Device

Operating

Temperature

Package

ORDERING INFORMATION

XC33410FTA –40° to +85°C LQFP–48

SEMICONDUCTOR

TECHNICAL DATA

Order this document by MC33410/D

1

MOTOROLA RF/IF DEVICE DATA

 

  
 

The MC33410 Dual CVSD/Cordless Phone system is designed to fit the
requirements of a 900 MHz digital cordless telephone system. The device
contains a CVSD (Continuously Variable Slope Delta
Modulator/Demodulator) Encoder to digitize the speech for the RF
transmission, and a CVSD Decoder to reconstruct the received digital
speech from the RF receiver. Provisions are made to transmit and receive
data as well. Included are three PLLs (Phase–Locked Loops). Two are
intended for use with external VCOs and 64/65 or 128/129 dual modulus
prescalers, and can control the transmit and receive (LO1) frequencies for
the 900 MHz communication. The third PLL is configured as the 2nd local
oscillator (LO2), and is functional to 80 MHz. Also included are muting, audio
gain adjust (internal and external), low battery/carrier detect, and a wide
range for the PLL reference frequency. The power supply range is 2.7 to

5.5 V. A data only (non–voice) mode is also included.

• Two Complete CVSD Sections for Full Duplex Operation

• Two PLLs and an LO Suitable for a 900 MHz System

• Adjustable Detection for Low Battery or Carrier Signal (RSSI)

• Minimal External Components

• Encode Path Includes Adjustable Gain Amplifiers, Filters, Mute, CVSD

Encoder, Data Insert, and Scrambler

• Decoder Path Contains Data Slicer, Clock Recovery, Descrambler, Data

Detect, CVSD Decoder, Filters, Mute and Power Amplifier

• Data can be Transmitted During Voice Conversation with Minimal or No

Noticeable Audio Disruption

• Idle Channel Noise Control

• Independent Power Amplifier with Differential Outputs, Mute

• Selectable Frequency for Switched Capacitor Filters, CVSD Function,

PLLs, and the LO

• Reference Frequency Source can be a Crystal or System Clock

• Serial µP Port to Control Gain, Mute, Frequency Selection, Phase

Detector Gain, Power Down Modes, Idle Channel Control, Scrambler
Operation, Low Battery Detect, and Others

• Mode Available for Data Only Transmission (non–voice)

• Ambient T emperature Range: –40 to 85

_

C

• Power Supply Range: 2.7 to 5.5 V

• Power Down Modes for Power Conservation

• 48 Pin LQFP with 0.5 mm Lead Pitch

This document contains information on a product under development. Motorola reserves the
right to change or discontinue this product without notice.

 Motorola, Inc. 1998 Rev 0

MC33410

2

MOTOROLA RF/IF DEVICE DATA

Simplified Block Diagram

CVSD

Decoder

Anti–Alias

LPF

Gain

Adj.

Gain

Adj.

Mute

LP Filter

PLL

#1

Programmable

Counters

Dec.
Clock

CVSD

Encoder

VCO+
64/65

PreScaler

–1

Power

Amp

PLL

#2

VCO+
64/65

PreScaler

2nd

LO

LPF

T ank

MPU

Interface

MPU

Low
Batt
/CD

Idle

Channel

Data Det.

Register

SC

Encode

Clock

LO

Data

Register

Low
Battery/
CD

Status

Dec.
Clock

Descrambler

Clock

Recovery

Idle

Channel

Scrambler

Data
Slicer

Data
Out

Digital
Speech/
Data In

Digital
Speech/
Data Out

Analog

Speech

Analog

Speech

Ref

LP Filter

Mute

Mute

Ref.

Freq.

Ref

SC

SC

PRELIMINARY SPECIFICATIONS (Subject to change)

Parameter

Symbol Min Typ Max Units

Supply Voltage – 2.7 to 5.5 – V
Supply Current (All sections active) – 13 – mA
Remote Gain Adjust Range – 16 – dB
Receive Path Gain Control Range – 28.5 – dB
Output Current Capability (PAO+, PAO–) – ±5.0 – mA
Max. 2nd LO frequency – 80 – MHz
Phase Detector Charge Pump Output Current µA

High – ±400 –

Low – ±100 –
Digital Input Signal Amplitude to Data Slicer – >200 – mVpp
Operating Ambient Temperature – –40 to +85 – °C

NOTE: 1.Above specs represent design objectives, and are subject to change.

MC33410

3

MOTOROLA RF/IF DEVICE DATA

Mod Ctl

Mod Ctl

Figure 1. Typical Applications Circuit

SCF Clk

SPI

Rx Dig.

MP2

Gnd

LO2 Out

LO2 V

CC

LO2+

LO2–

LO2 Ctl

LO2 Gnd

LO2PD

LO2 Gnd

MCI

Gnd

Out

F

ref

Out

F

ref

In

Status

FRx MC FR

x

PLL
V

CC

Rx PD PLL

Gnd

Tx PD

PLL
V

CC

FTxFTx MC EN CLK Data

Dec.
Out

R

x

Audio
In

PAI

Battery

2nd LO

VCO

14b Ctr.

LO2 Phase

Detector

7b A’

Rx Phase

Detector

13b N’

64/65 PS

VCO

Tx Phase

Detector

12b Ref. Ctr.

MPU Serial

Interface

÷

2

6b SCF Ctr.

12

48

25

14

13

7b A13b N

Scrambler

Low Battery/CD

SPI

Tx Data

Register

LPF

CVSD

Encoder

÷

16

6b Enc. Ctr.

16

15

17

18

19

20

21

22

23

24

1110987654321

47

46

45

44

43

42

41

40

39

38

37

4b Idle

Chan Ctr.

Idle

Chan

Ctrl

Battery

Battery

Tx 1010

Generator

2627282930313233343536

÷

32

Enc

Clk

16x

Clk

Clock

Recovery

V

CC

Battery

V

CC

Battery

Input

To CVSD

Encoder

VB

Idle

Chan

Control

SMTH

LPF

Mute

LPF

Mute

VB

AALPF

LPF

VB

Mute

Rem. Gain

Adjust

SCF

Clk.

Ref

Idle
Channel
Detect

R

VB

R

Descrambler

16x
Clk

CD

CVSD

Decoder

Rx 1010

Generator

Gain

Adjust

SCF Clk.

Data

BG Ref.

V

CC
CD

Rx Data
Register

Data

Detect

Status

SPI

Data

Slicer

MP1

Clk

VB

R

x

Audio
Out

Gnd PAO– PAO+ V

CC

Enc.
Cap

Dec.
Cap

Vag

0.1

V

CC

Enc. Out

Tx Audio

Enc. In

Battery

MCO

Audio

Input

LPF

64/65 PS

VCOLPF

To

Microprocessor

V

CC

PLL Ref. Freq.

Ref.
Clk

SPI

Low
Battery
Carr. Det.

NOTE: Pin numbers are not firm and are not to be used for design–in purposes.

MC33410

4

MOTOROLA RF/IF DEVICE DATA

RECOMMENDED OPERATING CONDITIONS (Subject to change)

Parameter

Symbol Min Typ Max Units

Supply Voltage – 2.7 to 5.5 – V
CVSD Clock Rate – 32, 50, or

64

– kHz

Encoder in Signal Level (max) – 3.0 – V

pp

Peak Output Current at PAO+, PAO– – ±5.0 – mA
Reference Frequency Amplitude (F

ref

In) – >200 – mVpp

Rx Digital Input Signal Amplitude V

pp

Min – 0.20 –

Max – 0 to V

CC

–

Crystal or Reference Frequency at Pin 14 – 4.0 to

18.25

– MHz

Max. Input Frequency at FRx, FT

x

– TBD – MHz
LO2 VCO Control Voltage (Pin 44) – TBD – V
Max. 2nd LO Frequency – 80 – MHz
12 Bit Reference Counter Range (Note 1) – 3 to 4095 – –
13 Bit N Counter Range (Note 1) – 3 to 8191 – –
7 Bit A Counter Range (Note 1) –

with a 64/65 Modulus Prescaler – 0 to 63 –
with a 128/129 Modulus Prescaler – 0 to 127 –

14 Bit LO2 Counter Range (Note 1) – 12 to

16383

– –

6 Bit Counters (for SCF and Encode Clock) (Note 1) – 3 to 63 – –
Receive Path Gain Control Code Range (Note 1) – 6 to 25 – –
Operating Ambient Temperature – –40 to 85 – °C

NOTES: 1. Values specified are pure numbers to the base 10.

2.Above specs represent design objectives, and are subject to change.

PIN FUNCTION DESCRIPTION

Pin

Name

Description

1 FRx MC Modulus Control Output to the Rx 64/65 or 128/129 dual modulus prescaler.
2 FR

x

Input to the Rx PLL.

3 PLL V

CC

Supply pin for the Rx PLL section. Allowable range is 2.7 to 5.5 V .
4 Rx PD Phase detector charge pump output of the Rx PLL.
5 PLL Gnd Ground pin for the PLL sections.
6 Tx PD Phase detector charge pump output of the Tx PLL.
7 PLL V

CC

Supply pin for the Tx PLL section and the MPU Serial Interface section. Allowable range is 2.7 to 5.5 V .
8 FT

x

Input to the Tx PLL.
9 FTx MC Modulus Control Output to the Tx 64/65 or 128/129 dual modulus prescaler.

10 EN Enable input for the µP port. This signal latches in the register address and data.
11 CLK Clock input for the µP port. Maximum frequency is 2.0 MHz.
12 Data Bi–directional data line for the µP port. In Data Modem mode, this pin provides the recovered clock.
13 Status Logic output which indicates that a predetermined 16 or 24–bit code word has been detected in the Data

Detect register, and the following data word has been loaded into register 10. In Data Modem mode, this

pin provides the Transmit Data clock.

14, 15 F

ref

In,

F

ref

Out

A crystal, in the range of 4.0 to 18.25 MHz can be connected to these pins to provide the reference

frequency. If an external reference source is used, it is to be capacitively coupled to F

ref

In.

NOTE: 1. All VCC pins must be within ±0.5 V of each other.

MC33410

5

MOTOROLA RF/IF DEVICE DATA

PIN FUNCTION DESCRIPTION (continued)

Description

Name

Pin

16 Low Battery/CD An open collector output. When low, indicates either the supply voltage (VCC) is low, or the carrier level is

above the threshold. This output is off when disabled.

17 Enc Out The digital output of the scrambler, which passes data from the CVSD encoder, or the Tx Data register, or

the Tx 1010 Generator. Source selection is done through the mP port.

18 V

CC

Supply input for the audio sections, filters, and CVSD blocks. Allowable range is 2.7 to 5.5 V . Internally

connected to Pins 27 and 37.

19 Enc In The analog input to the CVSD encoder. Max. input level is 3.0 Vpp.
20 Tx Audio Out Output of the transmit speech processing section.
21 Ground Ground for the audio sections, filters, and CVSD blocks. Internally connected to Pins 30 and 40.
22 MCO Output of the microphone amplifier, and input to the filters. This output has rail–to–rail capability.
23 MCI Inverting input of the microphone amplifier. Gain and frequency response is set with external resistors and

capacitors.

24 Enc Cap This capacitor sets the time constant for the CVSD encoder. This pin is sensitive to leakage.
25 VAG Analog ground for the audio section and the CVSD encoder and decoder.
26 Dec Cap The capacitor sets the time constant for the CVSD decoder. This pin is sensitive to leakage.
27 V

CC

Supply input for the audio sections, filters, and CVSD blocks. Allowable range is 2.7 to 5.5 V . Internally

connected to Pins 18 and 37.

28, 29 PAO+, PAO– Differential outputs of the power amplifier stage for driving an earpiece or hybrid network. The gain and

frequency response are set with external resistors and capacitors.

30 Gnd Ground for the audio sections, filters, and CVSD blocks. Internally connected to Pins 21 and 40.
31 PAI Input to the power amplifier stage. This pin is a summing node.
32 Rx Audio Output Output of the receive speech processing section.
33 VB The capacitor filters the internal 1.5 V reference voltage. If VB is adjusted, it may be monitored at this pin.

Max. load current is 10 mA.

34 Rx Audio In Input to the receive speech processing section.
35 Dec Out The analog output of the CVSD decoder.
36 MP1 As an output, provides the recovered Rx data, or the Data Detect output, or the data slicer output. Or it can

be set to a high impedance input (600 kW) for the carrier detect input signal. Selection is done through the

m

P port. See Table 6.

37 V

CC

Supply input for the audio sections, filters, and CVSD blocks. Allowable range is 2.7 to 5.5 V . Internally

connected to Pins 18 and 27.

38 Rx Digital Input The digital stream from the RF receiver is applied to the data slicer at this pin. Minimum amplitude is 200

mVpp. Hysteresis ≈50 mV .

39 MP2 As an output, this pin provides the recovered clock from the Clock Recovery block. As an input, the CVSD

decoder clock can be applied to this pin. Or this pin may be set to a disabled state. Selection is done

through the mP port. See Table 7. In Data Modem mode, the data to be transmitted is input to this pin.

40 Gnd Ground for the audio sections, filters, and CVSD blocks. Internally connected to Pins 21 and 30.
41 LO2 Out Buffered output of the 2nd LO frequency. A pullup resistor is required.
42 LO2 V

CC

Supply pin for the 2nd LO. Allowable range is 2.7 to 5.5 V .

43, 45 LO2+, LO2– A tank circuit is connected to these pins for the 2nd LO.

44 LO2 Ctl The varactor control pin for the 2nd LO.
46 LO2 Gnd Ground for the 2nd LO section.
47 LO2 PD Phase detector charge pump output of the 2nd LO PLL.
48 LO2 Gnd Ground for the 2nd LO section.

NOTE: 1. All VCC pins must be within ±0.5 V of each other.

MC33410

6

MOTOROLA RF/IF DEVICE DATA

FUNCTIONAL DESCRIPTION

Note: In the following descriptions, control bits in the MPU
Serial Interface for the various functions will be identified by
register number and bit number. For example, bit 3/19
indicates bit 19 of register 3. Bits 5/14–11 indicates register 5,
bits 14 through 11. Please refer to Figure 1.

Transmit Speech Processing Section

This section is made up of the externally adjustable
microphone amplifier (Pins 22 to 23), internally adjustable
gain stage, two low pass filters, and a mute switch.

The gain of the microphone amplifier is set with external
resistors to receive the audio from the microphone (in the
handset), or from the hybrid (in the base unit), or from any
other audio source. The MCO output has rail–to–rail
capability, and the dc bias level is at VB (≈1.5 V).

The adjustable gain stage, referred to as the Remote
Gain Adjust, provides 5 levels of gain in 4.0 dB increments.
It is controlled with bits 6/15–11 as shown in Table 1.

Table 1. Remote Gain Adjust

Register 6
Bits 15–11 Gain

00001 –8.0 dB
00010 –4.0 dB
00100 0 dB
01000 +4.0 dB
10000 +8.0 dB

Other combinations for the 5 bits are invalid.

The Low Pass Filter after the gain stage is a switched
capacitor filter with a corner frequency at 5.0 kHz. The
subsequent smoothing low pass filter has a corner frequency
at 30 kHz, and is designed to filter out high frequency clock
noise from the previously mentioned switched capacitor filter.

The mute switch at Pin 20 will mute a minimum of 60 dB.
Bit 6/2 controls the mute.

CVSD Encoder/Idle Channel/Tx Data Register

The analog signals to be digitized are input at Pin 19 to the
CVSD Encoder. The output of the encoder will be the digital
equivalent of the audio, at the selected clock rate. Based on
the reference frequency, bits 4/23–18 are used to set the 6 Bit
Encoder Counter, in conjunction with the subsequent ÷16
divider, to set the CVSD Encoder frequency to 32, 50, or
64 kHz. Bits 3/16–15 will set the CVSD for proper operation
at the selected frequency, according to Table 2.

Table 2. CVSD Clock/Data Rates

Register 3

Bit 16 Bit 15 Clock/Data Rate

0 1 32 kHz
1 0 50 kHz
1 1 64 kHz

The Encoder’s minimum step size can be selected using
bits 2/22–21, according to Table 3.

ББББББББББББББББ

Table 3. Minimum Step Size

Encoder

Register 2

Bits 22, 21

Decoder

Register 1

Bits 22, 21

Step Size

00 00 No minimum
01 01 1.4 mV
10 10 5.6 mV
11 11 22.4 mV

The Tx 1010 Generator, when selected, provides an
alternating “1–0” pattern (a square wave at half the CVSD
clock rate) to the scrambler. This represents the lowest
amplitude analog signal, and can be used when it is desired
to send a quiet signal. Selection of this block can occur either
automatically , or intentionally, as follows:
a. The automatic selection occurs when the Idle Channel

Detector senses the average audio signal at Pin 19 is
below a threshold which is set with bits 5/17–15 (See
T able 4). Bits 5/14–11 select a time delay for the automatic
threshold detection to occur. The minimum delay is zero,
with these bits set to 0000. Changing the bits provides
delay in increments of 32 clock cycles (of the CVSD
Encoder clock). The maximum delay is 480 clock cycles,
(7.5 mS at 64 kHz). When the average audio signal at
Pin 19 increases above the threshold, the Tx 1010
Generator will be deselected with no delay. This automatic
switchover feature can be disabled with bit 7/2. Bit 5/21
indicates when an idle channel condition has been
detected. This output bit will be functional even when the
idle channel detector is disabled with bit 7/2. Bit 5/18 will
power down the Idle Channel Detect Circuit as a power
saving measure.

b. Bit 6/4 can be used to intentionally select the Tx 1010

Generator at any time.

ББББББББББББББББ

Table 4. Idle Channel Detection Threshold

ÁÁÁÁ

Register 5

Register 5

Bits 17–15

Threshold Bits 17–15 Threshold

000 –50 dBV 100 –60 dBV
001 –52.5 101 –62.5
010 –55 110 –65
011 –57.5 111 –67.5

The Tx Data Register is used for the transmission of data
between the handset and base units. The procedure is as
follows:
a. At the receiving unit: The code word (16 or 24 bits, set with

bit 7/11) identifying that a data transmission is occurring
must be loaded into the Tx Data Register (by loading
register 8). This is used to detect when a code word is sent
from the transmitting unit.

b. At the transmitting unit: The same code word as above is

loaded into register 8. It is automatically loaded into the T

x

Data Register.

c. The data word (16 or 24 bits, set with bit 7/12) is then loaded

into register 9.

MC33410

7

MOTOROLA RF/IF DEVICE DATA

d. Upon loading register 9, the MC33410 automatically sends

out (at Pin 17) the code word, followed by the data word,
at the CVSD clock rate.

When the data word is completely sent out, the MC33410
will then return Pin 17 to its previous source of digital
information (CVSD Encoder or Tx 1010 Generator).

Scrambler/Digital Output

The scrambler receives digital data from the CVSD
Encoder, or the Tx 1010 Generator, or the Tx Data Register,
to be output at Pin 17. The output level is 0 to VCC. The
scrambler can be bypassed with Bit 7/1.

The scrambler, better known as a randomizer, provides
not only a level of communication security, but also helps
ensure the digital output will not contain an abnormally long
string of 1s or 0s which can adversely affect the CVSD
Decoder operation, as well as the RF section. The scrambler
is a maximal–length shift register sequence generator. The
length of the shift register is selectable to one of eight values
with bits 7/10–8 (the descrambler in the receiving unit must
be set the same). T able 5 lists the polynomial associated with
each tap selection.

Table 5. Scrambler/Descrambler Tap Selection

Ta

Register 7

Tap

No.

Bit 10 Bit 9 Bit 8

Shift Register Length Polynomial

0 0 0 0 2 1 + z–1 + z

–2

1 0 0 1 3 1 + z–2 + z

–3

2 0 1 0 4 1 + z–3 + z

–4

3 0 1 1 5 1 + z–3 + z

–5

4 1 0 0 6 1 + z–5 + z

–6

5 1 0 1 7 1 + z–6 + z

–7

6 1 1 0 9 1 + z–5 + z

–9

7 1 1 1 10 1 + z–7 + z

–10

Data Slicer/Clock Recovery

The data slicer will receive the low level digital signal from
the RF receiver section at Pin 38. The input signal to the data
slicer must be >200 mVpp. Hysteresis of 50 mV is internally
provided. The output of the data slicer will be same
waveform, but with an amplitude of 0 to VCC, and can be
observed at Pin 36 (MP1) if bits 7/5–4 are set to 10. The
output can be inverted by setting bit 5/19 = 1.

The clock recovery block will generate a phase locked
clock, equal to the CVSD data rate, from the incoming data,
as long as the Encoder Counter (bits 4/23–18) is set for that
data rate. The recovered clock can be observed at Pin 39
(MP2) if bits 7/7–6 are set to 00. The data from the clock
recovery block can be observed at Pin 36 if bits 7/5–4 are set
to 00. The clock recovery block may be bypassed by setting
bit 7/0 to 1. With this setting the data slicer output will go
directly to the descrambler, and the encoder clock will
replace the Clock Recovery Clock.

Tables 6 and 7 summarize the options available at MP1
and MP2 (Pins 36 and 39).

Table 6. MP1 Options (Pin 36)

Register 7

Bit 5 Bit 4 Function

0 0 Data from clock recovery block
0 1 Data Detect Output
1 0 Data Slicer Output
1 1 Hi–Z/ CD Input

ББББББББББББББББ

Table 7. MP2 Options (Pin 39)

ББББББББ

Register 7

Bit 7 Bit 6 Function

0 0 Output recovered clock
0 1 Input CVSD Decoder clock
1 X Disabled (Hi–Z)

When MP1 is set to a Hi–Z condition, the pin is an input for
the CD (Carrier Detect) function, with an input impedance of
600 KΩ. See the section entitled Low Battery/Carrier Detect
for an explanation of this function.

Descrambler

The descrambler receives the scrambled data from the
clock recovery block (or the data slicer if bit 7/0 = 1), and
descrambles it to the original data as long as the selected
taps are the same as those in the transmitting scrambler (see
T able 5). The descrambler block is the same configuration as
the scrambler, and is self–synchronizing. The descrambler
can be bypassed with bit 7/1.

Data Detect Register/Status Output/Rx Data Register

The Data Detect register will continuously compare the
descrambled data it receives with the 16 or 24–bit code word
stored in the Tx Data Register (loaded through register 8).
Upon detecting a match, and after the code word passes
through the shift register, the following (16 or 24–bit) data
word will be stored into the Rx Data Register, and then loaded
into register 10 of the MPU Interface. At this time the Status

MC33410

8

MOTOROLA RF/IF DEVICE DATA

output at Pin 13, and bit 5/22, will go high. The external
microprocessor can then retrieve the data word by reading
register 10, at which time the Status pin and bit will go low.

Upon detection of a code word as described above, the
CVSD Decoder will be provided with 32, 40, or 48–bits of a
1010 pattern (idle channel) to minimize disturbances to the
audio. After the data word is loaded into register 10, the
CVSD Decoder resumes receiving data from the
descrambler. The audio is therefore interrupted with a low
level signal for a maximum of 48 clock cycles (0.75 mSec at
64 kHz).

The Data Detect register can be bypassed by setting bit
7/3 = 1.

CVSD Decoder/Decoder Clock/Idle Channel

The CVSD Decoder will provide the analog equivalent, at
Pin 35, of the digital data it receives from the descrambler, or
from the 1010 generator (idle channel generator). There is a
single pole filter at the Decoder output to reduce the clock
noise normally present on a CVSD analog output. The CVSD
Decoder is self synchronizing as long as the decoder clock
matches the data rate, and the Decoder has been set with
bits 3/16–15 according to Table 2.

The Decoder clock is provided from the Clock Recovery
block by setting bits 7/7–6 to 00 or 1X. The clock is internally
provided to the Decoder, and is available at Pin 39.
Alternately, a Decoder clock can be provided from an
external source to Pin 39 by setting bit 7/7–6 to 01 (see
Table 7).

The Rx 1010 Generator provides an alternating 1–0
pattern (a square wave at half the CVSD clock rate) to the
CVSD Decoder, resulting in the lowest amplitude analog
signal at Pin 35. The 1010 Generator is automatically
selected whenever data is detected and received by the Data
Detection Circuit, as described above. Additionally, the 1010
Generator can be selected with bit 6/3 at any time.

The Decoder’s minimum step size can be selected using
bits 1/22–21, according to Table 3.

Receive Audio Path

The Receive Audio Path (Pins 34 to 32) consists of an
anti–aliasing filter, a low pass filter, a gain adjust stage, and a
mute switch.

Since the analog output of the CVSD Decoder (typically
input at Pin 34) will contain noise at the CVSD clock rate, the
anti–aliasing filter, with a corner frequency at 30 kHz, is
provided to prevent aliasing of that clock noise with the
subsequent switched capacitor filter.

The switched capacitor low pass filter is a 3 pole filter , with
a corner frequency at 5.0 kHz. This is designed to remove the
clock noise from the CVSD Decoder output signal, as well as
provide bandwidth limiting in the audio range.

The gain stage provides 28.5 dB of gain adjustment in 19
steps (1.5 dB each), measured from Pin 34 to 32. Bits 6/10–6
are used to set the gain according to Table 8.

The mute switch at Pin 32, controlled by bit 6/1, will mute
a minimum of 60 dB.

ББББББББББББББББ

Table 8. Receive Gain Adjustment

ÁÁÁÁ

Register 6

Register 6

Bits 10...6

Gain Bits 10...6 Gain

00110 –13.5 dB 10000 +1.5 dB

00111 –12.0 dB 10001 +3.0 dB
01000 –10.5 dB 10010 +4.5 dB
01001 –9.0 dB 10011 +6.0 dB
01010 –7.5 dB 10100 +7.5 dB
01011 –6.0 dB 10101 +9.0 dB
01100 –4.5 dB 10110 +10.5 dB
01101 –3.0 dB 1011 1 +12.0 dB

01110 –1.5 dB 1 1000 +13.5 dB

01111 0.0 dB 11001 +15.0 dB

Power Amplifiers

The power amplifiers (Pins 28, 29, 31) are designed to
drive the earpiece in a handset, or the telephone line via a
hybrid circuit in the base unit. Each output (PAO+ and PAO–)
can source and sink 5 mA, and can swing 2.0 Vpp each. The
gain of the amplifiers is set with a feedback resistor from Pin
29 to 31, and an input resistor at Pin 31. The differential gain
is 2x the resistor ratio. Capacitors can be used for frequency
shaping. The pins’ dc level is VB (≈1.5 V).

The Mute switch, controlled with bit 6/0, will provide 90 dB
of muting with a 50 kΩ feedback resistor. The amount of
muting will depend on the value of the feedback resistor.

Reference Clock

The reference clock provides the frequency basis for the
three PLLs, the switched capacitor filters, and the CVSD
Encoder section. The source for the reference clock can be a
crystal in the range of 4.0 to 18.25 MHz connected to Pins 14
& 15, or it can be an external source connected to F

ref

In (Pin

14). The reference frequency is directed to:
a. A programmable 12–bit counter to provide the reference

frequency for the three PLLs. The 12–bit counter is to be
set such that, in conjunction with the programmable
counters within each PLL, the proper frequencies can be
produced by each VCO.

b. A programmable 6–bit counter, followed by a ÷2 stage, to

set the frequency for the switched capacitor filters to
256 kHz, or as close to that as possible.

c. A programmable 6–bit counter which provides the 16x

clock for the Clock Recovery block. This is followed by a
÷16 stage which provides the CVSD Encoder clock. This
is followed by a ÷32 stage, and a programmable 4–bit
counter which sets the delay for the Idle Channel Detect
circuit.

Transmit and Receive (LO1) PLL Sections

The transmit and receive PLLs (Pins 6 to 9 and 1 to 4,
respectively) are designed to be part of a 900 MHz system. In

MC33410

9

MOTOROLA RF/IF DEVICE DATA

a typical application the Transmit PLL section will be set up to
generate the transmit frequency, and the Receive PLL
section will be set up to generate the LO1 frequency. The two
sections are identical, and function independently. External
requirements for each include a low pass filter, a 900 MHz
VCO, and a 64/65 or 128/129 dual modulus prescaler.

The frequency output of the VCO is to be reduced by the
dual modulus prescaler, and then input to the MC33410 (at
Pin 2 or 8). That frequency is then further reduced by the
programmable 13–bit counter (bits 1/19–7 or 2/19–7), and
provided to one side of the Phase Detector, where it is
compared with the PLL reference frequency. The output of
the phase detector (at Pin 4 or 6) is a bi–directional charge
pump which drives the VCO through the low pass filter. Bits
1/20 and 2/20 set the gain of each of the two charge pumps
to either 100/2π µA/Radian or 400/2π µA/Radian. The polarity
of the two phase detector outputs is set with bits 7/22 and
7/23. If the bit=0, the appropriate PLL is configured to operate
with a non–inverting low pass filter/VCO combination. If the
low pass filter/VCO combination is inverting, the polarity bit
should be set to 1.

The 7–bit A and A’ counters (bits 1/6–0 and 2/6–0) are to
be set to drive the Modulus Control input of the 64/65 or
128/129 dual modulus prescalers. The Modulus Control
outputs (Pins 1 and 9) can be set to either a voltage mode or
a current mode with bit 7/13.

To calculate the settings of the N and A registers, the
following procedure is used:

f

VCO

f

PLL

+

Nt (Nt must be an integer)

Nt

P

+

N

Equation 1

Equation 2

A = Remainder of Equation 2

(decimal part of N x P)

Equation 3

where: f

VCO

= the VCO frequency

f

PLL

= the PLL Reference Frequency set within

the MC33410

P = the smaller divisor of the dual modulus

prescaler (64 for a 64/65 prescaler)

N = the whole number portion is the setting for the

N (or N’) counter within the MC33410

A = the setting for the A (or A’) counter within the

MC33410

For example, if the VCO is to provide 910 MHz, and the
internal PLL reference frequency is 50 kHz, then the
equations yield:

Nt

+

910 x 10

6

50 x 10

3

+

18,200

N

+

18,200

64

+

284.375

A+0.375 x 64+24

The N register setting is 284d (0 0001 0001 1100), and the
A register setting is 24d (001 1000).

2nd LO (LO2)

This PLL is designed to be the 2nd Local Oscillator in a
typical 900 MHz system, and is designed for frequencies up
to 80 MHz. The VCO and varactor diodes are included, and
are to be used with an external tank circuit (Pins 43 to 45).

Bits 7/20–18 are used to select an internal capacitor, with
a value in the range of 0 to 7.6 pF, to parallel the varactor
diodes and the tank’s external capacitor. This permits a
certain amount of fine tuning of the oscillator’s performance.
See Table 9.

A buffered output is provided to drive, e.g., a mixer. The
frequency is set with the programmable 14–bit counter (bits
3/13–0) in conjunction with the PLL reference frequency . For
example, if the reference frequency is 50 kHz, and the 2nd
LO frequency is to be 63.3 MHz, the 14–bit counter needs to
be set to 1266d (00 0100 1111 0010). The output level is
dependent on the value of the impedance at Pin 41, partly
determined by the external pullup resistor.

The output of the phase detector is a bi–directional charge
pump which drives the varactor diodes through an external
low pass filter. Bit 3/14 sets the gain of the charge pump to
either 100/2π µA/Radian or 400/2π µA/Radian. Bit 7/21 sets
its polarity – if 0, the PLL is configured to operate with a
non–inverting low pass filter/VCO combination. If the low
pass filter/VCO combination is inverting, the polarity bit
should be set to 1.

ББББББББББББББББ

Table 9. LO2 Capacitor Selection

ÁÁÁÁ

Register 7

Ca

acitor

Register 7

Ca

acitor

Bits 20–18

Capacitor

Value

Bits 20–18

Capacitor

Value

000 0 pF 100 4.3 pF
001 1.1 pF 101 5.4 pF
010 2.2 pF 110 6.5 pF

011 3.3 pF 111 7.6 pF

VB Reference Voltage

The VB voltage (≈1.5 V) is available at Pin 33. It will have
a production tolerance of ±6%, and can be adjusted over a

±9% range using bits 3/20–17. The adjustment steps will be
≈1.2% each. VB can be used to bias external circuitry, as

long as the load current on this pin does not exceed 10 µA.

Low Battery/Carrier Detect

This circuit will provide an indication of either Low Battery
voltage, or a low carrier signal applied to Pin 36 (MP1) from
an RSSI circuit. The desired mode is selected with bit 6/5.

A) Low Battery Mode (Bit 6/5 = 0)

The supply voltage at Pin 18 is applied to the comparator
through an internal resistor divider, and is compared to the
internal reference VB (≈1.5 V). The comparator has ≈15 mV
of hysteresis, measured at VCC. The resistor divider is
adjustable using bits 3/23–21. The Low Battery threshold
voltage will then be equal to the VB voltage multiplied by the
factor listed in Table 10. For example, if VB = 1.5 V, and bits
3/23–21 = 011, the threshold will be 3.21 V.

B) Carrier Detect Mode (Bit 6/5 = 1)

Pin 36 (MP1) must be set to the Hi–Z/CD Input mode by
setting bits 7/5–4 to 11. MP1 will then be an input with an
input impedance of ≈600 kΩ, referenced to VB. An analog
signal applied to MP1 will be applied to the comparator
through an internal adjustable gain stage (adjustable using
bits 3/23–21), and is compared to the internal reference VB.
The comparator has ≈18.0 mV of hysteresis, measured at
Pin 36. The threshold voltage will then be equal to the VB
voltage multiplied by the factor listed in Table 10. For

MC33410

10

MOTOROLA RF/IF DEVICE DATA

example, if VB = 1.5 V, and bits 3/23–21 = 01 1, the threshold
will be 0.576 V.

Table 10. LB/CD Threshold Adjustment Factor

Register 3

Carrier Detect

Register 3

Bits 23–21

Low Battery Mode

Mode

000 1.96 0.574
001 2.02 0.524
010 2.08 0.453
011 2.14 0.384
100 2.19 0.314
101 2.25 0.247
110 2.30 0.177
111 2.37 0.110

The comparator output is at bit 5/23, and at Pin 16 (open

collector output). The outputs are high if the monitored V

CC

voltage is above the threshold, or if the Carrier signal is below
the threshold. Pin 16 requires an external pullup resistor.
When this circuit is disabled (bit 5/10 = 1), bit 5/23 and Pin 16
will be high.

MPU Serial Interface

The MPU Serial Interface is a 3–wire interface, consisting
of a Clock line, an Enable line, and a bi–directional Data line.
The interface is always active, i.e. it cannot be powered down
as all other sections of the MC33410 are disabled and
enabled through this interface.

The clock must be supplied to the MC33410 at Pin 11 to
write or read data, and can be any frequency up to 2.0 MHz.
The clock need not be present when data is not being
transferred. The Enable line must be low when data is not
being transferred.

Internally there are 10 data registers, 24 bits each,
addressed with four bits ranging from $1 to $A. Register 10,
and bits 23–21 of register 5 contain data to be read out by the
microprocessor, while all other register bits are to be written
to by the microprocessor. The contents of the 10 registers
can be read out at any time. All bits are written in, or read out,
on the clock’s positive transition. The write and read
operations are as follows:
a) Write Operation:

To write data to the MC33410, the following sequence is
required (see Figure 2):

1. The Enable line is taken high.

2. Five bits are entered:

– The first bit must be a 0 to indicate a Write operation.
– The next four bits identify the register address

(0001–1010). The MSB is entered first.

3. After the 5th clock pulse is low, the Enable line is taken low .

At this transition, the address is latched in and decoded.

4. The Enable line is maintained low while the data bits are

clocked in. The MSB is entered first, and the LSB last. If 24
bits are written to a register which has less than 24 active
bits (e.g., register 6), the unassigned bits are to be 0.

5. After the last bit is entered, the Enable line is to be taken

high and then low. The falling edge of this pulse latches in
the just entered data. The clock line can be at a logic high
or low, but must not transition in either direction during this
Enable pulse.

6. The Enable line must then be kept low until the next

communication.

Note: If less than 24 bits are to be written to a data register,
it is not necessary to enter the full 24 bits, as long as they are
all lower order bits. For example, if bits 0–6 of a register are
to be updated, they can be entered as 7 bits with 7 clock
cycles in step 4 above. However, if this procedure is used, a
minimum of 4 bits, with 4 clock pulses, must be entered.

Figure 2. Writing Data to the MC33410

Clock

Data

Enable

123 24

4–Bit Address

24–Bit Data from MPU

MSB LSB

Latch Address Latch Data

Figure 3. Reading Data from the MC33410

Clock

Data

Enable

123 24

Sets Data Pin
to Output

4–Bit Address

24–Bit Data from MC33410

MSB LSB

Latch Address and Load
Data into Shift Register

Sets Data Pin
to Input

MC33410

11

MOTOROLA RF/IF DEVICE DATA

b) Read Operation:

To read the output bits (bits 5/23–21, or all of register 10),
or the contents of any register, the following sequence is
required (see Figure 3):

1. The Enable line is taken high.

2. Five bits are entered:

– The first bit must be a 1 to indicate a Read operation.
– The next four bits identify the register address

(0001–1010). The MSB is entered first.

3. After the 5th clock is taken low, the Enable line is taken low.

At this transition, the address is latched in and decoded,
and the contents of the selected register is loaded into the
24–bit output shift register. At this point, the Data line
(Pin 12) is still an input.

4. While maintaining the Enable line low, the data is read out.

The first clock rising edge will change the Data line to an
output, and the MSB will be present on this line.

5. The full contents of the register are then read out (MSB first,

LSB last) with a total of 24 clock rising edges, including the
one in step 4 above. It is recommended that the MPU read
the bits at the clock’s falling edge. If only bit 23, 22, or 21
of register 5 are to be read, this can be done with one, two,
or three clock rising edges, respectively.

6. After the last clock pulse, the Enable line is to be taken high

and then low. The falling edge of this pulse returns the Data
pin to be an input. The clock line can be at a logic high or
low, but must not transition in either direction during this
Enable pulse.

7. The Enable line must then be kept low until the next

communication.

Data Modem Mode

For applications where the MC33410 is to be used in a
900 MHz wireless system for transmitting data only
(non–voice), a mode can be set which bypasses the speech
digitizing sections. The resulting configuration makes use of
those sections associated with data only, i.e., the scrambler,
descrambler, and clock recovery section. Also functional are
the three PLLs, the audio receive path (Pins 34 to 28), the

transmit audio path (Pins 23 to 20), and the Low Battery
circuit (but not the Carrier Detect mode).

In this mode, the MC33410 will provide the transmit data
clock from the crystal, in conjunction with the internal 6–bit
counter (bits 4/23–18) and the ÷16 block associated with that
counter. The transmit data clock is available at Pin 13, and
can be used to synchronize the external data source. The T

x

data is input at Pin 39, passes through the scrambler, and
outputs at Pin 17.

The demodulated data from the RF receiver is input at
Pin 38, and is applied to the data slicer, and the clock
recovery block. The recovered clock is output at Pin 12. The
data passes through the descrambler, and is output at Pin 36.

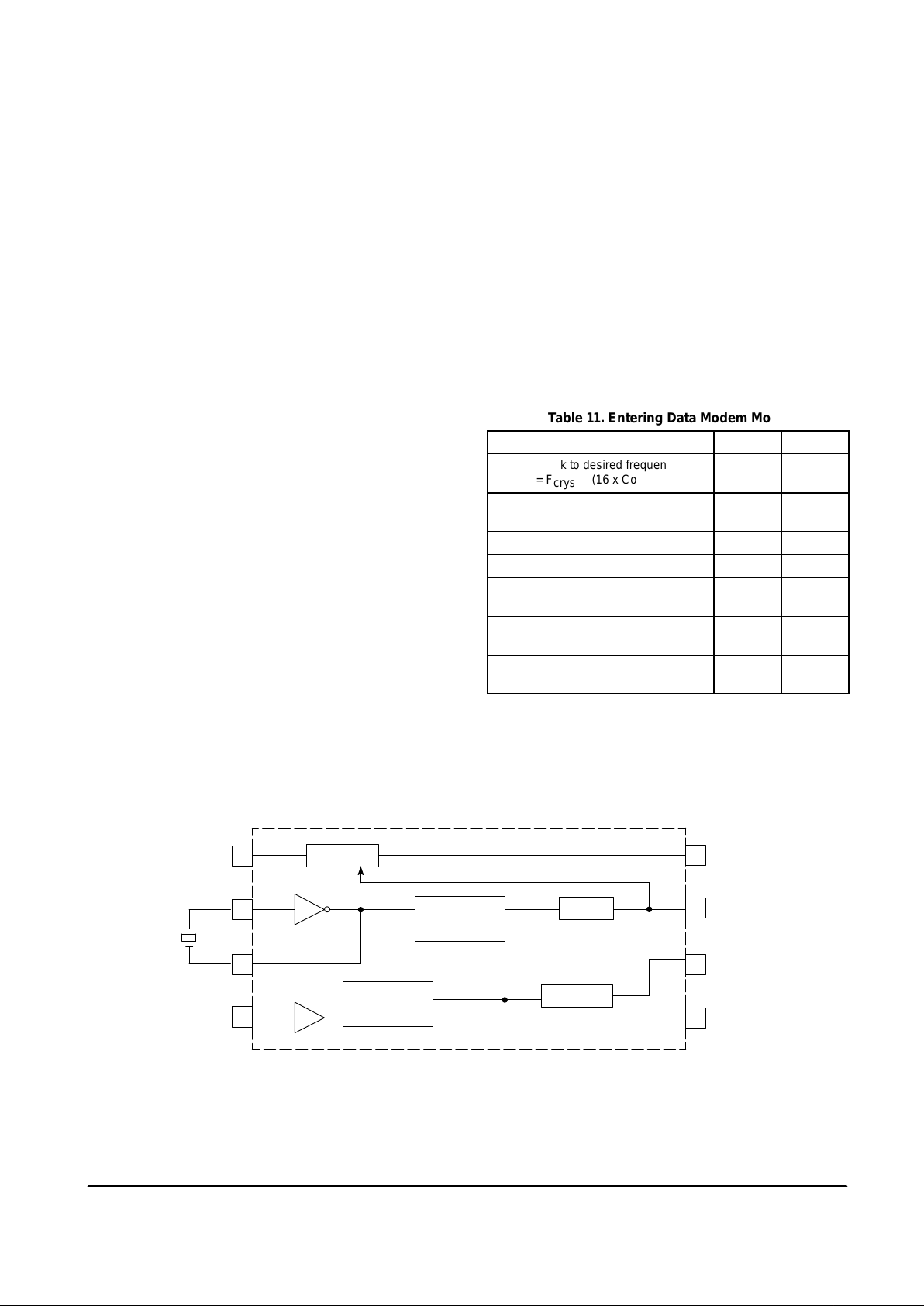

Figure 4 is a diagram of the data paths through the
MC33410.

The procedure for entering the Data Modem mode is in
Table 11:

Table 11. Entering Data Modem Mode

Function

Bits

Bit Value

Set Tx Clock to desired frequency
Tx Clk = F

crystal

/(16 x Counter).

4/23 – 18 As

Desired

Set Scrambler & Descrambler tap
setting (Bit 7/1 = 0).

7/10 – 8 As

Desired
Bypass Data Detect. 7/3 1
Set MP1 to Data Detect Output. 7/5 – 4 01
Set Test Mode bits to connect Encode

Clock to Status (Pin 13).

7/17 – 15 110

Set Data Modem Mode (MP2 to
scrambler Input).

5/20 1

Write to Register 1 1 as shown in
Figure 5 to configure Pin 12.

N/A N/A

The above sequence is not critical, except that the last two
steps must be the setting of bit 5/20, and writing to register
1 1. Writing to register 11 is shown in Figure 5.

Figure 4. Data Modem Mode Configuration

Tx Data

Input

Scrambler

Prog. 6–bit

Counter

39

14

15

38

Clock

Recovery

17

13

36

12

Descrambler

÷

16

Rx Data

Input

Crystal

Recovered
Rx Clock

Rx Data
Out

Tx Clock
Out

Tx Data
Out

MC33410

Data

Slicer

MC33410

12

MOTOROLA RF/IF DEVICE DATA

Figure 5. Entering/Exiting Data Modem Mode

Clock

Data

Enable

Address 1011

Recovered Clock Output @ Pin 12

Sets Data Pin
to Output

Sets Data Pin
to Input

After address 11 is clocked in, the Enable falling edge will
cause Pin 12 (Data) to switch to an output, providing the
recovered clock. The microprocessor’s data pin must be
changed to an input prior to this falling edge. This sequence
is effective only if bit 5/20 is set to a 1.

During the time that recovered clock is available at Pin 12,
the microprocessor port is unavailable for any control
functions.

To exit the Data Modem mode, the Enable line is to be
taken high and low (the clock is to be stable during this active
high pulse). The falling edge will set Pin 12 to be an input,
allowing normal use of the microprocessor port. The next
step is to set bit 5/20 to a 0. Other register bits can then be set
as needed.

To prevent inadvertent incorrect operation of the
microprocessor port, bit 5/20 must always be set to 0 when
the Data Modem mode is not in use.

Power Supply/Power Saving Modes

The power supply voltage, applied to all VCC pins, can
range from 2.7 to 5.5 V . All VCC pins must be within ±0.5 V of
each other, and each must be bypassed. It is recommended
a ground plane be used, and all leads to the MC33410 be as
short and direct as possible. The supply and ground pins are
distributed as follows:

1. Pins 18, 27 and 37 are internally connected together , and

provide power to the audio amplifiers, filters, CVSD
encoder and decoder, and the low frequency (CVSD rate)
logic circuits. Pins 21, 30 and 40 are the ground pins for
these sections.

2. Pin 3 provides power to the Rx PLL section. Pin 5 is the

ground pin.

3. Pin 7 provides power to the Tx PLL section, and the MPU

interface. Pin 5 is the ground pin.

4. Pin 42 provides power to the 2nd LO section. Pins 46 and

48 are the ground pins.

To conserve power, various sections can be individually
disabled, using bits 5/10–0 (setting a bit to 1 disables the
section).

1. Reference Oscillator Disable (bit 5/0) – The reference
oscillator at Pins 14 and 15 is disabled, thereby denying a
clock to the three PLLs, the CVSD Encoder, and the
switched capacitor filters.

2. Tx PLL Disable (bit 5/1) – The 13–bit and 7–bit counters,
input buffer, phase detector, and modulus control blocks
are disabled. The charge pump output at Pin 6 will be in a
Hi–Z state.

3. Rx PLL Disable (bit 5/2) – The 13–bit and 7–bit counters,
input buffer, phase detector, and modulus control blocks
are disabled. The charge pump output at Pin 4 will be in a
Hi–Z state.

4. LO2 PLL Disable (bit 5/3) – The VCO, 14–bit counter,
output buffer, and phase detector are disabled. The
charge pump output at Pin 47 will be in a Hi–Z state.

5. Rx Data Path Disable (bit 5/4) – The data slicer, clock
recovery block, descrambler, data detect register , and the
status output circuit are disabled. The state of the status
line (Pin 13 and bit 5/22) will not change upon disabling this
section.

6. CVSD Decoder Disable (bit 5/5) – The CVSD Decoder and
the Rx 1010 Generator are disabled.

7. Rx Audio Path Disable (bit 5/6) – The anti–aliasing filter,
low pass filter, and variable gain stage are disabled.

8. Power Amplifier Disable (bit 5/7) – The two power
amplifiers are disabled. Their outputs will go to a Hi–Z
state.

9. Tx Audio Path Disable (bit 5/8) – Disables the microphone
amplifier, low pass filter, and smoothing filter.

10.CVSD Encoder Disable (bit 5/9) – The CVSD Encoder, Idle
Channel detect circuit, the Tx 1010 Generator, the Tx Data
register, and the scrambler are disabled.

1 1. Low Battery/Carrier Detect Disable (bit 5/10) – The LB/CD

circuit is disabled. The output, at bit 5/23 and Pin 16 will be
at a logic high.

12.Idle Channel Detect Disable (bit 5/18) – Powers down the
Idle Channel Detect circuit.

Note: The 12–bit reference counter is disabled if the three

PLLs are disabled (bits 5/1–3 = 1).

MC33410

13

MOTOROLA RF/IF DEVICE DATA

Table 12. Control Bit Listing (By Register Number)

ÁÁÁÁ

Á

Register

ÁÁ

Á

Bit No.

ÁÁÁ

Á

Power Up

Default

ББББББББББББББББББББ

Á

Function (when bit = 1 if appropriate)

1

6 – 0 1000000 Sets the 7–bit Tx A counter for the Tx PLL.

(23 bits total)

19 – 7 10....0 Sets the 13–bit Tx N counter for the Tx PLL.

20 0 Sets the Tx phase detector charge pump output current. 0 = ±100 µA,

and 1 = ±400 µA.

22, 21 00 Sets CVSD Decoder minimum step size per Table 3.

2

6 – 0 1000000 Sets the 7–bit Rx A’ counter for the Rx PLL.

(23 bits total)

19 – 7 10....0 Sets the 13–bit Rx N’ counter for the Rx PLL.

20 0 Sets the Rx phase detector charge pump output current. 0 = ±100 µA,

and 1 = ±400 µA.

22, 21 00 Sets CVSD Encoder minimum step size per Table 3.

3

13 – 0 10....0 Sets the 14–bit counter for the 2nd LO.

(24 bits total)

14 0 Sets the LO2 phase detector charge pump output current. 0 = ±100 µA, and 1 = ±400

µA.
16 – 15 11 Set the CVSD encoder/decoder for the selected clock rate. (Table 2)
20 – 17 0111 Adjusts the VB reference voltage (≈1.5 V) to improve low battery detection accuracy .

Total adjustment range is ≈±9%.
23 – 21 011 Selects the threshold for Low Battery Detection or Carrier Signal Detection. See

Table 10.

4

11 – 0 $800 Sets the 12–bit counter for the PLL Reference Clock.

(24 bits total)

17 – 12 100000 Sets the 6–bit counter for the Switched Capacitor Filter clock.
23 – 18 100000 Sets the 6–bit counter to set the CVSD Encoder clock rate.

5

0 0 Power down the Reference Oscillator

(24 bits total)

1 0 Power down the Tx PLL.
2 0 Power down the Rx PLL.
3 0 Power down the LO2 PLL.
4 0 Power down the Rx Data Path. Includes Data Slicer, Clock Recovery, Descrambler,

Data Detect, and Status circuits.

5 0 Power down the CVSD Decoder.
6 0 Power down the Rx Audio path (Pin 32 to 30). Includes AALPF, LPF, and Gain Adjust

circuits.

7 0 Power down the Power Amplifiers (Pins 27, 28)
8 0 Power down the Tx Audio Path (Pin 25 to 22). Includes micro–phone amplifier, LPF,

and Smoothing LPF circuits.

9 0 Power down the CVSD Encoder, Idle Channel Detector, 1010 Generator, Tx Data

Register, and Scrambler circuits.

10 0 Power down the Low Battery/Carrier Detect Circuit.
14 – 11 0111 Sets the 4–bit counter to set the response delay for the idle channel detect circuit.
17 – 15 100 Sets the idle channel detect threshold level. See Table 4.

18 0 Power down the Idle Channel Detect Circuit.

19 0 Inverts the Data Slicer output.

20 0 Sets the Data Modem mode of operation.

21 N/A Indicates an idle channel condition has been detected (Output). This output is

unaffected by bit 7/2.
22 N/A The Status Output (same as Pin 13) is read out from this bit.
23 N/A The output of the Low Battery/Carrier Detect Circuit is read from this bit.

MC33410

14

MOTOROLA RF/IF DEVICE DATA

Table 12. Control Bit Listing (By Register Number) (continued)

Function (when bit = 1 if appropriate)

Power Up

Default

Bit No.

Register

6

0 0 Mutes the power amplifiers (Pins 27 to 29).

(16 bits total)

1 0 Mutes the receive speech processing path (Pin 30).
2 0 Mutes the transmit speech processing path (Pin 22).
3 0 Selects the Rx 1010 Generator to the CVSD decoder.
4 0 Selects the Tx 1010 Generator to the scrambler.
5 0 Sets Carrier Detect Mode vs. Low Battery mode.

10 – 6 01111 Provides 19 steps, 1.5 dB each (28.5 dB range), of gain adjust in the receive speech

audio path (Pins 32 to 30). See Table 8.

15 – 11 00100 Provides 4 steps of 4.0 dB each, for the remote gain adjust in the transmit speech

audio path (Pins 23 to 20).

7

(24 bits total)

0 0 Bypass the Clock Recovery Block (Data slicer output goes directly to the

descrambler).

1 0 Bypass the scrambler and descrambler.
2 0 Disables the automatic idle channel detect at the CVSD encoder. Bit 5/21 is still active.
3 0 Bypass the Data Detect block (Descrambler output goes directly to the CVSD

Decoder).

5 – 4 00 Determines the function for Pin 36 (MP1). See Table 6.
7 – 6 00 Determines the function for Pin 39 (MP2). See Table 7.

10 – 8 010 Selects one of 8 programmable taps in the scrambler and descrambler. See Table 5.

11 1 Sets the code word size to be sent out via the Tx Data Register to 24 bits. If this bit is

0, the code word size is 16 bits.
12 1 Sets the data word size to be sent out via the Tx Data Register to 24 bits. If this bit is 0,

the data word size is 16 bits.
13 0 Sets the FTx MC and FRx MC output level to be from ground to VCC. If this bit is 0, the

output level is ±100 µA.
14 0 Disables the CVSD charge compensation circuit.

17 – 15 000 Test modes for production testing only .
20 – 18 000 Selects the value of the internal capacitor between Pins 43 to 45, to fine tune the LO2

tank circuit. See Table 9.
21 0 Sets the polarity of the 2nd LO phase detector charge pump output for an inverting low

pass filter/VCO combination.
22 0 Sets the polarity of the Rx phase detector charge pump output for an inverting low

pass filter/VCO combination.
23 0 Sets the polarity of the Tx phase detector charge pump output for an inverting low pass

filter/VCO combination.

8 23 – 0 $000000 Code word for the Tx Data Register is entered into this register.
9 23 – 0 $000000 Data word for the Tx Data Register is entered into this register.

10 23 – 0 $000000 The data word received into the Rx Data Register is read out via the µP port from this

register.

MC33410

15

MOTOROLA RF/IF DEVICE DATA

Table 13. Control Bit Listing (By Function)

PLL Controls

ÁÁÁÁ

Á

Register

ÁÁ

Á

Bit No.

ÁÁÁ

Á

Power Up

Default

ББББББББББББББББББББ

Á

Function (when bit = 1 if appropriate)
1 6 – 0 1000000 Sets the 7–bit Tx A counter for the Tx PLL.

1 19 – 7 10....0 Sets the 13–bit Tx N counter for the Tx PLL.

2 6 – 0 1000000 Sets the 7–bit Rx A’ counter for the Rx PLL.

2 19 – 7 10....0 Sets the 13–bit Rx N’ counter for the Rx PLL.

3 13 – 0 10....0 Sets the 14–bit counter for the 2nd LO.

4 11 – 0 $800 Sets the 12–bit counter for the PLL Reference Clock.
7 13 0 Sets the FTx MC and FRx MC output level to be from ground to VCC. If this bit is 0, the

output level is ±100 µA.

PLL Phase Detectors

Register

Bit No.

Power Up

Default

Function (when bit = 1 if appropriate)

1 20 0 Sets the Tx phase detector charge pump output current. 0 = ±100 µA,

and 1 = ±400 µA.

2 20 0 Sets the Rx phase detector charge pump output current. 0 = ±100 µA,

and 1 = ±400 µA.

3 14 0 Sets the LO2 phase detector charge pump output current. 0 = ±100 µA,

and 1 = ±400 µA.

7 20 – 18 000 Selects the value of the internal capacitor between Pins 43 to 45, to fine tune the LO2

tank circuit. See Table 9.

7 21 0 Sets the polarity of the 2nd LO phase detector charge pump output for an inverting low

pass filter/VCO combination.

7 22 0 Sets the polarity of the Rx phase detector charge pump output for an inverting low

pass filter/VCO combination.

7 23 0 Sets the polarity of the Tx phase detector charge pump output for an inverting low pass

filter/VCO combination.

CVSD Controls

ÁÁÁÁ

Á

Register

ÁÁ

Á

Bit No.

ÁÁÁ

Á

Power Up

Default

ББББББББББББББББББББ

Á

Function (when bit = 1 if appropriate)
1 22, 21 00 Sets CVSD Decoder minimum step size per Table 3.
2 22, 21 00 Sets CVSD Encoder minimum step size per Table 3.
3 16 – 15 11 Set the CVSD encoder/decoder for the selected clock rate. (Table 2)
4 23 – 18 100000 Sets the 6–bit counter to set the CVSD Encoder clock rate.
6 3 0 Selects the Rx 1010 Generator to the CVSD decoder.
6 4 0 Selects the Tx 1010 Generator to the scrambler.
7 14 0 Disables the CVSD charge compensation circuit, which affects idle channel

performance.

Idle Channel Detector

Register

Bit No.

Power Up

Default

Function (when bit = 1 if appropriate)

5 14 – 11 0111 Sets the 4–bit idle channel counter to set the response delay for the idle channel

detect circuit.
5 17 – 15 100 Sets the idle channel detect threshold level. See Table 4.
5 21 N/A Indicates an idle channel condition has been detected (Output). This output is

unaffected by bit 7/2.
7 2 0 Disables the automatic idle channel detect at the CVSD encoder. Bit 5/21 is still active.

MC33410

16

MOTOROLA RF/IF DEVICE DATA

Table 13. Control Bit Listing (By Function) (continued)

Data Transmission/Reception

ÁÁÁÁ

Á

Register

ÁÁ

Á

Bit No.

ÁÁÁ

Á

Power Up

Default

ББББББББББББББББББББ

Á

Function (when bit = 1 if appropriate)
5 19 0 Inverts Data Slicer output.
5 20 0 Sets Data Modem mode.
5 22 N/A The Status Output (same as Pin 13) is read out from this bit. A logic 1 indicates the

Data Detect register has detected a code word.
7 0 0 Bypass the Clock Recovery Block (Data slicer output goes directly to the descrambler).
7 3 0 Bypass the Data Detect block (Descrambler output goes directly to the CVSD Decoder).
7 11 1 Sets the code word size to be sent out via the Tx Data Register to 24 bits. If this bit is

0, the code word size is 16 bits.
7 12 1 Sets the data word size to be sent out via the Tx Data Register to 24 bits. If this bit is 0,

the data word size is 16 bits.
8 23 – 0 $000000 Code word for the Tx Data Register is entered into this register.
9 23 – 0 $000000 Data word for the Tx Data Register is entered into this register.

10 23 – 0 $000000 The data word received into the Rx Data Register is read out via the µP port from this

register.

Scrambler/Descrambler

ÁÁÁÁ

Register

ÁÁ

Bit No.

ÁÁÁ

Power Up

Default

ББББББББББББББББББББ

Function (when bit = 1 if appropriate)
7 1 0 Bypass the scrambler and descrambler.
7 10 – 8 010 Selects one of 8 programmable taps in the scrambler and descrambler. See Table 5.

ББББББББББББББББББББББББББББББББ

Á

Multi Purpose Pin Control

ÁÁÁÁ

Á

Register

ÁÁ

Á

Bit No.

ÁÁÁ

Á

Power Up

Default

ББББББББББББББББББББ

Á

Function (when bit = 1 if appropriate)
7 5 – 4 00 Determines the function for Pin 36 (MP1). See Table 6.
7 7 – 6 00 Determines the function for Pin 39 (MP2). See Table 7.

Audio Paths

ÁÁÁÁ

Á

Register

ÁÁ

Á

Bit No.

ÁÁÁ

Á

Power Up

Default

ББББББББББББББББББББ

Á

Function (when bit = 1 if appropriate)
4 17 – 12 100000 Sets the 6–bit counter for the Switched Capacitor Filter clock.
6 0 0 Mutes the power amplifiers (Pins 27 to 29).
6 1 0 Mutes the receive speech processing path (Pin 30).
6 2 0 Mutes the transmit speech processing path (Pin 22).
6 10 – 6 01111 Provides 19 steps, 1.5 dB each (28.5 dB range), of gain adjust in the receive speech

audio path (Pins 32 to 30). See Table 8.

6 15 – 11 00100 Provides 4 steps of 4.0 dB each, of gain adjust in the transmit speech audio path

(Pins 23 to 20).

Low Battery/Carrier Detection

ÁÁÁÁ

Á

Register

ÁÁ

Á

Bit No.

ÁÁÁ

Á

Power Up

Default

ББББББББББББББББББББ

Á

Function (when bit = 1 if appropriate)
3 20 – 17 0111 Adjusts the VB reference voltage (≈1.5 V) to improve low battery detection accuracy .

Total adjustment range is ≈±9%.

3 23 – 21 01 1 Selects the threshold for Low Battery Detection or Carrier Signal Detection. See

Table 10.
5 23 N/A The output of the Low Battery/Carrier Detect Circuit is read from this bit.
6 5 0 Sets Carrier Detect Mode vs. Low Battery Mode

MC33410

17

MOTOROLA RF/IF DEVICE DATA

Table 13. Control Bit Listing (By Function) (continued)

Power Down Control

ÁÁÁÁ

Á

Register

ÁÁ

Á

Bit No.

ÁÁÁ

Á

Power Up

Default

ББББББББББББББББББББ

Á

Function (when bit = 1 if appropriate)
5 0 0 Power down the Reference Oscillator
5 1 0 Power down the Tx PLL.
5 2 0 Power down the Rx PLL.
5 3 0 Power down the LO2 PLL.
5 4 0 Power down the Rx Data Path. Includes Data Slicer, Clock Recovery, Descrambler,

Data Detect, and Status circuits.
5 5 0 Power down the CVSD Decoder.
5 6 0 Power down the Rx Audio path (Pin 32 to 30). Includes AALPF, LPF, and Gain Adjust

circuits.
5 7 0 Power down the Power Amplifiers (Pins 27, 28)
5 8 0 Power down the Tx Audio Path (Pin 25 to 22). Includes micro–phone amplifier, LPF,

and Smoothing LPF circuits.
5 9 0 Power down the CVSD Encoder, Idle Channel Detector, 1010 Generator, Tx Data

Register, and Scrambler circuits.
5 10 0 Power down the Low Battery/Carrier Detect Circuit.
5 18 0 Power down the Idle Channel Detection Circuit.

MC33410

18

MOTOROLA RF/IF DEVICE DATA

Table 14. Register Map

1001

Invert

Data

Slicer

Idle

Channel

Disable

Data

Modem

Mode

Idle Chan.

Output

Status

Output

LB/CD

Det. Out

1010

0111

1000

0110

0100

0101

0010

0011

0001

9

10

7

8

6

4

5

2

3

1

Register

Address

Register

Number

MSB

23

Tx Phase

Detector

Polarity

Rx Phase

Detector

Polarity

Sets Low Battery/Carrier Detect

Threshold

6 Bit Encode Clock Counter Divide Value

22 21

CVSD Decoder

Minimum Step Size

CVSD Encoder

Minimum Step Size

LO2 Ph.

Detector

Polarity

LO2 Capacitor Select

20 19

Tx PhDet.

Curr. Sel.

Rx PhDet.

Curr. Sel.

Adjust VB Reference Voltage

18

Sets Idle Channel Threshold Level

Production Test Modes & Data

Modem Mode

17

Idle

Charge

Disable

FTxMC/

FRxMC

Level

Data

Word Size

(16/24 bit)

Remote Gain Adjust (Bits 15 – 11)

16 or 24 Bit Code Word for the Tx Data Register (Bits 23 – 0)

16 or 24 Bit Data Word for the Tx Data Register (Bits 23 – 0)

16 or 24 Bit Data Word Output from the Rx Data Register (Bits 23 – 0)

16 15 14 13 12

13 Bit Tx N Counter Divide Value (Bits 19 – 7)

13 Bit Rx N’ Counter Divide V alue (Bits 19 – 7)

Set CVSD for the

selected Clock Rate

LO2 PhD

Curr. Sel.

14 bit LO2 Counter

Divide Value (Bits 13 – 0)

6 Bit Switched Capacitor Filter Counter Divide Value

4 Bit Idle Channel Counter Delay

Value (Bits 14 – 11)

1001

1010

0111

1000

0110

0100

0101

0010

0011

0001

9

10

7

8

6

4

5

231

Register

Address

Register

Number

1098765

16 or 24 Bit Code Word for the Tx Data Register (Bits 23 – 0)

16 or 24 Bit Data Word for the Tx Data Register (Bits 23 – 0)

16 or 24 Bit Data Word Output from the Rx Data Register (Bits 23 – 0)

43 2 1

13 Bit Tx N Counter Divide Value (Bits 19 – 7)

13 Bit Rx N’ Counter Divide V alue (Bits 19 – 7)

4 Bit Idle

Channel

Ctr. Value

LB/CD

Detect

Disable

CVSD

Encoder

Disable

Tx Audio

Path

Disable

Power

Amplifier

Disable

Rx Audio

Path

Disable

11

LSB

0

7 Bit Tx A Counter Divide V alue

7 Bit Rx A’ Counter Divide Value

Rx Audio Path Gain Adjust (28.5 dB range)

Remote

Gain Adj.

Code

Word Size

(16/24 bit)

Scrambler/Descrambler T ap

Selection

14 bit LO2 Counter Divide Value (Bits 13 – 0)

12 Bit Reference Counter Divide Value

MP2 Mode

(See T able 7)

MP1 Mode

(See T able 6)

CVSD

Decoder

Disable

Set CD

Mode

Rx Data

Path

Disable

Tx 1010

Generator

Bypass

Data

Detect

Disable

Idle Chnl.

Detection

Bypass

Scrambler/

Descrambler

Bypass

Clock

Recovery

LO2

PLL

Disable

Rx

PLL

Disable

Tx

PLL

Disable

Ref.

Osc.

Disable

Rx 1010

Generator

Mute Tx

Audio

Mute Rx

Audio

Mute Pwr.

Amps

Note: Shaded areas represent output bits to be read out.

MC33410

19

MOTOROLA RF/IF DEVICE DATA

FTA SUFFIX

PLASTIC PACKAGE

CASE 932

(LQFP–48)

ISSUE D

OUTLINE DIMENSIONS

ÉÉÉ

ÉÉÉ

A

A1

–T–

Z0.200 (0.008) AB T–U

–U–

4X

Z0.200 (0.008) AC T–U

4X

B

B1

1

12

13

24

25

36

37

48

–Z–

S1

S

V

V1

P

AE AE

–T–, –U–, –Z–

DETAIL Y

DETAIL Y

BASE METAL

N

J

F
D

S

T–U

M

0.080 (0.003) Z

S

AC

SECTION AE–AE

–AB–
–AC–

AD

G

0.080 (0.003) AC

M

_

TOP & BOTTOM

Q

_

W

K

X

E

C

H

0.250 (0.010)

GAUGE PLANE

R

9

DETAIL AD

DIMAMIN MAX MIN MAX

INCHES

7.000 BSC 0.276 BSC

MILLIMETERS

A1 3.500 BSC 0.138 BSC

B 7.000 BSC 0.276 BSC

B1 3.500 BSC 0.138 BSC

C 1.400 1.600 0.055 0.063
D 0.170 0.270 0.007 0.011
E 1.350 1.450 0.053 0.057
F 0.170 0.230 0.007 0.009
G 0.500 BASIC 0.020 BASIC
H 0.050 0.150 0.002 0.006
J 0.090 0.200 0.004 0.008
K 0.500 0.700 0.020 0.028
M 12 REF 12 REF
N 0.090 0.160 0.004 0.006
P 0.250 BASIC 0.010 BASIC
Q 1 5 1 5
R 0.150 0.250 0.006 0.010
S 9.000 BSC 0.354 BSC

S1 4.500 BSC 0.177 BSC

V 9.000 BSC 0.354 BSC
V1 4.500 BSC 0.177 BSC
W 0.200 REF 0.008 REF

X 1.000 REF 0.039 REF

NOTES:

1 DIMENSIONING AND TOLERANCING PER ANSI

Y14.5M, 1982.
2 CONTROLLING DIMENSION: MILLIMETER.
3 DATUM PLANE –AB– IS LOCATED AT BOTTOM OF

LEAD AND IS COINCIDENT WITH THE LEAD

WHERE THE LEAD EXITS THE PLASTIC BODY AT

THE BOTTOM OF THE PARTING LINE.
4 DATUMS –T–, –U–, AND –Z– TO BE DETERMINED

AT DATUM PLANE –AB–.
5 DIMENSIONS S AND V TO BE DETERMINED AT

SEATING PLANE –AC–.
6 DIMENSIONS A AND B DO NOT INCLUDE MOLD

PROTRUSION. ALLOWABLE PROTRUSION IS

0.250 (0.010) PER SIDE. DIMENSIONS A AND B DO

INCLUDE MOLD MISMATCH AND ARE

DETERMINED AT DATUM PLANE –AB–.
7 DIMENSION D DOES NOT INCLUDE DAMBAR

PROTRUSION. DAMBAR PROTRUSION SHALL

NOT CAUSE THE D DIMENSION TO EXCEED

0.350 (0.014).

8 MINIMUM SOLDER PLATE THICKNESS SHALL BE

0.0076 (0.0003).

9 EXACT SHAPE OF EACH CORNER IS OPTIONAL.

__

____

MC33410

20

MOTOROLA RF/IF DEVICE DATA

Motorola reserves the right to make changes without further notice to any products herein. Motorola makes no warranty , representation or guarantee regarding
the suitability of its products for any particular purpose, nor does Motorola assume any liability arising out of the application or use of any product or circuit, and
specifically disclaims any and all liability, including without limitation consequential or incidental damages. “T ypical” parameters which may be provided in Motorola
data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals”
must be validated for each customer application by customer’s technical experts. Motorola does not convey any license under its patent rights nor the rights of
others. Motorola products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or other
applications intended to support or sustain life, or for any other application in which the failure of the Motorola product could create a situation where personal injury
or death may occur. Should Buyer purchase or use Motorola products for any such unintended or unauthorized application, Buyer shall indemnify and hold Motorola
and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees
arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that
Motorola was negligent regarding the design or manufacture of the part. Motorola and are registered trademarks of Motorola, Inc. Motorola, Inc. is an Equal
Opportunity/Affirmative Action Employer.

Mfax is a trademark of Motorola, Inc.

How to reach us:
USA/EUROPE/Locations Not Listed: Motorola Literature Distribution; JAPAN: Nippon Motorola Ltd.: SPD, Strategic Planning Office, 141,

P.O. Box 5405, Denver, Colorado 80217. 1–303–675–2140 or 1–800–441–2447 4–32–1 Nishi–Gotanda, Shagawa–ku, T okyo, Japan. 03–5487–8488

Customer Focus Center: 1–800–521–6274
Mfax: [e-mail] – TOUCHTONE 1–602–244–6609 ASIA/PACIFIC: Motorola Semiconductors H.K. Ltd.; 8B Tai Ping Industrial Park,

Moto rola Fax Back Syst em – US & Canada ONLY 1–800–774–1848 51 Ting Kok Road, Tai Po, N.T., Hong Kong. 852–26629298

– http://sps.motorola.com/mfax/

HOME PAGE: http://motorola.com/sps/

MC33410/D

◊
