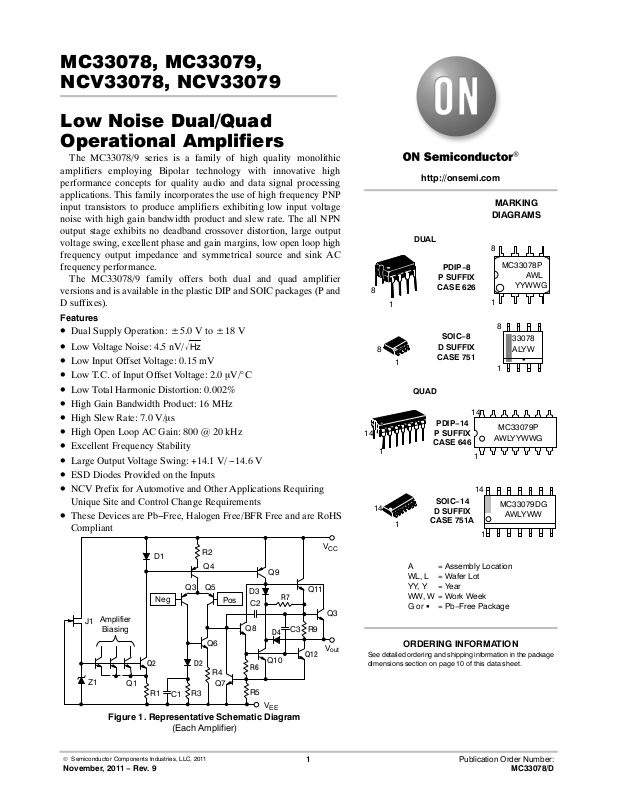

MC33078, MC33079, NCV33078, NCV33079

Low Noise Dual/Quad Operational Amplifiers

The MC33078/9 series is a family of high quality monolithic amplifiers employing Bipolar technology with innovative high performance concepts for quality audio and data signal processing applications. This family incorporates the use of high frequency PNP input transistors to produce amplifiers exhibiting low input voltage noise with high gain bandwidth product and slew rate. The all NPN output stage exhibits no deadband crossover distortion, large output voltage swing, excellent phase and gain margins, low open loop high frequency output impedance and symmetrical source and sink AC frequency performance.

The MC33078/9 family offers both dual and quad amplifier versions and is available in the plastic DIP and SOIC packages (P and D suffixes).

Features

• Dual Supply Operation: $5.0 V to $18 V

• Low Voltage Noise: 4.5 nV/ Hz

• Low Input Offset Voltage: 0.15 mV

• Low T.C. of Input Offset Voltage: 2.0 mV/°C

• Low Total Harmonic Distortion: 0.002%

• High Gain Bandwidth Product: 16 MHz

• High Slew Rate: 7.0 V/ms

• High Open Loop AC Gain: 800 @ 20 kHz

• Excellent Frequency Stability

• Large Output Voltage Swing: +14.1 V/ −14.6 V

• ESD Diodes Provided on the Inputs

• NCV Prefix for Automotive and Other Applications Requiring

Unique Site and Control Change Requirements

• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS

Compliant

D1

Amplifier

J1

Biasing

Q2 D2

Z1

Q1

R1

Figure 1. Representative Schematic Diagram

Ǹ

Q3 Q5

Neg

R3

C1

(Each Amplifier)

R2

Q4

Q6

R4

Q7

Pos

Q8

D3

C2

R6

R5

Q10

V

Q9

EE

D4

R7

C3 R9

Q11

Q12

V

CC

Q3

V

out

http://onsemi.com

MARKING

DIAGRAMS

14

DUAL

PDIP−8

P SUFFIX

8

1

8

1

14

1

CASE 626

SOIC−8 D SUFFIX CASE 751

QUAD

PDIP−14

P SUFFIX

CASE 646

SOIC−14

D SUFFIX

CASE 751A

A = Assembly Location WL, L = Wafer Lot YY, Y = Year WW, W = Work Week G or G = Pb−Free Package

8

MC33078P

AWL

YYWWG

1

8

33078 ALYW

G

1

14

MC33079P

AWLYYWWG

1

14

MC33079DG

AWLYWW

1

ORDERING INFORMATION

See detailed ordering and shipping information in the package dimensions section on page 10 of this data sheet.

November, 2011 − Rev. 9

1 Publication Order Number:

MC33078/D

MC33078, MC33079, NCV33078, NCV33079

PIN CONNECTIONS

Output 1

Inputs 1

2

4

V

EE

DUAL

CASE 626/751

1

+

3

2

(Dual, Top View)

8

V

CC

7

Output 2

6

Inputs 2

+

5

Output 1

Inputs 1

Inputs 2

V

CC

Output 2

QUAD

CASE 646/751A

1

2

*

1

)

3

4

5

)

23

*

6

7

*

4

)

) *

14

13

12

11

10

9

8

Output 4

Inputs 4

V

EE

Inputs 3

Output 3

(Quad, Top View)

MAXIMUM RATINGS

Rating Symbol Value Unit

Supply Voltage (VCC to V

EE)

Input Differential Voltage Range V

Input Voltage Range V

Output Short Circuit Duration (Note 2) t

Maximum Junction Temperature T

Storage Temperature T

ESD Protection at any Pin

MC33078/NCV33078 − Human Body Model

− Machine Model

MC33079/NCV33079 − Human Body Model

− Machine Model

Maximum Power Dissipation P

Operating Temperature Range T

Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability.

1. Either or both input voltages must not exceed the magnitude of V

2. Power dissipation must be considered to ensure maximum junction temperature (T

or VEE.

CC

V

S

IDR

IR

SC

J

stg

V

esd

+36 V

Note 1 V

Indefinite sec

+150 °C

−60 to +150 °C

600 200 550 150

D

A

) is not exceeded (see Figure 2).

J

Note 2 mW

−40 to +85 °C

V

http://onsemi.com

2

MC33078, MC33079, NCV33078, NCV33079

DC ELECTRICAL CHARACTERISTICS (V

Characteristics

Input Offset Voltage (RS = 10 W, VCM = 0 V, VO = 0 V)

(MC33078) T

(MC33079) T

Average Temperature Coefficient of Input Offset Voltage

R

= 10 W, VCM = 0 V, VO = 0 V, TA = T

S

Input Bias Current (VCM = 0 V, VO = 0 V)

= +25°C

T

A

= −40° to +85°C

T

A

Input Offset Current (VCM = 0 V, VO = 0 V)

= +25°C

T

A

= −40° to +85°C

T

A

Common Mode Input Voltage Range (DVIO = 5.0 mV, VO = 0 V)

Large Signal Voltage Gain (VO = $10 V, RL = 2.0 kW)

= +25°C

T

A

= −40° to +85°C

T

A

= +25°C

A

= −40° to +85°C

T

A

= +25°C

A

= −40° to +85°C

T

A

low

= +15 V, VEE = −15 V, TA = 25°C, unless otherwise noted.)

CC

Symbol Min Typ Max Unit

|VIO|

DVIO/DT

to T

high

I

IB

I

IO

V

ICR

A

VOL

−

0.15

−

0.15

−

2.0

3.0

2.5

3.5

− 2.0 −

−

300

−

25

−

750 800

150 175

±13 ±14 − V

90 85

110

−

Output Voltage Swing (VID = $1.0V)

R

= 600 W

L

R

= 600 W

L

R

= 2.0 kW

L

R

= 2.0 kW

L

R

= 10 kW

L

R

= 10 kW

L

VO+ V

O

V

O

V

O

V

O

V

O

−

+

−

+

−

+13.2

−

+13.5

−

+10.7

−11.9 +13.8

−13.7 +14.1

−14.6

−

−13.2

−

−14

Common Mode Rejection (Vin = ±13V) CMR 80 100 − dB

Power Supply Rejection (Note 3)

V

= +15 V/ −15 V to +5.0 V/ −5.0 V

CC/VEE

Output Short Circuit Current (VID = 1.0 V, Output to Ground)

Source Sink

Power Supply Current (VO = 0 V, All Amplifiers)

(MC33078) T

(MC33079) T

= +25°C

A

= −40° to +85°C

A

= +25°C

A

= −40° to +85°C

A

PSR 80 105 − dB

I

SC

I

D

+15

−20

−

+29

−37

4.1

−

8.4

−

5.0

5.5 10 11

3. Measured with VCC and VEE differentially varied simultaneously.

mV

mV/°C

nA

dB

V

mA

http://onsemi.com

3

MC33078, MC33079, NCV33078, NCV33079

AC ELECTRICAL CHARACTERISTICS (V

Characteristics

Slew Rate (Vin = −10 V to +10 V, RL = 2.0 kW, CL = 100 pF AV = +1.0)

= +15 V, VEE = −15 V, TA = 25°C, unless otherwise noted.)

CC

Symbol Min Typ Max Unit

SR 5.0 7.0 −

V/ms

Gain Bandwidth Product (f = 100 kHz) GBW 10 16 − MHz

Unity Gain Bandwidth (Open Loop) BW − 9.0 − MHz

Gain Margin (RL = 2.0 kW)

= 0 pF

C

L

= 100 pF

C

L

Phase Margin (RL = 2.0 kW)

= 0 pF

C

L

= 100 pF

C

L

A

m

f

m

−

−11

−6.0

−

Deg

−

55 40

−

Channel Separation (f = 20 Hz to 20 kHz) CS − −120 − dB

Power Bandwidth (VO = 27 Vpp, RL = 2.0 kW, THD $ 1.0%)

Total Harmonic Distortion (R

= 2.0 kW, f = 20 Hz to 20 kHz, VO = 3.0 V

L

, AV = +1.0)

rms

BW

p

THD − 0.002 − %

− 120 − kHz

Open Loop Output Impedance (VO = 0 V, f = 9.0 MHz) |ZO| − 37 −

Differential Input Resistance (V

Differential Input Capacitance (V

CM = 0 V)

Equivalent Input Noise Voltage (RS = 100 W, f = 1.0 kHz)

Equivalent Input Noise Current (f = 1.0 kHz) i

R

in

C

in

e

n

− 175 −

− 12 − pF

− 4.5 −

nV/ Hz√

− 0.5 −

dB

W

kW

pA/Hz √

2400

2000

1600

1200

800

400

D

P, MAXIMUM POWER DISSIPATION (mW)

0

-55 -40

1000

800

600

400

IB

200

I, INPUT BIAS CURRENT (nA)

0

MC33078P & MC33079P

MC33079D

MC33078D

-20 0 20 40 60 80 100 120 140 160

, AMBIENT TEMPERATURE (°C)

T

A

Figure 2. Maximum Power Dissipation

versus Temperature

VCC = +15 V V

= -15 V

EE

V

= 0 V

CM

0 25 50 75 100 125-55 -25

TA, AMBIENT TEMPERATURE (°C)

800

VCM = 0 V T

= 25°C

A

600

400

200

IB

I, INPUT BIAS CURRENT (nA)

0

0101520

5.0 V

, | VEE |, SUPPLY VOLTAGE (V)

CC

Figure 3. Input Bias Current versus

Supply Voltage

2.0 VCC = +15 V

V

= -15 V

EE

= 10 W

R

S

V

= 0 V

1.0

CM

AV = +1

0

-1.0

IO

V, INPUT OFFSET VOLTAGE (mV)

-2.0

-55 -25 0 25 50 75 100 125 TA, AMBIENT TEMPERATURE (°C)

Unit 1

Unit 2

Unit 3

Figure 4. Input Bias Current versus Temperature Figure 5. Input Offset Voltage versus Temperature

http://onsemi.com

4

MC33078, MC33079, NCV33078, NCV33079

600

VCC = +15 V V

= -15 V

500

400

300

200

100

IB

I, INPUT BIAS CURRENT (nA)

0

-15 -10 -5.0 0 5.0 10 15

V

, COMMON MODE VOLTAGE (V)

CM

Figure 6. Input Bias Current versus

Common Mode Voltage

EE

T

= 25°C

A

V

-0

CC

V

-0.5

CC

-1.0

V

CC

V

-1.5

CC

+1.5

V

EE

V

+1.0

EE

+0.5

V

EE

V

+0

EE

, INPUT COMMON MODE VOLTAGE RANGE (V)

ICR

V

-55 -25 0 25 50 75 100 125

+V

CM

Voltage

V

= +3.0 V to +15 V

CC

VEE = -3.0 V to -15 V

= 5.0 mV

DV

IO

V

= 0 V

O

Range

-V

CM

T

, AMBIENT TEMPERATURE (°C)

A

Figure 7. Input Common Mode Voltage

Range versus Temperature

-1.0

V

CC

V

CC

V

CC

V

EE

-3.0

-5.0

+5.0

-55°C

125°C

25°C

VCC = +15 V V

EE

25°C

+3.0

V

EE

, OUTPUT SATURATION VOLTAGE (V)

VEE +1.0

sat

V

-55°C

0 1.0 2.0 3.0 4.0

RL, LOAD RESISTANCE TO GROUND (kW)

Figure 8. Output Saturation Voltage versus

Load Resistance to Ground

10

9.0

8.0

7.0

±15 V

±5.0 V

±10 V

6.0

5.0

4.0

3.0

CC

2.0

I, SUPPLY CURRENT (mA)

±15 V

±5.0 V ±4.0 V

±10 V

Supply Voltages

1.0

0

-55 -25 0 25 50 75 100 125 TA, AMBIENT TEMPERATURE (°C)

VCM = 0 V R

= ∞

L

V

= 0 V

O

MC33079

MC33078

= -15 V

50

V

= +15 V

Sink

40

30

Source

CC

V

EE

< 100 W

R

L

V

= 1.0 V

ID

= -15 V

20

10

SC

-55 -25 0 25 50 75 100 125

| I|, OUTPUT SHORT CIRCUIT CURRENT (mA)

TA, AMBIENT TEMPERATURE (°C)

Figure 9. Output Short Circuit Current

versus Temperature

160

D V

140

120

CM

CMR = 20Log

100

VCC = +15 V

80

V

= -15 V

EE

V

= 0 V

CM

60

40

CMR, COMMON MODE REJECTION (dB)

20

100 1.0 k 10 k 100 k 1.0 M 10 M

DV T

A

= ±1.5 V

CM

= 25°C

f, FREQUENCY (Hz)

D V

A

+

D V

DM

CM

× A

DM

O

D V

O

Figure 10. Supply Current versus

Temperature

Figure 11. Common Mode Rejection

versus Frequency

http://onsemi.com

5

MC33078, MC33079, NCV33078, NCV33079

S

O

S

C

O

G

O

C

140

+PSR = 20Log

120

N (dB) TI

100

80

60

UPPLY REJE

40

WER

20

R, P P

0

-PSR

V

= +15 V

CC

V

= -15 V

EE

T

= 25°C

A

100 1.0 k 10 k 100 k 1.0 M

+PSR

DVO/A

DM

DV

CC

f, FREQUENCY (Hz)

-PSR = 20Log

-

A

+

DVO/A

DM

DV

V

DM

CC

DV

O

EE

10 M

Figure 12. Power Supply Rejection

versus Frequency

30

RL = 10 kW

= 0 pF

C

L

20

f = 100 kHz T

= 25°C

A

10

GWB, GAIN BANDWIDTH PRODUCT (MHz)

0

0101520

5.0

VCC |VEE| , SUPPLY VOLTAGE (V)

Figure 13. Gain Bandwidth Product

versus Supply Voltage

20

T (MHz)

15

DU

20

TA = 25°C

15

10

R

L

= 10 kW

RL = 2.0 kW

VO +

5.0

10

VCC = +15 V V

= -15 V

5.0

AIN BANDWIDTH PR

WB,

0

-55 -25 0 50 75 10025 125

EE

f = 100 kHz

= 10 kW

R

L

C

= 0 pF

L

, AMBIENT TEMPERATURE (°C)

T

A

0

-5.0

-10

O

V , OUTPUT VOLTAGE (Vp)

-15

-20 0101520

5.0

R

L

= 10 kW

RL = 2.0 kW

-

V

O

VCC |VEE| , SUPPLY VOLTAGE (V)

Figure 14. Gain Bandwidth Product

versus Temperature

Figure 15. Maximum Output Voltage

versus Supply Voltage

35

30

pp

25

110

R

2.0 kW

L =

f ≤ 10 Hz DVO = 2/3 (VCC -VEE) T

= 25°C

A

100

20

VCC = +15 V

15

V

= -15 V

CC

= 2.0 kW

R

10

, OUTPUT VOLTAGE (V )

O

V

5.0

L

AV = +1.0 THD ≤ 1.0% T

= 25°C

A

0

10 100 1.0 k 10 k 100 k 1.0 M 10 M

f, FREQUENCY (Hz)

90

VOL

A, OPEN LOOP VOLTAGE GAIN (dB)

80

0101520

5.0 VCC |VEE| , SUPPLY VOLTAGE (V)

Figure 16. Output Voltage versus Frequency Figure 17. Open Loop Voltage Gain

versus Supply Voltage

http://onsemi.com

6

MC33078, MC33079, NCV33078, NCV33079

110

V

= +15 V

CC

V

= -15 V

EE

= 2.0 kW

R

105

L

f ≤ 10 Hz DVO = -10 V to +10 V

100

95

VOL

A, OPEN LOOP VOLTAGE GAIN (dB)

90

-55 -25 0 25 50 75 100 125

TA, AMBIENT TEMPERATURE (°C)

Figure 18. Open Loop Voltage Gain

versus Temperature

160

MC33078

150

140

130

120

110

CS, CHANNEL SEPARATION (dB)

100

100 W

10 kW

-

+

100 W

Measurement Channel

MC33079

V

OM

10 100 1.0 k 100 k10 k

f, FREQUENCY (Hz)

Drive Channel V V R DV TA = 25°C

CS = 20 Log

= +15 V

CC

= -15 V

EE

= 2.0 KW

L

= 20 V

OD

DV

OM

50

VCC = +15 V V

= -15 V

EE

40

VO = 0 V T

= 25°C

A

30

20

10

O

| Z|, OUTPUT IMPEDANCE ()Ω

0

1.0 k 10 k 100 k 1.0 M 10 M

A

V

= 1000

A

= 100

V

A

= 10

V

A

= 1.0

V

f, FREQUENCY (Hz)

Figure 19. Output Impedance

versus Frequency

1.0 VCC = +15 V V

= -15 V

EE

V

= 1.0 Vrms

O

T

= 25°C

pp

0.1

A

0.01

OA

THD, TOTAL HARMONIC DISTORTION (%)

0.001 10 100 1.0 k 10 k 100 k

f, FREQUENCY (Hz)

-

+

V

2.0 kW

O

Figure 20. Channel Separation

versus Frequency

1.0 V

= +15 V

CC

VEE = -15 V

0.5

f = 2.0 kHz T

= 25°C

A

0.1

0.05

0.01

0.005

THD, TOTAL HARMONIC DISTORTION (%)

0.001 0 1.0 2.0 3.0 4.0 5.0 6.0 7.0 8.0 9.0

A

V

= 1.0

V

A

= 10

= 1000

V

= 100

V

R

A

V

in

VO, OUTPUT VOLTAGE (Vrms)

Figure 22. Total Harmonic Distortion

versus Output Voltage

+

10 kW

V

O

2.0 kW

Figure 21. Total Harmonic Distortion

versus Frequency

10

Vin = 2/3 (VCC -VEE)

9.0 T

= 25°C

8.0

7.0

A

Falling

Rising

6.0

5.0

4.0

3.0

SR, SLEW RATE (V/ s)μ

2.0

DV

-

+

in

2.0 kW

V

O

1.0

0

6 8 10 14 18

4121620

VCC |VEE| , SUPPLY VOLTAGE (V)

Figure 23. Slew Rate versus Supply Voltage

http://onsemi.com

7

MC33078, MC33079, NCV33078, NCV33079

,

(

)

φ

10

VCC = +15 V V

= -15 V

EE

= 20 V

DV

in

8.0 Falling

Rising

6.0

-

+

DV

4.0

SR, SLEW RATE (V/s)μ

2.0

-55 -25 0 25 50 75 100 125

in

T

, AMBIENT TEMPERATURE (°C)

A

2.0 kW

V

O

Figure 24. Slew Rate versus Temperature Figure 25. Voltage Gain and Phase

14

12

10

8.0

6.0

4.0

m

2.0

A, OPEN LOOP GAIN MARGIN (dB)

0

-

V

+

in

2.0 kW

V

O

C

L

25°C

Phase

-55°C

125°C

VCC = +15 V V

= -15 V

EE

V

= 0 V

O

-55°C25°C

Gain

1 10 100 1000

C

, OUTPUT LOAD CAPACITANCE (pF) CL, OUTPUT LOAD CAPACITANCE (pF)

L

Figure 26. Open Loop Gain Margin and

Phase Margin versus Load Capacitance

120

100

80

60

40

20

VOL

A, OPEN LOOP VOLTAGE GAIN (dB)

0

1.0 10 100 1.0 k 10 k 100 k 1.0 M 10 M

0

10

100

80

20

30

40

50

, PHASE MARGIN (DEGREES)

60

φ

70

60

40

os, OVERSHOOT (%)

20

m

0

10 100 1.0 k 10 k

VCC = +15 V V

= -15 V

EE

= 2.0 kW

R

L

T

= 25°C

A

Phase

Gain

f, FREQUENCY (Hz)

versus Frequency

-

+

DV

in

V

O

C

L

125°C

25°C

-55°C

VCC = +15 V VEE = -15 V

= 100 mV

DV

in

Figure 27. Overshoot versus Output

Load Capacitance

0

45

DEGREES

90

135

EXCESS PHASE

180

100

80

nV/ Hz√

50

30

VCC = +15 V V

= -15 V

EE

TA = 25°C

20

10

8.0

5.0

Voltage

3.0

2.0

1.0 10 100 1.0 k 10 k 100 k

n

e, INPUT REFERRED NOISE VOLTAGE ()

f, FREQUENCY (Hz)

Current

Figure 28. Input Referred Noise Voltage and

Current versus Frequency

10

1000

pA/ Hz√

nV/ Hz√

100

10

, REFERRED NOISE VOLTAGE (

n

1.0

0.1

V)

, INPUT REFERRED NOISE CURRENT ( )

n

i

10 100 1.0 k 10 k 100 k 1.0 M

http://onsemi.com

8

VCC = +15 V V

= -15 V

EE

f = 1.0 kHz T

= 25°C

A

V

(total) =

n

Ǹ

(inRs)2 )e

2

 )4KTR

n

S

RS, SOURCE RESISTANCE (W)

Figure 29. Total Input Referred Noise Voltage

versus Source Resistance

MC33078, MC33079, NCV33078, NCV33079

= +15 V

V

CC

V

= -15 V

EE

AV = -1.0

= 2.0 kW

R

L

C

= 100 pF

L

T

= 25°C

A

14

12

10

R

1

8.0

6.0

4.0

m A , GAIN MARGIN (dB)

2.0

0

-

+

R

2

VCC = +15 V V

= -15 V

EE

R

= R1 +R

T

AV = +100 V

= 0 V

O

T

= 25°C

A

Phase

V

O

2

10 100 1.0 k 10 k 100 k

Gain

RT, DIFFERENTIAL SOURCE RESISTANCE (W)

Figure 30. Phase Margin and Gain Margin versus

Differential Source Resistance

= +15 V

V

CC

V

= -15 V

EE

AV = +1.0

= 2.0 kW

R

L

C

= 100 pF

L

T

= 25°C

A

70

60

50

40

30

20

, PHASE MARGIN (DEGREES)

m

10

φ

0

O

V, OUTPUT VOLTAGE (5.0 V/DIV)

t, TIME (2.0 ms/DIV)

O

V, OUTPUT VOLTAGE (5.0 V/DIV)

t, TIME (2.0 ms/DIV)

Figure 31. Inverting Amplifier Slew Rate Figure 32. Non−inverting Amplifier Slew Rate

V

= +15 V

CC

V

= -15 V

EE

= 2.0 kW

R

L

C

= 100 pF

L

A

= +1.0

V

T

= 25°C

A

O

V, OUTPUT VOLTAGE (5.0 V/DIV)

t, TIME (200 ms/DIV)

VCC = +15 V V

= -15 V

EE

BW = 0.1 Hz to 10 Hz T

= 25°C

A

n

e, INPUT NOISE VOLTAGE (100 nV/DIV)

t, TIME (1.0 sec/DIV)

Figure 33. Non−inverting Amplifier Overshoot Figure 34. Low Frequency Noise Voltage

versus Time

http://onsemi.com

9

MC33078, MC33079, NCV33078, NCV33079

p−p

0.1 mF

10 W

Note: All capacitors are non−polarized.

100 kW

-

D.U.T.

+

Voltage Gain = 50,000

2.0 kW

4.7 mF

24.3 kW

+

1/2

MC33078

100 kW

0.1 mF

4.3 kW

2.2 mF

22 mF

R

110 kW

Scope

× 1

= 1.0 MW

in

Figure 35. Voltage Noise Test Circuit

(0.1 Hz to 10 Hz

)

ORDERING INFORMATION

Device Package Shipping

MC33078DG

MC33078DR2G

NCV33078DR2G*

MC33078P PDIP−8

MC33078PG PDIP−8

MC33079DG SOIC−14

MC33079DR2G

NCV33079DR2G*

MC33079P PDIP−14

MC33079PG

†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging

Specifications Brochure, BRD8011/D.

*NCV devices are qualified for automotive use.

SOIC−8

(Pb−Free)

SOIC−14

(Pb−Free)

PDIP−14

(Pb−Free)

98 Units / Rail

2500 / Tape & Reel

50 Units / Rail

55 Units / Rail

2500 / Tape & Reel

25 Units / Rail

†

http://onsemi.com

10

MC33078, MC33079, NCV33078, NCV33079

PACKAGE DIMENSIONS

PDIP−8

N SUFFIX

CASE 626−05

ISSUE M

NOTE 5

D

D1

14

TOP VIEW

e/2

A1

e

SIDE VIEW

NOTES:

A

58

E

E1

F

c

E2

END VIEW

NOTE 3

A

1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994.

2. CONTROLLING DIMENSION: INCHES.

3. DIMENSION E IS MEASURED WITH THE LEADS RESTRAINED PARALLEL AT WIDTH E2.

4. DIMENSION E1 DOES NOT INCLUDE MOLD FLASH.

5. ROUNDED CORNERS OPTIONAL.

DIM MIN NOM MAX

A −−−− −−−− 0.210

A1 0.015 −−−− −−−−

b 0.014 0.018 0.022 C 0.008 0.010 0.014 D 0.355 0.365 0.400

D1 0.005 −−−− −−−−

E 0.300 0.310 0.325

E1 0.240 0.250 0.280 6.10 6.35 7.11 E2 E3 −−−− −−−− 0.430 −−−− −−−− 10.92

e 0.100 BSC

L 0.115 0.130 0.150

INCHES

0.300 BSC 7.62 BSC

MILLIMETERS

MIN NOM MAX

−−−− −−−− 5.33

0.38 −−−− −−−−

0.35 0.46 0.56

0.20 0.25 0.36

9.02 9.27 10.02

0.13 −−−− −−−−

7.62 7.87 8.26

2.54 BSC

2.92 3.30 3.81

L

SEATING

C

PLANE

E3

8X

b

M

0.010 CA

END VIEW

http://onsemi.com

11

−Y−

−Z−

MC33078, MC33079, NCV33078, NCV33079

PACKAGE DIMENSIONS

SOIC−8 NB

CASE 751−07

ISSUE AK

NOTES:

−X− A

58

B

1

S

0.25 (0.010)

4

M

Y

K

G

C

SEATING PLANE

0.10 (0.004)

H

D

0.25 (0.010) Z

M

Y

SXS

N

X 45

_

M

SOLDERING FOOTPRINT*

J

1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982.

2. CONTROLLING DIMENSION: MILLIMETER.

3. DIMENSION A AND B DO NOT INCLUDE MOLD PROTRUSION.

4. MAXIMUM MOLD PROTRUSION 0.15 (0.006) PER SIDE.

5. DIMENSION D DOES NOT INCLUDE DAMBAR PROTRUSION. ALLOWABLE DAMBAR PROTRUSION SHALL BE 0.127 (0.005) TOTAL IN EXCESS OF THE D DIMENSION AT MAXIMUM MATERIAL CONDITION.

6. 751−01 THRU 751−06 ARE OBSOLETE. NEW STANDARD IS 751−07.

MILLIMETERS

DIMAMIN MAX MIN MAX

4.80 5.00 0.189 0.197

B 3.80 4.00 0.150 0.157 C 1.35 1.75 0.053 0.069 D 0.33 0.51 0.013 0.020

G 1.27 BSC 0.050 BSC

H 0.10 0.25 0.004 0.010 J 0.19 0.25 0.007 0.010 K 0.40 1.27 0.016 0.050

M 0 8 0 8

____

N 0.25 0.50 0.010 0.020 S 5.80 6.20 0.228 0.244

INCHES

1.52

0.060

7.0

0.275

0.6

0.024

4.0

0.155

1.270

0.050

SCALE 6:1

ǒ

inches

mm

Ǔ

*For additional information on our Pb−Free strategy and soldering

details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D.

http://onsemi.com

12

−T−

SEATING PLANE

14 8

17

N

HG

MC33078, MC33079, NCV33078, NCV33079

PACKAGE DIMENSIONS

PDIP−14

CASE 646−06

ISSUE P

B

A

F

C

D

14 PL

0.13 (0.005)

K

J

M

L

M

NOTES:

1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982.

2. CONTROLLING DIMENSION: INCH.

3. DIMENSION L TO CENTER OF LEADS WHEN FORMED PARALLEL.

4. DIMENSION B DOES NOT INCLUDE MOLD FLASH.

5. ROUNDED CORNERS OPTIONAL.

DIM MIN MAX MIN MAX

A 0.715 0.770 18.16 19.56 B 0.240 0.260 6.10 6.60 C 0.145 0.185 3.69 4.69 D 0.015 0.021 0.38 0.53 F 0.040 0.070 1.02 1.78 G 0.100 BSC 2.54 BSC H 0.052 0.095 1.32 2.41 J 0.008 0.015 0.20 0.38 K 0.115 0.135 2.92 3.43 L

0.290 0.310 7.37 7.87

M −−− 10 −−− 10 N 0.015 0.039 0.38 1.01

MILLIMETERSINCHES

__

http://onsemi.com

13

MC33078, MC33079, NCV33078, NCV33079

PACKAGE DIMENSIONS

SOIC−14 NB

CASE 751A−03

ISSUE K

14

H

M

0.25 B

D

A B

8

A3

E

L

71

b

M

13X

M

0.25 B

S

A

C

S

A

e

A1

C

SEATING PLANE

DETAIL A

h

X 45

_

M

DETAIL A

NOTES:

1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994.

2. CONTROLLING DIMENSION: MILLIMETERS.

3. DIMENSION b DOES NOT INCLUDE DAMBAR PROTRUSION. ALLOWABLE PROTRUSION SHALL BE 0.13 TOTAL IN EXCESS OF AT MAXIMUM MATERIAL CONDITION.

4. DIMENSIONS D AND E DO NOT INCLUDE MOLD PROTRUSIONS.

5. MAXIMUM MOLD PROTRUSION 0.15 PER SIDE.

DIM MIN MAX MIN MAX

A 1.35 1.75 0.054 0.068 A1 0.10 0.25 0.004 0.010 A3 0.19 0.25 0.008 0.010

b 0.35 0.49 0.014 0.019

D 8.55 8.75 0.337 0.344

E 3.80 4.00 0.150 0.157 e 1.27 BSC 0.050 BSC

H 5.80 6.20 0.228 0.244

h 0.25 0.50 0.010 0.019 L 0.40 1.25 0.016 0.049

M 0 7 0 7

__ __

INCHESMILLIMETERS

SOLDERING FOOTPRINT*

6.50

1

14X

1.18

1.27

PITCH

14X

0.58

DIMENSIONS: MILLIMETERS

*For additional information on our Pb−Free strategy and soldering

details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D.

ON Semiconductor and are registered trademarks of Semiconductor Components Industries, LLC (SCILLC). SCILLC reserves the right to make changes without further notice to any products herein. SCILLC makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does SCILLC assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. “Typical” parameters which may be provided in SCILLC data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. SCILLC does not convey any license under its patent rights nor the rights of others. SCILLC products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or other applications intended to support or sustain life, or for any other application in which the failure of the SCILLC product could create a situation where personal injury or death may occur. Should Buyer purchase or use SCILLC products for any such unintended or unauthorized application, Buyer shall indemnify and hold SCILLC and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that SCILLC was negligent regarding the design or manufacture of the part. SCILLC is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner.

PUBLICATION ORDERING INFORMATION

LITERATURE FULFILLMENT:

Literature Distribution Center for ON Semiconductor P.O. Box 5163, Denver, Colorado 80217 USA

Phone: 303−675−2175 or 800−344−3860 Toll Free USA/Canada Fax: 303−675−2176 or 800−344−3867 Toll Free USA/Canada Email: orderlit@onsemi.com

N. American Technical Support: 800−282−9855 Toll Free

USA/Canada

Europe, Middle East and Africa Technical Support:

Phone: 421 33 790 2910

Japan Customer Focus Center

Phone: 81−3−5817−1050

http://onsemi.com

ON Semiconductor Website: www.onsemi.com

Order Literature: http://www.onsemi.com/orderlit

For additional information, please contact your local Sales Representative

MC33078/D

14

Datasheet MC 33079 DG Datasheet

Specifications and Main Features

Frequently Asked Questions

User Manual
