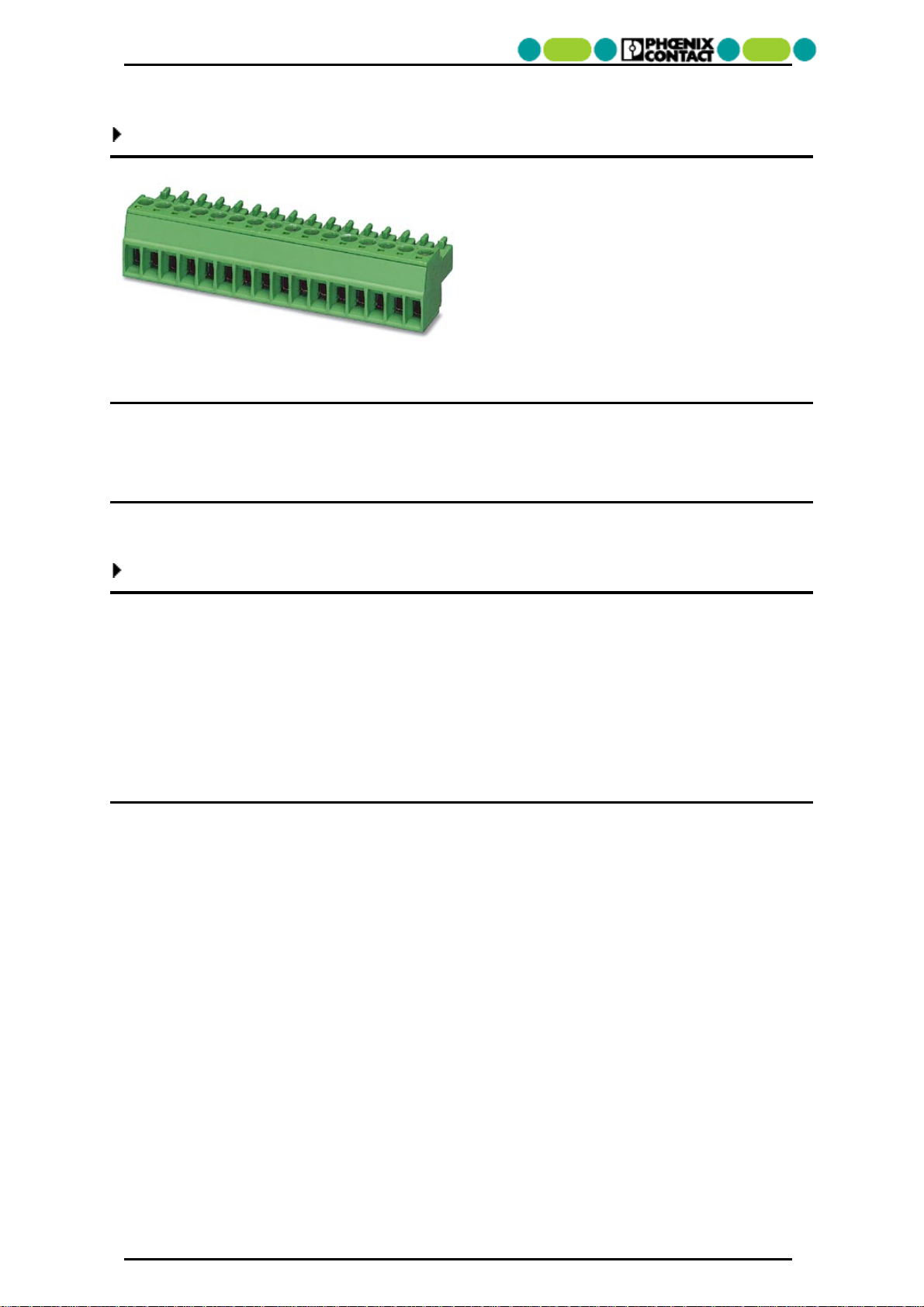

Page 1
MC 1,5/ 2-ST-3,5
7
General data
Plug component, nominal current: 8 A, rated voltage:
160 V, pitch: 3.5 mm, no. of positions: 2, type of
connection: Screw connection
Order number 1840366
Type MC 1,5/ 2-ST-3,5
Barcode number 4017918111564
Unit pack 50 Pcs.
Customs tariff 85369010000
Technical data
Dimensions / positions
Pitch 3.5 mm
Dimension a 3.5 mm
Number of positions 2
Screw thread M 2
Tightening torque 0.22 Nm
Phoenix Contact GmbH & Co. KG
http://www.phoenixcontact.com Dec 15, 2003
Page 1/
Page 2
MC 1,5/ 2-ST-3,5
7
Technical data
Insulating material group I
Rated surge voltage (III/3) 2.5 kV
Rated surge voltage (III/2) 2.5 kV
Rated surge voltage (II/2) 2.5 kV
Rated voltage (III/2) 160 V
Rated voltage (II/2) 320 V
Connection in acc. with standard EN-VDE
Nominal current I
Nominal voltage U
Nominal cross section 1.5 mm²
Maximum load current 8 A (with 1.5 mm² conductor cross section)
Insulating material PA
Inflammability class acc. to UL 94 V0
Internal cylindrical gage A 1
Stripping length 7 mm
8 A
N
160 V
N
Connection data
Min. conductor cross section, rigid 0.14 mm²
Conductor cross section, rigid max. 1.5 mm²
Conductor cross section flexible min. 0.14 mm²
Max. conductor cross section, flexible 1.5 mm²
Min. conductor cross section, flexible, with ferrule with
plastic sleeve
Conductor cross section flexible, with ferrule without
plastic sleeve max.
Conductor cross section flexible, with ferrule with plastic
sleeve min.
Max. conductor cross section, flexible, with ferrule with
plastic sleeve
Min. conductor cross section AWG/kcmil 28
Conductor cross section AWG/kcmil max 16
2 conductors with same cross section, solid min. 0.08 mm²
2 conductors with same cross section, solid max. 0.5 mm²
2 conductors of the same cross section, flexible, min. 0.08 mm²
2 conductors with same cross section, flexible max. 0.75 mm²
2 conductors of the same cross section, flexible, ferrules
without plastic sleeve, min.
2 conductors with identical cross section, flexible,
ferrules with plastic sleeve, max.
2 conductors of the same cross section, flexible, TWIN
ferrules with plastic sleeve, min.
2 conductors with identical cross section, flexible TWIN
ferrules with plastic sleeve, max.
0.25 mm²
1.5 mm²
0.25 mm²
0.5 mm²
0.25 mm²
0.34 mm²
0.5 mm²
0.5 mm²
Phoenix Contact GmbH & Co. KG
http://www.phoenixcontact.com Dec 15, 2003
Page 2/
Page 3
MC 1,5/ 2-ST-3,5
7
Certificates
UL
Comments all numbers of positions are accepted
Nominal voltage U
Nominal current I
AWG/kcmil 30-14
CSA
Comments all numbers of positions are accepted
Nominal voltage U
Nominal current I
AWG/kcmil 28-16
300 V
N
8 A
N
300 V
N
8 A
N
Phoenix Contact GmbH & Co. KG
Page 3/
http://www.phoenixcontact.com Dec 15, 2003
Page 4
MC 1,5/ 2-ST-3,5
7
Drawings
Dimensioned drawing
Approval logo
Phoenix Contact GmbH & Co. KG
http://www.phoenixcontact.com Dec 15, 2003
Page 4/
Page 5
MC 1,5/ 2-ST-3,5
7
Accessories
Item Designation Description
Marking
0804073 SK 3,5/2,8:FORTL.ZAHLEN Marker card, printed horizontally, self-adhesive, 10-section
marker strip, 14 identical decades marked 1-10, 11-20 etc. up to
91-100, sufficient for 140 terminal blocks
Tools
1205037 SZS 0,4X2,5 Screwdriver, bladed, matches all screw terminal blocks up to 1.5
mm² connection cross section, blade: 0.4 x 2.5 mm
Phoenix Contact GmbH & Co. KG
http://www.phoenixcontact.com Dec 15, 2003
Page 5/
Page 6
MC 1,5/ 2-ST-3,5
7
Additional products
Item Designation Description
General
1897092 EMC 1,5/ 2-G-3,5 Header, nominal current: 8 A, rated voltage: 160 V, pitch: 3.5
mm, no. of positions: 2, mounting: Press in
1911017 EMCV 1,5/ 2-G-3,5 Header, nominal current: 8 A, rated voltage: 160 V, pitch: 3.5
mm, no. of positions: 2, mounting: Press in
1844210 MC 1,5/ 2-G-3,5 Header, nominal current: 8 A, rated voltage: 160 V, pitch: 3.5
mm, no. of positions: 2, mounting: Soldering
1843606 MCV 1,5/ 2-G-3,5 Header, nominal current: 8 A, rated voltage: 160 V, pitch: 3.5
mm, no. of positions: 2, mounting: Soldering
Phoenix Contact GmbH & Co. KG
http://www.phoenixcontact.com Dec 15, 2003
Page 6/
Page 7
MC 1,5/ 2-ST-3,5
7
Address
Phoenix Contact GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 3 00
Fax +49 5235 3 1200
http://www.phoenixcontact.com
© Phoenix Contact
Technical modifications reserved
