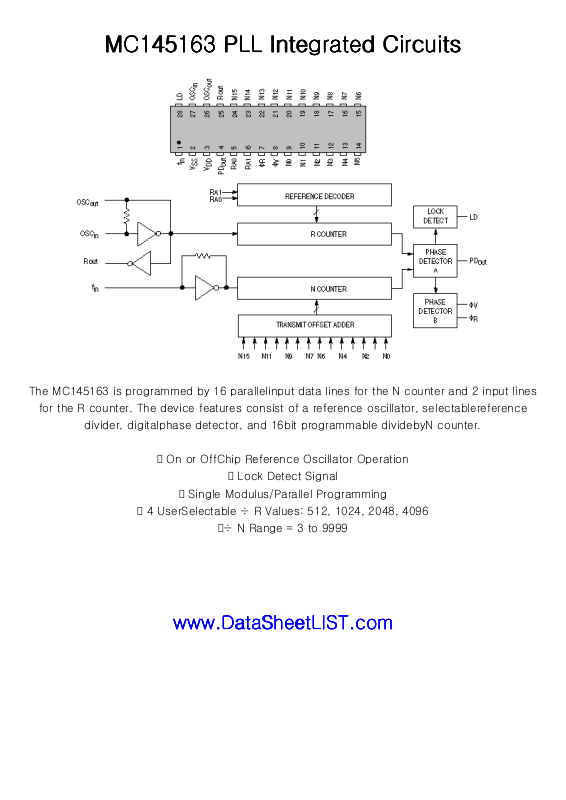

MC145163 PLL Integrated Circuits
MC145163 PLL Integrated Circuits
MC145163 PLL Integrated CircuitsMC145163 PLL Integrated Circuits

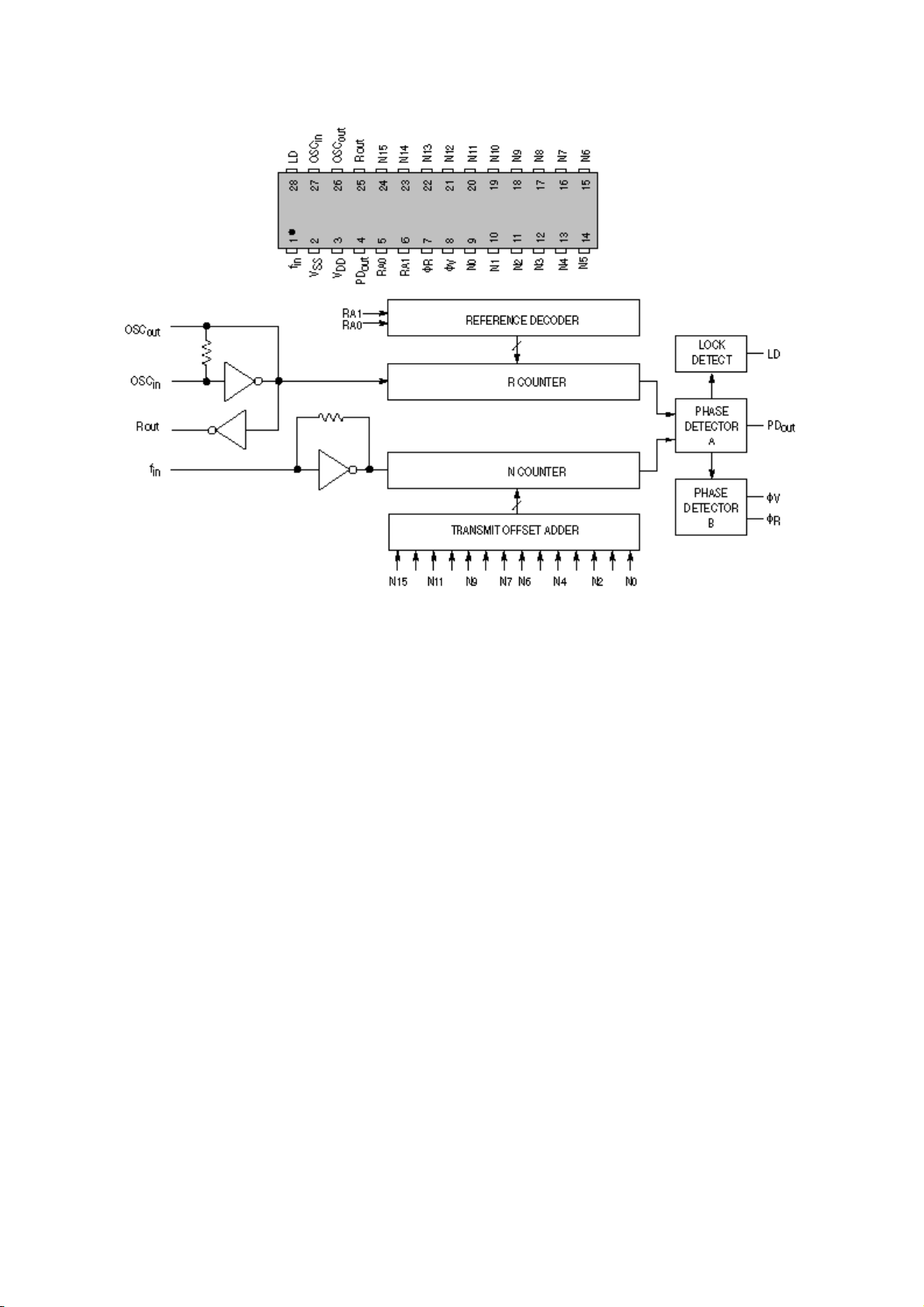

The MC145163 is programmed by 16 parallelinput data lines for the N counter and 2 input lines
for the R counter. The device features consist of a reference oscillator, selectablereference
divider, digitalphase detector, and 16bit programmable dividebyN counter.
On or OffChip Reference Oscillator Operation
Lock Detect Signal
Single Modulus/Parallel Programming
4 UserSelectable ÷ R Values: 512, 1024, 2048, 4096
÷ N Range = 3 to 9999
www.
www.DataSheetLIST.com
www.www.
DataSheetLIST.com
DataSheetLIST.comDataSheetLIST.com
Page 2
Pin
Pin Name
PinPin
1 FIN Frequency input - Max. 30MHz
2 GND Ground
3 VDD V+ (5 Volt)
4 PD Phase Comparator Output
5 RA0 Reference divider Program input 0
6 RA1 Reference divider Program input 1
7 øR Phase Comparator output
8 øV Phase Comparator output
9 P0 Program input 0
10 P1 Program input 1
11 P2 Program input 2
Name Decription
NameName
Decription
DecriptionDecription
12 P3 Program input 3
13 P4 Program input 4
14 P5 Program input 5
15 P6 Program input 6
16 P7 Program input 7
17 P8 Program input 8
18 P9 Program input 9
19 P10 Program input 10
20 P11 Program input 11
21 P12 Program input 12
22 P13 Program input 13
23 P14 Program input 14
24 P15 Program input 15
25 R
26 RI Referance Osc. Input
27 RO Referance Osc. Output
28 L Loop Detect Output
Referance Osc. Output
OUT
