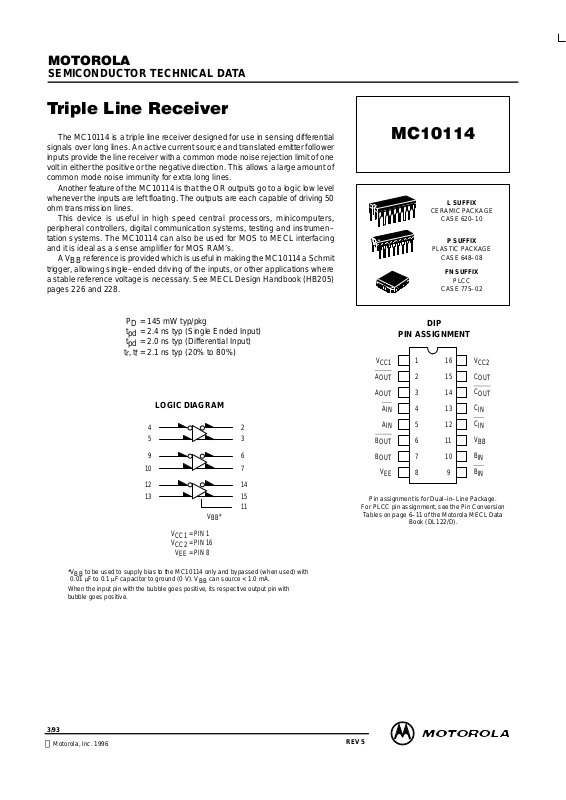

SEMICONDUCTOR TECHNICAL DATA

3–53

REV 5

 Motorola, Inc. 1996

3/93

  

The MC10114 is a triple line receiver designed for use in sensing dif ferential
signals over long lines. An active current source and translated emitter follower
inputs provide the line receiver with a common mode noise rejection limit of one
volt in either the positive or the negative direction. This allows a large amount of
common mode noise immunity for extra long lines.

Another feature of the MC101 14 is that the OR outputs go to a logic low level
whenever the inputs are left floating. The outputs are each capable of driving 50
ohm transmission lines.

This device is useful in high speed central processors, minicomputers,
peripheral controllers, digital communication systems, testing and instrumen–
tation systems. The MC10114 can also be used for MOS to MECL interfacing
and it is ideal as a sense amplifier for MOS RAM’s.

A VBB reference is provided which is useful in making the MC101 14 a Schmit
trigger, allowing single–ended driving of the inputs, or other applications where
a stable reference voltage is necessary. See MECL Design Handbook (HB205)
pages 226 and 228.

PD= 145 mW typ/pkg
tpd= 2.4 ns typ (Single Ended Input)
tpd= 2.0 ns typ (Differential Input)

tr, tf= 2.1 ns typ (20% to 80%)

LOGIC DIAGRAM

V

CC1

= PIN 1

V

CC2

= PIN 16

VEE= PIN 8

5

4

11

3

2

10

9

7

6

13

12

15

14

VBB*

*VBB to be used to supply bias to the MC10114 only and bypassed (when used) with

0.01 µF to 0.1 µF capacitor to ground (0 V). VBB can source < 1.0 mA.

When the input pin with the bubble goes positive, its respective output pin with
bubble goes positive.



DIP

PIN ASSIGNMENT

V

CC1

A

OUT

A

OUT

A

IN

A

IN

B

OUT

B

OUT

V

EE

V

CC2

C

OUT

C

OUT

C

IN

C

IN

V

BB

B

IN

B

IN

16
15
14
13
12
11
10

9

1
2
3
4
5
6
7
8

Pin assignment is for Dual–in–Line Package.

For PLCC pin assignment, see the Pin Conversion

T ables on page 6–11 of the Motorola MECL Data

Book (DL122/D).

L SUFFIX

CERAMIC PACKAGE

CASE 620–10

P SUFFIX

PLASTIC PACKAGE

CASE 648–08

FN SUFFIX

PLCC

CASE 775–02

MC10114

MOTOROLA MECL Data

DL122 — Rev 6

3–54

ELECTRICAL CHARACTERISTICS

Test Limits

Pin

Under

–30°C +25°C +85°C

Characteristic Symbol

Under

Test

Min Max Min Typ Max Min Max

Unit

Power Supply Drain Current I

E

8 39 28 35 39 mAdc

Input Current I

inH

4 70 45 45 µAdc

I

CBO

4 1.5 1.0 1.0 µAdc

Output Voltage Logic 1 V

OH

2
3

–1.060
–1.060

–0.890
–0.890

–0.960
–0.960

–0.810
–0.810

–0.890
–0.890

–0.700
–0.700

Vdc

Output Voltage Logic 0 V

OL

2
3

–1.890
–1.890

–1.675
–1.675

–1.850
–1.850

–1.650
–1.650

–1.825
–1.825

–1.615
–1.615

Vdc

Threshold Voltage Logic 1 V

OHA

2
3

–1.080
–1.080

–0.980
–0.980

–0.910
–0.910

Vdc

Threshold Voltage Logic 0 V

OLA

2
3

–1.655
–1.655

–1.630
–1.630

–1.595
–1.595

Vdc

Reference Voltage V

BB

11 –1.420 –1.280 –1.350 –1.230 –1.295 –1.150 Vdc

Common Mode Rejection
Test

V

OH

2
3

–1.060
–1.060

–0.890
–0.890

–0.960
–0.960

–0.810
–0.810

–0.890
–0.890

–0.700
–0.700

Vdc

V

OL

2
3

–1.890
–1.890

–1.675
–1.675

–1.850
–1.850

–1.650
–1.650

–1.825
–1.825

–1.615
–1.615

Vdc

Switching Times (50Ω Load) Min Max Min Typ Max Min Max ns
Propagation Delay t

4+2+

t

4–2–

t

4+3–

t

4–3+

2
2
3
3

1.0

1.0

1.0

1.0

4.4

4.4

4.4

4.4

1.0

1.0

1.0

1.0

2.4

2.4

2.4

2.4

4.0

4.0

4.0

4.0

0.9

0.9

0.9

0.9

4.3

4.3

4.3

4.3

Rise Time (20 to 80%) t

2+

t

3+

2
3

1.5

1.5

3.8

3.8

1.5

1.5

2.1

2.1

3.5

3.5

1.5

1.5

3.7

3.7

Fall Time (20 to 80%) t

2–

t

3–

2
3

1.5

1.5

3.8

3.8

1.5

1.5

2.1

2.1

3.5

3.5

1.5

1.5

3.7

3.7

MC10114

3–55 MOTOROLAMECL Data

DL122 — Rev 6

ELECTRICAL CHARACTERISTICS (continued)

TEST VOLTAGE VALUES (Volts)

@ Test Temperature V

IHmax

V

ILminVIHAminVILAmax

V

BB

–30°C –0.890 –1.890 –1.205 –1.500

From

+25°C –0.810 –1.850 –1.105 –1.475

From

Pin

+85°C –0.700 –1.825 –1.035 –1.440

11

Pin

TEST VOLTAGE APPLIED TO PINS LISTED BELOW

Characteristic Symbol

Und

er

Test

V

IHmax

V

ILminVIHAminVILAmax

V

BB

Unit

Power Supply Drain Current I

E

8 4, 9, 12 5, 10, 13 mAdc

Input Current I

inH

4 4 9, 12 5, 10, 13 µAdc

I

inL

4 9, 12 5, 10, 13 µAdc

Output Voltage Logic 1 V

OH

2
3

4

9, 12

9, 12

4

5, 10, 13
5, 10, 13

Vdc

Output Voltage Logic 0 V

OL

2
3

9, 12

4

4

9, 12

5, 10, 13
5, 10, 13

Vdc

Threshold Voltage Logic 1 V

OHA

2
3

9, 12

9, 12 4

4

5, 10, 13
5, 10, 13

Vdc

Threshold Voltage Logic 0 V

OLA

2
3

9, 12

9, 12 4

4 5, 10, 13

5, 10, 13

Vdc

Reference Voltage V

BB

11 5, 10, 13 Vdc

Common Mode Rejection Test V

OH

2
3

Vdc

V

OL

2
3

Vdc

Switching Times (50Ω Load) Pulse In Pulse Out
Propagation Delay t

4+2+

t

4–2–

t

4+3–

t

4–3+

2
2
3
3

4
4
4
4

2
2
3
3

5, 10, 13
5, 10, 13
5, 10, 13
5, 10, 13

ns

Rise Time (20 to 80%) t

2+

t

3+

2
3

4
4

2
3

5, 10, 13
5, 10, 13

Fall Time (20 to 80%) t

2–

t

3–

2
3

4
4

2
3

5, 10, 13
5, 10, 13

MC10114

MOTOROLA MECL Data

DL122 — Rev 6

3–56

ELECTRICAL CHARACTERISTICS (continued)

TEST VOLTAGE VALUES (Volts)

@ Test Temperature V

IHH

* V

ILH

* V

IHL

* V

ILL

* V

EE

–30°C +0.110 –0.890 –1.890 –2.890 –5.2
+25°C +0.190 –0.850 –1.810 –2.850 –5.2
+85°C +0.300 –0.825 –1.700 –2.825 –5.2

Pin

TEST VOLTAGE APPLIED TO PINS LISTED BELOW

Characteristic Symbol

Und

er

Test

V

IHH

* V

ILH

* V

IHL

* V

ILL

* V

EE

(VCC)

Gnd

Power Supply Drain Current I

E

8 8 1, 16

Input Current I

inH

4 8 1, 16

I

inL

4 8, 4 1, 16

Output Voltage Logic 1 V

OH

2
3

8
8

1, 16
1, 16

Output Voltage Logic 0 V

OL

2
3

8
8

1, 16
1, 16

Threshold Voltage Logic 1 V

OHA

2
3

8
8

1, 16
1, 16

Threshold Voltage Logic 0 V

OLA

2
3

8
8

1, 16
1, 16

Reference Voltage V

BB

11 8 1, 16

Common Mode Rejection Test V

OH

2
3

4 5

5 4

8
8

1, 16
1, 16

V

OL

2
3

4 5

5 4 8

8

1, 16

1, 16
Switching Times (50Ω Load) –3.2 V +2.0 V
Propagation Delay t

4+2+

t

4–2–

t

4+3–

t

4–3+

2
2
3
3

8
8
8
8

1, 16

1, 16

1, 16

1, 16
Rise Time (20 to 80%) t

2+

t

3+

2
3

8
8

1, 16

1, 16
Fall Time (20 to 80%) t

2–

t

3–

2
3

8
8

1, 16

1, 16

*V

IHH

= Input Logic 1 level shifted positive one volt for common mode rejection tests

V

ILH

= Input Logic 0 level shifted positive one volt for common mode rejection tests

V

IHL

= Input Logic 1 level shifted negative one volt for common mode rejection tests

V

ILL

= Input Logic 0 level shifted negative one volt for common mode rejection tests

Each MECL 10,000 series circuit has been designed to meet the dc specifications shown in the test table, after thermal equilibrium has been
established. The circuit is in a test socket or mounted on a printed circuit board and transverse air flow greater than 500 linear fpm is maintained.
Outputs are terminated through a 50-ohm resistor to –2.0 volts. Test procedures are shown for only one gate. The other gates are tested in the
same manner.

MC10114

3–57 MOTOROLAMECL Data

DL122 — Rev 6

OUTLINE DIMENSIONS

FN SUFFIX

PLASTIC PLCC PACKAGE

CASE 775–02

ISSUE C

NOTES:

1. DATUMS –L–, –M–, AND –N– DETERMINED
WHERE TOP OF LEAD SHOULDER EXITS PLASTIC
BODY AT MOLD PARTING LINE.

2. DIMENSION G1, TRUE POSITION TO BE
MEASURED AT DATUM –T–, SEATING PLANE.

3. DIMENSIONS R AND U DO NOT INCLUDE MOLD
FLASH. ALLOWABLE MOLD FLASH IS 0.010 (0.250)
PER SIDE.

4. DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.

5. CONTROLLING DIMENSION: INCH.

6. THE PACKAGE TOP MAY BE SMALLER THAN THE
PACKAGE BOTTOM BY UP TO 0.012 (0.300).
DIMENSIONS R AND U ARE DETERMINED AT THE
OUTERMOST EXTREMES OF THE PLASTIC BODY
EXCLUSIVE OF MOLD FLASH, TIE BAR BURRS,
GATE BURRS AND INTERLEAD FLASH, BUT
INCLUDING ANY MISMATCH BETWEEN THE TOP
AND BOTTOM OF THE PLASTIC BODY.

7. DIMENSION H DOES NOT INCLUDE DAMBAR
PROTRUSION OR INTRUSION. THE DAMBAR
PROTRUSION(S) SHALL NOT CAUSE THE H
DIMENSION TO BE GREATER THAN 0.037 (0.940).
THE DAMBAR INTRUSION(S) SHALL NOT CAUSE
THE H DIMENSION TO BE SMALLER THAN 0.025
(0.635).

–M–

–N–

–L–

Y BRK

W

V

D

D

S

L–M

M

0.007 (0.180) N

S

T

S

L–M

M

0.007 (0.180) N

S

T

S

L–M

S

0.010 (0.250) N

S

T

X

G1

B

U

Z

VIEW D–D

20 1

S

L–M

M

0.007 (0.180) N

S

T

S

L–M

M

0.007 (0.180) N

S

T

S

L–M

S

0.010 (0.250) N

S

T

C

G

VIEW S

E

J

R

Z

A

0.004 (0.100)

–T–

SEATING
PLANE

S

L–M

M

0.007 (0.180) N

S

T

S

L–M

M

0.007 (0.180) N

S

T

H

VIEW S

K

K1

F

G1

DIM MIN MAX MIN MAX

MILLIMETERSINCHES

A 0.385 0.395 9.78 10.03
B 0.385 0.395 9.78 10.03
C 0.165 0.180 4.20 4.57
E 0.090 0.110 2.29 2.79
F 0.013 0.019 0.33 0.48
G 0.050 BSC 1.27 BSC
H 0.026 0.032 0.66 0.81
J 0.020 ––– 0.51 –––
K 0.025 ––– 0.64 –––
R 0.350 0.356 8.89 9.04
U 0.350 0.356 8.89 9.04
V 0.042 0.048 1.07 1.21
W 0.042 0.048 1.07 1.21
X 0.042 0.056 1.07 1.42
Y ––– 0.020 ––– 0.50

Z 2 10 2 10
G1 0.310 0.330 7.88 8.38
K1 0.040 ––– 1.02 –––

____

MC10114

MOTOROLA MECL Data

DL122 — Rev 6

3–58

OUTLINE DIMENSIONS

P SUFFIX

PLASTIC DIP PACKAGE

CASE 648–08

ISSUE R

NOTES:

1. DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.

2. CONTROLLING DIMENSION: INCH.

3. DIMENSION L TO CENTER OF LEADS WHEN
FORMED PARALLEL.

4. DIMENSION B DOES NOT INCLUDE MOLD FLASH.

5. ROUNDED CORNERS OPTIONAL.

–A–

B

F

C

S

H

G

D

J

L

M

16 PL

SEATING

18

916

K

PLANE

–T–

M

A

M

0.25 (0.010) T

DIM MIN MAX MIN MAX

MILLIMETERSINCHES

A 0.740 0.770 18.80 19.55
B 0.250 0.270 6.35 6.85
C 0.145 0.175 3.69 4.44
D 0.015 0.021 0.39 0.53
F 0.040 0.70 1.02 1.77

G 0.100 BSC 2.54 BSC

H 0.050 BSC 1.27 BSC
J 0.008 0.015 0.21 0.38
K 0.110 0.130 2.80 3.30
L 0.295 0.305 7.50 7.74

M 0 10 0 10

S 0.020 0.040 0.51 1.01

____

L SUFFIX

CERAMIC DIP PACKAGE

CASE 620–10

ISSUE V

NOTES:

1. DIMENSIONING AND TOLERANCING PER
ANSI Y14.5M, 1982.

2. CONTROLLING DIMENSION: INCH.

3. DIMENSION L TO CENTER OF LEAD WHEN
FORMED PARALLEL.

4. DIMENSION F MAY NARROW TO 0.76 (0.030)
WHERE THE LEAD ENTERS THE CERAMIC
BODY.

–A–

–B–

–T–

F

E

G

N

K

C

SEATING
PLANE

16 PLD

S

A

M

0.25 (0.010) T

16 PLJ

S

B

M

0.25 (0.010) T

M

L

DIM MIN MAX MIN MAX

MILLIMETERSINCHES

A 0.750 0.785 19.05 19.93
B 0.240 0.295 6.10 7.49
C ––– 0.200 ––– 5.08
D 0.015 0.020 0.39 0.50
E 0.050 BSC 1.27 BSC
F 0.055 0.065 1.40 1.65
G 0.100 BSC 2.54 BSC
H 0.008 0.015 0.21 0.38
K 0.125 0.170 3.18 4.31
L 0.300 BSC 7.62 BSC
M 0 15 0 15
N 0.020 0.040 0.51 1.01

____

16 9

18

Motorola reserves the right to make changes without further notice to any products herein. Motorola makes no warranty , representation or guarantee regarding
the suitability of its products for any particular purpose, nor does Motorola assume any liability arising out of the application or use of any product or circuit, and
specifically disclaims any and all liability, including without limitation consequential or incidental damages. “T ypical” parameters which may be provided in Motorola
data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals”
must be validated for each customer application by customer’s technical experts. Motorola does not convey any license under its patent rights nor the rights of
others. Motorola products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or other
applications intended to support or sustain life, or for any other application in which the failure of the Motorola product could create a situation where personal injury
or death may occur. Should Buyer purchase or use Motorola products for any such unintended or unauthorized application, Buyer shall indemnify and hold Motorola
and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees
arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that
Motorola was negligent regarding the design or manufacture of the part. Motorola and are registered trademarks of Motorola, Inc. Motorola, Inc. is an Equal
Opportunity/Affirmative Action Employer.

How to reach us:
USA/EUROPE/Locations Not Listed: Motorola Literature Distribution; JAP AN: Nippon Motorola Ltd.; Tatsumi–SPD–JLDC, 6F Seibu–Butsuryu–Center,

P.O. Box 5405, Denver, Colorado 80217. 303–675–2140 or 1–800–441–2447 3–14–2 Tatsumi Koto–Ku, Tokyo 135, Japan. 81–3–3521–8315

Mfax: [e-mail] – TOUCHT ONE 602–244–6609 ASIA/PACIFIC: Motorola Semiconductors H.K. Ltd.; 8B Tai Ping Industrial Park,
INTERNET: http://Design–NET.com 51 Ting Kok Road, Tai Po, N.T., Hong Kong. 852–26629298

MC10114/D

*MC10114/D*

◊
