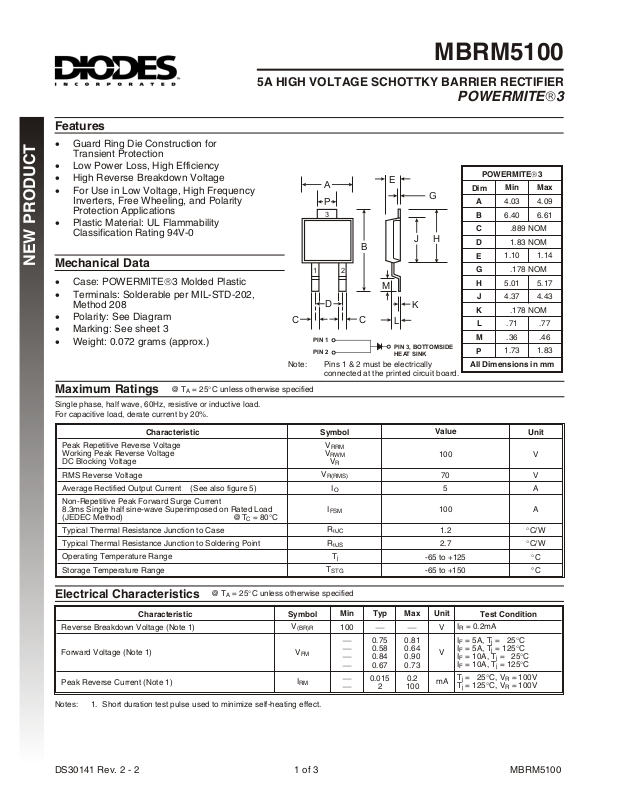

Page 1
Features
S
· Guard Ring Die Construction for
TCUDORPWEN
Transient Protection
· Low Power Loss, High Efficiency
· High Reverse Breakdown Voltage
· For Use in Low Voltage, High Frequency
Inverters, Free Wheeling, and Polarity
Protection Applications
· Plastic Material: UL Flammability
Classification Rating 94V-0
Mechanical Data
· Case: POWERMITEâ3 Molded Plastic
· Terminals: Solderable per MIL-STD-202,
Method 208
· Polarity: See Diagram
· Marking: See sheet 3
· Weight: 0.072 grams (approx.)
Maximum Ratings
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current (See also figure 5)
Non-Repetitive Peak Forward Surge Current
8.3ms Single half sine-wave Superimposed on Rated Load
(JEDEC Method) @TC = 80°C
Typical Thermal Resistance Junction to Case
Typical Thermal Resistance Junction to Soldering Point
Operating Temperature Range
Storage Temperature Range
@ TA = 25°C unless otherwise specified
Characteristic Symbol
MBRM5100
5A HIGH VOLTAGE SCHOTTKY BARRIER RECTIFIER
POWERMITEâ3
A
E
P
3
J
B
12
M
D
RRM
RWM
V
R
I
O
FSM
qJC
qJS
T
STG
C
j
C
PIN 1
PIN 2
Note: Pins 1 & 2 must be electrically
connected at the printed circuit board.
V
V
V
R(RMS)
I
R
R
T
K
L
PIN 3, BOTTOMSIDE
HEAT
INK
G
H
Value
100 V
70 V
5A
100 A
1.2 °C/W
2.7 °C/W
-65 to +125 °C
-65 to +150 °C
POWERMITEâ3
A
B
C
D
E
G
H
J
K
L
M
P
Min Max
4.03 4.09
6.40 6.61
.889 NOM
1.83 NOM
1.10 1.14
.178 NOM
5.01 5.17
4.37 4.43
.178 NOM
.71 .77
.36 .46
1.73 1.83
Unit
Dim
All Dimensions in mm
Electrical Characteristics
Characteristic Symbol
Reverse Breakdown Voltage (Note 1)
Forward Voltage (Note 1)
Peak Reverse Current (Note 1)
Notes: 1. Short duration test pulse used to minimize self-heating effect.
@ TA = 25°C unless otherwise specified
Min Typ Max Unit
V
V
(BR)R
FM
I
RM
100 ¾¾V
¾
¾
¾
¾
¾¾0.01520.2
0.75
0.58
0.84
0.67
0.81
0.64
0.90
0.73
100
Test Condition
IR = 0.2mA
I
= 5A, Tj = 25°C
F
I
= 5A, Tj = 125°C
F
V
= 10A, Tj = 25°C
I
F
I
= 10A, Tj = 125°C
F
Tj = 25°C, VR = 100V
mA
= 125°C, VR = 100V
T
j
DS30141 Rev. 2 - 2 1 of 3 MBRM5100
Page 2
100
10,000
O
1000
g
TCUDORPWEN
F
I , INSTANTANEOUS FORWARD CURRENT (A)
10
1.0
0.1
0.01
100
80
T = 125°C
j
T = 100°C
j
T=25°C
j
0 0.2
V INSTANTANEOUS FORWARD VOLTAGE (V)
F,
0.4 0.6 0.8
Fig.1 Typical Forward Characteristics
T=80° C
c
T= 125° C
1000
j
T= 100° C
j
100
T= 75° C
j
10
1.0
T= 25° C
j
0.1
0 0.5 100
V , INSTANTANEOUS REVERSE VOLTAGE (V)
R
Fig. 2 Typical Reverse Characteristics
f = 1MHz
60
40
RWARD SURGE CURRENT (A)
20
FSM
I , PEAK F
0
1 10 100
NUMBER OF CYCLES AT 60Hz
Fig. 3 Max Non-Repetitive Peak forward Surge Current
T
C , TOTAL CAPACITANCE (pF)
100
10
0
20 40 60 80 100
V , REVERSE VOLTAGE (V)
R
Fig. 4 Typical Capacitance vs.
Reverse Volta
e
DS30141 Rev. 2 - 2 2 of 3 MBRM5100
Page 3
7
g
)
TCUDORPWEN
F
I , DC FORWARD CURRENT (A)
6.0
4.5
3.0
1.5
.5
3.5
3.0
Note 2
Note 1
2.5
2.0
Note 2
1.5
Note 3
1.0
Note 3
0.5
0
0
25
50
T , AMBIENT TEMPERATURE (°C)
A
75
100
125
150
Fig. 5 DC Forward Current Deratin
Notes: 1. TA = T
2. Device mounted on GETEK substrate, 2”x2”, 2 oz. copper, double-sided, cathode pad dimensions 0.75” x 1.0”, anode pad
dimensions 0.25” x 1.0”. R
3. Device mounted on FR-4 substrate, 2”x2”, 2 oz. copper, single-sided, pad layout as per Diodes Inc. suggested pad layout
document AP02001 which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf. R
100-140°C/W.
SOLDERING POINT,RqJS
Ordering Information
Device
MBRM5100-13
Notes: 4. For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
= 2.7°C/W, R
in range of 20-40°C/W.
qJA
(Note 4)
qSA
= 0°C/W.
Packaging Shipping
POWERMITEâ3 5000/Tape & Reel
F(AV)
P , AVERAGE FORWARD POWER DISSIPATION (W
0
0
1
2
I , AVERAGE FORWARD CURRENT (A)
F(AV)
Fig. 6 Forward Power Dissipation
4
3
5
in range of
qJA
Marking Information
7
6
MBRM5100
YYWW
POWERMITE is a registered trademark of Microsemi Corporation.
MBRM5100 = Product type marking code
= Manufacturers’ code marking
YYWW = Date code marking
YY = Last digit of year ex: 2 for 2002
WW = Week code 01 to 52
DS30141 Rev. 2 - 2 3 of 3 MBRM5100
