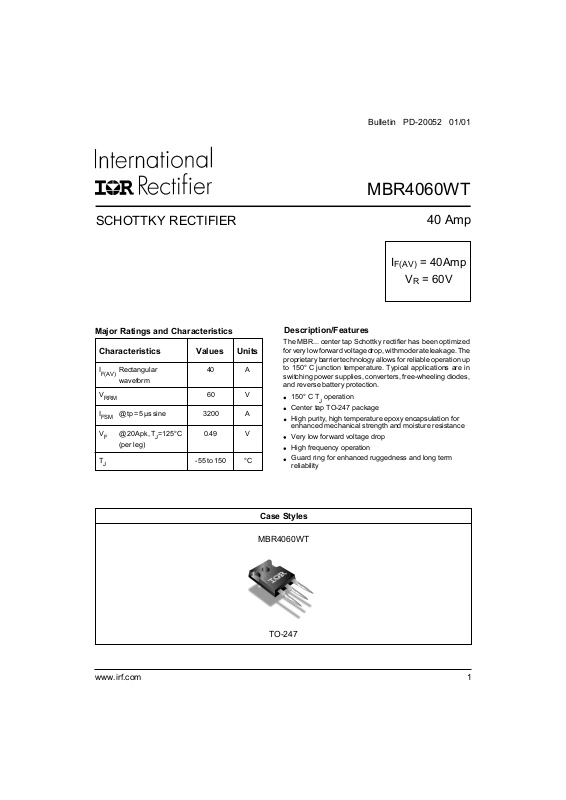

Page 1
Bulletin PD-20052 01/01
MBR4060WT
SCHOTTKY RECTIFIER
Major Ratings and Characteristics
Characteristics Values Units
I
Rectangular 40 A
F(AV)
waveform
V
RRM
I
@ tp = 5 µs sine 3200 A
FSM
VF@ 20 Apk, TJ=125°C 0.49 V
(per leg)
T
J
60 V
- 55 to 150 °C
40 Amp
I
= 40Amp
F(AV)
VR = 60V
Description/Features
The MBR... center tap Schottky rectifier has been optimized
for very low forward voltage drop, with moderate leakage. The
proprietary barrier technology allows for reliable operation up
to 150° C junction temperature. Typical applications are in
switching power supplies, converters, free-wheeling diodes,
and reverse battery protection.
150° C TJ operation
Center tap TO-247 package
High purity, high temperature epoxy encapsulation for
enhanced mechanical strength and moisture resistance
Very low forward voltage drop
High frequency operation
Guard ring for enhanced ruggedness and long term
reliability
www.irf.com
Case Styles
MBR4060WT
TO-247
1
Page 2
MBR4060WT
Bulletin PD-20052 01/01
Voltage Ratings
Part number MBR4060WT
VRMax. DC Reverse Voltage (V)
V
Max. Working Peak Reverse Voltage (V)
RWM
60
Absolute Maximum Ratings
Parameters Values Units Conditions
I
Max. Average Forward 40 A @ TC = 120°C, 50% duty cycle, rectangular waveform
F(AV)
Current
I
Peak Repetitive Forward 40 A Rated VR , square wave, 20kHz
FRM
Current (Per Leg) TC = 125° C
I
Max.Peak One Cycle Non-Repetitive 3200 5µs Sine or 3µs Rect. pulse
FSM
Surge Current ( Per Leg) See fig.7 320 10ms Sine or 6ms Rect. pulse
EASNon-Repetitive Avalanche Energy 18 mJ TJ = 25 °C, I
A
= 3 Amps, L = 4.40 mH
AS
(Per Leg)
IARRepetitive Avalanche Current 2 A Current decaying linearly to zero in 1 µsec
(Per Leg) Frequency limited by T
Following any rated
load condition and with
rated V
max. VA = 1.5 x VR typical
J
RRM
applied
Electrical Specifications
Parameters Values Units Conditions
VFMMax. Forward Voltage Drop 0.53 V @ 20A
0.68 V @ 40A
(1) 0.49 V @ 20A
0.64 V @ 40A
IRMMax. Instantaneus Reverse Current 1.7 mA TJ = 25 °C Rated DC voltage
96 mA TJ = 125°C
CTMax. Junction Capacitance 900 pF VR = 5VDC, (test signal range 100Khz to 1Mhz) 25°C
LSTypical Series Inductance 7.5 nH Measured from top of terminal to mounting plane
dv/dt Max. Voltage Rate of Change 10000 V/ µs
(Rated VR)
TJ = 25 °C
TJ = 125 °C
(1) Pulse Width < 300µs, Duty Cycle <2%
Thermal-Mechanical Specifications
Parameters Values Units Conditions
TJMax. Junction Temperature Range -55 to 150 °C
T
Max. Storage Temperature Range -55 to 150 °C
stg
R
Max. Thermal Resistance 1.25 °C/W DC operation
thJC
Junction to Case (Per Package)
R
Typical Thermal Resistance 0.63 °C/W Mounting surface, smooth and greased
thCS
Case to Heatsink
wt Approximate Weight 6 (0.21) g (oz.)
T Mounting Torque Min. 6 (5)
Max. 12 (10)
Kg-cm
(Ibf-in)
Case Style TO-247AC (TO-3P) JEDEC
2
www.irf.com
Page 3
MBR4060WT
0
0
Bulletin PD-20052 01/01
1000
100
(A)
F
10
Instantaneous Forward Current - I
T = 150˚C
J
T = 125˚C
J
T = 25˚C
J
1000
T = 150˚C
10
J
125˚C
1
100˚C
(mA)
R
100
75˚C
0.1
Reverse Current - I
0.01
.001
0 1020304050
50˚C
25˚C
Reverse Voltage - VR (V)
Fig. 2 - Typical Values Of Reverse Current
Vs. Reverse Voltage
1000
(pF)
T
T = 25˚C
J
1
0 0.4 0.8 1.2 1.6 2
Forward Voltage Drop - VFM (V)
Fig. 1 - Max. Forward Voltage Drop Characteristics
10
D = 0.75
1
D = 0.50
D = 0.33
D = 0.25
D = 0.20
0.1
Single Pulse
Thermal Impedance ZthJC (°C/W)
.01
0.00001 0.0001 0.001 0.01 0.1 1 10 100
(Thermal Resistance)
t1, Rectangular Pulse Duration (Seconds)
Fig. 4 - Max. Thermal Impedance Z
www.irf.com
Junction Capacitance - C
100
0 1020304050
Fig. 3 - Typical Junction Capacitance
P
DM
Notes:
1. Duty factor D = t / t
2. Peak T = P x Z + T
J
DM
Characteristics
thJC
Reverse Voltage - VR (V)
Vs. Reverse Voltage
t
1
t
2
1
2
C
thJC
3
Page 4
MBR4060WT
1
1
2
Bulletin PD-20052 01/01
160
140
DC
120
Square wave (D = 0.50)
Rated V applied
R
100
Allowable Case Temperature - (°C)
see note (2)
80
0 5 10 15 20 25 30
Average Forward Current - IF
Fig. 5 - Max. Allowable Case Temperature
Vs. Average Forward Current
1000
FSM (A)
Non-Repetitive Surge Current - I
100
10 100 1000 10000
Square Wave Pulse Duration - t
Fig. 7 - Max. Non-Repetitive Surge Current
(A)
(AV)
At Any Rated Load Condition
And With Rated V Applied
Following Surge
RRM
0
D = 0.20
D = 0.25
D = 0.33
5
D = 0.50
D = 0.75
RMS Limit
0
5
Average Power Loss - (Watts)
0
0 5 10 15 20 25 30
Average Forward Current - IF
Fig. 6 - Forward Power Loss Characteris-
tics
(microsec)
p
(AV)
DC
(A)
L
HIG H-SPEED
SW ITCH
FREE-WHEEL
D IO D E
40HFL40S02
Vd = 25 Volt
+
CURRENT
MONITOR
DUT
IRFP460
Rg = 25 ohm
Fig. 8 - Unclamped Inductive Test Circuit
(2) Formula used: TC = TJ - (Pd + Pd
Pd = Forward Power Loss = I
Pd
= Inverse Power Loss = VR1 x IR (1 - D); IR @ V
REV
4
F(AV)
) x R
REV
x VFM @ (I
thJC
;
F(AV)
/ D) (see Fig. 6);
= rated V
R1
R
www.irf.com
Page 5
Outline Table
)
MBR4060WT
Bulletin PD-20052 01/01
20.30 (0.800)
19.70 (0.775)
14.80 (0.583)
14.20 (0.559)
1.40 (0.056)
1.00 (0.039)
5.47 (0.216)
5.43 (0.213)
15.90 (0.626)
15.30 (0.602)
1 2 3
3.65 (0.144)
3.55 (0.139)
DIA.
5.30 (0.209)
4.70 (0.185)
5.70 (0.225)
5.30 (0.208)
5.50 (0.217)
4.50 (0.177)
(2 PLCS.)
4.30 (0.170)
3.70 (0.145)
2.20 (0.087)
MAX.
3.20 (0.126)
MAX.
0.80 (0.032)
0.40 (0.213)
Conform to JEDEC outline TO-247AC (TO-3P)
Dimensions in millimeters and (inches)
2.5 (0.098)
1.5 (0.059)
2.40 (0.095
MAX.
BASE
COMMON
CATHODE
2
123
ANODEANODE
COMMON
CATHODE
Ordering Information Table
Device Code
1 - Schottky MBR Series
2 - Currrent Rating : 40 = 40A
3 - Voltage Rating : 60 = 60V
4 - Circuit Configuration :
www.irf.com
MBR 40 60 WT
1
2
Center Tap (Dual) TO-247
4
3
5
Page 6
MBR4060WT
Bulletin PD-20052 01/01
MBR4060WT
********************************************
This model has been developed by
Wizard SPICE MODEL GENERATOR (1999)
(International Rectifier Corporation)
contains Proprietary Information
********************************************
* SPICE Model Diode is composed by a *
* simple diode plus paralled VCG2T *
********************************************
.SUBCKT MBR4060WT ANO CAT
D1 ANO 1 DMOD (0.15431)
*Define diode model
.MODEL DMOD D(IS=1.24122088285142E-04A,N=1.118139845134,BV=68V,
+ IBV=0.326321361043483A,RS= 0.001033877,CJO=1.77866386701626E-08,
+ VJ=1.31756418398729,XTI=2, EG=0.750533880678658)
********************************************
*Implementation of VCG2T
VX 1 2 DC 0V
R1 2 CAT TRES 1E-6
.MODEL TRES RES(R=1,TC1=16.0583931154828)
GP1 ANO CAT VALUE={-ABS(I(VX))*(EXP((((-2.583306E-03/16.05839)*((V(2,CAT)*1E6)/(I(VX)+1E-
6)-1))+1)*4.198821E-02*ABS(V(ANO,CAT)))-1)}
********************************************
.ENDS MBR4060WT
Thermal Model Subcircuit
.SUBCKT MBR4060WT 5 1
CTHERM1 5 4 1.25E+00
CTHERM2 4 3 4.94E+00
CTHERM3 3 2 1.45E+01
CTHERM4 2 1 7.99E+01
RTHERM1 5 4 6.22E-01
RTHERM2 4 3 4.63E-01
RTHERM1 3 2 1.36E-01
RTHERM1 2 1 2.41E-02
.ENDS MBR4060WT
IR WORLD HEADQUARTERS: 233 Kansas St., El Segundo, California 90245, USA Tel: (310) 252-7105
TAC Fax: (310) 252-7309
Visit us at www.irf.com for sales contact information. 01/01
6
www.irf.com
