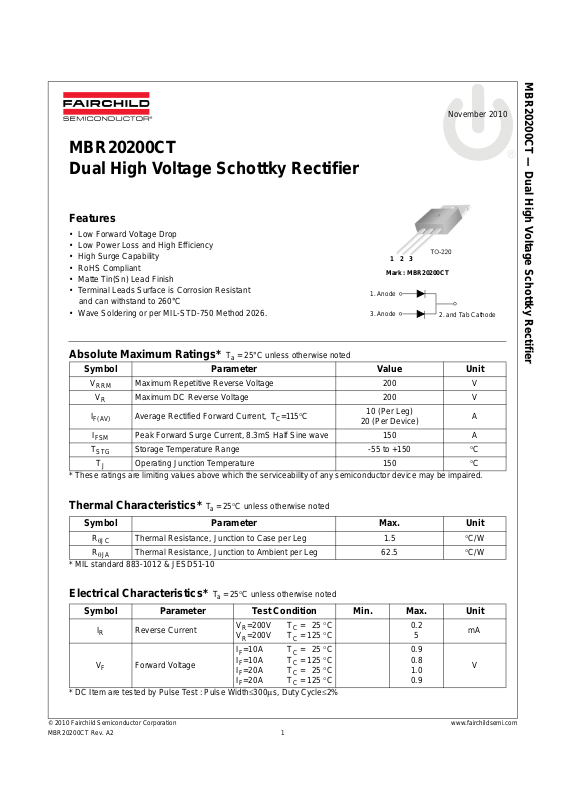

MBR20200CT Dual High Voltage Schottky Rectifier

Features

• Low Forward Voltage Drop

• Low Power Loss and High Efficiency

• High Surge Capability

• RoHS Compliant

• Matte Tin(Sn) Lead Finish

• Terminal Leads Surface is Corrosion Resistant and can withstand to 260°C

• Wave Soldering or per MIL-STD-750 Method 2026.

1 2 3

Mark : MBR20200CT

1. Anode

3. Anode

November 2010

2. and Tab Cathode

MBR20200CT — Dual High Voltage Schottky Rectifier

Absolute Maximum Ratings* T

= 25°C unless otherwise noted

Symbol Parameter Value Unit

RRM

F(AV)

FSM

STG

* These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.

Thermal Characteristics* T

Maximum Repetitive Reverse Voltage 200 V Maximum DC Reverse Voltage 200 V

Average Rectified Forward Current, TC=115°C

10 (Per Leg)

20 (Per Device) Peak Forward Surge Current, 8.3mS Half Sine wave 150 A Storage Temperature Range -55 to +150 °C Operating Junction Temperature 150 °C

= 25°C unless otherwise noted

Symbol Parameter Max. Unit

θJC

θJA

* MIL standard 883-1012 & JESD51-10

Electrical Characteristics* T

Thermal Resistance, Junction to Case per Leg 1.5 °C/W Thermal Resistance, Junction to Ambient per Leg 62.5 °C/W

= 25°C unless otherwise noted

Symbol Parameter Test Condition Min. Max. Unit

= 2 0 0 V

Reverse Current

Forward Voltage

= 2 0 0 V

= 10A

= 20A

* DC Item are tested by Pulse Test : Pulse Width≤300

= 25 °C

= 125 °C

= 25 °C

= 125 °C

= 25 °C

= 125 °C

μs, Duty Cycle≤2%

0.2 5

0.9

0.8

1.0

0.9

Page 2

Typical Performance Characteristics

Figure 1. Forward Current Characteristics Figure 2. Reverse Leakage Current

MBR20200CT — Dual High Voltage Schottky Rectifier

1000

[A]

0.1

Forward Current, I

0.01

0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

TJ=125 oC

TJ=75 oC

TJ=25 oC

Forward Voltage Drop, VF[V]

100

[uA]

0.1

Reverse Current, I

0.01

1E-3

50 100 150 200

TJ=125 oC

TJ=75 oC

Reverse Voltage, VR[V]

Figure 3.Junction Capacitance Figure 4. Power Derating

0.9

[nF]

0.8

0.7

0.6

0.5

0.4

0.3

0.2

f=1mhz

Juntion Capacitance, C

0.1 0246810

Reverse Voltage, VR[V]

[A]

F(AV)

Average Forward Current, I

0 25 50 75 100 125 150

Case Temperature, TC[oC]

TJ=25 oC

Page 3

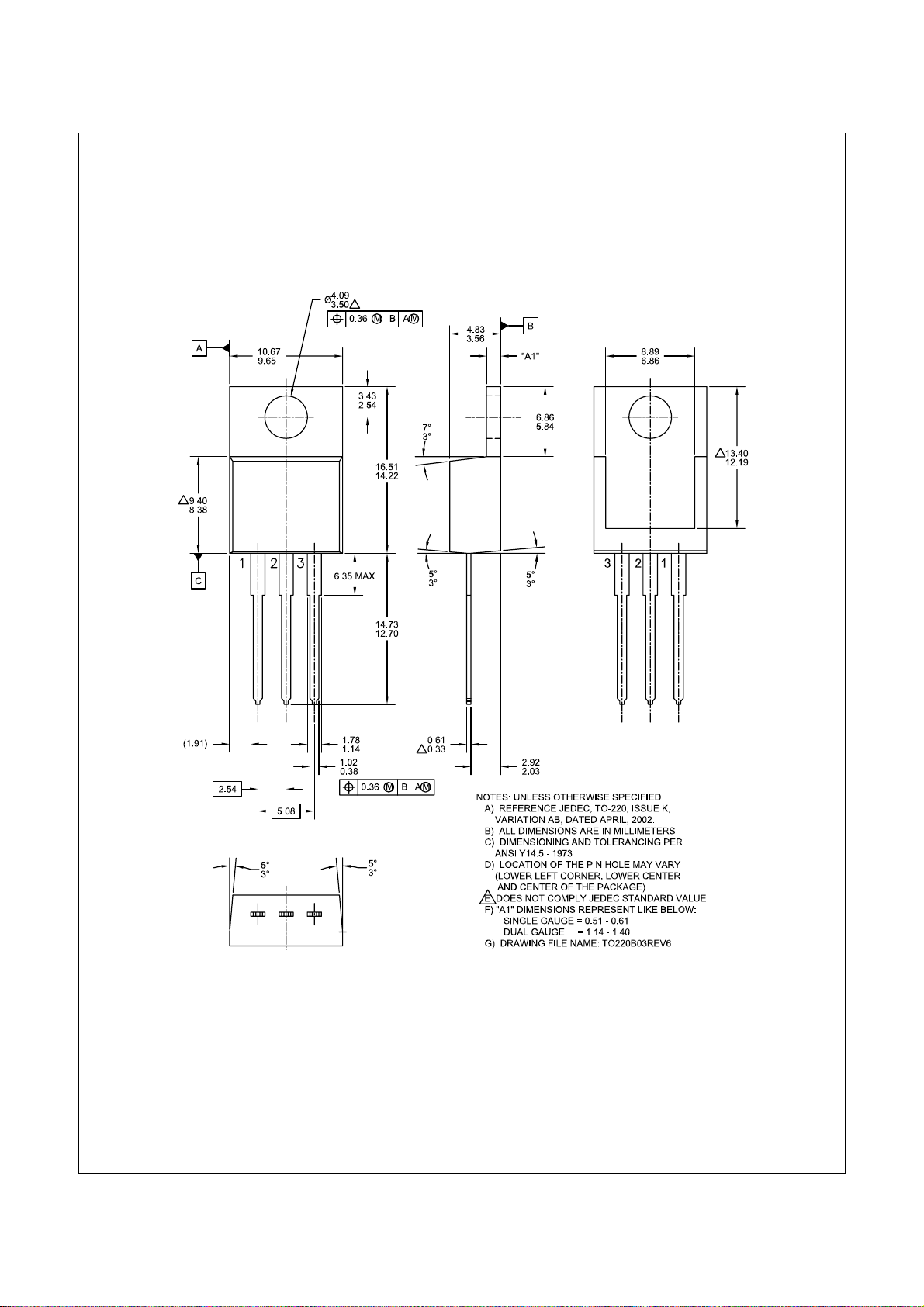

Phisical Dimensions

MBR20200CT — Dual High Voltage Schottky Rectifier

TO-220 [ DUAL GAUGE ]

Dimensions in Millimeters

Page 4
