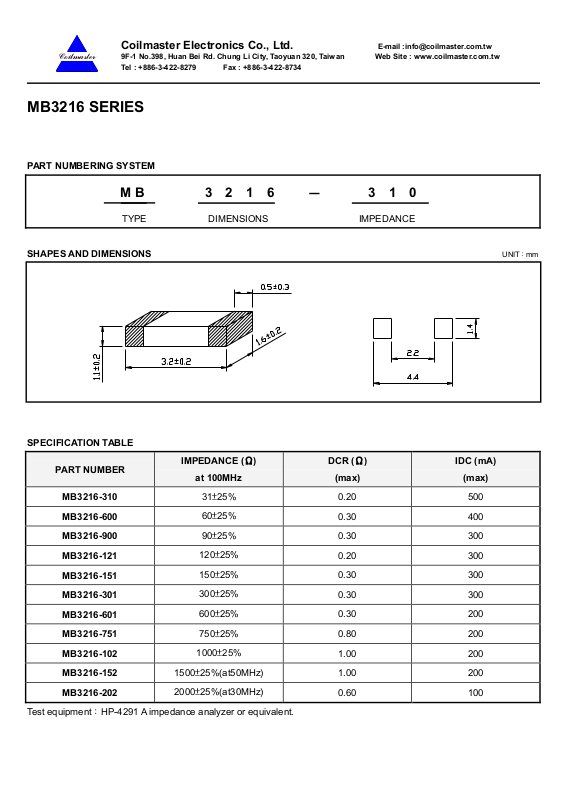

MB3216 SERIES

PART NUMBERING SYSTEM

M B 3 2 1 6 － 3 1 0

TYPE DIMENSIONS IMPEDANCE

SHAPES AND DIMENSIONS

SPECIFICATION TABLE

PART NUMBER

MB3216-310

MB3216-600

IMPEDANCE (Ω)

at 100MHz

31±25%

60±25%

DCR (Ω)

(max)

0.20 500

0.30 400

IDC (mA)

(max)

UNIT：mm

MB3216-900

MB3216-121

MB3216-151

MB3216-301

MB3216-601

MB3216-751

MB3216-102

MB3216-152

MB3216-202

Test equipment：HP-4291 A impedance analyzer or equivalent.

90±25%

120±25%

150±25%

300±25%

600±25%

750±25%

1000±25%

1500±25%(at50MHz)

2000±25%(at30MHz)

0.30 300

0.20 300

0.30 300

0.30 300

0.30 200

0.80 200

1.00 200

1.00 200

0.60 100

Coilmaster Electronics Co., Ltd. E-mail :[e-mail]

Coilmaster

9F-1 No.398, Huan Bei Rd. Chung Li City, Taoyuan 320, Taiwan Web Site : www.coilmaster.com.tw
Tel : [phone] Fax : [phone]

MB3216 SERIES

Coilmaster Electronics Co., Ltd. E-mail :[e-mail]

Coilmaster

9F-1 No.398, Huan Bei Rd. Chung Li City, Taoyuan 320, Taiwan Web Site : www.coilmaster.com.tw
Tel : [phone] Fax : [phone]

MB3216 SERIES

PACKAGING SPECIFICATION

E

C

B

R

D

A B C D E W8 W12 t R

T(ψ178mm)

Reel

T(ψ330mm)

Reel

A

ψ178±2 ψ60±1 ψ13±0.8 ψ21±0.8

ψ330±2 ψ100±2 ψ13±0.8 ψ21±0.8

2

2

t

W

10±1.5 14.5±1.5 1.27±0.2

10±1.5 14.5±1.5 1.27±0.2

1

1

TYPE A B T t

3216

1.90 3.50 1.40 0.2 3000 pcs/reel 10000 pcs/reel

T(ψ178mm) T(ψ330mm)
