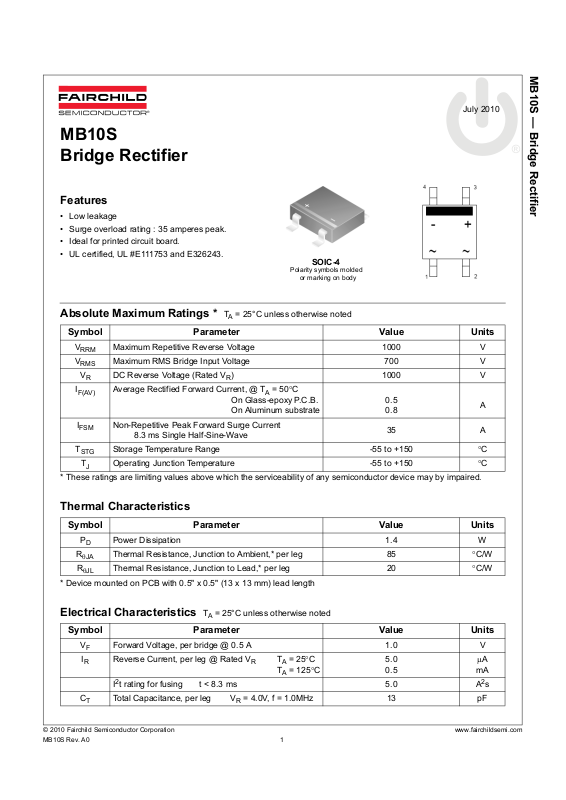

MB10S Bridge Rectifier

Features

• Low leakage

• Surge overload rating : 35 amperes peak.

• Ideal for printed circuit board.

• UL certified, UL #E111753 and E326243.

SOIC-4

Polarity symbols molded or marking on body

MB10S — Bridge Rectifier

July 2010

Absolute Maximum Ratings * T

= 25°C unless otherwise noted

Symbol Parameter Value Units

RRM

RMS

F(AV)

FSM

STG

* These ratings are limiting values above which the serviceability of any semiconductor device may by impaired.

Maximum Repetitive Reverse Voltage 1000 V

Maximum RMS Bridge Input Voltage 700 V

DC Reverse Voltage (Rated VR) 1000 V

Average Rectified Forward Current, @ TA = 50°C On Glass-epoxy P.C.B. On Aluminum substrate

Non-Repetitive Peak Forward Surge Current

8.3 ms Single Half-Sine-Wave

0.5

0.8

35 A

Storage Temperature Range -55 to +150 °C

Operating Junction Temperature -55 to +150 °C

Thermal Characteristics

Symbol Parameter Value Units

θJA

θJL

* Device mounted on PCB with 0.5" x 0.5" (13 x 13 mm) lead length

Power Dissipation 1.4 W

Thermal Resistance, Junction to Ambient,* per leg 85 °C/W

Thermal Resistance, Junction to Lead,* per leg 20 °C/W

Electrical Characteristics T

= 25°C unless otherwise noted

Symbol Parameter Value Units

MB10S Rev. A0 1

Forward Voltage, per bridge @ 0.5 A 1.0 V

Reverse Current, per leg @ Rated VR TA = 25°C TA = 125°C

t rating for fusing t < 8.3 ms 5.0 A2s

Total Capacitance, per leg VR = 4.0V, f = 1.0MHz 13 pF

5.0

0.5

µA

Page 2

Typical Performance Characteristics

MB10S — Bridge Rectifier

Figure 1. Derating Curve For Output Rectified

Current

Figure 3. Maximum Non-Repetitive Peak

Forward Surge Current Per Leg

Figure 2. Typical Reverse Leakage

Characteristics Per Leg

Figure 4. Typical Junction Capacitance Per Leg

Figure 5. Typical Forward Voltage

Characteristics Per Leg

MB10S Rev. A0 2
