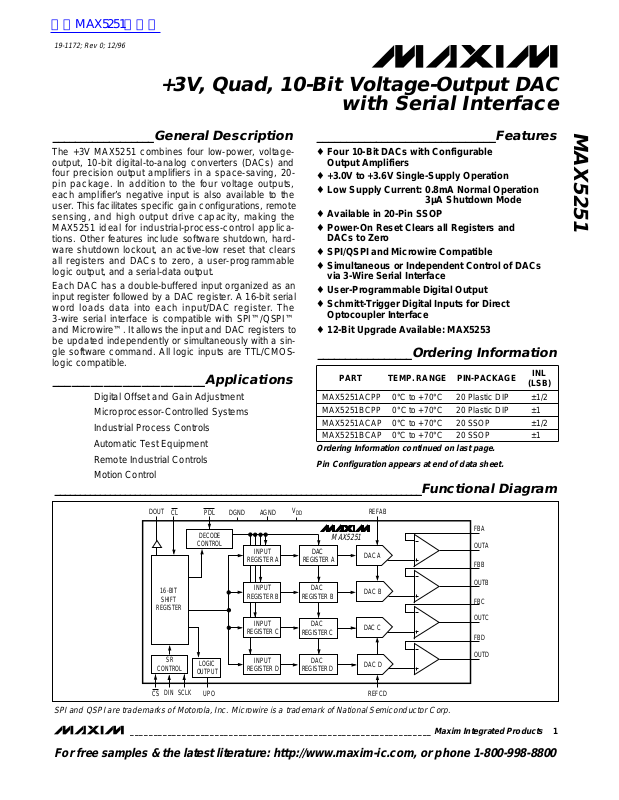

+3V, Quad, 10-Bit Voltage-Output DAC

with Serial Interface

__________________General Description

The +3V MAX5251 combines four low-power, voltage­output, 10-bit digital-to-analog converters (DACs) and
four precision output amplifiers in a space-saving, 20­pin package. In addition to the four voltage outputs,
each amplifier’s negative input is also available to the
user. This facilitates specific gain configurations, remote
sensing, and high output drive capacity, making the
MAX5251 ideal for industrial-process-control applica­tions. Other features include software shutdown, hard­ware shutdown lockout, an active-low reset that clears
all registers and DACs to zero, a user-programmable
logic output, and a serial-data output.

Each DAC has a double-buffered input organized as an
input register followed by a DAC register. A 16-bit serial
word loads data into each input/DAC register. The
3-wire serial interface is compatible with SPI™/QSPI™
and Microwire™. It allows the input and DAC registers to

______________________________Features

♦ Four 10-Bit DACs with Configurable

Output Amplifiers

♦ +3.0V to +3.6V Single-Supply Operation
♦ Low Supply Current: 0.8mA Normal Operation

3µA Shutdown Mode

♦ Available in 20-Pin SSOP
♦ Power-On Reset Clears all Registers and

DACs to Zero

♦ SPI/QSPI and Microwire Compatible
♦ Simultaneous or Independent Control of DACs

via 3-Wire Serial Interface

♦ User-Programmable Digital Output
♦ Schmitt-Trigger Digital Inputs for Direct

Optocoupler Interface

♦ 12-Bit Upgrade Available: MAX5253

be updated independently or simultaneously with a sin­gle software command. All logic inputs are TTL/CMOS-

_________________Ordering Information

logic compatible.

________________________Applications

Digital Offset and Gain Adjustment
Microprocessor-Controlled Systems
Industrial Process Controls
Automatic Test Equipment
Remote Industrial Controls

PART

MAX5251ACPP
MAX5251BCPP 0°C to +70°C
MAX5251ACAP
MAX5251BCAP 0°C to +70°C

Ordering Information continued on last page.

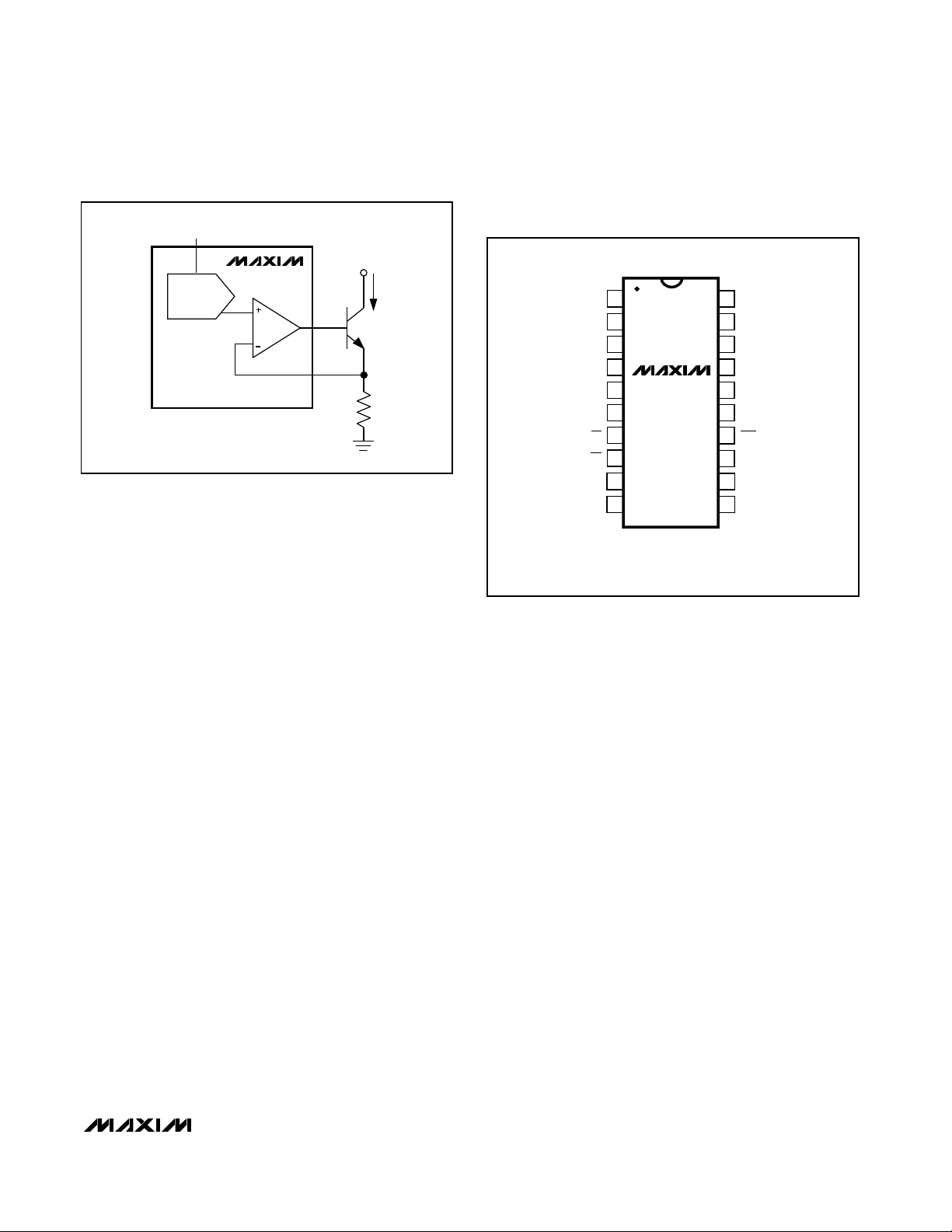

Pin Configuration appears at end of data sheet.

TEMP. RANGE PIN-PACKAGE

0°C to +70°C

0°C to +70°C 20 SSOP

20 Plastic DIP
20 Plastic DIP

20 SSOP

INL

(LSB)

±1/2
±1
±1/2
±1

Motion Control

_________________________________________________________________________Functional Diagram

MAX5251

DOUT

CL

16-BIT

SHIFT

REGISTER

SR

CONTROL

DIN

CS

SPI and QSPI are trademarks of Motorola, Inc. Microwire is a trademark of National Semiconductor Corp.

________________________________________________________________

PDL

DGND

DECODE

CONTROL

LOGIC

OUTPUT

SCLK

UPO REFCD

AGND

INPUT

REGISTER A

INPUT

REGISTER B

INPUT

REGISTER C

INPUT

REGISTER D

V

DD

REGISTER A

REGISTER B

REGISTER C

REGISTER D

DAC 

DAC 

DAC 

DAC 

MAX5251

REFAB

DAC A

DAC B

DAC C

DAC D

FBA
OUTA

FBB
OUTB

FBC
OUTC

FBD
OUTD

Maxim Integrated Products

1

For free samples & the latest literature: http://www.maxim-ic.com, or phone [phone]

+3V, Quad, 10-Bit Voltage-Output DAC
with Serial Interface

ABSOLUTE MAXIMUM RATINGS

VDDto AGND............................................................-0.3V to +6V

to DGND ...........................................................-0.3V to +6V

V

DD

AGND to DGND..................................................................±0.3V

REFAB, REFCD to AGND...........................-0.3V to (V

OUT_, FB_ to AGND...................................-0.3V to (V

Digital Inputs to DGND.............................................-0.3V to +6V

DOUT, UPO to DGND ................................-0.3V to (V

Continuous Current into Any Pin.......................................±20mA

Continuous Power Dissipation (T

MAX5251

Plastic DIP (derate 8.00mW/°C above +70°C).................640mW

SSOP (derate 8.00mW/°C above +70°C) ......................640mW

CERDIP (derate 11.11mW/°C above +70°C).................889mW

Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional
operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to
absolute maximum rating conditions for extended periods may affect device reliability.

= +70°C)

A

DD
DD

DD

+ 0.3V)
+ 0.3V)

+ 0.3V)

ELECTRICAL CHARACTERISTICS

(VDD= +3.0V to +3.6V, AGND = DGND = 0V, REFAB = REFCD = 1.25V, RL= 5kΩ, CL= 100pF, TA= T
noted. Typical values are at T

STATIC PERFORMANCE—ANALOG SECTION

Integral Nonlinearity
(Note 1)

Offset Error

REFERENCE INPUT

MATCHING PERFORMANCE (TA= +25°C)

Reference Input Range
Reference Input Resistance

= +25°C. Output buffer connected in unity-gain configuration (Figure 9).)

A

MAX5251AC/E

INL

REF
REF

MAX5251BC/E
MAX5251BMJP ±2.0
Guaranteed monotonic

OS

VDD= +3.0V to +3.6V

Code dependent, minimum at code 554 hex

Operating Temperature Ranges

MAX5251_C_P......................................................0°C to +70°C

MAX5251_E_P ...................................................-40°C to +85°C

MAX5251BMJP................................................-55°C to +125°C

Storage Temperature Range.............................-65°C to +150°C

Lead Temperature (soldering, 10sec).............................+300°C

to T

MIN

CONDITIONS

±0.25 ±0.5

, unless otherwise

MAX

±1.0

±6.0 mVV

- 1.4V

DD

UNITSMIN TYP MAXSYMBOLPARAMETER

Bits10NResolution

LSB

LSB±1.0DNLDifferential Nonlinearity

ppm/°C6Offset-Error Tempco

LSBGEGain Error (Note 1) ±2.4

ppm/°C1Gain-Error Tempco

µV/VPSRRPower-Supply Rejection Ratio 100 800

kΩ10R

V0V

2 _______________________________________________________________________________________

+3V, Quad, 10-Bit Voltage-Output DAC

with Serial Interface

ELECTRICAL CHARACTERISTICS (continued)

(VDD= +3.0V to +3.6V, AGND = DGND = 0V, REFAB = REFCD = 1.25V, RL= 5kΩ, CL= 100pF, TA= T
noted. Typical values are at T

MULTIPLYING-MODE PERFORMANCE

Signal-to-Noise Plus
Distortion Ratio

DIGITAL INPUTS

Input High Voltage
Input Low Voltage
Input Leakage Current
Input Capacitance

DIGITAL OUTPUTS

Output High Voltage
Output Low Voltage

DYNAMIC PERFORMANCE

Output Voltage Swing

OUT_ Leakage Current
in Shutdown

Start-Up Time Exiting
Shutdown Mode

POWER SUPPLIES

Supply Voltage
Supply Current

= +25°C. Output buffer connected in unity-gain configuration (Figure 9).)

A

CONDITIONS

V

= 0.67Vp-p

REF

Input code = all 0s, V
V

= 1Vp-p at 25kHz, code = full scale

REF

IH

IL

VIN= 0V or V

IN

IN

I

OH

OL

DD

DD

SOURCE

I

= 2mA

SINK

To ±1/2LSB, V
Rail-to-rail (Note 2)

RL= ∞

CS = VDD, DIN = 100kHz

(Note 3)
(Note 4)
(Note 4) µA320Supply Current in Shutdown

DD

= 2mA

STEP

REF

= 1.25V

= 1.6Vp-p at 1kHz dB-84Reference Feedthrough

MIN

to T

, unless otherwise

MAX

DD

MAX5251

UNITSMIN TYP MAXSYMBOLPARAMETER

kHz650Reference -3dB Bandwidth

dB72SINAD

V2.0V

V0.6V
µA0.01 ±1.0I
pF8C

VVDD- 0.5V

V0.13 0.4V

V/µs0.6SRVoltage Output Slew Rate

µs12Output Settling Time

V0 to V
µA0 0.1Current into FB_

µA0.01 ±1

µs20

nV-s5Digital Feedthrough
nV-s5Digital Crosstalk

V3.0 3.6V

mA0.82 0.98I

µA0.01 ±1Reference Current in Shutdown

Note 1: Guaranteed from code 5 to code 1023 in unity-gain configuration.
Note 2: Accuracy is better than 1LSB for V
Note 3: Remains operational with supply voltage as low as +2.7V.
Note 4: R

= ∞, digital inputs at DGND or VDD.

L

_______________________________________________________________________________________ 3

= 6mV to VDD- 80mV, guaranteed by PSR test at the endpoints.

OUT

+3V, Quad, 10-Bit Voltage-Output DAC
with Serial Interface

ELECTRICAL CHARACTERISTICS (continued)

(VDD= +3.0V to +3.6V, AGND = DGND = 0V, REFAB = REFCD = 1.25V, RL= 5kΩ, CL= 100pF, TA= T
noted. Typical values are at T

TIMING CHARACTERISTICS (Figure 6)

SCLK Clock Period
SCLK Clock Period
SCLK Pulse Width High

MAX5251

SCLK Pulse Width Low
CS Fall to SCLK Rise Setup Time
SCLK Rise to CS Rise Hold Time
DIN Setup Time

DIN Hold Time
SCLK Rise to DOUT Valid

Propagation Delay
SCLK Fall to DOUT Valid

Propagation Delay
SCLK Rise to CS Fall Delay

CS Rise to SCLK Rise Hold Time
CS Pulse Width High

= +25°C. Output buffer connected in unity-gain configuration (Figure 9).)

A

CONDITIONS

CP
CP
CH
CL

CSS
CSH

DS
DH

t

D01

t

D02

CS0
CS1

CSW

CL= 200pF

CL= 200pF

MIN

to T

, unless otherwise

MAX

UNITSMIN TYP MAXSYMBOLPARAMETER

ns100t
ns100t
ns40t
ns40t

ns40t
ns0t

ns40t
ns0t

120

ns

120 ns

ns40t
ns40t
ns100t

__________________________________________Typical Operating Characteristics

(V

= +3.3V, TA = +25°C, unless otherwise noted.)

DD

INTEGRAL NONLINEARITY
vs. REFERENCE VOLTAGE

0.25

0

-0.25

-0.50

INL (LSB)

-0.75

-1.00
RL = 5kΩ

-1.25

0 0.5 1.0 1.5 2.0

REFERENCE VOLTAGE (V)

MAX5251-01

-12

RELATIVE OUTPUT (dB)

-16

-20

2.5

REFERENCE VOLTAGE INPUT

FREQUENCY RESPONSE

0

-4

-8



0 500k 1.0M 1.5M 2.0M 2.5M 3.0M



REFAB SWEPT 0.67Vp-p
RL = 5kΩ
CL = 100pF

FREQUENCY (Hz)

MAX5251-06

1000

950
900
850
800
750
700
650

SUPPLY CURRENT (µA)

600
550
500

-55 -40 -20 0 20 40 60 80 120100

4 _______________________________________________________________________________________

SUPPLY CURRENT

vs. TEMPERATURE

CODE = FFC hex

TEMPERATURE (°C)



MAX5251-04

+3V, Quad, 10-Bit Voltage-Output DAC

with Serial Interface

____________________________Typical Operating Characteristics (continued)

(V

= +3.3V, TA = +25°C, unless otherwise noted.)

DD



SUPPLY CURRENT

vs. SUPPLY VOLTAGE

1000

950
900
850
800
750
700
650

SUPPLY CURRENT (µA)

600
550

CODE = FFC hex

500

2.7 2.8 3.02.9 3.1 3.2 3.3 3.4 3.6
SUPPLY VOLTAGE (V)

0

-0.5

-1.0

0.50

0.45

MAX5251-05

0.40

0.35

0.30

0.25

0.20

THD + NOISE (%)

0.15

0.10

0.05

3.5

0

FULL-SCALE ERROR

vs. LOAD

TOTAL HARMONIC DISTORTION

PLUS NOISE vs. FREQUENCY

DAC CODE = FULL SCALE
REFAB = 1Vp-p

= 5kΩ

R

L

= 100pF

C

L

0.1 1 10 100
FREQUENCY (kHz)

REFERENCE FEEDTHROUGH

0

MAX5251-03

-20

-40

0

MAX5251-02

-20

-40

-60

SIGNAL AMPLITUDE (dB)

-80

-100

0.5 1.6 3.8

AT 1kHz

REFAB INPUT SIGNAL

V

= 1.6Vp-p @ 1kHz

REF

= 5kΩ

R

L

= 100pF

C

L



OUTPUT FFT PLOT

V

= 1kHz, 0.006V TO 1.6V

REF

= 5kΩ

R

L

= 100pF

C

L

2.7 4.9 6.0

FREQUENCY (kHz)

MAX5251-11

MAX5251

MAX5251-10

-1.5

FULL-SCALE ERROR (LSB)

-2.0

-2.5

0.01 0.1 1 10 100
LOAD (kΩ)

-60

SIGNAL AMPLITUDE (dB)

-80

-100

0.5 1.2 2.6

OUTA FEEDTHROUGH

FREQUENCY (kHz)

1.9 3.3 4.0

_______________________________________________________________________________________ 5

+3V, Quad, 10-Bit Voltage-Output DAC
with Serial Interface

____________________________Typical Operating Characteristics (continued)

(V

= +3.3V, V

DD

= 1.25V, RL= 5kΩ, CL= 100pF, TA = +25°C, unless otherwise noted.)

REF

MAJOR-CARRY TRANSITION

MAX5251

GND

10µs/div

ANALOG CROSSTALK

MAX5251-07

MAX5251-12

CS
5V/div

OUTB,
AC COUPLED
50mV/div

OUTA, 
500mV/div

DIGITAL FEEDTHROUGH (SCLK = 100kHz)

2µs/div

CS = PDL = C
DAC A CODE SET TO 800 hex

L = 3.3V, DIN = 0V

DYNAMIC RESPONSE

MAX5251-08

SCLK,
2V/div

OUTA,
AC COUPLED
10mV/div

MAX5251-13

OUTA, 
500mV/div

OUTB,
AC COUPLED
10mV/div

10µs/div

DAC A CODE SWITCHING FROM 00C hex TO FFC hex
DAC B CODE SET TO 800 hex

SWITCHING FROM CODE 000 hex TO FB4 hex
OUTPUT AMPLIFIER GAIN = +2.6

10µs/div

6 _______________________________________________________________________________________

+3V, Quad, 10-Bit Voltage-Output DAC

with Serial Interface

______________________________________________________________Pin Description

PIN

7
8

14

CL

CS

PDL

Analog GroundAGND1
DAC A Output Amplifier FeedbackFBA2
DAC A Output VoltageOUTA3
DAC B Output VoltageOUTB4
DAC B Output Amplifier FeedbackFBB5

Reference Voltage Input for DAC A and DAC BREFAB6
Clears All DACs and Registers. Resets all outputs (OUT_, UPO, DOUT) to 0, active low.

Chip-Select Input. Active low.
Serial-Data InputDIN9

Serial-Clock InputSCLK10
Digital GroundDGND11

Serial-Data OutputDOUT12
User-Programmable Logic OutputUPO13
Power-Down Lockout. Active low. Locks out software shutdown if low.
Reference Voltage Input for DAC C and DAC DREFCD15

FUNCTIONNAME

MAX5251

20

DD

DAC C Output Amplifier FeedbackFBC16
DAC C Output VoltageOUTC17
DAC D Output VoltageOUTD18
DAC D Output Amplifier FeedbackFBD19
Positive Power SupplyV

_______________________________________________________________________________________ 7

+3V, Quad, 10-Bit Voltage-Output DAC
with Serial Interface

The impedance at each reference input is code depen­dent, ranging from a low value of 10kΩ when both
DACs connected to the reference have an input code
of 554 hex, to a high value exceeding several giga
ohms (leakage current) with an input code of 000 hex.
Because the input impedance at the reference pins is
code dependent, load regulation of the reference
source is important.

The REFAB and REFCD reference inputs have a 10kΩ
guaranteed minimum input impedance. When the two
reference inputs are driven from the same source, the
effective minimum impedance is 5kΩ. Driving the
REFAB and REFCD pins separately improves reference
accuracy.

In shutdown mode, the MAX5251’s REFAB and REFCD
inputs enter a high-impedance state with a typical input
leakage current of 0.01µA.

The reference input capacitance is also code depen­dent and typically ranges from 20pF with an input code
of all 0s to 100pF at full scale.

RRR

2R 2R 2R 2R

2R

MAX5251

REF_

AGND

SHOWN FOR ALL 1s ON DAC

Figure 1. Simplified DAC Circuit Diagram

S0 S1 D0

FB_

OUT_

D9

_______________Detailed Description

The MAX5251 contains four voltage-output digital-to­analog converters (DACs) that are easily addressed
using a simple 3-wire serial interface. It includes a
16-bit data-in/data-out shift register, and each DAC has
a doubled-buffered input composed of an input register
and a DAC register (see
tion to the four voltage outputs, each amplifier’s nega­tive input is available to the user.

The DACs are inverted R-2R ladder networks that con­vert a digital input (10 data bits plus 2 sub-bits) into
equivalent analog output voltages in proportion to the
applied reference voltage inputs. DACs A and B share
the REFAB reference input, while DACs C and D share
the REFCD reference input. The two reference inputs
allow different full-scale output voltage ranges for each
pair of DACs. Figure 1 shows a simplified circuit dia­gram of one of the four DACs.

The two reference inputs accept positive DC and AC
signals. The voltage at each reference input sets the
full-scale output voltage for its two corresponding
DACs. The reference input voltage range is 0V to
(VDD- 1.4V). The output voltages (V
sented by a digitally programmable voltage source as:

V

where NB is the numeric value of the DAC’s binary
input code (0 to 1023), V
and Gain is the externally set voltage gain.

OUT_

= (V

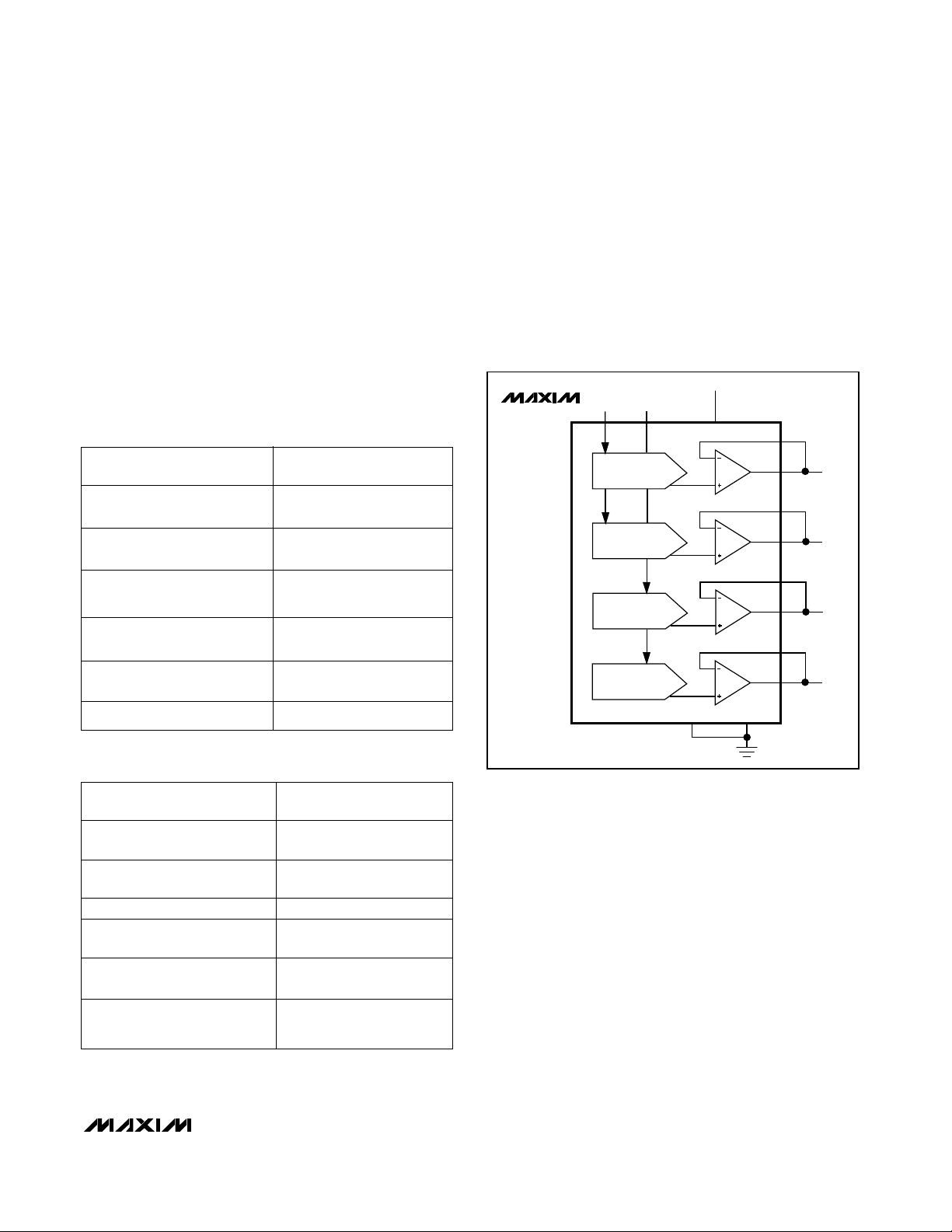

Functional Diagram

Reference Inputs

x NB / 1024 ) x Gain

REF

is the reference voltage,

REF

OUT_)

). In addi-

are repre-

Output Amplifiers

All MAX5251 DAC outputs are internally buffered by pre­cision amplifiers with a typical slew rate of 0.6V/µs.
Access to each output amplifier’s inverting input pro­vides the user greater flexibility in output gain setting/
signal conditioning (see the
section).

With a full-scale transition at the MAX5251 output, the
typical settling time to ±1/2LSB is 12µs when loaded
with 5kΩ in parallel with 100pF (loads less than 2kΩ
degrade performance).

The MAX5251 output amplifier’s output dynamic
responses and settling performances are shown in the

Typical Operating Characteristics

Applications Information

.

Power-Down Mode

The MAX5251 features a software-programmable shut­down that reduces supply current to a typical value of
3µA. The power-down lockout pin (PDL) must be high to
enable shutdown mode. Writing 1100XXXXXXXXXXXX as
the input-control word puts the MAX5251 in shutdown
mode (Table 1).

8 _______________________________________________________________________________________

+3V, Quad, 10-Bit Voltage-Output DAC

with Serial Interface

In shutdown mode, the MAX5251 output amplifiers and
the reference inputs enter a high-impedance state. The
serial interface remains active. Data in the input regis­ters is retained in shutdown, allowing the MAX5251 to
recall the output states prior to entering shutdown. Exit
shutdown mode either by recalling the previous config­uration or by updating the DACs with new data. When
powering up the device or bringing it out of shutdown,
allow 20µs for the outputs to stabilize.

Serial-Interface Configurations

The MAX5251’s 3-wire serial interface is compatible
with both Microwire™ (Figure 2) and SPI™/QSPI™
(Figure 3). The serial input word consists of two address
bits and two control bits followed by 10+2 data bits
(MSB first), as shown in Figure 4. The 4-bit address/
control code determines the MAX5251’s response out­lined in Table 1. The connection between DOUT and
the serial-interface port is not necessary, but may be
used for data echo. Data held in the MAX5251’s shift
register can be shifted out of DOUT and returned to the
microprocessor (µP) for data verification.

The MAX5251’s digital inputs are double buffered.
Depending on the command issued through the serial
interface, the input register(s) can be loaded without
affecting the DAC register(s), the DAC register(s) can
be loaded directly, or all four DAC registers can be
updated simultaneously from the input registers
(Table 1).

Serial-Interface Description

The MAX5251 requires 16 bits of serial data. Table 1
lists the serial-interface programming commands. For
certain commands, the 10+2 data bits are “don’t
cares.” Data is sent MSB first and can be sent in two
8-bit packets or one 16-bit word (CS must remain low
until 16 bits are transferred). The serial data is com­posed of two DAC address bits (A1, A0) and two con­trol bits (C1, C0), followed by the 10+2 data bits
D9…D0, S1, S0 (Figure 4). Set both sub-bits (S0, S1) to
zero. The 4-bit address/control code determines:

• The register(s) to be updated

• The clock edge on which data is to be clocked out

via the serial-data output (DOUT)

• The state of the user-programmable logic output
(UPO)

• If the part is to go into shutdown mode (assuming
PDL is high)

• How the part is configured when exiting shutdown
mode.

SCLK

DIN

MAX5251

*THE DOUT-SI CONNECTION IS NOT REQUIRED FOR WRITING TO THE MAX5251, 
BUT MAY BE USED FOR READBACK PURPOSES.

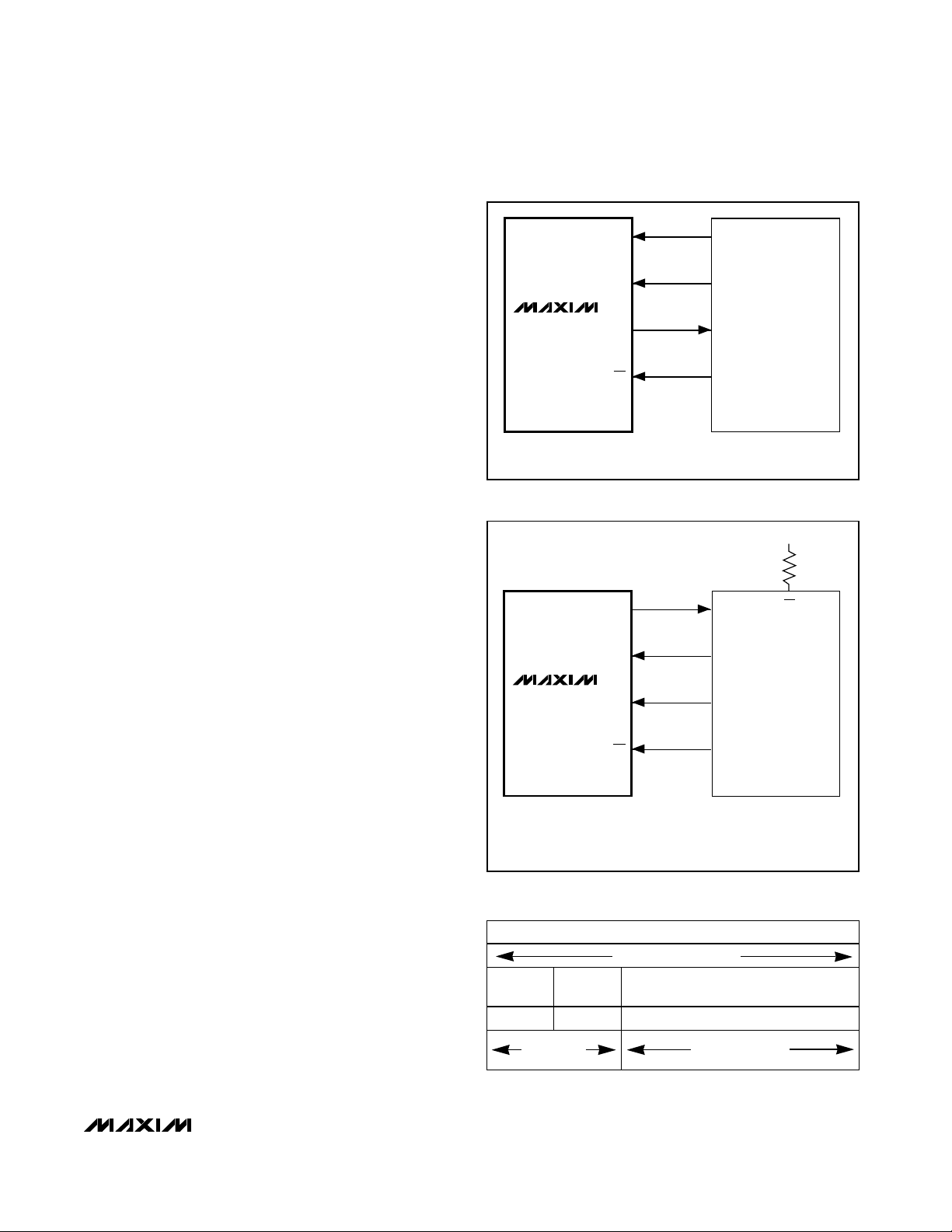

Figure 2. Connections for Microwire

MAX5251

*THE DOUT-MISO CONNECTION IS NOT REQUIRED FOR WRITING TO THE MAX5251,
BUT MAY BE USED FOR READBACK PURPOSES.

Figure 3. Connections for SPI/QSPI

MSB..................................................................................LSB

Address

Bits

A1 A0 C1 C0 D9 ...................................D0 S1 S0

4 Address/

Control Bits

DOUT*

CS

DOUT*

DIN

SCLK

CS

16 Bits of Serial Data

Control

Bits

MSB.................................LSB

SK

SO

MICROWIRE

SI*

I/O

MISO*

MOSI

SCK

I/O

CPOL = 0,CPHA = 0

Data Bits

10+2 Data Bits

SPI/QSPI

PORT

+3.3V

SS

PORT

MAX5251

Figure 4. Serial-Data Format

_______________________________________________________________________________________ 9

+3V, Quad, 10-Bit Voltage-Output DAC
with Serial Interface

Table 1. Serial-Interface Programming Commands

16-BIT SERIAL WORD

A1 A0 C1 C0

D9.................D0

MSB.............LSB

S1 S0

FUNCTION

00
01
10

MAX5251

11
00

01
10
11

0100 XXXXXXXXXX XX
100010-bit DAC data 00Load all DAC registers from shift register (also exit shutdown mode).

1100 XXXXXXXXXX XX
0010 XXXXXXXXXX XXUPO goes low (default).
0110 XXXXXXXXXX XXUPO goes high.
0000 XXXXXXXXXX XXNo operation (NOP) to DAC registers

1110 XXXXXXXXXX XX

1010 XXXXXXXXXX XX

“X” = Don’t care

Figure 5 shows the serial-interface timing requirements.
The chip-select pin (CS) must be low to enable the
DAC’s serial interface. When CS is high, the interface
control circuitry is disabled. CS must go low at least
t

before the rising serial clock (SCLK) edge to prop-

CSS

erly clock in the first bit. When CS is low, data is
clocked into the internal shift register via the serial-data
input pin (DIN) on SCLK’s rising edge. The maximum
guaranteed clock frequency is 10MHz. Data is latched
into the appropriate MAX5251 input/DAC registers on
CS’s rising edge.

The programming command Load-All-DACs-From-Shift­Register allows all input and DAC registers to be simul­taneously loaded with the same digital code from the
input shift register. The no operation (NOP) command
leaves the register contents unaffected and is useful

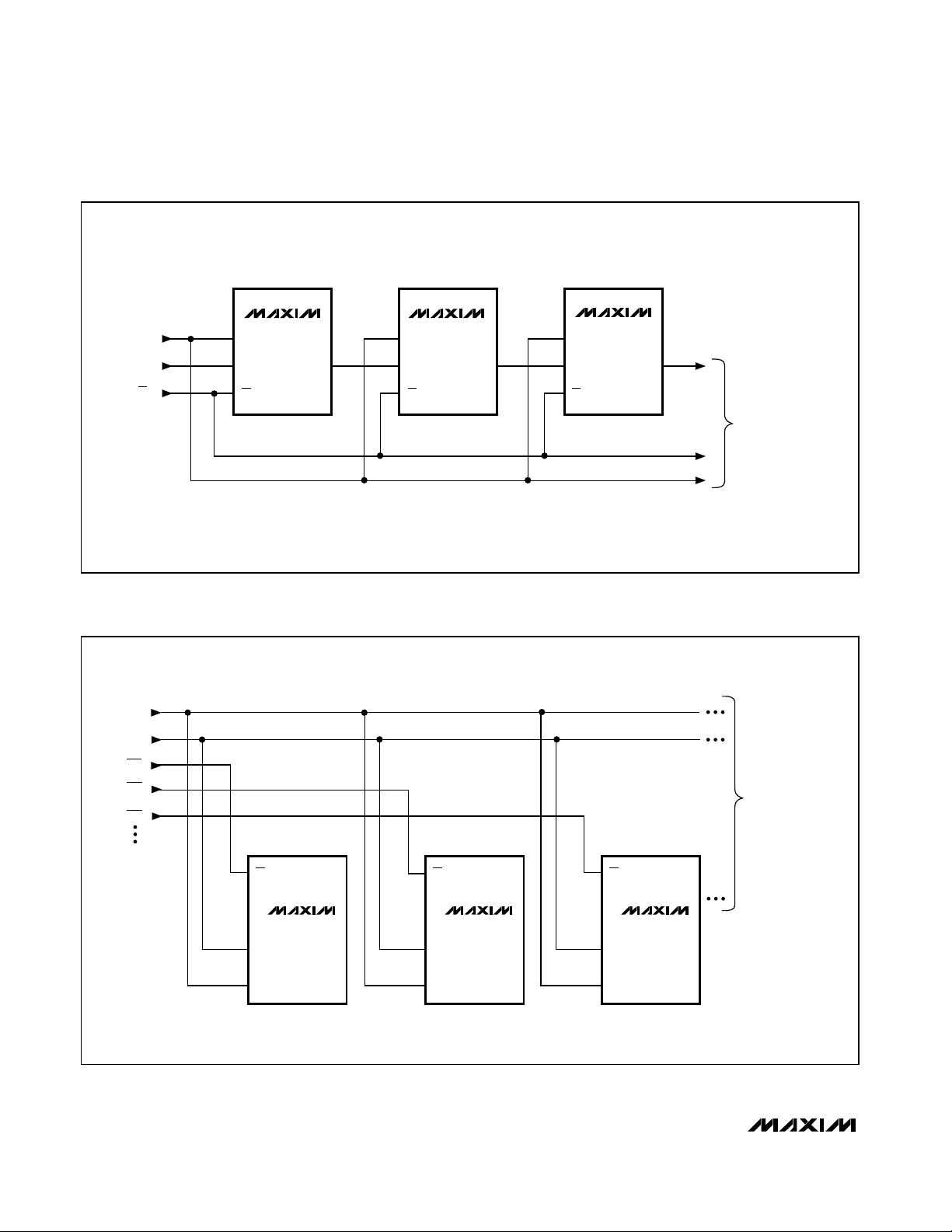

when the MAX5251 is configured in a daisy chain (see
the

Daisy Chaining Devices

01
01
01
01

11
11
11
11

10-bit DAC data
10-bit DAC data
10-bit DAC data
10-bit DAC data

10-bit DAC data
10-bit DAC data
10-bit DAC data
10-bit DAC data

00
00
00
00

00
00
00
00

section). The command to

Load input register A; DAC registers unchanged.
Load input register B; DAC registers unchanged.
Load input register C; DAC registers unchanged.
Load input register D; DAC registers unchanged.

Load input register A; all DAC registers updated.
Load input register B; all DAC registers updated.
Load input register C; all DAC registers updated.
Load input register D; all DAC registers updated.

Update all DAC registers from their respective input registers (also exit
shutdown mode).

Enter shutdown mode (provided PDL = 1).

Mode 1, DOUT clocked out on SCLK’s rising edge. All DAC registers
updated.

Mode 0, DOUT clocked out on SCLK’s falling edge. All DAC registers
updated (default).

change the clock edge on which serial data is shifted
out of DOUT also loads data from all input registers to
their respective DAC registers.

Serial-Data Output (DOUT)

The serial-data output, DOUT, is the internal shift regis­ter’s output. The MAX5251 can be programmed so that
data is clocked out of DOUT on SCLK’s rising edge
(Mode 1) or falling edge (Mode 0). In Mode 0, output
data at DOUT lags input data at DIN by 16.5 clock
cycles, maintaining compatibility with Microwire,
SPI/QSPI, and other serial interfaces. In Mode 1, output
data lags input data by 16 clock cycles. On power-up,
DOUT defaults to Mode 0 timing.

User-Programmable Logic Output (UPO)

The user-programmable logic output, UPO, allows an
external device to be controlled via the MAX5251 serial
interface (Table 1).

10 ______________________________________________________________________________________

CS

SCLK

+3V, Quad, 10-Bit Voltage-Output DAC

with Serial Interface

COMMAND

EXECUTED

1

8

9

16

MAX5251

A0

DIN

DOUT

(MODE 0)

DOUT

(MODE 1)

A1 S0

A1 S0 A1

A1 S0 A1

C1

A0

C1

MSB FROM
PREVIOUS WRITE

A0

C1

C0

MSB FROM



PREVIOUS WRITE

Figure 5. Serial-Interface Timing Diagram

CS

t

CSS

t

DS

t

DH

SCLK

DIN

DOUT

t

CSO

D9

C0

C0

D8

D9

D8

D9

D8

t

CL

D6

D7

DATA PACKET (N)

D6

D7

DATA PACKET (N-1)

D6

D7

DATA PACKET (N-1)

t

CH

D5

D4

D5

D5

D3

D4

D3

D4

D3

t

DO1

D1

D2

D1

D2

D1

D2

t

CP

t

DO2

S1

D0

S1

D0

DATA PACKET (N)

S1

D0

DATA PACKET (N)

t

CSW

t

CSH

t

CS1

Figure 6. Detailed Serial-Interface Timing Diagram

Power-Down Lockout (

PDL

The power-down lockout pin PDL disables software
shutdown when low. When in shutdown, transitioning
PDL from high to low wakes up the part with the output
set to the state prior to shutdown. PDL could also be
used to wake up the device asynchronously.

Daisy Chaining Devices

Any number of MAX5251s can be daisy chained by
connecting the DOUT pin of one device to the DIN pin
of the following device in the chain (Figure 7).

______________________________________________________________________________________ 11

Since the MAX5251’s DOUT pin has an internal active

)

pull-up, the DOUT sink/source capability determines
the time required to discharge/charge a capacitive
load. Refer to the serial-data-out V
cations in the

Electrical Characteristics.

and VOLspecifi-

OH

Figure 8 shows an alternate method of connecting sev­eral MAX5251s. In this configuration, the data bus is
common to all devices; data is not shifted through a
daisy chain. More I/O lines are required in this configu­ration because a dedicated chip-select input (CS) is
required for each IC.

+3V, Quad, 10-Bit Voltage-Output DAC
with Serial Interface

MAX5251

SCLK

DIN

CS

Figure 7. Daisy-Chaining MAX5251s

DIN

SCLK

CS1
CS2

CS3

SCLK
DIN
CS

MAX5251

DOUT

SCLK
DIN
CS

MAX5251

DOUT

SCLK
DIN
CS

MAX5251

DOUT

TO OTHER 
SERIAL DEVICES

TO OTHER 
SERIAL DEVICES

CS

MAX5251

SCLK

DIN

CS

SCLK

DIN

MAX5251

CS

MAX5251

SCLK

DIN

Figure 8. Multiple MAX5251s Sharing a Common DIN Line

12 ______________________________________________________________________________________

+3V, Quad, 10-Bit Voltage-Output DAC

with Serial Interface

__________Applications Information

Unipolar Output

For a unipolar output, the output voltages and the refer­ence inputs have the same polarity. Figure 9 shows the
MAX5251 unipolar output circuit, which is also the typi­cal operating circuit. Table 2 lists the unipolar output
codes.

For rail-to-rail outputs, see Figure 10. This circuit shows
the MAX5251 with the output amplifiers configured with
a closed-loop gain of +2.6 to provide 0V to 3.25V full­scale range when a 1.25V reference is used.

Table 2. Unipolar Code Table

DAC CONTENTS

MSB LSB

1111 1111 11(00) +V

1000 0000 01(00) +V

1000 0000 00(00) +V

0111 1111 11(00) +V

ANALOG OUTPUT

1023

(——— )

REF

1024

513

(——— )

REF

1024

512 +V

(——— )= ————

REF

1024 2

511

(——— )

REF

1024

REF

Bipolar Output

The MAX5251 outputs can be configured for bipolar
operation using Figure 11’s circuit:

V

= V

OUT

where NB is the numeric value of the DAC’s binary
input code. Table 3 shows digital codes (offset binary)
and corresponding output voltages for Figure 11’s
circuit.

MAX5251

REFERENCE INPUTS

REFAB

DAC A

DAC B

DAC C

[(2NB / 1024) - 1]

REF



REFCD

V

DD

+3.3V

FBA

OUTA

FBB

OUTB

FBC

OUTC

FBD

MAX5251

0000 0000 01(00) +V
0000 0000 00(00) 0V

Table 3. Bipolar Code Table

DAC CONTENTS

MSB LSB

1111 1111 11(00) +V

1000 0000 01(00) +V
1000 0000 00(00) 0V
0111 1111 11(00) -V

0000 0000 01(00) -V

0000 0000 00(00) -V

( ) Sub-bits

______________________________________________________________________________________ 13

ANALOG OUTPUT

(——— )= -V

REF

REF

REF

REF

REF

REF

512
512

1

(——— )

1024

511

(——— )

512

1

(——— )

512

1

(——— )

512
511

(——— )

512

DAC D

OUTD

DGNDAGND

Figure 9. Unipolar Output Circuit

REF

+3V, Quad, 10-Bit Voltage-Output DAC
with Serial Interface

REFERENCE INPUTS

MAX5251

REFAB



REFCD

DAC A

MAX5251

DAC B

DAC C

DAC D

V

= V

16k
10k

REFCD

= 1.25V

REFAB

= 1 + = 2.6

A

V

Figure 10. Unipolar Rail-to-Rail Output Circuit

V

+3.3V

DD

DGNDAGND

FBA

OUTA
FBB

OUTB
FBC

OUTC
FBD

OUTD

10k

16k

10k

16k

10k

16k

10k

16k

In applications where the reference has AC signal com­ponents, the MAX5251 has multiplying capability within
the reference input range specifications. Figure 12
shows a technique for applying a sine-wave signal to
the reference input where the AC signal is offset before
being applied to REFAB/REFCD. The reference voltage
must never be more negative than DGND.

The MAX5251’s total harmonic distortion plus noise
(THD + N) is typically less than -72dB (full-scale code),
given a 1Vp-p signal swing and input frequencies up to
25kHz. The typical -3dB frequency is 650kHz, as
shown in the

Typical Operating Characteristics

Digitally Programmable Current Source

The circuit of Figure 13 places an NPN transistor
(2N3904 or similar) within the op-amp feedback loop to
implement a digitally programmable, unidirectional cur­rent source. This circuit can be used to drive 4–20mA
current loops, which are commonly used in industrial­control applications. The output current is calculated
with the following equation:

I

= (V

OUT

where NB is the numeric value of the DAC’s binary
input code and R is the sense resistor shown in
Figure 13.

REF

Using an AC Reference

graphs.

/ R) x (NB / 1024)

+3.3V



AC

R1

REF_

FB_

DAC

OUT_

MAX5251

Figure 11. Bipolar Output Circuit

R2

+3.3V

-3.3V

R1 = R2 = 10kΩ ± 0.1%

REFERENCE 

INPUT

500mVp-p

V

OUT

26k

10k

Figure 12. AC Reference Input Circuit

1/2 MAX492

REF_

DAC_

AGND DGND

14 ______________________________________________________________________________________

V

DD

MAX5251

OUT_

+3V, Quad, 10-Bit Voltage-Output DAC

with Serial Interface

REF_

V

L

MAX5251

I

DAC_

OUT_

FB_

OUT

2N3904

R

Figure 13. Digitally Programmable Current Source

Power-Supply Considerations

On power-up, all input and DAC registers are cleared
(set to zero code) and DOUT is in Mode 0 (serial data
is shifted out of DOUT on the clock’s falling edge).

For rated MAX5251 performance, limit REFAB/REFCD
to less than 1.4V below VDD. Bypass VDDwith a 4.7µF
capacitor in parallel with a 0.1µF capacitor to AGND.
Use short lead lengths and place the bypass capaci­tors as close to the supply pins as possible.

__________________Pin Configuration

TOP VIEW

1

AGND

FBA

OUTA

FBB

REFAB

DIN

2
3
4

MAX5251

5
6
7

CL

8
9

10

DIP/SSOP

V

20

DD

FBD

19

OUTD

18

OUTCOUTB

17
16

FBC

15

REFCD

14

PDL

13

UPOCS

12

DOUT

11

DGNDSCLK

MAX5251

Grounding and Layout Considerations

Digital or AC transient signals between AGND and
DGND can create noise at the analog outputs. Tie
AGND and DGND together at the DAC, then tie this
point to the highest-quality ground available.

Good printed circuit board ground layout minimizes
crosstalk between DAC outputs, reference inputs, and
digital inputs. Reduce crosstalk by keeping analog
lines away from digital lines. Wire-wrapped boards are
not recommended.

______________________________________________________________________________________ 15

+3V, Quad, 10-Bit Voltage-Output DAC
with Serial Interface

_Ordering Information (continued) ___________________Chip Information

PART

MAX5251AEPP -40°C to +85°C
MAX5251BEPP
MAX5251AEAP
MAX5251BEAP -40°C to +85°C

MAX5251

MAX5251BMJP -55°C to +125°C 20 CERDIP* ±2

*

Contact factory for availability and processing to MIL-STD-883.

TEMP. RANGE PIN-PACKAGE

20 Plastic DIP

-40°C to +85°C 20 Plastic DIP

-40°C to +85°C

20 SSOP
20 SSOP

INL

(LSB)

±1/2
±1
±1/2
±1

TRANSISTOR COUNT: 4337

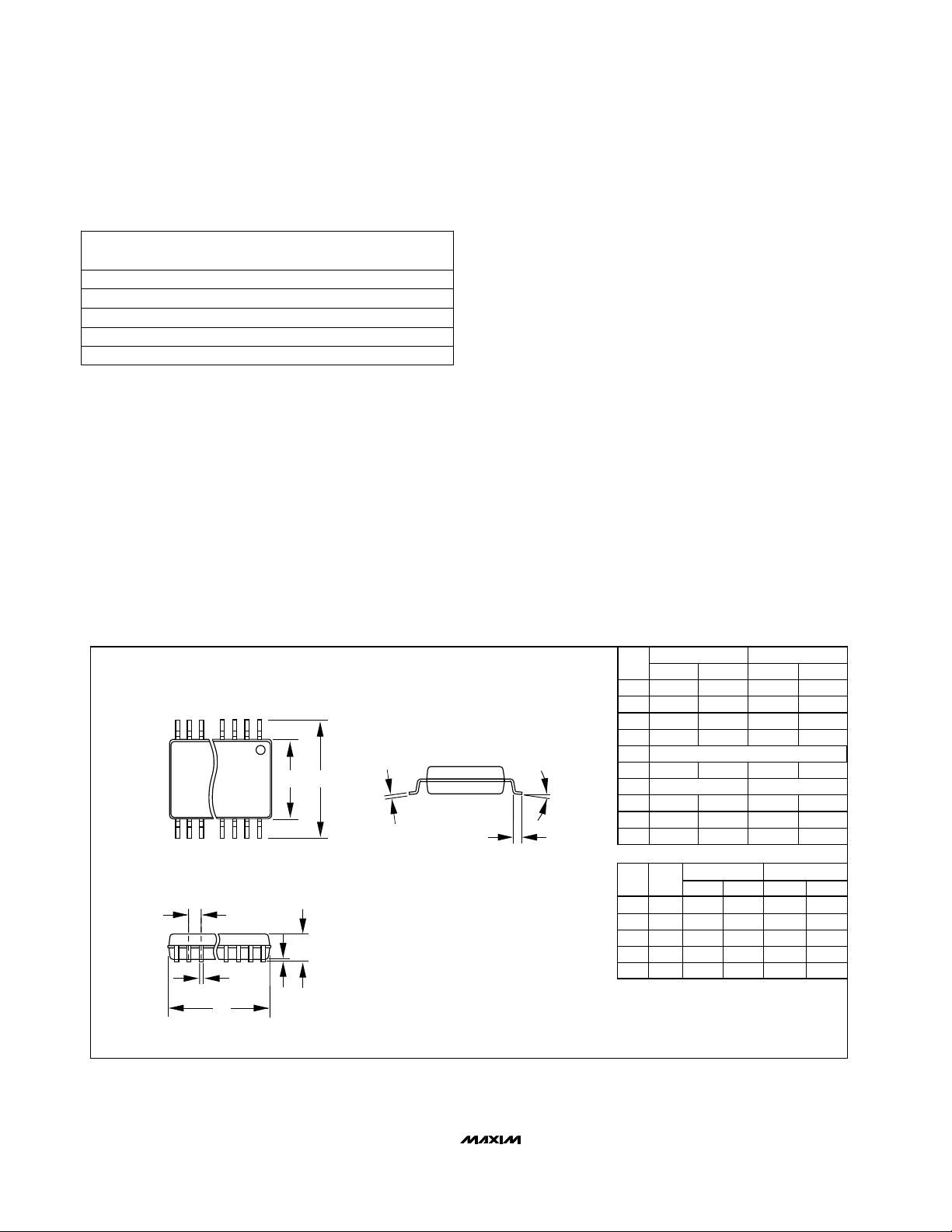

________________________________________________________Package Information

DIM

A

A1

B
C

α

HE

C

L

D
E
e
H
L

α

INCHES



MIN

0.068

0.002

0.010

0.004

0.205

0.301

0.025

MAX

0.078

0.008

0.015

0.008

SEE VARIATIONS



0.209



0.311

0.037

0˚





8˚

MILLIMETERS

MIN

1.73

0.05

0.25

0.09


5.20

0.65 BSC0.0256 BSC



7.65

0.63

0˚

MAX

1.99

0.21

0.38

0.20


5.38


7.90

0.95

8˚

14
16
20
24
28

INCHES

MIN



0.239

0.239

0.278

0.317

0.397

DIM

PINS

e

SSOP

A

SHRINK

SMALL-OUTLINE

B

A1

PACKAGE



D
D
D
D
D

MAX

0.249

0.249

0.289

0.328

0.407

MILLIMETERS

MAX

MIN

6.33

6.07

6.33

6.07

7.33

7.07

8.33

8.07

10.33

10.07

21-0056A

D

Maxim cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim product. No circuit patent licenses are

Maxim cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim product. No circuit patent licenses are
implied. Maxim reserves the right to change the circuitry and specifications without notice at any time.

implied. Maxim reserves the right to change the circuitry and specifications without notice at any time.

16

__________________Maxim Integrated Products, 120 San Gabriel Drive, Sunnyvale, CA 94086 [phone]

16

__________________Maxim Integrated Products, 120 San Gabriel Drive, Sunnyvale, CA 94086 [phone]

© 1996 Maxim Integrated Products Printed USA is a registered trademark of Maxim Integrated Products.

© 1996 Maxim Integrated Products Printed USA is a registered trademark of Maxim Integrated Products.
