Datasheets MAR-6+ Datasheet

Page 1
Drop-In
ISO 9001 ISO 14001 AS 9100 CERTIFIED
Mini-Circuits
®
P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661 For detailed performance specs & shopping online see Mini-Circuits web site
minicircuits.com
TM
IF/RF MICROWAVE COMPONENTS
GROUND
RF IN
RF-OUT and DC-IN
GND
GND
RF-OUT and DC-IN
RF IN

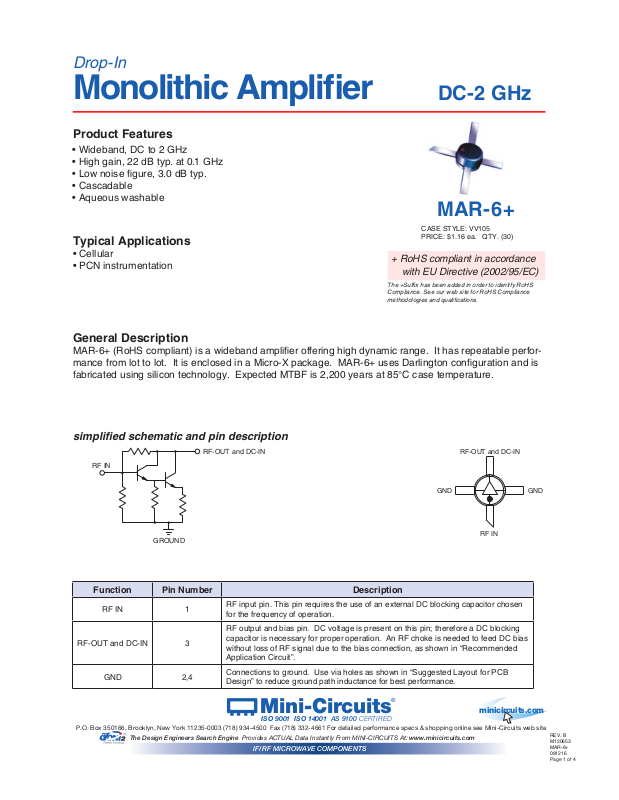

Monolithic Amplifier
DC-2 GHz
Product Features
• Wideband, DC to 2 GHz
• High gain, 22 dB typ. at 0.1 GHz
• Low noise gure, 3.0 dB typ.
• Cascadable
• Aqueous washable
MAR-6+
CASE STYLE: VV105
Typical Applications
• Cellular
• PCN instrumentation
+ RoHS compliant in accordance with EU Directive (2002/95/EC)
The +Suffix has been added in order to identify RoHS Compliance. See our web site for RoHS Compliance methodologies and qualifications.
General Description
MAR-6+ (RoHS compliant) is a wideband amplier offering high dynamic range. It has repeatable perfor­mance from lot to lot. It is enclosed in a Micro-X package. MAR-6+ uses Darlington conguration and is fabricated using silicon technology. Expected MTBF is 2,200 years at 85°C case temperature.
PRICE: $1.16 ea. QTY. (30)

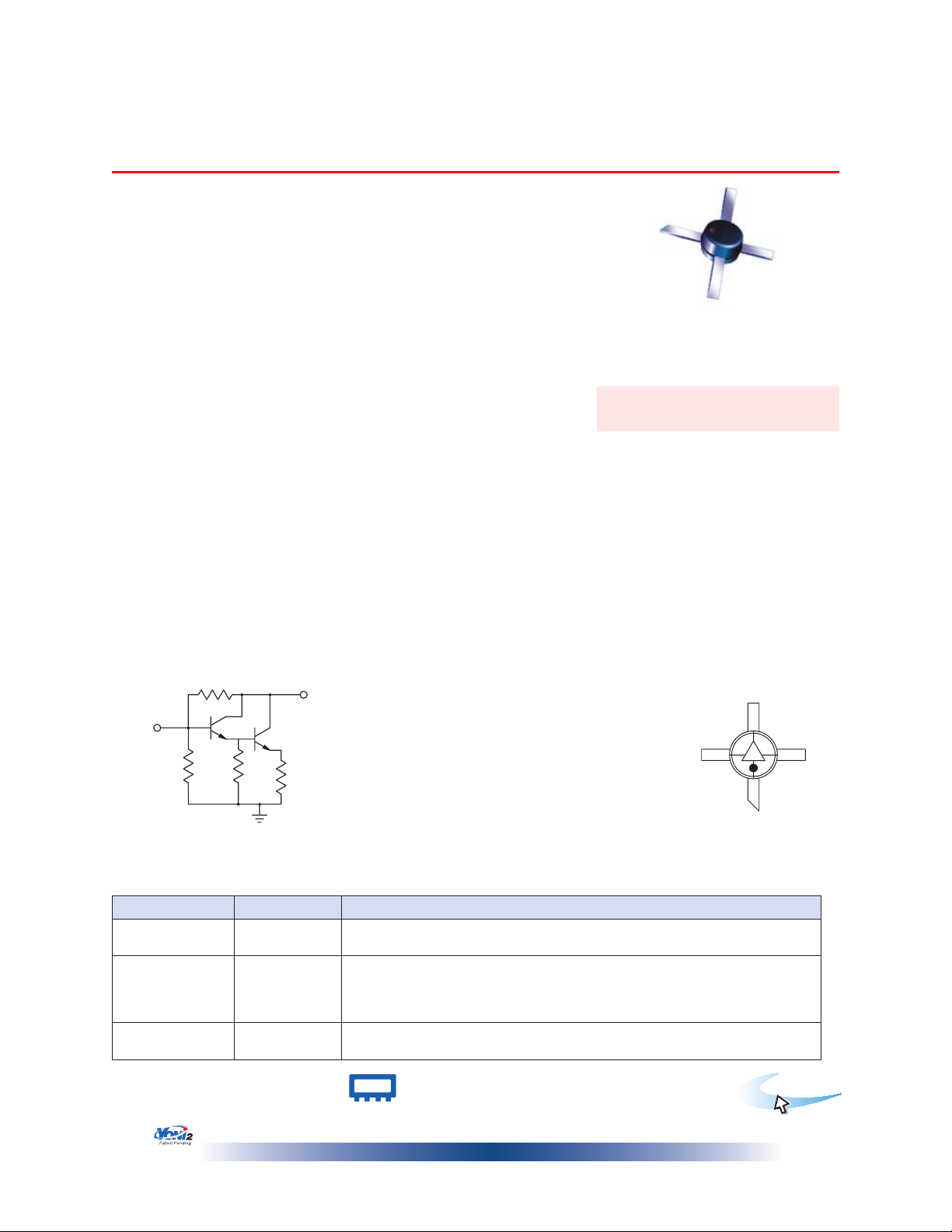

simplified schematic and pin description
Function Pin Number Description
RF IN 1
RF-OUT and DC-IN 3
GND 2,4
RF input pin. This pin requires the use of an external DC blocking capacitor chosen for the frequency of operation.
RF output and bias pin. DC voltage is present on this pin; therefore a DC blocking capacitor is necessary for proper operation. An RF choke is needed to feed DC bias without loss of RF signal due to the bias connection, as shown in “Recommended Application Circuit”.
Connections to ground. Use via holes as shown in “Suggested Layout for PCB Design” to reduce ground path inductance for best performance.
REV. B M120653 MAR-6+ 081216
Page 1 of 4
Page 2
Monolithic Amplifier
ISO 9001 ISO 14001 AS 9100 CERTIFIED
Mini-Circuits
®
P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661 For detailed performance specs & shopping online see Mini-Circuits web site
minicircuits.com
TM
IF/RF MICROWAVE COMPONENTS
Electrical Specifications at 25°C and 16mA, unless noted
MAR-6+
Parameter Min. Typ.
3
Max. Units
Frequency Range* DC 2 GHz
Gain
f=0.1 GHz 22 dB
f=1 GHz 20
2
17
Input Return Loss
Output Return Loss
Output Power @ 1 dB compression
f=2 GHz 15
f=DC to 2 GHz 21 dB
f=DC to 2 GHz 17.5 dB
f=0.5 GHz +3.0 dBm
Output IP3 f=0.5 GHz +14.5 dBm
Noise Figure f=0.5 GHz 3.0 dB Recommended Device Operating Current
Device Operating Voltage Device Voltage Variation vs. Temperature at 16 mA Device Voltage Variation vs. Current at 25°C Thermal Resistance, junction-to-case
1
16 mA
3.5 V
-5.6 mV/°C
8.4 mV/mA
241 °C/W
*Guaranteed specication DC-2 GHz. Low frequency cut off determined by external coupling capacitors.
Absolute Maximum Ratings
Parameter Ratings
Operating Temperature -40°C to 85°C
Storage Temperature -55°C to 100°C
Operating Current 50mA
Power Dissipation 200mW
Input Power 13dBm
Note: Permanent damage may occur if any of these limits are exceeded. These ratings are not intended for continuous normal operation.
1
Case is dened as ground leads.
2
Full temperature range.
3
Based on test data of Model MAR-6SM+ (Case Style WW107).
Page 2 of 4
Page 3
Monolithic Amplifier
ISO 9001 ISO 14001 AS 9100 CERTIFIED
Mini-Circuits
®
P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661 For detailed performance specs & shopping online see Mini-Circuits web site
minicircuits.com
TM
IF/RF MICROWAVE COMPONENTS
4
2
3
1
Cblock
IN
Cblock
Ibias
OUT
Vd
RFC (Optional)
Cbypass
Vcc
Rbias (Required)
A06
MAR-6+
Product Marking
Additional Detailed Technical Information
Additional information is available on our web site. To access this information enter the model number on our web site home page.
Performance data, graphs, s-parameter data set (.zip file)
Case Style: VV105
Plastic micro-x, .085 body diameter, lead nish: tin/silver/nickel
Tape & Reel: F20
Suggested Layout for PCB Design: PL-262
Evaluation Board: TB-432-6+
Environmental Ratings: ENV08T3

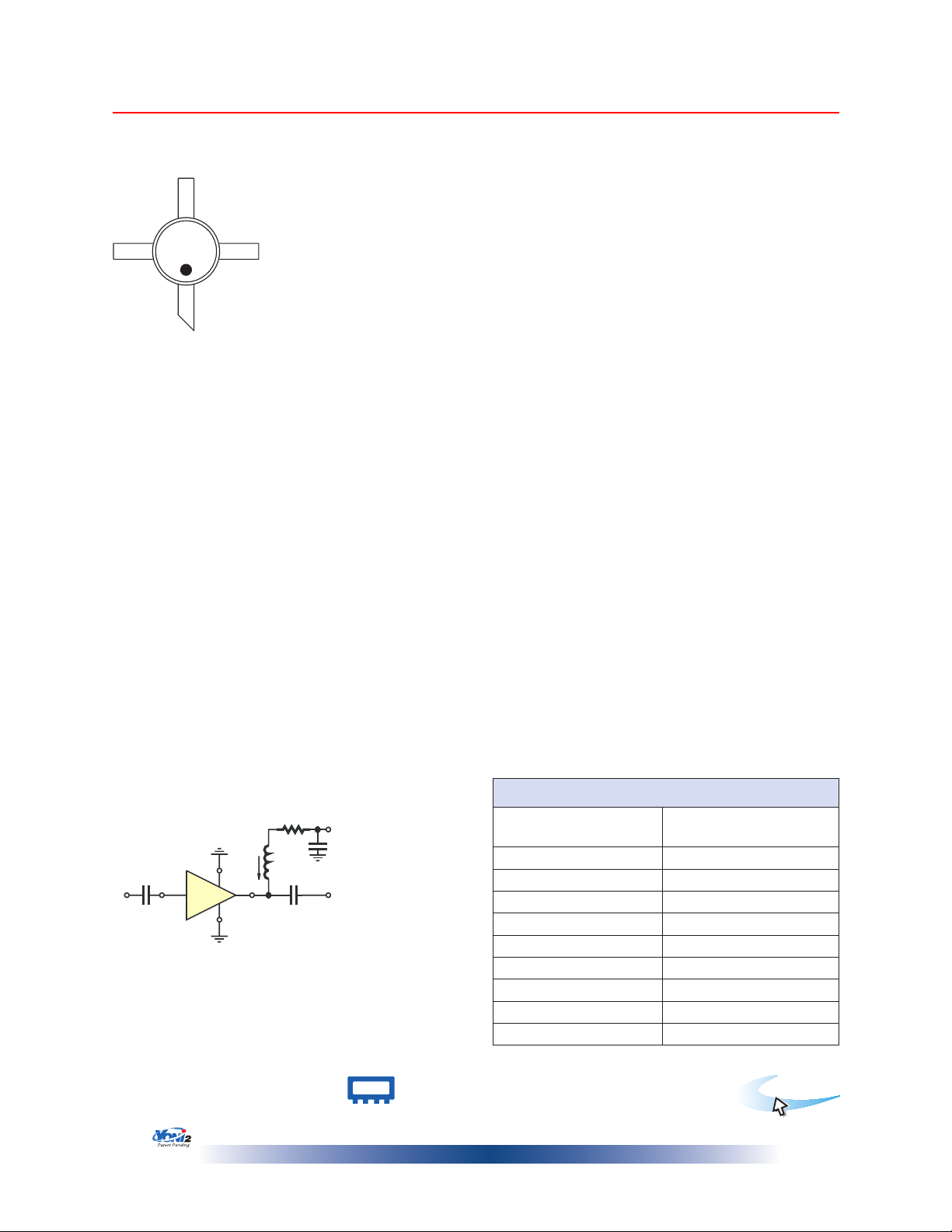

Recommended Application Circuit
Test Board includes case, connectors, and components (in bold) soldered to PCB
R BIAS
Vcc “1%” Res. Values (ohms)
for Optimum Biasing
6 154
7 215
8 280
9 340
10 402
11 464
12 536
13 590
14 665
Page 3 of 4
Page 4
Monolithic Amplifier
ISO 9001 ISO 14001 AS 9100 CERTIFIED
Mini-Circuits
®
P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661 For detailed performance specs & shopping online see Mini-Circuits web site
minicircuits.com
TM
IF/RF MICROWAVE COMPONENTS
MAR-6+
ESD Rating
Human Body Model (HBM): Class 1C (1000v to < 2000v) in accordance with ANSI/ESD STM 5.1 - 2001
Machine Model (MM): Class M1 ( < 100 v) in accordance with ANSI/ESD STM 5.2 - 1999
MSL Rating
Moisture Sensitivity: MSL1 in accordance with IPC/JEDEC J-STD-020C
No. Test Required Condition Standard Quantity
1 Visual Inspection
2 Electrical Test Room Temperature
3 SAM Analysis
Moisture Sensitivity
4
Level 1
Low Power Microscope Magnication 40x
Less than 10% growth in term of delamination
Bake at 125°C for 24 hours Soak at 85°C/85%RH for 168 hours Reow 3 cycles at 260°C peak
MSL Test Flow Chart
Start
Visual
Inspection
Reow 3 cycles,
260°C
Visual
Inspection
Electrical Test SAM Analysis
Soak
85°C/85RH
168 hours
Electrical Test SAM Analysis
MIP-IN-0003 (MCT spec)
SCD (MCL spec)
J-Std-020C (Jedec Standard)
J-Std-020C (Jedec Standard)
Bake at 125°C,
24 hours
45 units
45 units
45 units
45 units
Page 4 of 4
