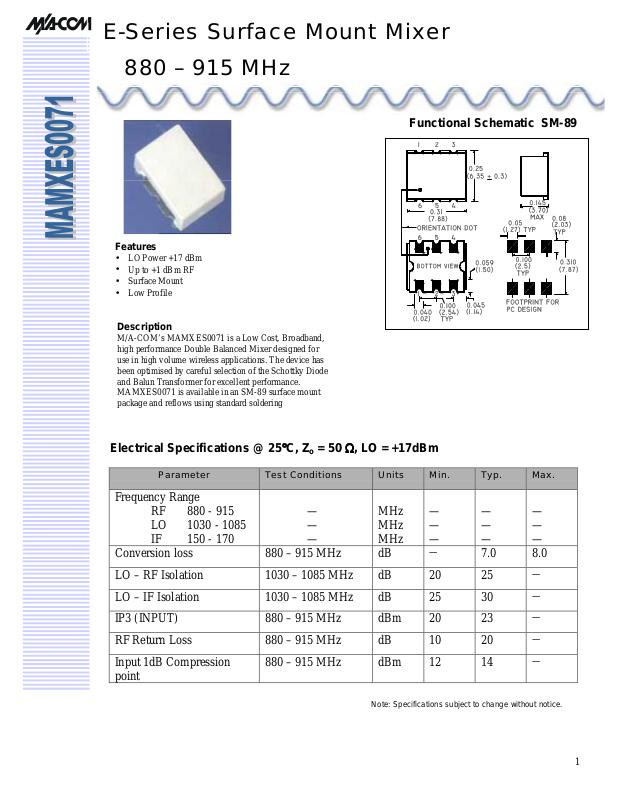

Page 1
E-Series Surface Mount Mixer
880 – 915 MHz
Functional Schematic SM-89
Features
•
LO Power +17 dBm
•
Up to +1 dBm RF
•
Surface Mount
•
Low Profile
Description
M/A-COM’s MAMXES0071 is a Low Cost, Broadband,
high performance Double Balanced Mixer designed for
use in high volume wireless applications. The device has
been optimised by careful selection of the Schottky Diode
and Balun Transformer for excellent performance.
MAMXES0071 is avail able in an SM-89 surface mount
package and reflows using standard soldering
Electrical Specifications @ 25°°°°C, Zo= 50 ΩΩΩΩ, LO = +17dBm
Parameter Test Conditions Units Min. Typ. Max.
Frequency Range
RF 880 - 915
LO 1030 - 1085
IF 150 - 170
Conversion loss 880 – 915 MHz dB
—
—
—
MHz
MHz
MHz
—
—
—
—
LO – RF Isolation 1030 – 1085 MHz dB 20 25
LO – IF Isolation 1030 – 1085 MHz dB 25 30
IP3 (INPUT) 880 – 915 MHz dBm 20 23
RF Return Loss 880 – 915 MHz dB 10 20
Input 1dB Compression
880 – 915 MHz dBm 12 14
point
Note: Specifications subject to change without notice.
—
—
—
—
—
—
7.0 8.0
—
—
—
—
—
1
Page 2
E-Series Surface Mount Mixer MAMXES0071
d
Typical Performance @ +25°°°° C
Conversion Loss L - R Isolation
-5 .0
-5 .4
-5 .8
dB
-6 .2
-6 .6
-7 .0
880 885 890 895 900 905 910 915
-15
-20
B
-25
-30
-35
1030 1041 1052 1063 1074 1085
Frequency (MHz)
L- I Isolation INPUT IP3
Frequency (MHz)
-15
-20
-25
dB
-30
-35
1030 1041 1052 1063 1074 1085
Frequency (MHz)
Specifications subject to change w ithout notice .
North America: Tel. (800) 366-2266, Fa x (800) 618-8883
n
n
Asia/Pacific: Tel.+81-44- 844-8296, Fax +81-44-84 4-8298
Europe: Tel. +44 (1344) 869 595, Fax+44 (1344) 300 02 0
n
Visit www.macom.com for additional data sheets an d product information.
25
24
23
dBm
22
21
20
880 885 890 895 900 905 910 915
Frequency (MHz)
2
Page 3
E-Series Surface Mount Mixer MAMXES0071
Absolute Maximum Ratings
Parameter Absolute Maximum
RF Power 50 mW
Peak IF Current 40 mA
Storage Temperature
Operating Temperature
Pin Temperature (10 Seconds)
Functional Configuration
Function Pin No.
LO 1
RF 4
IF 5
Ground 2, 3, 6
Case Ground -
-40°C to +85° C
-40°C to +85° C
260° C
Unconnected -
Specifications subject to change w ithout notice .
North America: Tel. (800) 366-2266, Fa x (800) 618-8883
n
n
Asia/Pacific: Tel.+ 81-44-844-8296, Fax +81-44-84 4-8298
Europe: Tel. +44 (1344) 869 595, Fax+44 (1344) 300 02 0
n
Visit www.macom.com for additional data sheets an d product information.
3
