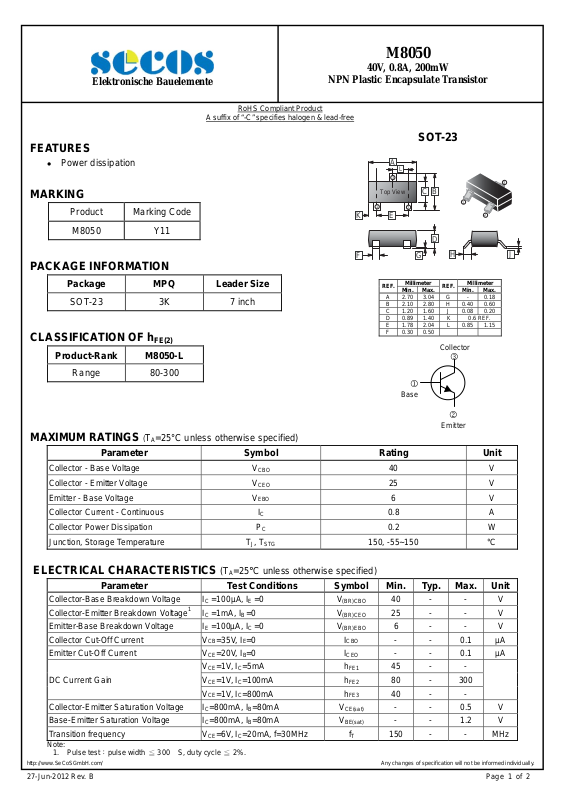

Page 1
r
Elektronische Bauelemente
FEATURES
Power dissipation
MARKING
Product Marking Code
M8050 Y11
PACKAGE INFORMATION
Package MPQ Leader Size
SOT-23 3K 7 inch
CLASSIFICATION OF h
Product-Rank M8050-L
FE(2)
M8050
NPN Plastic Encapsulate Transistor
RoHS Compliant Product
A suffix of “-C” specifies halogen & lead-free
40V, 0.8A, 200mW
SOT-23
A
L
3
Top View
1
K E
F
2
G
Millimeter Millimete
REF.
Min. Max.
A 2.70 3.04 G - 0.18
B 2.10 2.80 H 0.40 0.60
C 1.20 1.60 J 0.08 0.20
D 0.89 1.40 K 0.6 REF.
E 1.78 2.04 L 0.85 1.15
F 0.30 0.50
C B
D
H J
REF.
Collector
3
1
2
Min. Max.
Range 80-300
Base
MAXIMUM RATINGS (T
Parameter Symbol Rating Unit
Collector - Base Voltage V
Collector - Emitter Voltage V
Emitter - Base Voltage V
Collector Current - Continuous IC 0.8 A
Collector Power Dissipation
Junction, Storage Temperature TJ, T
=25°C unless otherwise specified)
A
40 V
CBO
25 V
CEO
6 V
EBO
PC 0.2 W
150, -55~150 °C
STG
Emitter
ELECTRICAL CHARACTERISTICS (T
Parameter Test Conditions Symbol Min. Typ. Max. Unit
Collector-Base Breakdown Voltage IC =100µA, IE =0 V
Collector-Emitter Breakdown Voltage1 IC =1mA, IB =0 V
Emitter-Base Breakdown Voltage IE =100µA, IC =0 V
Collector Cut-Off Current VCB=35V, IE=0 I
Emitter Cut-Off Current VCE=20V, IB=0 I
VCE=1V, IC=5mA h
DC Current Gain
Collector-Emitter Saturation Voltage IC=800mA, IB=80mA V
Base-Emitter Saturation Voltage IC=800mA, IB=80mA V
Transition frequency VCE=6V, IC=20mA, f=30MHz fT 150 - - MHz
Note:
1. Pulse test：pulse width 300 S, duty cycle 2%.≦ ≦
http://www.SeCoSGmbH.com/ Any changes of specification will not be informed individually.
27-Jun-2012 Rev. B Page 1 of 2
VCE=1V, IC=100mA h
V
=25°C unless otherwise specified)
A
=1V, IC=800mA h
CE
40 - - V
(BR)CBO
25 - - V
(BR)CEO
6 - - V
(BR)EBO
- - 0.1 µA
CBO
- - 0.1 µA
CEO
45 - -
FE1
80 - 300
FE2
40 - -
FE3
- - 0.5 V
CE(sat)
- - 1.2 V
BE(sat)
Page 2
Elektronische Bauelemente

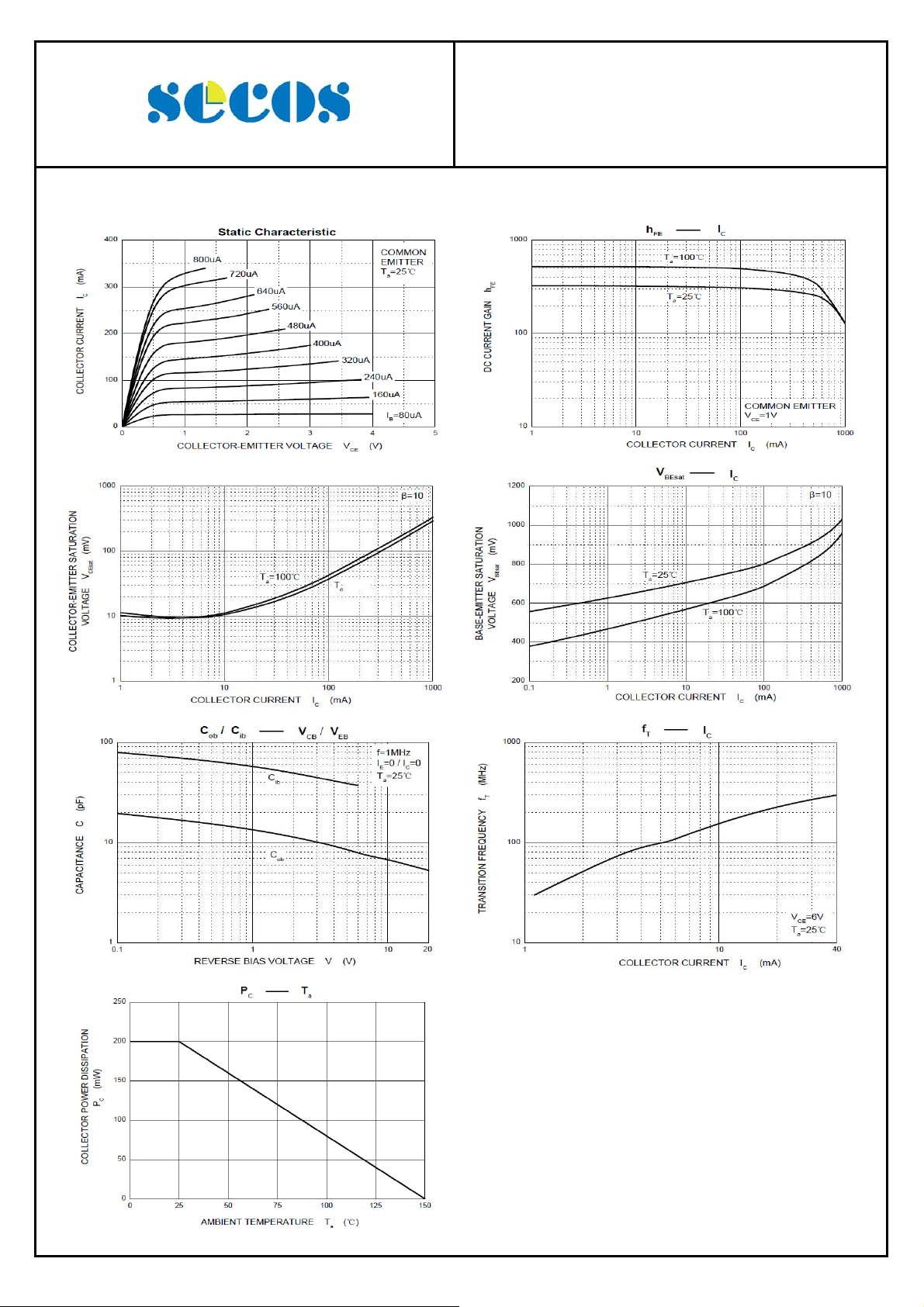

CHARACTERISTIC CURVES
M8050
NPN Plastic Encapsulate Transistor
40V, 0.8A, 200mW
http://www.SeCoSGmbH.com/ Any changes of specification will not be informed individually.
27-Jun-2012 Rev. B Page 2 of 2
