M74HCT574

OCTAL D-TYPE FLIP FLOP

WITH 3 STATE OUTPUT NON INVERTING

■ HIGH SPEED:

f

= 50MHz (TYP.) at VCC = 4.5V

MAX

■ LOW POWER DISSIPATION:

I

= 4µA(MAX.) at TA=25°C

CC

■ COMPAT I B LE WITH TT L OUTPUTS :

V

= 2V (MIN.) VIL = 0.8V (MAX)

IH

■ SYMMETRICAL OUTPUT IMPEDANCE:

|I

| = IOL = 6mA (MIN)

OH

■ BALANCED PROPAGATION DELAYS:

t

≅ t

PHL

PLH

■ PIN AND FUNCTION COMPATIBLE WITH

74 SERIES 574

DESCRIPTION

The M74HCT574 is an high speed CMOS OCTAL D-TYPE FLIP FLOP WITH 3-STATE OUTPUTS INVERTING fabricated with sub-micron silicon gate C

2

MOS technology. This 8 bit D-TYPE FLIP FLOP is con trolled by a clock input (CK) and an o utpu t enable input (OE On the positive transition of the clock, the Q outputs will be set to the logic state that were setup at the D inputs. While the OE

input is at low level, the eight outputs will be in a norm al logic state (high or low logic level) and while OE

is in high level the outputs will

be in a high impedance state.

ORDER CODES

PACKAGE TUBE T & R

DIP M74HCT574B1R

SOP M74HCT574M1R M74HCT574RM13TR

TSSOP M74HCT574TTR

The output control does not affect the internal operation of flip-flops; that is, the old data can be retained or the new data can be entered even

).

while the outputs are off. All inputs are equipped with protection circuits against static discharge and transient excess voltage.

TSSOPDIP SOP

PIN CONNECTION AND IEC LOGIC SYMBOLS

1/11August 2001

M74HCT574

INPUT AND OUTPUT EQUIVALENT CIRCUIT PIN DESCRIPTION

PIN No SYMBOL NAME AND FUNCTION

1OE

2, 3, 4, 5, 6,

7, 8, 9

12, 13, 14, 15, 16, 17,

18, 19

11 CK Clock Input (LOW to

10 GND Ground (0V) 20 V

TRUTH TABLE

INPUTS OUTPUT

to D7 Data Inputs

D0

Q7 to Q0 3 State Outputs

CC

3 State Output Enable Input (Active LOW)

HIGH, edge triggered)

Positive Supply Voltage

OE

HXXZ

L X NO CHANGE LLL LHH

X: Don’t Care Z: High Impedance

LOGIC DIAGRAM

CK D Q

This log i c diagram has not be used to esti m ate propagation delays

2/11

M74HCT574

ABSOLUTE MAXIMUM RATINGS

Symbol Parameter Value Unit

V

I

OK

I

or I

CC

P

T

Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional operation under these conditions is not implied (*) 500mW at 65

RECOMMENDED OPERATING CONDITIONS

Symbol Parameter Value Unit

V

V T t

r

Supply Voltage

CC

DC Input Voltage -0.5 to VCC + 0.5

I

DC Output Voltage -0.5 to VCC + 0.5

O

DC Input Diode Current

IK

DC Output Diode Current DC Output Current

O

DC VCC or Ground Current

GND

Power Dissipation

D

Storage Temperature

stg

Lead Temperature (10 sec)

L

°C; derate to 300mW by 10mW/°C from 65°C to 85°C

Supply Voltage

CC

Input Voltage 0 to V

I

Output Voltage 0 to V

O

Operating Temperature

op

, t

Input Rise and Fall Time (VCC = 4.5 to 5.5V)

f

-0.5 to +7 V

± 20 mA ± 20 mA ± 35 mA ± 70 mA

500(*) mW

-65 to +150 °C

300 °C

4.5 to 5.5 V

CC CC

-55 to 125 °C 0 to 500 ns

V V

3/11

M74HCT574

DC SPECIFICATIONS

Symbol Parameter

V

I

∆ I

High Level Input

IH

Voltage

Low Level Input

IL

Voltage

High Level Output

OH

Voltage Low Level Output

OL

Voltage

I

Input Leakage

I

Current High Impedance

OZ

Output Leakage Current

Quiescent Supply

CC

Current Additional Worst

CC

Case Supply Current

Test Condition Value

T

= 25°C

V

CC

(V)

A

Min. Typ. Max. Min. Max. Min. Max.

4.5 to

2.0 2.0 2.0 V

5.5

4.5 to

0.8 0.8 0.8 V

5.5

4.5

5.5

IO=-20 µA

I

=-6.0 mA

O

IO=20 µA

I

=6.0 mA

O

= VCC or GND

V

I

= VIH or V

V

I

VO = VCC or GND

= VCC or GND

V

I

5.5 Per Input pin

= 0.5V or

V

I

V

= 2.4V

I

4.4 4.5 4.4 4.4

4.18 4.31 4.13 4.10

0.0 0.1 0.1 0.1

0.17 0.26 0.33 0.40 ± 0.1 ± 1 ± 1 µA

IL

± 0.5 ± 5 ± 10 µA

2.0 2.9 3.0 mA

Other Inputs at

V

or GND

CC

I

= 0

O

-40 to 85°C -55 to 125°C

Unit

V

44080µA

4/11

AC ELECTRICAL CHARACTERISTICS (CL = 50 pF, Input tr = tf = 6ns)

Test Condition Value

T

Symbol Parameter

t

TLH tTHL

t

PLH tPHL

t

PZL tPZH

Output Transition Time

Propagation Delay Time 4.5

High Impedance Output Enable Time

t

PLZ tPHZ

High Impedance Output Disable Time

f

MAX

t

W(H)

t

W(H)

Maximum Clock Frequency

Minimum Pulse Width (CK)

Minimum Set-up

t

s

Time

t

Minimum Hold

h

Time

C

V

CC

(V)

L

(pF)

4.5 50 7 12 15 18 ns 50 20 30 38 45

150 24 36 45 54

50

R

4.5

150 23 36 45 54

4.5 50

= 1 KΩ

L

R

= 1 KΩ

L

4.5 50 31 50 25 21 ns

4.5 50 8 15 19 22 ns

4.5 50 7 15 19 22 ns

4.5 50 0 0 0 ns

= 25°C

A

Min. Typ. Max. Min. Max. Min. Max.

19 30 38 45

19 30 38 45 ns

M74HCT574

-40 to 85°C -55 to 125°C

Unit

ns

CAPACITIVE CHARACTERISTICS

Test Condition Value

T

Symbol Parameter

C

Input Capacitance

IN

Output

OUT

Capacitance Power Dissipation

PD

Capacitance (note

V

CC

(V)

= 25°C

A

Min. Typ. Max. Min. Max. Min. Max.

5101010pF

10 pF

63 pF

1)

1) CPD is defined as the value of the IC’s internal equivalent capacitance which is calculated from the operating current consumption without

load. (R ef er to Test Circ ui t). Averag e operatin g current can be obtained by t he following equation. I Flip-Flop)

-40 to 85°C -55 to 125°C

= CPD x VCC x fIN + ICC/8 (per

CC(opr)

Unit

5/11

M74HCT574

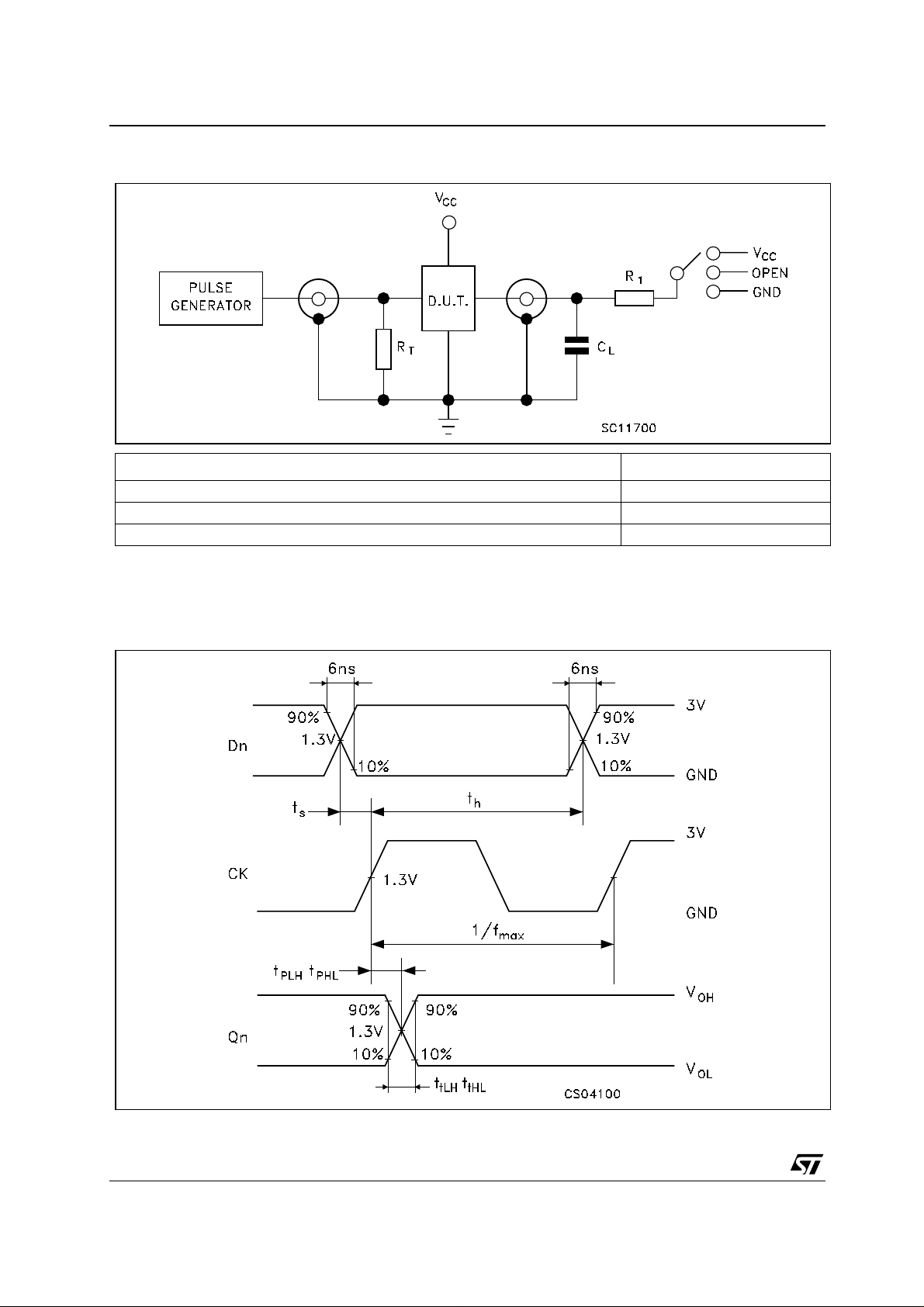

TEST CIRCUIT

TEST SWITCH

t

, t

PLH

PHL

, t

t

PZL

PLZ

t

, t

PZH

PHZ

CL = 50pF/150pF or equivalent (includes jig and probe capacitance)

= 1KΩ or equivalent

R

1

R

= Z

of pulse generator (t ypically 50Ω)

T

OUT

Open

V

CC

GND

WAVEFORM 1: CK TO Qn PROPAGATION DELAYS, CK MAXIMUM FREQUENCY, Dn TO CK SETUP AND HOLD TIMES (f =1MHz; 50% duty cycl e)

6/11

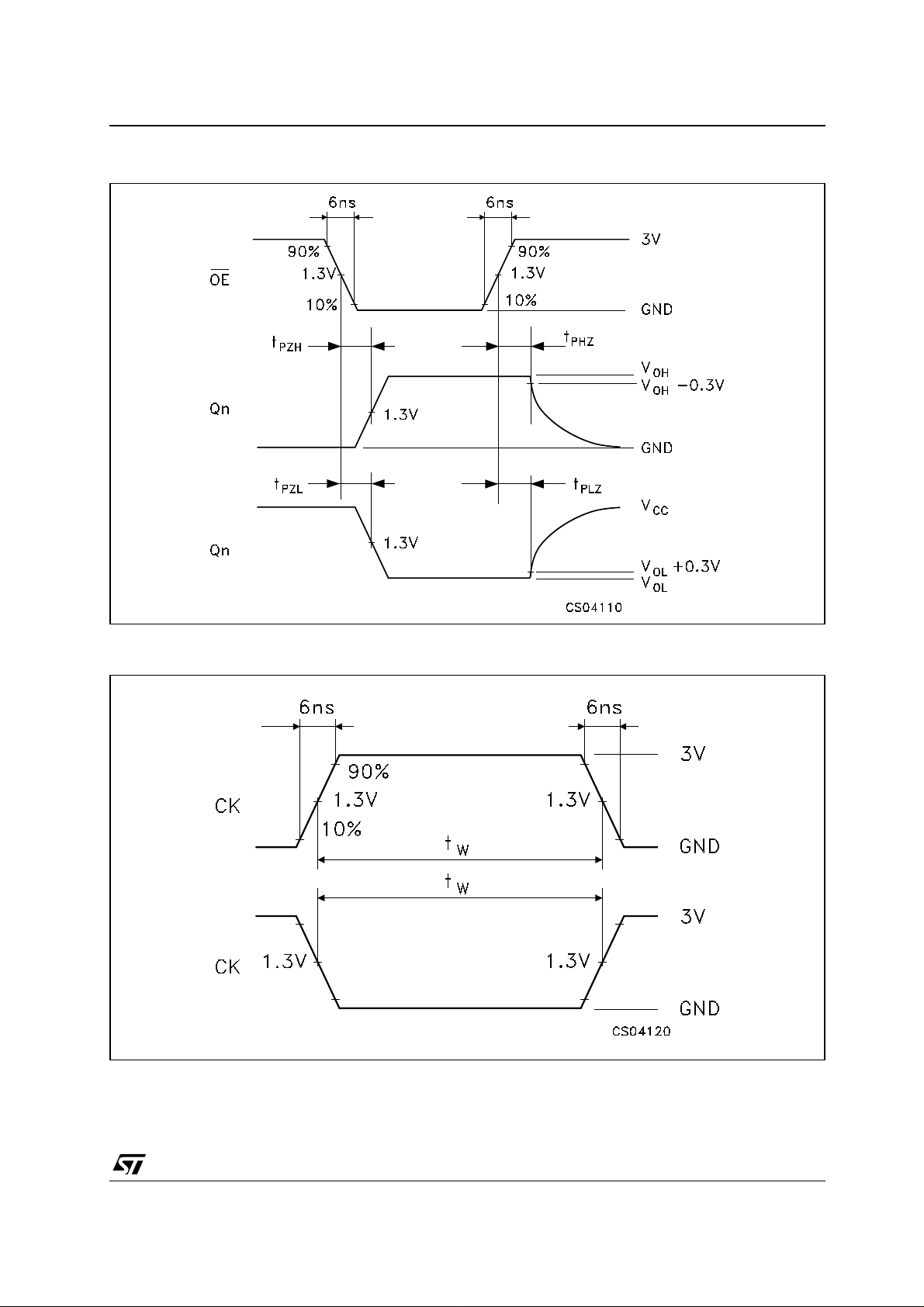

WAVEFORM 2 : OUTPUT ENABLE AND DISABLE TIMES (f=1MHz; 50% duty cycle)

M74HCT574

WAVEFORM 3 : MINIMUM PULSE WIDTH (f=1MHz; 50% duty cycle)

7/11

M74HCT574

Plastic DIP-20 (0.25) MECHANICAL DATA

mm. inch

DIM.

MIN. TYP MAX. MIN. TYP. MAX.

a1 0.254 0.010

B 1.39 1.65 0.055 0.065 b 0.45 0.018

b1 0.25 0.010

D 25.4 1.000 E 8.5 0.335

e 2.54 0.100

e3 22.86 0.900

F 7.1 0.280

I 3.93 0.155

L 3.3 0.130

Z 1.34 0.053

8/11

P001J

SO-20 MECHANICAL DATA

M74HCT574

DIM.

MIN. TYP MAX. MIN. TYP. MAX.

A 2.65 0.104 a1 0.1 0.2 0.004 0.008 a2 2.45 0.096

b 0.35 0.49 0.014 0.019

b1 0.23 0.32 0.009 0.012

C 0.5 0.020 c1 45° (typ.)

D 12.60 13.00 0.496 0.512

E 10.00 10.65 0.393 0.419

e 1.27 0.050

e3 11.43 0.450

F 7.40 7.60 0.291 0.300

L 0.50 1.27 0.020 0.050

M 0.75 0.029

S8° (max.)

mm. inch

PO13L

9/11

M74HCT574

TSSOP20 MECHANICAL DATA

mm. inch

DIM.

MIN. TYP MAX. MIN. TYP. MAX.

A 1.2 0.047

A1 0.05 0.15 0.002 0.004 0.006

A2 0.8 1 1.05 0.031 0.039 0.041

b 0.19 0.30 0.007 0.012

c 0.09 0.20 0.004 0.0089

D 6.4 6.5 6.6 0.252 0.256 0.260

E 6.2 6.4 6.6 0.244 0.252 0.260

E1 4.3 4.4 4.48 0.169 0.173 0.176

e 0.65 BSC 0.0256 BSC

K0° 8°0° 8°

L 0.45 0.60 0.75 0.018 0.024 0.030

A2

A

A1

b

e

K

c

L

E

D

E1

PIN 1 IDENTIFICATION

10/11

1

0087225C

M74HCT574
