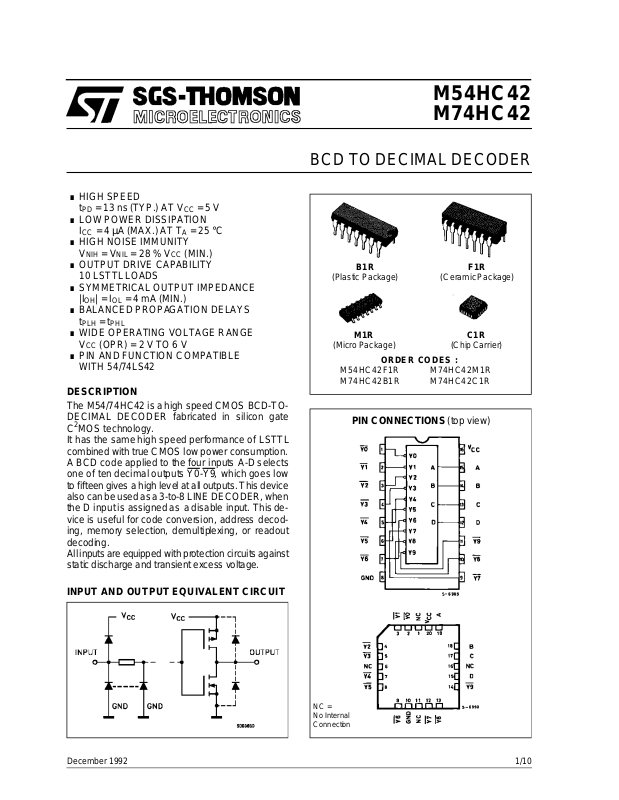

.HIGH SPEED

tPD= 13 ns (TYP.) AT VCC=5V

.LOWPOWER DISSIPATION

ICC=4µA(MAX.) AT TA=25°C

.HIGH NOISEIMMUNITY

V

NIH=VNIL

=28%VCC(MIN.)

.OUTPUT DRIVE CAPABILITY

10 LSTTL LOADS

.SYMMETRICAL OUTPUT IMPEDANCE

|IOH|=IOL=4 mA (MIN.)

.BALANCEDPROPAGATION DELAYS

t

PLH=tPHL

.WIDE OPERATINGVOLTAGERANGE

VCC(OPR)= 2 V TO 6 V

.PIN AND FUNCTION COMPATIBLE

WITH 54/74LS42

DESCRIPTION

The M54/74HC42 is a high speedCMOS BCD-TO­DECIMAL DECODER fabricated in silicon gate
C2MOS technology.
It has the same high speed performance of LSTTL
combined with true CMOSlowpower consumption.
A BCD code applied to the four inputs A-D selects
one of ten decimal outputs Y0-Y9, which goes low
tofifteengives ahigh levelatalloutputs.This device
alsocanbeusedas a3-to-8LINEDECODER,when
the D inputis assignedas a disable input. Thisde­vice is useful for code conversion, address decod­ing, memory selection, demultiplexing, or readout
decoding.
Allinputs areequipped withprotection circuitsagainst
staticdischarge and transientexcess voltage.

M54HC42
M74HC42

BCD TO DECIMAL DECODER

B1R

(PlasticPackage)

M1R

(MicroPackage)

ORDER CODES :

M54HC 42F1R M74H C42M1R
M74HC 42B1R M 74HC42C1R

PIN CONNECTIONS(top view)

F1R

(CeramicPackage)

C1R

(Chip Carrier)

INPUT AND OUTPUT EQUIVALENT CIRCUIT

December1992

NC =
No Internal
Connection

1/10

M54/M74HC42

PIN DESCRIPTION

PIN No SYMBOL NAME AND FUNCTION

15, 14, 13,12A, B, C, D Data Inputs

1, 2, 3, 4,

to Y

Y

0

Multiplexer Outputs

9

5, 6, 7, 9,

10, 11

8 GND Ground (0V)

16 V

CC

Positive Supply Voltage

LOGI C DIAG RAM

IEC LOGIC SYMBOL

2/10

FUN CTIO N AL TABLE

M54/M74HC42

CODE No.

BCD INPUTS DECIMAL OUTPUTS

DCBAY

Y1Y2Y3Y4Y5Y6Y7Y8Y

0

9

0 LLLLLHHHHHHHHH
1 LLLHHLHHHHHHHH
2 LLHLHHLHHHHHHH
3 LLHHHHHLHHHHHH
4 LHLLHHHHLHHHHH
5 LHLHHHHHHLHHHH
6 LHHLHHHHHHLHHH
7 LHHHHHHHHHHLHH
8 HLLLHHHHHHHHLH

9 HLLHHHHHHHHHHL
10 HLHLHHHHHHHHHH
11 HLHHHHHHHHHHHH
12 HHLLHHHHHHHHHH
13 HHLHHHHHHHHHHH
14 HHHLHHHHHHHHHH
15 HHHHHHHHHHHHHH

ABSOLU TE MAXIMU M RAT INGS

Symbol Parameter Value Unit

V

CC

V

V

O

I

IK

I

OK

I

O

I

or I

CC

P

D

T

stg

T

L

AbsoluteMaximumRatingsarethosevalues beyondwhichdamage tothedevicemayoccur. Functional operationunder theseconditionisnotimplied.
(*)500 mW: ≅ 65oC derate to300 mW by 10mW/oC: 65oCto85oC

Supply Voltage -0.5 to +7 V
DC Input Voltage -0.5 to VCC+ 0.5 V

I

DC Output Voltage -0.5 to VCC+ 0.5 V
DC Input Diode Current ± 20 mA
DC Output Diode Current ± 20 mA
DC Output Source Sink Current Per Output Pin ± 25 mA
DC VCCor Ground Current ± 50 mA

GND

Power Dissipation 500 (*) mW
Storage Temperature -65 to +150
Lead Temperature (10 sec) 300

o

C

o

C

RECO MM ENDED OPERATI N G CONDI TI O NS

Symbol Parameter Value Unit

V

T

t

V

V

r,tf

Supply Voltage 2 to 6 V

CC

Input Voltage 0 to V

I

Output Voltage 0 to V

O

Operating Temperature: M54HC Series

op

M74HC Series

CC
CC

-55 to +125

-40 to +85

Input Rise and Fall Time VCC= 2 V 0 to 1000 ns

= 4.5 V 0 to 500

V

CC

V

= 6 V 0 to 400

CC

V
V

o

C

o

C

3/10

M54/M74HC42

DC SPECIFICA TIONS

Symbol Parameter

V

V

V

V

I

High Level Input

IH

Voltage

Low Level Input

IL

Voltage

High Level

OH

Output Voltage

Low Level Output

OL

Voltage

I

Input Leakage

I

Current
Quiescent Supply

CC

Current

Test Conditions Value

V

(V)

CC

=25oC

A

54HC and 74HC

Min. Typ. Max. Min. Max. Min. Max.

-40 to 85oC
74HC

-55 to 125oC
54HC

Unit

T

2.0 1.5 1.5 1.5

4.5 3.15 3.15 3.15

6.0 4.2 4.2 4.2

2.0 0.5 0.5 0.5

4.5 1.35 1.35 1.35

6.0 1.8 1.8 1.8

2.0

4.5 4.4 4.5 4.4 4.4

6.0 5.9 6.0 5.9 5.9

4.5 I

6.0 I

2.0

4.5 0.0 0.1 0.1 0.1

6.0 0.0 0.1 0.1 0.1

4.5 I

6.0 I

6.0

=

V

I

IO=-20 µA

V

IH

or

V

IL

=-4.0 mA 4.18 4.31 4.13 4.10

O

=-5.2 mA 5.68 5.8 5.63 5.60

O

V

=

I

IO=20µA

V

IH

or

V

IL

= 4.0 mA 0.17 0.26 0.33 0.40

O

= 5.2 mA 0.18 0.26 0.33 0.40

O

VI=VCCor GND ±0.1 ±1 ±1 µA

1.9 2.0 1.9 1.9

0.0 0.1 0.1 0.1

6.0 VI=VCCor GND 4 40 80 µA

V

V

V

V

AC ELECTRICAL CHARACTERISTICS (CL=50pF,Inputtr=tf=6ns)

Test Conditions Value

=25oC

T

Symbol Parameter

t
t

TLH
THL

Output Transition
Time

V

CC

(V)

2.0 30 75 95 110

4.5 8151922

A

54HC and 74HC

Min. Typ. Max. Min. Max. Min. Max.

6.0 7131619

t

PLH

t

PHL

Propagation
Delay Time

2.0 64 130 165 195

4.5 16 26 33 39

6.0 14 22 28 33

C

C

PD

Input Capacitance 5 10 10 10 pF

IN

(*) Power Dissipation

60

Capacitance

(*) CPDisdefinedas the value ofthe IC’sinternal equivalent capacitance which is calculated fromthe operatingcurrent consumption without load.
(RefertoTestCircuit).Average operting current can be obtained bythe followingequation. ICC(opr) = CPD•VCC•fIN+I

-40 to 85oC
74HC

-55 to 125oC
54HC

CC

Unit

ns

ns

pF

4/10

SWITCHING CHARACTERISTICS TEST WAVEFORM

TEST CIRCUIT ICC(Opr.)

M54/M74HC42

INPUT WAVEFORMIS THE SAME AS THAT IN CASE OF SWITCHINGCHARACTERISTICTEST

5/10

M54/M74HC42

Plastic DIP16 (0.25) MECHANICAL DATA

DIM.

MIN. TYP. MAX. MIN. TYP. MAX.

a1 0.51 0.020

B 0.77 1.65 0.030 0.065

b 0.5 0.020

b1 0.25 0.010

D 20 0.787
E 8.5 0.335

e 2.54 0.100

e3 17.78 0.700

F 7.1 0.280

I 5.1 0.201

L 3.3 0.130

Z 1.27 0.050

mm inch

6/10

P001C

Ceramic DIP16/1 MECHANICAL DATA

M54/M74HC42

DIM.

MIN. TYP. MAX. MIN. TYP. MAX.

A 20 0.787
B 7 0.276
D 3.3 0.130
E 0.38 0.015

e3 17.78 0.700

F 2.29 2.79 0.090 0.110
G 0.4 0.55 0.016 0.022
H 1.17 1.52 0.046 0.060

L 0.22 0.31 0.009 0.012
M 0.51 1.27 0.020 0.050
N 10.3 0.406

P 7.8 8.05 0.307 0.317

Q 5.08 0.200

mm inch

P053D

7/10

M54/M74HC42

SO16 (Narrow) MECHANICAL DATA

DIM.

MIN. TYP. MAX. MIN. TYP. MAX.

A 1.75 0.068
a1 0.1 0.2 0.004 0.007
a2 1.65 0.064

b 0.35 0.46 0.013 0.018

b1 0.19 0.25 0.007 0.010

C 0.5 0.019

c1 45° (typ.)

D 9.8 10 0.385 0.393

E 5.8 6.2 0.228 0.244

e 1.27 0.050

e3 8.89 0.350

F 3.8 4.0 0.149 0.157

G 4.6 5.3 0.181 0.208

L 0.5 1.27 0.019 0.050

M 0.62 0.024

S8°(max.)

mm inch

8/10

P013H

PLCC20 MECHANICAL DATA

M54/M74HC42

DIM.

MIN. TYP. MAX. MIN. TYP. MAX.

A 9.78 10.03 0.385 0.395

B 8.89 9.04 0.350 0.356

D 4.2 4.57 0.165 0.180
d1 2.54 0.100
d2 0.56 0.022

E 7.37 8.38 0.290 0.330

e 1.27 0.050

e3 5.08 0.200

F 0.38 0.015
G 0.101 0.004
M 1.27 0.050

M1 1.14 0.045

mm inch

P027A

9/10

M54/M74HC42
