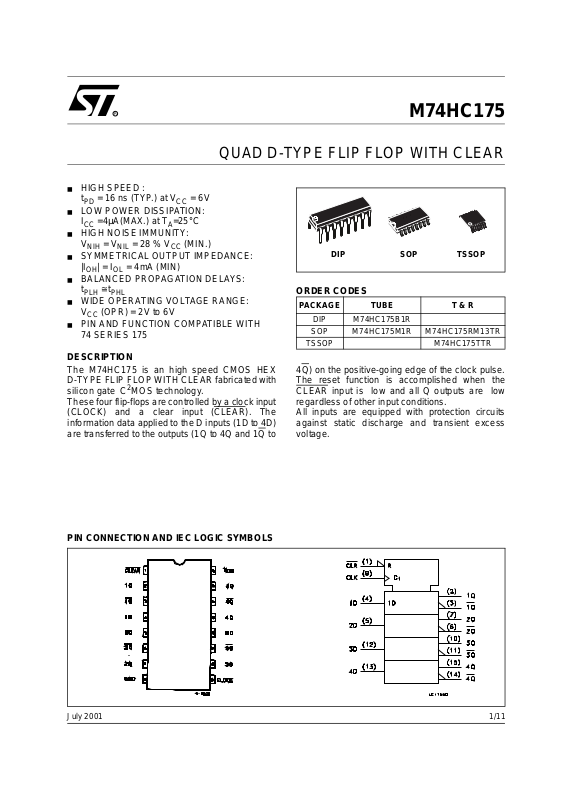

M74HC175

QUAD D-TYPE FLIP FLOP WITH CLEAR

■ HIGH SPEED :

t

= 16 ns (TYP.) at VCC = 6V

PD

■ LOW POWER DISSIPATION:

I

=4µA(MAX.) at TA=25°C

CC

■ HIGH NOISE IMMUNITY:

V

= V

NIH

■ SYMMETRICAL OUTPUT IMPEDANCE:

|I

| = IOL = 4mA (MIN)

OH

■ BALANCED PROPAGATION DELAYS:

t

≅ t

PLH

■ WIDE OPERATING VOLTAGE RANGE:

V

(OPR) = 2V to 6V

CC

■ PIN AND FUNCTION COMPATIBLE WITH

= 28 % VCC (MIN.)

NIL

PHL

74 SERIES 175

DESCRIPTION

The M74HC175 is an high speed CMOS HEX
D-TYPE FLIP FLOP WITH CLEAR fabricated with
silicon gate C

2

MOS technology.
These four flip-flops are controlled by a clock input
(CLOCK) and a clear input (CLEAR

). The
information data applied to the D inputs (1D to 4D)
are transferred to the outputs (1Q to 4Q and 1Q

to

TSSOPDIP SOP

ORDER CODES

PACKAGE TUBE T & R

DIP M74HC175B1R

SOP M74HC175M1R M74HC175RM13TR

TSSOP M74HC175TTR

) on the positive-going edge of the clock pulse.

4Q
The reset function is accomplished when the
CLEAR

input is low and all Q outputs are low
regardless of other input conditions.
All inputs are equipped with protection circuits
against static discharge and transient excess
voltage.

PIN CONNECTION AND IEC LOGIC SYMBOLS

1/11July 2001

M74HC175

INPUT AND OUTPUT EQUIVALENT CIRCUIT PIN DESCRIPTION

PIN No SYMBOL NAME AND FUNCTION

1 CLEAR

2, 7, 10, 15 1Q to 4Q Flip-Flop Outputs

3, 6, 11, 14 1Q

4, 5, 12, 13 1D to 4D Data Inputs

9 CLOCK
8 GND Ground (0V)

16 Vcc Positive Supply Voltage

TRUTH TABLE

to 4Q

Asynchronous Master
Reset (Active Low)

Complementary Flip-Flop
Outputs

Clock Input (LOW to
HIGH, edge triggered)

INPUTS OUTPUTS

CLEAR

LXXLH

HL LH
HH HL
H X Qn Q

X : Don’t Care

D CLOCK Q Q

LOGIC DIAGRAM

FUNCTION

n NO CHANGE

This log i c diagram has not be used to est i m at e propagation delays

2/11

M74HC175

ABSOLUTE MAXIMUM RATINGS

Symbol Parameter Value Unit

V

V

V

I

I

OK

I

I

or I

CC

P

T

T

Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional operation under these conditions is
not implied
(*) 500mW at 65

RECOMMENDED OPERATING CONDITIONS

Symbol Parameter Value Unit

V

V

V

T

t

r

Supply Voltage

CC

DC Input Voltage -0.5 to VCC + 0.5

I

DC Output Voltage -0.5 to VCC + 0.5

O

DC Input Diode Current

IK

DC Output Diode Current
DC Output Current

O

DC VCC or Ground Current

GND

Power Dissipation

D

Storage Temperature

stg

Lead Temperature (10 sec)

L

°C; derate to 300mW by 10mW/°C from 65°C to 85°C

Supply Voltage

CC

Input Voltage 0 to V

I

Output Voltage 0 to V

O

Operating Temperature

op

Input Rise and Fall Time VCC = 2.0V

, t

f

V
V

CC
CC

= 4.5V
= 6.0V

-0.5 to +7 V

± 20 mA
± 20 mA
± 25 mA
± 50 mA

500(*) mW

-65 to +150 °C

300 °C

2 to 6 V

CC
CC

-55 to 125 °C
0 to 1000 ns

0 to 500 ns
0 to 400 ns

V
V

V
V

3/11

M74HC175

DC SPECIFICATIONS

Symbol Parameter

V

V

V

V

I

High Level Input

IH

Voltage

Low Level Input

IL

Voltage

High Level Output

OH

Voltage

Low Level Output

OL

Voltage

I

Input Leakage

I

Current
Quiescent Supply

CC

Current

Test Condition Value

V

(V)

CC

= 25°C

A

Min. Typ. Max. Min. Max. Min. Max.

-40 to 85°C -55 to 125°C

T

2.0 1.5 1.5 1.5

6.0 4.2 4.2 4.2

2.0 0.5 0.5 0.5

6.0 1.8 1.8 1.8

2.0

4.5

6.0

4.5

6.0

2.0

4.5

6.0

4.5

6.0

6.0

6.0

IO=-20 µA
I

=-20 µA

O

I

=-20 µA

O

I

=-4.0 mA

O

I

=-5.2 mA

O

IO=20 µA
I

=20 µA

O

I

=20 µA

O

I

=4.0 mA

O

I

=5.2 mA

O

= VCC or GND

V

I

= VCC or GND

V

I

1.9 2.0 1.9 1.9

4.4 4.5 4.4 4.4

5.9 6.0 5.9 5.9

4.18 4.31 4.13 4.10

5.68 5.8 5.63 5.60

0.0 0.1 0.1 0.1

0.0 0.1 0.1 0.1

0.0 0.1 0.1 0.1

0.17 0.26 0.33 0.40

0.18 0.26 0.33 0.40
± 0.1 ± 1 ± 1 µA

44080µA

Unit

V4.5 3.15 3.15 3.15

V4.5 1.35 1.35 1.35

V

V

4/11

AC ELECTRICAL CHARACTERISTICS (CL = 50 pF, Input tr = tf = 6ns)

Test Condition Value

T

Symbol Parameter

t

TLH tTHL

t

PLH tPHL

Output Transition
Time

Propagation Delay
Time

(CLOCK - Q, Q

t

PLH tPHL

f

MAX

t

W(H)

t

W(L)

t

W(L)

t

REM

Propagation Delay
Time

(CLEAR
Maximum Clock

Frequency

Minimum Pulse
Width (CLOCK)

Minimum Pulse
Width (CLEAR

Minimum Set-up

t

s

Time

Minimum Hold

t

h

Time

Minimum Removal
Time (CLEAR

- Q, Q)

V

CC

(V)

2.0 30 75 95 110

6.0 7131619

2.0 60 150 190 225

)

6.0 16 26 32 38

2.0 50 125 155 190

6.0 14 21 26 32

2.0 6.2 13 5 4.2

6.0 37 61 30 25

2.0 28 75 95 110

6.0 6131619

2.0 28 75 95 110

)

6.0 6131619

2.0 28 75 95 110

6.0 6131619

2.0 0 0 0

6.0 0 0 0

2.0 5 5 5

)

6.0 5 5 5

= 25°C

A

Min. Typ. Max. Min. Max. Min. Max.

M74HC175

-40 to 85°C -55 to 125°C

Unit

ns4.5 8151922

ns4.5 19 30 38 45

ns4.5 16 25 31 38

MHz4.5 31 52 25 21

ns4.5 7151922

ns4.5 7151922

ns4.5 7151922

ns4.5 0 0 0

ns4.5 5 5 5

CAPACITIVE CHARACTERISTICS

Test Condition Value

= 25°C

Symbol Parameter

V

CC

(V)

C

C

1) CPD is defined as the value of the IC’s internal equivalent capacitance which is calculated from the operating current consumption without

load. (Refer to Test Circuit). Average operating current can be obtained by the following equation. I
FLOP)

Input Capacitance

IN

Power Dissipation

PD

Capacitance (note 1)5.0 47 pF

5.0 5101010pF

T

A

Min. Typ. Max. Min. Max. Min. Max.

-40 to 85°C -55 to 125°C

= CPD x VCC x fIN + ICC/4 (per FLIP/

CC(opr)

Unit

5/11

M74HC175

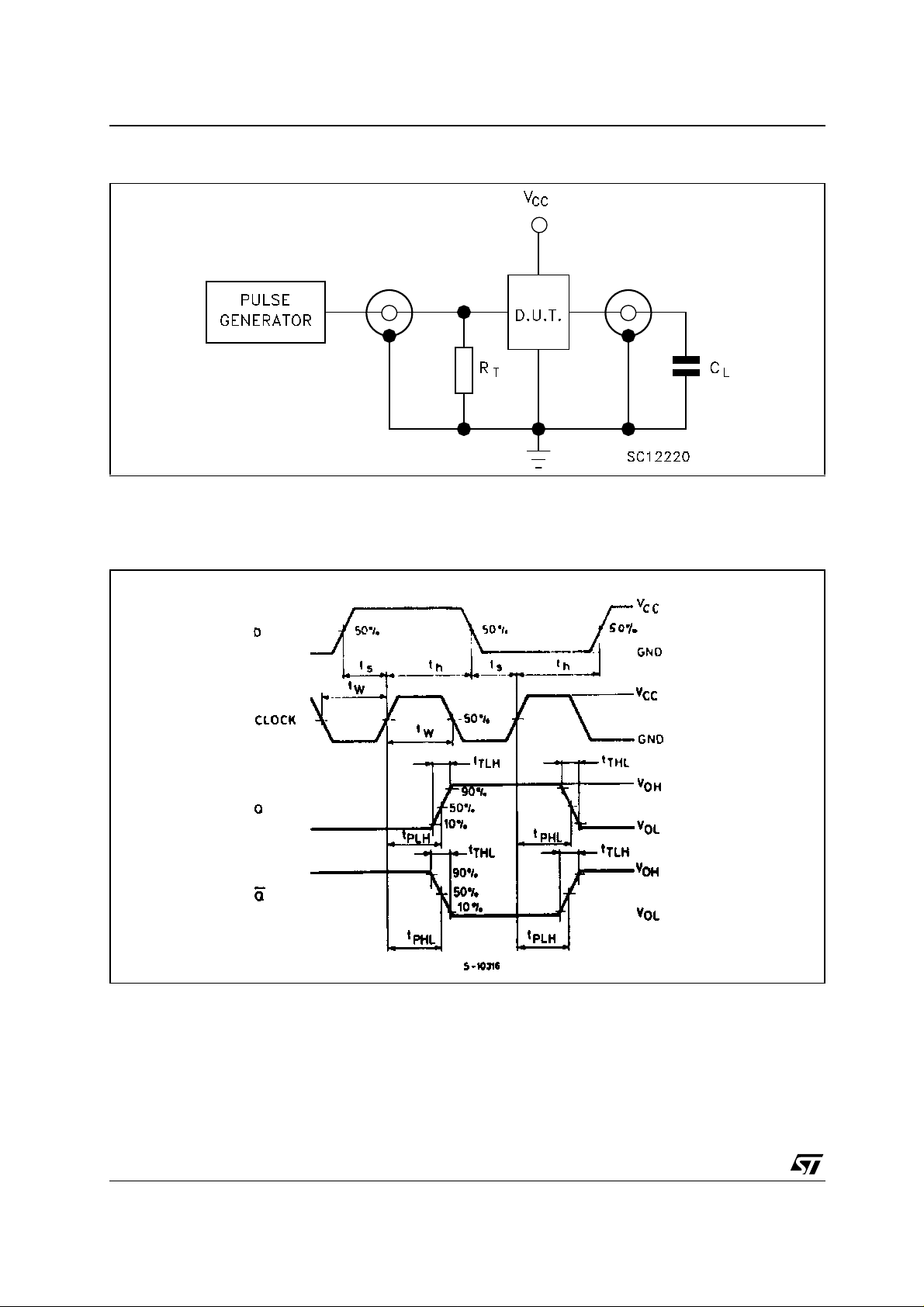

TEST CIRCUIT

CL = 50pF or equivalent (includes jig and p robe capacit ance)

= Z

R

WAVEFORM 1: PROPAGATION DELAY TIMES, MINIMUM PULSE WIDTH (CLOCK), SETUP AND
HOLD TIME (D TO CLOCK) (f=1M Hz; 50% duty cycle)

of pulse generator (typically 50Ω)

T

OUT

6/11

M74HC175

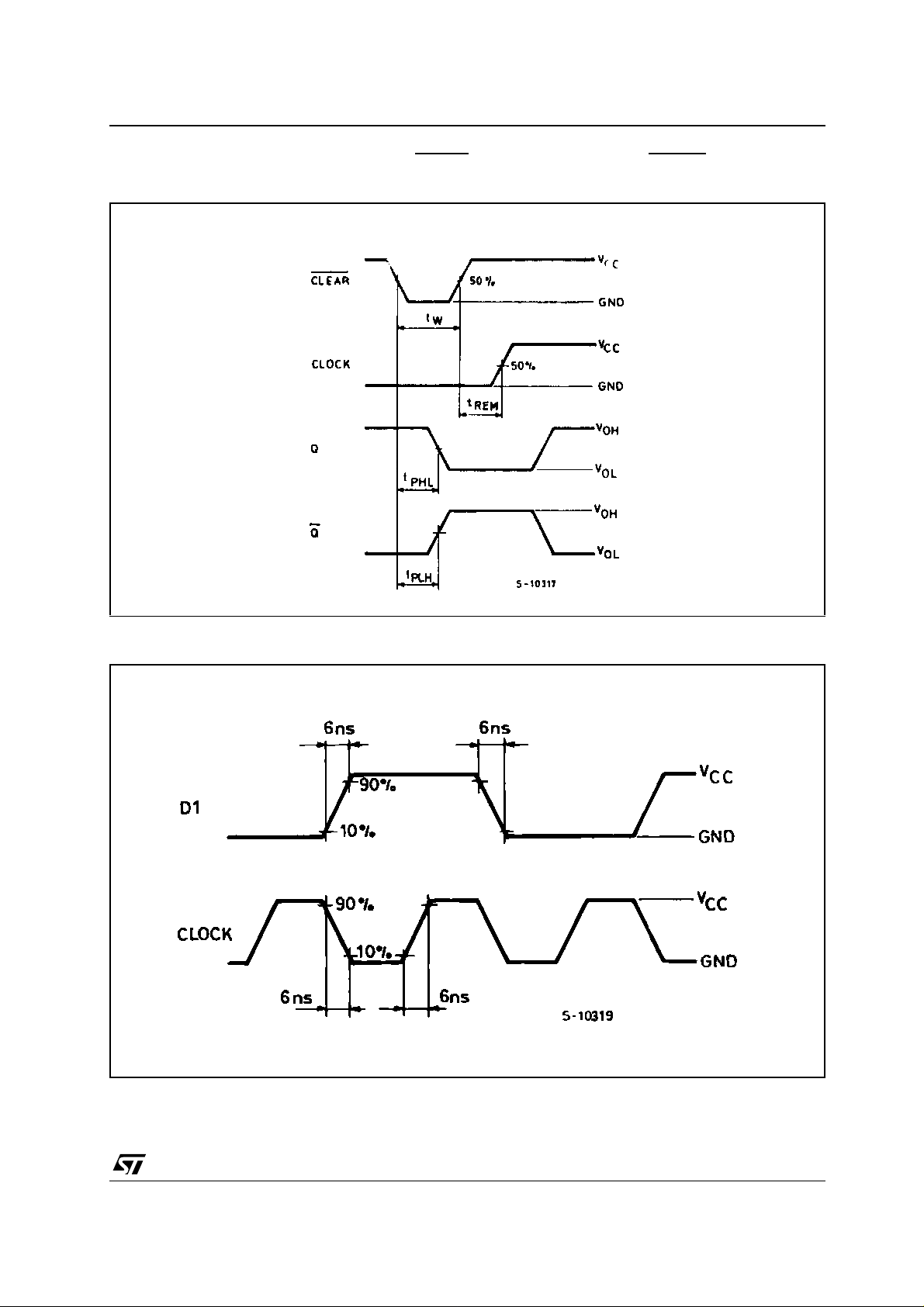

WAVEFORM 2 :MINIMUM PULSE WIDTH (CLEAR) AND REMOVAL TIME ( CLEAR TO CLOCK)

(f=1MHz; 50% duty cycle)

WAVEFOR M 3 : I N P U T WA VEFORMS (f=1MHz; 50% duty cycle)

7/11

M74HC175

Plastic DIP-16 (0.25) MECHANICAL DATA

mm. inch

DIM.

MIN. TYP MAX. MIN. TYP. MAX.

a1 0.51 0.020

B 0.77 1.65 0.030 0.065

b 0.5 0.020

b1 0.25 0.010

D 20 0.787
E 8.5 0.335

e 2.54 0.100

e3 17.78 0.700

F 7.1 0.280

I 5.1 0.201

L 3.3 0.130

Z 1.27 0.050

8/11

P001C

SO-16 MECHANICAL DATA

M74HC175

DIM.

A 1.75 0.068
a1 0.1 0.2 0.003 0.007
a2 1.65 0.064

b 0.35 0.46 0.013 0.018

b1 0.19 0.25 0.007 0.010

C 0.5 0.019
c1 45° (typ.)

D 9.8 10 0.385 0.393

E 5.8 6.2 0.228 0.244

e 1.27 0.050

e3 8.89 0.350

F 3.8 4.0 0.149 0.157

G 4.6 5.3 0.181 0.208

L 0.5 1.27 0.019 0.050

M 0.62 0.024

S8° (max.)

MIN. TYP MAX. MIN. TYP. MAX.

mm. inch

PO13H

9/11

M74HC175

TSSOP16 MECHANICAL DATA

mm. inch

DIM.

MIN. TYP MAX. MIN. TYP. MAX.

A 1.2 0.047

A1 0.05 0.15 0.002 0.004 0.006

A2 0.8 1 1.05 0.031 0.039 0.041

b 0.19 0.30 0.007 0.012

c 0.09 0.20 0.004 0.0089

D 4.9 5 5.1 0.193 0.197 0.201

E 6.2 6.4 6.6 0.244 0.252 0.260

E1 4.3 4.4 4.48 0.169 0.173 0.176

e 0.65 BSC 0.0256 BSC

K0° 8°0° 8°

L 0.45 0.60 0.75 0.018 0.024 0.030

A2

A

A1

b

e

c

K

L

E

D

E1

PIN 1 IDENTIFICATION

10/11

1

0080338D

M74HC175
