PRODUCT INFORMATION PACKET
Model No: 254TTFL5004
Catalog No: M413
15 HP Definite Purpose AC Motor, 3 phase, 3600 RPM, 208-230/460 V, 254JM Frame, TEFC
Other Purpose Motors
Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2020 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 4
Page 2
Product Information Packet: Model No: 254TTFL5004, Catalog No:M413 15 HP Definite Purpose AC Motor, 3 phase, 3600 RPM, 208-230/460 V, 254JM
Frame, TEFC
Nameplate Specifications
Output HP 15 Hp Output KW 11.2 kW
Frequency 60 Hz Voltage 208-230/460 V
Current 41.0-36.0/18.0 A Speed 3495 rpm
Service Factor 1.15 Phase 3
Efficiency 85.5 % Power Factor 90.8
Duty Continuous Insulation Class F
Design Code B KVA Code G
Frame 254JM Enclosure Totally Enclosed Fan Cooled
Thermal Protection No Ambient Temperature 40 °C
Drive End Bearing Size 6309 Opp Drive End Bearing Size 6207
UL Recognized CSA Y
CE Y IP Code 43
Technical Specifications
Electrical Type Squirrel Cage Induction Run Starting Method Across The Line
Poles 2 Rotation Reversible
Resistance Main .915 Ohms Mounting Rigid Base
Motor Orientation Horizontal Drive End Bearing Ball
Opp Drive End Bearing Ball Frame Material Aluminum
Shaft Type JM Overall Length 24.74 in
Frame Length 11.00 in Shaft Diameter 1.250 in
Shaft Extension 5.28 in Assembly/Box Mounting F1/F2 CAPABLE
Connection Drawing A-EE7308 Outline Drawing B-SS330112-1100
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created:03/11/2020
2 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 4
Page 3

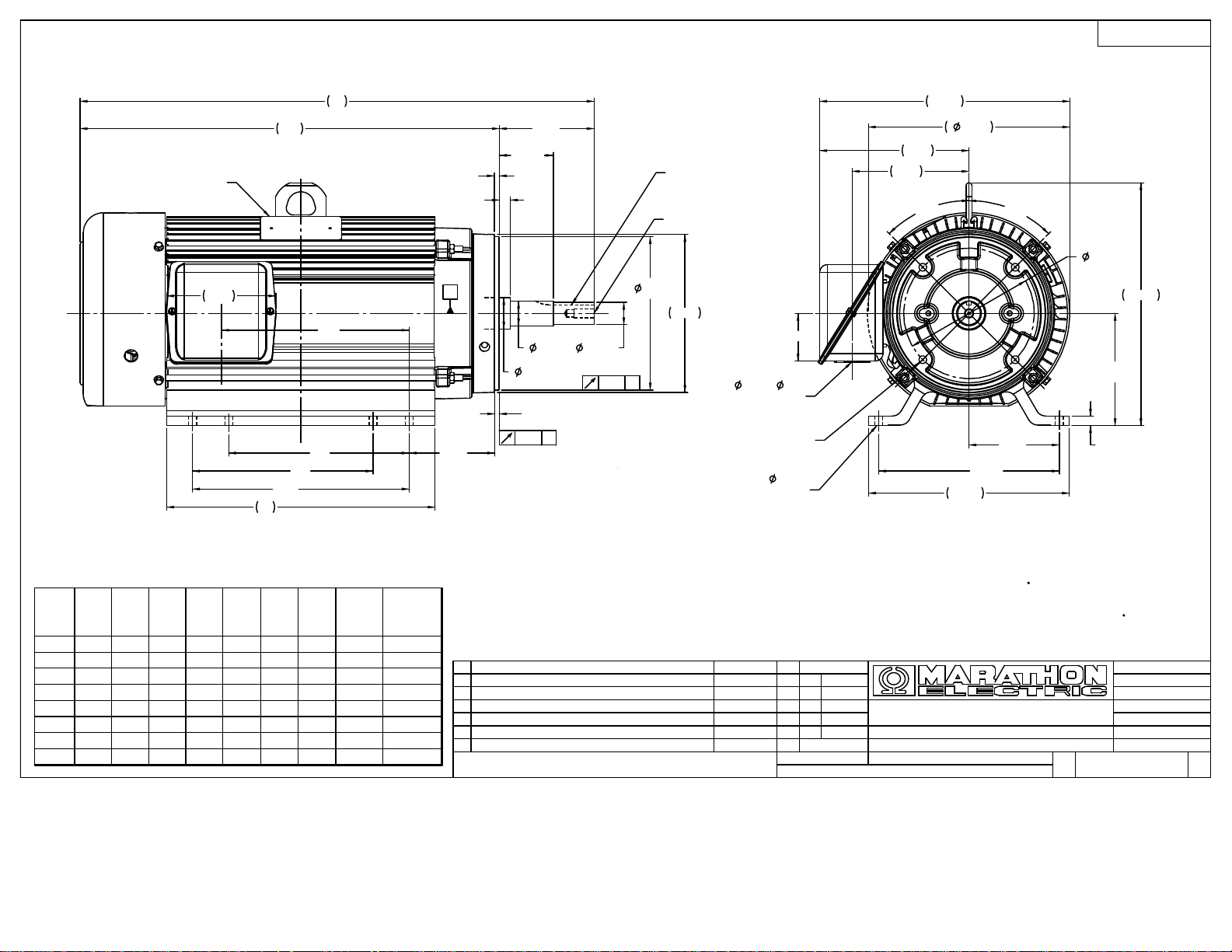

SS330112
NAMEPLATE TO BE
READ FROM COND.
BOX SIDE OF MOTOR
6.06
AG
C
5.25
3.015
.31
.25
2.985
.640
.610
A
25 X .12 X 2.53
KEYWAY
1/2-13 UNC-3B
1.12 FULL THD
(1) HOLE
8.500
8.497
6.47
8.27
45°
13.85
11.16
45°
7.265
7.235
13.46
8.75
BS
1.750
1.748
1.3750
1.3745
1.2495
1.2490
.004
A
.25
.004
2F
4.75
A
.88 FULL THREAD
2F
2FF
B
SEE CHART FOR
NO. OF MTG HOLES
2.64
1.75 &
2.00
KNOCKOUT
(1) PLACE
1/2-13 UNC-2B
(4) HOLES
.53-.58
11.12
10.00
5.00
6.25
6.19
.53
DASH FR. C B 2F 2FF AG BS F1/F2
1100 254 24.74 11.12 8.25 --- 19.49 6.65 YES 4
1150 254 25.24 11.67 8.25 --- 19.99 7.15 NO 4
1275 254/6 26.49 12.87 8.25 10.00 21.24 8.40 YES 8
1275A 256 26.49 12.87 10.00 --- 21.24 8.40 YES 4
1325 254 26.99 13.37 8.25 10.50 21.74 8.90 YES 8
1325A 256 26.99 13.37 10.00 --- 21.74 8.90 NO 4
1475 256 28.49 14.87 10.00 --- 23.24 10.40 YES 8
9/18/2009 10:33:09 AM
NO. OF
MTG
HOLES
3
CLARIFIED DASH 1275 & 1325 MTG HOLES CN09-3560
2
REVISE THE DASH 1275 & 1325 ON CHART
1
RE-ISSUE - ADD 4/8 MTG. HOLES TO CHART AND
RE-POSITION VIEWS SO TEXT CAN BE READ EASILY
NO
THIS DRAWING IN DESIGN AND DETAIL IS OUR PROPERTY AND MUST NOT BE USED EXCEPT
IN CONNECTION WITH OUR WORK. ALL RIGHTS OF DESIGN AND INVENTION ARE RESERVED.
THIS IS AN ELECTRONICALLY GENERATED DOCUMENT - DO NOT SCALE THIS PRINT
REVISION
TJW
RWR
RWR
BY & DATE
9/18/2009
12-26-2007
07-11-2007
CTO
ML
ML
CHK
RFP
DIST
TOLERANCES
UNLESS SPECIFIED
DEC
INCHES
.X
±.1
.XX
±.03
.XXX
±.005
.XXXX
±.0005
±7'30"
02-27-2006
LB
3 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 4
NOTES:
1) BOX CAN BE ROTATED IN 180 STEPS
2) SEE CHART FOR F2 CAPABILITY. IF YES;
BOX CAN BE MOUNTED ON OPPOSITE SIDE BY
REMOVING BRACKETS AND TURNING FRAME 180
3) NAMEPLATE TO BE READ FROM CONDUIT BOX
SIDE OF MOTOR
TITLE
OUTLINE - C'FACE
210 FR. - 254/256 MTG - AL FRAME - TEFC
MAT'L
FINISH
CAD FILE
SS330112
DRAWING NOSIZE
B
SS330112
DRAWN
CHK
APPR
SCALE
REF
FMF
PREVANG
DRS 02-27-2006
ML 02-27-2006
BW 02-27-2006
1:4
SS84286
REV
3
