2 Mb (256K x 8, Chip Erase) FLASH MEMORY
5V ± 10% SUPPLYVOLTAGE
12V PROGRAMMINGVOLTAGE
FASTACCESSTIME: 70ns
BYTEPROGRAMMINGTIME: 10µs typical
ELECTRICALCHIP ERASEin 1s RANGE
LOW POWERCONSUMPTION
– ActiveCurrent: 15mAtypical
– Stand-byCurrent: 10µAtypical
10,000PROGRAM/ERASE CYCLES
INTEGRATED ERASE/PROGRAM-STOP
TIMER
OTPCOMPATIBLE PACKAGESand PINOUTS
ELECTRONIC SIGNATURE
– ManufacturerCode: 20h
– DeviceCode: F4h
M28F201
PLCC32 (K) TSOP32 (N)
8 x 20 mm

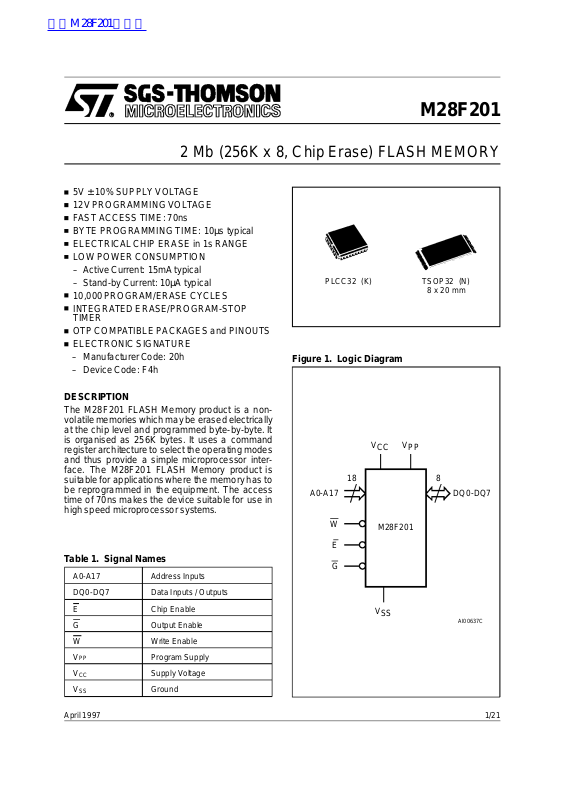

Figure 1. Logic Diagram
DESCRIPTION
The M28F201 FLASH Memory product is a nonvolatilememorieswhich may be erasedelectrically
at the chip level and programmed byte-by-byte. It
is organised as 256K bytes. It uses a command
registerarchitectureto select theoperating modes
and thus provide a simple microprocessor interface. The M28F201 FLASH Memory product is
suitablefor applicationswhere the memoryhas to
be reprogrammed in the equipment. The access
time of 70ns makes the device suitable for use in
high speed microprocessorsystems.
Table 1. Signal Names
A0-A17 Address Inputs
DQ0-DQ7 Data Inputs / Outputs
E Chip Enable
G Output Enable
W Write Enable
V
PP
V
CC
V
SS
Program Supply
SupplyVoltage
Ground
A0-A17
W
CC
M28F201
V
SS
V
PP
8
DQ0-DQ7
AI00637C
V
18
E
G
April 1997 1/21
Page 2
M28F201
Figure2A. LCCPin Connections
CC
VPPV
32
DQ3
DQ4
W
DQ5
A7
A6
A5
A4
A3
A2
A1
A0
DQ0
A16
A12
A15
1
9
DQ1
DQ2
M28F201
17
SS
V
A17
25
DQ6
A14
A13
A8
A9
A11
G
A10
E
DQ7
AI00638C
Figure 2B. TSOPPin Connections
A11 G
A13
A14
A17
V
CC
V
PP
A16
A15
A12
1
A9
A8
W
M28F201
8
(Normal)
9
A7
A6
A5
A4 A3
16 17
32
25
24
AI00639C
A10
E
DQ7
DQ6
DQ5
DQ4
DQ3
V
SS
DQ2
DQ1
DQ0
A0
A1
A2
Figure2C. TSOPReverse Pin Connections
A11G
321
2/21
A10
DQ7
DQ6
DQ5
DQ4
DQ3
V
SS
DQ2
DQ1
DQ0
A0
A1
A2
E
M28F201
8
(Reverse)
9
16 17
AI00640D
25
24
A9
A8
A13
A14
A17
W
V
CC
V
PP
A16
A15
A12
A7
A6
A5
A4A3
DEVICEOPERATION
TheM28F201 FLASHMemory product employsa
technologysimilar to a 2 Megabit EPROM but add
to the device functionality by providing electrical
erasure and programming. These functions are
managed by a command register. The functions
that are addressed via the command register depend on the voltage applied to the V
voltage, input. When V
is less than or equal to
PP
, program
PP
6.5V, the command register is disabled and the
M28F201functionsas a readonly memoryproviding operating modessimilar to anEPROM (Read,
Output Disable, Electronic Signature Read and
Standby).WhenV
israisedto 12Vthecommand
PP
register is enabled and this provides, in addition,
Eraseand Program operations.
READONLYMODES, V
PP
≤ 6.5V
For all Read Only Modes, except StandbyMode,
the Write Enable input W should be High. In the
StandbyMode this input is ’don’tcare’.
ReadMode. TheM28F201has twoenableinputs,
E and G, both of which must be Low in order to
outputdata from thememory. TheChipEnable(E)
isthe powercontroland shouldbe usedfor device
selection. Output Enable (G) is the output control
and should be used to gatedata on to the output,
independantof the deviceselection.
Page 3
Table 2. AbsoluteMaximumRatings
Symbol Parameter Value Unit
M28F201
T
A
T
STG
V
IO
V
CC
V
A9
V
PP
Note: Except for therating ”Operating Temperature Range”, stressesabove those listed in the Table”AbsoluteMaximum Ratings” may
cause permanent damage tothe device. These are stress ratings onlyand operation of the device at these or any other conditions above
those indicated in the Operating sections of this specificationis notimplied. Exposure to AbsoluteMaximum Ratingconditions for extended
periods may affect device reliability.Refer also to the SGS-THOMSON SURE Program and otherrelevant quality documents.
Table 3. Operations
ReadOnly V
Read/Write
Notes: 1. X = VILor VIH.
(2)
2. Refer also to the Command table.
Ambient Operating Temperature –40 to125 °C
Storage Temperature –65 to150 °C
Input or Output Voltages –0.6 to 7 V
Supply Voltage –0.6 to 7 V
A9 Voltage –0.6 to 13.5 V
Program Supply Voltage, during Erase
or Programming
(1)
V
PP
Operation E G W A9 DQ0 - DQ7
Read V
PPL
Output Disable V
Standby V
Electronic Signature V
Read V
V
PPH
Write V
Output Disable V
Standby V
IL
IL
IH
IL
IL
IL
IL
IH
V
IL
V
IH
X X X Hi-Z
V
IL
V
IL
V
IH
V
IH
X X X Hi-Z
–0.6 to 14 V
V
IH
V
IH
V
IH
V
IH
A9 Data Output
X Hi-Z
V
ID
A9 Data Output
VILPulse A9 Data Input
V
IH
X Hi-Z
Codes
Table 4. Electronic Signature
Identifier A0 DQ7 DQ6 DQ5 DQ4 DQ3 DQ2 DQ1 DQ0 Hex Data
Manufacturer’s Code V
Device Code V
IL
IH
00100000 20h
11110100 F4h
3/21
Page 4
M28F201
Table 5. Commands
Command Cycles
Read 1 Write X 00h
Electronic
Signature
Setup Erase/
Erase Write X 20h
Erase Verify 2 Write A0-A17 A0h Read X Data Output
Setup Program/
Program Write A0-A17 Data Input
Program Verify 2 Write X C0h Read X Data Output
Reset 2 Write X FFh Write X FFh
Notes: 1. X = VILor VIH.
(2)
2. Refer also to the Electronic Signaturetable.
Standby Mode. In the Standby Mode the maximum supply current is reduced. The device is
placed in the Standby Mode by applying a High
level to the Chip Enable (E) input. When in the
StandbyModetheoutputsare ina highimpedance
state, independantof theOutput Enable (G)input.
Output Disable Mode. When the Output Enable
(G) is High the outputs are in a high impedance
state.
ElectronicSignatureMode.Thismodeallowsthe
readout of two binary codesfromthe device which
identify the manufacturer and device type. This
mode is intended for use by programming equipment to automaticallyselect the correct eraseand
programmingalgorithms.The ElectronicSignature
Mode is activewhen a highvoltage (11.5Vto 13V)
isapplied toaddresslineA9withEandG Low.With
A0 Low the output data is the manufacturercode,
when A0 isHigh the output is thedevice code. All
other address lines should be maintained Low
while reading the codes. The electronicsignature
canalso be accessed in Read/Writemodes.
READ/WRITE MODES, 11.4V≤ V
When V
is High both read and write operations
PP
may be performed. These are defined by thecontents ofan internalcommand register.Commands
may be written to this register to set-up and execute,Erase,EraseVerify,Program,Program Verify
and Reset modes. Each of these modes needs 2
cycles. Each mode starts with a write operationto
set-upthe command,thisis followedby eitherread
or write operations. The device expects the first
cycle to be a write operation and doesnot corrupt
(1)
1st Cycle 2nd Cycle
Operation A0-A17 DQ0-DQ7 Operation A0-A17 DQ0-DQ7
2 Write X 80h or 90h
2
2
Write X 20h
Write X 40h
Read 00000h 20h
Read 00001h F4h
data at any location in the memory.Read modeis
set-upwith one cycle onlyand maybe followedby
any number of read operations to output data.
ElectronicSignatureRead modeis set-upwithone
cycle and followed by a read cycle to output the
manufactureror device codes.
Awriteto thecommandregisterismadebybringing
WLowwhileEisLow.ThefallingedgeofWlatches
Addresses, while the rising edge latches Data,
which are used for those commands that require
address inputs, command input or provide data
output. The supply voltage V
voltageV
canbe applied in any order. Whenthe
PP
CC
device is powered up or when V
contentsof thecommand register defaultsto 00h,
thus automatically setting-up Read operations. In
addition a specific command may be used to set
the commandregisterto 00h for readingthe memory. The system designer may chose to provide a
constanthigh V
anduse the registercommands
PP
for all operations,or to switch the V
high only when needing to erase or program the
memory. All command registeraccess is inhibited
≤12.6V
PP
whenV
age (V
fallsbelowthe Erase/WriteLockoutVolt-
CC
) of 2.5V.
LKO
If the device is deselected during Erasure, Programming or verifying it will draw active supply
currentsuntil the operationsare terminated.
The device is protected against stress caused by
long erase or programtimes.If theend ofErase or
Programming operations are not terminated by a
Verifycycle within a maximumtime permitted, an
internal stop timer automatically stops the operation.The deviceremainsin aninactivestate, ready
to start a Verifyor ResetMode operation.
and the program
is ≤ 6.5V the
PP
from low to
PP
4/21
