LV8573A Low Voltage Real Time Clock (RTC)
LV8573A Real Time Clock (RTC)
PRELIMINARY
December 1993
General Description
The LV8573A is intended for use in microprocessor based systems where information is required for multi-tasking, data logging or general time of day/date information. This device is implemented in low voltage silicon gate microCMOS tech­nology to provide low standby power in battery back-up en­vironments. The circuit’s architecture is such that it looks like a contiguous block of memory or I/O ports organized as one block of 32 bytes. This includes the Control Registers, the Clock Counters, the Alarm Compare RAM, and the Time Save RAM.
Time and date are maintained from 1/100 of a second to year and leap year in a BCD format, 12 or 24 hour modes. Day of week and day of month counters are provided. Time is controlled by an on-chip crystal oscillator requiring only the addition of the 32.768 kHz crystal and two capacitors.
Power failure logic and control functions have been integrat­ed on chip. This logic is used by the RTC to issue a power fail interrupt, and lock out the mP interface. The time power fails may be logged into RAM automatically when V VCC. Additionally, two supply pins are provided. When V
BB
BB

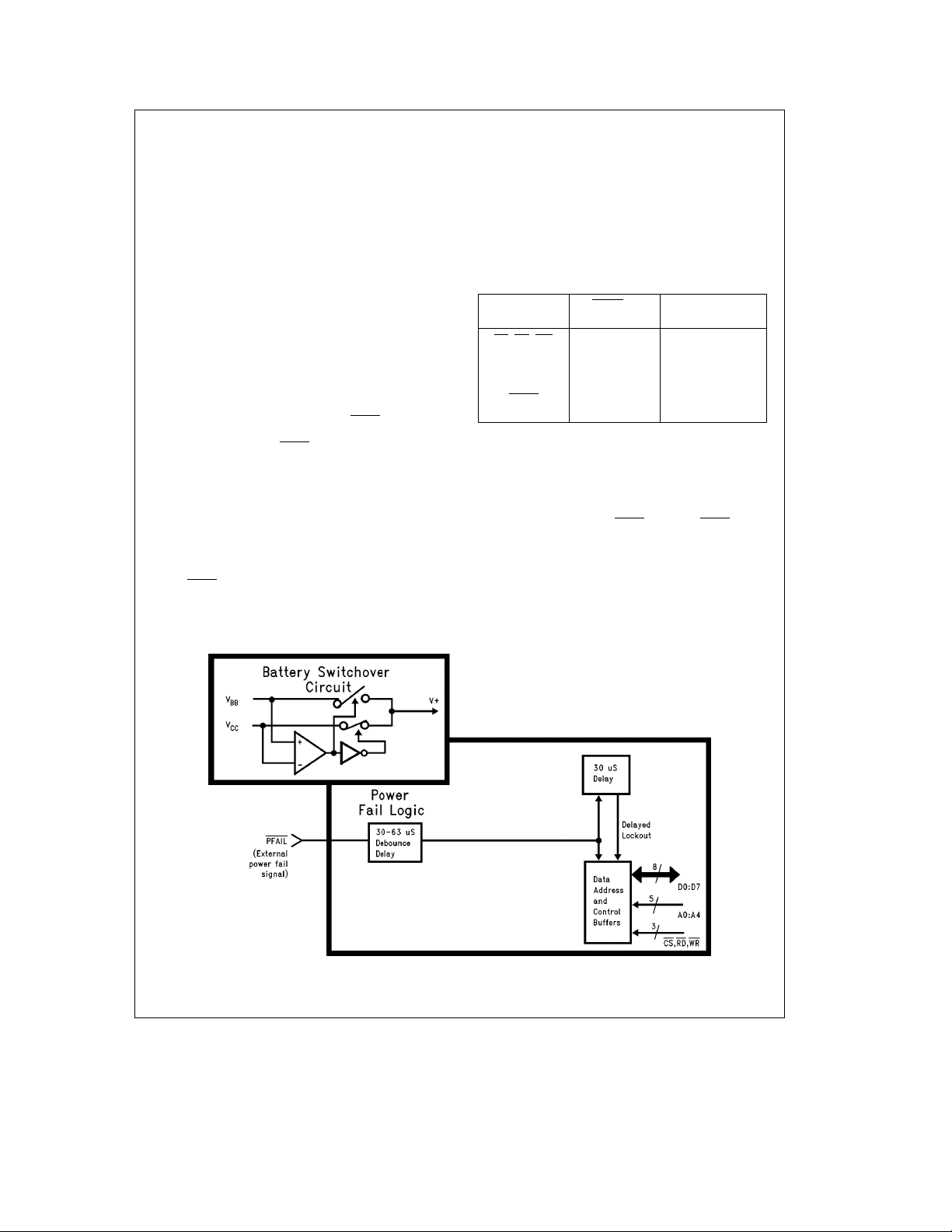

Block Diagram
l
VCC, internal circuitry will automatically switch from the
main supply to the battery supply.
The LV8573A’s interrupt structure provides three basic types of interrupts: Periodic, Alarm/Compare, and Power Fail. Interrupt mask and status registers enable the masking and easy determination of each interrupt.
Features
Y
3.3Vg10% supply
Y
Full function real time clock/calendar Ð 12/24 hour mode timekeeping Ð Day of week counter Ð Parallel resonant oscillator
Y
Power fail features Ð Internal power supply switch to external battery Ð Power Supply Bus glitch protection Ð Automatic log of time into RAM at power failure
Y
On-chip interrupt structure
l
Ð Periodic, alarm, and power fail interrupts
FIGURE 1
TRI-STATEÉis a registered trademark of National Semiconductor Corporation.
C
1995 National Semiconductor Corporation RRD-B30M105/Printed in U. S. A.
TL/F/11418
TL/F/11418– 1
Absolute Maximum Ratings (Notes1&2)
If Military/Aerospace specified devices are required, please contact the National Semiconductor Sales Office/Distributors for availability and specifications.
Supply Voltage (V
CC
)
DC Input Voltage (VIN)
DC Output Voltage (V
OUT
)
Storage Temperature Range
Power Dissipation (PD) 500 mW
Lead Temperature (Soldering, 10 sec.) 260§C
b
0.5V toa7.0V
b
0.5V to V
b
0.5V to V
b
65§Ctoa150§C
CC
CC
a
0.5V
a
0.5V
Operation Conditions
Supply Voltage (V
) (Note 3) 3.0 3.6 V
CC
Supply Voltage (VBB) (Note 3) 2.2 V
DC Input or Output Voltage
(V
IN,VOUT
)
Operation Temperature (T
Electr-Static Discharge Rating 1 kV
Typical Values
i
DIP Board 61§C/W
JA
Socket 67
iJAPLCC Board 80§C/W
Socket 88
Min Max Unit
0.0 V
b
)
A
40
CC
a
§
§
b
0.4 V
CC
85
C/W
C/W
V
C
§
DC Electrical Characteristics
V
CC
e
3.3Vg10%, V
BB
e
2.5V, V
PFAIL
l
VIH,C
e
100 pF unless otherwise specified
L
Symbol Parameter Conditions Min Max Units
V
IH
V
IL
V
OH
V
OL
I
IN
I
OZ
I
LKG
I
CC
I
CC
I
BB
I
BLK
Note 1: Absolute Maximum Ratings are those values beyond which damage to the device may occur.
Note 2: Unless otherwise specified all voltages are referenced to ground.
Note 3: In battery backed mode, V
Note 4: This parameter (V
Note 5: This specification tests I
Note 6: This specification tests I
Note 7: OSC IN is driven by a signal generator. Contents of the Test Register
High Level Input Voltage Any Inputs Except OSC IN, 2.0 V (Note 4) OSC IN with External Clock V
Low Level Input Voltage All Inputs Except OSC IN
OSC IN with External Clock
High Level Output Voltage I (Excluding OSC OUT, INTR)I
Low Level Output Voltage I (Excluding OSC OUT) I
Input Current (Except OSC IN) V
Output TRI-STATEÉCurrent V
Output High Leakage Current V MFO, INTR Pins Outputs Open Drain
Quiescent Supply Current F (Note 6) V
Quiescent Supply Current V (Single Supply Mode) V (Note 7) F
Standby Mode Battery V Supply Current OSC OUT (Note 7) other pins
Battery Leakage 2.2VsV
s
b
V Single Supply Mode: Data retention voltage is 2.2V min. In single Supply Mode (Power connected to V
BB
) is not tested on all pins at the same time.
IH
with all power fail circuitry disabled, by setting D7 of Interrupt Control Register 1 to 0.
CC
with all power fail circuitry enabled, by setting D7 of Interrupt Control Register 1 to 1.
CC
0.4V.
CC
pin) 3.0VsV
CC
eb
20 mAV
OUT
eb
2.0 mA 2.4 V
OUT
eb
20 mA 0.2 V
OUT
e
2.0 mA 0.3 V
OUT
e
VCCor GND
IN
e
VCCor GND
OUT
e
VCCor GND
OUT
e
32.768 kHz
OSC
e
VCCor GND (Note 5) 220 mA
IN
e
V
VCCor GND (Note 6) 700 mA
IN
e
V
VIHor VIL(Note 6) 5 mA
IN
e
GND
BB
e
VCCor GND 30 mA
IN
e
32.768 kHz
OSC
e
GND
CC
e
open circuit,
e
GND
e
F
32.768 kHz
OSC
s
2.6V
BB
other pins at GND
e
V
GND, V
CC
e
V
3.6V, V
CC
s
CC
e
2.6V 0.8 mA
BB
e
2.2V
BB
3.6V.
e
00(H) and the MFO pin is not configured as buffered oscillator out.
b
0.2 V
BB
b
0.3 0.8 V
b
0.3 0.2 V
b
0.2 V
CC
b
0.8 mA
a
0.3 V
CC
g
0.7 mA
g
1 mA
g
1 mA
8 mA
2
AC Electrical Characteristics
V
CC
e
3.3Vg10%, V
BB
e
2.5V, V
PFAIL
l
VIH,C
e
100 pF unless otherwise specified
L
Symbol Parameter Min Max Units
READ TIMING
t
AR
t
RW
t
CD
t
RAH
t
RD
t
DZ
t
RCH
t
DS
Address Valid Prior to Read Strobe 10 ns
Read Strobe Width (Note 8) 100 ns
Chip Select to Data Valid Time 100 ns
Address Hold after Read (Note 9) 2 ns
Read Strobe to Valid Data 90 ns
Read or Chip Select to TRI-STATE 80 ns
Chip Select Hold after Read Strobe (Note 9) 0 ns
Minimum Inactive Time between Read or Write Accesses 70 ns
WRITE TIMING
t
AW
t
WAH
t
CW
t
WW
t
DW
t
WDH
t
WCH
Address Valid before Write Strobe 10 ns
Address Hold after Write Strobe (Note 9) 2 ns
Chip Select to End of Write Strobe 110 ns
Write Strobe Width (Note 10) 100 ns
Data Valid to End of Write Strobe 70 ns
Data Hold after Write Strobe (Note 9) 2 ns
Chip Select Hold after Write Strobe (Note 9) 0 ns
INTERRUPT TIMING
t
ROLL
Note 8: Read Strobe width as used in the read timing table is defined as the period when both chip select and read inputs are low. Hence read commences when both signals are low and terminates when either signal returns high.
Note 9: Hold time is guaranteed by design but not production tested. This limit is not used to calculate outgoing quality levels.
Note 10: Write Strobe width as used in the write timing table is defined as the period when both chip select and write inputs are low. Hence write commences when
both signals are low and terminates when either signal returns high.
Clock rollover to INTR out typically 20 ms
AC Test Conditions
Input Pulse Levels GND to 3.0V Input Rise and Fall Times 6 ns (10% –90%) Input and Output Reference Levels TRI-STATE Reference Active High Levels (Note 12) Active Low
S1 S1
Symbol
C
IN
C
OUT
e
100 pF, includes jig and scope capacitance.
L
e
VCCfor active low to high impedance measurements.
e
GND for active high to high impedance measurements.
e
open for all other timing measurements.
e
25§C, fe1 MHz)
A
Parameter
(Note 13)
Input Capacitance 5 pF
Output Capacitance 7 pF
Note 11: C
Note 12: S1
Capacitance (T
Note 13: This parameter is not 100% tested.
Note 14: Output rise and fall times 25 ns max (10%– 90%) with 100 pF load.
1.3V
a
0.5V
b
0.5V
Typ Units
TL/F/11418– 2
3
Timing Waveforms
Read Timing Diagram
TL/F/11418– 3
Write Timing Diagram
Pin Description
CS,RD,WR(Inputs): These pins interface to mP control
lines. The CS write operations. Read and Write pins are also active low and enable reading or writing to the RTC. All three pins are disabled when power failure is detected. However, if a read or write is in progress at this time, it will be allowed to com­plete its cycle.
A0–A4 (Inputs): These 5 pins are for register selection. They individually control which location is to be accessed. These inputs are disabled when power failure is detected.
OSC IN (Input): OSC OUT (Output): These two pins are used to connect the crystal to the internal parallel resonant oscillator. The oscillator is always running when power is applied to V
MFO (Output): The multi-function output can be used as a second interrupt (Power fail) output for interrupting the mP. This pin can also provide an output for the oscillator. The MFO output is configured as push-pull, active high for nor­mal or single power supply operation and as an open drain during standby mode (V mode and a pull-up resistor is attached, it should be con­nected to a voltage no greater than V
INTR (Output): The interrupt output is used to interrupt the processor when a timing event or power fail has occurred and the respective interrupt has been enabled. The INTR
pin is an active low enable for the read and
and VCC.
BB
l
VCC). If in battery backed
BB
.
BB
TL/F/11418– 4
D0–D7 (Input/Output): These 8 bidirectional pins connect to the host mP’s data bus and are used to read from and write to the RTC. When the PFAIL
pin goes low and a write
is not in progress, these pins are at TRI-STATE.
PFAIL
(Input): In battery backed mode, this pin can have a
digital signal applied to it via some external power detection logic. When PFAIL
e
logic 0 the RTC goes into a lockout mode, in a minimum of 30 ms or a maximum of 63 ms unless lockout delay is programmed. In the single power supply mode, this pin is not useable as an input and should be tied to V
. Refer to section on Power Fail Functional Descrip-
CC
tion.
V
(Battery Power Pin): This pin is connected to a back-
BB
becomes lower than VBB. Utiliz-
CC
and out the back-up power supply. If this feature is not to be used then this pin must be tied to ground, the RTC pro­grammed for single power supply only, and power applied to the V
pin.
CC
VCC: This is the main system power pin.
GND: This is the common ground power pin for both V
and VCC.
4
BB
.
BB
Connection Diagrams
In-Line Packages

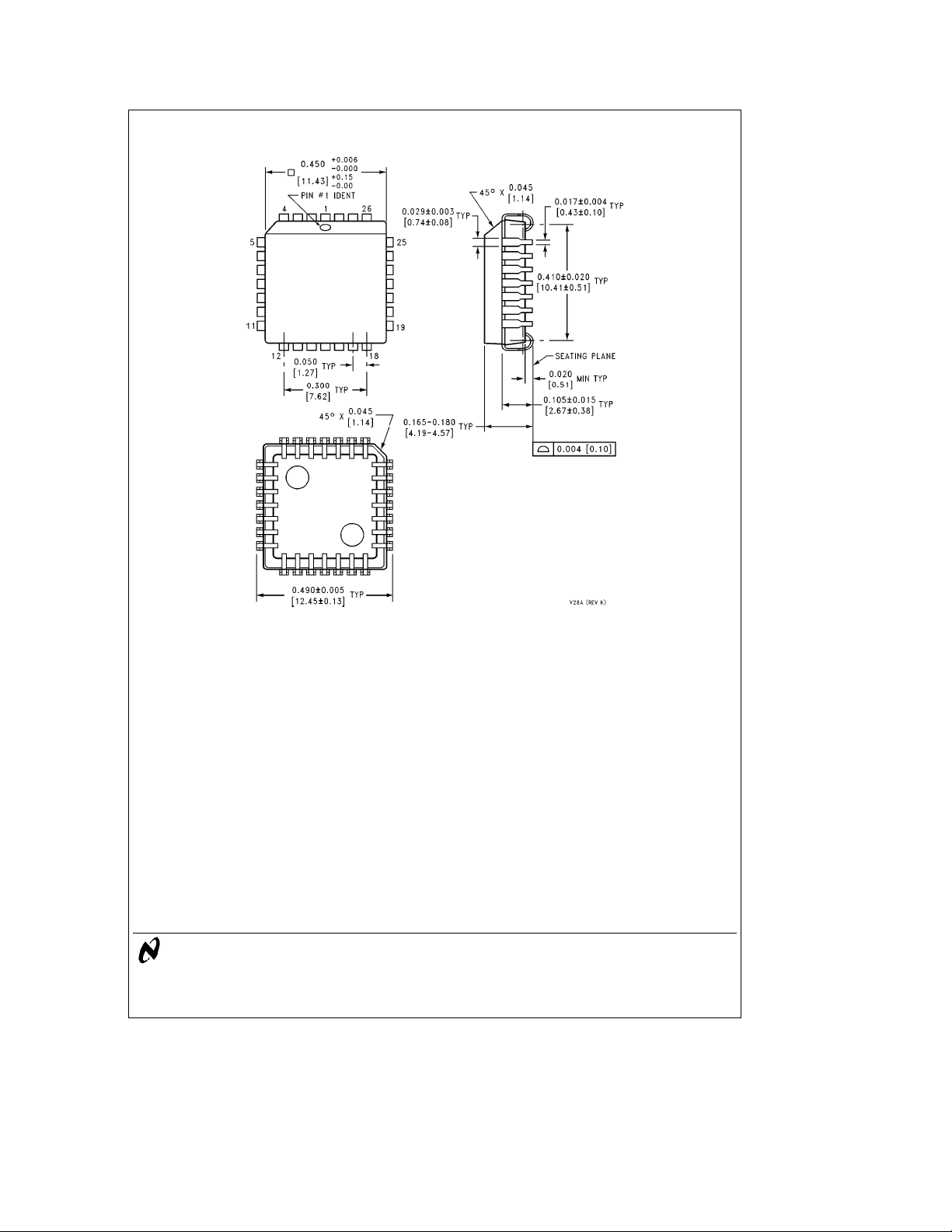

Plastic Chip Carrier
Top View
TL/F/11418– 5
DIP: Order Number LV8573AN
See NS Package Number N24C
SOIC: Order Number LV8573AM
See NS Package Number M24B
Functional Description
The LV8573A contains a fast access real time clock, inter­rupt control logic, and power fail detect logic. All functions of the RTC are controlled by a set of seven registers. A simpli­fied block diagram that shows the major functional blocks is given in
Figure 1
.
The blocks are described in the following sections:
1. Real Time Clock
2. Oscillator Prescaler
3. Interrupt Logic
4. Power Failure Logic
5. Additional Supply Management
The memory map of the RTC is shown in the memory ad­dressing table Register is used to select either control register block.
INITIAL POWER-ON of BOTH V
VBBand VCCmay be applied in any sequence. In order for the power fail circuitry to function correctly, whenever power is off, the V maximum of 1 MX. The user should be aware that the con­trol registers will contain random data. The user should en­sure that the RTC is not in test mode (see register descrip­tions).
REAL TIME CLOCK FUNCTIONAL DESCRIPTION
As shown in which count from 1/100 of a second to years. Each counter counts in BCD and is synchronously clocked. The count se­quence of the individual byte counters within the clock is shown later in Table VII. Note that the day of week, day of month, and month counters all roll over to 1. The hours counter in 12 hour mode rolls over to 1 and the AM/PM bit toggles when the hours rolls over to 12 (AM The AM/PM bit is bit D7 in the hours counter.
(Figure 2).
pin must see a path to ground through a
CC
Figure 2
A control bit in the Main Status
and V
BB
CC
, the clock has 8 bytes of counters,
e
0, PMe1).
Top View
TL/F/11418– 6
Order Number LV8573AV
See NS Package Number V28A
TL/F/11418– 7

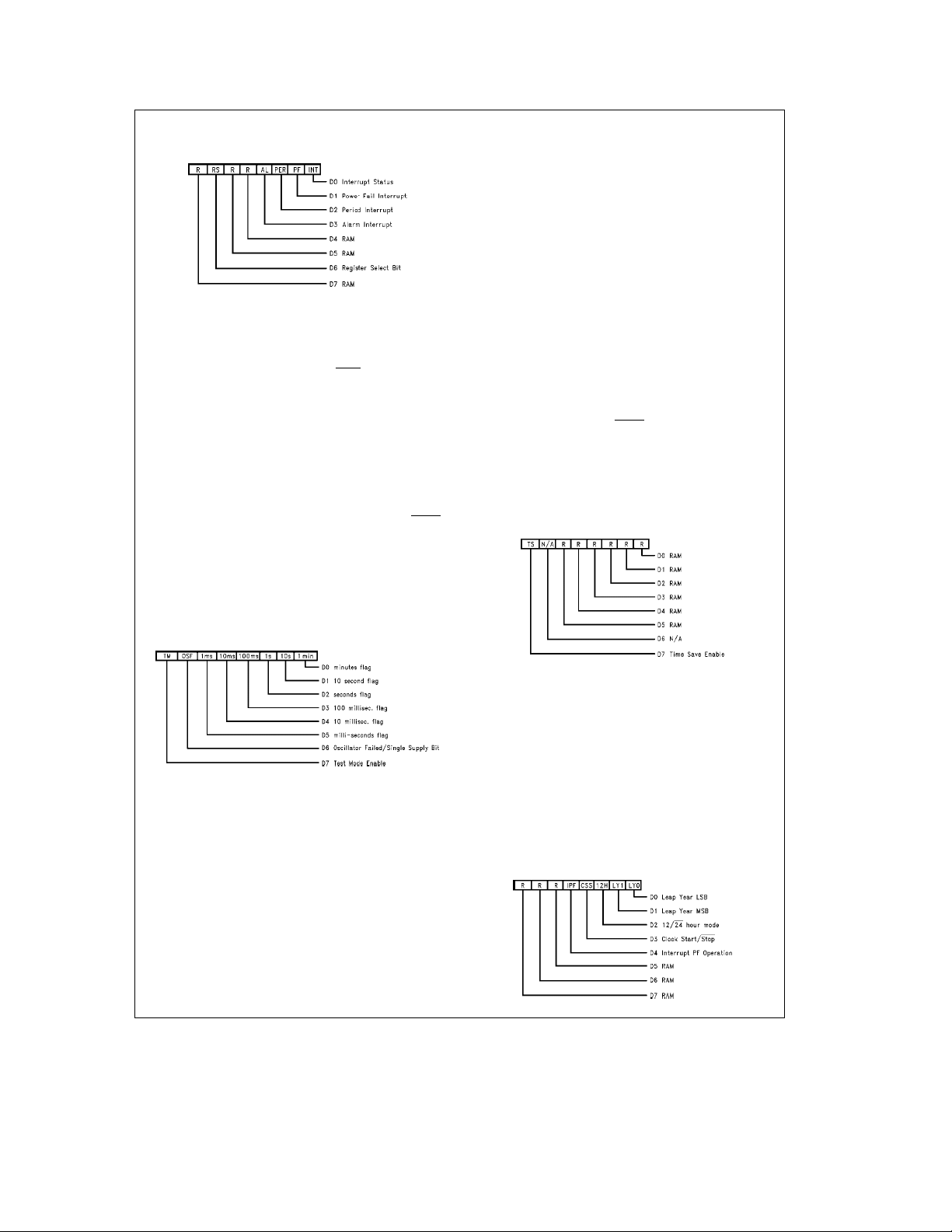

FIGURE 2. LV8573A Internal Memory Map
5
Functional Description (Continued)
READING THE CLOCK: VALIDATED READ
1. Initialize program for reading clock.
2. Dummy read of periodic status bit to clear it.
3. Read counter bytes and store.
4. Read rollover bit, and test it.
5. If rollover occured go to 3.
6. If no rollover, done.
To detect the rollover, individual periodic status bits can be polled. The periodic bit chosen should be equal to the high­est frequency counter register to be read. That is if only SECONDS through HOURS counters are read, then the SECONDS periodic bit should be used.
READING THE CLOCK: INTERRUPT DRIVEN
Enabling the periodic interrupt mask bits cause interrupts just as the clock rolls over. Enabling the desired update rate and providing an interrupt service routine that executes in less than 10 ms enables clock reading without checking for a rollover.
READING THE CLOCK: LATCHED READ
Another method to read the clock that does not require checking the rollover bit is to write a one into the Time Save Enable bit (D7) of the Time Save Control Register, and then to write a zero. Writing a one into this bit will enable the clock contents to be duplicated in the Time Save RAM. Changing the bit from a one to a zero will freeze and store the contents of the clock in Time Save RAM. The time then can be read without concern for clock rollover, since inter­nal logic takes care of synchronization of the clock. Be­cause only the bits used by the clock counters will be latched, the Time Save RAM should be cleared prior to use to ensure that random data stored in the unused bits do not confuse the host microprocessor. This bit can also provide time save at power failure, see the Additional Supply Man­agement Functions section. With the Time Save Enable bit at a logical 0, the Time Save RAM may be used as RAM if the latched read function is not necessary.
INITIALIZING AND WRITING TO THE CALENDAR-CLOCK
Upon initial application of power to the TCP or when making time corrections, the time must be written into the clock. To correctly write the time to the counters, the clock would normally be stopped by writing the Start/Stop Time Mode Register to a zero. This stops the clock from counting and disables the carry circuitry. When initializing the clock’s Real Time Mode Register, it is recommended that first the various mode bits be written while maintaining the Start/Stop second time with the Start/Stop
bit reset, and then writing to the register a
bit set.
bit in the Real
PRESCALER/OSCILLATOR FUNCTIONAL DESCRIPTION
Feeding the counter chain is a programmable prescaler which divides the crystal oscillator frequency to 32 kHz and further to 100 Hz for the counter chain (see
FIGURE 3. Programmable Clock Prescaler Block
The typical range of trimmer capacitor (as shown in Oscilla­tor Circuit Diagram the oscillator input pin is suggested only to allow accurate tuning of the oscillator. This range is based on a typical printed circuit board layout and may have to be changed depending on the parasitic capacitance of the printed circuit board or fixture being used. In all cases, the load capaci- tance specified by the crystal manufacturer (nominal value 11 pF for the 32.768 crystal) is what determines proper os­cillation. This load capcitance is the series combination of capacitance on each side of the crystal (with respect to ground).
Figure 4
, and in the typical application) at
FIGURE 4. Oscillator Circuit Diagram
Figure 4
Figure 3
).
TL/F/11418– 8
. The oscillator
TL/F/11418– 9
6
Functional Description (Continued)
XTAL C
32.768 kHz 47 pF 2 pF– 22 pF 150 kX to 350 kX
INTERRUPT LOGIC FUNCTIONAL DESCRIPTION
The RTC has the ability to coordinate processor timing ac­tivities. To enhance this, an interrupt structure has been im­plemented which enables several types of events to cause interrupts. Interrupts are controlled via two Control Regis­ters in block 1 and two Status Registers in block 0. (See Register Description for notes on paging and Table I.)
The interrupts are enabled by writing a one to the appropri­ate bits in Interrupt Control Register 0 and/or 1.

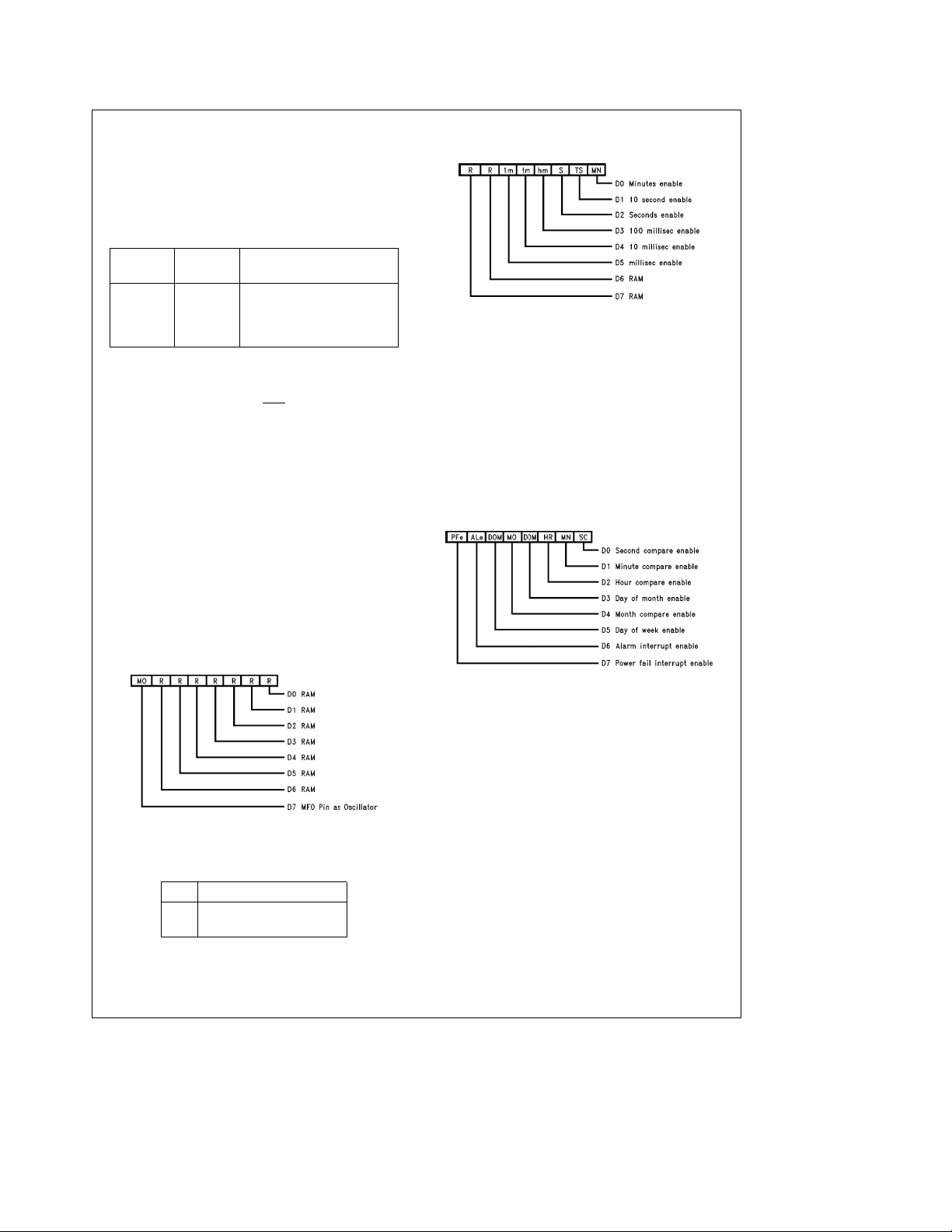

TABLE I. Registers that are Applicable
Register Name
Main Status Register X 00H Periodic Flag Register 0 03H Interrupt Control Register 0 1 03H Interrupt Control Register 1 1 04H Output Mode Register 1 02H
The Interrupt Status Flag D0, in the Main Status Register, indicates the state of INTR either output becomes active and is cleared when all RTC interrupts have been cleared and no further interrupts are pending (i.e., both INTR tive state). This flag enables the RTC to be rapidly polled by the mP to determine the source of an interrupt in a wiredÐ OR interrupt system. (The Interrupt Status Flag provides a true reflection of all conditions routed to the external pins.)
Status for the interrupts are provided by the Main Status Register and the Periodic Flag Register. Bits D1–D5 of the Main Status Register are the main interrupt bits.
These register bits will be set when their associated timing events occur. Enabled Alarm comparisons that occur will set its Main Status Register bit to a one. However, an exter­nal interrupt will only be generated if the Alarm interrupt enable bit is set (see
Disabling the periodic interrupts will mask the Main Status Register periodic bit, but not the Periodic Flag Register bits. The Power Fail Interrupt bit is set when the interrupt is en­abled and a power fail event has occurred, and is not reset until the power is restored. If all interrupt enable bits are 0 no interrupt will be asserted. However, status still can be read from the Main Status Register in a polled fashion (see
Figure 5
).
To clear a flag in bits D2 and D3 of the Main Status Register a 1 must be written back into the bit location that is to be cleared. For the Periodic Flag Register reading the status will reset all the periodic flags.
Interrupts Fall Into Three Categories:
1. The Alarm Compare Interrupt: Issued when the value in the time compared RAM equals the counter.
o
to Interrupt Control
C
t
Register
Select
and MFO outputs. It is set when
and MFO are returned to their inac-
Figure 5
).
R
OUT
Address
3. The Power Fail Interrupt: Issued upon recognition of a power fail condition by the internal sensing logic. The power failed condition is determined by the signal on the PFAIL
pin. The internal power fail signal is gated with the chip select signal to ensure that the power fail interrupt does not lock the chip out during a read or write.
ALARM COMPARE INTERRUPT DESCRIPTON
The alarm/time comparison interrupt is a special interrupt similar to an alarm clock wake up buzzer. This interrupt is generated when the clock time is equal to a value pro­grammed into the alarm compare registers. Up to six bytes can be enabled to perform alarm time comparisons on the counter chain. These six bytes, or some subset thereof, would be loaded with the future time at which the interrupt will occur. Next, the appropriate bits in the Interrupt Control Register 1 are enabled or disabled (refer to detailed descrip­tion of Interrupt Control Register 1). The RTC then com­pares these bytes with the clock time. When all the enabled compare registers equal the clock time an alarm interrupt is issued, but only if the alarm compare interrupt is enabled can the interrupt be generated externally. Each alarm com­pare bit in the Control Register will enable a specific byte for comparison to the clock. Disabling a compare byte is the same as setting its associated counter comparator to an ‘‘always equal’’ state. For example, to generate an interrupt at 3:15 AM of every day, load the hours compare with 0 3 (BCD), the minutes compare with 1 5 (BCD) and the faster counters with 0 0 (BCD), and then disable all other compare registers. So every day when the time rolls over from 3:14:59.99, an interrupt is issued. This bit may be reset by writing a one to bit D3 in the Main Status Register at any time after the alarm has been generated.
If time comparison for an individual byte counter is disabled, that corresponding RAM location can then be used as gen­eral purpose storage.
PERIODIC INTERRUPTS DESCRIPTION
The Periodic Flag Register contains six flags which are set by real-time generated ‘‘ticks’’ at various time intervals, see
Figure 5
. These flags constantly sense the periodic signals and may be used whether or not interrupts are enabled. These flags are cleared by any read or write operation per­formed on this register.
To generate periodic interrupts at the desired rate, the asso­ciated Periodic Interrupt Enable bit in Interrupt Control Reg­ister 0 must be set. Any combination of periodic interrupts may be enabled to operate simultaneously. Enabled period­ic interrupts will now affect the Periodic Interrupt Flag in the Main Status Register.
When a periodic event occurs, the Periodic Interrupt Flag in the Main Status Register is set, causing an interrupt to be generated. The mP clears both flag and interrupt by writing a ‘‘1’’ to the Periodic Interrupt Flag. The individual flags in the periodic Interrupt Flag Register do not require clearing to cancel the interrupt.
If all periodic interrupts are disabled and a periodic interrupt is left pending (i.e., the Periodic Interrupt Flag is still set), the Periodic Interrupt Flag will still be required to be cleared to cancel the pending interrupt.
7
Functional Description (Continued)
TL/F/11418– 10
FIGURE 5. Interrupt Control Logic Overview
8
Functional Description (Continued)
POWER FAIL INTERRUPTS DESCRIPTION
The Power Fail Status Flag in the Main Status Register monitors the state of the internal power fail signal. This flag may be interrogated by the mP, but it cannot be cleared; it is cleared automatically by the RTC when system power is restored. To generate an interrupt when the power fails, the Power Fail Interrupt Enable bit in Interrupt Control Register 1 is set. Although this interrupt may not be cleared, it may be masked by clearing the Power Fail Interrupt Enable bit.
POWER FAILURE CIRCUITRY FUNCTIONAL DESCRIPTION
Since the clock must be operated from a battery when the main system supply has been turned off, the LV8573A pro­vides circuitry to simplify design in battery backed systems. This switches over to the back up supply, and isolates itself from the host system. diagram of this circuitry, which consists of three major sec­tions; 1) power loss logic: 2) battery switch over logic: and 3) isolation logic.
Detection of power loss occurs when PFAIL bounce logic provides a 30 ms–63 ms debounce time, which will prevent noise on the PFAIL as a system failure. After 30 ms–63 ms the debounce logic times out and a signal is generated indicating that system power is marginal and is failing. The Power Fail Interrupt will then be generated.
If chip select is low when a power failure is detected, a safety circuit will ensure that if a read or write is held active continuously for greater than 30 ms after the power fail sig­nal is asserted, the lock-out will be forced.
The battery switch over circuitry is completely independent of the PFAIL V
BB
to operate from the V
pin. A separate circuit compares VCCto the
voltage. As the main supply fails, the RTC will continue
voltage. At this time, the battery supply is switched in, VCCis
Figure 6
shows a simplified block
pin from being interpreted
pin until VCCfalls below the V
CC
is low. De-
BB
pin must not be
CC
pin.
BB
After the generation of a lock-out signal, and eventual switch in of the battery supply, the pins of the RTC will be configured as shown in Table II. Outputs that have a pull-up resistor should be connected to a voltage no greater than V
.
BB
TABLE II. Pin Isolation during a Power Failure
Pin
e
PFAIL
Logic 0 V
Standby Mode
l
V
BB
CC
CS,RD,WR Locked Out Locked Out
A0–A4 Locked Out Locked Out
D0–D7 Locked Out Locked Out
Oscillator Not Isolated Not Isolated
PFAIL
Not Isolated Not Isolated
INTR, MFO Not Isolated Open Drain
The Interrupt Power Fail Operation bit in the Real-Time Mode Register determines whether or not the interrupts will continue to function after a power fail event.
As power returns to the system, the battery switch over cir­cuit will switch back to V greater than the battery voltage. The chip will remain in the locked out state as long as PFAIL chip is unlocked, but only after another 30 ms min
power as soon as it becomes
CC
e
0. When PFAILe1 the
x
ms max debounce time. The system designer must ensure that his system is stable when power has returned.
. In some cases this may be
CC
power fail interrupt. The power fail input can perform all lock-out functions previously mentioned, except that no ex-
63
FIGURE 6. System-Battery Switchover (Upper Left), Power Fail
and Lock-Out Circuits (Lower Right)
9
TL/F/11418– 11
Functional Description (Continued)
INITIAL POWER ON DETECT AND POWER FAIL TIME SAVE
There are two other functions provided on the LV8573A to ease power supply control. These are an initial Power On detect circuit, which also can be used as a time keeping failure detect, and a time save on power failure.
On initial power up the Oscillator Fail Flag will be set to a one and the real time clock start bit reset to a zero. This indicates that an oscillator fail event has occurred, and time keeping has failed.
The Oscillator Fail flag will not be reset until the real-time clock is started. This allows the system to discriminate be­tween an initial power-up and recovery from a power failure. If the battery backed mode is selected, then bit D6 of the Periodic Flag Register must be written low. This will not af­fect the contents of the Oscillator Fail Flag.
To relieve CPU overhead for saving time upon power failure, the Time Save Enable bit is provided to do this automatical­ly. (See also Reading the Clock: Latched Read.) The Time Save Enable bit, when set, causes the Time Save RAM to follow the contents of the clock. This bit can be reset by software, but if set before a power failure occurs, it will auto­matically be reset when the clock switches to the battery supply (not when a power failure is detected by the PFAIL pin). Thus, writing a one to the Time Save bit enables both a software write or power fail write.
SINGLE POWER SUPPLY APPLICATIONS
The LV8573A can be used in a single power supply applica­tion. To achieve this, the V ground, and the power connected to V Failed/Single Supply bit in the Periodic Flag Register should
pin must be connected to
BB
. The Oscillator
CC
be set to a logic 1, which will disable the oscillator battery reference circuit. The power fail interrupt should also be dis­abled. This will turn off the linear power fail detection cir­cuits, and will eliminate any quiescent power drawn through these circuits.
DETAILED REGISTER DESCRIPTION
There are 5 external address bits: Thus, the host microproc­essor has access to 28 locations at one time. An internal switching scheme provides a total of 30 locations.
A memory map is shown in
Figure 2
and register addressing in Table III. They show the name, address and page loca­tions for the LV8573A.
BB
TABLE III. Register/Counter/RAM
in
A0-4
(Note 1)
Addressing for LV8573A
RS
CONTROL REGISTERS
00 X Main Status Register 01 0 N/A 02 0 N/A 03 0 Periodic Flag Register 04 0 Time Save Control Register 01 1 Real Time Mode Register 02 1 Output Mode Register 03 1 Interrupt Control Register 0 04 1 Interrupt Control Register 1
COUNTERS (CLOCK CALENDAR)
05 X 1/100, 1/10 Seconds (0–99) 06 X Seconds (0–59) 07 X Minutes (0– 59) 08 X Hours (1– 12, 0 –23)
09 X Days of Month (1 – 28/29/30/31) 0A X Months (1– 12) 0B X Years (0–99) 0C X RAM 0D X D0, D1 bits only 0E X Day of Week (1 – 7)
0F X N/A
10 X N/A
11 X N/A
12 X N/A
TIME COMPARE RAM
13 X Sec Compare RAM (0–59)
14 X Min Compare RAM (0– 59)
15 X Hours Compare RAM (1–12, 0 –23)
16 X DOM Compare RAM (1–28/29/30/31)
17 X Months Compare RAM (1– 12)
18 X DOW Compare RAM (1–7)
TIME SAVE RAM
19 X Seconds Time Save RAM 1A X Minutes Time Save RAM 1B X Hours Time Save RAM 1C X Day of Month Time Save RAM 1D X Months Time Save RAM
1E 1 RAM
1F X RAM/Test Mode Register
Note 1: RSÐRegister Select (Bit D6 of Main Status Register)
Description
10
Functional Description (Continued)
MAIN STATUS REGISTER
TL/F/11418– 12
The Main Status Register is always located at address 0 regardless of the register block selected.
D0: This read only bit is a general interrupt status bit that is taken directly from the interrupt pins. The bit is a one when an interrupt is pending on either the INTR pin (when configured as an interrupt). This is unlike D3 which can be set by an internal event but may not cause an interrupt. This bit is reset when the interrupt status bits in the Main Status Register are cleared.
D4, D5 and D7: General purpose RAM bits.
D6: Bit D6 controls the register block to be accessed (see
memory map).
PERIODIC FLAG REGISTER
The Periodic Flag Register has the same bit for bit corre­spondence as Interrupt Control Register 0 except for D6 and D7. For normal operation (i.e., not a single supply appli­cation) this register must be written to on initial power up or after an oscillator fail event. D0 –D5 are read only bits, D6 and D7 are read/write.
e
1). The bits are reset when the register is
read and can be used as selective data change flags.
D6: This bit performs a dual function. When this bit is read, a one indicates that an oscillator failure has occurred and the time information may have been lost. Some of the ways an oscillator failure might be caused are: failure of the crystal, shorting OSC IN or OSC OUT to GND or V crystal, removal of battery when in the battery backed mode (when a ‘‘0’’ is written to D6), lowering the voltage at the
pin or the MFO
TL/F/11418– 13
, removal of
CC
V
pin to a value less than 2.2V when in the battery
BB
backed mode. Bit D6 is automatically set to 1 on initial pow­er-up or an oscillator fail event. The oscillator fail flag is reset by writing a one to the clock start/stop bit in the Real Time Mode Register, with the crystal oscillating.
When D6 is written to, it defines whether the TCP is being used in battery backed (normal) or in a single supply mode application. When set to a one this bit configures the TCP for single power supply applications. This bit is automatically set on initial power-up or an oscillator fail event. When set, D6 disables the oscillator reference circuit. The result is that the oscillator is referenced to V D6 the oscillator reference is enabled, thus the oscillator is referenced to V standby applications.
. This allows operation in standard battery
BB
. When a zero is written to
CC
At initial power on, if the LV8573A is going to be pro­grammed for battery backed mode, the V connected to a potential in the range of 2.2V to V
0.4V.
pin should be
BB
CC
For single supply mode operation, the VBBpin should be connected to GND and the PFAIL
pin connected to VCC.
D7: Writing a one to this bit enables the test mode register at location 1F (see Table III). This bit should be forced to zero during initialization for normal operation. If the test mode has been entered, clear the test mode register before leaving test mode. (See separate test mode application note for further details.)
TIME SAVE CONTROL REGISTER
TL/F/11418– 14
D0–D5: General purpose RAM bits.
D6: Not Available, appears as logic 0 when read.
clock data into the Time Save RAM. When a one is written to this bit the Time Save RAM will follow the corresponding clock registers, and when a zero is written to this bit the time in the Time Save RAM is frozen. This eliminates any syn­chronization problems when reading the clock, thus negat­ing the need to check for a counter rollover during a read cycle.
This bit must be set to a one prior to power failing to enable the Time Save feature. When the power fails this bit is auto­matically reset and the time is saved in the Time Save RAM.
REAL TIME MODE REGISTER
TL/F/11418– 15
b
11
Functional Description (Continued)
D0–D1: These are the leap year counter bits. These bits are
INTERRUPT CONTROL REGISTER 0
LY1 LY0
Leap Year
Counter
0 0 Leap Year Current Year 0 1 Leap Year Last Year 1 0 Leap Year 2 Years Ago 1 1 Leap Year 3 Years Ago
D2: The count mode for the hours counter can be set to either 24 hour mode or 12 hour mode with AM/PM indicator. A one will place the clock in 12 hour mode.
D3: This bit is the master Start/Stop
bit for the clock. When a one is written to this bit the real time counter’s prescaler and counter chain are enabled. When this bit is reset to zero the contents of the real time counter is stopped. When the RTC is initially powered up this bit will be held at a logic 0 until the oscillator starts functioning correctly after which this bit may be modified. If an oscillator fail event occurs, this bit will be reset to logic 0.
D4: This bit controls the operation of the interrupt output in standby mode. If set to a one it allows Alarm, Periodic, and Power Fail interrupts to be functional in standby mode. Note that the MFO pin is configured as open drain in standby mode.
If bit D4 is set to a zero then the interrupt control register and the periodic interrupt flag will be reset when the RTC enters the standby mode (V re-configured when system (V
l
VCC). They will have to be
BB
) power is restored.
CC
D5–D7: General purpose RAM bits.
OUTPUT MODE REGISTER
TL/F/11418– 16
D0–D6: General purpose RAM bits.
D7: This bit is used to program the signal appearing at the
MFO output, as follows:
D7 MFO Output Signal
0 Power Fail Interrupt 1 Buffered Crystal Oscillator
TL/F/11418– 17
D0–D5: These bits are used to enable one of the selected periodic interrupts by writing a one into the appropriate bit. These interrupts are issued at the rollover of the clock. For example, the minutes interrupt will be issued whenever the minutes counter increments. In all likelihood the interrupt will be enabled asynchronously with the real time change. Therefore, the very first interrupt will occur in less than the periodic time chosen, but after the first interrupt all subse­quent interrupts will be spaced correctly. These interrupts are useful when minute, second, real time reading, or task switching is required. When all six bits are written to a 0 this disables periodic interrupts from the Main Status Register and the interrupt pin.
D6 and D7: General purpose RAM.
INTERRUPT CONTROL REGISTER 1
TL/F/11418– 18
D6: In order to generate an external alarm compare inter­rupt to the mP from bit D3 of the Main Status Register, this bit must be written to a logic 1. If battery backed mode is selected, then this bit is controlled by D4 of the Real Time Mode Register.
D7: The MSB of this register is the enable bit for the Power Fail Interrupt. When this bit is set to a one an interrupt will be generated to the mPwhenaV backed mode is selected, then this bit is controlled by D4 of
BB
l
VCC. If battery
the Real Time Mode Register.
12
Control and Status Register Address Bit Map
D7 D6 D5 D4 D3 D2 D1 D0
Main Status Register PS
R/W R/W R/W R/W R/W
RAM
Periodic Flag Register PS
R/W R/W
e
XRSeX ADDRESSe00H
Register
Select Interrupt Interrupt Interrupt Status
4
RAM RAM
e
0RS
5
R
e
0 Addresse03H
5
R
1
R/W
1
2
R
Alarm Periodic Power Fail Interrupt
5
R
5
R
5
R
Test Osc. Fail/ 1 ms 10 ms 100 ms Seconds 10 Second Minute
Mode Single Supply Flag Flag Flag Flag Flag Flag
Time Save Control Register PS
Time Save
Enable
N/A RAM RAM RAM RAM RAM RAM All Bits R/W
e
0RS
Real Time Mode Register PSe0RS
RAM RAM RAM
Output Mode Register PSe0RS
MFO as
Crystal
RAM RAM RAM RAM RAM RAM RAM All Bits R/W
Interrupt Control Register 0 PSe0RS
e
0 Addresse04H
e
1 Addresse01H
Interrupt EN Clock 12/24 on Back-Up Start/Stop
e
1 Addresse02H
e
1 Addresse03H
Hr. Leap Year Leap Year
Mode MSB LSB
1 ms 10 ms 100 ms Seconds 10 Second Minute
RAM RAM Interrupt Interrupt Interrupt Interrupt Interrupt Interrupt All Bits R/W
Enable Enable Enable Enable Enable Enable
Interrupt Control Register 1 PSe0RS
e
1 Addresse04H
Power Fail Alarm DOW Month DOM Hours Minute Second
Interrupt Interrupt Interrupt Interrupt Interrupt Interrupt Interrupt Interrupt All Bits R/W
Enable Enable Enable Enable Enable Enable Enable Enable
3
R
5
R
1. Reset by writing 1 to bit.
2. Set/reset by voltage at PFAIL pin.
3. Reset when all pending interrupts are removed.
4. Read Osc fail Write 0 Batt­Backed Mode Write 1 Single Supply Mode
5. Reset by positive edge of read.
All Bits R/W
Application Hints
Suggested Initialization Procedure for LV8573A in Bat­tery Backed Applications that use the V
1. Enter the test mode by writinga1tobitD7inthePeriod­ic Flag Register.
2. Write zero to the RAM/TEST mode Register located in page 0, address HEX 1F.
3. Leave the test mode by writinga0tobitD7inthePeri­odic Flag Register. Steps 1, 2, 3 guarantee that if the test mode had been entered during power on (due to random pulses from the system), all test mode condi­tions are cleared. Most important is that the OSC Fail Disable bit is cleared. Refer to AN-589 for more informa­tion on test mode operation.
BB
Pin
4. Enter a software loop that does the following:
Set a 3 second(approx) software counter. The crystal oscillator may take 1 second to start.
4.1 Writea1tobitD3intheReal Time Mode Register (try to start the clock). Under normal operation, this bit can be set only if the oscillator is running. During the soft­ware loop, RAM, real time counters, output configura­tion, interrupt control and timer functions may be initial­ized.
13
Application Hints (Continued)
5. Test bit D6 in the Periodic Flag Register:
IFa1,go to 4.1. If this bit remains a 1 after 3 seconds, then abort and check hardware. The crystal may be de­fective or not installed. There may be a short at OSC IN or OSC OUT to V is less than 10 MX.
or GND, or to some impedance that
CC
IFa0,then the oscillator is running, go to step 7.
6. Writea0tobitD6inthePeriodic Flag Register. This action puts the clock chip in the battery backed mode. This mode can be entered only if the OSC fail flag (bit D6 of the Periodic Flag Register) is a 0. Reminder, bit D6 is a dual function bit. When read, D6 returns oscillator status. When written, D6 causes either the Battery Backed Mode, or the Single Supply Mode of operation.
Typical Application
The only method to ensure the chip is in the battery backed mode is to measure the waveform at the OSC OUT pin. If the battery backed mode was selected suc­cessfully, then the peak to peak waveform at OSC OUT is referenced to the battery voltage. If not in battery backed mode, the waveform is referenced to V measurement should be made with a high impedance
CC
. The
low capacitance probe (10 MX, 10 pF oscilloscope probe or better). Typical peak to peak swings are within
0.6V of V
and ground respectively.
CC
7. Writea1tobitD7ofInterrupt Control Register 1. This action enables the PFAIL pin and associated circuitry.
8. Initialize the rest of the chip as needed.
*These components may be necessary to meet UL requirements
for lithium batteries. Consult battery manufacturer.
14
TL/F/11418– 19
Typical Performance Characteristics
Operating Current vs Operating Current vs Supply Voltage (Single Supply Mode
e
F
32.768 kHz)
OSC
Supply Voltage
(Battery Backed Mode
F
OSC
e
V
BB
e
32.768 kHz,
2.5V)
Standby Current vs Power Supply Voltage
e
(F
32.768 kHz)
OSC
TL/F/11418– 20
TL/F/11418– 22
TL/F/11418– 21
15
Physical Dimensions inches (millimeters)
Molded Small Outline Package (M)
Order Number LV8573M
NS Package Number M24B
16
Physical Dimensions inches (millimeters) (Continued)
Molded Dual-In-Line Package (N)
Order Number LV8573A
NS Package Number N24C
17
Physical Dimensions inches (millimeters) (Continued)
LV8573A Real Time Clock (RTC)
Plastic Chip Carrier Package (V)
Order Number LV8573AV
NS Package Number V28A
LIFE SUPPORT POLICY
NATIONAL’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF NATIONAL SEMICONDUCTOR CORPORATION. As used herein:
1. Life support devices or systems are devices or 2. A critical component is any component of a life systems which, (a) are intended for surgical implant support device or system whose failure to perform can into the body, or (b) support or sustain life, and whose be reasonably expected to cause the failure of the life failure to perform, when properly used in accordance support device or system, or to affect its safety or with instructions for use provided in the labeling, can effectiveness. be reasonably expected to result in a significant injury to the user.
National Semiconductor National Semiconductor National Semiconductor National Semiconductor Corporation Europe Hong Kong Ltd. Japan Ltd.
1111 West Bardin Road Fax: ( Arlington, TX 76017 Email: cnjwge@tevm2.nsc.com Ocean Centre, 5 Canton Rd. Fax: 81-043-299-2408 Tel: 1(800) 272-9959 Deutsch Tel: ( Fax: 1(800) 737-7018 English Tel: (
National does not assume any responsibility for use of any circuitry described, no circuit patent licenses are implied and National reserves the right at any time without notice to change said circuitry and specifications.
Fran3ais Tel: ( Italiano Tel: (
a
49) 0-180-530 85 86 13th Floor, Straight Block, Tel: 81-043-299-2309
a
49) 0-180-530 85 85 Tsimshatsui, Kowloon
a
49) 0-180-532 78 32 Hong Kong
a
49) 0-180-532 93 58 Tel: (852) 2737-1600
a
49) 0-180-534 16 80 Fax: (852) 2736-9960
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
