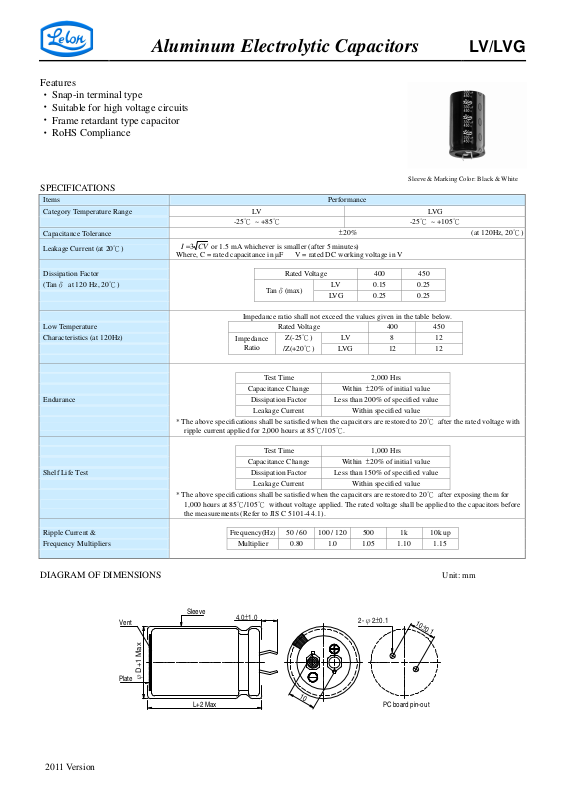

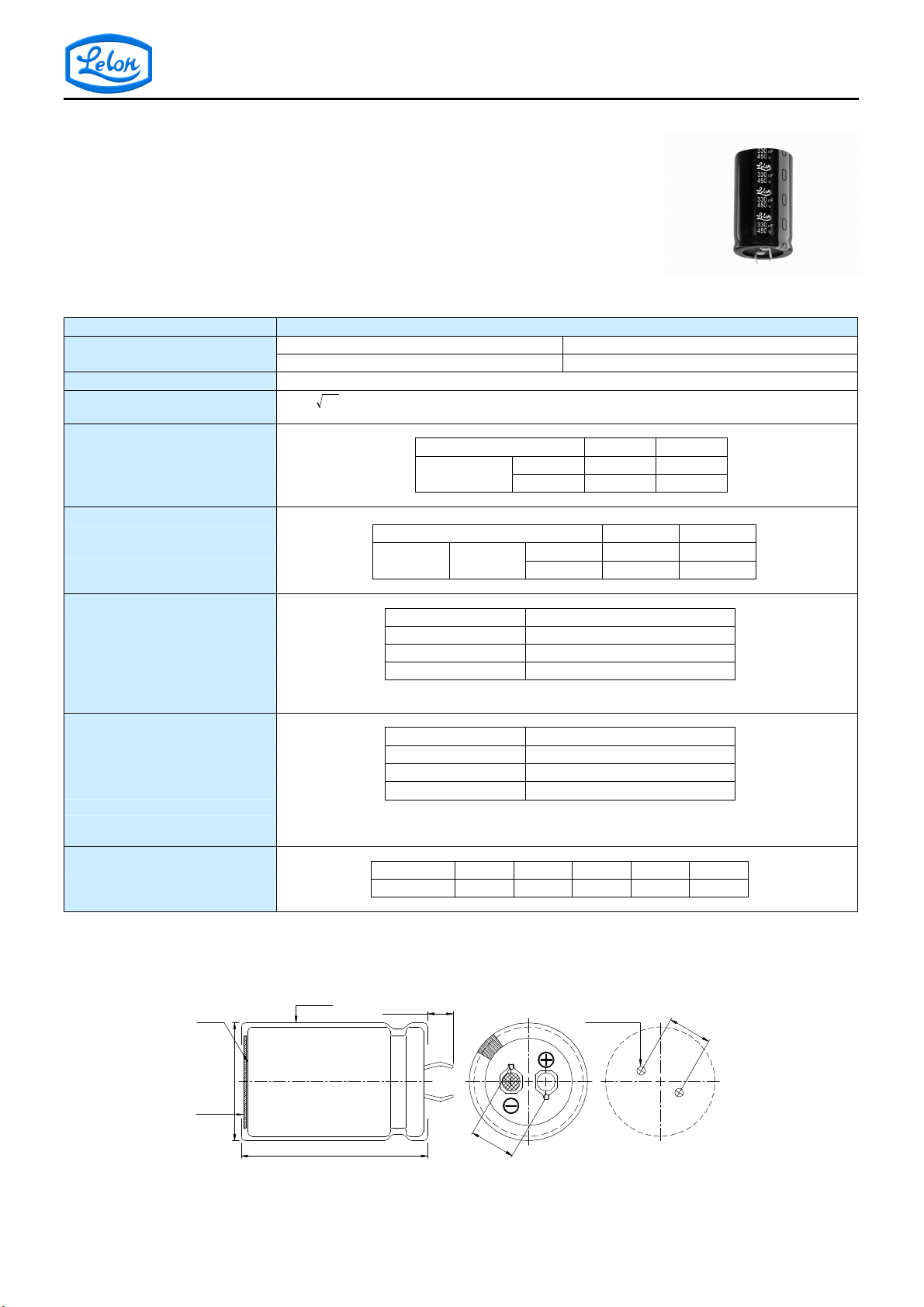

Aluminum Electrolytic Capacitors
Features
‧
Snap-in terminal type
‧
Suitable for high voltage circuits
‧
Frame retardant type capacitor
‧
RoHS Compliance
SPECIFICATIONS
Items Performance
Category Temperature Range LV LVG
Capacitance Tolerance
or 1.5 mA whichever is smaller (after 5 minutes)
Leakage Current (at 20℃)
Dissipation Factor Rated Voltage 400 450
(Tanδ at 120 Hz, 20℃)
Low Temperature Rated Voltage 400 450
Characteristics (at 120Hz)
Test Time 2,000 Hrs
Capacitance Change
Endurance Dissipation Factor Less than 200% of specified value
Leakage Current Within specified value
Test Time 1,000 Hrs
Capacitance Change
Shelf Life Test Dissipation Factor Less than 150% of specified value
Leakage Current Within specified value
Ripple Current & Frequency(Hz) 50 / 60 100 / 120 500 1k 10k up
Frequency Multipliers Multiplier 0.80 1.0 1.05 1.10 1.15
CVI 3=
Where, C = rated capacitance in µF V = rated DC working voltage in V
LV 0.15 0.25
* The above specifications shall be satisfied when the capacitors are restored to 20℃ after the rated voltage with
ripple current applied for 2,000 hours at 85℃/105℃.
* The above specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for
1,000 hours at 85℃/105℃ without voltage applied. The rated voltage shall be applied to the capacitors before
the measurements (Refer to JIS C 5101-4 4.1).
DIAGRAM OF DIMENSIONS
Vent
Sleeve
Plate
D+1 Max
φ
L+2 Max
-25℃ ~ +85℃ -25℃ ~ +105℃
±
20% (at 120Hz, 20℃)
Tanδ(max)
Impedance ratio shall not exceed the values given in the table below.
Impedance
Ratio
4.0±1.0
Z(-25℃)
/Z(+20℃)
1
LVG 0.25 0.25
LV 8 12
LVG 12 12
Within ±20% of initial value
Within ±20% of initial value
2-φ2±0.1
0
Sleeve & Marking Color: Black & White
Unit: mm
1
0
±
0
.
1
PC board pin-out
LV/LVG
2011 Version
Page 2
Aluminum Electrolytic Capacitors
LV/LVG
DIMENSION & PERMISSIBLE RIPPLE CURRENT
1. LV Series
Ripple Current: A/rms at 120 Hz, 85℃
µ
F φD
56 20×25 0.58
68 20×25 0.71
82
100
120
150
180 22×40 1.34 25×35 1.37 30×25 1.45 22×50 1.26 25×40 1.33 30×30 1.38
220 22×45 1.50 25×35 1.56 30×30 1.58 25×45 1.51
270 25×45 1.70 30×35 1.73 25×50 1.65 30×40 1.80 35×35 1.81
330 25×50 1.90 30×40 1.97 35×30 1.95
390 30×40 2.15 35×35 2.17 30×50 2.24 35×40 2.27
470 30×50 2.39 35×40 2.42 35×45 2.55
560 35×45 2.71 35×50 2.60
680 35×50 2.95
2. LVG Series
Ripple Current: A/rms at 120 Hz, 105℃
µ
F φD
47 22×25 0.42
56 22×30 0.51 25×25 0.50
68 22×25 0.34 22×35 0.61 25×30 0.59
82 22×30 0.58 22×35 0.67 25×30 0.65 30×25 0.62
100 22×30 0.64 25×25 0.64 22×40 0.78 25×35 0.76 30×25 0.69
120 22×35 0.67 25×30 0.69 30×25 0.76 22×45 0.90 25×40 0.89 30×30 0.81 35×25 0.72
150 22×40 0.77 25×35 0.78 30×30 0.76 25×45 1.04 30×35 0.97 35×30 0.86
180 22×45 0.92 25×40 0.81 30×30 0.82 35×25 0.90 25×50 1.20 30×40 1.12 35×35 1.00
220 25×45 0.93 30×35 0.91 35×30 1.08 30×45 1.30 35×35 1.11
270 25×50 1.21 30×40 1.10 35×35 1.12 30×50 1.51 35×45 1.36
330 30×45 1.39 35×35 1.18 35×50 1.58
390 30×50 1.55 35×40 1.27
470 35×45 1.62
Dimension: φD×L(mm)
V. DC
20 ~ 22φ 25φ 30φ 35φ 20 ~ 22φ 25φ 30φ 35φ
20×30
22×25
20×30
22×30
20×35
22×30
20×40
22×35
0.78
0.80
0.90
0.94
1.02
25×25 1.08
1.04
1.16
25×30 1.21 22×45 1.12 25×35 1.19 30×30 1.23
1.18
400V (2G) 450V (2W)
20×30
22×25
20×35
22×30
20×35
22×35
20×40
22×35
0.67
0.68
0.76
0.82
0.84
0.90
0.94
1.02
25×25 0.92
25×30 1.04 30×25 1.07
30×35
30×40
30×40
30×45
Dimension: φD×L(mm)
V. DC
22φ 25φ 30φ 35φ 22φ 25φ 30φ 35φ
400V (2G) 450V (2W)
1.69
1.72
1.85
2.02
35×30 1.71
35×35 2.05
Ripple current: A/rms
Case size:φD×L(mm)
Part numbering system
LV series
LV-
Series name Capacitance
Example: Example: Example: Example:
Note: For more details, please refer to “Product Code Guide– Snap-in Type” on page 15.
100µF
101
Cap. Symbol
56 560
220 221
470 471
±
20%
M
Capacitance
tolerance
M = ±20%
K = ±10%
400V
2G
Rated voltage Terminal type Terminal length
WV Symbol
400 2G
450 2W
--
Type Symbol
2 pins -5 pins L5
4.0±0.5mm
A
“-“:
6.3±1.0 mm
22φ×30L
2230
Case size
φD×L Code
22×30
25×25
30×40
2230
2525
3040
Pb-free Terminal
+ PVC Sleeve
Terminal and Sleeve
Type
2011 Verison
