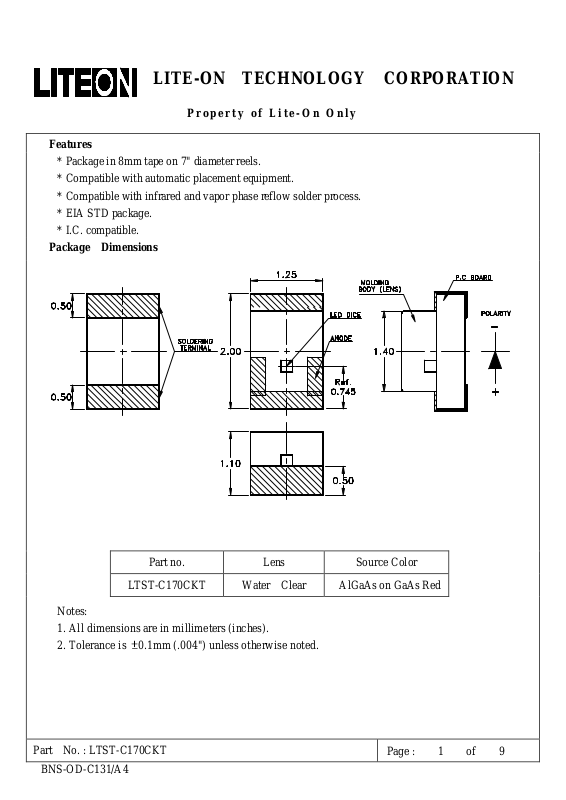

Datasheet LTST-C170CKT Specification

LITE-ON TECHNOLOGY CORPORATION

Property of Lite-On Only

Features

* Package in 8mm tape on 7" diameter reels.
* Compatible with automatic placement equipment.
* Compatible with infrared and vapor phase reflow solder process.
* EIA STD package.
* I.C. compatible.

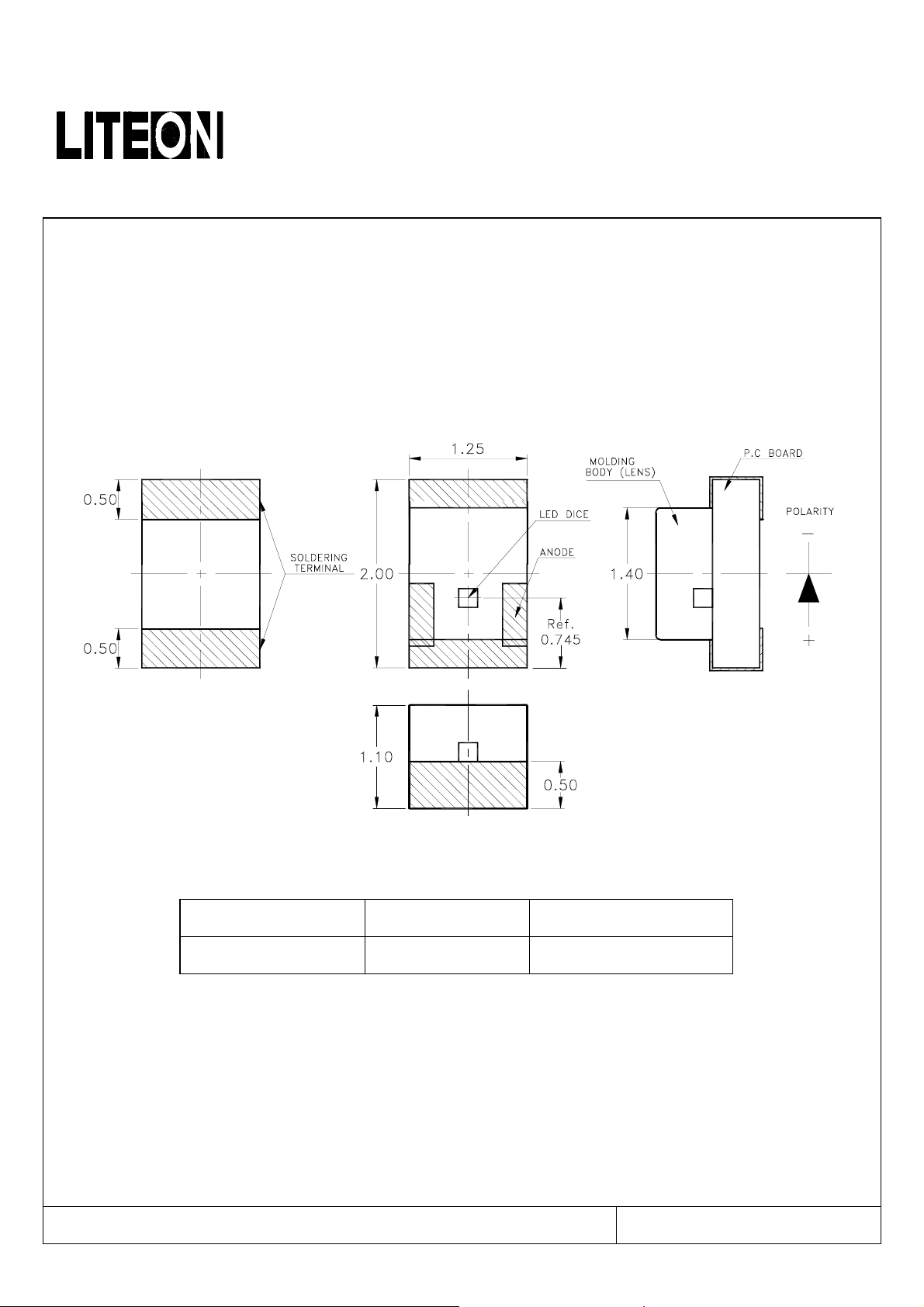

Package Dimensions

Part no. Lens Source Color

LTST-C170CKT Water Clear AlGaAs on GaAs Red

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ±0.1mm (.004") unless otherwise noted.

Part No. : LTST-C170CKT

BNS-OD-C131/A4

Page : 1 of 9

LITE-ON TECHNOLOGY CORPORATION

Property of Lite-On Only

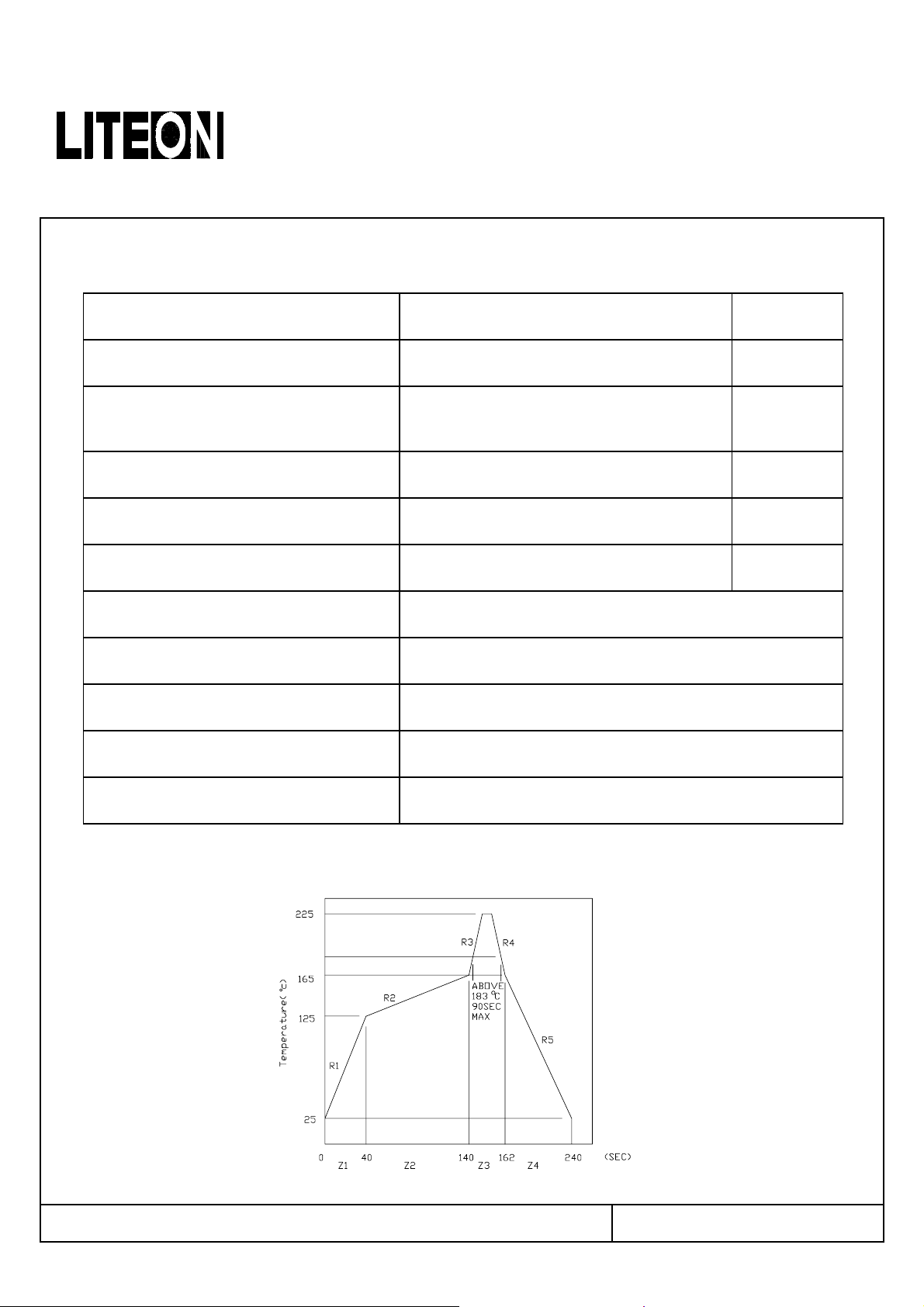

Absolute Maximum Ratings At Ta=25

Power Dissipation 100 mW

Peak Forward Current
(1/10 Duty Cycle, 0.1ms Pulse Width)

Continuous Forward Current 40 mA

Derating Linear From 50℃ 0.8 mA/℃

Reverse Voltage 5 V

Operating Temperature Range -55℃ to + 85℃

Storage Temperature Range -55℃ to + 85℃

Parameter

℃℃℃℃

LTST-C170CKT

200 mA

Unit

Suggest IR Reflow Condition :

Wave Soldering Condition 260°C For 5 Seconds

Infrared Soldering Condition 260°C For 5 Seconds

Vapor Phase Soldering Condition 215°C For 3 Minutes

Part No. : LTST-C170CKT

BNS-OD-C131/A4

Page : 2 of 9

LITE-ON TECHNOLOGY CORPORATION

Property of Lite-On Only

Electrical Optical Characteristics At Ta=25

Parameter

Symbol

Part No.

℃℃℃℃

Min. Typ. Max. Unit

Test Condition

LTST-

Luminous Intensity IV C170CKT 2.8 10.0 mcd

Viewing Angle 2θ1/2 C170CKT 130 deg Note 2 (Fig.6)

Peak Emission Wavelength

Dominant Wavelength

Spectral Line Half-Width

λ

Peak C170CKT 660 nm

λ

d C170CKT 638 nm Note 3

Δλ

C170CKT 20 nm

IF = 10mA

Note 1

Measurement

@Peak (Fig.1)

Forward Voltage VF C170CKT 1.8 2.4 V IF = 20mA

Reverse Current IR C170CKT 100

Capacitance C C170CKT 30 PF

μ

A VR = 5V

VF = 0

f = 1MHZ

Notes:

1. Luminous intensity is measured with a light sensor and filter combination that approximates the CIE
eye-response curve.

2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

3. The dominant wavelength, λd is derived from the CIE chromaticity diagram and represents the single

wavelength which defines the color of the device

Part No. : LTST-C170CKT

BNS-OD-C131/A4

Page : 3 of 9

LITE-ON TECHNOLOGY CORPORATION

Property of Lite-On Only

Bin Code List

Luminous Intensity Unit : mcd @10mA

Bin Code Min. Max.

H 2.8 4.5

J 4.5 7.1

K 7.1 11.2

L 11.2 18.0

M 18.0 28.0

Tolerance on each Intensity bin is +/-15%

Part No. : LTST-C170CKT

BNS-OD-C131/A4

Page : 4 of 9

LITE-ON TECHNOLOGY CORPORATION

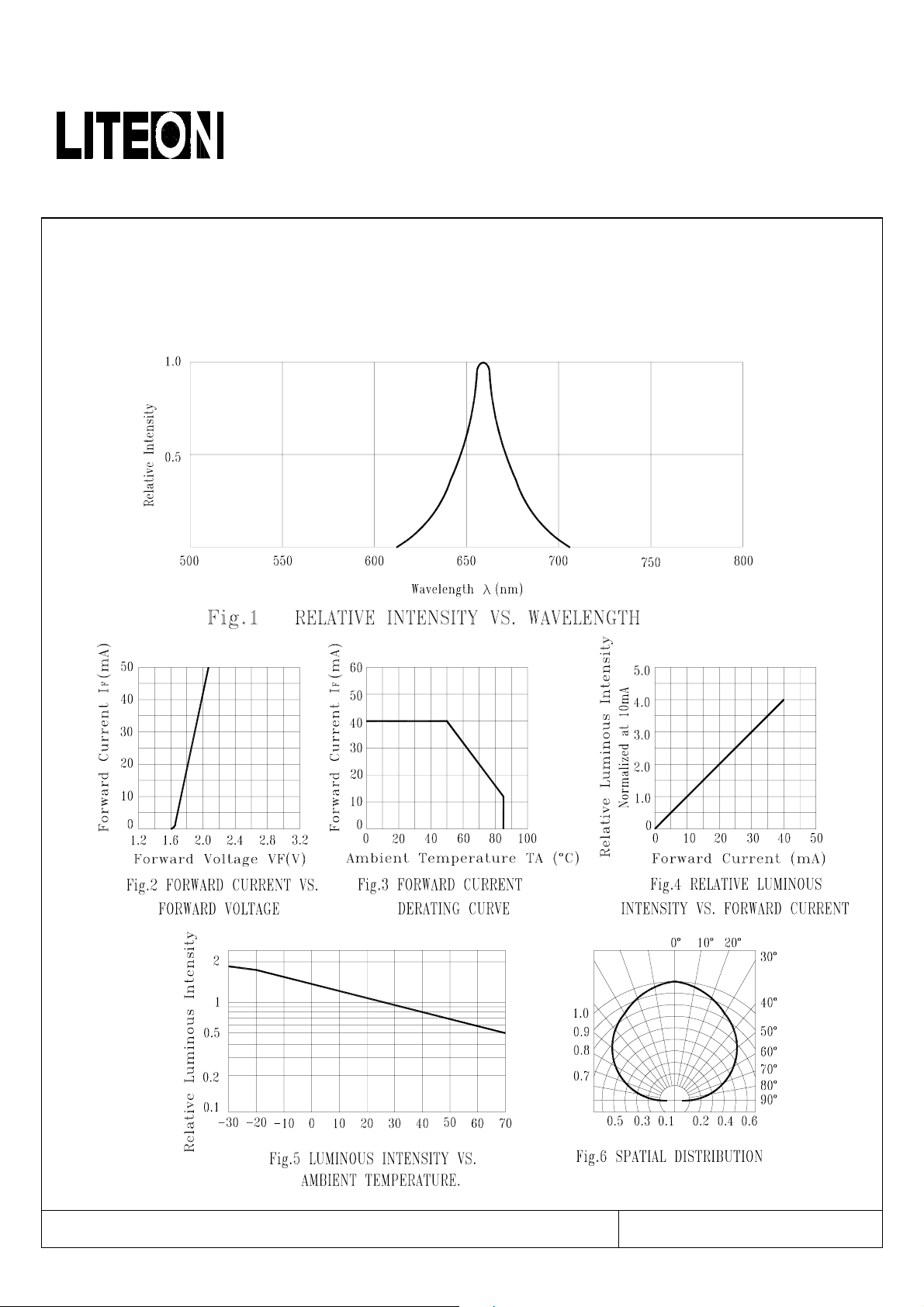

Typical Electrical / Optical Characteristics Curves

(25℃ Ambient Temperature Unless Otherwise Noted)

Property of Lite-On Only

Part No. : LTST-C170CKT

BNS-OD-C131/A4

Page : 5 of 9

LITE-ON TECHNOLOGY CORPORATION

Cleaning

Do not use unspecified chemical liquid to clean LED they could harm the package.

If clean is necessary, immerse the LED in ethyl alcohol or in isopropyl alcohol at normal temperature

for less one minute.

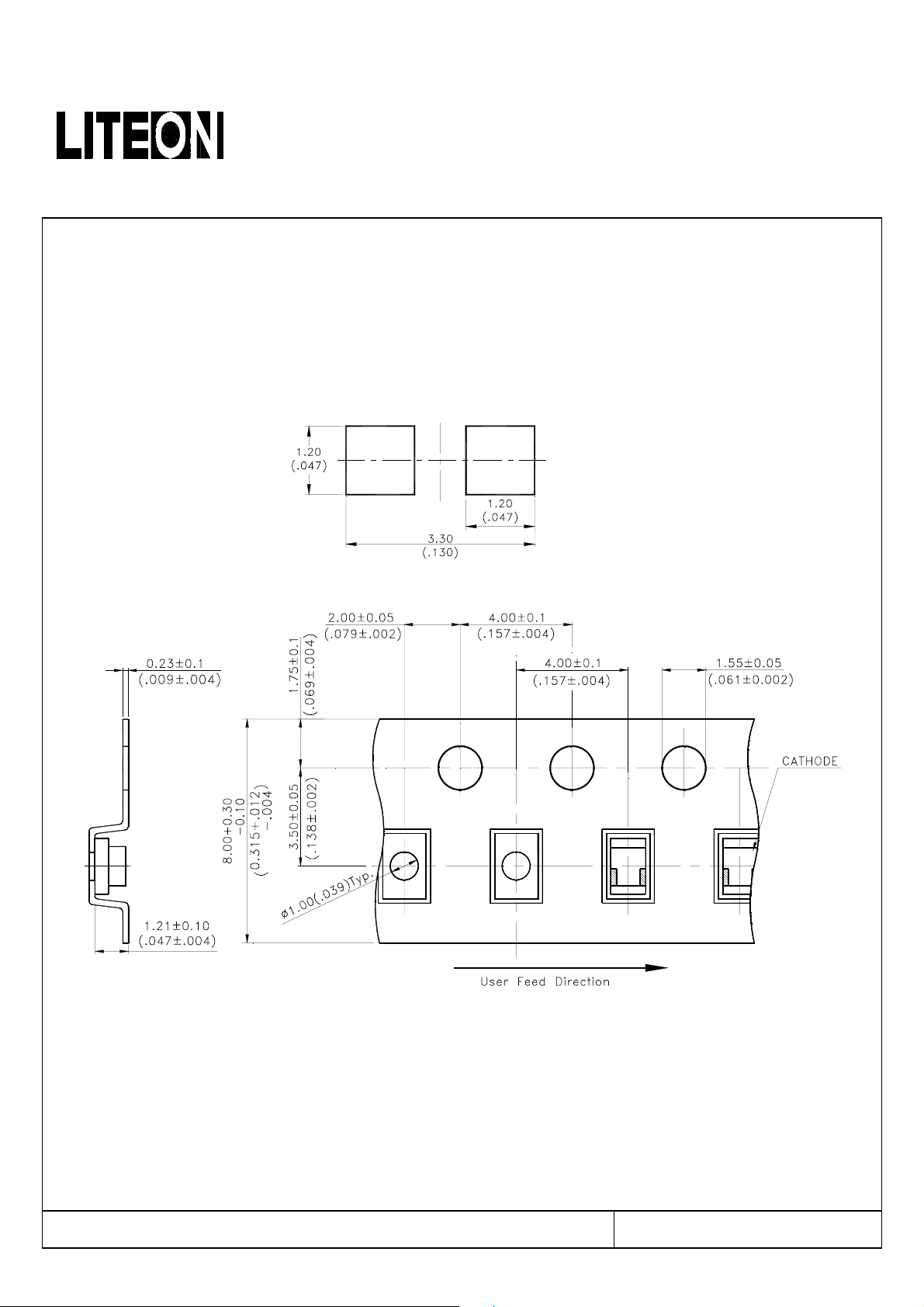

Suggest Soldering Pad Dimensions

Property of Lite-On Only

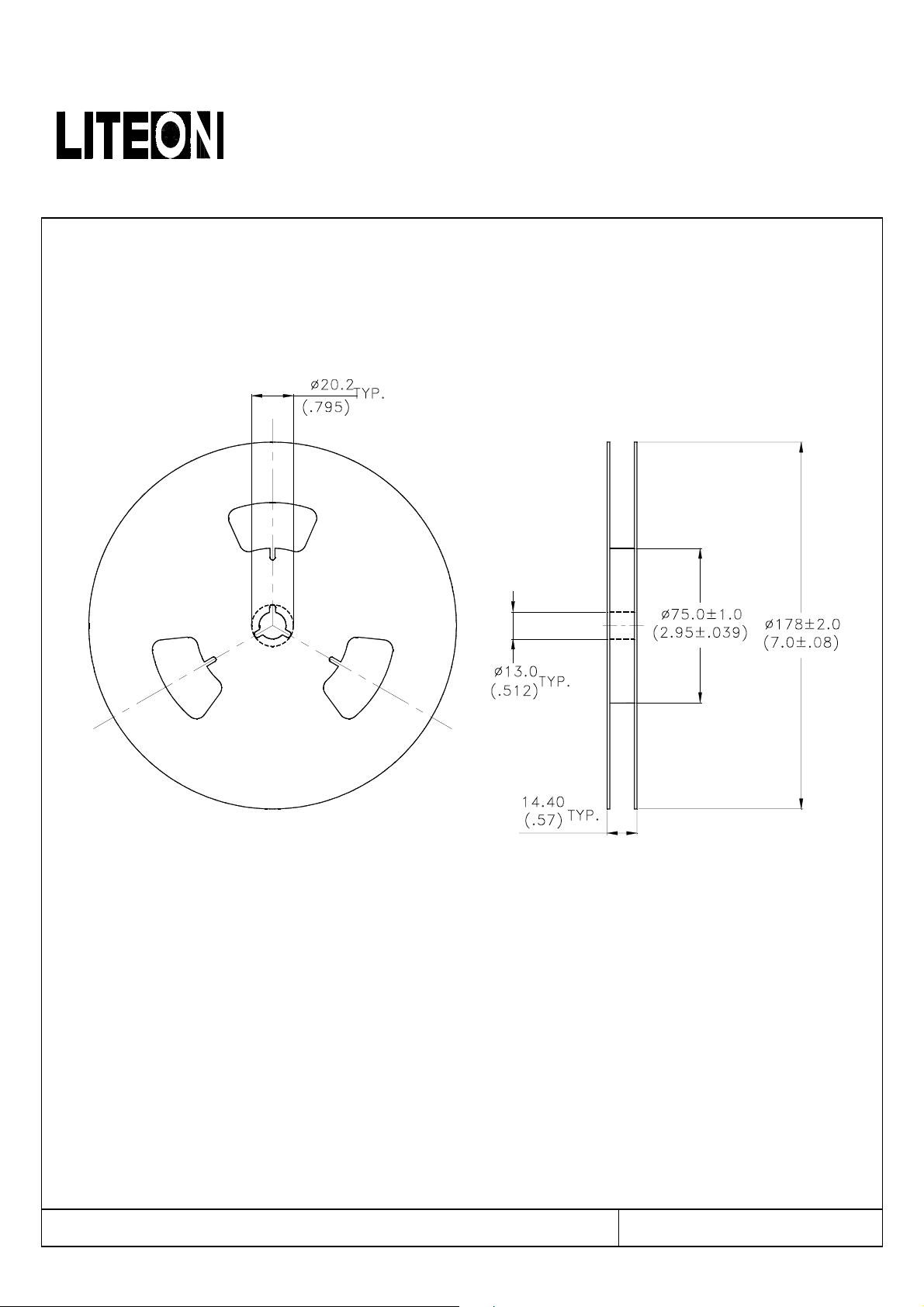

Package Dimensions Of Tape And Reel

Notes:

1. All dimensions are in millimeters (inches).

Part No. : LTST-C170CKT

BNS-OD-C131/A4

Page : 6 of 9

LITE-ON TECHNOLOGY CORPORATION

Property of Lite-On Only

Notes:

1. Empty component pockets sealed with top cover tape.

2. 7 inch reel-3000 pieces per reel.

3. The maximum number of consecutive missing lamps is two.

4. In accordance with ANSI/EIA 481-1-A-1994 specifications.

Part No. : LTST-C170CKT

BNS-OD-C131/A4

Page : 7 of 9

LITE-ON TECHNOLOGY CORPORATION

(B)

1. Application limitation

The LEDs described here are intended to be used for ordinary electronic equipment (such as office
equipment, communication equipment and household application.) Consult Liteon’s sales in advance
for information on application in which exceptional quality and reliability are required, particularly
when the failure or malfunction of the LEDs may directly jeopardize life or health (such as airplanes,
automobiles, traffic control equipment, life support system and safety devices).

2. Storage

Before opening the package : The LEDs should be kept at 30°C or less and 85%RH or less. The LEDs

After opening the package : The LEDs should be kept at 30°C or less and 70%RH or less. The LEDs

Please avoid rapid transitions in ambient temperature in high humidity environments where
condensation may occur.

3. Cleaning

Use alcohol-based cleaning solvents such as isopropyl alcohol to clean the LED.

4. Soldering

Property of Lite-On Only

CAUTIONS

should be used within a year.

should be soldered within 168 hours(7 days) after opening the package.

Do not apply any stress to the lead frame during soldering while the LED is at high temperature.
Recommended soldering condition

Reflow soldering Soldering iron Wave soldering

Pre-heat
Pre-heat time
Peak temperature
Soldering time

120~150°C
120 sec. Max.
240°C Max.
10 sec. Max.

Temperature
Soldering time

300°C Max.
3 sec. Max.
(one time only)

Pre-heat
Pre-heat time
Solder wave
Soldering time

100°C Max.
60 sec. Max.
260°C Max.
10 sec. Max.

5. Drive Method

LED is a current operated device, and therefore, requires some kind of current limiting incorporated
into the drive circuit. This current limiting typically takes the form of a current limiter resistor placed in
series with the LED.
Consider worst case voltage variations that could occur across the current limiting resistor. The forward
current should not be allowed to change by more than 40% of its desired value.

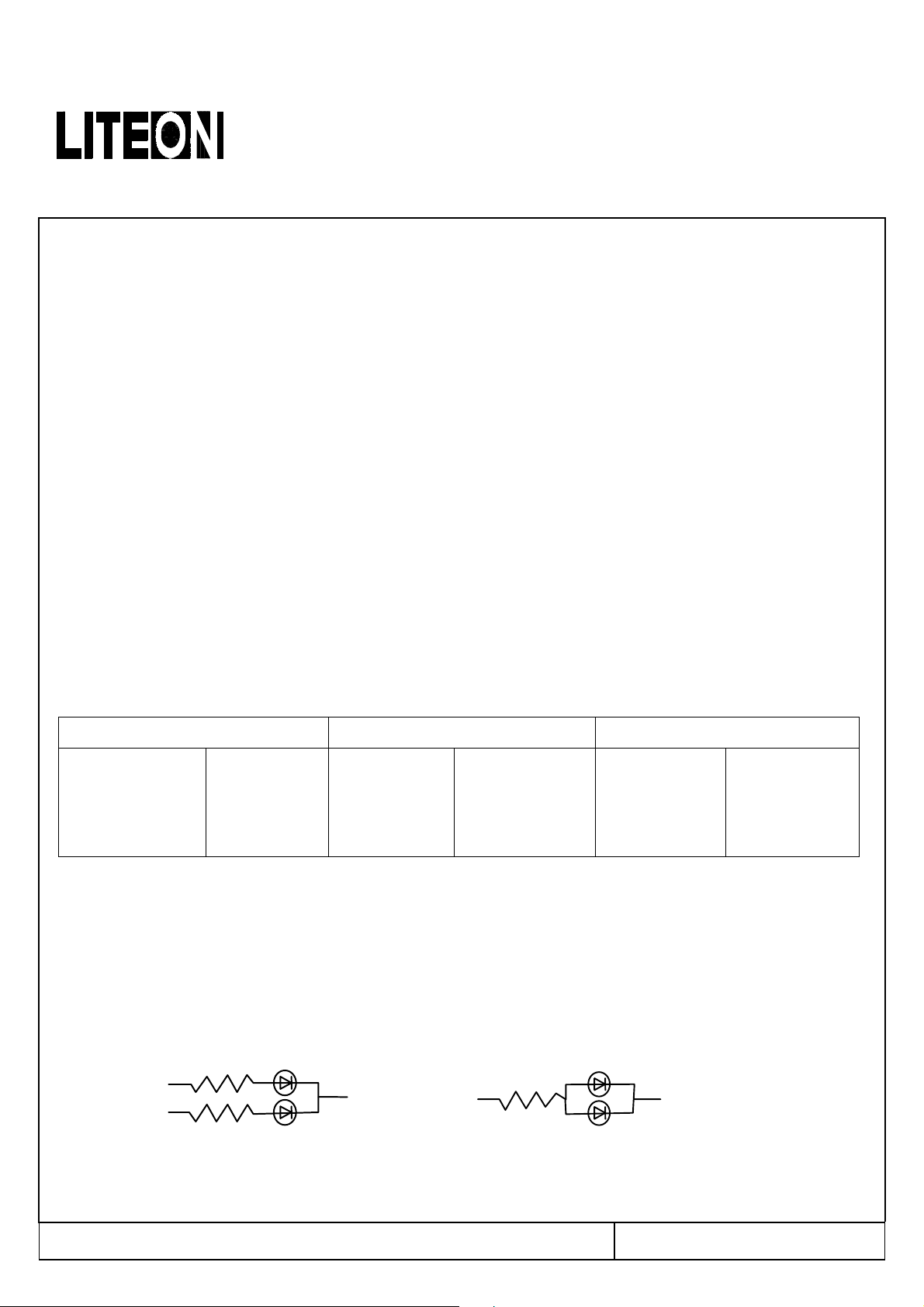

Circuit model A Circuit model B

LED

LED

(A) Recommended circuit.

The difference of brightness between LEDs could be found due to the Vf-If characteristics of LED.

Part No. : LTST-C170CKT

BNS-OD-C131/A4

Page : 8 of 9

LITE-ON TECHNOLOGY CORPORATION

6. ESD (Electrostatic Discharge)

Static Electricity or power surge will damage the LED. Use of a conductive wrist band or anti­electrostatic glove is recommended when handling these LED. All devices, equipment and machinery
must be properly grounded.

7. Reliability Test

Classification Test Item Test Condition Referance Standard

Property of Lite-On Only

Endurance

Test

Environmental

Test

Operation Life

High Temperature

High Humidity

Storage

High Temperature

Storage

Low Temperature

Storage

Temperature

Cycling

Thermal

Shock

Solder

Resistance

IR-Reflow

Solderability

Ta= Under Room Temperature As Per Data Sheet
Maximum Rating
*Test Time= 1000HRS (-24HRS,+72HRS)*@20mA.

IR-Reflow In-Board, 2 Times
Ta= 65±5℃,RH= 90～95%

Test Time= 1000HRS±2HRS

*

Ta= 105±5℃

Test Time= 1000HRS (-24HRS,+72HRS)

*

Ta= -55±5℃

Test Time=1000HRS (-24HRS,+72H RS)

*

105℃ ～ 25℃ ～ -55℃ ～ 25℃
30mins 5mins 30mins 5mins
10 Cycles

IR-Reflow In-Board, 2 Times
105 ± 5℃ ～ -55℃ ± 5℃
10mins 10mins 10 Cycles

T.sol= 260 ± 5℃
Dwell Time= 10 ± 1secs

Ramp-up rate(183℃ to Peak) +3℃ second max
Temp. maintain at 125(±25)℃ 120 seconds max
Temp. maintain above 183℃ 60-150 seconds
Peak temperature range 235℃+5/-0℃
Time within 5°C of actual Peak Temperature (tp)
10-30 seconds
Ramp-down rate +6℃/second max

T.sol= 235 ± 5℃
Immersion time 2±0.5 sec
Immersion rate 25±2.5 mm/sec
Immersion rate 25±2.5 mm/sec
Coverage ≧95% of the dipped surface

MIL-STD-750D:1026 (1995)
MIL-STD-883D:1005 (1991)
JIS C 7021:B-1 (1982)

MIL-STD-202F:103B(1980)
JIS C 7021:B-11(1982)

MIL-STD-883D:1008 (1991)
JIS C 7021:B-10 (1982)

JIS C 7021:B-12 (1982)

MIL-STD-202F:107D (1980)
MIL-STD-750D:1051(1995)
MIL-STD-883D:1010 (1991)
JIS C 7021:A-4(1982)

MIL-STD-202F:107D(1980)
MIL-STD-750D:1051(1995)
MIL-STD-883D:1011 (1991)

MIL-STD-202F:210A(1980)
MIL-STD-750D:2031(1995)
JIS C 7021:A-1(1982)

MIL-STD-750D:2031.2(1995)
J-STD-020(1999)

MIL-STD-202F:208D(1980)
MIL-STD-750D:2026(1995)
MIL-STD-883D:2003(1991)
IEC 68 Part 2-20
JIS C 7021:A-2(1982)

8. Others

The appearance and specifications of the product may be modified for improvement without notice.

Part No. : LTST-C170CKT

Page : 9 of 9

BNS-OD-C131/A4
