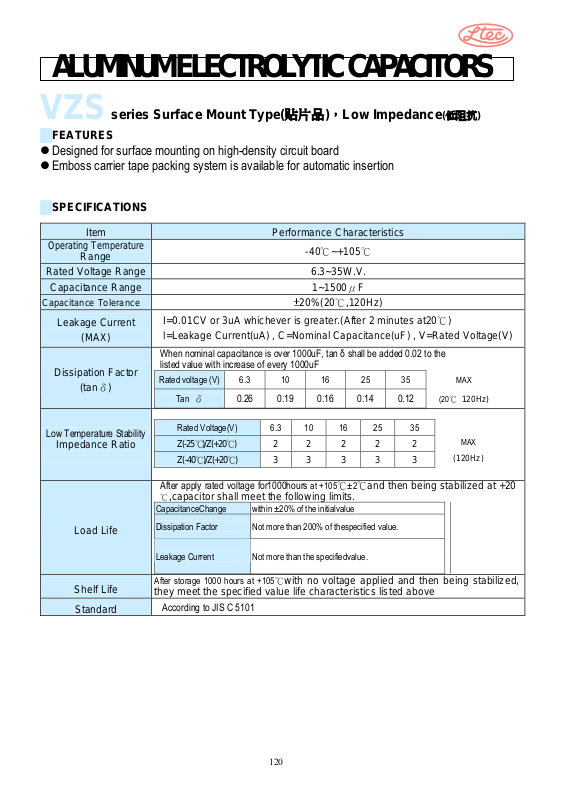

ALUMINUM ELECTROLYTIC CAPACITORS
VZS series Surface Mount Type(貼片品)，Low Impedance(低阻抗)
■FEATURES
z Designed for surface mounting on high-density circuit board
z Emboss carrier tape packing system is available for automatic insertion
■SPECIFICATIONS
Item Performance Characteristics
Operating Temperature
Range
Rated Voltage Range 6.3~35W.V.
Capacitance Range 1~1500μF
Capacitance Tolerance ±20%(20℃,120Hz)
-40℃~+105℃
Leakage Current
(MAX)
Dissipation Factor
(tanδ)
Low Temperature Stability
Impedance Ratio
Load Life
Shelf Life
Standard
I=0.01CV or 3uA whichever is greater.(After 2 minutes at20℃)
I=Leakage Current(uA) , C=Nominal Capacitance(uF) , V=Rated Voltage(V)
When nominal capacitance is over 1000uF, tan δ shall be added 0.02 to the
listed value with increase of every 1000uF
Rated voltage (V) 6.3 10 16 25 35 MAX
Tan δ 0.26 0.19 0.16 0.14 0.12 (20℃ 120Hz)
Rated Voltage(V) 6.3 10 16 25 35
Z(-25℃)/Z(+20℃)
Z(-40℃)/Z(+20℃)
After apply rated voltage for1000hours
℃,capacitor shall meet the following limits.
CapacitanceChange within ±20% of the initialvalue
Dissipation Factor Not more than 200% of thespecified value.
Leakage Current Not more than the specifiedvalue.
After storage 1000 hours at +105℃with no voltage applied and then being stabilized,
they meet the specified value life characteristics listed above
According to JIS C 5101
2 2 2 2 2
3 3 3 3 3
at +105℃±2℃and then being stabilized at +20
MAX
(120Hz)
120
Page 2
ALUMINUM ELECTROLYTIC CAPACITORS
VZS series Surface Mount Type(貼片品)，Low Impedance(低阻抗)

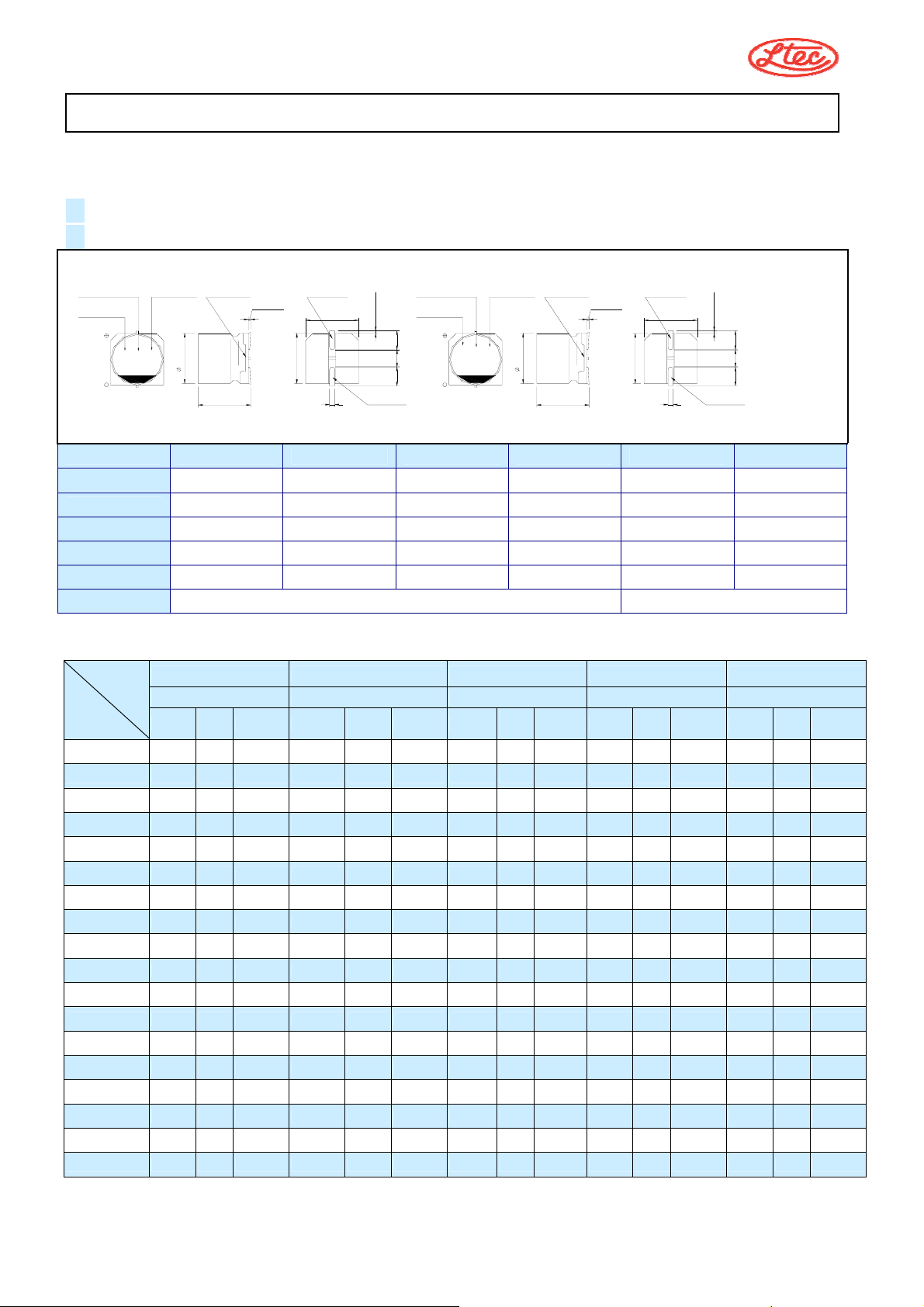

■Case size table
■DIMENSIONS (mm)
Voltage
电压
Capacitance
电容量
100
Seri es a n d Lo t.no .
型号及制造序号
Z
16V
V
Plastic
Platform
塑料底盘
D± 0.5
+0.2
L
-0.1
(Φ 6.3× 7.7壳号)L± 0 .3 *
0.3MA X
B± 0.2
Positive
正极
C±0.2
H
0.5MA X
Nega tive
负极
E
A±0.2
A±0.2
Voltage
电压
Capacitance
电容量
1000
Seri es a n d Lo t.no .
型号及制造序号
Z
10V
V
B± 0.2
Positive
正极
C±0.2
H
0.5MA X
Nega tive
负极
A±0.2
E
A±0.2
Plastic
Platform
塑料底盘
0.3MA X
D± 0.5
L± 0.5
4 × 5.4 5 × 5.4 6.3 × 5.4 6.3 × 7.7 8× 10.5 10 × 10.5
A 1.8 2.1 2.4 2.4 2.9 3.2
B 4.3 5.3 6.6 6.6 8.3 10.3
C 4.3 5.3 6.6 6.6 8.3 10.3
E 1.0 1.3 2.2 2.2 3.1 4.5
L 5.4 5.4 5.4 7.7 10 10
H 0.5 ~ 0.8 0.8 ~ 1.1
Ripple Current (mA 105℃,100kHz) r.m.s
6.3 10 16 25 35
W.V
Cap(μF)
Size
1 4x5.4 60 3.00
2.2 4x5.4 60 3.00
3.3 4x5.4 60 3.00
4.7 4x5.4 60 3.00
6.8 4x5.4 60 3.00 5x5.4 95 1.80
10 4x5.4 60 3.00 4x5.4 60 3.00 5x5.4 95 1.80
22 4x5.4 60 3.00 4x5.4 60 3.00 5x5.4 95 1.80 5x5.4 95 1.80 6.3x5.4 140 1.00
33 5x5.4 80 2.60 5x5.4 95 1.80 6.3x5.4 115 1.30 6.3x5.4 140 1.00 6.3x7.7 150 0.80
47 5x5.4 95 1.80 6.3x5.4 115 1.30 6.3x5.4 140 1.00 6.3x5.4 140 1.00 6.3x7.7 150 0.80
68 6.3x5.4 140 1.00 6.3x5.4 115 1.30 6.3x7.7 150 0.80 8x10.5 450 0.30
100 6.3x5.4 140 1.00 6.3x7.7 150 0.80 6.3x7.7 150 0.80 8x10.5 450 0.30 8x10.5 450 0.30
150 6.3x7.7 150 0.80 6.3x7.7 150 0.80 8X10.5 450 0.30 8X10.5 450 0.30
220 8x10.5 450 0.30 8x10.5 450 0.30 10x10.5
330 8x10.5 450 0.30 10x10.5 670 0.150 10x10.5 670 0.15 10x10.5
470 10x10.5 670 0.15 10x10.5 670 0.15 10x10.5 670 0.15 10x10.5
680 10x10.5 670 0.15 10x10.5 670 0.15 10x10.5 670 0.15
1000 10x10.5 670 0.15 10x10.5 670 0.15
1500 10x10.5 670 0.15
0J 1A 1C 1E 1V
Ripple
Impedance Size
Current
Ripple
Current
Impedance Size
Ripple
Current
Impedance Size
Ripple
Current
Impedance Size
670 0.15 10x10.5 670 0.15
670 0.15 10x10.5 670 0.15
670 0.15
Ripple
Current
Impedance
Case Size ΦD x L(mm)
