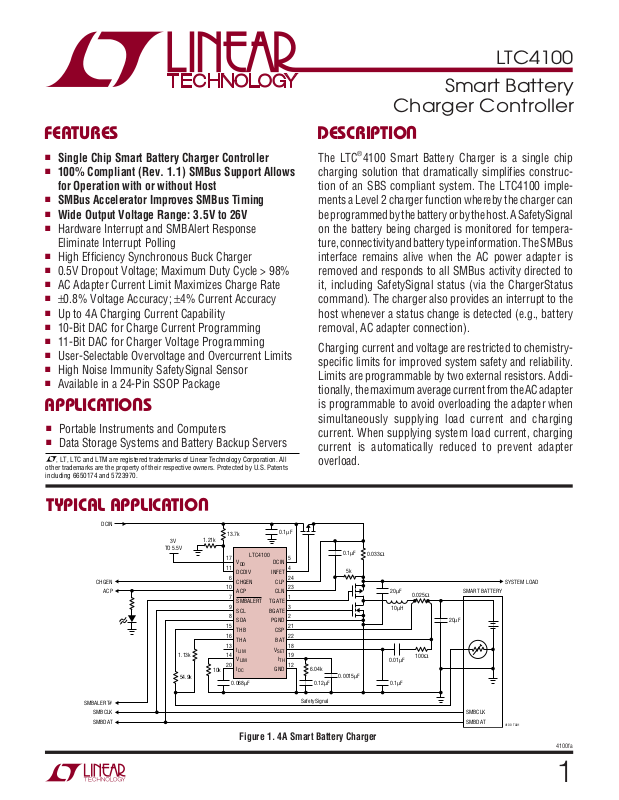

Datasheet LTC4100 Datasheet (LINEAR TECHNOLOGY)

FEATURES

■

Single Chip Smart Battery Charger Controller

■

100% Compliant (Rev. 1.1) SMBus Support Allows
for Operation with or without Host

■

SMBus Accelerator Improves SMBus Timing

■

Wide Output Voltage Range: 3.5V to 26V

■

Hardware Interrupt and SMBAlert Response
Eliminate Interrupt Polling

■

High Efficiency Synchronous Buck Charger

■

0.5V Dropout Voltage; Maximum Duty Cycle > 98%

■

AC Adapter Current Limit Maximizes Charge Rate

■

±0.8% Voltage Accuracy; ±4% Current Accuracy

■

Up to 4A Charging Current Capability

■

10-Bit DAC for Charge Current Programming

■

11-Bit DAC for Charger Voltage Programming

■

User-Selectable Overvoltage and Overcurrent Limits

■

High Noise Immunity SafetySignal Sensor

■

Available in a 24-Pin SSOP Package

U

APPLICATIO S

■

Portable Instruments and Computers

■

Data Storage Systems and Battery Backup Servers

, LT, LTC and LTM are registered trademarks of Linear Technology Corporation. All
other trademarks are the property of their respective owners. Protected by U.S. Patents
including 6650174 and 5723970.

LTC4100

Smart Battery

Charger Controller

U

DESCRIPTIO

The LTC®4100 Smart Battery Charger is a single chip
charging solution that dramatically simplifies construc­tion of an SBS compliant system. The LTC4100 imple­ments a Level 2 charger function whereby the charger can
be programmed by the battery or by the host. A SafetySignal
on the battery being charged is monitored for tempera­ture, connectivity and battery type information. The SMBus
interface remains alive when the AC power adapter is
removed and responds to all SMBus activity directed to
it, including SafetySignal status (via the ChargerStatus
command). The charger also provides an interrupt to the
host whenever a status change is detected (e.g., battery
removal, AC adapter connection).

Charging current and voltage are restricted to chemistry­specific limits for improved system safety and reliability.
Limits are programmable by two external resistors. Addi­tionally, the maximum average current from the AC adapter
is programmable to avoid overloading the adapter when
simultaneously supplying load current and charging
current. When supplying system load current, charging
current is automatically reduced to prevent adapter
overload.

TYPICAL APPLICATIO

DCIN

3V

TO 5.5V

CHGEN

ACP

1.13k

54.9k

SMBALERT#

SMBCLK

SMBDAT

1.21k

U

LTC4100

DCIN

INFET

CLP

CLN

TGATE

BGATE

PGND

CSP

BAT

V

GND

0.1µF

SET

I

TH

5

4

24

23

1

3

2

21

22

18

19

12

6.04k

0.12µF

SafetySignal

10k

13.7k

17

11

6

10

7

9

8

15

16

13

14

20

0.068µF

V

DD

DCDIV

CHGEN

ACP

SMBALERT

SCL

SDA

THB

THA

I

LIM

V

LIM

I

DC

Figure 1. 4A Smart Battery Charger

0.1µF

5k

0.0015µF

0.033Ω

20µF

10µH

0.01µF

0.1µF

0.025Ω

100Ω

SMART BATTERY

20µF

SMBCLK

SMBDAT

SYSTEM LOAD

4100 TA01

4100fa

1

LTC4100

WW

W

U

ABSOLUTE AXI U RATI GS

(Note 1)

Voltage from VDD to GND ................................ 7V/–0.3V

Voltage from CHGEN, DCDIV, SDA, SCL

and SMBALERT to GND .............................. 7V/–0.3V

Voltage from DCIN, CLP, CLN to GND ........... 32V/–0.3V

Voltage from CLP to CLN...................................... ±0.3V

PGND wrt. GND .................................................... ±0.3V

CSP, BAT to GND.............................................. 28V/–5V

Operating Ambient Temperature Range (Note 4)

........................................................... – 40°C to 85°C

Junction Temperature Range............... – 40°C to 125°C

Storage Temperature Range ................. –65°C to 150°C

Lead Temperature (Soldering, 10 sec).................. 300°C

UUW

PACKAGE/ORDER I FOR ATIO

TOP VIEW

1

TGATE

PGND

BGATE

INFET

DCIN

CHGEN

SMBALERT

SDA

SCL

ACP

DCDIV

GND

2

3

4

5

6

7

8

9

10

11

12

G PACKAGE

24-LEAD PLASTIC SSOP

T

= 125°C, θJA = 90°C/W

JMAX

CLP

24

CLN

23

BAT

22

CSP

21

I

20

DC

I

19

TH

V

18

SET

V

17

DD

THA

16

THB

15

V

14

LIM

I

13

LIM

Order Options Tape and Reel: Add #TR
Lead Free: Add #PBF Lead Free Tape and Reel: Add #TRPBF

Lead Free Part Marking: http://www.linear.com/leadfree/

Consult LTC Marketing for parts specified with wider operating temperature ranges.

ORDER PART

NUMBER

LTC4100EG

ELECTRICAL CHARACTERISTICS

temperature range, otherwise specifications are at TA = 25°C. V

The ● denotes the specifications which apply over the full operating

= 20V, VDD = 3.3V, V

DCIN

= 12V unless otherwise noted. (Note 4)

BAT

SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS

I

DCIN

DCIN Operating Range

DCIN Operating Current Charging, Sum of Currents on 3 5 mA

●

628V

DCIN, CLP and CLN

V

I

V

TOL

TOL

DD

Charge Voltage Accuracy (Note 2) –0.8 0.8 %

●

–1 1 %

Charge Current Accuracy (Note 3) V

VDD Operating Voltage 0V ≤ V

I

CSP

DAC

– V

Target = 102.3mV –4 4 %

BAT

= 0xFFFF

≤ 28V

DCIN

●

–5 5 %

●

3 5.5 V

Shutdown

Battery Leakage Current DCIN = 0V, V

UVLO Undervoltage Lockout Threshold DCIN Rising, V

VDD Power-Fail Part Held in Reset Until this VDD Present

DCIN Current in Shutdown V

= 0V 2 3 mA

CHGEN

CLP

BAT

= V

= 0V

CLN

= V

CSP

= V

BAT

●

●

4.2 4.7 5.5 V

●

15 35 µA

3V

Current Sense Amplifier, CA1

Input Bias Current into BAT Pin 11.66 µA

CMSL CA1/I1 Input Common Mode Low

CMSH CA1/I1 Input Common Mode High V

DCIN

≤ 28V

●

0V

●

V

-0.2 V

CLN

2

4100fa

LTC4100

ELECTRICAL CHARACTERISTICS

temperature range, otherwise specifications are at T

The ● denotes the specifications which apply over the full operating

= 25°C. V

A

= 20V, VDD = 3.3V, V

DCIN

= 12V unless otherwise noted. (Note 4)

BAT

SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS

Current Comparators I

I

TMAX

I

TREV

and I

CMP

REV

Maximum Current Sense Threshold (V

Reverse Current Threshold (V

CSP-VBAT

CSP-VBAT

ITH

= 2.5V

●

140 165 200 mV

)V

)–30mV

Current Sense Amplifier, CA2

Transconductance 1 mmho

Source Current Measured at ITH, V

Sink Current Measured at ITH, V

= 1.4V –40 µA

ITH

= 1.4V 40 µA

ITH

Current Limit Amplifier

Transconductance 1.5 mmho

V

I

CLP

CLN

Current Limit Threshold

●

93 100 107 mV

CLN Input Bias Current 100 nA

Voltage Error Amplifier, EA

Transconductance 1 mmho

Sink Current Measured at I

OVSD Overvoltage Shutdown Threshold as a Percent

= 1.4V 36 µA

TH, VITH

●

102 107 110 %

of Programmed Charger Voltage

Input P-Channel FET Driver (INFET)

DCIN Detection Threshold (V

DCIN-VCLP

Forward Regulation Voltage (V

Reverse Voltage Turn-Off Voltage (V

INFET “ON” Clamping Voltage (V

INFET “OFF” Clamping Voltage (V

) DCIN Voltage Ramping Up

from V

CLP

DCIN-VCLP

)

DCIN-VCLP

DCIN-VINFET

DCIN-VINFET

)

)I

)I

= 1µA

INFET

= –25µA 0.25 V

INFET

-0.05V

●

0 0.17 0.25 V

●

●

–60 –25 mV

●

5 5.8 6.5 V

25 50 mV

Oscillator

f

f

DC

OSC

MIN

MAX

Regulator Switching Frequency 255 300 345 kHz
Regulator Switching Frequency in Drop Out Duty Cycle ≥ 98% 20 25 kHz

Regulator Maximum Duty Cycle V

CSP

= V

BAT

98 99 %

Gate Drivers (TGATE, BGATE)

V

High (V

TGATE

V

BGATE

V

TGATE

V

BGATE

CLP-VTGATE

High C

Low (V

CLP-VTGATE

Low I

)I

)C

= –1mA 50 mV

TGATE

= 3000pF 4.5 5.6 10 V

LOAD

= 3000pF 4.5 5.6 10 V

LOAD

= 1mA 50 mV

BGATE

TGATE Transition Time
TGTR TGATE Rise Time C
TGTF TGATE Fall Time C

= 3000pF, 10% to 90% 50 110 ns

LOAD

= 3000pF, 10% to 90% 50 100 ns

LOAD

BGATE Transition Time
BGTR BGATE Rise Time C
BGTF BGATE Fall Time C

V

at Shutdown (V

TGATE

V

at Shutdown I

BGATE

CLN-VTGATE

)I

= 3000pF, 10% to 90% 40 90 ns

LOAD

= 3000pF, 10% to 90% 40 80 ns

LOAD

= –1µA 100 mV

TGATE

= 1µA 100 mV

TGATE

4100fa

3

LTC4100

ELECTRICAL CHARACTERISTICS

temperature range, otherwise specifications are at T

The ● denotes the specifications which apply over the full operating

= 25°C. V

A

= 20V, VDD = 3.3V, V

DCIN

= 12V unless otherwise noted. (Note 4)

BAT

SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS

AC Present Comparator

V

ACP

DCDIV Threshold V

Rising from 1V to 1.4V

DCDIV

●

1.14 1.20 1.26 V

DCDIV Hysteresis 25 mV

DCDIV Input Bias Current V

ACP V

OH

ACP V

OL

DCDIV to ACP Delay V

= 1.2V –1 1 µA

DCDIV

I

= –2mA 2 V

ACP

I

= 1mA 0.5 V

ACP

= 1.3V 10 µs

DCDIV

SafetySignal Decoder

SafetySignal Trip (RES_COLD/RES_OR) R

SafetySignal Trip (RES_IDEAL/RES_COLD) R

SafetySignal Trip (RES_HOT/RES_IDEAL) R

SafetySignal Trip (RES_UR/RES_HOT) R

= 1130Ω ±1%, C

THA

= 54.9Ω ±1%

R

THB

= 1130Ω ±1%, C

THA

= 54.9Ω ±1%

R

THB

= 1130Ω ±1%, C

THA

= 54.9Ω ±1%

R

THB

= 1130Ω ±1%, C

THA

R

= 54.9Ω ±1%

THB

= 1nF (Note 6)

TH

= 1nF (Note 6)

TH

= 1nF (Note 6)

TH

= 1nF (Note 6)

TH

●

95 100 105 kΩ

●

28.5 30 31.5 kΩ

●

2.85 3 3.15 kΩ

●

425 500 575 Ω

Time Between SafetySignal Measurements DCDIV = 1.3V 32 ms

DCDIV = 1V 250 ms

DACs

Charging Current Resolution Guaranteed Monotonic Above I

Charging Current Granularity R

Wake-Up Charging Current (I

) All Values of R

WAKE-UP

Charging Current Limit R

= 0 1 mA

ILIM

= 10k ±1% 2 mA

R

ILIM

= 33k ±1% 4 mA

R

ILIM

R

= Open (or Short to VDD)4mA

ILIM

All Values of R

ILIM =

ILIM
VLIM

0 (0-1A) 97.3 107.3 mV

/16 10 Bits

MAX

80 (Note 5) mA

CSP – BAT Charging Current = 0x03FF (0x0400 Note 7)

R

10k ±1% (0-2A) 97.3 107.3 mV

ILIM =

Charging Current = 0x07FE (0x0800 Note 7)

R

33k ±1% (0-3A) 72.3 82.3 mV

ILIM =

Charging Current = 0x0BFC (0x0C00 Note 7)

R

0pen (or Short to VDD) (0-4A) 97.3 107.3 mV

ILIM =

Charging Current = 0x0FFC (0x1000 Note 7)

Charging Voltage Resolution Guaranteed Monotonic (2.9V ≤ V

28V) 11 Bits

BAT ≤

Charging Voltage Granularity 16 mV

Charging Voltage Limit R

= 0 8.730 8.800 8.870 V

VLIM

Charging Voltage = 0x2260 (Note 7)

R

= 10k ±1% 12.999 13.104 13.209 V

VLIM

Charging Voltage = 0x3330 (Note 7)

R

= 33k ±1% 17.269 17.408 17.547 V

VLIM

Charging Voltage = 0x4400 (Note 7)

R

= 100k ±1% 21.538 21.712 21.886 V

VLIM

Charging Voltage = 0x5400 DCIN ≥ 22V (Note 7)

R

= 0pen (or Short to VDD) 27.781 28.006 28.231 V

VLIM

Charging Voltage = 0x6D60 DCIN ≥ 29V (Note 7)

4100fa

4

LTC4100

ELECTRICAL CHARACTERISTICS

temperature range, otherwise specifications are at T

The ● denotes the specifications which apply over the full operating

= 25°C. V

A

= 20V, VDD = 3.3V, V

DCIN

= 12V unless otherwise noted. (Note 4)

BAT

SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS

Logic Levels

V

V

V

I

IL

I

IH

V

I

LEAK

V

V

V

IL

IH

OL

OL

OL

IL

IH

SCL/SDA Input Low Voltage VDD = 3V and VDD = 5.5V

SCL/SDA Input High Voltage VDD = 3V and VDD = 5.5V

SDA Output Low Voltage I

SCL/SDA Input Current V

SCL/SDA Input Current V

SMBALERT Output Low Voltage I

SMBALERT Output Pull-Up Current V

SDA/SCL/SMBALERT Power Down Leakage V

PULL-UP

, V

SDA

, V

SDA

PULL-UP

SMBALERT

, V

SDA

= 350µA

= V

SCL

= V

SCL

= 500µA

= V

, V

SCL

IL

IH

OL

SMBALERT

= 5.5V, VDD = OV

CHGEN Output Low Voltage IOL = 100µA

CHGEN Output Pull-Up Current V

CHGEN

= V

OL

CHGEN Input Low Voltage

CHGEN Input High Voltage VDD = 3V

= 5.5V 3.9 V

V

DD

●

●

2.1 V

●

0.8 V

0.4 V

–1 1 µA

–1 1 µA

●

0.4 V

–17.5 –10 –3.5 µA

●

–2 2 µA

●

0.5 V

–17.5 –10 –3.5 µA

●

●

2.5 V

0.9 V

Power-On Reset Duration VDD Ramp from 0V to >3V in <5µs 100 µs

SMBus Timing (Refer to System Management Bus Specification, Revision 1.1, Section 2.1 for Timing Diagrams)

t

HIGH

t

LOW

t

R

t

F

t

SU:STA

t

HD:STA

t

HD:DAT

SCL Serial Clock High Period I

SCL Serial Clock Low Period I

SDA/SCL Rise Time C

SDA/SCL Fall Time C

= 350µA, C

PULL-UP

V

= 3V and VDD = 5.5V

DD

= 350µA, C

PULL-UP

V

= 3V and VDD = 5.5V

DD

= 250pF, RPU = 9.31k, VDD = 3V

LOAD

= 5.5V

and V

DD

= 250pF, RPU = 9.31k, VDD = 3V

LOAD

= 5.5V

and V

DD

LOAD

LOAD

Start Condition Setup Time VDD = 3V and VDD = 5.5V

Start Condition Hold Time VDD = 3V and VDD = 5.5V

SDA to SCL Falling-Edge Hold Time, VDD = 3V and VDD = 5.5V

= 250pF, RPU = 9.31k,

= 250pF, RPU = 9.31k,

●

4 µs

●

4.7 15000 µs

●

●

●

4.7 µs

●

4 µs

●

300 ns

1000 ns

300 ns

Slave Clocking in Data

t

TIMEOUT

Time Between Receiving Valid VDD = 3V and VDD = 5.5V

●

140 175 210 sec
ChargingCurrent() and
ChargingVoltage() Commands

Note 1: Stresses beyond those listed under Absolute Maximum Ratings
may cause permanent damage to the device. Exposure to any Absolute
Maximum Rating condition for extended periods may affect device
reliabilty and lifetime.

Note 2: See Test Circuit.
Note 3: Does not include tolerance of current sense resistor.
Note 4: The LTC4100E is guaranteed to meet performance specifications

from 0°C to 70°C. Specifications over the –40°C to 85°C operating

temperature range are assured by design, characterization and correlation
with statistical process controls.

Note 5: Current accuracy dependent upon circuit compensation and sense
resistor.

Note 6: C

is defined as the sum of capacitance on THA, THB and

TH

SafetySignal.
Note 7: The corresponding overrange bit will be set when a HEX value

greater than or equal to this value is used.

4100fa

5

LTC4100

UW

TYPICAL PERFOR A CE CHARACTERISTICS

INFET Response Time to
Reverse Current V

= 0

V

gs

V

= 0V

s

Id (REVERSE) OF
PFET (5A/DIV)

I

= 0A

d

TEST PERFORMED ON DEMOBOARD

= 15VDC

V

IN

CHARGER = ON

= <10mA

I

CHARGE

Vgs OF PFET (2V/DIV)

Vs OF PFET (5V/DIV)

1.25µs/DIV

V

= 12.6V

CHARGE

INFET = 1/2 Si4925DY

4100 G01

–0.5

–1.0

–1.5

–2.0

–2.5

–3.0

–3.5

–4.0

OUTPUT VOLTAGE ERROR (%)

–4.5

–5.0

vs I

OUT

0

DCIN = 20V
V

0 0.5 1.0 2.0 3.0 4.01.5 2.5 3.5 4.5

OUT

= 12.6V

BAT

OUTPUT CURRENT (A)

4100 G02

PWM Frequency vs Duty Cycle

350

300

250

200

150

100

PWM FREQUENCY (kHz)

50

PROGRAMMED CURRENT = 10%

DCIN = 15V
DCIN = 20V

0

0 0.1 0.2 0.4 0.6 0.90.80.3 0.5 0.7 1.0

DCIN = 24V

DUTY CYCLE (V

OUT/VIN

)

4100 G03

Disconnect/Reconnect Battery
(Load Dump)

3A STEP

V

FLOAT

1V/(DIV)

LOAD

STATE

1A STEP

DISCONNECT

LOAD CURRENT = 1A, 2A, 3A
DCIN = 20V

= 12.6V

V

FLOAT

Efficiency at 12.6V with 15V V

100

95

90

85

EFFICIENCY (%)

80

1A STEP

3A STEP

RECONNECT

4100 G04

DCIN

Battery Leakage Current vs
Battery Voltage

40

VDCIN = 0V

35

30

25

20

15

10

BATTERY LEAKAGE CURRENT (µA)

5

0

0 5 10 15 20 25 30

BATTERY VOLTAGE (V)

SMBus Accelerator Operation

VDD = 5V

= 200pF

C

BUS

5V

= 25°C

T

A

LTC4100

R

= 15k

PULLUP

0V

4100 G05

Efficiency at 19V V

100

95

90

85

EFFICIENCY (%)

80

75

1.000.50 1.50 2.00 2.50 3.00
CHARGING CURRENT (A)

Low Current Operation

0.5
VDD = 5V

TEMP = 27°C
DCIN = 15V

0.4

0.3

NO LOW
CURRENT

0.2

MODE

0.1

MEASURED CURRENT (A)

0

16.8V

12.6V

LOW
CURRENT
MODE

DCIN

PROGRAMMED
CURRENT

4100 G07

6

75

1.000.50 1.50 2.00 2.50 3.00
CHARGING CURRENT (A)

4100 G08

1µs/DIV

4100 G09

–0.1

0

0.1

PROGRAMMED CURRENT (A)

0.2

0.40.3

4100 G10

4100fa

UW

TYPICAL PERFOR A CE CHARACTERISTICS

LTC4100

Charging Current Error

0.4

VDD = 5V
TEMP = 27°C

0.3

0.2

0.1

–0.1

–0.2

OUTPUT CURRENT ERROR (A)

–0.3

–0.4

= 12V

V

LOAD

0

0

1
CHARGING CURRENT (A)

DCIN = 15V, NoLowI
DCIN = 20V, NoLowI
DCIN = 15V, LowI
DCIN = 20V, LowI

2

4100 G11

Charging Voltage Error

0.150
VDD = 5V

0.125

TEMP = 27°C

= 0.120A

I

0.100

LOAD

0.075

0.050

0.025

0

–0.025

–0.050

–0.075

OUTPUT VOLTAGE ERROR (V)

–0.100

–0.125

43

–0.150

42 6 10 14 18

0

DCIN = 15V

8

CHARGING VOLTAGE (V)

DCIN = 20V

12

16

2220

4100 G12

4100fa

7

LTC4100

U

UU

PI FU CTIO S

TGATE (Pin 1): Drives the Top External P-MOSFET of the
Battery Charger Buck Converter.

PGND (Pin 2): High Current Ground Return for BGATE
Driver.

BGATE (Pin 3): Drives the Bottom External N-MOSFET of
the Battery Charger Buck Converter.

INFET (Pin 4): Drives the Gate of the External Input
P-MOSFET.

DCIN (Pin 5): External DC Power Source Input. Bypass to
ground with a 0.1µF capacitor.

CHGEN (Pin 6): Digital Bidirectional Pin to Enable Charger
Function. This pin is connected as a wired AND bus.

The following events will cause the POWER_FAIL bit in
the ChargerStatus register to become set:

1. An external device pulling the CHGEN signal to within

0.9V to GND;

2. The AC adapter voltage is not above the battery
voltage.

SMBALERT (Pin 7): Active Low Interrupt Output to Host
(referred to as the SMBALERT# signal in the SMBus
Revision 1.1 specification). Signals host that there has
been a change of status in the charger registers and that
the host should read the LTC4100 status registers to
determine if any action on its part is required. This signal
can be connected to the optional SMBALERT# line of the
SMBus. Open drain with weak current source pull-up to
V

(with Schottky to allow it to be pulled to 5V externally).

DD

SDA (Pin 8): SMBus Data Signal from Main (host-con­trolled) SMBus. External pull-up resistor is required.

SCL (Pin 9): SMBus Clock Signal from Main (host-con­trolled) SMBus. External pull-up resistor is required.

ACP (Pin 10): This Output Indicates the Value of the DCDIV
Comparator. It can be used to indicate whether AC is
present or not.

DCDIV (Pin 11): Supply Divider Input. This is a high
impedance comparator input with a 1.2V threshold (rising
edge) and hysteresis.

GND (Pin 12): Ground for Digital and Analog Circuitry.

(Pin 13): An external resistor is connected between

I

LIM

this pin and GND. The value of the external resistor
programs the range and resolution of the programmed
charger current.

V

(Pin 14): An external resistor is connected between

LIM

this pin and GND. The value of the external resistor
programs the range and resolution of the charging
voltage.

THB (Pin 15): SafetySignal Force/Sense Pin to Smart
Battery. See description of operation for more detail. The
maximum allowed combined capacitance on THA, THB
and SafetySignal is 1nF (see Figure 4). A series resistor

54.9k needs to be connected between this pin and the
battery’s SafetySignal for this circuit to work correctly.

THA (Pin 16): SafetySignal Force/Sense Pin to Smart
Battery. See description of operation for more detail. The
maximum allowed combined capacitance on THA, THB
and SafetySignal is 1nF (see Figure 4). A series resistor
1130Ω needs to be connected between this pin and the
battery’s SafetySignal for this circuit to work correctly.

(Pin 17): Power Supply Input for the LTC4100 Digital

V

DD

Circuitry. Bypass this pin with 0.1µF. Typically between

3.3V and 5V

(Pin 18): Tap Point of the Programmable Resistor

V

SET

Divider, which Provides Battery Voltage Feedback to the
Charger.

DC

.

8

4100fa

LTC4100

U

UU

PI FU CTIO S

ITH (Pin 19): Control Signal of the Inner Loop of the
Current Mode PWM. Higher I
charging current in normal operation. A 0.0015µF capaci-
tor to GND filters out PWM ripple. Typical full-scale output
current is 40µA. Nominal voltage range for this pin is 0V
to 3V.

I

(Pin 20): Bypass to GND with a 0.068µF Capacitor.

DC

CSP (Pin 21): Current Amplifier CA1 Input. This pin and

the BAT pin measure the voltage across the sense resistor,
R
quired for both peak and average current mode operation.

, to provide the instantaneous current signals re-

SENSE

corresponds to higher

TH

BAT (Pin 22): Battery Sense Input and the Negative
Reference for the Current Sense Resistor. A bypass ca­pacitor of at least 10µF is required.

CLN (Pin 23): Negative Input to the Input Current Limiting
Circuit Block. If no current limit function is desired, con­nect this pin to CLP. The threshold is set at 100mV below
the voltage at the CLP pin. When used to limit supply
current, a filter is needed to filter out the switching noise.

CLP (Pin 24): Positive Input to the Input Current Limiting
Circuit Block. This pin also serves as a power supply for
the IC.

4100fa

9

LTC4100

BLOCK DIAGRA

W

V

BAT

SYSTEM
LOAD

L1

CSP

D1

R1

R

CL

Q1

V

IN

TO HOST AND BATTERY

1.13k

54.9k

R4

100Ω

C5, 0.1µF

C9

C1, 0.1µF

10k

0.01µF

Q2

Q3

C4

V

GND

20µF

TGATE

BGATE

PGND

CLN

CLP

DCIN

INFET

CHGEN

SMBALERT

SDA

SCL

THA

THB

SET

V

20µF

R

ILIM

BAT

C7

0.0015µF

V

IN

–

+

+
–

–

+

10-BIT

I

DAC

3k

11.67µA

3k

9k

17mV

1.19V

1.2V

CA1

BUFFERED

÷ 5

I

CMP

I

REV

gm = 1m

–

+

–

+

I

TH

CA2

Ω

LIMIT

DECODER

18

11-BIT

V

10µA

t

PWM

LOGIC

DAC

1.28V

ON

1.19V

100mV

V

DD

SMBus

INTERFACE

AND CONTROL

THERMISTER

INTERFACE

–

+

+

–

EA

Q

CL1

0V

gm = 1m

S
R

gm = 1.5m

Ω

Ω

CLP

12

1

3

2

23

24

5

4

6

7

8

9

16

15

CLP

DCIN

OSCILLATOR

WATCHDOG

DETECT

5.8V

22

R

21

20

19

10

11

17

13

14

BAT

SENSE

CSP

CSP

I

DC

I

TH

C6, 0.12µF

ACP
DCDIV

R11

V

TO SMBUS

DD

POWER SUPPLY

I

LIM

V

LIM

R

VLIM

C8

0.068µF

R5, 6.04k

R10

10

Figure 2.

4100fa

TEST CIRCUIT

LTC4100

+

SET

1.19V

LT1055

EA

–

V

DAC

+

–

–

+

21 22 18 19

CSP

BAT

V

LTC4100

I

TH

0.6V

4100 TC01

V

–

VV

TOL

V

VDAC

FOR V V x A

VDAC

DCIN V

=

CLN CLP V

==

BAT VDAC

=

•

17 57 0 44 0

=

21

20

100

.( )

4100fa

11

LTC4100

OPERATIO

U

Overview (Refer to Block Diagram)

The LTC4100 is composed of a battery charger section, a
charger controller, a 10-bit DAC to control charger cur­rent, an 11-bit DAC to control charger voltage, a SafetySignal
decoder, limit decoder and an SMBus controller block. If
no battery is present, the SafetySignal decoder indicates a
RES_OR condition and charging is disabled by the charger
controller (CHGEN = Low). Charging will also be disabled
if DCDIV is low, or the SafetySignal is decoded as
RES_HOT. If a battery is inserted and AC power is con­nected, the battery will be charged with an 80mA “wake­up” current. The wake-up current is discontinued after
t

TIMEOUT

if the SafetySignal is decoded as RES_UR or
RES_C0LD, and the battery or host doesn’t transmit
charging commands.

The SMBus interface and control block receives
ChargingCurrent() and ChargingVoltage() commands via
the SMBus. If ChargingCurrent() and ChargingVoltage()
command pairs are received within a t

TIMEOUT

interval, the
values are stored in the current and voltage DACs and the
charger controller asserts the CHGEN line if the decoded
SafetySignal value will allow charging to commence.
ChargingCurrent() and ChargingVoltage() values are com­pared against limits programmed by the limit decoder
block; if the commands exceed the programmed limits
these limits are substituted and overrange flags are set.

The charger controller will assert SMBALERT whenever
a status change is detected, namely: AC_PRESENT,
BATTERY_PRESENT, ALARM_INHIBITED, or V

DD

power-fail. The host may query the charger, via the SMBus,
to obtain ChargerStatus() information. SMBALERT will be
deasserted upon a successful read of ChargerStatus() or
a successful Alert Response Address (ARA) request.

Battery Charger Controller

The LTC4100 charger controller uses a constant off-time,
current mode step-down architecture. During normal
operation, the top MOSFET is turned on each cycle when
the oscillator sets the SR latch and turned off when the
main current comparator I

resets the SR latch. While

CMP

the top MOSFET is off, the bottom MOSFET is turned
on until either the inductor current trips the current

comparator I

, or the beginning of the next cycle.

REV

The oscillator uses the equation,

VV

(–)

t

OFF

DCIN BAT

=

Vf

(•)

DCIN OSC

to set the bottom MOSFET on time. The result is quasi­constant frequency operation: the converter frequency
remains nearly constant over a wide range of output
voltages. This activity is diagrammed in Figure 3.

OFF

TGATE

ON

ON

BGATE

OFF

INDUCTOR

CURRENT

The peak inductor current, at which I
latch, is controlled by the voltage on I

t

OFF

Figure 3.

TRIP POINT SET

VOLTAGE

BY I

TH

resets the SR

CMP

. ITH is in turn

TH

4100 F01

controlled by several loops, depending upon the situation
at hand. The average current control loop converts the
voltage between CSP and BAT to a representative current.
Error amp CA2 compares this current against the desired
current programmed by the I
I

for the desired voltage across R

TH

DAC

at the I

pin and adjusts

DC

.

SENSE

The voltage at BAT is divided down by an internal resistor
divider set by the V
decrease I

if the divider voltage is above the 1.19V

TH

and is used by error amp EA to

DAC

reference.

The amplifier CL1 monitors and limits the input current,
normally from the AC adapter, to a preset level (100mV/

). At input current limit, CL1 will decrease the I

R

CL

TH

voltage to reduce charging current.

An overvoltage comparator, OV, guards against transient
overshoots (>7%). In this case, the top MOSFET is turned
off until the overvoltage condition is cleared. This feature
is useful for batteries that “load dump” themselves by
opening their protection switch to perform functions such
as calibration or pulse mode charging.

4100fa

12

OPERATIO

LTC4100

U

PWM Watchdog Timer

There is a watchdog timer that observes the activity on the
TGATE pin. If TGATE stops switching for more than 40µs,
the watchdog activates and turns off the top MOSFET for
about 400ns. The watchdog engages to prevent very low
frequency operation in dropout – a potential source of
audible noise when using ceramic input and output
capacitors.

Charger Start-Up

When the charger is enabled, it will not begin switching
until the I
current will be positive. This threshold is 5% to 15% of the
maximum programmed current. After the charger begins
switching, the various loops will control the current at a
level that is higher or lower than the initial current. The
duration of this transient condition depends upon the loop
compensation, but is typically less than 1ms.

SMBus Interface

All communications over the SMBus are interpreted by the
SMBus interface block. The SMBus interface is a SMBus
slave device. All internal LTC4100 registers may be up­dated and accessed through the SMBus interface, and
charger controller as required. The SMBus protocol is a
derivative of the I

to Use It, V1.0”

Specification,” Version 1.1, from the SBS Implementers
Forum, for a complete description of the bus protocol
requirements.)

All data is clocked into the shift register on the rising edge
of SCL. All data is clocked out of the shift register on the
falling edge of SCL. Detection of an SMBus Stop condition,
or power-on reset via the VDD power-fail, will reset the
SMBus interface to an initial state at any time.

voltage exceeds a threshold that assures initial

TH

2

CTM bus (Reference

by Philips, and “System Management Bus

“I2C-Bus and How

Description of Supported Battery Charger Functions

The functions are described as follows (see Table 1 also):

FunctionName() 'hnn (command code)

Description: A brief description of the function.

Purpose: The purpose of the function, and an example

where appropriate.

• SMBus Protocol: Refer to Section 5 of the Smart
Battery Charger specification for more details.

Input, Output or Input/Output: A description of the data
supplied to or returned by the function.

ChargerSpecInfo() ('h11)

Description: The SMBus Host uses this command to read

the LTC4100’s extended status bits.

Purpose: Allows the System Host to determine the speci­fication revision the charger supports as well as other
extended status information.

• SMBus Protocol: Read Word.

Output: The CHARGER_SPEC indicates that the LTC4100

supports Version 1.1 of the Smart Battery Charger Speci­fication. The SELECTOR_SUPPORT indicates that the
LTC4100 does not support the optional Smart Battery
Selector Commands.

ChargerMode() ('h12)

Description: The SMBus Host uses this command to set

the various charger modes. The default values are set to
allow a Smart Battery and the LTC4100 to work in concert
without requiring an SMBus Host.

Purpose: Allows the SMBus Host to configure the charger
and change the default modes. This is a write only func­tion, but the value of the “mode” bit, INHIBIT_CHARGE
may be determined using the ChargerStatus() function.

The LTC4100 command set is interpreted by the SMBus
interface and passed onto the charger controller block as
control signals or updates to internal registers.

I2C is a trademark of Philips Electronics N.V.
*http://www. SBS-FORUM.org

• SMBus Protocol: Write Word.

Input: The INHIBIT_CHARGE bit allows charging to be

inhibited without changing the ChargingCurrent() and
ChargingVoltage() values. The charging may be resumed
by clearing this bit. This bit is automatically cleared when
power is reapplied or when a battery is reinserted.

4100fa

13

LTC4100

U

OPERATIO

Table 1: Summary of Supported Charger Functions

Function

ChargerSpecInfo() 7'b0001_001 8'h11 Info

ChargerMode() 7'b0001_001 8'h12 Control

ChargerStatus() 7'b0001_001 8'h13 Status

ChargingCurrent() 7'b0001_001 8'h14 Value CHARGING_CURRENT[15:0]

ChargingVoltage() 7'b0001_001 8'h15 Value CHARGING_VOLTAGE[15:0]

AlarmWarning() 7'b0001_001 8'h16 Control

SMBus

Access

Address

Read Values

Write Values

Read Values

Write Values

Write Values

Command

Code

Data
Type

D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 DO

Reserved

Return

0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0

Reserved

Permitted

AC_PRESENT

BATTERY_PRESENT

POWER_FAIL

Return

1/0 1/0 1/0 1/0 1/0 1/0 1/0 1/0 1/0 1/0 0 1 0 0 0 1/0

Permitted

Permitted

Ignored

ALARM_INHIBITED

RES_UR

RES_HOT

RES_COLD

RES_OR

VOLTAGE_OR

CURRENT_OR

Unsigned integer representing current in mA

Unsigned integer representing voltage in mV

CHARGER_SPEC

SELECTOR_SUPPORT

RESET_TO_ZERO

POR_RESET

1/0 1/0 Ign 1/0

CURRENT_NOTREG

LEVEL:3/LEVEL:2

VOLTAGE_NOTREG

ENABLE_POLLING

INHIBIT_CHARGE

POLLING_ENABLED

CHARGE_INHIBITED

14

OVER_CHARGED_ALARM

TERMINATE_CHARGE_ALARM

RESERVED_ALARM

OVER_TEMP_ALARM

TERMINATE_DISCHARGE_ALARM

Reserved

REMAINING_CAPACITY_ALARM

REMAINING_TIME_ALARM

INITIALIZED

DISCHARGING

FULLY_CHARGED

Permitted

Permitted

Return

Return
Values

1/0 1/0 1/0 1/0

Reserved

Ignored

00 01/000100000001 0

NO_LOWI

1/0

Not Supported

Write Values

LTCO()  7'b0001_001 8'h3C Register

Write Values

Read Values

Alert Response 7'b0001_100 N/A Status LTC4100's Address
Address

Read

Byte

Ignored

LTC4100's Version Identification

Ignored

0 0 0 1 0 0 1 X

FULLY DISCHARGED

ERROR

Undefined

4100fa

OPERATIO

LTC4100

U

The ENABLE_POLLING bit is not supported by the LTC4100.
Values written to this bit are ignored.

The POR_RESET bit sets the LTC4100 to its power-on
default condition.

The RESET_TO_ZERO bit sets the ChargingCurrent()and
ChargingVoltage() values to zero. This function ALWAYS
clears the ChargingVoltage() and ChargingCurrent() val­ues to zero even if the INHIBIT_CHARGE bit is set.

ChargerStatus() ('h13)

Description: The SMBus Host uses this command to read

the LTC4100’s status bits.

Purpose: Allows the SMBus Host to determine the status
and level of the LTC4100.

• SMBus Protocol: Read Word.

Output: The CHARGE_INHIBITED bit reflects the status of

the LTC4100 set by the INHIBIT_CHARGE bit in the
ChargerMode() function.

The POLLING_ENABLED, VOLTAGE_NOTREG, and
CURRENT_NOTREG are not supported by the LTC4100.

The LTC4100 always reports itself as a Level 2 Smart
Battery Charger.

CURRENT_OR bit is set only when ChargingCurrent() is
set to a value outside the current regulation range of the
LTC4100. This bit may be used in conjunction with the
INHIBIT_CHARGE bit of the ChargerMode() and
ChargingCurrent() to determine the current capability of
the LTC4100. When ChargingCurrent() is set to the pro­grammatic maximum current + 1, the CURRENT_OR bit
will be set.

VOLTAGE_OR bit is set only when ChargingVoltage() is
set to a value outside the voltage regulation range of the
LTC4100. This bit may be used in conjunction with the
INHIBIT_CHARGE bit of the ChargerMode() and
ChargingVoltage() to determine the voltage capability of
the LTC4100. When ChargingVoltage() is set to the
programmatic maximum voltage, the VOLTAGE_OR bit
will be set.

The RES_OR bit is set only when the SafetySignal resis­tance value is greater than 95kΩ. This indicates that the
SafetySignal is to be considered as an open circuit.

The RES_COLD bit is set only when the SafetySignal
resistance value is greater than 28.5kΩ. The SafetySignal
indicates a cold battery. The RES_COLD bit will be set
whenever the RES_OR bit is set.

The RES_HOT bit is set only when the SafetySignal resis­tance is less than 3150Ω, which indicates a hot battery.
The RES_HOT bit will be set whenever the RES_UR bit is
set.

The RES_UR bit is set only when the SafetySignal resis­tance value is less than 575Ω.

ALARM_INHIBITED bit is set if a valid AlarmWarning()
message has been received and charging is inhibited as a
result. This bit is cleared if both ChargingVoltage() and
ChargingCurrent() are rewritten to the LTC4100, power is
removed (DCDIV < V
setting of the ALARM_INHIBITED will activate the LTC4100
SMBALERT pull-down.

POWER_FAIL bit is set if the LTC4100 does not have
sufficient DCIN voltage to charge the battery or if an
external device is pulling the CHGEN input signal low.
Charging is disabled whenever this bit is set. The setting
of this bit does not clear the values in the ChargingVoltage()
and ChargingCurrent() function values, nor does it neces­sarily affect the charging modes of the LTC4100.

BATTERY_PRESENT is set if a battery is present otherwise
it is cleared. The LTC4100 uses the SafetySignal
in order to determine battery presence. If the LTC4100
detects a RES_OR condition, the BATTERY_PRESENT bit
is cleared immediately. The LTC4100 will not set the
BATTERY_PRESENT bit until it successfully samples the
SafetySignal twice and does not detect a RES_OR condi­tion on either sampling. If AC is not present (e.g. DCDIV <
V

), this bit may not be set for up to one-half second

ACP

after the battery is connected to the SafetySignal. The
ChargingCurrent() and ChargingVoltage() function values
are immediately cleared whenever this bit is cleared.
Charging will never be allowed if this bit is cleared. A
change in BATTERY_PRESENT will activate the LTC4100
SMBALERT pull-down.

AC_PRESENT is set if the voltage on DCDIV is greater than
V

. This does not necessarily indicate that the voltage on

ACP

DCIN is sufficient to charge the battery. A change in

), or if a battery is removed. The

ACP

4100fa

15

LTC4100

OPERATIO

U

AC_PRESENT will activate the LTC4100 SMBALERT pull­down.

ChargingCurrent() ('h14)

Description: The Battery, System Host or other master

device sends the desired charging current (mA) to the
LTC4100 .

Purpose: The LTC4100 uses R
I

, and the value of the ChargingCurrent() function to

DAC

, the granularity of the

ILIM

determine its charging current supplied to the battery. The
charging current will never exceed the maximum current
permitted by R
truncated to the granularity of the I

. The ChargingCurrent() value will be

ILIM

. The charging

DAC

current will also be reduced if the battery voltage exceeds
the programmed charging voltage.

• SMBus Protocol: Write Word.

Input: The CHARGING_CURRENT is an unsigned 16 bit

integer specifying the requested charging current in mA.
The following table defines the maximum permissible
value of CHARGING_CURRENT that will not set the
CURRENT_OR in the ChargerStatus() function for a given
value of the R

R

ILIM

Short to GND 0x0000 through 0x03FF 0mA through 1023mA
10kΩ ±1% 0x0000 through 0x07FF 0mA through 2047mA
33kΩ ±1% 0x0000 through 0x0BFF 0mA through 3071mA

Open (or short to VDD) 0x0000 through 0x0FFF 0mA through 4095mA

ILIM

:

ChargingCurrent() Current

Input: The CHARGING_VOLTAGE is an unsigned 16-bit

integer specifying the requested charging voltage in mV.
The LTC4100 considers any value from 0x0001 through
0x049F the same as writing 0x0000. The following
table defines the maximum permissible value of
CHARGING_VOLTAGE that will not set the VOLTAGE_OR
in the ChargerStatus() function for a given value of R

R

VLIM

Short to GND 0x225F (8796mV)
10kΩ ±1% 0x332F (13100mV)
33kΩ ±1% 0x43FF (17404mV)
100kΩ ±1% 0x54CF (21708mV)

Open (or short to VDD) 0x6D5F (27996mV)

Maximum ChargingVoltage()

VLIM

:

AlarmWarning() ('h16)

Description: The Smart Battery, acting as a bus master

device, sends the AlarmWarning() message to the LTC4100
to notify it that one or more alarm conditions exist. Alarm
indications are encoded as bit fields in the Battery’s Status
register, which is then sent to the LTC4100 by this
function.

Purpose: The LTC4100 will use the information sent by
this function to properly charge the battery. The LTC4100
will only respond to certain alarm bits. Writing to this
function does not necessarily cause an alarm condition
that inhibits battery charging.

• SMBus Protocol: Write Word.

ChargingVoltage() ('h15)

Description: The Battery, SMBus Host or other master

device sends the desired charging voltage (mV) to the
LTC4100.

Purpose: The LTC4100 uses R
V

, and the value of the ChargingVoltage() function to

DAC

, the granularity of the

VLIM

determine its charging voltage supplied to the battery. The
charging voltage will never be forced beyond the voltage
permitted by R
truncated to the granularity of the V

. The ChargingVoltage() value will be

VLIM

. The charging

DAC

voltage will also be reduced if the battery current exceeds
the programmed charging current.

• SMBus Protocol: Write Word.

16

Input: Only the OVER_CHARGED_ALARM, TERMINATE
_CHARGE_ALARM, reserved (0x2000), and OVER
_TEMP_ALARM bits are supported by the LTC4100.
Writing a one to any of these specified bits will inhibit
the charging by the LTC4100 and will set the
ALARM_INHIBITED bit in the ChargerStatus() function. The
TERMINATE_DISCHARGE_ALARM, REMAINING_
CAPACITY_ALARM, REMAINING_TIME_ALARM, and the
ERROR bits are ignored by the LTC4100.

LTC0() ('h3C)

Description: The SMBus Host uses this command to

determine the version number of the LTC4100 and set
extended operation modes not defined by the Smart
Battery Charger Specification.

4100fa

OPERATIO

LTC4100

U

Purpose: This function allows the SMBus Host to deter­mine if the battery charger is an LTC4100. Identifying the
manufacturer and version of the Smart Battery Charger
permits software to perform tasks specific to a given
charger. The LTC4100 also provides a means of disabling
the LOWI current mode of the I

• SMBus Protocol: Write Word.

Input: The NO_LOWI is the only bit recognized by this

function. The default value of NO_LOWI is zero. The
LTC4100 LOWI current mode provides a more accurate
average charge current when the charge current is less
than 1/16 of the full scale I
is set, a less accurate I
the charging current, but because the charger is not
pulsed on and off, it may be preferred.

• SMBus Protocol: Read Word.

Output: The NO_LOWI indicates the I

tion. If clear, then the LOWI current mode will be used
when the charging current is less than 1/16 of the full­scale I

The LTC Version Identification will always be 0x202 for the
LTC4100.

DAC

value.

DAC

algorithm is used to generate

DAC

.

DAC

value. When the NO_LOWI

mode of opera-

DAC

• Change of BATTERY_PRESENT in the ChargerStatus()
function.

• Setting ALARM_INHIBITED in the ChargerStatus()
function.

• Internal power-on reset condition.

SMBus Accelerator Pull-Ups

Both SCL and SDA have SMBus accelerator circuits which
reduce the rise time on systems with significant capaci­tance on the two SMBus signals. The dynamic pull-up
circuitry detects a rising edge on SDA or SCL and applies
1mA to 10mA pull-up to V
< VDD – 0.8V (external pull-up resistors are still required
to supply DC current). This action allows the bus to meet
SMBus rise time requirements with as much as 250pF on
each SMBus signal. The improved rise time will benefit all
of the devices which use the SMBus, especially those
devices that use the I
pull-up circuits only pull to V
that are not compliant to the SMBus specifications may
still have rise time compliance problems if the SMBus pull­up resistors are terminated with voltages higher than VDD.

2

C logic levels. Note that the dynamic

when VIN > 0.8V until V

DD

, so some SMBus devices

DD

IN

Alert Response Address (ARA)

Description: The SMBus system host uses the Alert

Response Address to quickly identify the generator of an
SMBALERT# event.

Purpose: The LTC4100 will respond to an ARA if the
SMBALERT signal is actively pulling down the SMBALERT#
bus. The LTC4100 will follow the prioritization reporting as
defined in the System Management Bus Specification,
Version 1.1, from the SBS Implementers Forum.

• SMBus Protocol: A 7-bit Addressable Device Re-

sponds to an ARA.

Output: The Device Address will be sent to the SMBus
system host. The LTC4100 Device address is 0x12 (or
0x09 if just looking at the 7-bit address field).

The following events will cause the LTC4100 to pull-down
the SMBALERT# bus through the SMBALERT pin:

• Change of AC_PRESENT in the ChargerStatus()
function.

The Control Block

The LTC4100 charger operations are handled by the
control block. This block is capable of charging the se­lected battery autonomously or under SMBus Host con­trol. The control block can request communications with
the system management host (SMBus Host) by asserting
SMBALERT = 0; this will cause the SMBus Host, if present,
to poll the LTC4100.

The control block receives SMBus slave commands from
the SMBus interface block.

The control block allows the LTC4100 to meet the follow­ing Smart Battery-controlled (Level 2) charger
requirements:

1. Implements the Smart Battery’s critical warning mes­sages over the SMBus.

2. Operates as an SMBus slave device that responds to
ChargingVoltage() and ChargingCurrent() commands
and adjusts the charger output parameters accordingly.

4100fa

17

LTC4100

OPERATIO

U

3. The host may control charging by disabling the Smart
Battery’s ability to transmit ChargingCurrent() and
ChargingVoltage() request functions and broadcasting
the charging commands to the LTC4100 over the SMBus.

4. The LTC4100 will still respond to Smart Battery critical
warning messages without host intervention.

Wake-up Charging Mode

The following conditions must be met in order to allow
wake-up charging of the battery:

1. The SafetySignal must be RES_COLD, RES_IDEAL, or

RES_UR.

2. AC must be present. This is qualified by DCDIV > V

Wake-up charging initiates when a newly inserted battery
does not send ChargingCurrent() and ChargingVoltage()
functions to the LTC4100.

The following conditions will terminate the Wake-up Charg­ing Mode.

ACP

.

9. There is insufficient DCIN voltage to charge the battery.
The LTC4100 will resume wake-up charging when there is
sufficient DCIN voltage to charge the battery. This condi­tion will not reset the T

Controlled Charging Algorithm Overview

The following conditions must be met in order to allow
controlled charging to start on the LTC4100:

1. The ChargingVoltage() AND ChargingCurrent() func­tion must be written to non-zero values.

2. The SafetySignal must be RES_COLD, RES_IDEAL, or
RES_UR.

3. AC must be present. This is qualified by DCDIV > V

The following conditions will stop the Controlled Charging
Algorithm and will cause the Battery Charger Controller to
stop charging:

1. The ChargingCurrent() AND ChargingVoltage() func­tions have not been written for T

TIMEOUT

timer.

TIMEOUT

.

ACP

.

1. A T

TIMEOUT

RES_COLD or RES_UR.

2. The SafetySignal is registering RES_OR.

3. The successful writing of the ChargingCurrent() AND

ChargingVoltage() function. The LTC4100 will proceed to
the controlled charging mode after these two functions are
written.

4. The SafetySignal is registering RES_HOT.

5. The AC power is no longer present. (DCDIV < V

6. The ALARM_INHIBITED becomes set in the

ChargerStatus() function.

7. The INHIBIT_CHARGE is set in the ChargerMode()

function.

8. The CHGEN pin is pulled low by an external device. The

LTC4100 will resume wake-up charging, if the CHGEN pin
is released by the external device. Toggling the CHGEN pin
will not reset the T

period is reached when the SafetySignal is

)

ACP

TIMEOUT

timer.

2. The SafetySignal is registering RES_OR.

3. The SafetySignal is registering RES_HOT.

4. The AC power is no longer present. (DCDIV < V

5. ALARM_INHIBITED is set in the ChargerStatus()
function.

6. INHIBIT_CHARGE is set in the ChargerMode() function.
Clearing INHIBIT_CHARGE will cause the LTC4100 to
resume charging using the previous ChargingVoltage()
AND ChargingCurrent() function values.

7. RESET_TO_ZERO is set in the ChargerMode() function.

8. CHGEN pin is pulled low by an external device. The
LTC4100 will resume charging using the previous
ChargingVoltage() AND ChargingCurrent() function val­ues, if the CHGEN pin is released by the external device.

9. Insufficient DCIN voltage to charge the battery. The
LTC4100 will resume charging using the previous
ChargingVoltage() AND ChargingCurrent() function val-

ACP

)

18

4100fa

OPERATIO

LTC4100

U

ues, when there is sufficient DCIN voltage to charge the
battery.

10. Writing a zero value to ChargingVoltage() function.

11. Writing a zero value to ChargingCurrent() function.

The SafetySignal Decoder Block

This block measures the resistance of the SafetySignal
and features high noise immunity at critical trip points. The
low power standby mode supports only battery presence
SMB charger reporting requirements when AC is not
present. The SafetySignal decoder is shown in Figure 4.
The value of R

is 1.13k and R

THA

is 54.9k.

THB

SafetySignal sensing is accomplished by a state machine
that reconfigures the switches of Figure 4 using THA_SELB
and THB_SELB, a selectable reference generator, and two
comparators. This circuit has two modes of operation
based upon whether AC is present.

When AC is present, the LTC4100 samples the value of the
SafetySignal and updates the ChargerStatus register ap­proximately every 32ms. The state machine successively
samples the SafetySignal value starting with the RES_OR
≥ RES_COLD threshold, then RES_C0LD ≥ RES_IDEAL
threshold, RES_IDEAL ≥ RES_HOT threshold, and finally
the RES_HOT ≥ RES_UR threshold. Once the SafetySignal

range is determined, the lower value thresholds are not
sampled. The SafetySignal decoder block uses the previ­ously determined SafetySignal value to provide the appro­priate adjustment in threshold to add hysteresis. The R

THB

resistor value is used to measure the RES_OR ≥ RES_COLD
and RES_COLD ≥ RES_IDEAL thresholds by connecting
the THB pin to V
the THA pin. The R

and measuring the voltage resultant on

DD

resistor value is used to measure

THA

the RES_IDEAL ≥ RES_HOT and RES_HOT ≥ RES_UR
thresholds by connecting the THA pin to V

and measur-

DD

ing the voltage resultant on the THB pin.

The SafetySignal decoder block uses a voltage divider
network between V

and GND to determine SafetySignal

DD

range thresholds. Since the THA and THB inputs are
sequentially connected to V

, this provides VDD noise

DD

immunity during SafetySignal measurement.

When AC power is not available the SafetySignal block
supports the following low power operating features:

1. The SafetySignal is sampled every 250ms or less,
instead of 32ms.

2. A full SafetySignal status is sampled every 30s or less,
instead of every 32ms.

The SafetySignal impedance is interpreted according to
Table 4.

V

DD

R

THA

1.13k
16

THA

R

THB

54.9k
15

R

SafetySignal

THB

C

SS

THA_SELB

MUX

HI_REF

REF

CONTROL

LATCH

LO_REF

RES_OR

RES_COLD

RES_H0T

RES_UR

V

DD

THB_SELB

SafetySignal

+

TH_HI

–

+

TH_LO

–

4100 F04

33k

V

LIM

14

R

VLIM

Figure 5. Simplified V

12.5k

12.5k

25k

25k

25k

V

DD

+

–

+

–

+

–

+

–

Circuit Concept (I

LIM

AC_PRESENT

ENCODER

LIM

4

V

[3:0]

LIM

4100 F05

is Similar)Figure 4. SafetySignal Decoder Block

4100fa

19

LTC4100

OPERATIO

U

Table 4. SafetySignal State Ranges

SafetySignal CHARGE
RESISTANCE STATUS BITS DESCRIPTION

0Ω to 500Ω RES_UR, Underrange

RES_HOT
BATTERY_PRESENT

500Ω to 3kΩ RES_HOT Hot

BATTERY_PRESENT

3kΩ to 30kΩ BATTERY_PRESENT Ideal

30kΩ to 100kΩ RES_COLD Cold

BATTERY_PRESENT

Above 100kΩ RES_OR Overrange

RES_COLD

Note: The underrange detection scheme is a very important feature of the
LTC4100. The R
well above the 0.047 • V
pull-up. A system using a 10k pull-up would not be able to resolve the
important underrange to hot transition point with a modest 100mV of
ground offset between battery and SafetySignal detection circuitry. Such
offsets are anticipated when charging at normal current levels.

THA/RSafetySignal

The required values for R

divider trip point of 0.333 • VDD (1V) is

(140mV) threshold of a system using a 10k

DD

THA

and R

are shown in

THB

Table 5.

Table 5. SafetySignal External Resistor Values

EXTERNAL RESISTOR VALUE (Ω)

R

THA

R

THB

1130 ±1%

54.9k ±1%

CSS represents the capacitance between the SafetySignal
and GND. C
immunity from transients in the application. C

may be added to provide additional noise

SS

cannot

SS

exceed 1nF if the LTC4100 is to properly sense the value
of R

SafetySignal

The I

LIM

.

Decoder Block

The value of an external resistor connected from this pin
to GND determines one of four current limits that are used
for maximum charging current value. These limits provide
a measure of safety with a hardware restriction on charg­ing current which cannot be overridden by software.

Table 6. I

EXTERNAL CONTROLLED
RESISTOR CHARGING
(R

ILIM

Short to GND V

10k ±1% 0.17V

33k ±1% 0.42V

Open (>250k, 0.66V
or Short to V

The V

Trip Points and Ranges

LIM

)I

DD

Decoder Block

LIM

VOLTAGE CURRENT RANGE GRANULARITY

LIM

< 0.09VDD0 < I < 1023mA 1mA

ILIM

< V

VDD

VDD

< V

VDD

< 0.59V

< V

VDD

ILIM

ILIM

ILIM

< 0.34V

)

0 < I < 2046mA 2mA

0 < I < 3068mA 4mA

0 < I < 4092mA 4mA

The value of an external resistor connected from this pin
to GND determines one of five voltage limits that are
applied to the charger output value. These limits provide
a measure of safety with a hardware restriction on charg­ing voltage which cannot be overridden by software.

Table 7. V

EXTERNAL CONTROLLED
RESISTOR CHARGING VOLTAGE
(R

VLIM

Short to V
GND < 8800mV

10k ±1% 0.17V

33k ±1% 0.42V

100k ±1% 0.66V

Open or 0.91V
Tied to V

Trip Points and Ranges (See Figure 5)

LIM

)V

DD

VOLTAGE (V

LIM

< 0.09V

VLIM

< 0.34V

< 0.59V

< 0.84V

VDD

VCCP

VDD

VDD

< V

VDD

< V

VDD

< V

VDD

< V

VCCP

VLIM

VLIM

VLIM

VLIM

OUT

2900mV < V

2900mV < V

< 13104mV

2900mV < V

< 17408mV

2900mV < V

< 21712mV

2900mV < V

< 28000mV

) RANGE GRANULARITY

OUT

OUT

OUT

OUT

OUT

16mV

16mV

16mV

16mV

16mV

The Voltage DAC Block

Note that the charger output voltage is offset by V
Therefore, the value of V

is subtracted from the SMBus

REF

REF

.

ChargingVoltage() value in order for the output voltage to
be programmed properly (without offset). If the
ChargingVoltage() value is below the nominal reference
voltage of the charger, nominally 1.184V, the charger
output voltage is programmed to zero. In addition, if the
ChargingVoltage() value is above the limit set by the V

LIM

pin, then the charger output voltage is set to the value
determined by the V
is set. These limits are demonstrated in Figure 6.

resistor and the VOLTAGE_OR bit

LIM

4100fa

20

OPERATIO

LTC4100

U

25

R

= 33k

VLIM

20

(V)

15

OUT

10

CHARGER V

5

0

0

NOTE: THE LTC4100 CAN BE PROGRAMMED WITH ChargingVoltage() FUNCTION VALUES
BETWEEN 1.184V AND 2.9V, HOWEVER, THE BATTERY CHARGER CONTROLLER OUTPUT
VOLTAGE MAY BE ZERO WITH PROGRAMMED VALUES BELOW 2.9V.

10

5

PROGRAMMED VALUE (V)

20

15

25

35

30

4100 F06

Figure 6. Transfer Function of Charger

The Current DAC Block

The current DAC is a delta-sigma modulator which con­trols the effective value of an external resistor, R

SET

, used
to set the current limit of the charger. Figure 7 is a
simplified diagram of the DAC operation. The delta-sigma
modulator and switch convert the ChargingCurrent() value,
received via the SMBus, to a variable resistance equal to:

1.25R

/[ChargingCurrent()/I

SET

LIM[x]

] = R

IDC

Therefore, programmed current is equal to:

I
for ChargingCurrent() < I

CHARGE

= (102.3mV/R

) (ChargingCurrent()/I

SENSE

.

LIM[x]

LIM[x]

),

When a value less than 1/16th of the maximum current
allowed by I

is applied to the current DAC input, the

LIM

current DAC enters a different mode of operation called
LOWI. The current DAC output is pulse width modulated
with a high frequency clock having a duty cycle value of
1/8. Therefore, the maximum output current provided by
the charger is I

/8. The delta-sigma output gates this

MAX

low duty cycle signal on and off. The delta-sigma shift
registers are then clocked at a slower rate, about 45ms/bit,
so that the charger has time to settle to the I

MAX

/8 value.
The resulting average charging current is equal to that
requested by the ChargingCurrent() value.

Note: The LOWI mode can be disabled by setting the
NO_LOWI bit in the LTC0() function.

When wake-up is asserted to the current DAC block, the
delta-sigma is then fixed at a value equal to 80mA, inde­pendent of the I

setting.

LIM

I

PROG

(FROM CA1 AMP)

I

DC

20

R

SET

V

REF

MODULATOR

∆-∑

–

+

CHARGING_CURRENT
VALUE

4100 F07

I

TH

19

Figure 7. Current DAC Operation

AVERAGE CHARGER CURRENT

I

/8

LIMIT

0

~40ms

4100 F08

Figure 8. Charging Current Waveform in Low Current Mode

Input FET

The input FET circuit performs two functions. It enables
the charger if the input voltage is higher than the CLP pin,
and provides an indication of this condition at both the
CHGEN pin and the PWR_FAIL bit in the ChargerStatus()
register. It also controls the gate of the input FET to keep
a low forward voltage drop when charging and prevents
reverse current flow through the input FET.

If the input voltage is less than V
130mV higher than V

to activate the charger. The

CLP

, it must go at least

CLP

CHGEN pin is forced low unless this condition is met. The
gate of the input FET is driven to a voltage sufficient to keep
a low forward voltage drop from drain to source. If the
voltage between DCIN and CLP drops to less than 25mV,
the input FET is turned off slowly. If the voltage between
DCIN and CLP is ever less than –25mV, then the input FET
is turned off quickly to prevent significant reverse current
from flowing in the input FET. In this condition the CHGEN
pin is driven low and the charger is disabled.

The AC Present Block (AC_PRESENT)

The DCDIV pin is used to determine AC presence. If the
DCDIV voltage is above the DCDIV comparator threshold
(V

), then the ACP output pin will be switched to VDD and

ACP

the AC_PRESENT bit in the ChargerStatus() function will
be set. If the DCDIV voltage is below the DCDIV compara­tor threshold minus the DCDIV comparator hysteresis,
then the ACP output pin is switched to GND and the
AC_PRESENT bit in the ChargerStatus() function is cleared.
The ACP output pin is designed to drive 2mA continuously.

4100fa

21

LTC4100

WUUU

APPLICATIO S I FOR ATIO

Adapter Limiting

An important feature of the LTC4100 is the ability to
automatically adjust charging current to a level which
avoids overloading the wall adapter. This allows the prod­uct to operate at the same time that batteries are being
charged without complex load management algorithms.
Additionally, batteries will automatically be charged at the
maximum possible rate of which the adapter is capable.

This feature is created by sensing total adapter output
current and adjusting charging current downward if a
preset adapter current limit is exceeded. True analog
control is used, with closed loop feedback ensuring that
adapter load current remains within limits. Amplifier CL1
in Figure 9 senses the voltage across R

, connected

CL

between the CLP and CLN pins. When this voltage exceeds
100mV, the amplifier will override programmed charging
current to limit adapter current to 100mV/R

. A lowpass

CL

filter formed by 4.99k and 0.1µF is required to eliminate
switching noise. If the current limit is not used, CLP should
be connected to CLN.

RCL = 100mV/I
I

= Adapter Min Current –

LIM

LIM

(Adapter Min Current • 7%)

As is often the case, the wall adapter will usually have at
least a +10% current limit margin and many times one can
simply set the adapter current limit value to the actual
adapter rating (Figure 9).

Charge Termination Issues

Batteries with constant current charging and voltage­based charger termination might experience problems
with reductions of charger current caused by adapter
limiting. It is recommended that input limiting feature be
defeated in such cases. Consult the battery manufacturer
for information on how your battery terminates charging.

Setting Output Current Limit (Refer to Figure 1)

The LTC4100 current DAC and the PWM analog circuitry
must coordinate the setting of the charger current. Failure
to do so will result in incorrect charge currents.

Setting Input Current Limit

To set the input current limit, you need to know the
minimum wall adapter current rating. Subtract 7% for the
input current limit tolerance and use that current to deter­mine the resistor value.

Table 8. Common RCL Resistor Values

ADAPTER –7% ADAPTER RCL VALUE* R

RATING (A) RATING (A) (Ω) 1% LIMIT (A) DISSIPATION (W) RATING (W)

1.5 1.40 0.068 1.47 0.15 0.25

1.8 1.67 0.062 1.61 0.16 0.25

2.0 1.86 0.051 1.96 0.20 0.25

2.3 2.14 0.047 2.13 0.21 0.25

2.5 2.33 0.043 2.33 0.23 0.50

2.7 2.51 0.039 2.56 0.26 0.50

3.0 2.79 0.036 2.79 0.28 0.50

3.3 3.07 0.033 3.07 0.31 0.50

3.6 3.35 0.030 3.35 0.33 0.50

4.0 3.72 0.027 3.72 0.37 0.50

* Rounded to nearest 5% standard step value. Many non standard values are popular.

LTC4100

–

CL1

+

+

100mV

*RCL =

100mV

ADAPTER CURRENT LIMIT

Figure 9. Adapter Current Limiting

CL

CLP

24

CLN

23

INFET

4

RCL POWER RCL POWER

C9

0.1µF

R1

4.99k

RCL*

TO LOAD

4100 F09

V

IN

4100fa

22

LTC4100

U

WUU

APPLICATIO S I FOR ATIO

Table 9. Recommended Resistor Values

I

(A) R

MAX

1.023 0.100 0.25 0

2.046 0.05 0.25 10k

3.068 0.025 0.5 33k

4.092 0.025 0.5 Open

Warning

DO NOT CHANGE THE VALUE OF R
TION. The value must remain fixed and track the R
value at all times. Changing the current setting can result
in currents that greatly exceed the requested value and
potentially damage the battery or overload the wall adapter
if no input current limiting is provided.

Inductor Selection

Higher operating frequencies allow the use of smaller
inductor and capacitor values. A higher frequency gener­ally results in lower efficiency because of MOSFET gate
charge losses. In addition, the effect of inductor value on
ripple current and low current operation must also be
considered. The inductor ripple current ∆I
with higher frequency and increases with higher V

(Ω) 1% R

SENSE

(W) R

SENSE

DURING OPERA-

ILIM

(Ω) 1%

ILIM

SENSE

decreases

L

.

IN

Table 10. Recommended Inductor Values

Maximum Input Minimum Inductor

Average Current (A) Voltage (V) Value (µH)

1 ≤20 40 ± 20%

1 >20 56 ± 20%
2 ≤20 20 ± 20%

2 >20 30 ± 20%
3 ≤20 15 ± 20%

3 >20 20 ± 20%
4 ≤20 10 ± 20%

4 >20 15 ± 20%

Charger Switching Power MOSFET
and Diode Selection

Two external power MOSFETs must be selected for use
with the charger: a P-channel MOSFET for the top (main)
switch and an N-channel MOSFET for the bottom (syn­chronous) switch.

The peak-to-peak gate drive levels are set internally. This
voltage is typically 6V. Consequently, logic-level threshold
MOSFETs must be used. Pay close attention to the BV

DSS

specification for the MOSFETs as well; many of the logic
level MOSFETs are limited to 30V or less.

∆I

1

=

L OUT

fL

()( )

⎛

1

V

−

⎜
⎝

V

OUT

V

IN

⎞
⎟

⎠

Accepting larger values of ∆IL allows the use of low
inductances, but results in higher output voltage ripple
and greater core losses. A reasonable starting point for
setting ripple current is ∆I
maximum ∆I

occurs at the maximum input voltage. The

L

= 0.4(I

L

). Remember the

MAX

inductor value also has an effect on low current operation.
The transition to low current operation begins when the
inductor current reaches zero while the bottom MOSFET is
on. Lower inductor values (higher ∆I

) will cause this to

L

occur at higher load currents, which can cause a dip in
efficiency in the upper range of low current operation. In
practice 10µH is the lowest value recommended for use.

Selection criteria for the power MOSFETs include the “ON”
resistance R
transfer capacitance C

, total gate capacitance QG, reverse

DS(ON)

, input voltage and maximum

RSS

output current. The charger is operating in continuous
mode so the duty cycles for the top and bottom MOSFETs
are given by:

Main Switch Duty Cycle = V

Synchronous Switch Duty Cycle = (VIN – V

OUT/VIN

OUT

)/VIN.

The MOSFET power dissipations at maximum output
current are given by:

OUT

)/VIN(I

)2(1 + δ∆T)R

)(C

MAX

)(f

RSS

)2(1 + δ∆T)R

MAX

DS(ON)

)

OSC

DS(ON)

4100fa

PMAIN = V

PSYNC = (V

OUT/VIN(IMAX

+ k(VIN)2(I

– V

IN

23

LTC4100

WUUU

APPLICATIO S I FOR ATIO

Where δ∆T is the temperature dependency of R

DS(ON)

and

k is a constant inversely related to the gate drive current.

2

Both MOSFETs have I

R losses while the PMAIN equation
includes an additional term for transition losses, which are
highest at high input voltages. For V

< 20V the high

IN

current efficiency generally improves with larger MOSFETs,
while for V
to the point that the use of a higher R
lower C

> 20V the transition losses rapidly increase

IN

device with

DS(ON)

actually provides higher efficiency. The syn-

RSS

chronous MOSFET losses are greatest at high input volt­age or during a short circuit when the duty cycle in this
switch in nearly 100%. The term (1 + δ∆T) is generally
given for a MOSFET in the form of a normalized R

DS(ON)

vs

temperature curve, but δ = 0.005/°C can be used as an
approximation for low voltage MOSFETs. C

is usually specified in the MOSFET characteristics.

∆V

DS

RSS

= QGD/

The constant k = 2 can be used to estimate the contribu­tions of the two terms in the main switch dissipation
equation.

If the charger is to operate in low dropout mode or with a
high duty cycle greater than 85%, then the topside
P-channel efficiency generally improves with a larger
MOSFET. Using asymmetrical MOSFETs may achieve cost
savings or efficiency gains.

The Schottky diode D1, shown in the Typical Application
on the back page, conducts during the dead-time between
the conduction of the two power MOSFETs. This prevents
the body diode of the bottom MOSFET from turning on and
storing charge during the dead-time, which could cost as
much as 1% in efficiency. A 1A Schottky is generally a
good size for 4A regulators due to the relatively small
average current. Larger diodes can result in additional
transition losses due to their larger junction capacitance.

The diode may be omitted if the efficiency loss can be
tolerated.

Calculating IC Power Dissipation

The power dissipation of the LTC4100 is dependent upon
the gate charge of the top and bottom MOSFETs (Q2 & Q3
respectively) The gate charge (QG) is determined from the
manufacturer’s data sheet and is dependent upon both the
gate voltage swing and the drain voltage swing of the

MOSFET. Use 6V for the gate voltage swing and V

DCIN

for

the drain voltage swing.

PD = V

DCIN

Example: V

• (f

QG
I

DD

(QGQ2 + QGQ3) + I

OSC

= 19V, f

DCIN

= 15nC, I

Q3

= 1mA.

) + VDD • I

DCIN

= 345kHz, QGQ2 = 25nC,

OSC

= 5mA, VDD = 5.5V,

DCIN

DD

PD = 428mW

Soft-Start and Undervoltage Lockout

The LTC4100 is soft-started by the 0.12µF capacitor on the
I

pin. On start-up, ITH pin voltage will rise quickly to 0.5V,

TH

then ramp up at a rate set by the internal 30µA pull-up
current and the external capacitor. Battery charging
current starts ramping up when ITH voltage reaches 0.8V
and full current is achieved with ITH at 2V. With a 0.12µF
capacitor, time to reach full charge current is about 2ms
and it is assumed that input voltage to the charger will
reach full value in less than 2ms. The capacitor can be
increased up to 1µF if longer input start-up times are
needed.

In any switching regulator, conventional timer-based
soft-starting can be defeated if the input voltage rises
much slower than the time out period. This happens
because the switching regulators in the battery charger
and the computer power supply are typically supplying a
fixed amount of power to the load. If input voltage comes
up slowly compared to the soft-start time, the regulators
will try to deliver full power to the load when the input
voltage is still well below its final value. If the adapter is
current limited, it cannot deliver full power at reduced
output voltages and the possibility exists for a quasi
“latch” state where the adapter output stays in a current
limited state at reduced output voltage. For instance, if
maximum charger plus computer load power is 30W, a
15V adapter might be current limited at 2.5A. If adapter
voltage is less than (30W/2.5A = 12V) when full power is
drawn, the adapter voltage will be pulled down by the
constant 30W load until it reaches a lower stable state
where the switching regulators can no longer supply full
load. This situation can be prevented by utilizing the
DCDIV resistor divider, set higher than the minimum
adapter voltage where full power can be achieved.

24

4100fa

WUUU

⎛

⎞

APPLICATIO S I FOR ATIO

LTC4100

Input and Output Capacitors

In the 4A Lithium Battery Charger (Typical Application on
back page), the input capacitor (C2) is assumed to absorb
all input switching ripple current in the converter, so it
must have adequate ripple current rating. Worst-case
RMS ripple current will be equal to one half of output
charging current. Actual capacitance value is not critical.
Solid tantalum low ESR capacitors have high ripple cur­rent rating in a relatively small surface mount package,

but
caution must be used when tantalum capacitors are used
for input or output bypass

. High input surge currents can
be created when the adapter is hot-plugged to the charger
or when a battery is connected to the charger. Solid
tantalum capacitors have a known failure mechanism
when subjected to very high turn-on surge currents. Only
Kemet T495 series of “Surge Robust” low ESR tantalums
are rated for high surge conditions such as battery to
ground.

The relatively high ESR of an aluminum electrolytic for C1,
located at the AC adapter input terminal, is helpful in
reducing ringing during the hot-plug event. Refer to AN88
for more information.

The highest possible voltage rating on the capacitor will
minimize problems. Consult with the manufacturer before
use. Alternatives include new high capacity ceramic (at
least 20µF) from Tokin, United Chemi-Con/Marcon, et al.
Other alternative capacitors include OSCON capacitors
from Sanyo.

The output capacitor (C3) is also assumed to absorb
output switching current ripple. The general formula for
capacitor current is:

tween the battery and the output capacitor depending on
the ESR of the output capacitor and the battery imped­ance. If the ESR of C3

is 0.2Ω and the battery impedance

is raised to 4Ω with a bead or inductor, only 5% of the
current ripple will flow in the battery.

Protecting SMBus Inputs

The SMBus inputs, SCL and SDA, are exposed to uncon­trolled transient signals whenever a battery is connected
to the system. If the battery contains a static charge, the
SMBus inputs are subjected to transients which can cause
damage after repeated exposure. Also, if the battery’s
positive terminal makes contact to the connector before
the negative terminal, the SMBus inputs can be forced
below ground with the full battery potential, causing a
potential for latch-up in any of the devices connected to the
SMBus inputs. Therefore it is good design practice to
protect the SMBus inputs as shown in Figure 10.

PCB Layout Considerations

For maximum efficiency, the switch node rise and fall
times should be minimized. To prevent magnetic and
electrical field radiation and high frequency resonant prob­lems, proper layout of the components connected to the IC
is essential. (See Figure 11.) Here is a PCB layout priority

V

DD

CONNECTOR
TO BATTERY

TO SYSTEM

4100 F13

V

029 1

.( )–

I

=

RMS

For example, V
f = 300kHz, I

RMS

V

BAT

()()

Lf

= 19V, V

DCIN

= 0.41A.

1

BAT

⎜
⎝

⎟

V

⎠

DCIN

= 12.6V, L1 = 10µH, and

BAT

EMI considerations usually make it desirable to minimize
ripple current in the battery leads, and beads or inductors
may be added to increase battery impedance at the300kHz
switching frequency. Switching ripple current splits be-

Figure 10. Recommended SMBus Transient Protection

SWITCH NODE

HIGH

FREQUENCY

V

C2

IN

CIRCULATING

PATH

Figure 11. High Speed Switching Path

L1

D1

C4

V

BAT

BAT

4100 F15

4100fa

25

LTC4100

WUUU

APPLICATIO S I FOR ATIO

list for proper layout. Layout the PCB using this specific
order.

1. Input capacitors need to be placed as close as possible
to switching FET’s supply and ground connections.
Shortest copper trace connections possible. These
parts must be on the same layer of copper. Vias must
not be used to make this connection.

2. The control IC needs to be close to the switching FET’s
gate terminals. Keep the gate drive signals short for a
clean FET drive. This includes IC supply pins that con­nect to the switching FET source pins. The IC can be
placed on the opposite side of the PCB relative to above.

3. Place inductor input as close as possible to switching
FET’s output connection. Minimize the surface area of
this trace. Make the trace width the minimum amount
needed to support current—no copper fills or pours.
Avoid running the connection using multiple layers in
parallel. Minimize capacitance from this node to any
other trace or plane.

4. Place the output current sense resistor right next to
the inductor output but oriented such that the IC’s
current sense feedback traces going to resistor are not
long. The feedback traces need to be routed together

as a single pair on the same layer at any given time with
smallest trace spacing possible. Locate any filter
component on these traces next to the IC and not at the
sense resistor location.

5. Place output capacitors next to the sense resistor
output and ground.

6. Output capacitor ground connections need to feed
into same copper that connects to the input capacitor
ground before tying back into system ground.

Interfacing with a Selector

The LTC4100 is designed to be used with a true analog
multiplexer for the SafetySignal sensing path. Some se­lector ICs from various manufacturers may not implement
this. Consult LTC applications department for more
information.

Electronic Loads

The LTC4100 is designed to work with a real battery.
Electronic loads will create instability within the LTC4100
preventing accurate programming currents and voltages.
Consult LTC applications department for more
information.

DIRECTION OF CHARGING CURRENT

R

SENSE

4100 F14

TO CSP AND BAT

Figure 12. Kelvin Sensing of Charging Current

4100fa

26

PACKAGE DESCRIPTIO

LTC4100

U

G Package

24-Lead Plastic SSOP (5.3mm)

(Reference LTC DWG # 05-08-1640)

1.25 ±0.12

7.8 – 8.2

0.42 ±0.03 0.65 BSC

RECOMMENDED SOLDER PAD LAYOUT

5.00 – 5.60**
(.197 – .221)

0.09 – 0.25

(.0035 – .010)

NOTE:

1. CONTROLLING DIMENSION: MILLIMETERS

2. DIMENSIONS ARE IN

3. DRAWING NOT TO SCALE
*

DIMENSIONS DO NOT INCLUDE MOLD FLASH. MOLD FLASH
SHALL NOT EXCEED .152mm (.006") PER SIDE

**

DIMENSIONS DO NOT INCLUDE INTERLEAD FLASH. INTERLEAD
FLASH SHALL NOT EXCEED .254mm (.010") PER SIDE

0.55 – 0.95

(.022 – .037)

MILLIMETERS

(INCHES)

5.3 – 5.7

0° – 8°

7.90 – 8.50*
(.311 – .335)

2122 18 17 16 15 14

19202324

12345678 9 10 11 12

0.65

(.0256)

BSC

0.22 – 0.38

(.009 – .015)

TYP

13

(.291 – .323)

2.0

(.079)

MAX

0.05

(.002)

MIN

G24 SSOP 0204

7.40 – 8.20

Information furnished by Linear Technology Corporation is believed to be accurate and reliable.
However, no responsibility is assumed for its use. Linear Technology Corporation makes no represen­tation that the interconnection of its circuits as described herein will not infringe on existing patent rights.

4100fa

27

LTC4100

TYPICAL APPLICATIO

U

3V TO 5.5V

SDA

SCL

LTC4100 Li-Ion Battery Charger I

DCIN

15V TO 20V

DCIN

FROM WALL

ADAPTER

R11

1.21k
1%

10k10k

D4

D5

C1

0.1µF

C6, 0.12µF
10V, X7R

C7, 0.0015µF
10V, X7R

C8, 0.068µF
10V, X7R

0.1µF
10V

R6, R

VLIM

D2

D3

R10

13.7k
1%

6.04k

Q1

424 23

INFET

5

DCIN

11

DCDIV

R5

1%

19

I

TH

20

I

DC

12

GND

17

V

14

V

13

I

10

ACP

6

CHGEN

7

SMBALERT

8

SDA

9

SCL

DD

LIM

LIM

33k

0.033Ω

0.5W

0.1µF

LTC4100

R

CL

1%

C9

10V

TGATE

BGATE

= 4A/V

LIM

R1

4.9k

CLNCLP

1

Q2

3

Q3

2

PGND

21

CSP

22

BAT

C4

0.01µF
25V

18

V

SET

C5

0.1µF
10V

16

THA

15

THB

D1: MBRM140T3G
D2-D5: SMALL SIGNAL SCHOTTKY
D6: 18V ZENER DIODE
Q1: 1/2 Si4925BDY
Q2: FDS6685
Q3: FDC645N
Q4: 1/2 Si4925

= 17.4V, Adapter Rating = 2.7A

LIM

D6

100k

10k

SafetySignal

R

SNS

0.025Ω

0.5W, 1%

R4

100Ω

R

THA

1.13k
1%

R

THB

54.9k
1%

DCIN

C2, C3
10µF × 2

L1
10µH
4A

C4,C5

10µF × 2

25V

25V

D1

SMART

BATTERY

Q4

OPTIONAL
DISCHARGE
PATH TO
SYSTEM
LOAD

4100 TA02

SYSTEM
LOAD

RELATED PARTS

PART NUMBER DESCRIPTION COMMENTS

LTC1760 Smart Battery System Manager Autonomous Power Management and Battery Charging for Two Smart

Batteries, SMBus Rev 1.1 Compliant

LTC1960 Dual Battery Charger/Selector with SPI Interface Simultaneous Charge or Discharge of 2 Batteries, DAC Programmable

Current and Voltage, Input Current Limiting Maximizes Charge Current

LTC1980 Combination Battery Charger and DC/DC Converter Input Supply May be Above or Below Battery Voltage, up to 8.4V Float Voltage,

24-Pin SSOP Package

LTC4006 Small, High Efficiency, Fixed Voltage, Constant Current/Constant Voltage Switching Regulator with Termination

Lithium-Ion Battery Charger Timer, AC Adapter Current Limit and SafetySignal Sensor

in a Small 16-Pin Package

LTC4007 High Efficiency, Programmable Voltage Complete Charger for 3- or 4-Cell Li-Ion Batteries, AC Adapter

Battery Charger with Termination Current Limit, SafetySignal Sensor and Indicator Outputs

LTC4008 High Efficiency, Programmable Voltage/Current Constant Current/Constant Voltage Switching Regulator; Resistor Voltage/

Battery Charger Current Programming, AC Adapter Current Limit and SafetySignal Sensor

LTC4412 Low Loss PowerPath Controller Very Low Loss Replacement for Power Supply OR’ing Diodes Using

Minimal External Components

4100fa

LT 0606 REV A • PRINTED IN USA

28

Linear Technology Corporation

1630 McCarthy Blvd., Milpitas, CA 95035-7417

[phone] ● FAX: [phone]

●

www.linear.com

© LINEAR TECHNOLOGY CORPORATION 2006
