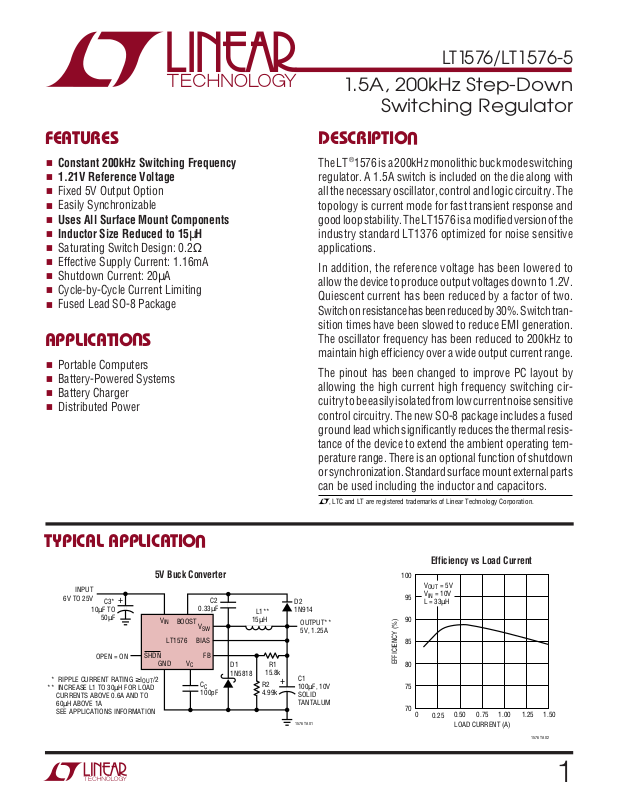

Page 1

FEATURES

■

Constant 200kHz Switching Frequency

■

1.21V Reference Voltage

■

Fixed 5V Output Option

■

Easily Synchronizable

■

Uses All Surface Mount Components

■

Inductor Size Reduced to 15µH

■

Saturating Switch Design: 0.2Ω

■

Effective Supply Current: 1.16mA

■

Shutdown Current: 20µA

■

Cycle-by-Cycle Current Limiting

■

Fused Lead SO-8 Package

APPLICATIO S

■

Portable Computers

■

Battery-Powered Systems

■

Battery Charger

■

Distributed Power

LT1576/LT1576-5

1.5A, 200kHz Step-Down Switching Regulator

DESCRIPTIO

The LT®1576 is a 200kHz monolithic buck mode switching regulator. A 1.5A switch is included on the die along with all the necessary oscillator, control and logic circuitry. The topology is current mode for fast transient response and good loop stability. The LT1576 is a modified version of the industry standard LT1376 optimized for noise sensitive applications.

In addition, the reference voltage has been lowered to allow the device to produce output voltages down to 1.2V. Quiescent current has been reduced by a factor of two. Switch on resistance has been reduced by 30%. Switch transition times have been slowed to reduce EMI generation. The oscillator frequency has been reduced to 200kHz to maintain high efficiency over a wide output current range.

The pinout has been changed to improve PC layout by allowing the high current high frequency switching circuitry to be easily isolated from low current noise sensitive control circuitry. The new SO-8 package includes a fused ground lead which significantly reduces the thermal resistance of the device to extend the ambient operating temperature range. There is an optional function of shutdown or synchronization. Standard surface mount external parts can be used including the inductor and capacitors.

, LTC and LT are registered trademarks of Linear Technology Corporation.

TYPICAL APPLICATION

5V Buck Converter

INPUT

6V TO 25V

* RIPPLE CURRENT RATING ≥ I

** INCREASE L1 TO 30µH FOR LOAD

CURRENTS ABOVE 0.6A AND TO 60µH ABOVE 1A SEE APPLICATIONS INFORMATION

C3*

10µF TO

50µF

OPEN = ON

LT1576

SHDN

GND

OUT

BOOST

0.33µF

BIAS

100pF

Efficiency vs Load Current

100

= 5V

OUT

= 10V

L1**

15µH

D1 1N5818

4.99k

15.8k

D2 1N914

OUTPUT** 5V, 1.25A

C1 100µF, 10V SOLID TANTALUM

1576 TA01

L = 33µH

EFFICIENCY (%)

0.25

0.50 0.75 1.00 LOAD CURRENT (A)

1.25 1.50

1576 TA02

Page 2

LT1576/LT1576-5

ABSOLUTE MAXIMUM RATINGS

(Note 1)

Input Voltage .......................................................... 25V

BOOST Pin Above Input Voltage ............................. 10V

SHDN Pin Voltage..................................................... 7V

BIAS Pin Voltage ...................................................... 7V

FB Pin Voltage (Adjustable Part)............................ 3.5V

FB Pin Current (Adjustable Part)............................ 1mA

SYNC Pin Voltage ..................................................... 7V

Operating Junction Temperature Range

LT1576C...............................................0°C to 125° C

LT1576I ........................................... – 40°C to 125°C

Storage Temperature Range ................ –65°C to 150°C

Lead Temperature (Soldering, 10 sec)................. 300°C

PACKAGE/ORDER INFORMATION

ORDER PART NUMBER

LT1576CS8

TOP VIEW

BOOST

GND

S8 PACKAGE

8-LEAD PLASTIC SO

θJA =80°C/W WITH FUSED GROUND PIN CONNECTED TO GROUND PLANE OR LARGE LANDS

*Default is the adjustable output voltage device with FB pin and shutdown function. Option -5 replaces FB with SENSE pin for fixed 5V output applications. -SYNC replaces SHDN with SYNC pin for applications requiring synchronization. Consult factory for Military grade parts.

SHDN OR

SYNC* FB OR SENSE*

BIAS

LT1576CS8-SYNC LT1576IS8 LT1576IS8-SYNC LT1576CS8-5 LT1576CS8-5 SYNC LT1576IS8-5 LT1576IS8-5 SYNC

S8 PART MARKING

1576 1576SN 1576I 576ISN

15765 5765SN 1576I5 76I5SN

ELECTRICAL CHARACTERISTICS

range, otherwise specifications are TA, TJ = 25°C, VIN = 15V, VC = 1.5V, Boost = VIN + 5V, switch open, unless otherwise noted.

PARAMETER CONDITIONS MIN TYP MAX UNITS

Feedback Voltage 1.195 1.21 1.225 V

All Conditions

Sense Voltage (Fixed 5V) 4.94 5.0 5.06 V

All Conditions

SENSE Pin Resistance 13 18.5 26 kΩ Reference Voltage Line Regulation 5V ≤ VIN ≤ 25V 0.01 0.03 %/V Feedback Input Bias Current ● 0.5 2 µA Error Amplifier Voltage Gain (Notes 2, 8) 200 400 Error Amplifier Transconductance ∆I (VC) = ±10µA (Note 8) 800 1050 1300 µMho

VC Pin to Switch Current Transconductance 1.5 A/V Error Amplifier Source Current VFB = 1.1V ● 40 110 190 µA Error Amplifier Sink Current VFB = 1.4V ● 50 130 200 µA VC Pin Switching Threshold Duty Cycle = 0 0.8 V VC Pin High Clamp 2.1 V Switch Current Limit VC Open, VFB = 1.1V, DC ≤ 50% ● 1.5 2 3.50 A Slope Compensation (Note 9) DC = 80% 0.3 A Switch On Resistance (Note 7) ISW = 1.5A 0.2 0.35 Ω

Maximum Switch Duty Cycle VFB = 1.1V 90 94 %

The ● denotes specifications which apply over the full operating temperature

● 1.18 1.24 V

● 4.90 5.10 V

● 400 1700 µMho

● 0.45 Ω

● 86 94 %

Page 3

LT1576/LT1576-5

ELECTRICAL CHARACTERISTICS

The ● denotes specifications which apply over the full operating temperature

range, otherwise specifications are TA, TJ = 25°C, VIN = 15V, VC = 1.5V, Boost = VIN + 5V, switch open, unless otherwise noted.

PARAMETER CONDITIONS MIN TYP MAX UNITS

Minimum Switch Duty Cycle (Note 10) 8% Switch Frequency VC Set to Give 50% Duty Cycle 180 200 220 kHz

● 160 240 kHz

Switch Frequency Line Regulation 5V ≤ VIN ≤ 25V ● 0 0.15 %/V Frequency Shifting Threshold on FB Pin ∆f = 10kHz ● 0.4 0.74 1.0 V Minimum Input Voltage (Note 3) ● 5.0 5.5 V Minimum Boost Voltage (Note 4) ISW ≤ 1.5A ● 2.3 3.0 V Boost Current (Note 5) ISW = 0.5A ● 918 mA

= 1.5A ● 27 50 mA

VIN Supply Current (Note 6) V BIAS Supply Current (Note 6) V Shutdown Supply Current V

Lockout Threshold VC Open ● 2.34 2.42 2.50 V Shutdown Thresholds VC Open Device Shutting Down ● 0.13 0.37 0.60 V

Synchronization Threshold 1.5 2.2 V Synchronizing Range 250 400 kHz SYNC Pin Input Resistance 40 kΩ

= 5V ● 0.55 0.8 mA

BIAS

= 5V ● 1.6 2.2 mA

BIAS

= 0V, VIN ≤ 25V, VSW = 0V, VC Open 20 50 µA

SHDN

Device Starting Up

● 75 µA

● 0.25 0.45 0.7 V

Note 1: Absolute Maximum Ratings are those values beyond which the life of a device may be impaired.

Note 2: Gain is measured with a VC swing equal to 200mV above the switching threshold level to 200mV below the upper clamp level.

Note 3: Minimum input voltage is not measured directly, but is guaranteed by other tests. It is defined as the voltage where internal bias lines are still regulated so that the reference voltage and oscillator frequency remain constant. Actual minimum input voltage to maintain a regulated output will depend on output voltage and load current. See Applications Information.

Note 4: This is the minimum voltage across the boost capacitor needed to guarantee full saturation of the internal power switch.

Note 5: Boost current is the current flowing into the boost pin with the pin held 5V above input voltage. It flows only during switch on time.

Note 6: VIN supply current is the current drawn when the BIAS pin is held at 5V and switching is disabled. Total input referred supply current is calculated by summing input supply current (I supply current (I

= ISI + (ISB)(V

TOT

= 15V, V

with V

If the BIAS pin is unavailable or open circuit, the sum of V supply currents will be drawn by the VIN pin.

)

)(1.15)

BIAS/VIN

= 5V, ISI = 0.55mA, ISB = 1.6mA and I

BIAS

) with a fraction of BIAS

= 1.16mA.

TOT

and BIAS

Note 7: Switch on resistance is calculated by dividing V by the forced current (1.5A). See Typical Performance Characteristics for the graph of switch voltage at other currents.

Note 8: Transconductance and voltage gain refer to the internal amplifier exclusive of the voltage divider. To calculate gain and transconductance, refer to the SENSE pin on the fixed voltage parts. Divide values shown by the ratio V

Note 9: Slope compensation is the current subtracted from the switch current limit at 80% duty cycle. See Maximum Output Load Current in the Applications Information section for further details.

Note 10: Minimum on-time is 400ns typical. For a 200kHz operating frequency this means the minimum duty cycle is 8%. In frequency foldback mode, the effective duty cycle will be less than 8%.

OUT

/1.21.

to VSW voltage

Page 4

LT1576/LT1576-5

FREQUENCY (Hz)

GAIN (µMho)

PHASE (DEG)

2000

1500

1000

500

–500

200

150

100

–50

10 1k 10k 1M

1576 G09

100 100k

GAIN

PHASE

ERROR AMPLIFIER EQUIVALENT CIRCUIT

OUT

570k

OUT

2.4pF

LOAD

= 50Ω

1 × 10

–3

)(

JUNCTION TEMPERATURE (°C)

–50

1.23

1.22

1.21

1.20

1.19 100

1576 G03

–25 0 25 50 75 125

FEEDBACK VOLTAGE (V)

TYPICAL PERFORMANCE CHARACTERISTICS

Switch Drop

0.5

0.4

0.3

0.2

SWITCH VOLTAGE (V)

0.1

0.50 0.75 1.00

0.25 SWITCH CURRENT (A)

Shutdown Pin Bias Current

AT 2.44V STANDBY THRESHOLD (CURRENT FLOWS OUT OF PIN)

CURRENT (µA)

–25 0 25 50 75 125

–50

JUNCTION TEMPERATURE (°C)

25°C

125°C

–20°C

1.25 1.50

1576 G01

100

1576 G04

2.5

MINIMUM

DUTY CYCLE (%)

TYPICAL

2.0

1.5

1.0

SWITCH PEAK CURRENT (A)

0.5

Shutdown Pin Bias Current

180

160

140

120

100

CURRENT (µA)

CURRENT REQUIRED TO FORCE

SHUTDOWN (FLOWS OUT OF PIN). AFTER SHUTDOWN, CURRENT

DROPS TO A FEW µA

–25 0 25 50 75 125

–50

JUNCTION TEMPERATURE (°C)

Feedback Pin VoltageSwitch Peak Current Limit

100

1576 G02

Shutdown Thresholds

0.8

0.7

0.6

100

1576 G05

0.5

0.4

0.3

0.2

SHUTDOWN PIN VOLTAGE (V)

0.1

–50

SHUTDOWN

050

–25 25 75 125

JUNCTION TEMPERATURE (°C)

START-UP

100

1576 G06

Standby Thresholds

2.46

2.45

2.44

2.43

2.42

SHUTDOWN PIN VOLTAGE (V)

2.41

2.40 –50

–25 0

STANDBY

25 75

JUNCTION TEMPERATURE (°C)

50 100 125

1576 G07

Shutdown Supply Current

= 0V

SHDN

INPUT SUPPLY CURRENT (µA)

INPUT VOLTAGE (V)

Error Amplifier Transconductance

1576 G08

Page 5

INPUT VOLTAGE (V)

CURRENT (A)

1.50

1.25

1.00

0.75

0.50

0.25

5101520

1576 G15

OUT

= 10V

L = 60µH L = 30µH

L = 15µH

TYPICAL PERFORMANCE CHARACTERISTICS

LT1576/LT1576-5

Shutdown Supply Current

100

INPUT SUPPLY CURRENT (µA)

VIN = 25V

0.1 SHUTDOWN VOLTAGE (V)

Switching Frequency

240

220

200

FREQUENCY (kHz)

180

0.2

VIN = 10V

0.3

1576 G10

0.4

Error Amplifier Transconductance Frequency Foldback

1600

1400

1200

1000

800

600

400

TRANSCONDUCTANCE (µMho)

200

–50

050

–25 25 75 125

JUNCTION TEMPERATURE (°C)

Minimum Input Voltage at V

= 5V

OUT

= 5V

OUT

STARTING VOLTAGE

INPUT VOLTAGE (V)

MINIMUM

RUNNING VOLTAGE

100

1576 G11

MINIMUM

250

200

150

100

OR CURRENT (µA)

SWITCHING FREQUENCY (kHz)

0.5 FEEDBACK VOLTAGE (V)

Maximum Load Current at V

= 10V

OUT

SWITCHING FREQUENCY

FEEDBACK PIN CURRENT

1.0

1.5

1576 G12

2.0

160

–25 0 25 50 75 125

–50

JUNCTION TEMPERATURE (°C)

100

Maximum Load Current at V

= 5V

1.50

1.25

1.00

0.75

CURRENT (A)

0.50

0.25

Kool Mµ is a registered trademark of Magnetics, Inc.

OUT

= 5V

OUT

5101520

INPUT VOLTAGE (V)

L = 60µH

L = 30µH L = 15µH

1576 G13

1576 G16

LOAD CURRENT (mA)

Maximum Load Current at V

= 3.3V

1.50

1.25

1.00

0.75

CURRENT (A)

0.50

0.25

OUT

L = 60µH

= 3.3V

OUT

5101520

INPUT VOLTAGE (V)

100 1000

1576 G14

Inductor Core Loss

1576 G18

20 12

CORE LOSS (% OF 5W LOAD)

4 2

1.2

0.8

0.4

0.2

0.12

0.08

0.04

0.02

L = 30µH

L = 15µH

1576 G17

1.0 V

= 5V, VIN = 10V, I

OUT

0.1

CORE LOSS (W)

0.01 CORE LOSS IS

INDEPENDENT OF LOAD CURRENT UNTIL LOAD CURRENT FALLS LOW ENOUGH FOR CIRCUIT TO GO INTO DISCONTINUOUS MODE

0.001 05

10 15 20

INDUCTANCE (µH)

= 1A

OUT

TYPE 52 POWDERED IRON

Kool Mµ

PERMALLOY µ = 125

Page 6

LT1576/LT1576-5

TYPICAL PERFORMANCE CHARACTERISTICS

BOOST Pin Current

BOOST PIN CURRENT (mA)

0.50 0.75 1.00

0.25 SWITCH CURRENT (A)

1.25 1.50

1576 G19

UUU

PIN FUNCTIONS

VSW (Pin 1): The switch pin is the emitter of the on-chip power NPN switch. This pin is driven up to the input pin voltage during switch on time. Inductor current drives the switch pin negative during switch off time. Negative voltage is clamped with the external catch diode. Maximum negative switch voltage allowed is –0.8V.

VIN (Pin 2): This is the collector of the on-chip power NPN switch. This pin powers the internal circuitry and internal regulator when the BIAS pin is not present. At NPN switch on and off, high dI/dt edges occur on this pin. Keep the external bypass and catch diode close to this pin. All trace inductance on this path will create a voltage spike at switch off, adding to the VCE voltage across the internal NPN.

BOOST (Pin 3): The BOOST pin is used to provide a drive voltage, higher than the input voltage, to the internal bipolar NPN power switch. Without this added voltage, the typical switch voltage loss would be about 1.5V. The additional boost voltage allows the switch to saturate and voltage loss approximates that of a 0.2Ω FET structure. Efficiency improves from 75% for conventional bipolar designs to > 88% for these new parts.

GND (Pin 4): The GND pin connection needs consideration for two reasons. First, it acts as the reference for the regulated output, so load regulation will suffer if the “ground” end of the load is not at the same voltage as the

VC Pin Shutdown Threshold

1.0

0.8

0.6

0.4

THRESHOLD VOLTAGE (V)

0.2

–25 0 25 50 75 125

–50

JUNCTION TEMPERATURE (°C)

100

1576 G20

GND pin of the IC. This condition will occur when load current or other currents flow through metal paths between the GND pin and the load ground point. Keep the ground path short between the GND pin and the load and use a ground plane when possible. The second consideration is EMI caused by GND pin current spikes. Internal capacitance between the VSW pin and the GND pin creates very narrow (<10ns) current spikes in the GND pin. If the GND pin is connected to system ground with a long metal trace, this trace may radiate excess EMI. Keep the path between the input bypass and the GND pin short.

BIAS (Pin 5): The BIAS pin is used to improve efficiency when operating at higher input voltages and light load current. Connecting this pin to the regulated output voltage forces most of the internal circuitry to draw its operating current from the output voltage rather than the input supply. This is a much more efficient way of doing business if the input voltage is much higher than the output.

operation is 3.3V.

Minimum output voltage setting for this mode of

Efficiency improvement at VIN = 20V,

= 5V, and I

OUT

= 25mA is over 10%.

OUT

VC (Pin 6): The VC pin is the output of the error amplifier and the input of the peak switch current comparator. It is normally used for frequency compensation, but can do double duty as a current clamp or control loop override.

Page 7

UUU

PIN FUNCTIONS

LT1576/LT1576-5

This pin sits at about 1V for very light loads and 2V at maximum load. It can be driven to ground to shut off the regulator, but if driven high, current must be limited to 4mA.

FB/SENSE (Pin 7): The feedback pin is the input to the error amplifier which is referenced to an internal 1.21V source. An external resistive divider is used to set the output voltage. Three additional functions are performed by the FB pin. The fixed voltage (-5) parts have the divider resistors included on-chip and the FB pin is used as a SENSE pin, connected directly to the 5V output. When the pin voltage drops below 0.7V, the switch current limit and the switching frequency are reduced and the external sync function is disabled. See Feedback Pin Function section in Applications Information for details.

BLOCK DIAGRAM

SYNC (Pin 8): The SYNC pin is used to synchronize the internal oscillator to an external signal. It is directly logic compatible and can be driven with any signal between 10% and 90% duty cycle. The synchronizing range is equal to replaces SHDN on -SYNC option parts. See Synchronizing section in Applications Information for details.

SHDN (Pin 8): The shutdown pin is used to turn off the regulator and to reduce input drain current to a few microamperes. Actually, this pin has two separate thresholds, one at 2.44V to disable switching, and a second at

0.4V to force complete micropower shutdown. The 2.44V threshold functions as an accurate undervoltage lockout (UVLO). This can be used to prevent the regulator from operating until the input voltage has reached a predetermined level.

initial

operating frequency, up to 400kHz. This pin

The LT1576 is a constant frequency, current mode buck converter. This means that there is an internal clock and two feedback loops that control the duty cycle of the power switch. In addition to the normal error amplifier, there is a current sense amplifier that monitors switch current on a cycle-by-cycle basis. A switch cycle starts with an oscillator pulse which sets the RS flip-flop to turn the switch on. When switch current reaches a level set by the inverting input of the comparator, the flip-flop is reset and the switch turns off. Output voltage control is obtained by using the output of the error amplifier to set the switch current trip point. This technique means that the error amplifier commands current to be delivered to the output rather than voltage. A voltage fed system will have low phase shift up to the resonant frequency of the inductor and output capacitor, then an abrupt 180° shift will occur. The current fed system will have 90° phase shift at a much lower frequency, but will not have the additional 90° shift until well beyond the LC resonant frequency. This makes

it much easier to frequency compensate the feedback loop and also gives much quicker transient response.

Most of the circuitry of the LT1576 operates from an internal 2.9V bias line. The bias regulator normally draws power from the regulator input pin, but if the BIAS pin is connected to an external voltage higher than 3V, bias power will be drawn from the external source (typically the regulated output voltage). This will improve efficiency if the BIAS pin voltage is lower than regulator input voltage.

High switch efficiency is attained by using the BOOST pin to provide a voltage to the switch driver which is higher than the input voltage, allowing the switch to saturate. This boosted voltage is generated with an external capacitor and diode. Two comparators are connected to the shutdown pin. One has a 2.44V threshold for undervoltage lockout and the second has a 0.4V threshold for complete shutdown.

Page 8

LT1576/LT1576-5

BLOCK DIAGRAM

INPUT

BIAS

SYNC

SHDN

SHUTDOWN

COMPARATOR

2.9V BIAS

REGULATOR

0.4V

3.5µA

–

LOCKOUT COMPARATOR

INTERNAL V

SLOPE COMP

200kHz

OSCILLATOR

0.025Ω

–

CURRENT SENSE AMPLIFIER VOLTAGE GAIN = 35

0.8V

CURRENT COMPARATOR

–

FOLDBACK

CURRENT

LIMIT

CLAMP

BOOST

FLIP-FLOP

FREQUENCY

SHIFT CIRCUIT

DRIVER

CIRCUITRY

–

1.21V2.44V

AMPLIFIER

= 1000µMho

ERROR

Q1 POWER SWITCH

GND

1576 BD

Figure 1. Block Diagram

WUU

APPLICATIONS INFORMATION

FEEDBACK PIN FUNCTIONS

The feedback (FB) pin on the LT1576 is used to set output voltage and provide several overload protection features. The first part of this section deals with selecting resistors to set output voltage and the remaining part talks about foldback frequency and current limiting created by the FB pin. Please read both parts before committing to a final design. The fixed 5V LT1576-5 has internal divider resistors and the FB pin is renamed SENSE, connected directly to the output.

The suggested value for the output divider resistor (see Figure 2) from FB to ground (R2) is 5k or less, and a formula for R1 is shown below. The output voltage error caused by ignoring the input bias current on the FB pin is less than 0.25% with R2 = 5k. A table of standard 1% values is shown in Table 1 for common output voltages. Please read the following if divider resistors are increased above the suggested values.

OUT

121

−

2121

()

Page 9

LT1576/LT1576-5

WUU

APPLICATIONS INFORMATION

Table 1

OUTPUT R1 % ERROR AT OUTPUT

VOLTAGE R2 (NEAREST 1%) DUE TO DISCREET 1%

(V) (kΩ)(k

3 4.99 7.32 –0.50

3.3 4.99 8.66 +0.30 5 4.99 15.8 +0.83 6 4.99 19.6 –0.62 8 4.99 28.0 –0.01

10 4.99 36.5 +0.61 12 4.99 44.2 –0.60 15 4.99 56.2 –1.08

More Than Just Voltage Feedback

The feedback pin is used for more than just output voltage sensing. It also reduces switching frequency and current limit when output voltage is very low (see the Frequency Foldback graph in Typical Performance Characteristics). This is done to control power dissipation in both the IC and the external diode and inductor during short-circuit conditions. A shorted output requires the switching regulator to operate at very low duty cycles, and the average current through the diode and inductor is equal to the short-circuit current limit of the switch (typically 2A for the LT1576, folding back to less than 0.77A). Minimum switch on time limitations would prevent the switcher from attaining a

Ω

) RESISTOR STEPS

sufficiently low duty cycle if switching frequency were maintained at 200kHz, so frequency is reduced by about 5:1 when the feedback pin voltage drops below 0.7V (see Frequency Foldback graph). This does not affect operation with normal load conditions; one simply sees a gear shift in switching frequency during start-up as the output voltage rises.

In addition to lower switching frequency, the LT1576 also operates at lower switch current limit when the feedback pin voltage drops below 0.7V. Q2 in Figure 2 performs this function by clamping the VC pin to a voltage less than its normal 2.1V upper clamp level. This

foldback current limit

greatly reduces power dissipation in the IC, diode and inductor during short-circuit conditions. External synchronization is also disabled to prevent interference with foldback operation. Again, it is nearly transparent to the user under normal load conditions. The only loads that may be affected are current source loads which maintain full load current with output voltage less than 50% of final value. In these rare situations the feedback pin can be clamped above 0.7V to defeat foldback current limit.

Caution:

clamping the feedback pin means that frequency shifting will also be defeated, so a combination of high input voltage and dead shorted output may cause the LT1576 to lose control of current limit.

LT1576

VCGND

TO FREQUENCY

SHIFTING

1.4V

ERROR

AMPLIFIER

–

TO SYNC CIRCUIT

Figure 2. Frequency and Current Limit Foldback

1.21V

R3 1k

R4 1k

R2 5k

OUTPUT 5V

1576 F02

Page 10

LT1576/LT1576-5

WUU

APPLICATIONS INFORMATION

The internal circuitry which forces reduced switching frequency also causes current to flow out of the feedback pin when output voltage is low. The equivalent circuitry is shown in Figure 2. Q1 is completely off during normal operation. If the FB pin falls below 0.7V, Q1 begins to conduct current and reduces frequency at the rate of approximately 1kHz/µA. To ensure adequate frequency foldback (under worst-case short-circuit conditions), the external divider Thevinin resistance must be low enough to pull 35µA out of the FB pin with 0.5V on the pin (R

14.3k).

current limit are affected by output voltage divider impedance. Although divider impedance is not critical, caution should be used if resistors are increased beyond the suggested values and short-circuit conditions will occur with high input voltage.

increase and the protection accorded by frequency and current foldback will decrease.

The net result is that reductions in frequency and

High frequency pickup will

DIV

≤

finite inductor size, maximum load current is reduced by one-half peak-to-peak inductor current. The following formula assumes continuous mode operation, implying that the term on the right is less than one-half of IP.

VVV

OUT IN OUT

OUT(MAX)

Continuous Mode

For the conditions above and L = 15µH,

OUT MAX

At VIN = 15V, duty cycle is 33%, so IP is just equal to a fixed

1.5A, and I

=−

()

143

...

=−=

143 031 112

OUT(MAX)

is equal to:

()

−

2 15 10 200 10 8

••

()()

−

()

LfV

()()( )

()

58 5

−

()

−

()

MAXIMUM OUTPUT LOAD CURRENT

Maximum load current for a buck converter is limited by the maximum switch current rating (IP) of the LT1576. This current rating is 1.5A up to 50% duty cycle (DC), decreasing to 1.3A at 80% duty cycle. This is shown graphically in Typical Performance Characteristics and as shown in the formula below:

IP = 1.5A for DC ≤ 50%

IP = 1.67 – 0.18 (DC) – 0.32(DC)2 for 50% < DC < 90% DC = Duty cycle = V Example: with V

SW(MAX)

Current rating decreases with duty cycle because the LT1576 has internal slope compensation to prevent current mode subharmonic switching. For more details, read Application Note 19. The LT1576 is a little unusual in this regard because it has nonlinear slope compensation which gives better compensation with less reduction in current limit.

= 1.67 – 0.18 (0.625) – 0.32(0.625)2 = 1.43A

OUT/VIN

= 5V, VIN = 8V; DC = 5/8 = 0.625, and;

OUT

515 5

()

−

2 15 10 200 10 15

••

()()

15 056 094

.. .

=− =−A

Note that there is less load current available at the higher input voltage because inductor ripple current increases. This is not always the case. Certain combinations of inductor value and input voltage range may yield lower available load current at the lowest input voltage due to reduced peak switch current at high duty cycles. If load current is close to the maximum available, please check maximum available current at both input voltage extremes. To calculate actual peak switch current with a given set of conditions, use:

SW PEAK

()

OUT

−

()

VVV

OUT IN OUT

()

LfV

()()( )

()

−

Maximum load current would be equal to maximum switch current

for an infinitely large inductor

, but with

For lighter loads where discontinuous operation can be used, maximum load current is equal to:

Page 11

LT1576/LT1576-5

WUU

APPLICATIONS INFORMATION

OUT(MAX)

Discontinuous mode

Example: with L = 5µH, V

OUT MAX

The main reason for using such a tiny inductor is that it is physically very small, but keep in mind that peak-to-peak inductor current will be very high. This will increase output ripple voltage. If the output capacitor has to be made larger to reduce ripple voltage, the overall circuit could actually wind up larger.

CHOOSING THE INDUCTOR AND OUTPUT CAPACITOR

For most applications the output inductor will fall in the range of 15µH to 60µH. Lower values are chosen to reduce physical size of the inductor. Higher values allow more output current because they reduce peak current seen by the LT1576 switch, which has a 1.5A limit. Higher values also reduce output ripple voltage, and reduce core loss. Graphs in the Typical Performance Characteristics section show maximum output load current versus inductor size and input voltage. A second graph shows core loss versus inductor size for various core materials.

When choosing an inductor you might have to consider maximum load current, core and copper losses, allowable component height, output voltage ripple, EMI, fault current in the inductor, saturation, and of course, cost. The following procedure is suggested as a way of handling these somewhat complicated and conflicting requirements.

1. Choose a value in microhenries from the graphs of

maximum load current and core loss. Choosing a small inductor may result in discontinuous mode operation at lighter loads, but the LT1576 is designed to work well in either mode. Keep in mind that lower core loss means higher cost, at least for closed core geometries like toroids. The core loss graphs show both absolute loss and percent loss for a 5W output, so actual percent losses must be calculated for each situation.



1 5 200 10 5 10 15

.••

()



OUT

2 5 15 5

IfLV

()()()( )

VVV

()

OUT IN OUT

= 5V, and V



()

−

()

) = 15V,

IN(MAX

−





−

()



034

Assume that the average inductor current is equal to load current and decide whether or not the inductor must withstand continuous fault conditions. If maximum load current is 0.5A, for instance, a 0.5A inductor may not survive a continuous 1.5A overload condition. Dead shorts will actually be more gentle on the inductor because the LT1576 has foldback current limiting.

2. Calculate peak inductor current at full load current to ensure that the inductor will not saturate. Peak current can be significantly higher than output current, especially with smaller inductors and lighter loads, so don’t omit this step. Powdered iron cores are forgiving because they saturate softly, whereas ferrite cores saturate abruptly. Other core materials fall somewhere in between. The following formula assumes continuous mode of operation, but it errs only slightly on the high side for discontinuous mode, so it can be used for all conditions.

VVV

PEAK OUT

VIN = Maximum input voltage f = Switching frequency, 200kHz

3. Decide if the design can tolerate an “open” core geometry like a rod or barrel, with high magnetic field radiation, or whether it needs a closed core like a toroid to prevent EMI problems. One would not want an open core next to a magnetic storage media, for instance! This is a tough decision because the rods or barrels are temptingly cheap and small and there are no helpful guidelines to calculate when the magnetic field radiation will be a problem.

4. Start shopping for an inductor (see representative surface mount units in Table 2) which meets the requirements of core shape, peak current (to avoid saturation), average current (to limit heating), and fault current (if the inductor gets too hot, wire insulation will melt and cause turn-to-turn shorts). Keep in mind that all good things like high efficiency, low profile, and high temperature operation will increase cost, sometimes dramatically. Get a quote on the cheapest unit first to calibrate yourself on price, then ask for what you really want.

OUT IN OUT

−

()

fLV

()()( )

Page 12

LT1576/LT1576-5

WUU

APPLICATIONS INFORMATION

5. After making an initial choice, consider the secondary things like output voltage ripple, second sourcing, etc. Use the experts in the Linear Technology’s applications department if you feel uncertain about the final choice. They have experience with a wide range of inductor types and can tell you about the latest developments in low profile, surface mounting, etc.

Table 2

SERIES CORE

VENDOR/ VALUE DC CORE RESIS- MATER- HEIGHT

PART NO. ( Coiltronics

CTX15-2 15 1.7 Tor 0.059 KMµ 6.0 CTX33-2 33 1.4 Tor 0.106 KMµ 6.0 CTX68-4 68 1.2 Tor 0.158 KMµ 6.4 CTX15-1P 15 1.4 Tor 0.087 52 4.2 CTX33-2P 33 1.3 Tor 0.126 52 6.0 CTX68-4P 68 1.1 Tor 0.238 52 6.4

Sumida

CDRH74-150 15 1.47 SC 0.081 Fer 4.5 CDH115-330 33 1.68 SC 0.082 Fer 5.2 CDRH125-680 68 1.5 SC 0.12 Fer 6 CDH74-330 33 1.45 SC 0.17 Fer 5.2

Coilcraft

DO3308P-153 15 2 SC 0.12 Fer 3 DO3316P-333 33 2 SC 0.1 Fer 5.21 DO3316P-683 68 1.4 SC 0.18 Fer 5.21

Pulse

PE-53602 35 1.4 Tor 0.166 Fer 9.1 PE-53604 73 1.3 Tor 0.290 Fer 9.1 PE-53632 22 2.7 Tor 0.063 Fer 9.1 PE-53633 40 2.7 Tor 0.085 Fer 10

Gowanda

SMP3316-152K 15 3.5 SC 0.041 Fer 6 SMP3316-332K 33 2.3 SC 0.092 Fer 6 SMP3316-682K 68 1.7 SC 0.178 Fer 6 Tor = Toroid

SC = Semi-closed geometry Fer = Ferrite core material 52 = Type 52 powdered iron core material KMµ = Kool Mµ

H) (Amps) TYPE TANCE(Ω) IAL (mm)

Output Capacitor

The output capacitor is normally chosen by its Effective Series Resistance (ESR), because this is what determines output ripple voltage. To get low ESR takes

volume

, so

physically smaller capacitors have high ESR. The ESR range for typical LT1576 applications is 0.05Ω to 0.2Ω. A typical output capacitor is an AVX type TPS, 100µF at 10V, with a guaranteed ESR less than 0.1Ω. This is a “D” size surface mount solid tantalum capacitor. TPS capacitors are specially constructed and tested for low ESR, so they give the lowest ESR for a given volume. The value in microfarads is not particularly critical, and values from 22µF to greater than 500µF work well, but you cannot cheat mother nature on ESR. If you find a tiny 22µF solid tantalum capacitor, it will have high ESR, and output ripple voltage will be terrible. Table 3 shows some typical solid tantalum surface mount capacitors.

Table 3. Surface Mount Solid Tantalum Capacitor ESR and Ripple Current

E Case Size ESR (Max., Ω) Ripple Current (A)

AVX TPS, Sprague 593D 0.1 to 0.3 0.7 to 1.1 AVX TAJ 0.7 to 0.9 0.4

D Case Size

AVX TPS, Sprague 593D 0.1 to 0.3 0.7 to 1.1

C Case Size

AVX TPS 0.2 (typ) 0.5 (typ)

Many engineers have heard that solid tantalum capacitors are prone to failure if they undergo high surge currents. This is historically true, and type TPS capacitors are specially tested for surge capability, but surge ruggedness is not a critical issue with the tantalum capacitors fail during very high

output

capacitor. Solid

turn-on

surges,

which do not occur at the output of regulators. High

discharge

surges, such as when the regulator output is

dead shorted, do not harm the capacitors. Unlike the input capacitor, RMS ripple current in the

output capacitor is normally low enough that ripple current rating is not an issue. The current waveform is triangular with a typical value of 200mA

. The formula

RMS

to calculate this is:

Page 13

LT1576/LT1576-5

IVV

D AVG

OUT IN OUT

(

)

−

()

WUU

APPLICATIONS INFORMATION

Output Capacitor Ripple Current (RMS):

VVV

029.

()

RIPPLE RMS

Ceramic Capacitors

Higher value, lower cost ceramic capacitors are now becoming available in smaller case sizes. These are tempting for switching regulator use because of their very low ESR. Unfortunately, the ESR is so low that it can cause loop stability problems. Solid tantalum capacitor’s ESR generates a loop “zero” at 5kHz to 50kHz that is instrumental in giving acceptable loop phase margin. Ceramic capacitors remain capacitive to beyond 300kHz and usually resonate with their ESL before ESR becomes effective. They are appropriate for input bypassing because of their high ripple current ratings and tolerance of turn-on surges.

(

)

OUT IN OUT

LfV

()()( )

−

()

V I ESR ESL

Example: with VIN =10V, V ESL = 10nH:

P-P

=+=

20mV/DIV

RIPPLE

dI dt

RIPPLE

0 042 0 003 45

()( )

P-P

510 5

()



10 30 10 200 10

()



30 10

•

0 42 0 1 10 10 0 33 10

()()

()

−

••

033 10

.•

−

.. • .•

()

OUT

−





P-P

= 5V, L = 30µH, ESR = 0.1Ω,

042

 

 

−





 

OUT

= 1A

OUT

OUTPUT RIPPLE VOLTAGE

Figure 3 shows a typical output ripple voltage waveform for the LT1576. Ripple voltage is determined by the high frequency impedance of the output capacitor, and ripple current through the inductor. Peak-to-peak ripple current through the inductor into the output capacitor is:

VVV

()

For high frequency switchers, the sum of ripple current slew rates may also be relevant and can be calculated from:

Peak-to-peak output ripple voltage is the sum of a created by peak-to-peak ripple current times ESR, and a

square

ripple current slew rate. Capacitive reactance is assumed to be small compared to ESR or ESL.

OUT IN OUT

-P

dIdtV

wave created by parasitic inductance (ESL) and

−

()

VLf

()()()

triwave

200mA/DIV

20mV/DIV

200mA/DIV

2µs/DIV 1576 F03

Figure 3. LT1576 Ripple Voltage Waveform

CATCH DIODE

The suggested catch diode (D1) is a 1N5818 Schottky, or its Motorola equivalent, MBR130. It is rated at 1A average forward current and 30V reverse voltage. Typical forward voltage is 0.42V at 1A. The diode conducts current only during switch off time. Peak reverse voltage is equal to regulator input voltage. Average forward current in normal operation can be calculated from:

INDUCTOR CURRENT AT I

= 1A

OUT

= 50mA

OUT

INDUCTOR CURRENT

= 50mA

AT I

OUT

Page 14

LT1576/LT1576-5

WUU

APPLICATIONS INFORMATION

This formula will not yield values higher than 1A with maximum load current of 1.25A unless the ratio of input to output voltage exceeds 5:1. The only reason to consider a larger diode is the worst-case condition of a high input voltage and circuit conditions, foldback current limit will reduce diode current to less than 1A, but if the output is overloaded and does not fall to less than 1/3 of nominal output voltage, foldback will not take effect. With the overloaded condition, output current will increase to a typical value of 1.8A, determined by peak switch current limit of 2A. With VIN = 15V, V

D AVG

()

This is safe for short periods of time, but it would be prudent to check with the diode manufacturer if continuous operation under these conditions must be tolerated.

overloaded

OUT

1 8 15 4

(not shorted) output. Under short-

= 4V (5V overloaded) and I

−

()

132..

= 1.8A:

OUT

For nearly all applications, a 0.33µF boost capacitor works just fine, but for the curious, more details are provided here. The size of the boost capacitor is determined by switch drive current requirements. During switch on time, drain current on the capacitor is approximately I peak load current of 1.25A, this gives a total drain of 25mA. Capacitor ripple voltage is equal to the product of on time and drain current divided by capacitor value; ∆V = (tON)(25mA/C). To keep capacitor ripple voltage to less than 0.5V (a slightly arbitrary number) at the worstcase condition of tON = 4.7µs, the capacitor needs to be

0.24µF. Boost capacitor ripple voltage is not a critical parameter, but if the minimum voltage across the capacitor drops to less than 3V, the power switch may not saturate fully and efficiency will drop. An formula for absolute minimum capacitor value is:

IVV

//50

()( )

MIN

OUT OUT IN

fV V

()

OUT

−

/ 50. At

OUT

approximate

BOOST␣ PIN␣ CONSIDERATIONS

For most applications, the boost components are a 0.33µF capacitor and a 1N914 or 1N4148 diode. The anode is connected to the regulated output voltage and this generates a voltage across the boost capacitor nearly identical to the regulated output. In certain applications, the anode may instead be connected to the unregulated input voltage. This could be necessary if the regulated output voltage is very low (< 3V) or if the input voltage is less than 6V. Efficiency is not affected by the capacitor value, but the capacitor should have an ESR of less than 1Ω to ensure that it can be recharged fully under the worst-case condition of minimum input voltage. Almost any type of film or ceramic capacitor will work fine.

WARNING!

unregulated input voltage plus the voltage across the boost capacitor. This normally means that peak BOOST pin voltage is equal to input voltage plus output voltage, but

when the boost diode is connected to the regulator input, peak BOOST pin voltage is equal to twice the input voltage. Be sure that BOOST pin voltage does not exceed its maximum rating.

Peak voltage on the BOOST pin is the sum of

f = Switching frequency V

= Regulated output voltage

OUT

VIN = Minimum input voltage This formula can yield capacitor values substantially less

than 0.24µF, but it should be used with caution since it does not take into account secondary factors such as capacitor series resistance, capacitance shift with temperature and output overload.

SHUTDOWN FUNCTION AND UNDERVOLTAGE LOCKOUT

Figure 4 shows how to add undervoltage lockout (UVLO) to the LT1576. Typically, UVLO is used in situations where the input supply is source resistance. A switching regulator draws constant power from the source, so source current increases as source voltage drops. This looks like a negative resistance load to the source and can cause the source to current limit or latch low under low source voltage conditions. UVLO prevents the regulator from operating at source voltages where these problems might occur.

current limited

, or has a relatively high

Page 15

LT1576/LT1576-5

WUU

APPLICATIONS INFORMATION

LT1576

INPUT

3.5µA

SHDN

Figure 4. Undervoltage Lockout

2.44V

0.4V

GND

–

STANDBY

–

TOTAL SHUTDOWN

OUTPUT

1576 F04

Threshold voltage for lockout is about 2.44V. A 3.5µA bias current flows generated current is used to force a default high state on the shutdown pin if the pin is left open. When low shutdown current is not an issue, the error due to this current can be minimized by making RLO 10k or less. If shutdown current is an issue, RLO can be raised to 100k, but the error due to initial bias current and changes with temperature should be considered.

VIN = Minimum input voltage Keep the connections from the resistors to the shutdown

pin short and make sure that interplane or surface capacitance to the switching nodes are minimized. If high resistor values are used, the shutdown pin should be bypassed with a 1000pF capacitor to prevent coupling problems from the switch node. If hysteresis is desired in the undervoltage lockout point, a resistor RFB can be added to the output node. Resistor values can be calculated from:

out

of the pin at threshold. This internally

to 100k 25k suggested

RV V

()

LO IN

VR A

244 35

..µ

−

()

−

244

()

RV VV V

RRV V

25k suggested for R VIN =

∆V = Hysteresis in input voltage level Example: output voltage is 5V, switching is to stop if input

voltage drops below 12V and should not restart unless input rises back to 13.5V. ∆V is therefore 1.5V and VIN = 12V. Let RLO = 25k.

Rk k

LO IN OUT

()( )

FB HI OUT

Input voltage at which switching stops as input voltage descends to trip level

25 12 24415 5 1 15

25 10 33

110 5 1 5 366

−+

∆∆

[]

244 25 35

()

235

()

244 35

−+

−

()

∆

../ .

()

−

110

()

Page 16

LT1576/LT1576-5

WUU

APPLICATIONS INFORMATION

SWITCH NODE CONSIDERATIONS

For maximum efficiency, switch rise and fall times are made as short as possible. To prevent radiation and high frequency resonance problems, proper layout of the components connected to the switch node is essential. B field (magnetic) radiation is minimized by keeping catch diode, switch pin, and input bypass capacitor leads as short as possible. E field radiation is kept low by minimizing the length and area of all traces connected to the switch pin and BOOST pin. A ground plane should always be used

TAKE OUTPUT DIRECTLY FROM END

CAPACITOR DIRECTLY

TO HEAVY GROUND

MINIMIZE AREA OF CONNECTIONS TO SWITCH NODE AND BOOST NODE

KEEP INPUT

CAPACITOR AND CATCH

DIODE CLOSE

TO REGULATOR

AND TERMINATE

THEM TO THE

SAME POINT

CONNECT OUTPUT

GND

OF OUTPUT CAPACITOR TO AVOID PARASITIC RESISTANCE AND INDUCTANCE (KELVIN CONNECTION)

OUT

BOOST

GND

under the switcher circuitry to prevent interplane coupling. A suggested layout for the critical components is shown in Figure 5. Note that the feedback resistors and compensation components are kept as far as possible from the switch node. Also note that the high current ground path of the catch diode and input capacitor are kept very short and separate from the analog ground line.

The high speed switching current path is shown schematically in Figure 6. Minimum lead length in this path is essential to ensure clean switching and low EMI. The path

MINIMUM SIZE OF FEEDBACK PIN CONNECTIONS TO AVOID PICKUP

SHDN/SYNC

TERMINATE FEEDBACK RESISTORS AND COMPENSATION COMPONENTS DIRECTLY TO SWITCHER GROUND PIN

GROUND RING NEED NOT BE AS SHOWN

(NORMALLY EXISTS AS INTERNAL PLANE)

Figure 5. Suggested Layout for LT1576

SWITCH NODE

HIGH

FREQUENCY

CIRCULATING

PATH

Figure 6. High Speed Switching Path

1576 F05

LOAD

1576 F06

Page 17

LT1576/LT1576-5

WUU

APPLICATIONS INFORMATION

including the switch, catch diode, and input capacitor is the only one containing nanosecond rise and fall times. If you follow this path on the PC layout, you will see that it is irreducibly short. If you move the diode or input capacitor away from the LT1576, get your resumé in order. The other paths contain only some combination of DC and 200kHz triwave, so are much less critical.

PARASITIC RESONANCE

Resonance or “ringing” may sometimes be seen on the switch node (see Figure 7). Very high frequency ringing following switch rise time is caused by switch/diode/input capacitor lead inductance and diode capacitance. Schottky diodes have very high “Q” junction capacitance that can ring for many cycles when excited at high frequency. If total lead length for the input capacitor, diode and switch path is 1 inch, the inductance will be approximately 25nH. At switch off, this will produce a spike across the NPN output device in addition to the input voltage. At higher currents this spike can be in the order of 10V to 20V or

higher with a poor layout, potentially exceeding the absolute max switch voltage. The path around switch, catch diode and input capacitor must be kept as short as possible to ensure reliable operation. When looking at this, a >100MHz oscilloscope must be used, and waveforms should be observed on the leads of the package. This switch off spike will also cause the SW node to go below ground. The LT1576 has special circuitry inside which mitigates this problem, but negative voltages over 1V lasting longer than 10ns should be avoided. Note that 100MHz oscilloscopes are barely fast enough to see the details of the falling edge overshoot in Figure 7.

A second, much lower frequency ringing is seen during switch off time if load current is low enough to allow the inductor current to fall to zero during part of the switch off time (see Figure 8). Switch and diode capacitance resonate with the inductor to form damped ringing at 1MHz to 10 MHz. This ringing is not harmful to the regulator and it has not been shown to contribute significantly to EMI. Any attempt to damp it with a resistive snubber will degrade efficiency.

5V/DIV

50mA/DIV

50ns/DIV 1374 F07

Figure 7. Switch Node Response

1µs/DIV 1374 F08

Figure 8. Discontinuous Mode Ringing

RISE AND FALL WAVEFORMS ARE SUPERIMPOSED (PULSE WIDTH IS

NOT

350ns)

SWITCH NODE VOLTAGE

INDUCTOR CURRENT

INPUT BYPASSING AND VOLTAGE RANGE

Input Bypass Capacitor

Step-down converters draw current from the input supply in pulses. The average height of these pulses is equal to load current, and the duty cycle is equal to V

OUT/VIN

. Rise and fall time of the current is very fast. A local bypass capacitor across the input supply is necessary to ensure proper operation of the regulator and minimize the ripple current fed back into the input supply.

The capacitor also forces switching current to flow in a tight local loop, minimizing EMI.

Do not cheat on the ripple current rating of the Input bypass capacitor, but also don’t get hung up on the value in microfarads.

The input capacitor is intended to absorb all the switching current ripple, which can have an RMS value as high as one half of load current. Ripple current ratings on the capacitor must be observed to ensure reliable operation. In many cases it is necessary to parallel two capacitors to obtain the required ripple rating. Both capacitors must be of the same value and manufacturer to

Page 18

LT1576/LT1576-5

WUU

APPLICATIONS INFORMATION

guarantee power sharing. The actual value of the capacitor in microfarads is not particularly important because at 200kHz, any value above 15µF is essentially resistive. RMS ripple current rating is the critical parameter. Actual RMS current can be calculated from:

IIVVVV

RIPPLE RMS OUT OUT IN OUT IN

The term inside the radical has a maximum value of 0.5 when input voltage is twice output, and stays near 0.5 for a relatively wide range of input voltages. It is common practice therefore to simply use the worst-case value and assume that RMS ripple current is one half of load current. At maximum output current of 1.5A for the LT1576, the input bypass capacitor should be rated at 0.75A ripple current. Note however, that there are many secondary considerations in choosing the final ripple current rating. These include ambient temperature, average versus peak load current, equipment operating schedule, and required product lifetime. For more details, see Application Notes 19 and 46, and Design Note 95.

Input Capacitor Type

Some caution must be used when selecting the type of capacitor used at the input to regulators. Aluminum electrolytics are lowest cost, but are physically large to achieve adequate ripple current rating, and size constraints (especially height), may preclude their use. Ceramic capacitors are now available in larger values, and their high ripple current and voltage rating make them ideal for input bypassing. Cost is fairly high and footprint may also be somewhat large. Solid tantalum capacitors would be a good choice, except that they have a history of occasional spectacular failures when they are subjected to large current surges during power-up. The capacitors can short and then burn with a brilliant white light and lots of nasty smoke. This phenomenon occurs in only a small percentage of units, but it has led some OEM companies to forbid their use in high surge applications. The input bypass capacitor of regulators can see these high surges when a battery or high capacitance source is connected. Several manufacturers have developed a line of solid tantalum capacitors specially tested for surge capability

=−

()

(AVX TPS series for instance, see Table 3), but even these units may fail if the input voltage surge approaches the maximum voltage rating of the capacitor. AVX recommends derating capacitor voltage by 2:1 for high surge applications. The highest voltage rating is 50V, so 25V may be a practical upper limit when using solid tantalum capacitors for input bypassing.

Larger capacitors may be necessary when the input voltage is very close to the minimum specified on the data sheet. Small voltage dips during switch on time are not normally a problem, but at very low input voltage they may cause erratic operation because the input voltage drops below the minimum specification. Problems can also occur if the input-to-output voltage differential is near minimum. The amplitude of these dips is normally a function of capacitor ESR and ESL because the capacitive reactance is small compared to these terms. ESR tends to be the dominate term and is inversely related to physical capacitor size within a given capacitor type.

SYNCHRONIZING (Available as -SYNC Option)

The LT1576-SYNC has the SHDN pin replaced with a SYNC pin, which is used to synchronize the internal oscillator to an external signal. The SYNC input must pass from a logic level low, through the maximum synchronization threshold with a duty cycle between 10% and 90%. The input can be driven directly from a logic level output. The synchronizing range is equal to quency up to 400kHz. This means that sync frequency is equal to the worst-case oscillating frequency (250kHz), not the typical operating frequency of 200kHz. Caution should be used when synchronizing above 280kHz because at higher sync frequencies the amplitude of the internal slope compensation used to prevent subharmonic switching is reduced. This type of subharmonic switching only occurs at input voltages less than twice output voltage. Higher inductor values will tend to eliminate this problem. See Frequency Compensation section for a discussion of an entirely different cause of subharmonic switching before assuming that the cause is insufficient slope compensation. Application Note 19 has more details on the theory of slope compensation.

initial

operating fre-

minimum

practical

high

self-

Page 19

LT1576/LT1576-5

BOOST

()()()

 

 

()( )

 

 

=+ =

()( )

 

 

 

 

()( )

−

−−

02 1 5

60 10 1 10 2 00 10

01 012 022

5150

005

10 0 55 10 5 1 6 10

5 0 004

••

.. .

.• .•

.. 02W

WUU

APPLICATIONS INFORMATION

At power-up, when VC is being clamped by the FB pin (see Figure 2, Q2), the sync function is disabled. This allows the frequency foldback to operate in the shorted output condition. During normal operation, switching frequency is controlled by the internal oscillator until the FB pin reaches

0.7V, after which the SYNC pin becomes operational. If no synchronization is required, this pin should be connected to ground.

THERMAL CALCULATIONS

Power dissipation in the LT1576 chip comes from four sources: switch DC loss, switch AC loss, boost circuit current, and input quiescent current. The following formulas show how to calculate each of these losses. These formulas assume continuous mode operation, so they should not be used for calculating efficiency at light load currents.

Switch loss:

RI V

Boost current loss:

BOOST

Quiescent current loss:

SW OUT OUT

()( )

ns I V f

()()()

()

OUT OUT

50/

OUT IN

Total power dissipation is 0.22 + 0.05 + 0.02 = 0.29W. Thermal resistance for LT1576 package is influenced by

the presence of internal or backside planes. With a full plane under the SO package, thermal resistance will be about 80°C/W. No plane will increase resistance to about 120°C/W. To calculate die temperature, add in worst-case ambient temperature:

TJ = TA + θJA (P

With the SO-8 package (θJA = 80°C/W), at an ambient temperature of 50°C,

TJ = 50 + 80 (0.29) = 73.2°C

Die temperature is highest at low input voltage, so use lowest continuous input operating voltage for thermal calculations.

TOT

)

−−

PV V

Q IN OUT

RSW = Switch resistance (≈0.2Ω) 60ns = Equivalent switch current/voltage overlap time f = Switch frequency Example: with VIN = 10V, V



055 10 16 10

.• .•







OUT









0 004

()





 

= 5V and I

OUT

 

= 1A:

OUT

FREQUENCY COMPENSATION

Loop frequency compensation of switching regulators can be a rather complicated problem because the reactive components used to achieve high efficiency also introduce multiple poles into the feedback loop. The inductor and output capacitor on a conventional step-down converter actually form a resonant tank circuit that can exhibit peaking and a rapid 180° phase shift at the resonant frequency. By contrast, the LT1576 uses a “current mode” architecture to help alleviate phase shift created by the inductor. The basic connections are shown in Figure 9. Figure 10 shows a Bode plot of the phase and gain of the power section of the LT1576, measured from the VC pin to

Page 20

LT1576/LT1576-5

WUU

APPLICATIONS INFORMATION

the output. Gain is set by the 1.5A/V transconductance of the LT1576 power section and the effective complex impedance from output to ground. Gain rolls off smoothly above the 160Hz pole frequency set by the 100µF output capacitor. Phase drop is limited to about 85°. Phase recovers and gain levels off at the zero frequency (≈16kHz) set by capacitor ESR (0.1Ω).

Error amplifier transconductance phase and gain are shown in Figure 11. The error amplifier can be modeled as a transconductance of 1000µMho, with an output imped- ance of 570kΩ in parallel with 2.4pF. In all practical applications, the compensation network from VC pin to ground has a much lower impedance than the output impedance of the amplifier at frequencies above 200Hz.

LT1576

GND

CURRENT MODE

POWER STAGE

= 1.5A/V

AMPLIFIER

ERROR

–

1.21V

OUTPUT

ESR

1576 F09

This means that the error amplifier characteristics themselves do not contribute excess phase shift to the loop, and the phase/gain characteristics of the error amplifier section are completely controlled by the external compensation network.

In Figure 12, full loop phase/gain characteristics are shown with a compensation capacitor of 100pF, giving the error amplifier a pole at 2.8kHz, with phase rolling off to 90° and staying there. The overall loop has a gain of 66dB at low frequency, rolling off to unity-gain at 58kHz. Phase shows a two-pole characteristic until the ESR of the output capacitor brings it back above 16kHz. Phase margin is about 77° at unity-gain.

2000

1500

1000

500

GAIN (µMho)

ERROR AMPLIFIER EQUIVALENT CIRCUIT

LOAD

–500

10 1k 10k 1M

PHASE

GAIN

–3

1 × 10

)(

= 50Ω

100 100k

OUT

570k

FREQUENCY (Hz)

2.4pF

OUT

1576 F11

200

150

PHASE (DEG)

100

–50

Figure 9. Model for Loop Response Figure 11. Error Amplifier Gain and Phase

1576 F07

PHASE (DEG)

–40

–80

–120

VIN = 10V

= 5V

OUT

LOOP GAIN (dB)

–20

= 500mA

OUT

= 100µF

OUT

10V, AVX TPS

= 100pF

L = 30µH

100 100k

10 1k 10k 1M

FREQUENCY (Hz)

PHASE

GAIN

Figure 12. Overall Loop Characteristics

GAIN (dB)

–20

–40

PHASE

100 1k

FREQUENCY (Hz)

GAIN

VIN = 10V

= 5V

OUT

= 500mA

OUT

10k 100k

Figure 10. Response from VC Pin to Output

180

135

LOOP PHASE (DEG)

–45

1576 F12

Page 21

LT1576/LT1576-5

WUU

APPLICATIONS INFORMATION

Analog experts will note that around 7kHz, phase dips close to the zero phase margin line. This is typical of switching regulators, especially those that operate over a wide range of loads. This region of low phase is not a problem as long as it does not occur near unity-gain. In practice, the variability of output capacitor ESR tends to dominate all other effects with respect to loop response. Variations in ESR but at the same time phase moves with it so that adequate phase margin is maintained over a very wide range of ESR (≥ ±3:1).

What About a Resistor in the Compensation Network?

It is common practice in switching regulator design to add a “zero” to the error amplifier compensation to increase loop phase margin. This zero is created in the external network in the form of a resistor (RC) in series with the compensation capacitor. Increasing the size of this resistor generally creates better and better loop stability, but there are two limitations on its value. First, the combination of output capacitor ESR and a large value for RC may cause loop gain to stop rolling off altogether, creating a gain margin problem. An approximate formula for R where gain margin falls to zero is:

R Loop

()

GMP = Transconductance of power stage = 1.5A/V GMA = Error amplifier transconductance = 1(10–3) ESR = Output capacitor ESR

1.21 = Reference voltage With V

would yield zero gain margin, so this represents an upper limit. There is a second limitation however which has nothing to do with theoretical small signal dynamics. This resistor sets high frequency gain of the error amplifier, including the gain at the switching frequency. If switching frequency gain is high enough, output ripple voltage will appear at the VC pin with enough amplitude to muck up proper operation of the regulator. In the marginal case,

= 5V and ESR = 0.1Ω, a value of 27.5k for R

OUT

will

Gain =1

cause unity-gain to move around,

G G ESR

()()()()

MP MA

OUT

121.

subharmonic

ing pulse widths seen at the switch node. In more severe cases, the regulator squeals or hisses audibly even though the output voltage is still roughly correct. None of this will show on a theoretical Bode plot because Bode is an amplitude insensitive analysis.

ripple voltage on the VC is held to less than 100mV LT1576 will be well behaved.

an estimate of VC ripple voltage when RC is added to the loop, assuming that RC is large compared to the reactance of CC at 200kHz.

C RIPPLE

()

GMA = Error amplifier transconductance (1000µMho) If a computer simulation of the LT1576 showed that a

series compensation resistor of 15k gave best overall loop response, with adequate gain margin, the resulting VC pin ripple voltage with VIN = 10V, V L = 30µH, would be:

C RIPPLE

()

This ripple voltage is high enough to possibly create subharmonic switching. In most situations a compromise value (<10k in this case) for the resistor gives acceptable phase margin and no subharmonic problems. In other cases, the resistor may have to be larger to get acceptable phase response, and some means must be used to control ripple voltage at the VC pin. The suggested way to do this is to add a capacitor (CF) in parallel with the RC/CC network on the VC pin. Pole frequency for this capacitor is typically set at one-fifth of switching frequency so that it provides significant attenuation of switching ripple, but does not add unacceptable phase shift at loop unity-gain frequency. With RC = 15k,

switching occurs, as evidenced by alternat-

Tests have shown that if

The formula below will give

R G V V ESR

()( )

C MA IN OUT

15 1 10 10 5 01 121

()

()()()

()

10 30 10 200 10

()

•..

()()

π •

2 200 10 15

−

()()()

VLf

()()()

= 5V, ESR = 0.1Ω,

OUT

−

()()()

−

••

()

121.

265

, the

P-P

0151

Page 22

LT1576/LT1576-5

WUU

APPLICATIONS INFORMATION

How Do I Test Loop Stability?

The “standard” compensation for LT1576 is a 100pF capacitor for CC, with RC = 0Ω. While this compensation will work for most applications, the “optimum” value for loop compensation components depends, to various extent, on parameters which are not well controlled. These include ance, load current and ripple current variations),

capacitance

temperature, aging and changes at the load),

capacitor ESR

perature and aging), and finally,

output load current

designer to check out the final design to ensure that it is “robust” and tolerant of all these variations.

inductor value

(±30% due to production toler-

( ±20% to ±50% due to production tolerance,

(±200% due to production tolerance, tem-

DC input voltage and

. This makes it important for the

SWITCHING

REGULATOR

output

100µF TO 1000µF

I check switching regulator loop stability by pulse loading the regulator output while observing transient response at the output, using the circuit shown in Figure 13. The regulator loop is “hit” with a small transient AC load current at a relatively low frequency, 50Hz to 1kHz. This causes the output to jump a few millivolts, then settle back to the original value, as shown in Figure 14. A well behaved loop will settle back cleanly, whereas a loop with poor phase or gain margin will “ring” as it settles. The of rings indicates the degree of stability, and the

number

frequency

of the ringing shows the approximate unity-gain frequency of the loop.

Amplitude

of the signal is not particularly important, as long as the amplitude is not so high that the loop behaves nonlinearly.

RIPPLE FILTER

470Ω

3300pF 330pF

4.7k

TO X1

OSCILLOSCOPE

PROBE

ADJUSTABLE

INPUT SUPPLY

10mV/DIV

5A/DIV

ADJUSTABLE

DC LOAD

50Ω

TO OSCILLOSCOPE SYNC

100Hz TO 1kHz 100mV TO 1V

P-P

Figure 13. Loop Stability Test Circuit

0.2ms/DIV 1576 F14

Figure 14. Loop Stability Check

1576 F13

OUT

= 500mA

OUT

BEFORE FILTER

OUT

= 500mA

OUT

AFTER FILTER V

OUT

= 50mA

OUT

AFTER FILTER LOAD PULSE

THROUGH 50Ω f ≈ 780Hz

Page 23

LT1576/LT1576-5

WUU

APPLICATIONS INFORMATION

The output of the regulator contains both the desired low frequency transient information and a reasonable amount of high frequency (200kHz) ripple. The ripple makes it difficult to observe the small transient, so a two-pole, 100kHz filter has been added. This filter is not particularly critical; even if it attenuated the transient signal slightly, this wouldn’t matter because amplitude is not critical.

After verifying that the setup is working correctly, I start varying load current and input voltage to see if I can find any combination that makes the transient response look suspiciously “ringy.” This procedure may lead to an adjustment for best loop stability or faster loop transient response. Nearly always you will find that loop response looks better if you add in several kΩ for RC. Do this only if necessary, because as explained before, RC above 1k may require the addition of CF to control VC pin ripple. If everything looks OK, I use a heat gun and cold spray on the circuit (especially the output capacitor) to bring out any temperature-dependent characteristics.

Keep in mind that this procedure does not take initial component tolerance into account. You should see fairly clean response under all load and line conditions to ensure that component variations will not cause problems. One note here: according to Murphy, the component most likely to be changed in production is the output capacitor, because that is the component most likely to have manufacturer variations (in ESR) large enough to cause problems. It would be a wise move to lock down the sources of the output capacitor in production.

probably not be a problem in production. Note that

quency

of the light load ringing may vary with component

fre-

tolerance but phase margin generally hangs in there.

POSITIVE-TO-NEGATIVE CONVERTER

The circuit in Figure 15 is a classic positive-to-negative topology using a grounded inductor. It differs from the standard approach in the way the IC chip derives its feedback signal, however, because the LT1576 accepts only positive feedback signals, the ground pin must be tied to the regulated negative output. A resistor divider to ground or, in this case, the sense pin, then provides the proper feedback voltage for the chip.

1N4148

L1*

0.33µF

4.99k

D2 1N5818

15µH

15.8k

100µF 10V TANT ×2

OUTPUT** –5V, 0.5A

1576 F15

INPUT

5.5V TO 20V

10µF TO

50µF

* INCREASE L1 TO 30µH OR 60µH FOR HIGHER CURRENT APPLICATIONS.

SEE APPLICATIONS INFORMATION

** MAXIMUM LOAD CURRENT DEPENDS ON MINIMUM INPUT VOLTAGE

AND INDUCTOR SIZE. SEE APPLICATIONS INFORMATION

Figure 15. Positive-to-Negative Converter

BOOST

GND

LT576

A possible exception to the “clean response” rule is at very light loads, as evidenced in Figure 14 with I

LOAD

= 50mA. Switching regulators tend to have dramatic shifts in loop response at very light loads, mostly because the inductor current becomes discontinuous. One common result is very slow but stable characteristics. A second possibility is low phase margin, as evidenced by ringing at the output with transients. The good news is that the low phase margin at light loads is not particularly sensitive to component variation, so if it looks reasonable under a transient test, it will

Inverting regulators differ from buck regulators in the basic switching network. Current is delivered to the output as

square waves with a peak-to-peak amplitude much greater than load current. This means that maximum load current will be significantly less than the LT1576’s 1.5A maximum switch current, even with large inductor values.

The buck converter in comparison, delivers current to the output as a triangular wave superimposed on a DC level equal to load current, and load current can approach 1.5A

Page 24

LT1576/LT1576-5

WUU

APPLICATIONS INFORMATION

with large inductors. Output ripple voltage for the positiveto-negative converter will be much higher than a buck converter. Ripple current in the output capacitor will also be much higher. The following equations can be used to calculate operating conditions for the positive-to-negative converter.

Maximum load current:

 

()

OUT IN



−

035

()



035..

()

OUT

= 5V, L = 30µH,

MAX

 

−

 

()( )

IN OUT

VVfL

()()()

OUT IN

VV VV

()

+−

OUT IN OUT F

IP = Maximum rated switch current VIN = Minimum input voltage V

= Output voltage

OUT

VF = Catch diode forward voltage

0.35 = Switch voltage drop at 1.5A Example: with V

VF = 0.5V, IP = 1.5A: I

IN(MIN)

MAX

= 5.5V, V

= 0.6A. Note that this equation does not take into account that maximum rated switch current (IP) on the LT1576 is reduced slightly for duty cycles above 50%. If duty cycle is expected to exceed 50% (input voltage less than output voltage), use the actual I value from the Electrical Characteristics table.

Operating duty cycle:

This duty cycle is close enough to 50% that IP can be assumed to be 1.5A.

OUTPUT DIVIDER

If the adjustable part is used, the resistor connected to V

(R2) should be set to approximately 5k. R1 is

OUT

calculated from:

2121

−

121

()

OUT

INDUCTOR VALUE

Unlike buck converters, positive-to-negative converters cannot use large inductor values to reduce output ripple voltage. At 200kHz, values larger than 75µH make almost no change in output ripple. The graph in Figure 16 shows peak-to-peak output ripple voltage for a 5V to –5V converter versus inductor value. The criteria for choosing the

150

)

P-P

120

5V TO –5V CONVERTER OUTPUT CAPACITOR’S ESR = 0.1Ω

DISCONTINUOUS

= 0.1A

LOAD

DISCONTINUOUS I

LOAD

= 0.25A

OUT F

VVV

−+ +03.

IN OUT F

(This formula uses an average value for switch loss, so it may be several percent in error.)

With the conditions above:

505

DC =

−++

55 03 5 05

.. .

OUTPUT RIPPLE VOLTAGE (mV

Figure 16. Ripple Voltage on Positive-to-Negative Converter

CONTINUOUS I

LOAD

INDUCTOR SIZE (µH)

> 0.38A

1576 F16

Page 25

LT1576/LT1576-5

WUU

APPLICATIONS INFORMATION

inductor is therefore typically based on ensuring that peak switch current rating is not exceeded. This gives the lowest value of inductance that can be used, but in some cases (lower output load currents) it may give a value that creates unnecessarily high output ripple voltage. A compromise value is often chosen that reduces output ripple. As you can see from the graph, give arbitrarily low ripple, but high ripple.

The difficulty in calculating the minimum inductor size needed is that you must first know whether the switcher will be in continuous or discontinuous mode at the critical point where switch current is 1.5A. The first step is to use the following formula to calculate the load current where the switcher must use continuous mode. If your load current is less than this, use the discontinuous mode formula to calculate minimum inductor needed. If load current is higher, use the continuous mode formula.

Output current where continuous mode is needed:

()()

CONT

Minimum inductor discontinuous mode:

MIN

VV VV V

()

IN OUT IN OUT F

()()

OUT OUT

()( )

IN P

large

inductors will not

small

inductors can give

()

55 15

()()

CONT

This says that discontinuous mode can be used and the minimum inductor needed is found from:

MIN

In practice, the inductor should be increased by about 30% over the calculated minimum to handle losses and variations in value. This suggests a minimum inductor of 7.3µH for this application, but looking at the ripple voltage chart shows that output ripple voltage could be reduced by a factor of two by using a 30µH inductor. There is no rule of thumb here to make a final decision. If modest ripple is needed and the larger inductor does the trick, go for it. If ripple is noncritical use the smaller inductor. If ripple is extremely critical, a second filter may have to be added in any case, and the lower value of inductance can be used. Keep in mind that the output capacitor is the other critical factor in determining output ripple voltage. Ripple shown on the graph (Figure 16) is with a capacitor’s ESR of 0.1Ω. This is sonable for AVX type TPS “D” or “E” size surface mount solid tantalum capacitors, but the final capacitor chosen must be looked at carefully for ESR characteristics.

455555505

.. .

()

25 025

()( )



200 10 1 5



•.

()



()



.µ

038

rea-

Minimum inductor continuous mode:

()( )

MIN

fV V I I

()

IN OUT P OUT

For the example above, with maximum load current of

0.25A:

IN OUT

   



−+

 



















()

OUT

Page 26

LT1576/LT1576-5

WUU

APPLICATIONS INFORMATION

Ripple Current in the Input and Output Capacitors

Positive-to-negative converters have high ripple current in both the input and output capacitors. For long capacitor lifetime, the RMS value of this current must be less than the high frequency ripple current rating of the capacitor. The following formula will give an RMS ripple current.

mode and large inductor value

somewhat higher ripple current, especially in discontinuous mode. The exact formulas are very complex and appear in Application Note 44, pages 30 and 31. For our purposes here I have simply added a fudge factor (ff). The value for ff is about 1.2 for higher load currents and L ≥10µH. It increases to about 2.0 for smaller inductors at lower load currents.

Capacitor ff I

ff = Fudge factor (1.2 to 2.0)

RMS

This formula assumes continuous

()( )

OUT

approximate

. Small inductors will give

OUT

value for

Diode Current

Average

current will be considerably higher. Peak diode current:

Keep in mind that during start-up and output overloads, average diode current may be much higher than with normal loads. Care should be used if diodes rated less than 1A are used, especially if continuous overload conditions must be tolerated.

diode current is equal to load current.

Continuous

()

OUT

Discontinuous

Mode

IN OUT

Mode =

()( )

IN OUT

LfV V

()()

()

IN OUT

()( )

OUT

()()

Peak

diode

Page 27

PACKAGE DESCRIPTION

LT1576/LT1576-5

Dimensions in inches (millimeters) unless otherwise noted.

S8 Package

8-Lead Plastic Small Outline (Narrow 0.150)

(LTC DWG # 05-08-1610)

0.189 – 0.197* (4.801 – 5.004)

0.228 – 0.244

(5.791 – 6.197)

0.010 – 0.020

(0.254 – 0.508)

0.008 – 0.010

(0.203 – 0.254)

DIMENSION DOES NOT INCLUDE MOLD FLASH. MOLD FLASH SHALL NOT EXCEED 0.006" (0.152mm) PER SIDE

DIMENSION DOES NOT INCLUDE INTERLEAD FLASH. INTERLEAD FLASH SHALL NOT EXCEED 0.010" (0.254mm) PER SIDE

0.016 – 0.050

(0.406 – 1.270)

0°– 8° TYP

0.053 – 0.069

(1.346 – 1.752)

0.014 – 0.019

(0.355 – 0.483)

TYP

0.150 – 0.157** (3.810 – 3.988)

0.004 – 0.010

(0.101 – 0.254)

0.050

(1.270)

BSC

SO8 1298

Information furnished by Linear Technology Corporation is believed to be accurate and reliable. However, no responsibility is assumed for its use. Linear Technology Corporation makes no representation that the interconnection of its circuits as described herein will not infringe on existing patent rights.

Page 28

LT1576/LT1576-5

TYPICAL APPLICATION

Dual Output SEPIC␣ Converter

The circuit in Figure 17 generates both positive and negative 5V outputs with a single piece of magnetics. L1 is a 33µH surface mount inductor from Coiltronics. It is manufactured with two identical windings that can be connected in series or parallel. The topology for the 5V output is a standard buck converter. The –5V topology would be a simple flyback winding coupled to the buck converter if C4 were not present. C4 creates the SEPIC (Single-Ended Primary Inductance Converter) topology which improves regulation and reduces ripple current in L1. Without C4, the voltage swing on L1B compared to L1A would vary due to relative loading and coupling

INPUT

TO 25V

C3 22µF

GND

* L1 IS A SINGLE CORE WITH TWO WINDINGS

COILTRONICS CTX33-2

** AVX TSPD107M010

†

IF LOAD CAN GO TO ZERO, AN OPTIONAL PRELOAD OF 1k TO 5k MAY BE USED TO IMPROVE LOAD REGULATION

35V TANT

SHDN

BOOST

LT1576

GND

0.33µF

BIAS

100pF

C4**

100µF

losses. C4 provides a low impedance path to maintain an equal voltage swing in L1B, improving regulation. In a flyback converter, during switch on time, all the converter’s energy is stored in L1A only, since no current flows in L1B. At switch off, energy is transferred by magnetic coupling into L1B, powering the –5V rail. C4 pulls L1B positive during switch on time, causing current to flow, and energy to build in L1B and C4. At switch off, the energy stored in both L1B and C4 supply the –5V rail. This reduces the current in L1A and changes L1B current waveform from square to triangular. For details on this circuit see Design Note 100.

1N5818

1N914

15.8k

4.99k

C1** 100µF 10V TANT

C5** 100µF 10V TANT

OUTPUT 5V

OUTPUT

†

–5V

1576 F17

D1 1N5818

L1B*

L1A*

33µH

Figure 17. Dual Output SEPIC Converter

RELATED PARTS

PART NUMBER DESCRIPTION COMMENTS

LT1074/LT1076 Step-Down Switching Regulators 40V Input, 100kHz, 5A and 2A LTC®1148 High Efficiency Synchronous Step-Down Switching Regulator External FET Switches LTC1149 High Efficiency Synchronous Step-Down Switching Regulator External FET Switches LTC1174 High Efficiency Step-Down and Inverting DC/DC Converter 0.5A, 150kHz Burst ModeTM Operation LT1370 High Efficiency DC/DC Converter 42V, 6A, 500kHz Switch LT1371 High Efficiency DC/DC Converter 35V, 3A, 500kHz Switch LT1372/LT1377 500kHz and 1MHz High Efficiency 1.5A Switching Regulators Boost Topology LT1374 4.5A, 500kHz Step-Down Switching Regulator LT1376 1.5A, 500kHz Step-Down Switching Regulator LT1435/LT1436 High Efficiency Step-Down Converter External Switches, Low Noise LT1676/LT1776 High Efficiency Step-Down Switching Regulators 7.4V to 60V Input, 100kHz/200kHz LT1777 Low Noise Step-Down Switching Regulator 48V Input, Internally Limited dv/dt

Burst Mode is a trademark of Linear Technology Corporation.

1576f LT/TP 0999 4K • PRINTED IN USA

 LINEAR TECHNOLOGY CORPORATION 1999

Linear Technology Corporation

1630 McCarthy Blvd., Milpitas, CA 95035-7417

(408) 432-1900 ● FAX: (408) 434-0507

●

www.linear-tech.com

Datasheet LT1576 Datasheet (Linear Technology)

Specifications and Main Features

Frequently Asked Questions

User Manual
