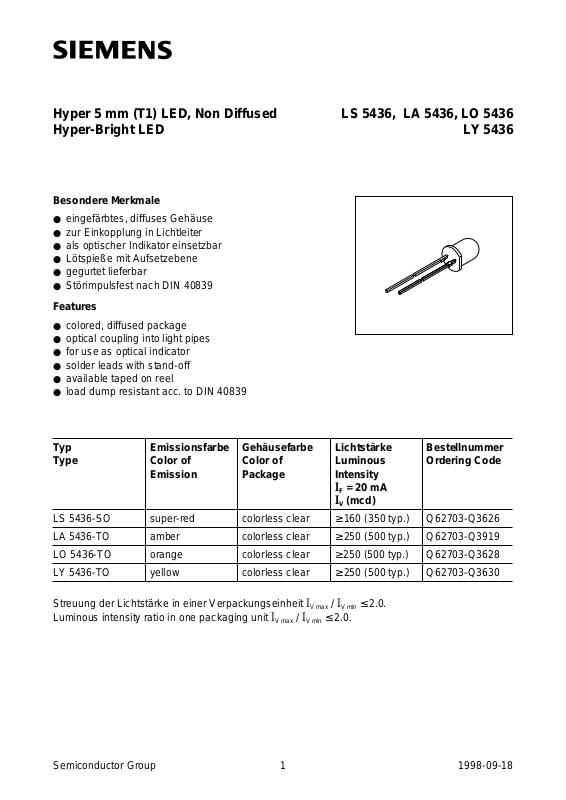

Hyper 5 mm (T1) LED, Non Diffused
Hyper-Bright LED
Besondere Merkmale
● eingefärbtes, diffuses Gehäuse
● zur Einkopplung in Lichtleiter
● als optischer Indikator einsetzbar
● Lötspieße mit Aufsetzebene
● gegurtet lieferbar
● Störimpulsfest nach DIN 40839
Features
● colored, diffused package
● optical coupling into light pipes
● for use as optical indicator
● solder leads with stand-off
● available taped on reel
● load dump resistant acc. to DIN 40839
LS 5436, LA 5436, LO 5436
LY 5436
Typ
Type
Emissionsfarbe
Color of
Emission
Gehäusefarbe
Color of
Package
Lichtstärke
Luminous
Intensity
I
= 20 mA
F
I
(mcd)
V
Bestellnummer
Ordering Code
LS 5436-SO super-red colorless clear ≥ 160 (350 typ.) Q62703-Q3626
LA 5436-TO amber colorless clear ≥ 250 (500 typ.) Q62703-Q3919
LO 5436-TO orange colorless clear ≥ 250 (500 typ.) Q62703-Q3628
LY 5436-TO yellow colorless clear ≥ 250 (500 typ.) Q62703-Q3630
Streuung der Lichtstärke in einer Verpackungseinheit I
Luminous intensity ratio in one packaging unit I
V max
/ I
V max
V min
/ I
V min
≤ 2.0.
≤ 2.0.
Semiconductor Group 1 1998-09-18
Page 2

Grenzwerte
Maximum Ratings
LS 5436, LA 5436, LO 5436, LY 5436
Bezeichnung
Parameter
Betriebstemperatur
Operating temperature range
Lagertemperatur
Storage temperature range
Sperrschichttemperatur
Junction temperature
Durchlaßstrom
Forward current
Stoßstrom
Surge current
t ≤ 10 µs, D = 0.005
Sperrspanung
Reverse voltage
Verlustleistung
Power dissipation
T
≤ 25 ˚C
A
Wärmewiderstand
Thermal resistance
Sperrschicht / Umgebung
Junction / air
1)
1)
Symbol
Symbol
T
op
T
stg
T
j
I
F
I
FM
V
R
P
tot
R
th JA
Werte
Values
Einheit
Unit
LS, LO, LA LY
– 55 ... + 100 ˚C
– 55 ... + 100 ˚C
+ 100 ˚C
30 20 mA
1 0.2 A
3V
80 55 mW
500 K/W
1)
Belastung in Sperrichtung sollte vermieden werden.
1)
Reverse biasing should be avoided.
Semiconductor Group 2 1998-09-18
Page 3

Kennwerte (TA = 25 ˚C)
Characteristics
LS 5436, LA 5436, LO 5436, LY 5436
Bezeichnung
Parameter
Wellenlänge des emittierten Lichtes (typ.)
Wavelength at peak emission (typ.)
I
= 20 mA
F
Dominantwellenlänge (typ.)
Dominant wavelength (typ.)
I
= 20 mA
F
Spektrale Bandbreite bei 50% I
Spectral bandwidth at 50% I
I
= 20 mA
F
rel max
rel max
(typ.)
(typ.)
Abstrahlwinkel bei 50% Iv (Vollwinkel)
Viewing angle at 50% I
v
Durchlaßspannung (typ.)
Forward voltage (max.)
I
= 20 mA
F
Sperrstrom (typ.)
Reverse current (max.)
V
= 3 V
R
Temperaturkoeffizient von λ
Temperature coefficient of λ
Temperaturkoeffizient von λ
dom(IF
dom(IF
,
peak
= 20 mA)
= 20 mA)
IF = 20 mA (typ.)
Temperature coefficient of λ
peak
,
IF = 20 mA (typ.)
Symbol
Symbol
Werte
Values
Einheit
Unit
LS LA LO LY
λ
λ
peak
dom
645 622 610 591 nm
632 615 605 587 nm
∆λ 16 16 16 15 nm
2ϕ 30 30 30 30 Grad
deg.
V
V
I
R
I
R
TC
TC
F
F
λ
λ
2.0
2.6
2.0
2.6
2.0
2.6
2.0
2.6
V
V
0.01100.01100.01100.0110µA
µA
0.014 0.062 0.067 0.096 nm/K
0.14 0.13 0.13 0.13 nm/K
Temperaturkoeffizient von VF, IF = 20 mA (typ.)
TC
V
– 1.95 – 1.78 – 1.67 – 2.51 mV/K
Temperature coefficient of VF, IF = 20 mA (typ.)
Semiconductor Group 3 1998-09-18
Page 4

LS 5436, LA 5436, LO 5436, LY 5436
Relative spektrale Emission I
= f (λ), TA= 25 ˚C, IF= 20 mA
rel
Relative spectral emission
V (λ) = spektrale Augenempfindlichkeit
Standard eye response curve
100
%
Ι
rel
80
60
40
20
OHL00235
V
λ
yellow
orange
amber
super-red
0
400
450 500 550 600 650 700nm
Abstrahlcharakteristik I
Radiation characteristic
50
60
70
80
90
rel
= f (ϕ)
λ
10203040
φ
0
1.0
0.8
0.6
0.4
0.2
0
OHL00314
100
02040 60 80 100 1200.40.60.81.0
Semiconductor Group 4 1998-09-18
Page 5

LS 5436, LA 5436, LO 5436, LY 5436
Durchlaßstrom IF = f (VF)
Forward current
T
= 25˚C
A
2
10
mA
Ι
5
F
1
10
5
0
10
5
-1
10
1.4 1.8 2.2 2.6 3.0 V 3.4
1.0
OHL00232
V
F
Maximal zulässiger Durchlaßstrom
Max. permissible forward current
I
= f (TA)
F
35
mA
Ι
F
30
25
yellow
20
15
10
5
0
0 20 40 60 80 C 100
OHL00248
Τ
A
Relative Lichtstärke IV/I
V(20 mA)
Relative luminous intensity
T
= 25˚C
A
1
10
Ι
V
Ι
V
(20 mA)
0
10
5
-1
10
5
superred
yellow
orange/amber
10
-2
5
-3
10
10
-1
0
10
55mA
= f (IF)
1
10
OHL00233
10
Ι
F
Relative Lichtstärke IV/ I
V(25˚C )
= f (TA)
Relative luminous intensity
I
= 20 mA
F
OHL00238
Ι
V
Ι
V
(25 C)
2.0
1.6
orange
yellow
amber
super-red
1.2
0.8
orange
0.4
2
0
-20 0 20 40 60 C 100
yellow
amber
super-red
T
A
Semiconductor Group 5 1998-09-18
Page 6

LS 5436, LA 5436, LO 5436, LY 5436
Zulässige Impulsbelastbarkeit IF = f (tp)
Permissible pulse handling capability
LS, LA, LO
Duty cycle D = parameter, TA = 25 ˚C
=
T
OHL00322
Ι
F
1
10
A
Ι
5
F
=
D
t
p
t
p
T
D
10
0
5
0.005
0.01
0.02
0.05
0.1
0.2
0.5
-1
10
5
Zulässige Impulsbelastbarkeit IF = f (tp)
Permissible pulse handling capability
LY
Duty cycle D = parameter, TA = 25 ˚C
=
T
OHL00316
Ι
F
0
10
A
Ι
F
5
=
D
t
p
t
p
T
D
0.005
0.01
0.02
0.05
10
0.1
-1
0.2
5
0.5
10
-2
-5
10
-410-310-210-1100101102
10s
t
p
10
-2
-5
10
-410-310-210-1100101102
Maßzeichnung (Maße in mm, wenn nicht anders angegeben)
Package Outlines (Dimensions in mm, unless otherwise specified)
10s
t
p
Kathodenkennzeichnung: Kürzerer Lötspieß
Cathode mark: Short solder lead
Semiconductor Group 6 1998-09-18
