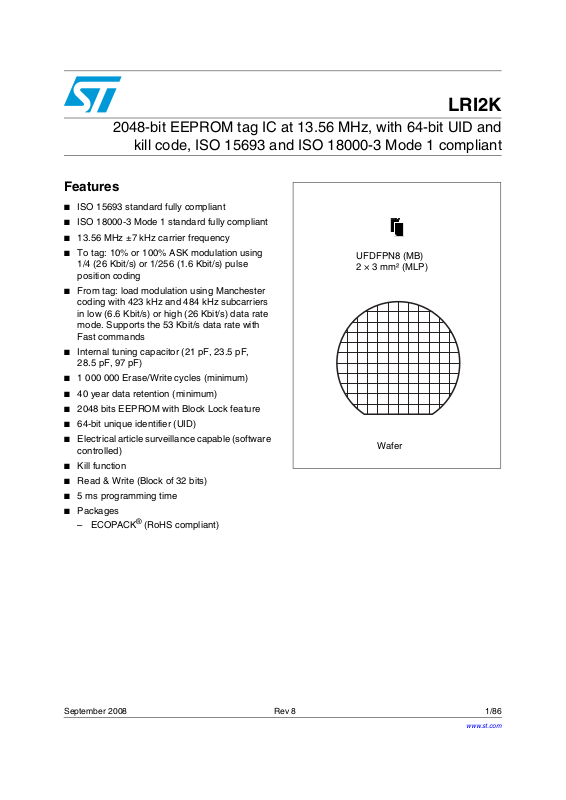

2048-bit EEPROM tag IC at 13.56 MHz, with 64-bit UID and

Wafer

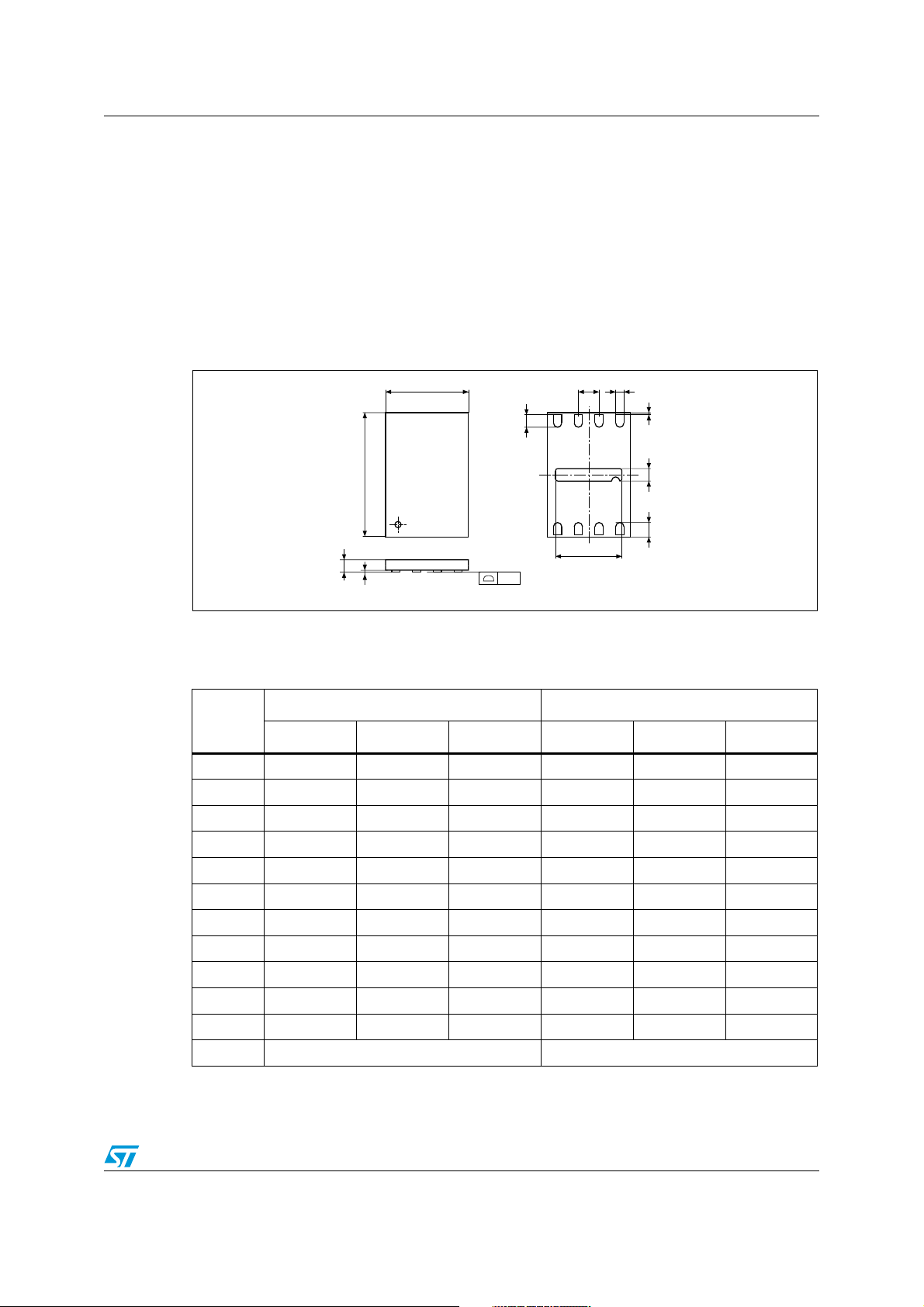

UFDFPN8 (MB) 2 × 3 mm² (MLP)

kill code, ISO 15693 and ISO 18000-3 Mode 1 compliant

Features

■ ISO 15693 standard fully compliant

■ ISO 18000-3 Mode 1 standard fully compliant

■ 13.56 MHz ±7 kHz carrier frequency

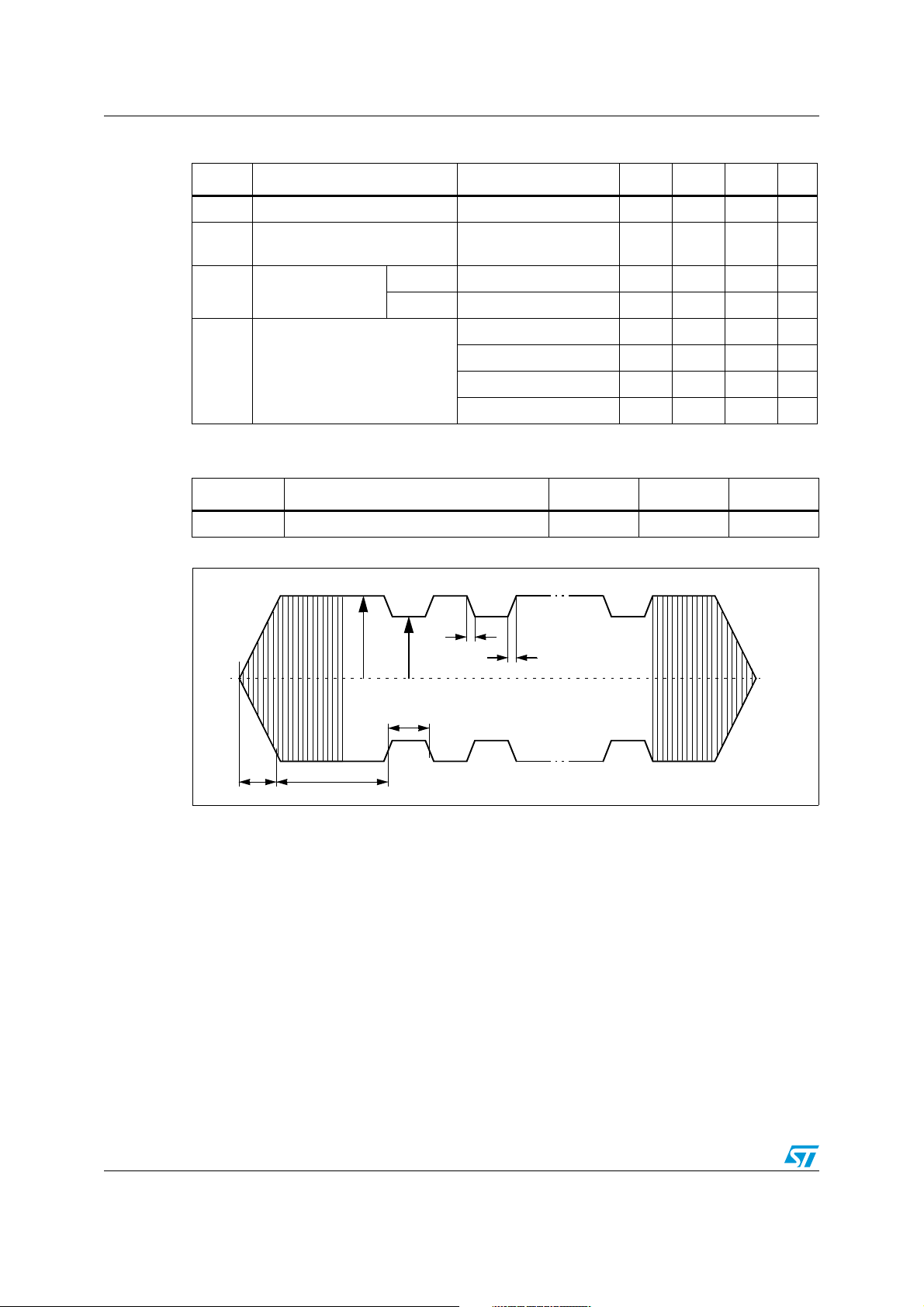

■ To tag: 10% or 100% ASK modulation using

1/4 (26 Kbit/s) or 1/256 (1.6 Kbit/s) pulse position coding

■ From tag: load modulation using Manchester

coding with 423 kHz and 484 kHz subcarriers in low (6.6 Kbit/s) or high (26 Kbit/s) data rate mode. Supports the 53 Kbit/s data rate with Fast commands

■ Internal tuning capacitor (21 pF, 23.5 pF,

28.5 pF, 97 pF)

■ 1 000 000 Erase/Write cycles (minimum)

■ 40 year data retention (minimum)

■ 2048 bits EEPROM with Block Lock feature

■ 64-bit unique identifier (UID)

■ Electrical article surveillance capable (software

controlled)

■ Kill function

■ Read & Write (Block of 32 bits)

■ 5 ms programming time

■ Packages

–ECOPACK

(RoHS compliant)

LRI2K

September 2008 Rev 8 1/86

www.st.com
