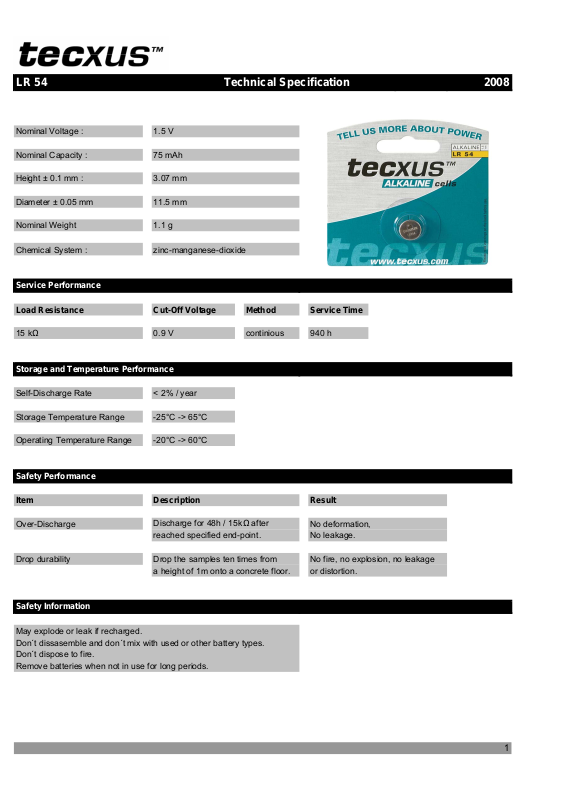

LR 54 Technical Specification 2008
Nominal Voltage : 1.5 V
Nominal Capacity : 75 mAh
Height ± 0.1 mm : 3.07 mm
Diameter ± 0.05 mm 11.5 mm
Nominal Weight 1.1 g
Chemical System : zinc-manganese-dioxide
Service Performance
Load Resistance Cut-Off Voltage Method Service Time
15 kΩ 0.9 V continious 940 h
Storage and Temperature Performance
Self-Discharge Rate < 2% / year
Storage Temperature Range -25°C -> 65°C
Operating Temperature Range -20°C -> 60°C
Safety Performance
Item Description Result
Over-Discharge
Drop durability Drop the samples ten times from No fire, no explosion, no leakage
Safety Information
May explode or leak if recharged.
Don´t dissasemble and don´t mix with used or other battery types.
Don´t dispose to fire.
Remove batteries when not in use for long periods.
Discharge for 48h / 15kΩ after
reached specified end-point. No leakage.
a height of 1m onto a concrete floor. or distortion.
No deformation,
1
Page 2
LR 54 Technical Specification 2008
Load resistance: 15kΩ
Cut-off voltage: 0.9 V
1,65
1,55
1,45
1,35
1,25
Voltage (V)
1,15
1,05
0,95
0,85
0 100 200 300 400 500 600 700 800 900 1000
Discharge Time (hrs)
