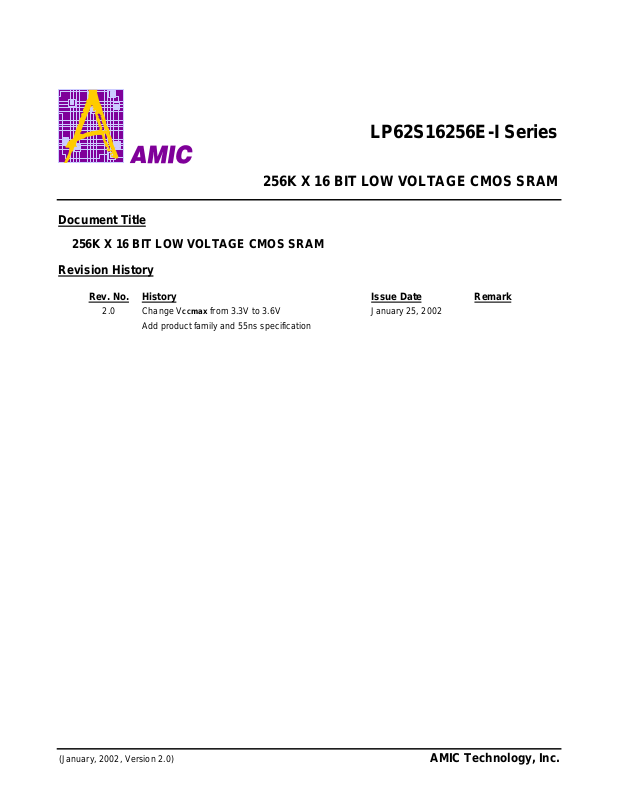

Datasheet LP62S16256EV-70LLI, LP62S16256EV-55LLI, LP62S16256EU-70LLI, LP62S16256EU-55LLI Datasheet (AMIC)
Page 1
LP62S16256E-I Series
256K X 16 BIT LOW VOLTAGE CMOS SRAM
Document Title
256K X 16 BIT LOW VOLTAGE CMOS SRAM
Revision History
Rev. No. History Issue Date Remark
2.0 Change VCCmax from 3.3V to 3.6V January 25, 2002
Add product family and 55ns specification
(January, 2002, Version 2.0) AMIC Technology, Inc.
Page 2
LP62S16256E-I Series
256K X 16 BIT LOW VOLTAGE CMOS SRAM
Features
n Operating voltage: 2.7V to 3.6V
n Access times: 55ns / 70ns (max.)
n Current:
Very low power version: Operating: 40mA (max.)
Standby: 10µA (max.)
n Full static operation, no clock or refreshing required
n All inputs and outputs are directly TTL-compatible
n Common I/O using three-state output
n Data retention voltage: 2.0V (min.)
n Available in 44-pin TSOP and 48-ball CSP (6×8mm)
packages
Product Family
General Description
The LP62S16256E-I is a low operating current 4,194,304-bit
static random access memory organized as 262,144 words
by 16 bits and operates on low power voltage from 2.7V to
3.3V. It is built using AMIC's high performance CMOS
process.
Inputs and three-state outputs are TTL compatible and allow
for direct interfacing with common system bus structures.
The chip enable input is provided for POWER-DOWN,
device enable. Two byte enable inputs and an output enable
input are included for easy interfacing.
Data retention is guaranteed at a power supply voltage as
low as 2.0V.
Power Dissipation
Standby
(ISB1, Typ.)
Product Family
LP62S16256E-I
Operating
Temperature
-40°C ~ +85°C
VCC
Range
Speed
2.7V~3.6V 55ns / 70ns
Data Retention
(ICCDR, Typ.)
0.08µA 0.3µA
1. Typical values are measured at VCC = 3.0V, TA = 25°C and not 100% tested.
2. Data retention current VCC = 2.0V.

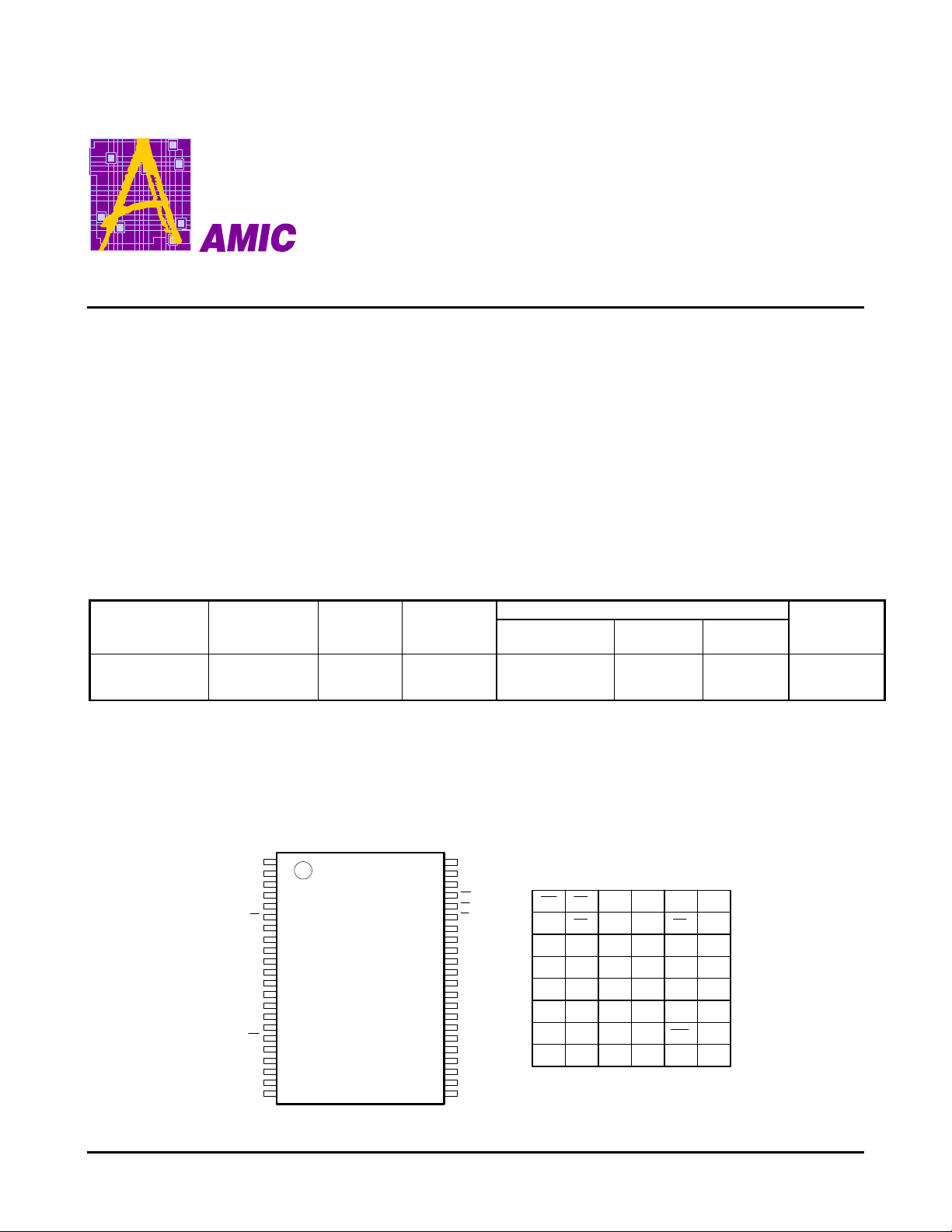

Pin Configurations
nn TSOP nn CSP (Chip Size Package)
48-pin Top View
1
VCC
GND
A4
2
A3
3
A2
4
A1
5
A0
6
CE
7
I/O1
8
I/O2
9
I/O3
10
I/O4
11
12
13
I/O5
14
I/O6
15
I/O7
16
I/O8
17
WE
18
A17
19
A16
20
A15
21
A14
22
A13
LP62S16256EV-I
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
2423A11
A5
A6
A7
OE
HB
LB
I/O16
I/O15
I/O14
I/O13
GND
VCC
I/O12
I/O11
I/O10
I/O9
NC
A8
A9
A10
A12
A
LB
I/O9
B
I/O10
C
GND
D
VCC
E
I/O15
F
I/O16
G
NC A8NCA9
H
OE
HB
I/O11
I/O12
I/O13
I/O14
A0
A1 A2 NC
A3
A4
A5 A6
A17NCA7
A16
A14 A15
A12
A13
A10 A11 NC
CE
I/O2
I/O4
I/O5
I/O6
WE
Operating
(ICC2, Typ.)
5mA
654321
I/O1
I/O3
VCC
GND
I/O7
I/O8
Package
Type
44L TSOP
48B CSP
(January, 2002, Version 2.0) 1 AMIC Technology, Inc.
Page 3
LP62S16256E-I Series
Block Diagram
A0
A16
A17
DECODER
512 X 8192
MEMORY ARRAY
VCC
GND
I/O1
INPUT
DATA
CIRCUIT
I/O8
CE
LB
HB
OE
WE
CONTROL
CIRCUIT
Pin Descriptions -- TSOP
Pin No. Symbol Description
1 - 5, 18 - 27,
42 - 44
6
7 - 10, 13 - 16,
29 - 32, 35 - 38
A0 - A17 Address Inputs
CE
Chip Enable Input
I/O1 - I/O16 Data Inputs/Outputs
COLUMN I/O
INPUT
DATA
CIRCUIT
I/O9
16
I/O
17
39
40
41
WE
LB
HB
OE
Write Enable Input
Lower Byte Enable Input (I/O1 to I/O8)
Higher Byte Enable Input (I/O9 to I/O16)
Output Enable Input
11, 33 VCC Power
12, 34 GND Ground
28 NC No Connection
(January, 2002, Version 2.0) 2 AMIC Technology, Inc.
Page 4
LP62S16256E-I Series
Pin Description - CSP
Symbol Description Symbol Description
A0 - A17 Address Inputs
CE
I/O1 - I/O16 Data Input/Output VCC Power Supply
WE
LB
Chip Enable
Write Enable Input GND Ground
Byte Enable Input
(I/O1 - I/O8)
HB
OE
NC No Connection
Higher Byte Enable Input
(I/O9 - I/O16)
Output Enable
Recommended DC Operating Conditions
(TA = -40°C to + 85°C)
Symbol Parameter Min. Typ. Max. Unit
VCC Supply Voltage 2.7 3 3.6 V
GND Ground 0 0 0 V
VIH Input High Voltage 2.2 - VCC + 0.3 V
VIL Input Low Voltage -0.3 - +0.6 V
CL Output Load - - 30 pF
TTL Output Load - - 1 -
(January, 2002, Version 2.0) 3 AMIC Technology, Inc.
Page 5
LP62S16256E-I Series
Absolute Maximum Ratings*
VCC to GND ..............................................-0.5V to +4.0V
IN, IN/OUT Volt to GND...................-0.5V to VCC + 0.5V
Operating Temperature, Topr...................-40°C to +85°C
Storage Temperature, Tstg.....................-55°C to +125°C
Power Dissipation, PT...................................................................... 0.7W
*Comments
Stresses above those listed under "Absolute Maximum
Ratings" may cause permanent damage to this device.
These are stress ratings only. Functional operation of this
device at these or any other conditions above those
indicated in the operational sections of this specification
is not implied or intended. Exposure to the absolute
maximum rating conditions for extended periods may
affect device reliability.
DC Electrical Characteristics (TA = -40°C to + 85°C, VCC = 2.7V to 3.6V, GND = 0V)
Symbol Parameter
Min. Typ. Max.
ILI
ILO
ICC Active Power Supply Current - - 5 mA
Input Leakage Current
Output Leakage Current
LP62S16256E-55LLI / 70LLI
- - 1
-
-
1
Unit Conditions
VIN = GND to VCC
µA
CE = VIH
µA
HB = VIH or OE = VIH or
WE = VIH
VI/O = GND to VCC
CE = VIL, II/O = 0mA
ICC1 - 25 40 mA
Dynamic Operating Current
ICC2
ISB - - 1
Standby Current
ISB1
VOL Output Low Voltage - - 0.4 V IOL = 2.1 mA
VOH Output High Voltage 2.2 - - V IOH = -1.0 mA
- 5 15 mA
- 0.3 10
Min. Cycle, Duty = 100%
CE = VI, II/O = 0mA
CE = VIL, VIH = VCC,
VIL = 0V, f = 1MHz,
II/O = 0 mA
mA
CE= VIH
VCC ≤ 3.3V
CE ≥ VCC - 0.2V,
µA
VCC ≤ 3.3V
VIN ≥ 0V
(January, 2002, Version 2.0) 4 AMIC Technology, Inc.
Page 6
LP62S16256E-I Series
CE OE WE LB HB
Truth Table
I/O1 to I/O8 Mode I/O9 to I/O16 Mode VCC Current
H X X X X Not selected Not selected ISB1, ISB
X X X H H High - Z High - Z ISB1, ISB
L L Read Read ICC1, ICC2, ICC
L L H L H Read High - Z ICC1, ICC2, ICC
H L High - Z Read ICC1, ICC2, ICC
L L Write Write ICC1, ICC2, ICC
L X L L H Write High - Z ICC1, ICC2, ICC
H L High - Z Write ICC1, ICC2, ICC
L H H L X High - Z High - Z ICC1, ICC2, ICC
L H H X L High - Z High - Z ICC1, ICC2, ICC
Note: X = H or L
Capacitance (TA = 25°C, f = 1.0MHz)
Symbol Parameter Min. Max. Unit Conditions
CIN* Input Capacitance 6 pF VIN = 0V
CI/O* Input/Output Capacitance 8 pF VI/O = 0V
* These parameters are sampled and not 100% tested.
(January, 2002, Version 2.0) 5 AMIC Technology, Inc.
Page 7
LP62S16256E-I Series
AC Characteristics (TA = -40°C to +85°C, VCC = 2.7V to 3.6V)
Symbol Parameter
Min. Max. Min. Max.
Read Cycle
tRC Read Cycle Time 55 - 70 - ns
tAA Address Access Time - 55 - 70 ns
tACE Chip Enable Access Time - 55 - 70 ns
tBE Byte Enable Access Time - 55 - 70 ns
tOE Output Enable to Output Valid - 30 - 35 ns
tCLZ Chip Enable to Output in Low Z 10 - 10 - ns
tBLZ Byte Enable to Output in Low Z 10 - 10 - ns
tOLZ Output Enable to Output in Low Z 5 - 5 - ns
tCHZ Chip Disable to Output in High Z - 20 - 25 ns
tBHZ Byte Disable to Output in High Z - 20 - 25 ns
tOHZ Output Disable to Output in High Z - 20 - 25 ns
tOH Output Hold from Address Change 5 - 5 - ns
Write Cycle
LP62S16256E-55LLI LP62S16256E-70LLI
Unit
tWC Write Cycle Time 55 - 70 - ns
tCW Chip Enable to End of Write 50 - 60 - ns
tBW Byte Enable to End of Write 50 - 60 - ns
tAS Address Setup Time 0 - 0 - ns
tAW Address Valid to End of Write 50 - 60 - ns
tWP Write Pulse Width 40 - 50 - ns
tWR Write Recovery Time 0 - 0 - ns
tWHZ Write to Output in High Z - 25 - 25 ns
tDW Data to Write Time Overlap 25 - 30 - ns
tDH Data Hold from Write Time 0 - 0 - ns
tOW Output Active from End of Write 5 - 5 - ns
Note: tCHZ, tBHZ and tOHZ and tWHZ are defined as the time at which the outputs achieve the open circuit condition and are
not referred to output voltage levels.
(January, 2002, Version 2.0) 6 AMIC Technology, Inc.
Page 8
LP62S16256E-I Series

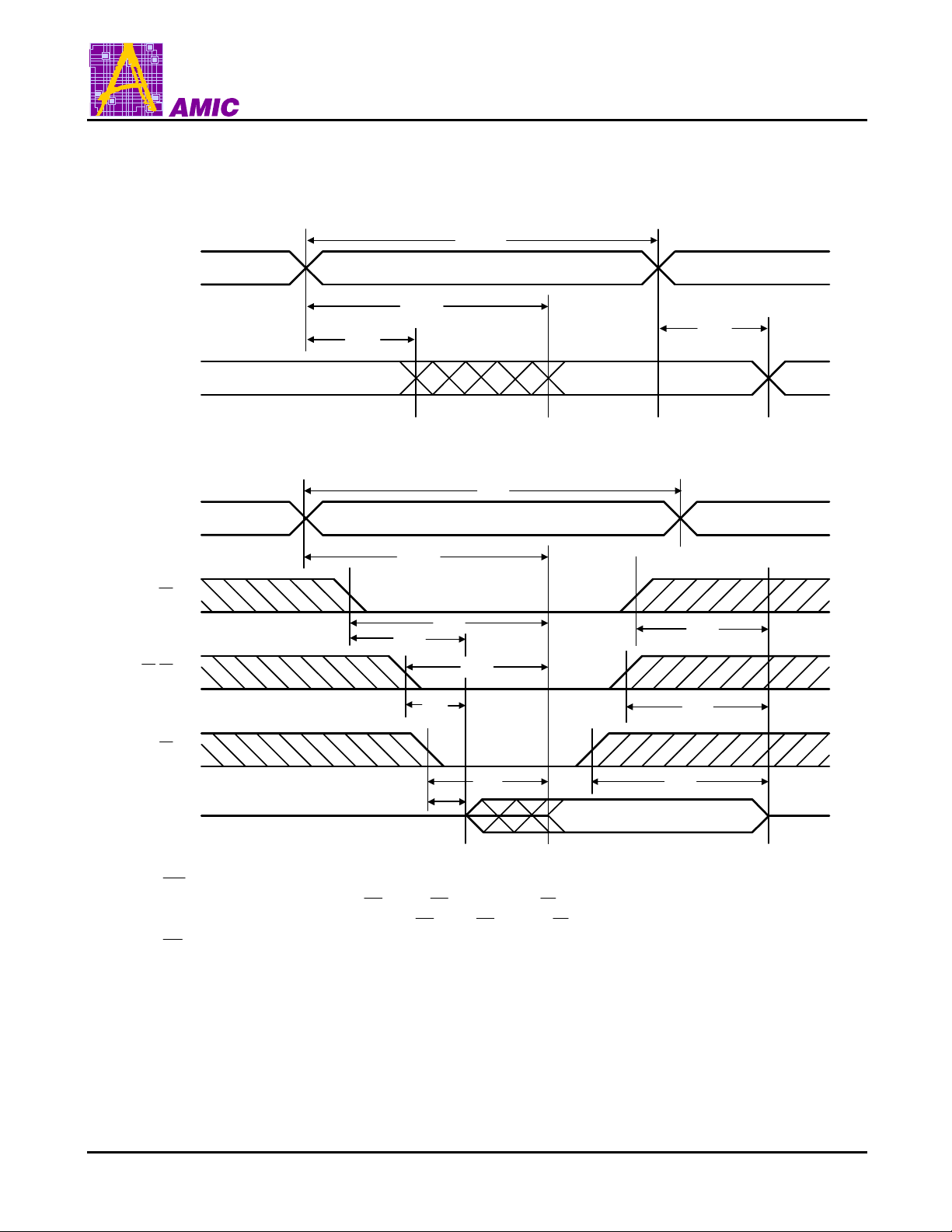

Timing Waveforms
Read Cycle 1
Address
DOUT
(1, 2, 4)
tRC
tAA
tOH
tOH
Read Cycle 2
Address
CE
HB, LB
OE
DOUT
(1, 2, 3)
tRC
tAA
tCLZ
tACE
5
tBE
5
tBLZ
tOE
5
tOLZ
tOHZ
tBHZ
5
tCHZ
5
5
Notes: 1. WE is high for Read Cycle.
2. Device is continuously enabled CE = VIL, HB = VIL and, or LB = VIL.
3. Address valid prior to or coincident with CE and (HB and, or LB ) transition low.
4. OE = VIL.
5. Transition is measured ±500mV from steady state. This parameter is sampled and not 100% tested.
(January, 2002, Version 2.0) 7 AMIC Technology, Inc.
Page 9
LP62S16256E-I Series
Timing Waveforms (continued)

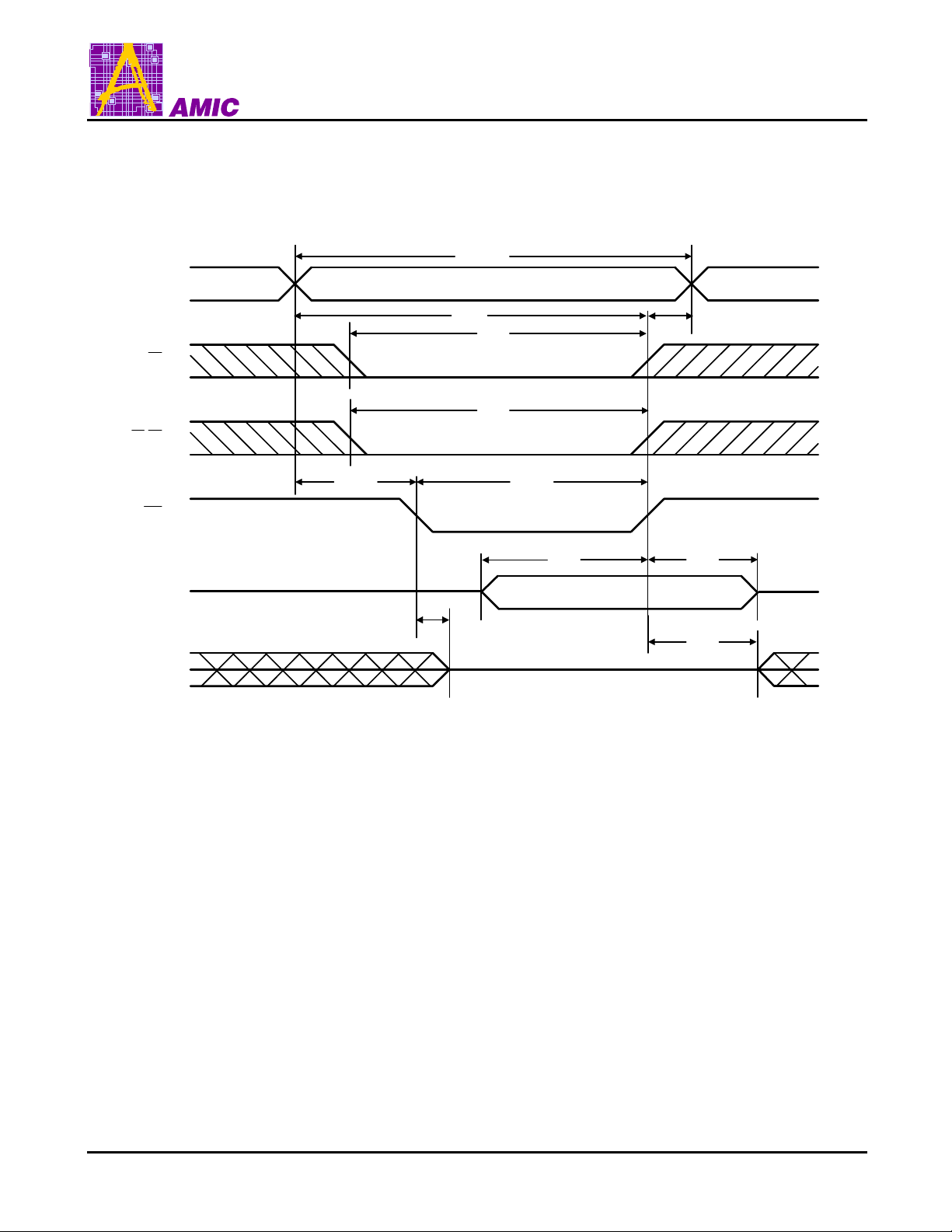

Write Cycle 1
(Write Enable Controlled)
tWC
Address
3
tAW
tCW
CE
tBW
HB, LB
tWR
WE
DATA IN
DATA OUT
1
tAS
4
tWHZ
tWP
2
tDW
tDH
tOW
(January, 2002, Version 2.0) 8 AMIC Technology, Inc.
Page 10
LP62S16256E-I Series
Timing Waveforms (continued)
Write Cycle 2
(Chip Enable Controlled)
tWC
Address
CE
HB, LB
WE
DATA IN
DATA OUT
tAW
tWP
tCW
2
tBW
tDW
1
tAS
4
tWHZ
tWR
3
tDH
tOW
(January, 2002, Version 2.0) 9 AMIC Technology, Inc.
Page 11
LP62S16256E-I Series
Timing Waveforms (continued)

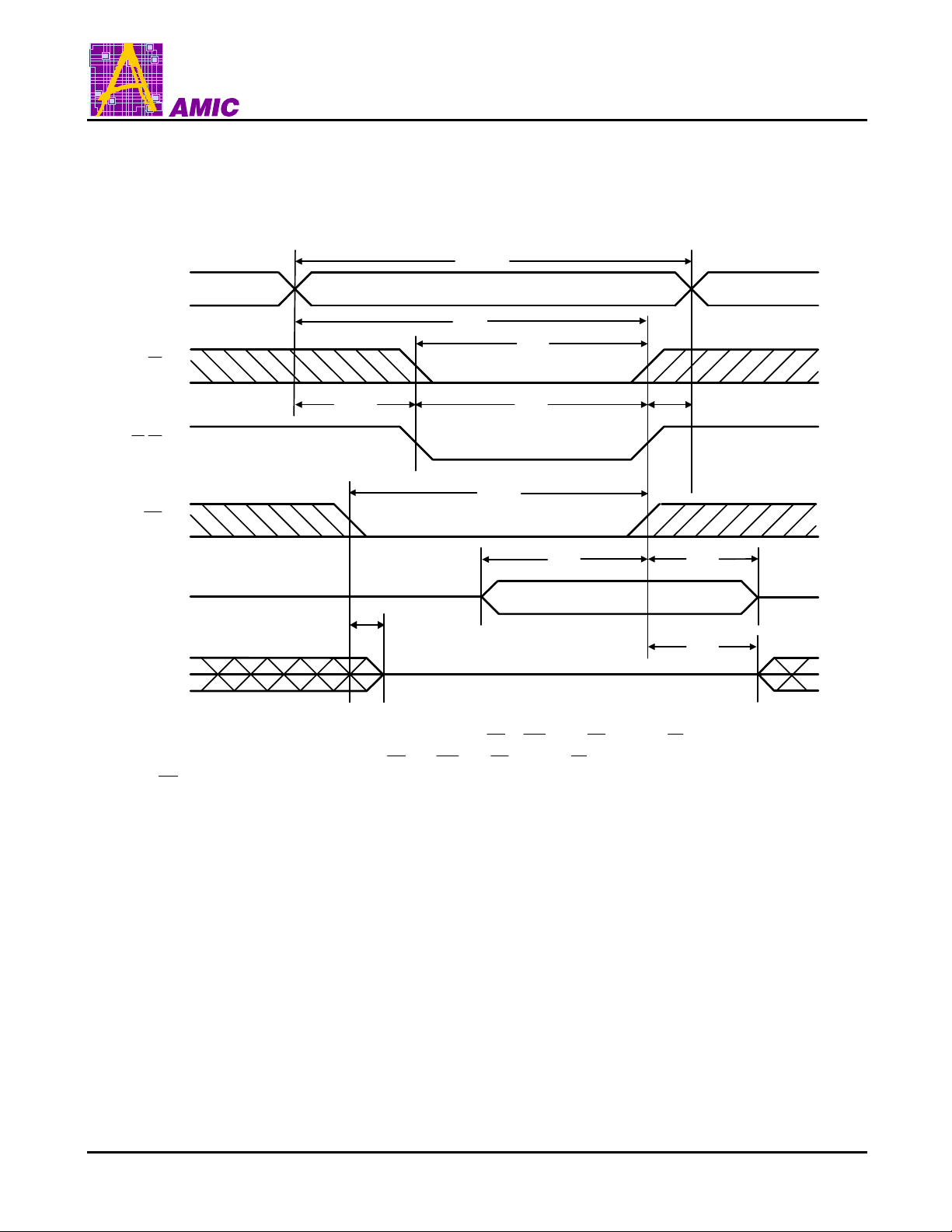

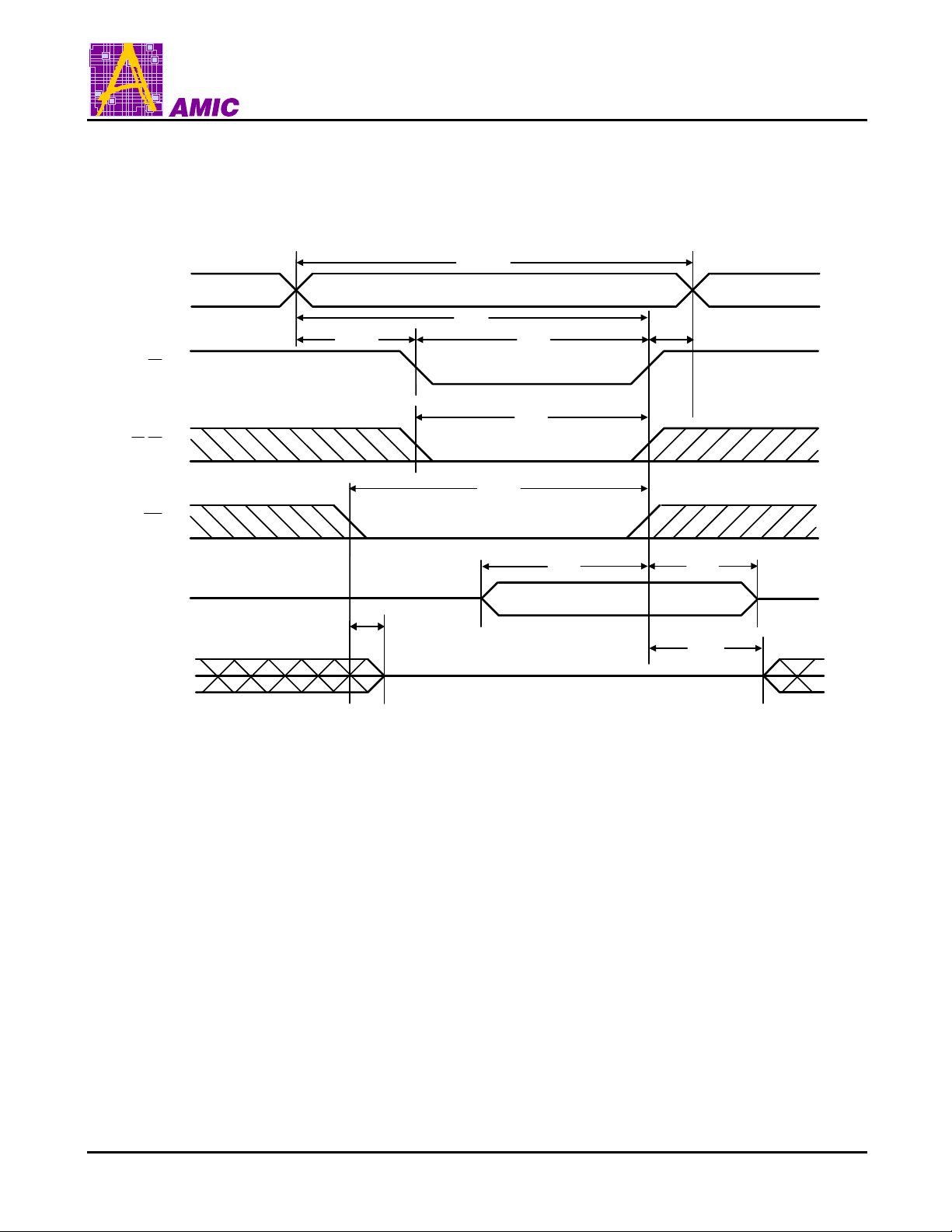

Write Cycle 3
(Byte Enable Controlled)
tWC
Address
tAW
tCW
CE
3
tWR
HB, LB
WE
tWP
tBW
2
1
tAS
tDH
tOW
DATA IN
DATA OUT
tWHZ
tDW
4
Notes: 1. tAS is measured from the address valid to the beginning of Write.
2. A Write occurs during the overlap (tWP, tBW) of a low CE , WE and (HB and , or LB ).
3. tWR is measured from the earliest of CE or WE or (HB and , or LB ) going high to the end of the Write cycle.
4. OE level is high or low.
5. Transition is measured ±500mV from steady state. This parameter is sampled and not 100% tested.
(January, 2002, Version 2.0) 10 AMIC Technology, Inc.
Page 12
LP62S16256E-I Series

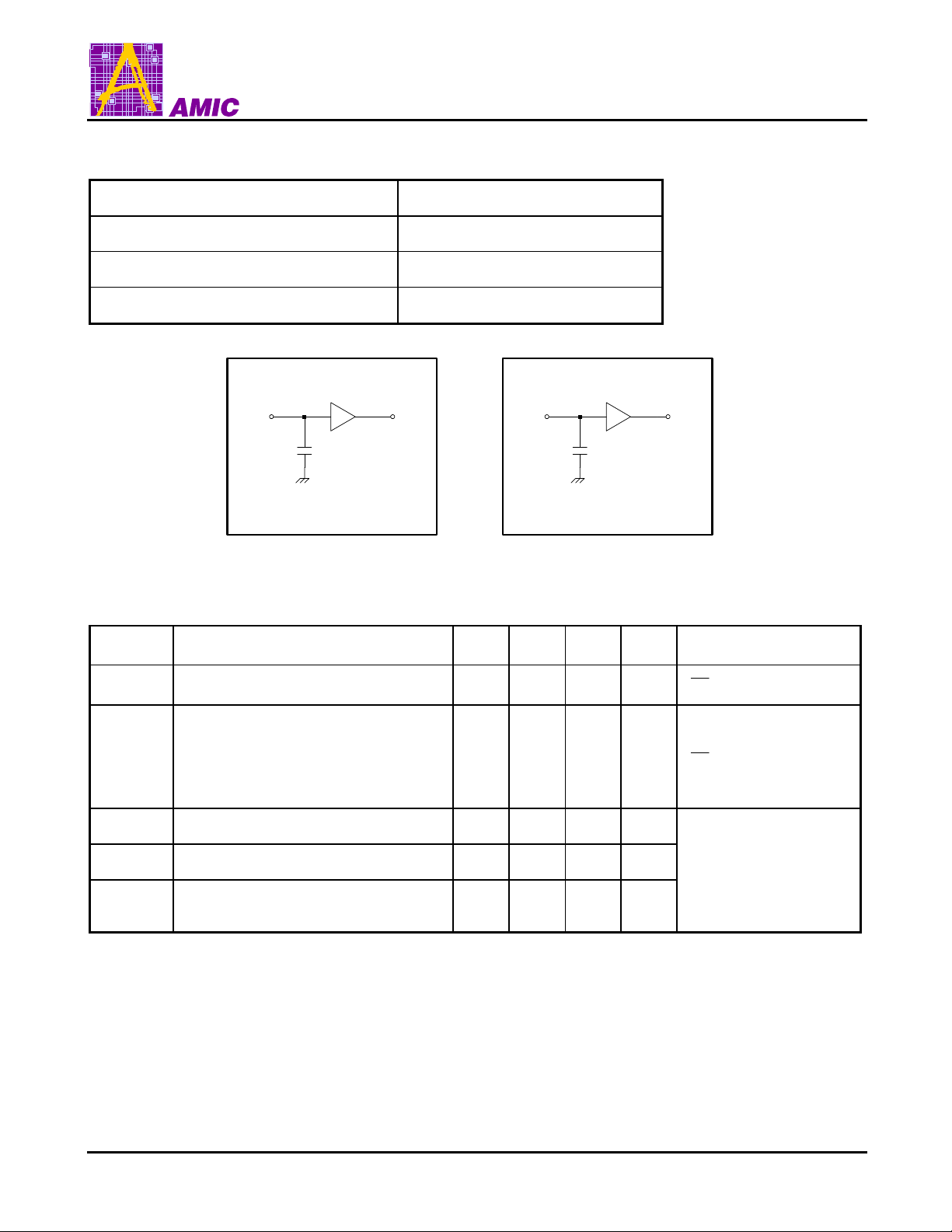

AC Test Conditions
Input Pulse Levels 0.4V to 2.4V
Input Rise And Fall Time 5 ns
Input and Output Timing Reference Levels 1.5V
Output Load See Figures 1 and 2
TTL
CL
30pF
* Including scope and jig. * Including scope and jig.
CL
TTL
5pF
Figure 1. Output Load Figure 2. Output Load for tCLZ, tOLZ,
tCHZ, tOHZ, tWHZ, and tOW
Data Retention Characteristics (TA = -40°C to 85°C)
Symbol Parameter Min. Typ. Max. Unit Conditions
VDR VCC for Data Retention 2.0 - 3.6 V
ICCDR
Data Retention Current
-
0.08
3*
µA
tCDR Chip Disable to Data Retention Time 0 - - ns
CE ≥ VCC - 0.2V
VCC = 2.0V,
CE ≥ VCC - 0.2V
VIN ≥ 0V
tR Operation Recovery Time tRC - - ns
tVR VCC Rising Time from Data Retention
5 - - ms
See Retention Waveform
Voltage to Operating Voltage
* LP62S16256E-55LLI / 70LLI ICCDR: max. 1µA at TA = 0°C to + 40°C
(January, 2002, Version 2.0) 11 AMIC Technology, Inc.
Page 13
LP62S16256E-I Series
Low VCC Data Retention Waveform
DATA RETENTION MODE
VDR ≥ 2.0V
CE ≥ VDR - 0.2V
2.7V
tR
tVR
VIH
VCC
CE
2.7V
tCDR
VIH
Ordering Information
Part No. Access Time (ns) Operating Current
Max. (mA)
LP62S16256EV-55LLI 40 10 44L TSOP
55
LP62S16256EU-55LLI
40 10 48L CSP
LP62S16256EV-70LLI 40 10 44L TSOP
70
LP62S16256EU-70LLI
40 10 48L CSP
Standby Current
Max. (µµA)
Package
(January, 2002, Version 2.0) 12 AMIC Technology, Inc.
Page 14
LP62S16256E-I Series
Package Information

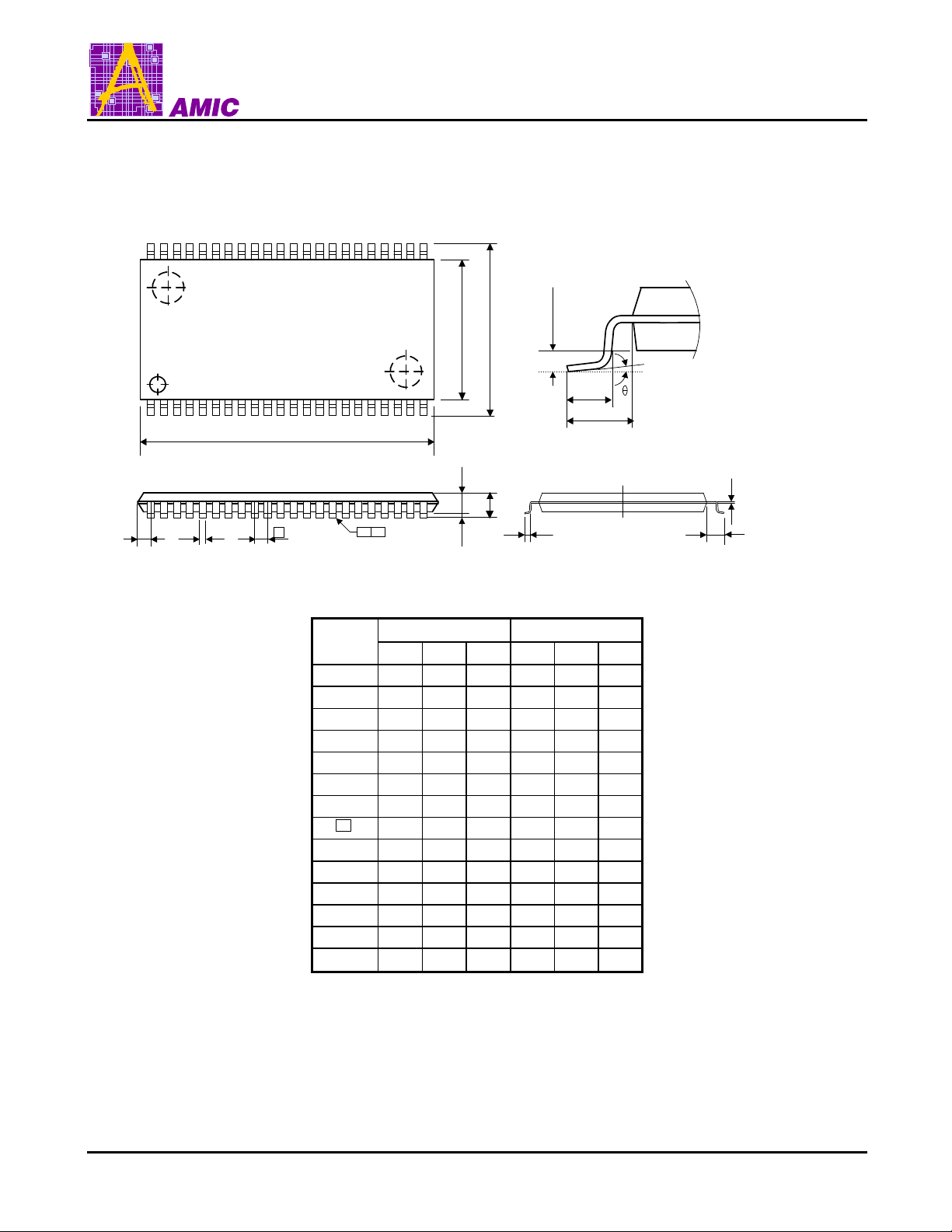

TSOP 44L TYPE II Outline Dimensions unit: inches/mm
44
23
0.254
L
L1
c
L
L1
1
S B
E
HE
D
e
D
22
A
y
A1 A2
Symbol
A - - 0.047 - - 1.20
A1 0.002 - - 0.05 - A2 0.037 0.039 0.041 0.95 1.00 1.05
B 0.010 0.014 0.018 0.25 0.35 0.45
c - 0.006 - - 0.15 -
D 0.721 0.725 0.729 18.31 18.41 18.51
E 0.396 0.400 0.404 10.06 10.16 10.26
e - 0.031 - - 0.80 -
HE 0.455 0.463 0.471 11.56 11.76 11.96
L 0.016 0.020 0.024 0.40 0.50 0.60
L1 - 0.031 - - 0.80 -
S - - 0.036 - - 0.93
θ 0°
Dimension in inch Dimension in mm
Min. Nom. Max. Min. Nom. Max.
y - - 0.004 - - 0.10
-
5° 0°
-
5°
Notes:
1. Dimension D&E do not include interlead flash.
2. Dimension B does not include dambar protrusion/intrusion.
3. Dimension S includes end flash.
(January, 2002, Version 2.0) 13 AMIC Technology, Inc.
Page 15
LP62S16256E-I Series
Package Information

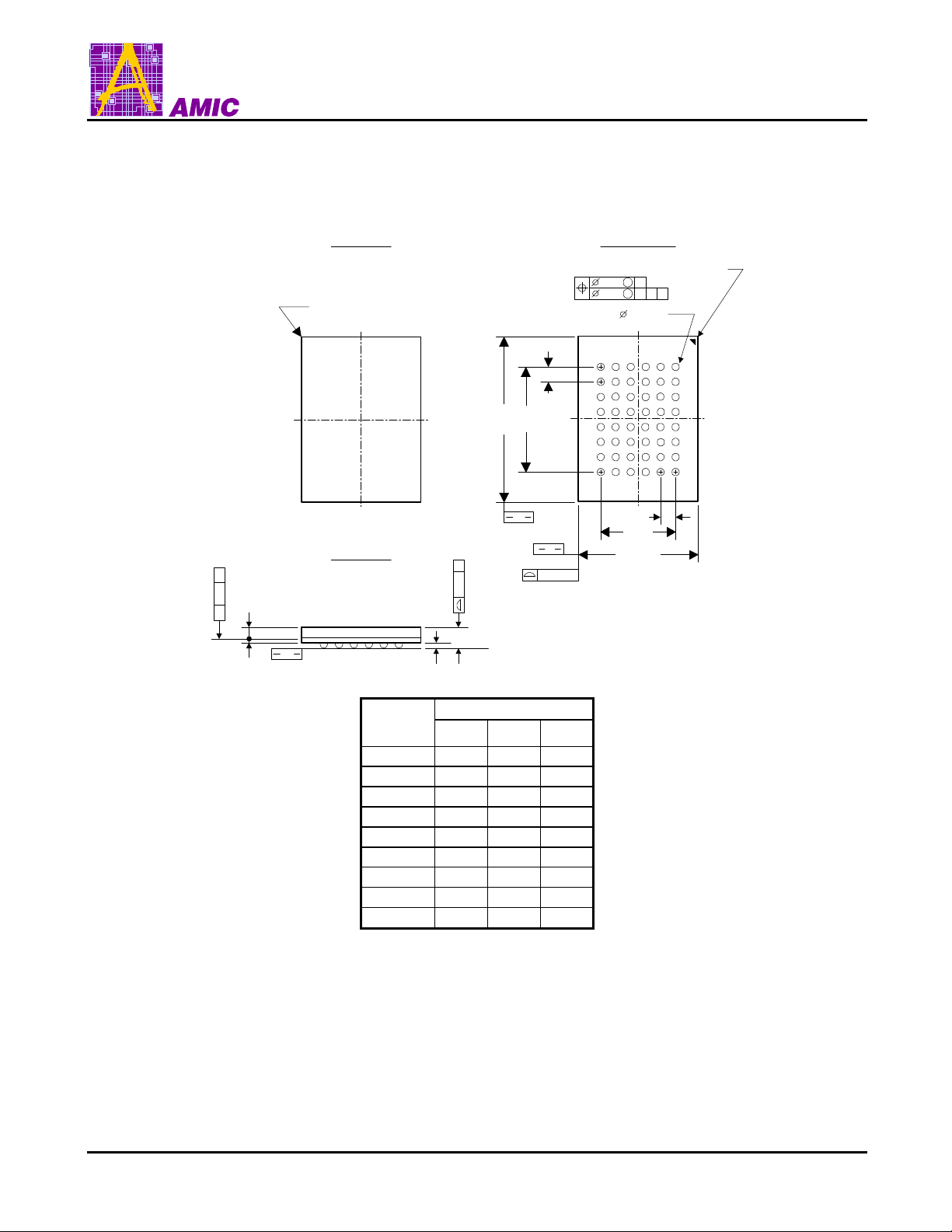

48LD CSP ( 6 x 8 mm ) Outline Dimensions unit: mm
(48TFBGA)
A
B
C
D
E
F
G
H
2
A
// 0.25 C
C
(0.36)
Note:
1. THE BALL DIAMETER, BALL PITCH, STAND-OFF & PACKAGE THICKNESS
ARE DIFFERENT FROM JEDEC SPEC MO192 (LOW PROFILE BGA FAMILY).
2. PRIMARY DATUM C AND SEATING PLANE ARE DEFINED BY THE SPHERICAL
CROWNS OF THE SOLDER BALLS.
3. DIMENSION b IS MEASURED AT THE MAXIMUM.
THERE SHALL BE A MINIMUM CLEARANCE OF 0.25mm BETWEEN THE EDGE OF
THE SOLDER BALL AND THE BODY EDGE.
4. BALL PAD OPENING OF SUBSTRATE IS Φ 0.3mm (SMD)
SUGGEST TO DESIGN THE PCB LAND SIZE AS Φ 0.3mm (NSMD)
TOP VIEW
Ball*A1 CORNER
1 2 3 4 5 6
SIDE VIEW
SEATING PLANE
Symbol
e
1
E
E
B e
A
0.20(4X)
0.10 C
1
A
A
Dimensions in mm
MIN.
NOM. MAX.
A 1.04 1.14 1.24
A1 0.20 0.25 0.30
A2 0.48 0.53 0.58
D 5.90 6.00 6.10
E 7.90 8.00 8.10
D1 --- 3.75 ---
E1 --- 5.25 ---
e --- 0.75 ---
b 0.30 0.35 0.40
BOTTOM VIEW
Ball#A1 CORNER
S
0.10 C
C
0.25SA B
b (48X)
D
1
D
123456
A
B
C
D
E
F
G
H
(January, 2002, Version 2.0) 14 AMIC Technology, Inc.
Loading...
