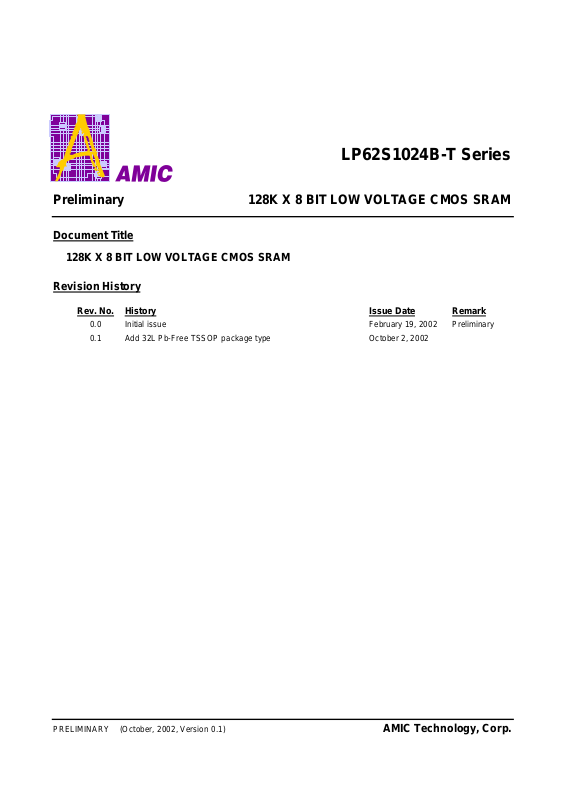

Datasheet LP62S1024BX-70LLTF, LP62S1024BX-55LLTF, LP62S1024BU-55LLTF, LP62S1024BU-55LLT Datasheet (AMIC)

LP62S1024B-T Series

Preliminary 128K X 8 BIT LOW VOLTAGE CMOS SRAM

PRELIMINARY (October, 2002, Version 0.1) AMIC Technology, Corp.

Document Title
128K X 8 BIT LOW VOLTAGE CMOS SRAM

Revision History

Rev. No. History Issue Date Remark

0.0 Initial issue February 19, 2002 Preliminary

0.1 Add 32L Pb-Free TSSOP package type October 2, 2002

LP62S1024B-T Series

Preliminary 128K X 8 BIT LOW VOLTAGE CMOS SRAM

PRELIMINARY (October, 2002, Version 0.1) 1 AMIC Technology, Corp.

Features General Description

n Power supply range: 2.7V to 3.6V
n Access times: 55/70 ns (max.)
n Current:

Very low power version: Operating: 30mA(max.)

Standby: 5uA (max.)

n Full static operation, no clock or refreshing required
n All inputs and outputs are directly TTL-compatible
n Common I/O using three-state output
n Output enable and two chip enable inputs for easy

application

n Data retention voltage: 2V (min.)
n Available in 32-pin SOP, TSOP, TSSOP (8 X 13.4mm)

forward type and 36-pin CSP packages

The LP62S1024B-T is a low operating current 1,048,576­bit static random access memory organized as 131,072
words by 8 bits and operates on a low power voltage: 2.7V
to 3.6V. It is built using AMIC's high performance CMOS
process.
Inputs and three-state outputs are TTL compatible and
allow for direct interfacing with common system bus
structures.
Two chip enable inputs are provided for POWER-DOWN
and device enable and an output enable input is included
for easy interfacing.
Data retention is guaranteed at a power supply voltage as
low as 2V.

Product Family

Power Dissipation

Product Family Operating

Temperature

VCC

Range

Speed

Data Retention

(ICCDR, Typ.)

Standby

(ISB1, Typ.)

Operating
(ICC2, Typ.)

Package

Type

LP62S1024B

-25°C ~ +85°C

2.7V~3.6V 55ns / 70ns

0.05µA 0.08µA

1.5mA

32L SOP

32L TSOP

32L TSSOP

36B µBGA

1. Typical values are measured at VCC = 3.0V, TA = 25°C and not 100% tested.

2. Data retention current VCC = 2.0V.

LP62S1024B-T Series

PRELIMINARY (October, 2002, Version 0.1) 2 AMIC Technology, Corp.

Pin Configurations

nn SOP nn TSOP/TSSOP nn CSP (Chip Size Package)
36-pin Top View

NC
A16
A14

A12

A7
A6
A5
A4
A3
A2
A1

A0
I/O1
I/O2
I/O

3

I/O4GND

I/O

5

I/O

6

I/O7

I/O8

A10

A9

A8

A13

CE2

A15

VCC

A11

LP62S1024BM-T

1
2

3
4
5
6
7
8
9
10
11
12
13
14
15
16 17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

OE

LP62S1024BV-T

(LP62S1024BX-T)

1

16

17

32

CE1

WE

A0
I/O5
I/O6

GND
VCC

I/O7
I/O8

A9 A10OEA11

CE1

A12 A13 A14

A16

NC NC

A15

I/O4

I/O3

I/O2

I/O1

GND

VCC

A1A2CE2

WE

NC A5

A4

A3 A6

A7

A8

654321

A
B

C
D
E
F
G
H

Pin No.
Pin

Name
Pin No.
Pin

Name

1 2A93 4 5 6 7 8 9 10 11 12 13 14

302928272625242219 2120 231817

A8 A13 CE2 A15 VCC NC

I/O

8

A16 A14 A12 A7 A6

A3 A2 A1 A0 I/O1I/O

2

GND I/O4I/O5I/O6I/O

7

I/O

3

A11 WE

CE1

15 16

31 32

A5 A4

A10 OE

Block Diagram

ROW

DECODER

512 X 2048

MEMORY ARRAY

INPUT DATA

CIRCUIT

COLUMN I/O

CONTROL

CIRCUIT

CE2
CE1

WE

I/O8

I/O1

A16

A15

A14

A0

VCC
GND

OE

LP62S1024B-T Series

PRELIMINARY (October, 2002, Version 0.1) 3 AMIC Technology, Corp.

Pin Descriptions - SOP

Pin No. Symbol Description

1 NC No Connection

2 - 12, 23,

25 - 28, 31

A0 - A16 Address Inputs

13 - 15,

17 - 21

I/O1 - I/O8 Data Input/Outputs

16 GND Ground

22

CE1

Chip Enable

24

OE

Output Enable

29

WE

Write Enable

30 CE2 Chip Enable

32 VCC Power Supply

Pin Description – TSOP/TSSOP

Pin No. Symbol Description

1 - 4, 7,

10 - 20, 31

A0 - A16 Address Inputs

5

WE

Write Enable

6 CE2 Chip Enable

8 VCC Power Supply

9 NC No Connection

21 - 23,

25 - 29

I/O1 - I/O8 Data Input/Outputs

24 GND Ground

30

CE1

Chip Enable

32

OE

Output Enable

Pin Description - CSP

Symbol Description Symbol Description

A0 - A16 Address Inputs NC No Connection

WE

Write Enable I/O1 - I/O8 Data Input/Output

OE

Output Enable VCC Power Supply

CE1

Chip Enable GND Ground

CE2 Chip Enable -- --

LP62S1024B-T Series

PRELIMINARY (October, 2002, Version 0.1) 4 AMIC Technology, Corp.

Recommended DC Operating Conditions

(TA = -25°C to +85°C)

Symbol Parameter Min. Typ. Max. Unit

VCC Supply Voltage 2.7 3.0 3.6 V
GND Ground 0 0 0 V

VIH Input High Voltage 2.2 - VCC + 0.3 V
VIL Input Low Voltage -0.3 - +0.6 V

CL Output Load - - 30 pF

TTL Output Load - - 1 -

Absolute Maximum Ratings*

VCC to GND .............................................. -0.5V to +4.6V

IN, IN/OUT Volt to GND.....................-0.5V to VCC +0.5V

Operating Temperature, Topr...................-25°C to +85°C

Storage Temperature, Tstg..................... -55°C to +125°C

Temperature Under Bias, Tbias................ -10°C to +85°C

Power Dissipation, PT ...............................................0.7W

*Comments

Stresses above those listed under "Absolute Maximum
Ratings" may cause permanent damage to this device.
These are stress ratings only. Functional operation of this
device at these or any other conditions above those
indicated in the operational sections of this specification
is not implied or intended. Exposure to the absolute
maximum rating conditions for extended periods may
affect device reliability.

DC Electrical Characteristics (TA = -25°C to +85°C, VCC = 2.7V to 3.6V, GND = 0V)

Symbol Parameter LP62S1024B-55LLT/70LLT Unit Conditions

Min. Max.

ILI

Input Leakage Current

- 1

µA

VIN = GND to VCC

ILO

Output Leakage Current

- 1

µA

CE1 = VIH or CE2 = VIL

or OE = VIH or WE = VIL

VI/O = GND to VCC

ICC

Active Power Supply
Current

- 3 mA

CE1 = VIL, CE2 = VIH

II/O = 0mA

ICC1

Dynamic Operating

- 30

mA

Min. Cycle, Duty = 100%

CE1 = VIL, CE2 = VIH

II/O = 0mA

ICC2

Current

- 3 mA

CE1 = VIL, CE2 = VIH
VIH = VCC, VIL = 0V
f = 1 MHZ, II/O = 0mA

LP62S1024B-T Series

PRELIMINARY (October, 2002, Version 0.1) 5 AMIC Technology, Corp.

DC Electrical Characteristics (continued)

Symbol Parameter

LP62S1024B-55LLT/70LLT

Unit Conditions

Min. Max.

ISB - 0.5 mA

VCC ≤ 3.3V

CE1 = VIH or CE2 =VIL

ISB1

Standby Power Supply Current

- 5

µA

VCC ≤ 3.3V

CE1 ≥ VCC - 0.2V or
CE2 ≤ 0.2V
VIN ≥ 0V

VOL Output Low Voltage - 0.4 V IOL = 2.1mA

VOH Output High Voltage 2.2 - V IOH = -1.0mA

Truth Table

Mode

CE1

CE2

OE WE

I/O Operation Supply Current

Standby

H X X X High Z ISB, ISB1

X L X X High Z ISB, ISB2

Output Disable L H H H High Z ICC, ICC1, ICC2

Read L H L H DOUT ICC, ICC1, ICC2

Write L H X L DIN ICC, ICC1, ICC2

Note: X = H or L

Capacitance (TA = 25°C, f = 1.0MHz)

Symbol Parameter Min. Max. Unit Conditions

CIN* Input Capacitance 6 pF VIN = 0V

CI/O* Input/Output Capacitance 8 pF VI/O = 0V

* These parameters are sampled and not 100% tested.

LP62S1024B-T Series

PRELIMINARY (October, 2002, Version 0.1) 6 AMIC Technology, Corp.

AC Characteristics (TA = -25°C to +85°C, VCC = 2.7V to 3.6V)

Symbol Parameter

LP62S1024B-55LLT LP62S1024B-70LLT

Unit

Min. Max. Min. Max.

Read Cycle

tRC Read Cycle Time 55 - 70 - ns
tAA Address Access Time - 55 - 70 ns

tACE1

Chip Enable Access Time

CE1

- 55 - 70 ns

tACE2 CE2 - 55 - 70 ns

tOE Output Enable to Output Valid - 30 - 35 ns

tCLZ1

Chip Enable to Output in Low Z

CE1

10 - 10 - ns

tCLZ2 CE2 10 - 10 - ns

tOLZ Output Enable to Output in Low Z 5 - 5 - ns

tCHZ1

Chip Disable to Output in High Z

CE1

0 20 0 25 ns

tCHZ2 CE2 0 20 0 25 ns

tOHZ Output Disable to Output in High Z 0 20 0 25 ns

tOH Output Hold from Address Change 5 - 10 - ns

Write Cycle

tWC Write Cycle Time 55 - 70 - ns
tCW Chip Enable to End of Write 50 - 60 - ns

tAS Address Setup Time 0 - 0 - ns
tAW Address Valid to End of Write 50 - 60 - ns
tWP Write Pulse Width 40 - 50 - ns
tWR Write Recovery Time 0 - 0 - ns

tWHZ Write to Output in High Z 0 25 0 25 ns

tDW Data to Write Time Overlap 25 - 30 - ns
tDH Data Hold from Write Time 0 - 0 - ns

tOW Output Active from End of Write 5 - 5 - ns

Notes: tCHZ1, tCHZ2, tOHZ, and tWHZ are defined as the time at which the outputs achieve the open circuit condition and are
not referred to output voltage levels.

LP62S1024B-T Series

PRELIMINARY (October, 2002, Version 0.1) 7 AMIC Technology, Corp.

Timing Waveforms

Read Cycle 1

(1, 2, 4)

tRC

tOH

tAA

tOH

Address

DOUT

Read Cycle 2

(1, 3, 4, 6)

tCLZ1

5

tACE1

tCHZ1

5

CE1

DOUT

Read Cycle 3

(1, 4, 7, 8)

tCLZ2

5

tACE2

tCHZ2

5

CE2

DOUT

LP62S1024B-T Series

PRELIMINARY (October, 2002, Version 0.1) 8 AMIC Technology, Corp.

Timing Waveforms (continued)

Read Cycle 4

(1)

tRC

Address

CE2

DOUT

tAA

tOE

tOLZ

5

tACE1

tCLZ1

5

tACE2

tCLZ2

5

tCHZ2

5

tOHZ

5

tCHZ1

5

tOH

OE

CE1

Notes: 1. WE is high for Read Cycle.

2. Device is continuously enabled CE1 = VIL and CE2 = VIH.

3. Address valid prior to or coincident with CE1 transition low.

4. OE = VIL.

5. Transition is measured ±500mV from steady state. This parameter is sampled and not 100% tested.

6. CE2 is high.

7. CE1 is low.

8. Address valid prior to or coincident with CE2 transition high.

LP62S1024B-T Series

PRELIMINARY (October, 2002, Version 0.1) 9 AMIC Technology, Corp.

Timing Waveforms (continued)

Write Cycle 1

(6)

(Write Enable Controlled)

tWC

Address

CE1

CE2

DIN

tOW

tDH

tDW

tWHZ

tWP

2

tAS

1

(4)

tCW

5

tAW

tWR

3

WE

DOUT

(4)

LP62S1024B-T Series

PRELIMINARY (October, 2002, Version 0.1) 10 AMIC Technology, Corp.

Timing Waveforms (continued)

Write Cycle 2
(Chip Enable Controlled)

tWC

Address

CE1

CE2

DIN

tDH

tDW

(4)

(4)

tCW

5

tAW tWR

3

WE

DOUT

tWHZ

7

tWP

2

tCW

5

tAS

1

Notes: 1. tAS is measured from the address valid to the beginning of Write.

2. A Write occurs during the overlap (tWP) of a low CE1, a high CE2 and a low WE .

3. tWR is measured from the earliest of CE1 or WE going high or CE2 going low to the end of the Write cycle.

4. If the CE1 low transition or the CE2 high transition occurs simultaneously with the WE low transition or after
the WE transition, outputs remain in a high impedance state.

5. tCW is measured from the later of CE1 going low or CE2 going high to the end of Write.

6. OE is continuously low. ( OE = VIL)

7. Transition is measured ±500mV from steady state. This parameter is sampled and not 100% tested.

LP62S1024B-T Series

PRELIMINARY (October, 2002, Version 0.1) 11 AMIC Technology, Corp.

AC Test Conditions

Input Pulse Levels 0.4V to 2.4V

Input Rise and Fall Time 5 ns

Input and Output Timing Reference Levels 1.5V

Output Load See Figures 1 and 2

30pF

* Including scope and jig. * Including scope and jig.

CL

TTL

5pF

CL

TTL

Figure 1. Output Load Figure 2. Output Load for tCLZ1,
tCLZ2, tOHZ, tOLZ, tCHZ1,
tCHZ2, tWHZ, and tOW

Data Retention Characteristics (TA = -25°C to 85°C)

Symbol Parameter Min. Max. Unit Conditions

VDR1 2.0 3.6 V

CE1 ≥ VCC - 0.2V

VDR2

VCC for Data Retention

2.0 3.6 V

CE2 ≤ 0.2V,

ICCDR1

Data Retention Current

-

3*

µA

VCC = 2V,

CE1 ≥ VCC - 0.2V,

VIN ≥ 0V

ICCDR2

-

3*

µA

VCC = 2V,
CE2 ≤ 0.2V,
VIN ≥ 0V

tCDR Chip Disable to Data Retention Time 0 - ns

See Retention Waveform

tR Operation Recovery Time 5 - ms

* LP62S1024B-55LLT/70LLT ICCDR: max. 3µA at TA = 0°C to + 40°C

LP62S1024B-T Series

PRELIMINARY (October, 2002, Version 0.1) 12 AMIC Technology, Corp.

Low VCC Data Retention Waveform (1) (

CE1

Controlled)

VCC

CE1

tCDR

VIH

3.0V
tR

VIH

3.0V

DATA RETENTION MODE

VDR ≥ 2V

CE1 ≥ VDR - 0.2V

Low VCC Data Retention Waveform (2) (CE2 Controlled)

VCC

CE2

tCDR

VIL

3.0V
tR

VIL

3.0V

DATA RETENTION MODE

VDR ≥ 2V

CE2 ≤ 0.2V

LP62S1024B-T Series

PRELIMINARY (October, 2002, Version 0.1) 13 AMIC Technology, Corp.

Ordering Information

Part No. Access Time (ns)

Operating Current

Max. (mA)

Standby Current

Max. (µµA)

Package

LP62S1024BM-55LLT 32L SOP

LP62S1024BV-55LLT 32L TSOP

LP62S1024BX-55LLT 32L TSSOP

LP62S1024BX-55LLTF 32L Pb-Free TSSOP

LP62S1024BU-55LLT

55 30 5

36L CSP

LP62S1024BM-70LLT 32L SOP

LP62S1024BV-70LLT 32L TSOP

LP62S1024BX-70LLT 32L TSSOP

LP62S1024BX-70LLTF 32L Pb-Free TSSOP

LP62S1024BU-70LLT

70 30 5

36L CSP

LP62S1024B-T Series

PRELIMINARY (October, 2002, Version 0.1) 14 AMIC Technology, Corp.

Package Information

SOP (W.B.) 32L Outline Dimensions unit: inches/mm

1

E

HE

L

LE

c

16

See Detail F

Detail F

1732

e1

e1

A1 A2

A

s

D

Seating Plane

D

y

e

b

~

~

Symbol Dimensions in inches Dimensions in mm

A 0.118 Max. 3.00 Max.
A1 0.004 Min. 0.10 Min.
A2 0.106±0.005 2.69±0.13

b 0.016 +0.004 0.41 +0.10

-0.002

-0.05

c 0.008 +0.004 0.20 +0.10

-0.002 -0.05
D 0.805 Typ. (0.820 Max.) 20.45 Typ. (20.83 Max.)
E 0.445±0.010 11.30±0.25

e 0.050 ±0.006 1.27±0.15

e1 0.525 NOM. 13.34 NOM.

HE 0.556±0.010 14.12±0.25

L 0.031±0.008 0.79±0.20

LE 0.055±0.008 1.40±0.20

S 0.044 Max. 1.12 Max.

y 0.004 Max. 0.10 Max.
θ 0° ~ 10° 0° ~ 10°

Notes:

1. The maximum value of dimension D includes end flash.

2. Dimension E does not include resin fins.

3. Dimension e1 is for PC Board surface mount pad pitch design
reference only.

4. Dimension S includes end flash.

LP62S1024B-T Series

PRELIMINARY (October, 2002, Version 0.1) 15 AMIC Technology, Corp.

Package Information

TSOP 32L TYPE I (8 X 20mm) Outline Dimensions unit: inches/mm

e

LE

L

GAUGE PLANE

A

A2

c

0.25

BSC

Detail "A"

D

y

Detail "A"

S

A1

b

HD

D

E

0.10(0.004) M

°12.0

θ

Symbol Dimensions in inches Dimensions in mm

A 0.047 Max. 1.20 Max.

A1 0.004±0.002 0.10±0.05
A2 0.039±0.002 1.00±0.05

b 0.008±0.001 0.20±0.03

c 0.006±0.001 0.15±0.02
D 0.724±0.004 18.40±0.10
E 0.315±0.004 8.00±0.10

e 0.020 TYP. 0.50 TYP.

HD 0.787±0.007 20.00±0.20

L 0.020±0.004 0.50±0.10

LE 0.031 TYP. 0.80 TYP.

S 0.0167 TYP. 0.425 TYP.
Y 0.004 Max. 0.10 Max.

θ 0° ~ 6° 0° ~ 6°

Notes:

1. The maximum value of dimension D includes end flash.

2. Dimension E does not include resin fins.

3. Dimension e1 is for PC Board surface mount pad pitch design
reference only.

4. Dimension S includes end flash.

LP62S1024B-T Series

PRELIMINARY (October, 2002, Version 0.1) 16 AMIC Technology, Corp.

Package Information

TSSOP 32L TYPE I (8 X 13.4mm) Outline Dimensions unit: inches/mm

e

Detail "A"

D

0.10MM

Detail "A"

S

b

D1

E

D

LE

L

GAUGE PLANE

A

A2

c

0.25

BSC

Detail "A"

A1

SEATING PLANE

°12.0

θ

Symbol Dimensions in inches Dimensions in mm

A 0.049 Max. 1.25 Max.

A1 0.002 Min. 0.05 Min.
A2 0.039±0.002 1.00±0.05

b 0.008±0.001 0.20±0.03

c 0.006±0.0003 0.15±0.008
E 0.315±0.004 8.00±0.10

e 0.020 TYP. 0.50 TYP.
D 0.528±0.008 13.40±0.20

D1 0.465±0.004 11.80±0.10

L 0.02±0.008 0.50±0.20

LE 0.0266 Min. 0.675 Min.

S 0.0109 TYP. 0.278 TYP.

y 0.004 Max. 0.10 Max.

θ 0° ~ 6° 0° ~ 6°

Notes:

1. The maximum value of dimension D includes end flash.

2. Dimension E does not include resin fins.

3. Dimension e1 is for PC Board surface mount pad pitch design
reference only.

4. Dimension S includes end flash.

LP62S1024B-T Series

PRELIMINARY (October, 2002, Version 0.1) 17 AMIC Technology, Corp.

Package Information

36LD CSP (6 x 8 mm) Outline Dimensions unit: mm

A1

A2

A

B
C
D
E
F
G
H

TOP VIEW

Ball#A1 CORNER

SIDE VIEW

C

SEATING PLANE

// 0.25 C

A

(0.36)

A
B
C
D
E
F
G
H

1 2 3 4 5 6

123456

C

0.10 C

S

0.25SA B
b (36X)

BOTTOM VIEW

Ball*A1 CORNER

E

E

1

e

B e

D1

D

A

0.20(4X)

0.10 C

Dimensions in mm

Symbol

MIN.

NOM. MAX.

A 1.00 1.10 1.20
A1 0.16 0.21 0.26
A2 0.48 0.53 0.58

D 5.80 6.00 6.20

E 7.80 8.00 8.20

D1 --- 3.75 ---

E1 --- 5.25 ---

e --- 0.75 ---

b 0.25 0.30 0.35

Note:

1. THE BALL DIAMETER, BALL PITCH, STAND-OFF & PACKAGE THICKNESS
ARE DIFFERENT FROM JEDEC SPEC MO192 (LOW PROFILE BGA FAMILY).

2. PRIMARY DATUM C AND SEATING PLANE ARE DEFINED BY THE SPHERICAL
CROWNS OF THE SOLDER BALLS.

3. DIMENSION b IS MEASURED AT THE MAXIMUM.

4. THEERE SHALL BE A MINIMUM CLEARANCE OF 0.25mm BETWEEN THE EDGE OF

THE SOLDER BALL AND THE BODY EDGE.
