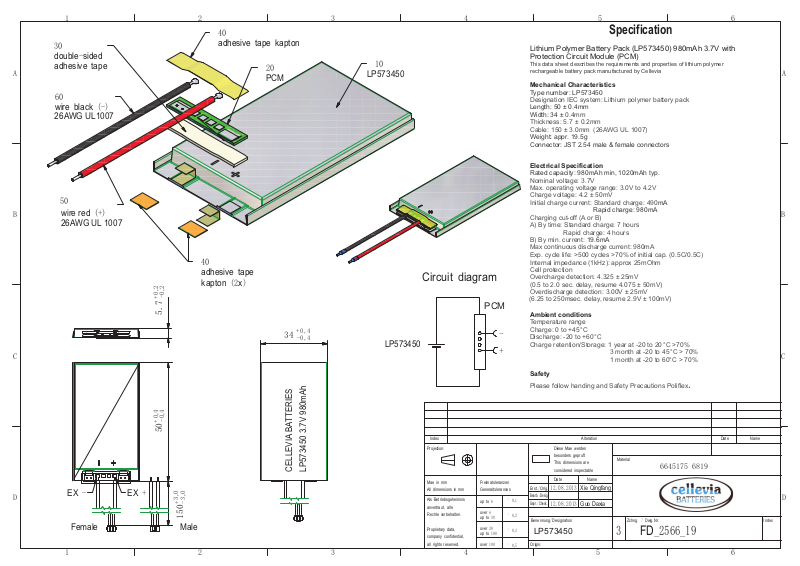

Specification
Lithium Polymer Battery Pack (LP573450) 980mAh 3.7V with
Protection Circuit Module (PCM)
10
LP573450
Circuit diagram
PCM
0,4+
-
0,4
LP573450
-
+
This data sheet describes the requirements and properties of lithium polymer
rechargeable battery pack manufactured by Cellevia
Mechanical Characteristics
Type number: LP573450
Designation IEC system: Lithium polymer battery pack
Length: 50 ± 0.4mm
Width: 34 ± 0.4mm
Thickness: 5.7 0.2mm
Cable: 150 ± 3.0mm (26AWG UL 1007)
Weight: appr. 19.5g
Connector: JST 2.54 male & female connectors
Electrical Specification
Rated capacity: 980mAh min, 1020mAh typ.
Nominal voltage: 3.7V
Max. operating voltage range: 3.0V to 4.2V
Charge voltage: 4.2 ± 50mV
Initial charge current: Standard charge: 490mA
Charging cut-off (A or B)
A) By time: Standard charge: 7 hours
B) By min. current:
Max continuous discharge current: 980mA
Exp. cycle life: >500 cycles >70% of initial cap. (0.5C/0.5C)
Internal impedance (1kHz): approx 25mOhm
Cell protection
Overcharge detection: 4.325 ± 25mV
(0.5 to 2.0 sec. delay, resume 4.075 ± 50mV)
Overdischarge detection: 3.00V ± 25mV
(6.25 to 250msec. delay, resume 2.9V ± 100mV)
Ambient conditions
Temperature range
Charge: 0 to +45 C
Discharge: -20 to +60
Charge retention/Storage: 1 year at -20 to 20 C >70%
Safety
Please follow handing and Safety Precautions Poliflex.
±
Rapid charge: 980mA
Rapid charge: 4 hours
19.6mA
°
C
°
3 month at -20 to 45 C > 70%
1 month at -20 to 60°C > 70%
°
°
