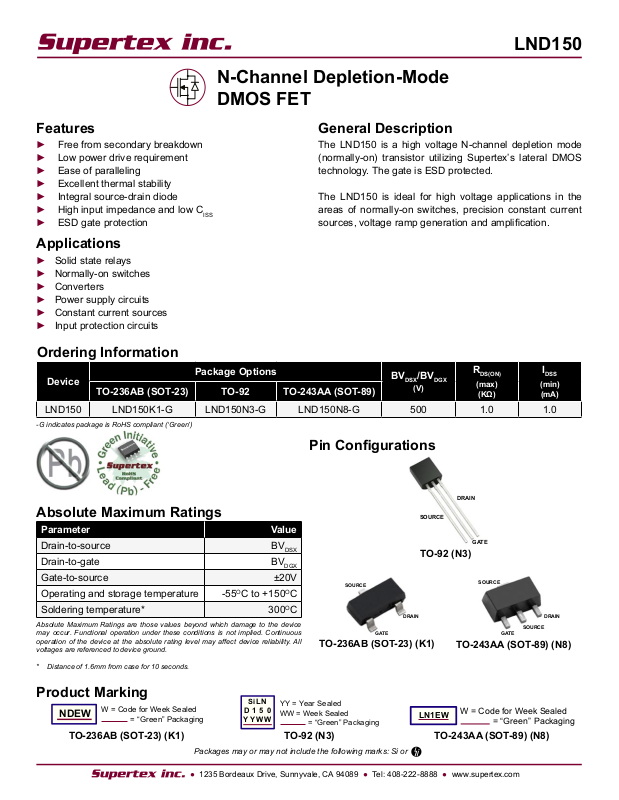

N-Channel Depletion-Mode
LN1EW
W = Code for Week Sealed
= “Green” Packaging
GATE
SOURCE
DRAIN
GATE
SOURCE
DRAIN
SOURCE
YY = Year Sealed
WW = Week Sealed
= “Green” Packaging
S iL N
D 1 5 0
Y Y W
W
SOURCE
DRAI
N
GATE
NDEW
W = Code for Week Sealed
= “Green” Packaging
DMOS FET
LND150
Features
► Free from secondary breakdown
► Low power drive requirement
► Ease of paralleling
General Description
The LND150 is a high voltage N-channel depletion mode
(normally-on) transistor utilizing Supertex’s lateral DMOS
technology. The gate is ESD protected.
► Excellent thermal stability
► Integral source-drain diode
► High input impedance and low C
► ESD gate protection
ISS
The LND150 is ideal for high voltage applications in the
areas of normally-on switches, precision constant current
sources, voltage ramp generation and amplification.
Applications
Solid state relays
►
Normally-on switches
►
Converters
►
Power supply circuits
►
Constant current sources
►
Input protection circuits
►
Ordering Information
Device
Package Options
TO-236AB (SOT-23) TO-92 TO-243AA (SOT-89)
BV
DSX
/BV
(V)
DGX
LND150 LND150K1-G LND150N3-G LND150N8-G 500 1.0 1.0
-G indicates package is RoHS compliant (‘Green’)
R
DS(ON)
(max)
(KΩ)
I
DSS
(min)
(mA)
Absolute Maximum Ratings
Parameter Value
Drain-to-source BV
Drain-to-gate BV
Gate-to-source ±20V
Operating and storage temperature -55OC to +150OC
Soldering temperature* 300OC
Absolute Maximum Ratings are those values beyond which damage to the device
may occur. Functional operation under these conditions is not implied. Continuous
operation of the device at the absolute rating level may affect device reliability. All
voltages are referenced to device ground.
* Distance of 1.6mm from case for 10 seconds.
Product Marking
TO-236AB (SOT-23) (K1)
Packages may or may not include the following marks: Si or
Pin Configurations
DSX
DGX
TO-236AB (SOT-23) (K1)
TO-92 (N3)
TO-92 (N3)
TO-243AA (SOT-89) (N8)
TO-243AA (SOT-89) (N8)
Page 2
● 1235 Bordeaux Drive, Sunnyvale, CA 94089 ● Tel: 408-222-8888 ● www.supertex.com
Thermal Characteristics
90%
10%
90%
90%
10%
10%
PULSE
GENERATO
R
V
DD
R
L
OUTPUT
D.U.T
.
t
(ON)
t
d(ON)
t
(OFF)
t
d(OFF)
t
f
t
r
INPUT
INPUT
OUTPUT
0V
V
DD
R
GEN
0V
-10V
I
D
Package
(continuous)
(mA)
†
TO-236AB (SOT-23) 13 30 0.36 200 350 13 30
TO-92
TO-243AA (SOT-89)
Notes:
† ID (continuous) is limited by max rated Tj.
‡ Mounted on FR4 board, 25mm x 25mm x 1.57mm
30 30 0.74 125 170 30 30
30 30 1.6
I
D
(pulsed)
(mA)
Power Dissipation
@TA = 25OC
(W)
‡
θ
jc
(OC/W)
θ
ja
(OC/W)
I
DR
(mA)
15 78 30 30
LND150
†
I
DRM
(mA)
Electrical Characteristics (T
= 25OC unless otherwise specified)
A
Sym Parameter Min Typ Max Units Conditions
V
ΔV
BV
GS(OFF)
GS(OFF)
I
GSS
Drain-to-source breakdown voltage 500 - - V VGS = -10V, ID = 1.0mA
DSX
Gate-to-source off voltage -1.0 - -3.0 V VGS = 25V, ID = 100nA
Change in V
with temperature - - 5.0 mV/OC VGS = 25V, ID = 100nA
GS(OFF)
Gate body leakage current - - 100 nA VGS = ± 20V, V
- - 100 nA VGS = -10V, V
I
D(OFF)
I
DSS
R
DS(ON)
ΔR
DS(ON)
G
C
C
C
t
d(ON)
t
d(OFF)
V
t
Notes:
1.
2.
OSS
RSS
t
t
Drain-to-source leakage current
- - 100 µA
VDS = 0.8V Max Rating,
VGS = -10V, TA = 125OC
Saturated drain-to-source current 1.0 - 3.0 mA VGS = 0V, VDS = 25V
Static drain-to-source on-state resistance - 850 1000 Ω VGS = 0V, ID = 0.5mA
Change in R
Forward transductance 1.0 2.0 - m VDS = 0V, ID = 1.0mA
FS
Input capacitance - 7.5 10
ISS
Common source output capacitance - 2.0 3.5
Reverse transfer capacitance - 0.5 1.0
with temperature - - 1.2 %/OC VGS = 0V, ID = 0.5mA
DS(ON)
Ω
VGS = -10V,
pF
VDS = 25V,
f = 1.0MHz
Turn-on delay time - 0.09 -
Rise time - 0.45 -
r
Turn-off delay time - 0.1 -
Fall time - 1.3 -
f
Diode forward voltage drop - - 0.9 V VGS = -10V, ISD = 1.0mA
SD
Reverse recovery time - 200 - ns VGS = -10V, ISD = 1.0mA
rr
All D.C. parameters 100% tested at 25OC unless otherwise stated. (Pulse test: 300µs pulse, 2% duty cycle.)
All A.C. parameters sample tested.
µs
VDD = 25V,
ID = 1.0mA,
R
GEN
= 25Ω
DS
= 450V
DS
= 0V
Switching Waveforms and Test Circuit
2
Page 3
● 1235 Bordeaux Drive, Sunnyvale, CA 94089 ● Tel: 408-222-8888 ● www.supertex.com
Typical Performance Curves
Output Characteristics
6
5
4
3
2
1
0
0 2
50 500
I
D
(milliamps)
Saturation Characteristics
6
5
4
3
2
1
0
0 1 2 3
54
Maximum Rated Safe Operating Area
1 100010010
1
10
100
0.1
Thermal Response Characteristics
Thermal Resistance (normalized)
1.0
0.8
0.6
0.4
0.2
0.001 1
00.01 0.1 1.0
Transconductance vs. Drain Current
10
8
6
4
2
0
0
10
2 4
6
G
FS
(millisiemens)
Power Dissipation vs. Ambient Temperature
0 15010050
2
1
1257525
P
D
(Watts)
0.5V
8
0V
-0.5
V
-1.0
V
V
GS
= 1.0V
0.5V
0V
-0.5V
-1.0V
0
0
TO-243AA
V
DS
(V)
TA = -55°C
ID (milliamps)
TA (°C)
V
DS
(V)
tP (seconds)
TO-243AA
TA = 25°C
PD = 1.2W
TO-92
PD = 1.0W
TC = 25°C
TO-92
TO -23 6 (DC )
TO-236AB
I
D
(milliamps)
V
GS
= 1.0V
V
DS
= 400V
TA = 25°C
300µs pulse
2% duty cycle
I
D
(milliamps)
25°C
125°C
V
DS
(V)
TO -92 ( DC)
TO -24 3A A ( DC)
Pu lse d
LND150
3
Page 4
● 1235 Bordeaux Drive, Sunnyvale, CA 94089 ● Tel: 408-222-8888 ● www.supertex.com
Typical Performance Curves (cont.)
Gate Drive Dynamic Characteristics
V
GS(OFF)
and R
DS
Variation with Temperature
Transfer Characteristics
Capacitance vs. Drain-to-Source Voltage
10
C (picofarads)
0 10 20 30 40
5
-1 0 1 2 3
10
5
-50 0 50 100 150
1.1
1.8
1.6
1.4
1.2
1.0
0.8
10
5
0
-5
0 0.1 0.2 0.3
-50 0 50 100 150
0
V
DS
= 400V
0.9
1.0
R
DS(ON)
@ ID = 1.0mA
0
V
GS
= -5.0V
2.0
1.6
1.2
0.8
0.4
8.7pF
60V
40V
100K10
0.2
100 1K 10K
0.4
0.6
0.8
1.0
1.2
R
SOURCE
(Ω)
I
D
vs R
SOURCE
1.4
0.0
LND1
I
D
↓
R
SOURCE
BV
DSS
Variation with Temperature
BV
DSS
(normalized)
Tj (OC)
I
D
(milliamps)
T
A
= -5
5
°C
I
D
(millimeter)
V
GS
(V)
C
ISS
C
OSS
C
RSS
V
DS
(V)
V
GS
(V)
V
DS
= 20V
QC (nanocoulombs)
V
GS(OFF)
(normalized)
25°C
125°C
25°C
125°C
Tj (OC)
R
DS(ON)
(normalized)
V
GS(OFF)
@ 100nA
V
GS
= -10V
LND150
4
Page 5
● 1235 Bordeaux Drive, Sunnyvale, CA 94089 ● Tel: 408-222-8888 ● www.supertex.com
3-Lead TO-236AB (SOT-23) Package Outline (K1)
View B
Vi
ew A - A
Side View
Top View
View B
Gauge
Plane
Seating
Plane
0.25
L1
L
E1
E
D
3
1
2
e
e1
b
A
A
Seating
Plane
A
A2
A1
2.90x1.30mm body, 1.12mm height (max), 1.90mm pitch
LND150
Symbol A A1 A2 b D E E1 e e1 L L1 θ
MIN 0.89 0.01 0.88 0.30 2.80 2.10 1.20
Dimension
(mm)
JEDEC Registration TO-236, Variation AB, Issue H, Jan. 1999.
† This dimension differs from the JEDEC drawing.
Drawings not to scale.
Supertex Doc.#: DSPD-3TO236ABK1, Version C041309.
NOM - - 0.95 - 2.90 - 1.30 0.50 -
MAX 1.12 0.10 1.02 0.50 3.04 2.64 1.40 0.60 8
0.20
†
O
0
0.54
REF
O
0.95
BSC
1.90
BSC
5
Page 6
● 1235 Bordeaux Drive, Sunnyvale, CA 94089 ● Tel: 408-222-8888 ● www.supertex.com
3-Lead TO-92 Package Outline (N3)
Seating
Plane
1
2
3
Front View
Side View
Bottom View
E1
E
D
e1
L
e
c
1 2 3
b
A
LND150
Symbol A b c D E E1 e e1 L
MIN .170 .014
Dimensions
(inches)
NOM - - - - - - - - -
MAX .210 .022
JEDEC Registration TO-92.
* This dimension is not specified in the JEDEC drawing.
† This dimension differs from the JEDEC drawing.
Drawings not to scale.
Supertex Doc.#: DSPD-3TO92N3, Version E041009.
†
†
.014
.022
†
†
.175 .125 .080 .095 .045 .500
.205 .165 .105 .105 .055 .610*
6
Page 7
Supertex inc. does not recommend the use of its products in life support applications, and will not knowingly sell them for use in such applications unless it receives
an adequate “product liability indemnification insurance agreement.”
Supertex inc. does not assume responsibility for use of devices described, and limits its liability
to the replacement of the devices determined defective due to workmanship. No responsibility is assumed for possible omissions and inaccuracies. Circuitry an
d
specifications are subject to change without notice. For the latest product specifications refer to the
Supertex inc. (website: http//www.supertex.com)
©2009 Supertex inc. All rights reserved. Unauthorized use or reproduction is prohibited.
Supertex inc.
1235 Bordeaux Drive, Sunnyvale, CA 94089
Tel: 408-222-8888
www.supertex.com
3-Lead TO-243AA (SOT-89) Package Outline (N8)
b
b1
D
D1
E
H
E1
C
A
1 2 3
e
e1
Top View
Side View
L
LND150
Symbol A b b1 C D D1 E E1 e e1 H L
†
1.50
BSC
3.00
BSC
3.94 0.89
Dimensions
(mm)
MIN 1.40 0.44 0.36 0.35 4.40 1.62 2.29 2.00
NOM - - - - - - - - - -
MAX 1.60 0.56 0.48 0.44 4.60 1.83 2.60 2.29 4.25 1.20
JEDEC Registration TO-243, Variation AA, Issue C, July 1986.
† This dimension differs from the JEDEC drawing
Drawings not to scale.
Supertex Doc. #: DSPD-3TO243AAN8, Version E051509.
(The package drawing(s) in this data sheet may not reflect the most current specifications. For the latest package outline
information go to http://www.supertex.com/packaging.html.)
Doc.# DSFP-LND150
B021110
