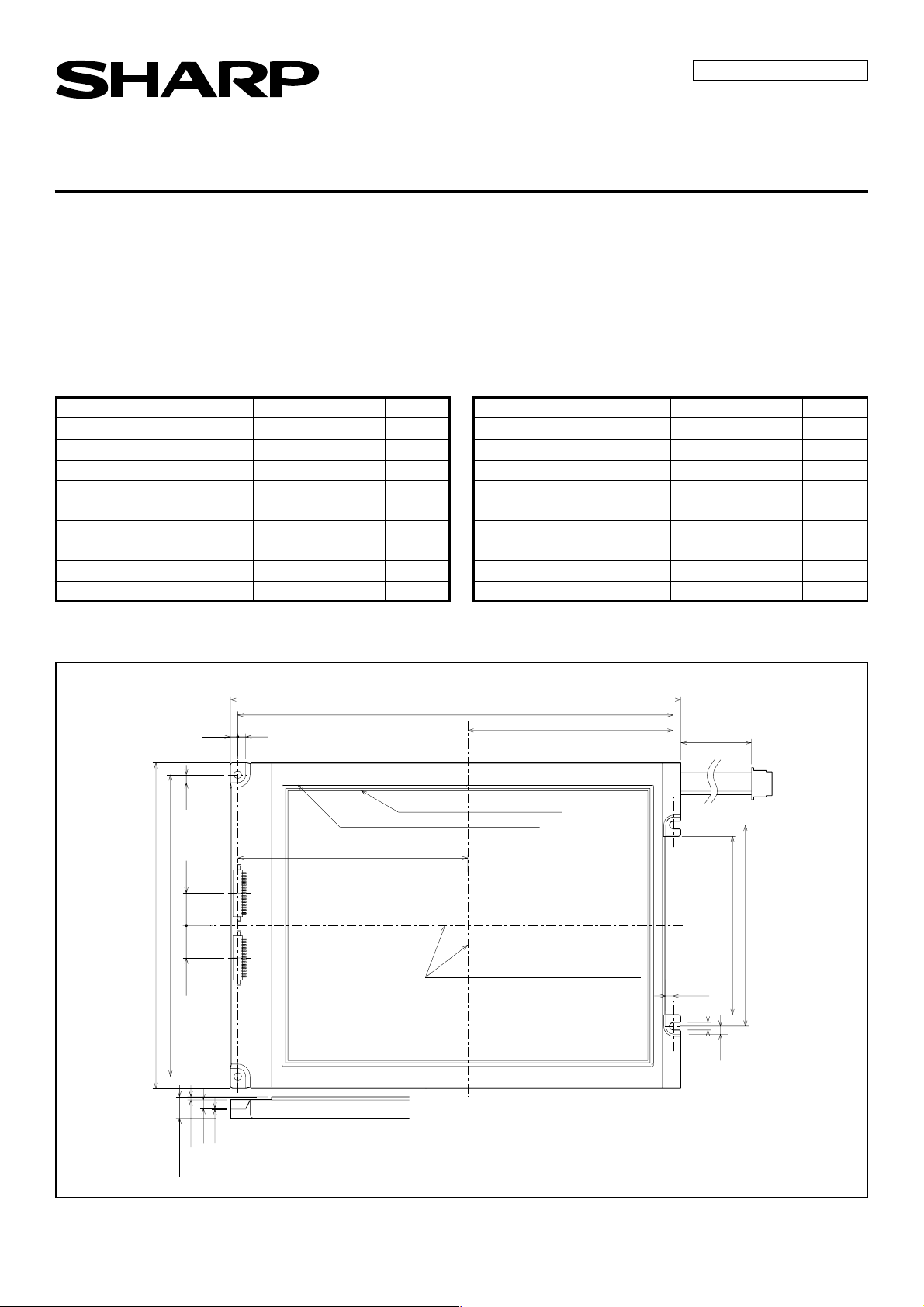

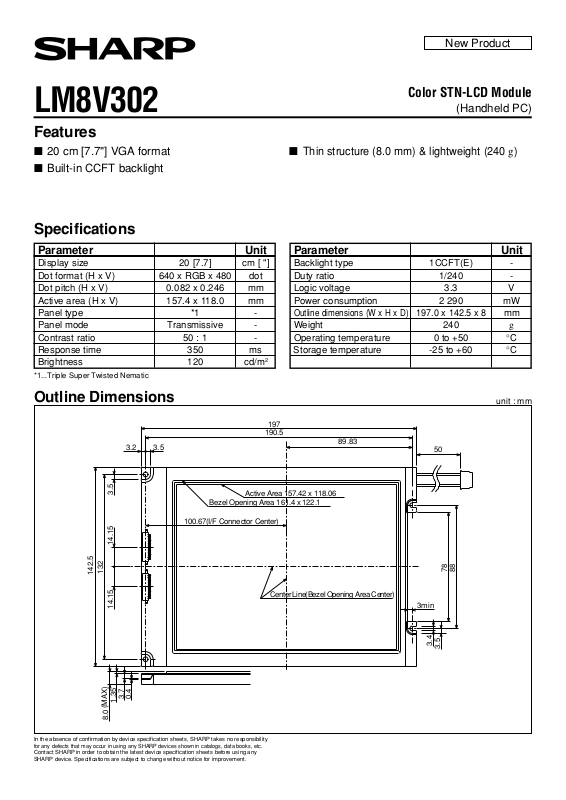

New Product
Color STN-LCD Module
LM8V302 (Handheld PC)
Features
■ 20 cm [7.7"] VGA format ■
Thin structure (8.0 mm) & lightweight (240 g)
■ Built-in CCFT backlight
Specifications
Parameter Unit Parameter Unit
Display size 20 [7.7] cm [ "] Backlight type 1CCFT(E) Dot format (H x V) 640 x RGB x 480 dot Duty ratio 1/240 Dot pitch (H x V) 0.082 x 0.246 mm Logic voltage 3.3 V
Active area (H x V) 157.4 x 118.0 mm Power consumption 2 290 mW
Panel type *1 Panel mode Transmissive - Weight 240 g
Contrast ratio 50 : 1 - Operating temperature 0 to +50 °C
Response time 350 ms Storage temperature -25 to +60 °C
Brightness 120 cd/m
*1...Triple Super Twisted Nematic
2
Outline Dimensions
190.5
3.5
3.2
Outline dimensions (W x H x D)
197
89.83
197.0 x 142.5 x 8
50
mm
unit : mm
Bezel Opening Area 161.4 x 122.1
100.67(I/F Connector Center)
14.15 3.514.15
132
142.5
3.7
0.4
1.35
(MAX)
8.0
In the absence of confirmation by device specification sheets, SHARP takes no responsibility
for any defects that may occur in using any SHARP devices shown in catalogs, data books, etc.
Contact SHARP in order to obtain the latest device specification sheets before using any
SHARP device. Specifications are subject to change without notice for improvement.
Active Area 157.42 x 118.06
Center Line(Bezel Opening Area Center)
3
min
3.4
3.5
78
88
