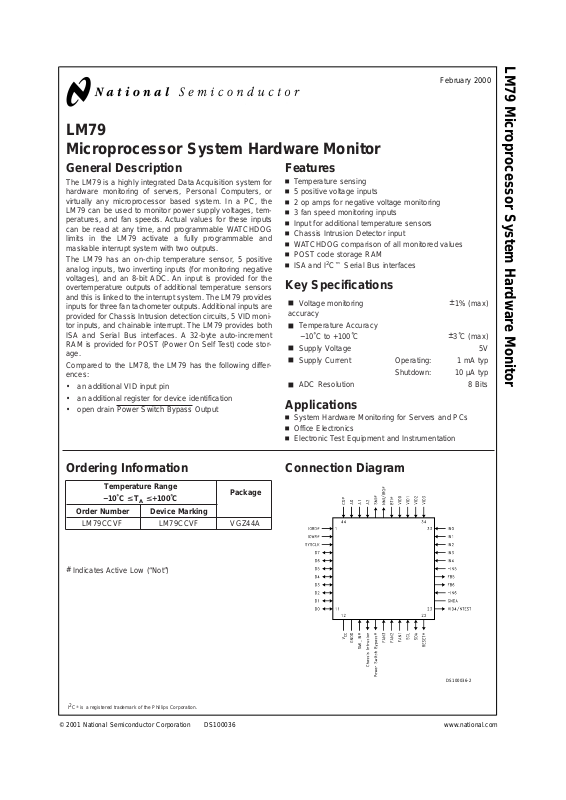

LM79 Microprocessor System Hardware Monitor
General Description
The LM79 is a highly integrated Data Acquisition system for hardware monitoring of servers, Personal Computers, or virtually any microprocessor based system. In a PC, the LM79 can be used to monitor power supply voltages, tem­peratures, and fan speeds. Actual values for these inputs can be read at any time, and programmable WATCHDOG limits in the LM79 activate a fully programmable and maskable interrupt system with two outputs.
The LM79 has an on-chip temperature sensor, 5 positive analog inputs, two inverting inputs (for monitoring negative voltages), and an 8-bit ADC. An input is provided for the overtemperature outputs of additional temperature sensors and this is linked to the interrupt system. The LM79 provides inputs for three fan tachometer outputs. Additional inputs are provided for Chassis Intrusion detection circuits, 5 VID moni­tor inputs, and chainable interrupt. The LM79 provides both ISA and Serial Bus interfaces. A 32-byte auto-increment RAM is provided for POST (Power On Self Test) code stor­age.
Compared to the LM78, the LM79 has the following differ­ences:
•
an additional VID input pin
•
an additional register for device identification
•
open drain Power Switch Bypass Output
Features
n Temperature sensing n 5 positive voltage inputs n 2 op amps for negative voltage monitoring n 3 fan speed monitoring inputs n Input for additional temperature sensors n Chassis Intrusion Detector input n WATCHDOG comparison of all monitored values n POST code storage RAM n ISA and I
2
C™Serial Bus interfaces
Key Specifications
j
Voltage monitoring
accuracy
±
1% (max)
j
Temperature Accuracy
−10˚C to +100˚C
±
3˚C (max)
j
Supply Voltage 5V
j
Supply Current Operating: 1 mA typ
Shutdown: 10 µA typ
j
ADC Resolution 8 Bits
Applications
n System Hardware Monitoring for Servers and PCs n Office Electronics n Electronic Test Equipment and Instrumentation
Ordering Information
Temperature Range
Package
−10˚C ≤ T
A
≤ +100˚C
Order Number Device Marking
LM79CCVF LM79CCVF VGZ44A
#
Indicates Active Low (“Not”)
Connection Diagram
I2C®is a registered trademark of the Phillips Corporation.
DS100036-2
February 2000
LM79 Microprocessor System Hardware Monitor
© 2001 National Semiconductor Corporation DS100036 www.national.com
Page 2

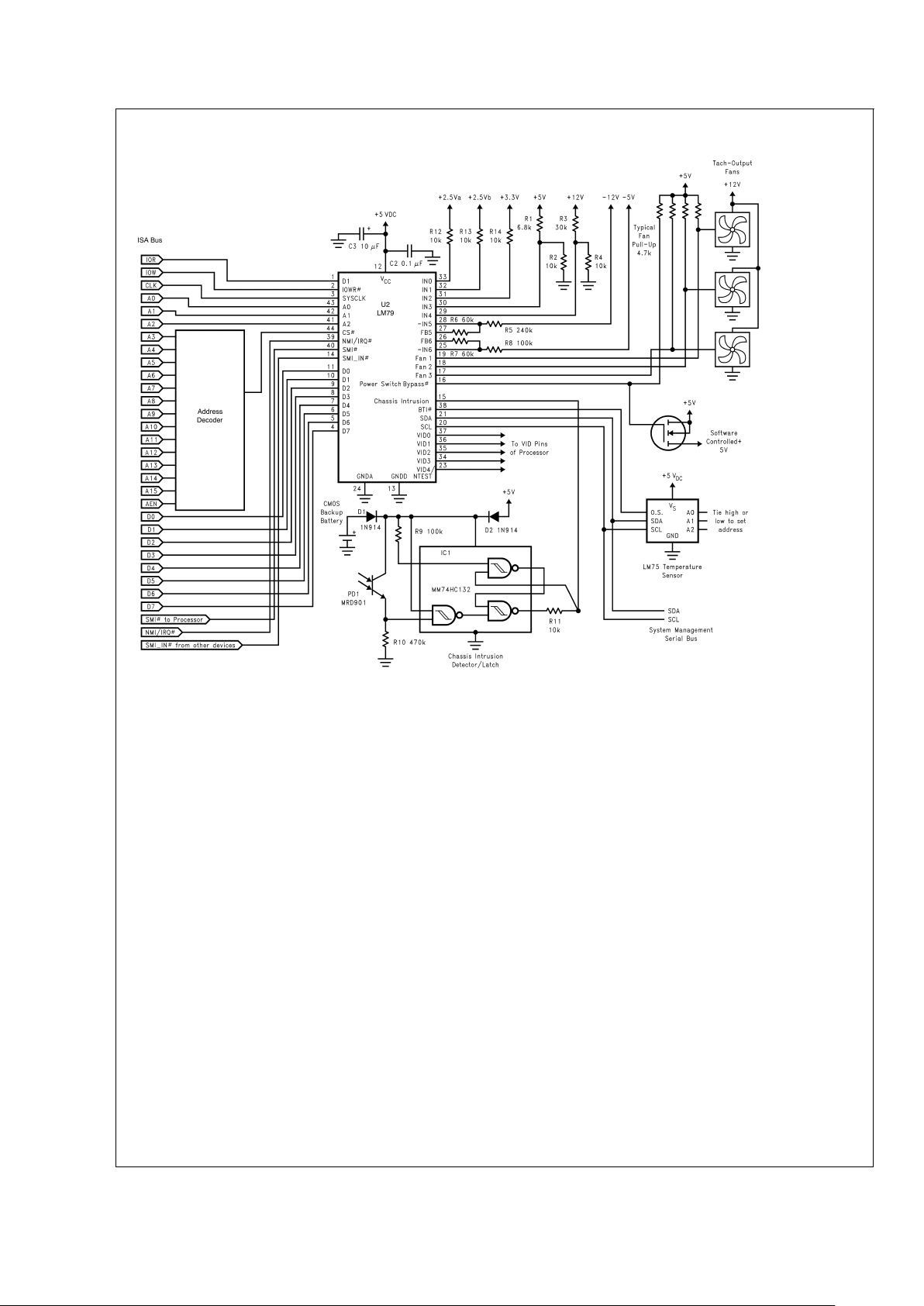

Typical Application
DS100036-1
LM79
www.national.com 2
Page 3

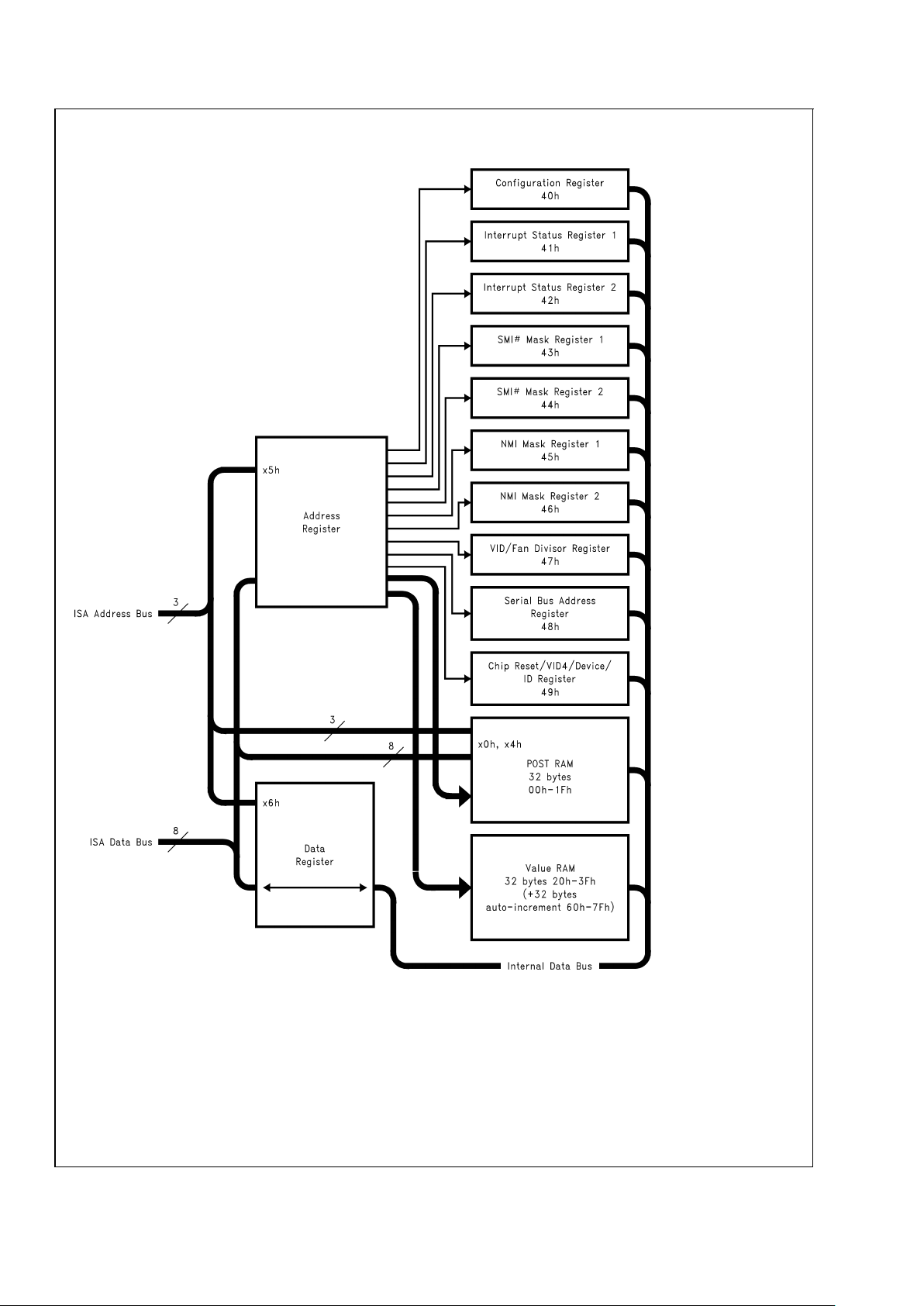

Block Diagram
Pin Description
Pin
Name(s)
Pin
Number
Number
of Pins
Type Description
IORD
1 1 Digital Input An active low standard ISA bus I/O Read Control.
IOWR
2 1 Digital Input An active low standard ISA bus I/O Write Control.
SYSCLK 3 1 Digital Input The reference clock for the ISA bus. Typically ranges from 4.167 MHz to
8.33 MHz. The minimum clock frequency this input can handle is 1 Hz.
D7–D0 4–11 8 Digital I/O Bi-directional ISA bus Data lines. D0 corresponds to the low order bit,
with D7 the high order bit.
V
CC
(+5V) 12 1 POWER +5V VCCpower. Bypass with the parallel combination of 10 µF
(electolytic or tantalum) and 0.1 µF (ceramic) bypass capacitors. GNDD 13 1 GROUND Internally connected to all digital circuitry. SMI__IN
14 1 Digital Input Chainable SMI (System Management Interrupt) Input. This is an active
low input that propagates the SMI signal to the SMI output of the LM79
via SMI Mask Register Bit 6 and SMI enable Bit 1 of the Configuration
Register. Chassis
Intrusion
15 1 Digital I/O An active high input from an external circuit which latches a Chassis
Intrusion event. This line can go high without any clamping action
regardless of the powered state of the LM79. The LM79 provides an
internal open drain on this line, controlled by Bit 7 of NMI Mask Register
2, to provide a minimum 20 ms reset of this line.
DS100036-3
LM79
www.national.com3
Page 4
Pin Description (Continued)
Pin
Name(s)
Pin
Number
Number
of Pins
Type Description
Power Switch Bypass
16 1 Digital Output An active low open drain output intended to drive an external P-channel
power MOSFET for software power control.
FAN3–FAN1 17–19 3 Digital Input 0V to +5V amplitude fan tachometer input. SCL 20 1 Digital Input Serial Bus Clock. SDA 21 1 Digital I/O Serial Bus bidirectional Data. RESET
22 1 Digital Output Master Reset, 5 mA driver (open drain), active low output with a 20 ms
minimum pulse width. Available when enabeld via Bit 7 in SMI Mask Register 2.
VID4/NTEST 23 1 Digital
Input/Test Output
By default an input for the VID4 power supply readout for the system processor (Pentium/PRO). Can be programmed as a NAND Tree totem-pole output that provides board-level connectivity testing. Refer to
Section 11.0
on NAND Tree testing.
GNDA 24 1 GROUND Internally connected to all analog circuitry. The ground reference for all
analog inputs.
−IN6 25 1 Analog Input Ground-referred inverting op amp input. Refer to
Section 4.0
, “ANALOG
INPUTS”.
FB6 26 1 Analog Output Output of inverting op amp for Input 6. Refer to
Section 4.0
, “ANALOG
INPUTS”.
FB5 27 1 Analog Output Output of inverting op amp for Input 5. Refer to
Section 4.0
, “ANALOG
INPUTS”.
−IN5 28 1 Analog Input Ground-referred inverting op amp input. Refer to
Section 4.0
, “ANALOG
INPUTS”. IN4–IN0 29–33 5 Analog Input 0V to 4.096V FSR Analog Inputs. VID3–VID0 34–37 4 Digital Input Inputs for the power supply readouts for system microprocessor
(Pentium/PRO). This value is read in the VID/Fan Divisor Register. BTI
38 1 Digital Input Board Temperature Interrupt driven by O.S. outputs of additional
temperature sensors such as LM75. Provides internal pull-up of 10 kΩ. NMI/IRQ
39 1 Digital Output Non-Maskable Interrupt (open source)/Interrupt Request (open drain).
The mode is selected with Bit 5 of the Configuration Register and the
output is enabled when Bit 2 of the Configuration Register is set to 1.
The default state is disabled and IRQ mode. SMI 40 1 Digital Output System Management Interrupt (open drain). This output is enabled when
Bit 1 in the Configuration Register is set to 1. The default state is
disabled. A2–A0 41–43 3 Digital Input The three lowest order bits of the 16-bit ISA Address Bus. A0
corresponds to the lowest order bit. CS
44 1 Digital Input Chip Select input from an external decoder which decodes high order
address bits on the ISA Address Bus. This is an active low input.
TOTAL PINS 44
LM79
www.national.com 4
Page 5
Absolute Maximum Ratings (Notes 1, 2)
If Military/Aerospace specified devices are required, please contact the National Semiconductor Sales Office/ Distributors for availability and specifications.
Positive Supply Voltage (V
CC
) 6.5V
Voltage on Any Input or Output Pin −0.3V to (V
CC
+0.3V)
Ground Difference (GNDD–GNDA)
±
300 mV
Input Current at any Pin (Note 3)
±
5mA
Package Input Current (Note 3)
±
20 mA
Maximum Junction Temperature
(T
J
max) 150˚C
ESD Susceptibility(Note 5)
Human Body Model 2000V Machine Model 175V
Soldering Information
PQFP Package (Note 6) :
Vapor Phase (60 seconds) 215˚C Infrared (15 seconds) 220˚C
Storage Temperature −65˚C to +150˚C
Operating Ratings(Notes 1, 2)
Operating Temperature Range T
MIN
≤ TA≤ T
MAX
LM79 −55˚C ≤ TA≤ +125˚C Specified Temperature Range T
MIN
≤ TA≤ T
MAX
LM79 −10˚C ≤ TA≤ +100˚C
Junction to Ambient Thermal Resistance (θ
JA
(Note 4) )
NS Package ID: VGZ44A 62˚C/W
Supply Voltage (V
CC
) +4.25V to +5.75V
Ground Difference
(IGNDD–GNDAI) ≤100 mV
V
IN
Voltage Range −0.05V to VCC+ 0.05V
DC Electrical Characteristics
The following specifications apply for +4.25 VDC≤VCC≤ +5.75 VDC,f
SYSCLK
= 8.33 MHz, RS=25Ω, unless otherwise speci-
fied. Boldface limits apply for T
A=TJ=TMIN
to T
MAX
; all other limits TA=TJ= 25˚C. (Note 7)
Symbol Parameter Conditions Typical Limits Units
(Note 8) (Note 9) (Limits)
POWER SUPPLY CHARACTERISTICS
I
CC
Supply Current Interface Inactive 1.0 2 mA (max)
Shutdown Mode 10 µA
TEMPERATURE-TO-DIGITAL CONVERTER CHARACTERISTICS
Accuracy −10˚C ≤ T
A
≤ +100˚C
±
3 ˚C (max)
Resolution 1 ˚C (min)
ANALOG-TO-DIGITAL CONVERTER CHARACTERISTICS
Resolution (8 bits with full-scale at 4.096V) 16 mV
TUE Total Unadjusted Error (Note 10)
±
1 % (max)
DNL Differential Non-Linearity
±
1 LSB (max)
PSS Power Supply Sensitivity
±
1 %/V
t
C
Total Monitoring Cycle Time (Note 11) 1.0 1.5 sec (max)
OP AMP CHARACTERISTICS
Output Current (Sourcing) 50 µA Input Offset Voltage I
OUT
=50µA
±
1mV
Input Bias Current
±
0.1 nA PSRR 60 dB DC Open Loop Gain 70 dB Gain Bandwidth Product 500 kHz
MULTIPLEXER/ADC INPUT CHARACTERISTICS
On Resistance 400 2000 Ω (max) Off Channel Leakage Current
±
0.1 nA Input Current (On Channel Leakage Current)
±
0.1 nA
FAN RPM-TO-DIGITAL CONVERTER
Accuracy +25˚C ≤ T
A
≤ +75˚C
±
10 % (max)
−10˚C ≤ T
A
≤ +100˚C
±
15 % (max)
Full-scale Count 255 (max)
LM79
www.national.com5
Page 6
DC Electrical Characteristics (Continued)
The following specifications apply for +4.25 VDC≤VCC≤ +5.75 VDC,f
SYSCLK
= 8.33 MHz, RS=25Ω, unless otherwise speci-
fied. Boldface limits apply for T
A=TJ=TMIN
to T
MAX
; all other limits TA=TJ= 25˚C. (Note 7)
Symbol Parameter Conditions Typical Limits Units
(Note 8) (Note 9) (Limits)
FAN RPM-TO-DIGITAL CONVERTER
FAN1 and FAN2 Nominal Input RPM (See
Section 6.0
)
Divisor = 1, Fan Count = 153 (Note 12)
8800 RPM
Divisor = 2, Fan Count = 153 (Note 12)
4400 RPM
Divisor = 3, Fan Count = 153 (Note 12)
2200 RPM
Divisor = 4, Fan Count = 153 (Note 12)
1100 RPM
FAN3 Design Nominal Input RPM Fan Count = 153 (Note 12) 4400 RPM Internal Clock Frequency +25˚C ≤ T
A
≤ +75˚C 22.5 20.2 kHz (min)
24.8 kHz (max)
−10˚C ≤ T
A
≤ +100˚C 22.5 19.1 kHz (min)
25.9 kHz (max)
DIGITAL OUTPUTS (VID4/NTEST, NMI/IRQ)
V
OUT(1)
Logical “1” Output Voltage I
OUT
=±5.0 mA 2.4 V (min)
V
OUT(0)
Logical “0” Output Voltage I
OUT
=±5.0 mA 0.4 V (max)
ISA D0–D7 DIGITAL OUTPUTS
V
OUT(1)
Logical “1” Output Voltage I
OUT
=±12.0 mA 2.4 V (min)
V
OUT(0)
Logical “0” Output Voltage I
OUT
=±12.0 mA 0.4 V (max)
I
OUT
TRI-STATE®Output Current V
OUT
=0V
DC
0.005 1 µA (max)
V
OUT
=V
CC
−0.005 −1 µA (min)
OPEN DRAIN DIGITAL OUTPUTS (Power Switch Bypass, SDA, RESET, SMI, Chassis Intrusion)
V
OUT(0)
Logical “0” Output Voltage I
OUT
= −5.0 mA 0.4 V (min)
I
OH
High Level Output Current V
OUT
=V
CC
0.1 100 µA (max)
RESET and Chassis Intrusion
45 20 ms (min)
Pulse Width
DIGITAL INPUTS: SMI__IN, VID0–VID3, VID4/NTEST, BTI, CS, A0, A1, A2, Mode Control and Interface Inputs (IORD, IOWR, SYSCLK), Data Lines (D0–D7), Chassis Intrusion, and Tach Pulse Logic Inputs (FAN1, FAN2, FAN3)
V
IN(1)
Logical “1” Input Voltage 2.0 V (min)
V
IN(0)
Logical “0” Input Voltage 0.8 V (max)
SERIAL BUS DIGITAL INPUTS (SCL, SDA)
V
IN(1)
Logical “1” Input Voltage 0.7xV
CC
V (min)
V
IN(0)
Logical “0” Input Voltage 0.3xV
CC
V (max)
ALL DIGITAL INPUTS EXCEPT FOR BTI
I
IN(1)
Logical “1” Input Current VIN=V
CC
−0.005 −1 µA (min)
I
IN(0)
Logical “0” Input Current VIN=0V
DC
0.005 1 µA (max)
C
IN
Digital Input Capacitance 20 pF
BIT DIGITAL INPUT
I
IN(1)
Logical “1” Input Current VIN=V
CC
1 10 µA (max)
I
IN(0)
Logical “0” Input Current VIN=0V
DC
−500 −2000 µA (max)
C
IN
Digital Input Capacitance 20 pF
LM79
www.national.com 6
Page 7
AC Electrical Characteristics (Note 13) The following specifications apply for +4.25 V
DC
≤ VCC≤
+5.75 V
DC
unless otherwise specified. Boldface limits apply for TA=TJ=T
MIN
to T
MAX
; all other limits TA=TJ=
25˚C.
Symbol Parameter Conditions Typical Limits Units
(Note 8) (Note 9) (Limits)
ISA TIMING CHARACTERISTICS
f
SYSCLK
System Clock (SYSCLK) Input Frequency 8.33 MHz
t
CS
(setup) CS Active to IORD/IOWR Active 10 ns (min)
t
CS
(hold) IORD/IOWR Inactive to CS Inactive 10 ns (min)
t
SA
(setup) Address Valid to IORD/IOWR Active 30 ns (min)
t
SA
(hold) IORD/IOWR Inactive to Address Invalid 10 ns (min)
ISA WRITE TIMING
t
SDWR
(setup) Data Valid to IOWR Active 5 ns (min)
t
SDWR
(hold) IOWR Inactive to Data Invalid 5 ns (min)
t
WR
(setup) IOWR Active to Rising Edge of SYSCLK 20 ns (min)
DS100036-4
The delay between consecutive IORD and IOWR pulses should be greater than 50 ns to ensure that a Power-on reset does not occur unintentionally. (See
Section 3.2
‘Resets’ )
FIGURE 1. ISA Bus Write Timing Diagram
LM79
www.national.com7
Page 8
AC Electrical Characteristics (Note 13) The following specifications apply for +4.25 V
DC
≤ VCC≤
+5.75 V
DC
unless otherwise specified. Boldface limits apply for TA=TJ=T
MIN
to T
MAX
; all other limits TA=TJ=
25˚C. (Continued)
Symbol Parameter Conditions Typical Limits Units
(Note 8) (Note 9) (Limits)
ISA READ TIMING
t
SDRD
(setup) Data Valid to IORD Inactive 120 ns (min)
t
SDRD
(hold) IORD Inactive to Data Invalid 5 ns (min)
t
RD
(setup) IORD Active to Rising Edge of SYSCLK 20 ns (min)
t
RS
(delay) Rising Edge of SYSCLK number 1 to Data
Valid
With 8.33 MHz SYSCLK
360 ns (max)
DS100036-5
The delay between consecutive IORD and IOWR pulses should be greater than 50 ns to ensure that a Power-on reset does not occur unintentionally. (See
Section 3.2
‘Resets’ )
FIGURE 2. ISA Bus Read Timing Diagram
LM79
www.national.com 8
Page 9
AC Electrical Characteristics (Note 13) The following specifications apply for +4.25 V
DC
≤ VCC≤
+5.75 V
DC
unless otherwise specified. Boldface limits apply for TA=TJ=T
MIN
to T
MAX
; all other limits TA=TJ=
25˚C. (Continued)
Symbol Parameter Conditions Typical Limits Units
(Note 8) (Note 9) (Limits)
SERIAL BUS TIMING CHARACTERISTICS
t
1
SCL (Clock) Period 2.5 µs (min)
t
2
Data In Setup Time to SCL High 100 ns (min)
t
3
Data Out Stable After SCL Low 0 ns (min)
t
4
SDA Low Setup Time to SCL Low (start) 100 ns (min)
t
5
SDA High Hold Time After SCL High (stop) 100 ns (min)
Note 1: Absolute Maximum Ratings indicate limits beyond which damage to the device may occur. Operating Ratings indicate conditions for which the device is functional, but do not guarantee specific performance limits. For guaranteed specifications and test conditions, see the Electrical Characteristics. The guaranteed specifications apply only for the test conditions listed. Some performance characteristics may degrade when the device is not operated under the listed test conditions.
Note 2: All voltages are measured with respect to GND, unless otherwise specified Note 3: When the input voltage (V
IN
) at any pin exceeds the power supplies (V
IN
<
(GNDD or GNDA) or V
IN
>
VCC), the current at that pin should be limited to 5 mA.
The 20 mA maximum package input current rating limits the number of pins that can safely exceed the power supplies with an input current of 5 mA to four. Note 4: The maximum power dissipation must be derated at elevated temperatures and is dictated by T
J
max, θJAand the ambient temperature, TA. The maximum
allowable power dissipation at any temperature is P
D
=(TJmax−TA)/θJA.
Note 5: The human body model is a 100 pF capacitor discharged through a 1.5 kΩ resistor into each pin. The machine model is a 200 pF capacitor discharged directly into each pin.
Note 6: See the section titled “Surface Mount” found in any post 1986 National Semiconductor Linear Data Book for other methods of soldering surface mount devices.
Note 7: Each input and output is protected by a nominal 6.5V breakdown voltage zener diode to GND; as shown below, input voltage magnitude up to 0.3V above V
CC
or 0.3V below GND will not damage the LM79. There are parasitic diodes that exist between the inputs and the power supply rails. Errors in the ADC conversion
can occur if these diodes are forward biased by more than 50 mV. As an example, if V
CC
is 4.50 VDC, input voltage must be ≤ 4.55 VDC, to ensure accurate
conversions.
DS100036-6
FIGURE 3. Serial Bus Timing Diagram
LM79
www.national.com9
Page 10
AC Electrical Characteristics (Note 13) The following specifications apply for +4.25 V
DC
≤ VCC≤
+5.75 V
DC
unless otherwise specified. Boldface limits apply for TA=TJ=T
MIN
to T
MAX
; all other limits TA=TJ=
25˚C. (Continued)
Note 8: Typicals are at TJ=TA=25˚C and represent most likely parametric norm. Note 9: Limits are guaranteed to National’s AOQL (Average Outgoing Quality Level). Note 10: TUE (Total Unadjusted Error) includes Offset, Gain and Linearity errors of the ADC and any error introduced by the amplifiers as shown in the circuit of
Figure 13
.
Note 11: TotalMonitoring Cycle Time includes temperature conversion, 7 analog input voltage conversions and 3 tachometer readings. Each temperature and input voltage conversion takes 100 ms typical and 112 ms maximum. Fan tachometer readings take 20 ms typical, at 4400 rpm, and 200 ms max.
Note 12: The total fan count is based on 2 pulses per revolution of the fan tachometer output. Note 13: Timing specifications are tested at the TTL logic levels, V
IL
=0.4V for a falling edge and VIH=2.4V for a rising edge. TRI-STATE output voltage is forced
to 1.4V.
DS100036-7
An x indicates that the diode exists.
Pin Name D1 D2 D3
IORD
x
IOWR
x SYSCLK x D0–D7 xxx SMI__IN
x Chassis Intrusion x x Power Switch
Bypass
xx
Pin Name D1 D2 D3
FAN1–FAN3 x SCL x SDA x x RESET
xx
VID4/NTEST x x x
Pin Name D1 D2 D3
−IN6 x x FB6 x x x FB5 x x x
−IN5 x x IN4–IN0 x x x VID3–VID0 x x x
Pin Name D1 D2 D3
BTI
xx
NMI/IRQ
xxx
SMI
xx A0–A2 x CS
x
FIGURE 4. ESD Protection Input Structure
LM79
www.national.com 10
Page 11
Test Circuit
Functional Description
1.0 GENERAL DESCRIPTION
The LM79 provides 7 analog inputs, a temperature sensor, a Delta-Sigma ADC (Analog-to-Digital Converter), 3 fan speed counters, WATCHDOGregisters, and a variety of inputs and outputs on a single chip. Interfaces are provided for both the ISA parallel bus or Serial Bus. The LM79 performs power supply, temperature, and fan monitoring for personal com­puters.
The LM79 continuously converts analog inputs to 8-bit digital words with a 16 mV LSB (Least Significant Bit) weighting, yielding input ranges of 0V to 4.096V. The two negative analog inputs provide inverting op amps, with their non-inverting input referred to ground. With additional exter­nal feedback components, these inputs provide measure­ments of negative voltages (such as -5V and -12V power supplies). The analog inputs are useful for monitoring sev­eral power supplies present in a typical computer. Tempera­ture is converted to an 8-bit two’s-complement digital word with a 1˚C LSB.
Fan inputs measure the period of tachometer pulses from the fans, providing a higher count for lower fan speeds. The fan inputs are digital inputs with an acceptable range of 0V to 5V and a transition level of approximately 1.4V. Full scale fan counts are 255 (8-bit counter) and this represents a stopped or very slow fan. Nominal speeds, based on a count of 153, are programmable from 1100 to 8800 RPM on FAN1 and FAN2, with FAN3 fixed at 4400 RPM. Signal conditioning circuitry is included to accommodate slow rise and fall times.
Figure 6
. These include:
•
Configuration Register: Provides control and con­figuration.
•
Interrupt Status Registers: Two registers to provide status of each WATCHDOG limit or Interrupt event.
•
Interrupt Mask Registers: Allows masking of indi­vidual Interrupt sources, as well as separate masking for each of both hardware Interrupt outputs.
•
VID/Fan Divisor Registers: A register to read the status of the VID0-VID3 input lines. The high bits of this register contain the divisor bits for FAN1 and FAN2 in­puts.
•
Serial Bus Address Register: Contains the Serial Bus address. At power on it assumes the default value of 0101101 binary, and can be altered via the ISA or Serial Bus interface.
•
Chip Reset/VID4/Device ID Register: Allows resetting of all the registers to the default power-on reset value. The state of VID4 is reflected in this register. The identity of the divice being used can be determined by reading the state of the D7 of this register. An LM79 would be identified when D7 is set high.
•
POST RAM: FIFO RAM to store up to 32 bytes of 8-bit POST codes. Overflow of the POST RAM will set an Interrupt. The POST RAM, located at base address x0h and x4h, allows for easy decoding to address 80h and 84h, the normal addresses for outputting of POST codes. Interrupt will only be set when writing to port x0h or x4h. The POST RAM can be read via ports 85h and 86h.
•
Value RAM: The monitoring results: temperature, volt­ages, fan counts, and WATCHDOG limits are all con­tained in the Value RAM. The Value RAM consists of a total of 64 bytes. The first 11 bytes are all of the results, the next 19 bytes are the WATCHDOG limits, and are located at 20h-3Fh, including two unused bytes in the upper locations. The next 32 bytes, located at 60h-7Fh, mirror the first 32 bytes with identical contents. The only difference in the upper bytes are that they auto-increment the LM79 Internal Address Register when read from or written to via the ISA bus (auto-increment is not available for Serial Bus communications).
Additional digital inputs are provided for chaining of SMI (System Management Interrupt), outputs of multiple external LM75 temperature sensors via the BTI (Board Temperature Interrupt) input, and a Chassis Intrusion input. The Chassis
DS100036-8

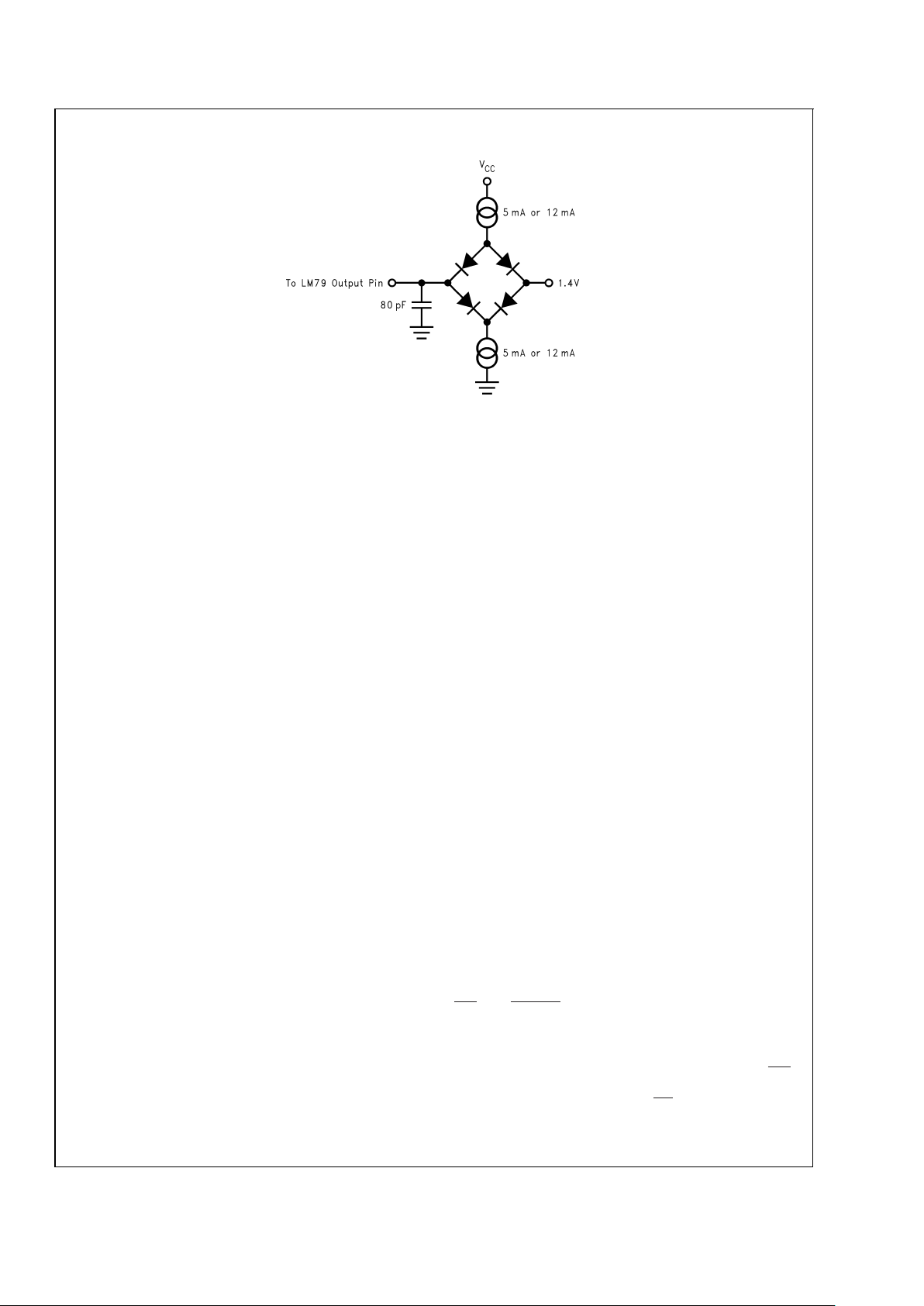

FIGURE 5. Digital Output Load Circuitry
LM79
www.national.com11
Page 12
Functional Description (Continued)
Intrusion input is designed to accept an active high signal from an external circuit that latches when the case is re­moved from the computer.
2.0 INTERFACE
The LM79 only decodes the three lowest address bits on the ISA bus. Referring to the ISA bus timing diagrams in and , the Chip Select Input, CS, should be taken low by external address decoder circuitry to access the LM79. The LM79 decodes the following base addresses:
-Port x0h: Power On Self Test codes from ISA bus.
-Port x4h: Power On Self Test codes from ISA bus.
-Port x5h: The LM79s Internal Address Register
-Port x6h: Data Register
IORD is the standard ISA bus signal that indicates to the LM79 that it may drive data on to the ISA data bus.
IOWR is the standard ISA command to the LM79 that it may latch data from the ISA bus.
LM79.All other clock functions within LM79 such as the ADC and fan counters are done with a separate asynchronous internal clock.
A typical application designed to utilize the POST RAM would decode the LM79 to the address space starting at 80h, which is where POST codes are output to. Otherwise, the LM79 can be decoded into a different desired address space.
To communicate with an LM79 Register, first write the ad­dress of that Register to Port x5h. Read or write data from or to that register via Port x6h. A write will take IOWR low, while a read will take IORD low.
LM79
www.national.com 12
Page 13
Functional Description (Continued)

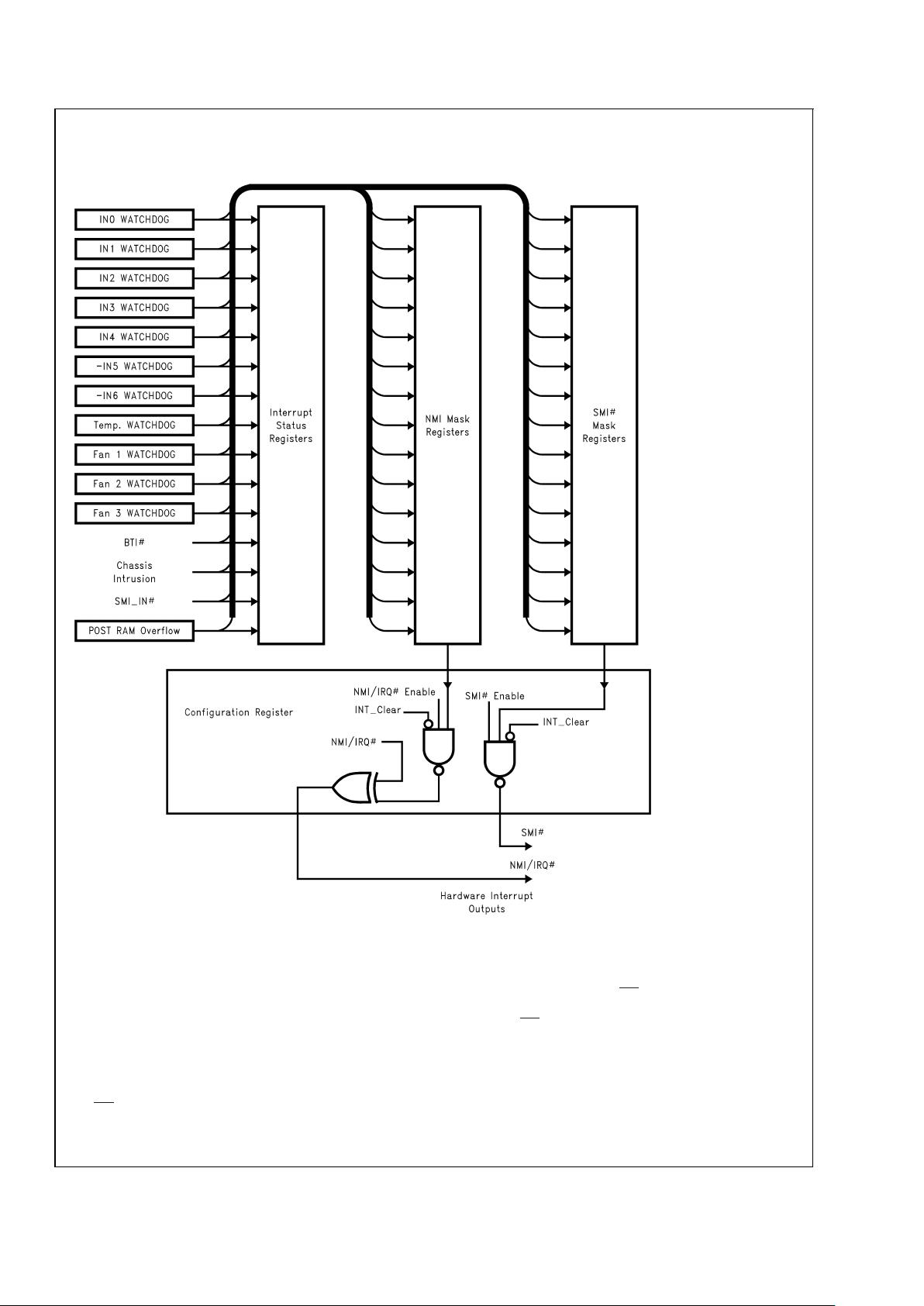

DS100036-9
FIGURE 6. LM79 Register Structure
LM79
www.national.com13
Page 14
Functional Description (Continued)
2.1 Internal Registers of the LM79
TABLE 1. The internal registers and their corresponding internal LM79 address is as follows:
Register LM79 Internal Hex
Address
Power on
Value
Notes
(This is the data to be
written to Port x5h)
Configuration Register 40h 0000 1000 Interrupt Status Register 1 41h 0000 0000 Auto-increment to the address of Interrupt Status
Register 2 after a read or write to Port x6h. Interrupt Status Register 2 42h 0000 0000 SMI Mask Register 1
43h 0000 0000 Auto-increment to the address of SMI Mask
Register 2 after a read or write to Port x6h. SMI Mask Register 2
44h 0000 0000
NMI Mask Register 1 45h 0000 0000 Auto-increment to the address of NMI Mask
Register 2 after a read or write to Port x6h. NMI Mask Register 2 46h 0100 0000 VID/Fan Divisor Register 47h 0101 XXXX The first four bits set the divisor for Fan
Counters 1 and 2. The lower four bits reflect the
state of the VID0-VID3 inputs. Serial Bus Address Register 48h 0010 1101 Chip Reset/VID4/Device
ID Register
49h 1100 000X D7 identifies this device as the LM79. D0 reflects
the state of VID4. POST RAM 00h-1Fh Auto-increment when written to from Port x0h or
x4h. Auto-increment after a read or write to Port
x6h, with a separate pointer. Auto-incrementing
stops when address 1Fh is reached. Value RAM 20h-3Fh Value RAM 60h-7Fh Auto-increment after a read or write to Port x6h.
Auto-incrementing stops when address 7Fh is
reached.
A typical communication with the LM79 would consist of:
1. Write to Port x5h the LM79 Internal Address (from col­umn 2 above) of the desired register. Alternatively,when both ISA and Serial Bus interfaces are used, the first step in a communication may be to read Port x5h to ascertain the state of the Busy bit to avoid contention with an Serial Bus communication.
2. Read or write the corresponding registers data with reads/writes from Port x6h.
The LM79 Internal Address latches, and does not have to be written if it is already pointing at the desired register. The LM79 Internal Address Register is read/write (Bit 7 is read only).
LM79
www.national.com 14
Page 15
Functional Description (Continued)
2.2 Serial Bus Interface
When using the Serial Bus Interface a write will always consist of the LM79 Serial Bus Interface Address byte, fol­lowed by the Internal Address Register byte, then the data byte. There are two cases for a read:
1. If the Internal Address Register is known to be at the desired Address, simply read the LM79 with the Serial Bus Interface Address byte, followed by the data byte read from the LM79.
2. If the Internal Address Register value is unknown, write to the LM79 with the Serial Bus Interface Address byte, followed by the Internal Address Register byte. Then restart the Serial Communication with a Read consisting of the Serial Bus Interface Address byte, followed by the data byte read from the LM79.
In all other respects the LM79 functions identically for Serial Bus communications as it does for ISA communications.
Auto-Increment does not operate. When writing to or reading from a Register which Auto-Increments with ISA communi­cations, the Register must be manually incremented for Serial Bus communications.
The default power on Serial Bus address for the LM79 is: 0101101binary.This address can be changed by writing any desired value to the Serial Bus address register, which can be done either via the ISA or Serial Bus. During and Serial Bus communication on the BUSY bit (bit 7) in the address register at x5h will be high, and any ISA activity in that situation should be limited to reading port x5h only.
Figure 7
.

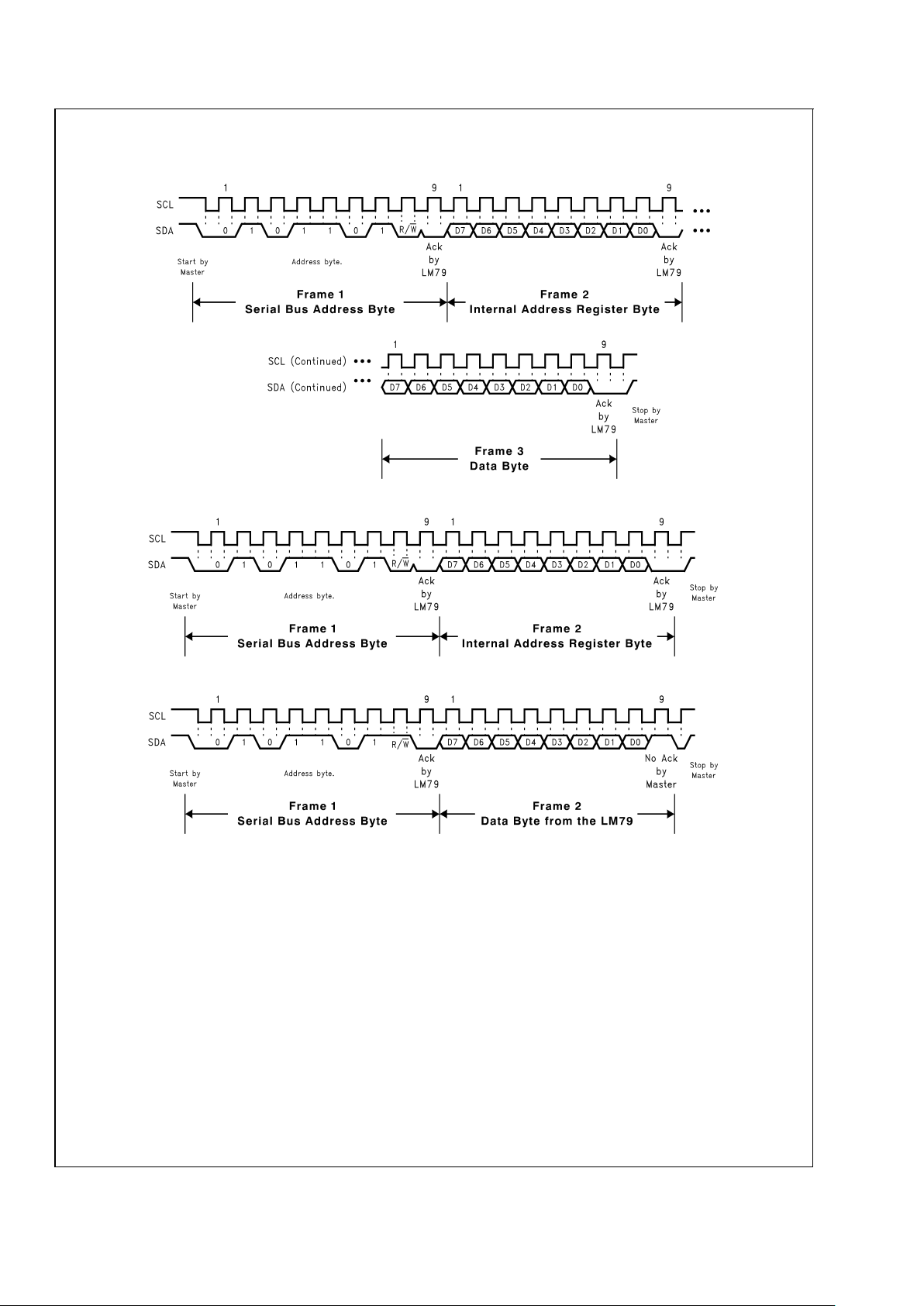

DS100036-10
(a) Serial Bus Write to the Internal Address Register followed by the Data Byte
DS100036-11
(b) Serial Bus Write to the Internal Address Register Only
DS100036-12
(c) Serial Bus Read from a Register with the Internal Address Register Preset to Desired Location
FIGURE 7. Serial Bus Timing
LM79
www.national.com15
Page 16
Functional Description (Continued)
3.0 USING THE LM79
3.1 Power On
When power is first applied, the LM79 performs a “power on reset” on several of its registers. The power on condition of registers in shown in Table I. Registers whose power on values are not shown have power on conditions that are indeterminate (this includes the value RAM and WATCH­DOG limits). The ADC is inactive. In most applications, usu­ally the first action after power on would be to write WATCH­DOG limits into the Value RAM.
3.2 Resets
Configuration Register INITIALIZATION accomplishes the same function as power on reset on most registers. The POST RAM, ValueRAM conversion results, and Value RAM WATCHDOG limits are not Reset and will be indeterminate immediately after power on. If the Value RAM contains valid conversion results and/or Value RAM WATCHDOG limits have been previously set, they will not be affected by a Configuration Register INITIALIZATION. Power on reset, or Configuration Register INITIALIZATION, clear or initialize the following registers (the initialized values are shown on
Table 1
):
•
Configuration Register
•
Interrupt Status Register 1
•
Interrupt Status Register 2
•
SMI Mask Register 1
•
SMI Mask Register 2
•
NMI Mask Register 1
•
NMI Mask Register 2
•
VID/Fan Divisor Register
•
Serial Bus Address Register (Power on reset only, not reset by Configuration Register INITIALIZATION)
Configuration Register INITIALIZATION is accomplished by setting Bit 7 of the Configuration Register high. This bit automatically clears after being set.
The LM79 allows the user to perform an unconditional com­plete Power-on reset by writing a one to Bit 5 of the Chip Reset/VID4/Device ID Register. The LM79 allows an uncon­ditional complete Power-on reset to be initiated by taking the IOWR and IORD signal lines low simultaneously, for at least 50 ns, while CS is high. The delay between consecutive IORD and IOWR pulses should be greater than 50 ns to ensure that an Power-on reset does not occur unintention­ally.
In systems where the serial bus is only being used it may be advantageous to take both IOWR and IORD to the system reset pulse. In this way whenever the system is reset the LM79 will also be reset to its initial Power-on state.
3.3 Using the Configuration Register
The Configuration Register provides all control over the LM79. At power on, the ADC is stopped and INT__Clear is asserted, clearing the SMI and NMI/IRQ hardwire outputs. The Configuration Register starts and stops the LM79, en­ables and disables interrupt outputs and modes, and pro­vides the Reset function described in Section 3.2.
Bit 0 of the Configuration Register controls the monitoring loop of the LM79. Setting Bit 0 low stops the LM79 monitor­ing loop and puts the LM79 in shutdown mode, reducing power consumption. ISA and Serial Bus communication is
possible with any register in the LM79 although activity on these lines will increase shutdown current, up to as much as maximum rated supply current, while the activity takes place. Taking Bit 0 high starts the monitoring loop, described in more detail subsequently.
Bit 1 of the Configuration Register enables the SMI Interrupt hardwire output when this bit is taken high. Similarly, Bit 2 of the Configuration Register enables the NMI/IRQ Interrupt hardwire output when taken high. The NMI/IRQ mode is determined by Bit 5 in the Configuration Register. When Bit 5 is low the output is an active low IRQ output. Taking Bit 5 high inverts this output to provide an active high NMI output.
The Power Switch Bypass provides an active low at the open drain Power Switch Bypass output when set high. This is intended for use in software power control by activating an external power control MOSFET.
3.4 Starting Conversion
The monitoring function (Analog inputs, temperature, and fan speeds) in the LM79 is started by writing to the Configu­ration Register and setting INT__Clear (Bit 3), low, and Start (bit 0), high. The LM79 then performs a “round-robin” moni­toring of all analog inputs, temperature, and fan speed inputs approximately once a second. The sequence of items being monitored corresponds to locations in the ValueRAM and is:
1. Temperature
2. IN0
3. IN1
4. IN2
5. IN3
6. IN4
7. -IN5
8. -IN6
9. Fan 1
10. Fan 2
11. Fan 3
3.5 Reading Conversion Results
A typical sequence of events upon power on of the LM79 would consist of:
1. Set WATCHDOG Limits
2. Set Interrupt Masks
3. Start the LM79 monitoring process
4.0 ANALOG INPUTS
The 8-bit ADC has a 16 mV LSB, yielding a 0V to 4.08V (4.096–1LSB) input range. This is true for all analog inputs. In PC monitoring applications these inputs would most often be connected to power supplies. The 2.5V and 3.3V supplies can be directly connected to the inputs. The 5V and 12V inputs should be attenuated with external resistors to any desired value within the input range.
LM79
www.national.com 16
Page 17
Functional Description (Continued)

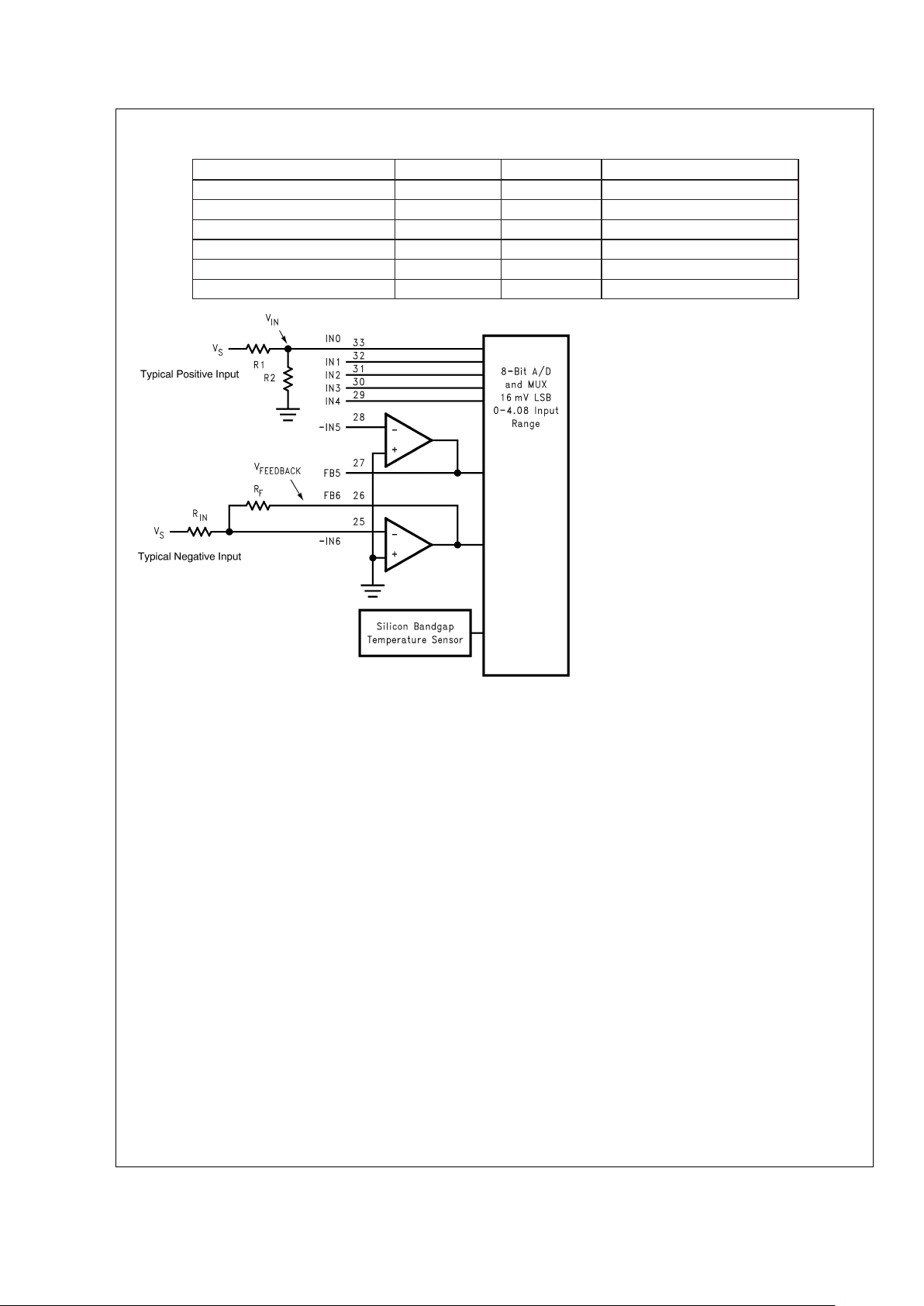

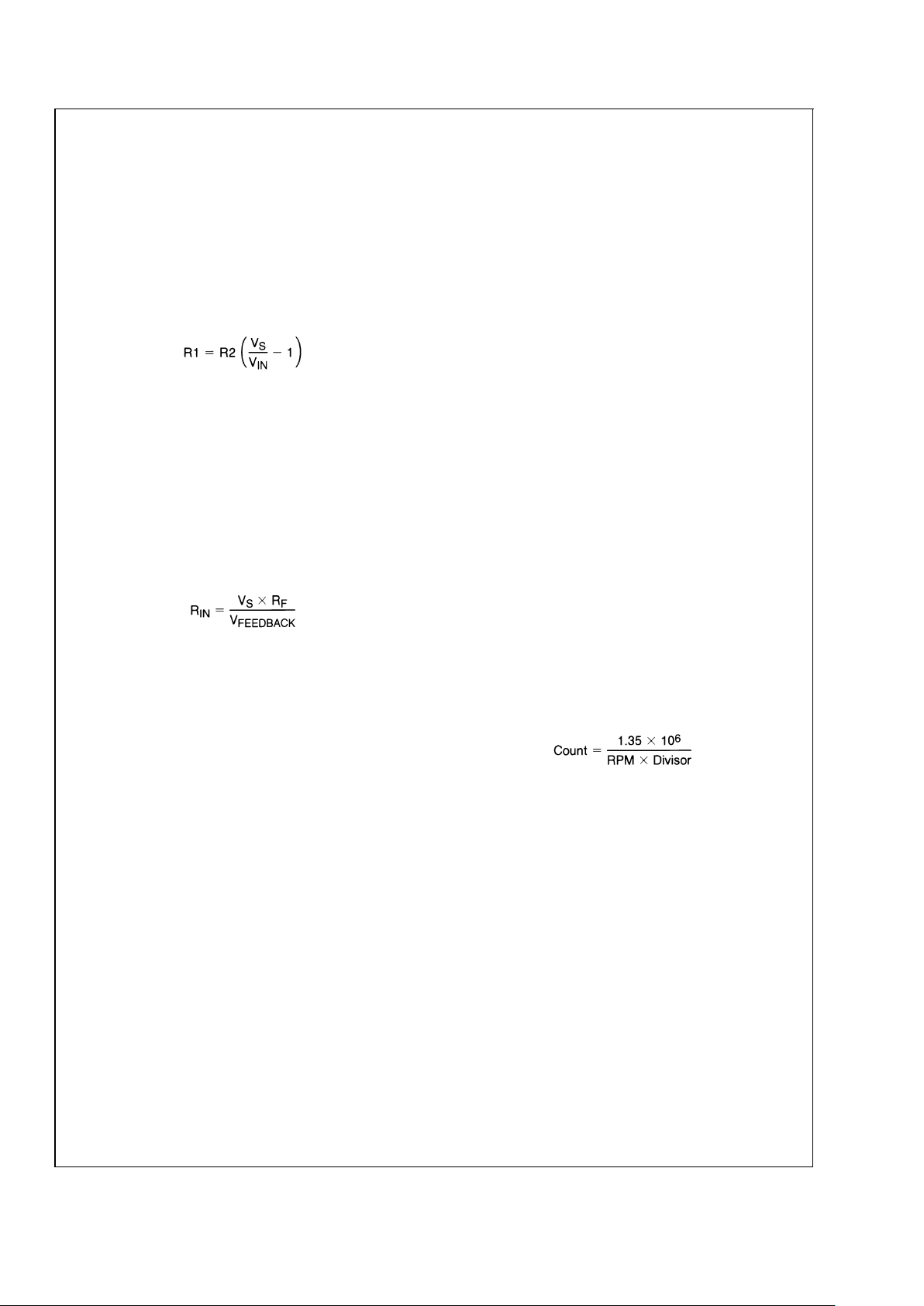

A typical application, such as is shown in
Figure 8
, might select the input voltage divider to provide 3V at the analog inputs of the LM79. This is sufficiently high for good resolu­tion of the voltage, yet leaves headroom for upward excur­sions from the supply of about 25%. To simplify the process of resistor selection, set the value of R2 first. Select a value for R2 between 10 kΩ and 100 kΩ. This is low enough to avoid errors due to input leakage currents yet high enough to both protect the inputs under overdrive conditions as well as minimize loading of the source. Then select R1 to provide a 3V input according to:
The negative inputs provide inverting op amps with non-inverting inputs connected to ground. The output of these op amps are designed to only drive the input of the LM78 and their associated feedback loops. Avoid heavy loading, long lines, and capacitive loading with these op amps. Additional loading may cause oscillations and thus erroneous readings. The optimum feedback resistor (resistor from Feedback to -IN pin) value is approximately 60 kΩ, based on the op amp nominal output current rating of 50 µA at an output voltage of 3V. Locate the feedback resistors as close as possible to the LM79. The recommended range for R
IN
is from 30 kΩ to 300 kΩ.
Select R
IN
according to:
5.0 LAYOUT AND GROUNDING
Analog inputs will provide best accuracy when referred to the AGND pin. A separate, low-impedance ground plane for analog ground, which provides a ground point for the voltage dividers and analog components, will provide best perfor­mance but is not mandatory. Analog components such as voltage dividers and feedback resistors should be located physically as close as possible to the LM79.
6.0 FAN INPUTS
Inputs are provided for signals from fans equipped with tachometer outputs. These are logic-level inputs with an approximate threshold of 1.4V. Signal conditioning in the LM79 accommodates the slow rise and fall times typical of fan tachometer outputs. The maximum input signal range is 0toV
CC
. In the event these inputs are supplied from fan
outputs which exceed 0 to V
CC
, either resistive division or diode clamping must be included to keep inputs within an acceptable range, as shown in
Figure 9
. R2 is selected so that it does not develop excessive voltage due to input leakage. R1 is selected based on R2 to provide a minimum input of 2V and a maximum of V
CC
. R1 should be as low as
possible to provide the maximum possible input up to V
CC
for best noise immunity. Alternatively, use a shunt reference or zener diode to clamp the input level.
If fans can be powered while the power to the LM79 is off, the LM79 inputs will provide diode clamping. Limit input current to the Input Current at Any Pin specification shown in the ABSOLUTE MAXIMUM RATINGS section. In most cases, open collector outputs with pull-up resistors inher­ently limit this current. If this maximum current could be exceeded, either a larger pull up resistor should be used or resistors connected in series with the fan inputs.
The Fan Inputs gate an internal 22.5 kHz oscillator for one period of the Fan signal into an 8-bit counter (maximum count = 255). The default divisor, located in the VID/Fan Divisor Register, is set to 2 (choices are 1, 2, 4, and 8) providing a nominal count of 153 for a 4400 rpm fan with two pulses per revolution. Typical practice is to consider 70% of normal RPM a fan failure, at which point the count will be
219. Determine the fan count according to:
Note that Fan 1 and Fan 2 Divisors are programmable via the VID/Fan Divisor Register. Fan 3 is not adjustable, and its Divisor is always set to 2.
Fans that provide only one pulse per revolution would re­quire a divisor set twice as high as fans that provide two pulses, thus maintaining a nominal fan count of 153. There­fore, the divisor should be set to 4 for a fan that provides 1 pulse per revolution with a nominal RPM of 4400.
LM79
www.national.com17
Page 18
Functional Description (Continued)
Voltage Measurements (VS) R1orR
IN
R2 or R
F
Voltage at Analog Inputs
+2.50V 0 NONE +2.50V +3.30V 0 NONE +3.30V
+5V 6.8 kΩ 10 kΩ +2.98V
+12V 30 kΩ 10 kΩ +3.00V
−12V 240 kΩ 60 kΩ +3.00V
−5V 100 kΩ 60 kΩ +3.00V
DS100036-13
FIGURE 8. Input Examples. Resistor Values Shown Provide Approximately 3V at the Analog Inputs
LM79
www.national.com 18
Page 19
Functional Description (Continued)
Counts are based on 2 pulses per revolution tachometer outputs.
RPM Time per Revolution Counts for “Divide by 2” Comments
(Default) in Decimal
4400 13.64 ms 153 counts Typical RPM 3080 19.48 ms 219 counts 70% RPM 2640 22.73 ms 255 counts 60% RPM
(maximum counts)
Mode Select
Nominal
RPM
Time per Revolution
Counts for the 70%
RPM
Time per Revolution
Given Speed in Decimal for 70% RPM
Divide by 1 8800 6.82 ms 153 6160 9.74 ms Divide by 2 4400 13.64 ms 153 3080 19.48 ms Divide by 4 2200 27.27 ms 153 1540 38.96 ms Divide by 8 1100 54.54 ms 153 770 77.92 ms

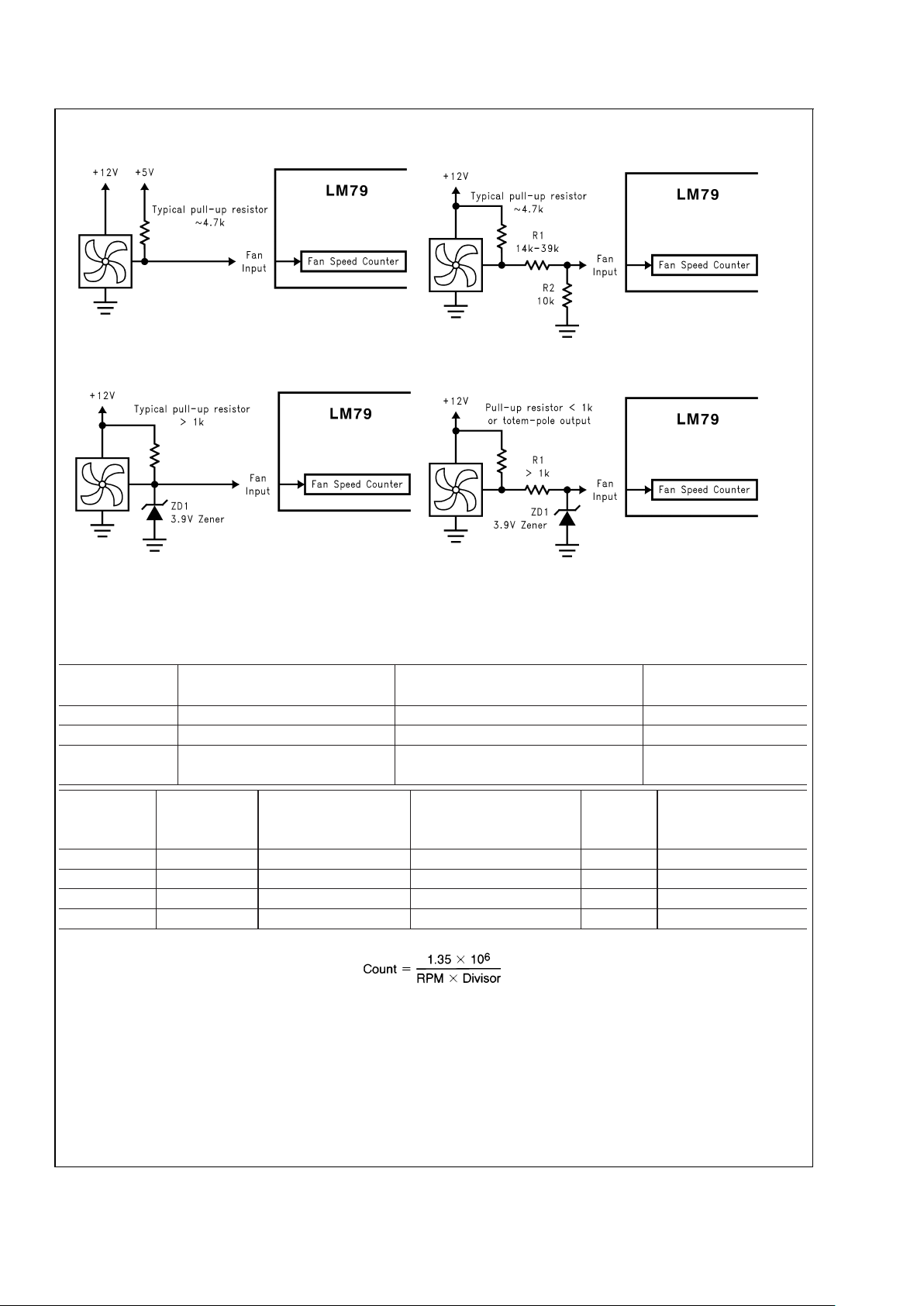

DS100036-14
(a) Fan with Tach Pull-Up to +5V
DS100036-15
(b) Fan with Tach Pull-Up to +12V, or Totem-Pole
Output and Resistor Attenuator
DS100036-16
(c) Fan with Tach Pull-Up to +12V and Diode Clamp
DS100036-17
(d) Fan with Strong Tach Pull-Up or Totem Pole Output
and Diode Clamp
FIGURE 9. Alternatives for Fan Inputs
LM79
www.national.com19
Page 20
Functional Description (Continued)
7.0 TEMPERATURE MEASUREMENT SYSTEM
The LM79 bandgap type temperature sensor and ADC per­form 8-bit two’s-complement conversions of the tempera­ture. A digital comparator is also incorporated that compares the readings to the user-programmable Overtemperature setpoint and Hysteresis values.
7.1 Temperature Data Format
Temperature data can be read from the Temperature, T
OI
Set
Point, and T
HYST
Set Point registers; and written to the T
OI
Set Point, and T
HYST
Set Point registers. Temperature data is represented by an 8-bit, two’s complement word with an LSB (Least Significant Bit) equal to 1.0˚C:
Temperature Digital Output
Binary Hex
+125˚C 0111 1101 7Dh
+25˚C 0001 1001 19h
+1.0˚C 0000 0001 01h
+0˚C 0000 0000 00h
−1.0˚C 1111 1111 FFh
−25˚C 1110 0111 E7h
−55˚C 1100 1001 C9h
7.2 Temperature Interrupts
The normal mode for temperature interrupts in the LM79 is an “Interrupt” mode operating in the following way: Exceed­ing T
OI
causes an interrupt that will remain active indefinitely until reset by reading Interrupt Status Register 1. Once an interrupt event has occurred by crossing T
OI
, then reset, an interrupt will only occur again by the temperature going below T
HYST
. Again, it will remain active indefinitely until
being reset by reading Interrupt Status Register 1. A “Comparator” mode for temperature interrupts can be
made available by setting the T
HYST
limit to 127˚C. This results in a simple “thermostat” type of function where an interrupt will be set whenever the temperature exceeds the T
OI
limit. Reading Interrupt Status Register 1 will clear the interrupt as usual, but the interrupt will set again after the completion of another measurement cycle. It will remain set until the temperature goes below the T
OI
limit (allow up to two measurement cycles for clearing after descending below T
OI
while in Comparator mode).
DS100036-18

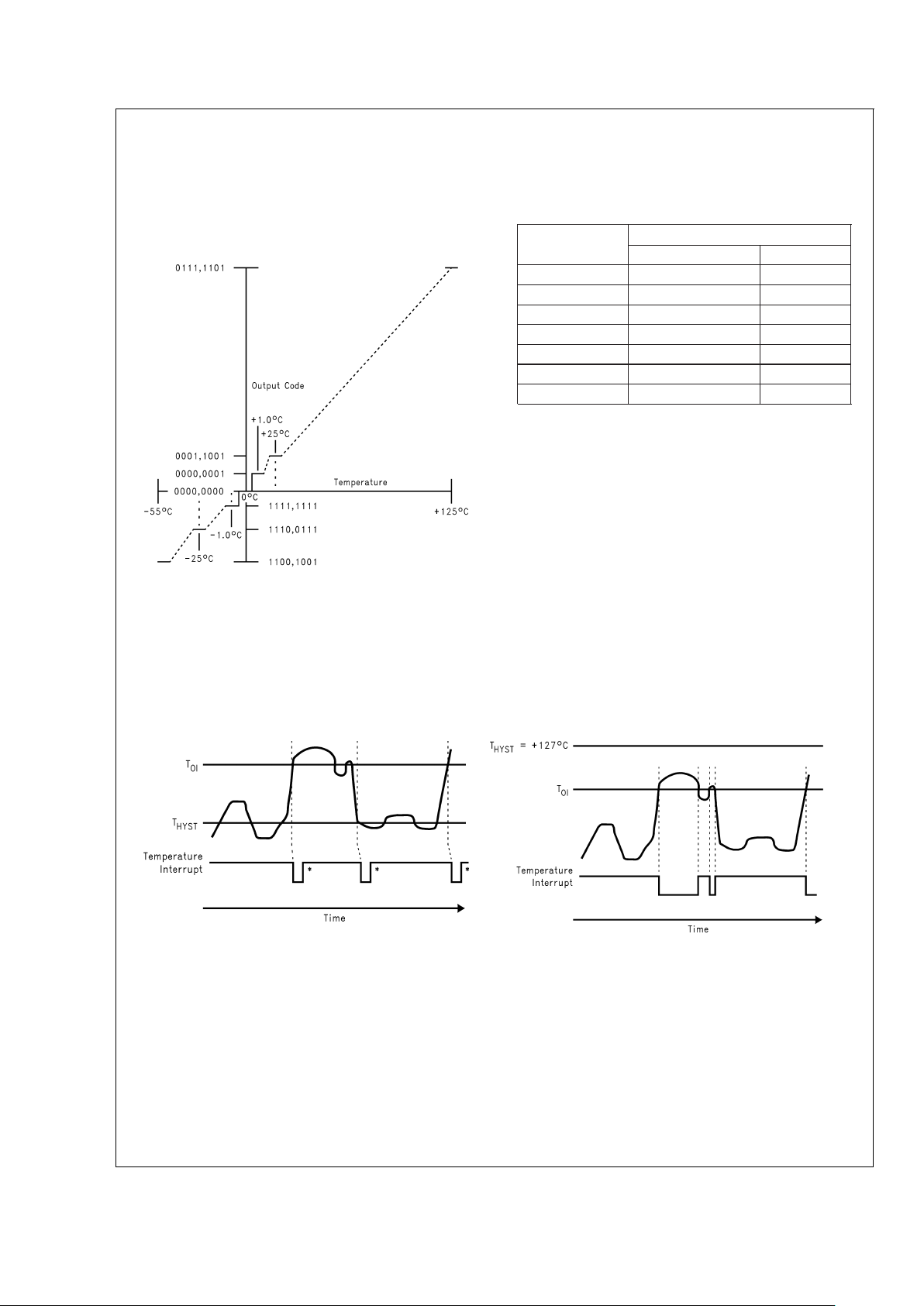

FIGURE 10. Temperature-to-Digital Transfer Function
(Non-Linear Scale for Clarity)
DS100036-19
*
Note: Interrupt resets occur only when interrupt Status Register 1 is read.
(a) Interrupt Mode
DS100036-20
Interrupt resets occur when Interrupt Status Register 1 is read but will set again when monitoring cycle continues (as long as temperature exceeds T
OI
). When temperature descends below TOIallow up to two monitoring
loops before the Temperature Interrupt resets.
(b) Comparator Mode
FIGURE 11. Temperature Interrupt Response Diagram
LM79
www.national.com 20
Page 21
Functional Description (Continued)
8.0 THE LM79 INTERRUPT STRUCTURE
Figure 12
depicts the Interrupt Structure of the LM79. The LM79 can generate Interrupts as a result of each of its internal WATCHDOG registers on the analog, temperature, and fan inputs. Overflow of the POST RAM (greater than 32 bytes written to POST RAM) will also cause an Interrupt.
External Interrupts can come from the following three sources. While the labels suggest a specific type or source of Interrupt, these labels are not restrictions of their usage, and they could come from any desired source:
•
BTI: This is an active low Interrupt intended to come from the O.S. output of LM75 temperature sensors. The LM75 O.S. output goes active when its temperature ex-
ceeds a programmed threshold. Up to 8 LM75’s can be connected to a single Serial Bus bus with their O.S. output’s wire or’d to the BTI input of the LM79. If the temperature of any LM75 exceeds its programmed limit, it drives BTI low. This generates an Interrupt to notify the host of a possible overtemperature condition. Provides an internal pull-up of 10 kΩ.
DS100036-21
FIGURE 12. Interrupt Structure
LM79
www.national.com21
Page 22
Functional Description (Continued)
•
Chassis Intrusion: This is an active high interrupt from any type of device that detects and captures chassis intrusion violations. This could be accomplished me­chanically, optically, or electrically, and circuitry external to the LM79 is expected to latch the event. The design of the LM79 allows this input to go high even with no power applied to the LM79, and no clamping or other interfer­ence with the line will occur. This line can also be pulled low for at least 20 ms by the LM79 to reset a typical Chassis Intrusion circuit. Accomplish this reset by setting Bit 7 of NMI Mask Register 2 high. The bit in the Register is self-clearing.
•
SMI__IN: This active low Interrupt merely provides a way to chain the SMI Interrupt from other devices through the LM79 to the processor.
All Interrupts are indicated in the two Interrupt Status Reg­isters. The NMI/IRQ and SMI outputs have individual mask registers, and individual masks for each Interrupt. As de­scribed in Section 3.3, these two hardware Interrupt lines can also be enabled/disabled in the Configuration Register. The Configuration Register is also used to set the mode of the NMI/IRQ Interrupt line.
8.1 Interrupt Clearing
Reading the Interrupt Status Register will output the con­tents of the Register, and reset the Register. A subsequent read done before the analog “round-robin” monitoring loop is complete will indicate a cleared Register. Allow at least 1.5 seconds to allow all Registers to be updated between reads. In summary, the Interrupt Status Register clears upon being read, and requires at least 1.5 seconds to be updated. When the Interrupt Status Register clears, the hardware interrupt line will also clear until the Registers are updated by the monitoring loop.
The hardware Interrupt lines are cleared with the INT__Clear bit, which is Bit 3 of the Configuration Register. When this bit is high, the LM79 monitoring loop will stop. It will resume when the bit is low.
9.0 RESET AND Power Switch Bypass OUTPUTS
In PC applications the open drain Power Switch Bypass provides a gate drive signal to an external P-channel MOS­FET power switch. This external MOSFET then would keep power turned on regardless of the state of front panel power switches when software power control is used. In any given application this signal is not limited to the function described by its label. For example, since the LM79 incorporates tem­perature sensing, the Power Switch Bypass output could also be utilized to control power to a cooling fan. Take Power Switch Bypass active low by setting Bit 6 in the Configuration Register high.
RESET is intended to provide a master reset to devices connected to this line. SMI Mask Register 2, Bit 7, must be set high to enable this function. Setting Bit 4 in the Configu­ration Register high outputs a least 20 ms low on this line, at the end of which Bit 4 in the Configuration Register automati­cally clears. Again, the label for this pin is only its suggested use. In applications where the RESET capability is not needed it can be used for any type of digital control that requires a 20 ms active low open drain output.
10.0 POST RAM
The POST RAM is located at address x0h and x4h, which typical address decoders will decode to 80h or 84h, where the BIOS will output Power On Self Test codes. Awrite to the POST RAM auto-increments the internal pointer of the LM79. Up to 32 bytes may be stored. An excess of 32 bytes will generate an Interrupt and stop incrementing.
The POST RAM is read as like any other register at Ports x5h and x6h, with the POST RAM located at the LM79 Internal Address from 00h to 1Fh. Reading the POST RAM via x6h will also auto-increment, but this is a separate pointer than the one used for ports 80h and 84h.
11.0 NAND TREE TESTS
A NAND tree is provided in the LM79 for Automated Test Equipment (ATE)board level connectivity testing. NAND tree tests are accomplished after power on reset when the Con­figuration Register is in reset state, with the Start Bit, Bit 0 of the Configuration Register low, and the INT__Clear (Bit 3) high. In this mode, forcing the SMI output low before the first write to the configuration register takes all pins except Power Switch Bypass, RESET, -IN5, -IN6, VCC, GNDA, and GNDD to a high impedance (either TRI-STATE or open drain) state. All high impedance pins can then be taken to 0 and V
CC
to
accomplish NAND tree tests. To perform a NAND tree test all pins included in the NAND
tree should be driven to 1. Each individual pin (excluding the aforementioned exceptions) can be toggled and the resulting toggle observed on the NTEST pin. Allow for a typical propa­gation delay of 200 ns.
LM79
www.national.com 22
Page 23
Functional Description (Continued)
12.0 FAN MANUFACTURERS
NMB Tech
9730 Independence Ave. Chatsworth, California 91311 818 341-3355 818 341-8207
Model Num-
ber
Frame Size Airflow
CFM
2408NL 2.36 in sq. X 0.79 in 9-16
(60 mm sq. X 20 mm)
2410ML 2.36 in sq. X 0.98 in 14-25
(60 mm sq. X 25 mm)
3108NL 3.15 in sq. X 0.79 in 25-42
(80 mm sq. X 20 mm)
3110KL 3.15 in sq. X 0.98 in 25-40
(80 mm sq. X 25 mm)
Mechatronics Inc.
P.O. Box 20 Mercer Island, WA 98040 800 453-4569 Various sizes available with tach output option.
Sanyo Denki America, Inc.
468 Amapola Ave. Torrance, CA 90501 310 783-5400
Model Number Frame Size Airflow
CFM
109P06XXY601 2.36 in sq. X 0.79 in 11-15
(60 mm sq. X 20 mm)
109R06XXY401 2.36 in sq. X 0.98 in 13-28
(60 mm sq. X 25 mm)
109P08XXY601 3.15 in sq. X 0.79 in 23-30
(80 mm sq. X 20 mm)
109R08XXY401 3.15 in sq. X 0.98 in 21-42
(80 mm sq. X 25 mm)
LM79
www.national.com23
Page 24
Functional Description (Continued)
REGISTERS AND RAM
13.1 Address Register (Port x5h)
The main register is the ADDRESS Register located at Port x5h. The bit designations are as follows:
Bit Name Read/
Write
Description
6-0 Address
Pointer
Read/Write Address of RAM and Registers. See the tables below for detail.
7 Busy Read
Only
A one indicates the device is busy because of a Serial Bus transaction or another ISA bus transaction. With checking this bit, multiple ISA drivers can use LM79 without interfering with each other or a Serial Bus driver.
It is the user’s responsibility not to have a Serial Bus and ISA bus operations at the same time.
This bit is:
Set: with a write to Port x5h or when a Serial Bus transaction is in progress. Reset: with a write or read from Port x6h if it is set by a write to Port x5h, or when the
Serial Bus transaction is finished.
Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
Busy Address Pointer (Power On default 00h)
(Power On default 0) A6 A5 A4 A3 A2 A1 A0
Address Pointer Index (A6–A0)
Registers and RAM
A6–A0 in
Hex
Power On Value of
Registers:
Notes
<
7:0>in Binary
Configuration Register 40h 0000 1000 Interrupt Status Register 1 41h 0000 0000 Auto-increment to the address of Interrupt
Status Register 2 after a read or write to
Port x6h. Interrupt Status Register 2 42h 0000 0000 SMI Mask Register 1
43h 0000 0000 Auto-increment to the address of SMI Mask
Register 2 after a read or write to Port x6h. SMI Mask Register 2
44h 0000 0000
NMI Mask Register 1 45h 0000 0000 Auto-increment to the address of NMI Mask
Register 2 after a read or write to Port x6h. NMI Mask Register 2 46h 0100 0000 VID/Fan Divisor Register 47h
<
7:4>= 0101;
<
3:0>= VID3–VID0 Serial Bus Address Register 48h 0010 1101 Chip Reset/VID4/Device ID
Register
49h
<
7:1>=1100 000;
<0>
= VID4
D7 identifies this device as the LM79. D0 reflects the state of VID4.
POST RAM 00–1Fh Auto-increment to the next location after a
read or write to Port x6h and stop at 1Fh. Value RAM 20–3Fh Value RAM 60–7Fh Auto-increment to the next location after a
read or write to Port x6h and stop at 7Fh.
LM79
www.national.com 24
Page 25
Functional Description (Continued)
13.2 Data Register (Port x6h)
Power on default
<
7:0>= 00h
Bit Name Read/
Write
Description
7–0 Data Read/Write Data to be read from or to be written to RAM and Register.
13.3 Configuration Register—Address 40h
Power on default
<
7:0>= 00001000 binary
Bit Name Read/
Write
Description
0 Start Read/Write A one enables startup of monitoring operations, a zero puts the part in standby mode.
Note: The outputs of Interrupt pins will not be cleared if the user writes a zero to this location after an interrupt has occurred unlike “INT__Clear” bit.
1 SMI Enable
Read/Write A one enables the SMI Interrupt output.
2 NMI/IRQ
Enable
Read/Write A one enables the NMI/IRQ Interrupt output.
3 INT__Clear Read/Write A one disables the SMI and NMI/IRQ outputs without affecting the contents of Interrupt
Status Registers. The device will stop monitoring. It will resume upon clearing of this bit.
4 RESET
Read/Write A one outputs at least a 20 ms active low reset signal at RESET if<7>= 1 in SMI
Mask Register 2. This bit is cleared once the pulse has gone inactive.
5 NMI/IRQ
Select
Read/Write A one selects NMI, and a zero selects IRQ.
6 Power Switch
Bypass
Read/Write A one in this bit drives a zero on open drain Power Switch Bypass pin.
7 INITIALIZATION Read/Write A one restores power on default value to all registers except the Serial Bus Address
register. This bit clears itself since the power on default is zero.
LM79
www.national.com25
Page 26
Functional Description (Continued)
13.4 Interrupt Status Register 1—Address 41h
Power on default
<
7:0>= 00h
Bit Name Read/Write Description
0 IN0 Read Only A one indicates a High or Low limit has been exceeded. 1 IN1 Read Only A one indicates a High or Low limit has been exceeded. 2 IN2 Read Only A one indicates a High or Low limit has been exceeded. 3 IN3 Read Only A one indicates a High or Low limit has been exceeded. 4 Temperature Read Only A one indicates a High or Low limit has been exceeded. 5 BTI
Read Only A one indicates an interrupt has occurred from the Board Temperature Interrupt (BTI)
input (O.S. output of multiple LM75 chips). 6 FAN1 Read Only A one indicates the fan count limit has been exceeded. 7 FAN2 Read Only A one indicates the fan count limit has been exceeded.
13.5 Interrupt Status Register 2—Address 42h
Power on default
<
7:0>= 00h
Bit Name Read/Write Description
0 IN4 Read Only A one indicates a High or Low limit has been exceeded. 1 -IN5 Read Only A one indicates a High or Low limit has been exceeded. 2 -IN6 Read Only A one indicates a High or Low limit has been exceeded. 3 FAN3 Read Only A one indicates the fan count limit has been exceeded. 4 Chassis Intrusion Read Only A one indicates Chassis Intrusion has gone high. 5 FIFO Overflow Read Only A one indicates an overflow in FIFO (POST RAM) i.e. 32nd location in FIFO has
been written via Port x0h or x4h.
6 SMI__IN
Read Only A one indicates SMI__IN has gone low.
7 Reserved Read Only
13.6 SMI Mask Register 1—Address 43h
Power on default<7:0>= 00h
Bit Name Read/
Write
Description
0 IN0 Read/Write A one disables the corresponding interrupt status bit for SMI interrupt. 1 IN1 Read/Write A one disables the corresponding interrupt status bit for SMI interrupt. 2 IN2 Read/Write A one disables the corresponding interrupt status bit for SMI interrupt. 3 IN3 Read/Write A one disables the corresponding interrupt status bit for SMI interrupt. 4 Temperature Read/Write A one disables the corresponding interrupt status bit for SMI interrupt. 5 BTI Read/Write A one disables the corresponding interrupt status bit for SMI interrupt. 6 FAN1 Read/Write A one disables the corresponding interrupt status bit for SMI interrupt. 7 FAN2 Read/Write A one disables the corresponding interrupt status bit for SMI interrupt.
LM79
www.national.com 26
Page 27
Functional Description (Continued)
13.7 SMI Mask Register 2—Address 44h
Power on default<7:0>= 00h
Bit Name Read/
Write
Description
0 IN4 Read/Write A one disables the corresponding interrupt status bit for SMI interrupt. 1 -IN5 Read/Write A one disables the corresponding interrupt status bit for SMI interrupt. 2 -IN6 Read/Write A one disables the corresponding interrupt status bit for SMI interrupt. 3 FAN3 Read/Write A one disables the corresponding interrupt status bit for SMI interrupt. 4 Chassis Intrusion Read/Write A one disables the corresponding interrupt status bit for SMI interrupt. 5 FIFO Overflow Read/Write A one disables the corresponding interrupt status bit for SMI interrupt. 6 SMI__IN Read/Write A one disables the corresponding interrupt status bit for SMI interrupt. 7 RESET Enable Read/Write<7>= 1 in SM Mask Register 2 enables the RESET in the Configuration Register.
13.8 NMI Mask Register 1—Address 45h
Power on default
<
7:0>= 00h
Bit Name Read/
Write
Description
0 IN0 Read/Write A one disables the corresponding interrupt status bit for NMI/IRQ interrupt. 1 IN1 Read/Write A one disables the corresponding interrupt status bit for NMI/IRQ interrupt. 2 IN2 Read/Write A one disables the corresponding interrupt status bit for NMI/IRQ interrupt. 3 IN3 Read/Write A one disables the corresponding interrupt status bit for NMI/IRQ interrupt. 4 Temperature Read/Write A one disables the corresponding interrupt status bit for NMI/IRQ interrupt. 5 BTI Read/Write A one disables the corresponding interrupt status bit for NMI/IRQ interrupt. 6 FAN1 Read/Write A one disables the corresponding interrupt status bit for NMI/IRQ interrupt. 7 FAN2 Read/Write A one disables the corresponding interrupt status bit for NMI/IRQ interrupt.
13.9 NMI Mask Register 2—Address 46h
Power on
<
7:0>= 01000000 binary
Bit Name Read/
Write
Description
0 IN4 Read/Write A one disables the corresponding interrupt status bit for NMI/IRQ interrupt. 1 -IN5 Read/Write A one disables the corresponding interrupt status bit for NMI/IRQ interrupt. 2 -IN6 Read/Write A one disables the corresponding interrupt status bit for NMI/IRQ interrupt. 3 FAN3 Read/Write A one disables the corresponding interrupt status bit for NMI/IRQ interrupt. 4 Chassis Intrusion Read/Write A one disables the corresponding interrupt status bit for NMI/IRQ interrupt. 5 FIFO Overflow Read/Write A one disables the corresponding interrupt status bit for NMI/IRQ interrupt. 6 SMI__IN Read/Write A one disables the corresponding interrupt status bit for NMI/IRQ interrupt.
Note: The Power on default is 1 for this bit.
7 Chassis Clear Read/Write A one outputs a minimum 20 ms active low pulse on the Chassis Intrusion pin. The
register bit self clears after the pulse has been output.
LM79
www.national.com27
Page 28
Functional Description (Continued)
13.10 VID/Fan Divisor Register — Address 47h
Power on –
<
7:4>is 0101, and<3:0>is mapped to VID<3:0
>
Bit Name Read/Write Description
3-0 VID
<
3:0
>
Read Only The VID<3:0>inputs
5-4 FAN1 RPM
Control
Read/Write FAN1 Speed Control.
<
5:4>= 00 - divide by 1;
<
5:4>= 01 - divide by 2;
<
5:4>= 10 - divide by 4;
<
5:4>= 11 - divide by 8.
7-6 FAN2 RPM
Control
Read/Write FAN2 Speed Control.
<
7:6>= 00 - divide by 1;
<
7:6>= 01 - divide by 2;
<
7:6>= 10 - divide by 4;
<
7:6>= 11 - divide by 8.
13.11 Serial Bus Address Register — Address 48h
Power on default Serial Bus address
<
6:0>= 0101101 and<7>= 0 binary
Bit Name Read/Write Description
6-0 Serial Bus
Address
Read/Write Serial Bus address
<
6:0
>
7 Reserved Read Only
13.12 Chip Reset/VID4/Device ID Register Address 49h
Power on default for the latest version of LM79
<
7:0>= 1100 000X.
Bit Name Read/Write Description
0 VID4 Read Only VID4 input
4-1 Reserved Read Only
5 Chip Reset Read/Write A one will reset all the registers of the LM79 to the power on default state. 6 Reserved Read Only 7 Device ID Read Only LM79 device identification. The LM78 has
<7>
=0.
13.13 POST RAM—Address 00h–1Fh
The address pointer for the POST RAM auto-increments when written to at Port x0h or x4h. Once the address pointer reaches 1Fh, a FIFO overflow interrupt will be generated and the FIFO will stop incrementing. Normal reads via Port x5h and x6h auto-increment a separate pointer, and will not cause a FIFO overflow interrupt.
13.14 Value RAM — Address 20h–3Fh or 60h–7Fh (auto-increment)
Address A6–A0
Address A6–A0 with
Auto-Increment
Description
20h 60h IN0 reading 21h 61h IN1 reading 22h 62h IN2 reading 23h 63h IN3 reading 24h 64h IN4 reading 25h 65h -IN5 reading 26h 66h -IN6 reading 27h 67h Temperature reading 28h 68h FAN1 reading
LM79
www.national.com 28
Page 29
Functional Description (Continued)
Address A6–A0
Address A6–A0 with
Auto-Increment
Description
Note: This location stores the number of counts of the internal clock per
revolution.
29h 69h FAN2 reading
Note: This location stores the number of counts of the internal clock per revolution.
2Ah 6Ah FAN3 reading
Note: This location stores the number of counts of the internal clock per revolution.
2Bh 6Bh IN0 High Limit 2Ch 6Ch IN0 Low Limit 2Dh 6Dh IN1 High Limit
2Eh 6Eh IN1 Low Limit
2Fh 6Fh IN2 High Limit
30h 70h IN2 Low Limit
31h 71h IN3 High Limit
32h 72h IN3 Low Limit
33h 73h IN4 High Limit
34h 74h IN4 Low Limit
35h 75h -IN5 High Limit
36h 76h -IN5 Low Limit
37h 77h -IN6 High Limit
38h 78h -IN6 Low Limit
39h 79h Over Temperature Limit (High)
3Ah 7Ah Temperature Hysteresis Limit (Low)
3Bh 7Bh FAN1 Fan Count Limit
Note: It is the number of counts of the internal clock for the Low Limit of the fan speed.
3Ch 7Ch FAN2 Fan Count Limit
Note: It is the number of counts of the internal clock for the Low Limit of the fan speed.
3Dh 7Dh FAN3 Fan Count Limit
Note: It is the number of counts of the internal clock for the Low Limit of the fan speed.
3E–3Fh 7E–7Fh Reserved
Note: Setting all ones to the high limits for voltages and fans (0111 1111 binary for temperature) means interrupts will never be generated except the case when
voltages go below the low limits. For voltage input high limits, the device is doing a greater than comparison. For low limits, however, it is doing a less than or equal to comparison.
LM79
www.national.com29
Page 30
Typical Application
DS100036-22
FIGURE 13. In this PC application the LM79 monitors temperature, fan speed for 3 fans, and 7 power
supply voltages. It also monitors the O.S. Output of up to 8 LM75 digital temperature sensors as well
as an optical chassis intrusion detector.
LM79
www.national.com 30
Page 31
Physical Dimensions inches (millimeters) unless otherwise noted
LIFE SUPPORT POLICY
NATIONAL’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT AND GENERAL COUNSEL OF NATIONAL SEMICONDUCTOR CORPORATION. As used herein:
1. Life support devices or systems are devices or systems which, (a) are intended for surgical implant into the body, or (b) support or sustain life, and whose failure to perform when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in a significant injury to the user.
2. A critical component is any component of a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to affect its safety or effectiveness.
National Semiconductor Corporation
Americas Tel: 1-800-272-9959 Fax: 1-800-737-7018 Email: support@nsc.com
National Semiconductor Europe
Fax: +49 (0) 180-530 85 86
Email: europe.support@nsc.com Deutsch Tel: +49 (0) 69 9508 6208 English Tel: +44 (0) 870 24 0 2171 Français Tel: +33 (0) 1 41 91 8790
National Semiconductor Asia Pacific Customer Response Group
Tel: 65-2544466 Fax: 65-2504466 Email: ap.support@nsc.com
National Semiconductor Japan Ltd.
Tel: 81-3-5639-7560 Fax: 81-3-5639-7507
www.national.com
44-Lead (10 mm x 10 mm) Molded Plastic Quad Flatpak
Order Number LM79CCVF
NS Package Number VGZ44A
LM79 Microprocessor System Hardware Monitor
National does not assume any responsibility for use of any circuitry described, no circuit patent licenses are implied and National reserves the right at any time without notice to change said circuitry and specifications.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
