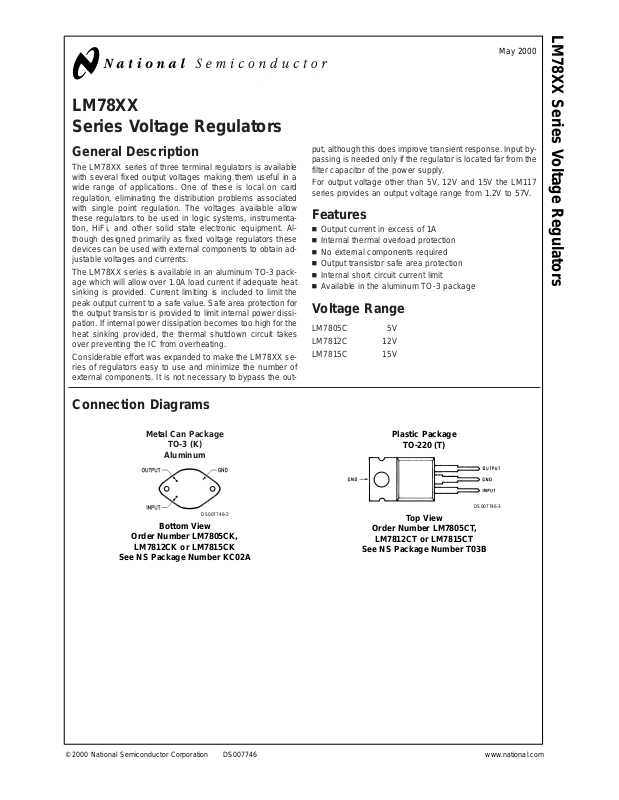

LM78XX Series Voltage Regulators
LM78XX Series Voltage Regulators
May 2000
General Description
The LM78XX series of three terminal regulators is available with several fixed output voltages making them useful in a wide range of applications. One of these is local on card regulation, eliminating the distribution problems associated with single point regulation. The voltages available allow these regulators to be used in logic systems, instrumenta­tion, HiFi, and other solid state electronic equipment. Al­though designed primarily as fixed voltage regulators these devices can be used with external components to obtain ad­justable voltages and currents.
The LM78XX series is available in an aluminum TO-3 pack­age which will allow over 1.0A load current if adequate heat sinking is provided. Current limiting is included to limit the peak output current to a safe value. Safe area protection for the output transistor is provided to limit internal power dissi­pation. If internal power dissipation becomes too high for the heat sinking provided, the thermal shutdown circuit takes over preventing the IC from overheating.
Considerable effort was expanded to make the LM78XX se­ries of regulators easy to use and minimize the number of external components. It is not necessary to bypass the out-
Connection Diagrams
Metal Can Package
TO-3 (K)
Aluminum
put, although this does improve transient response. Input by­passing is needed only if the regulator is located far from the filter capacitor of the power supply.
Features
n Output current in excess of 1A n Internal thermal overload protection n No external components required n Output transistor safe area protection n Internal short circuit current limit n Available in the aluminum TO-3 package
Voltage Range
LM7805C 5V LM7812C 12V LM7815C 15V
Plastic Package
TO-220 (T)
DS007746-2
Bottom View
Order Number LM7805CK,
LM7812CK or LM7815CK
See NS Package Number KC02A
© 2000 National Semiconductor Corporation DS007746 www.national.com
Order Number LM7805CT,
LM7812CT or LM7815CT
See NS Package Number T03B
Top View
DS007746-3
Page 2
Schematic
LM78XX
www.national.com 2
DS007746-1
Page 3
LM78XX
Absolute Maximum Ratings (Note 3)
If Military/Aerospace specified devices are required, please contact the National Semiconductor Sales Office/ Distributors for availability and specifications.
Input Voltage
(V
= 5V, 12V and 15V) 35V
O
Internal Power Dissipation (Note 1) Internally Limited Operating Temperature Range (T
) 0˚C to +70˚C
A
Maximum Junction Temperature
(K Package) 150˚C (T Package) 150˚C
Storage Temperature Range −65˚C to +150˚C
Lead Temperature (Soldering, 10 sec.)
TO-3 Package K 300˚C TO-220 Package T 230˚C
Electrical Characteristics LM78XXC (Note 2)
0˚C TJ≤ 125˚C unless otherwise noted.
Output Voltage 5V 12V 15V
Input Voltage (unless otherwise noted) 10V 19V 23V Units
Symbol Parameter Conditions Min Typ Max Min Typ Max Min Typ Max
V
V
V
I
Q
I
V
O
Q
N
Output Voltage Tj = 25˚C, 5 mA IO≤ 1A 4.8 5 5.2 11.5 12 12.5 14.4 15 15.6 V
P
15W, 5 mA IO≤ 1A 4.75 5.25 11.4 12.6 14.25 15.75 V
D
V
VIN≤ V
MIN
Line Regulation IO= 500mATj = 25˚C 3 50 4 120 4 150 mV
O
V
MAX
IN
(7.5 VIN≤ 20) (14.5 ≤ VIN≤
27)
(17.5 VIN≤
30)
(7 VIN≤ 25) 14.5 ≤ VIN≤ 30) (17.5 ≤ VIN≤
30) 0˚C Tj +125˚C 50 120 150 mV V
IN
(8 VIN≤ 20) (15 ≤ VIN≤ 27) (18.5 ≤ VIN≤
30)
I
1A Tj = 25˚C 50 120 150 mV
O
V
IN
(7.5 VIN≤ 20) (14.6 ≤ VIN≤
27)
(17.7 VIN≤
30) 0˚C Tj +125˚C 25 60 75 mV V
IN
Load Regulation Tj = 25˚C 5 mA IO≤ 1.5A 10 50 12 120 12 150 mV
O
250 mA I
O
(8 VIN≤ 12) (16 ≤ VIN≤ 22) (20 ≤ VIN≤ 26) V
25 60 75 mV
750 mA
5mAI
1A, 0˚C Tj
O
50 120 150 mV
+125˚C
Quiescent Current IO≤ 1A Tj = 25˚C 8 8 8 mA
0˚C Tj +125˚C 8.5 8.5 8.5 mA
Quiescent Current 5 mA IO≤ 1A 0.5 0.5 0.5 mA Change Tj = 25˚C, I
V
VIN≤ V
MIN
1A 1.0 1.0 1.0 mA
O
MAX
(7.5 VIN≤ 20) (14.8 ≤ VIN≤ 27) (17.9 ≤ VIN≤
30)
I
500 mA, 0˚C Tj +125˚C 1.0 1.0 1.0 mA
O
V
MIN
VIN≤ V
MAX
(7 VIN≤ 25) (14.5 ≤ VIN≤ 30) (17.5 ≤ VIN≤
30)
Output Noise
TA=25˚C, 10 Hz f 100 kHz 40 75 90 µV
Voltage
Ripple Rejection IO≤ 1A, Tj = 25˚Cor62 80 55 72 54 70 dB
V
V
V
V
V
V
f = 120 Hz I
500 mA 62 55 54 dB
O
0˚C Tj +125˚C
V
MIN
VIN≤ V
MAX
(8 VIN≤ 18) (15 ≤ VIN≤ 25) (18.5 ≤ VIN≤
V
28.5)
R
O
Dropout Voltage Tj = 25˚C, I
= 1A 2.0 2.0 2.0 V
OUT
Output Resistance f = 1 kHz 8 18 19 m
www.national.com3
Page 4
Electrical Characteristics LM78XXC (Note 2) (Continued)
0˚C TJ≤ 125˚C unless otherwise noted.
LM78XX
Output Voltage 5V 12V 15V
Input Voltage (unless otherwise noted) 10V 19V 23V Units
Symbol Parameter Conditions Min Typ Max Min Typ Max Min Typ Max
Short-Circuit Current
Peak Output Current
Average TC of V
OUT
V
IN
Input Voltage Required to
Maintain Line Regulation
Note 1: Thermal resistance ofthe TO-3 package (K, KC) is typically 4˚C/W junction to case and 35˚C/W case to ambient. Thermal resistance of the TO-220 package (T) is typically 4˚C/W junction to case and 50˚C/W case to ambient.
Note 2: All characteristics are measured with capacitor across the input of 0.22 µF,and a capacitor across the output of 0.1µF.Allcharacteristics except noise voltage and ripple rejection ratio are measured using pulse techniques (t be taken into account separately.
Note 3: Absolute Maximum Ratings indicate limits beyond which damage to the device may occur. For guaranteed specifications and the test conditions, see Elec­trical Characteristics.
Tj = 25˚C 2.1 1.5 1.2 A
Tj = 25˚C 2.4 2.4 2.4 A
0˚C Tj +125˚C, IO= 5 mA 0.6 1.5 1.8 mV/˚C
Tj = 25˚C, I
1A 7.5 14.6 17.7 V
O
10 ms, duty cycle 5%). Output voltage changes due to changes in internal temperature must
w
www.national.com 4
Page 5
Typical Performance Characteristics
LM78XX

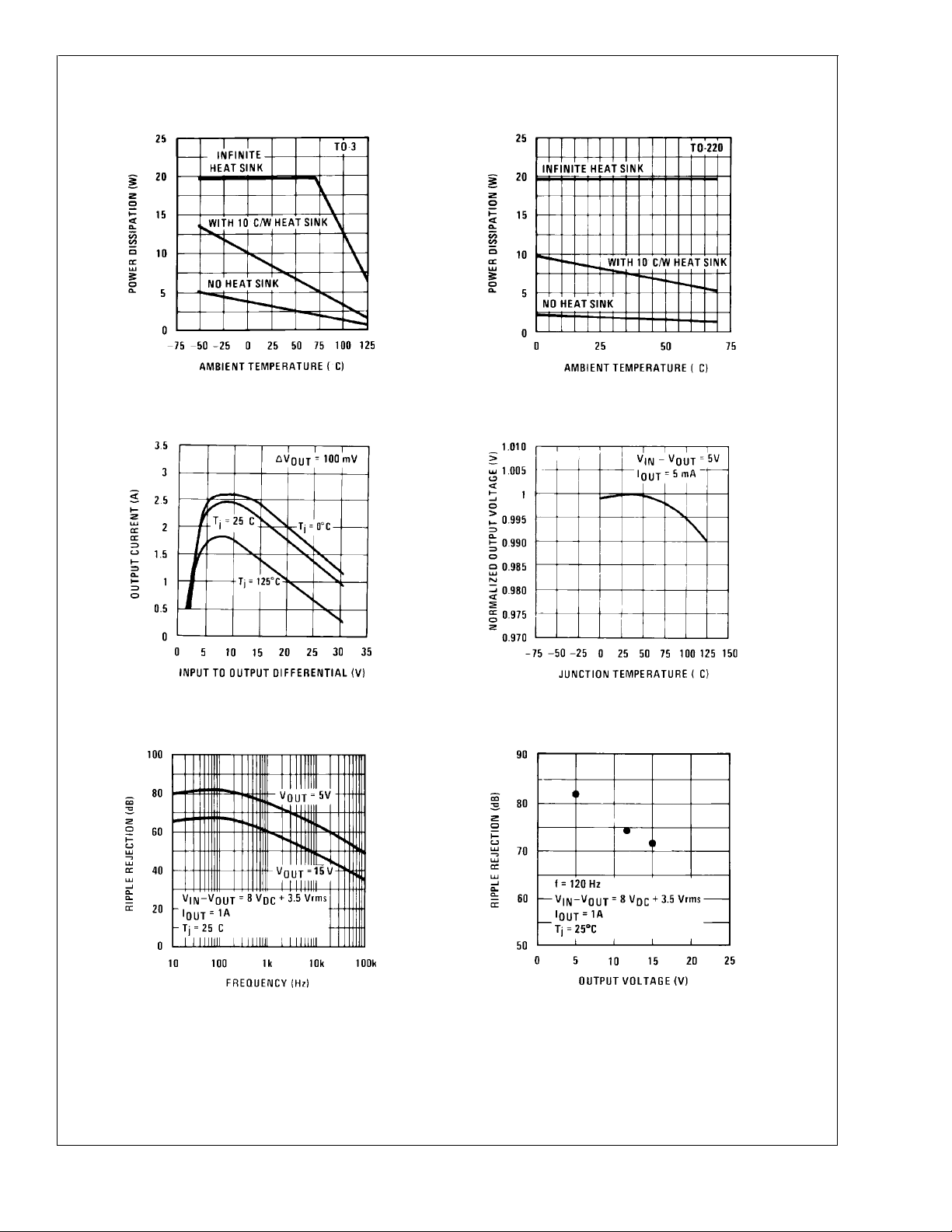

Maximum Average Power Dissipation
Peak Output Current
DS007746-5
Maximum Average Power Dissipation
DS007746-6
Output Voltage (Normalized to 1V at TJ= 25˚C)
Ripple Rejection
DS007746-7
DS007746-9
DS007746-8
Ripple Rejection
DS007746-10
www.national.com5
Page 6
Typical Performance Characteristics (Continued)
LM78XX

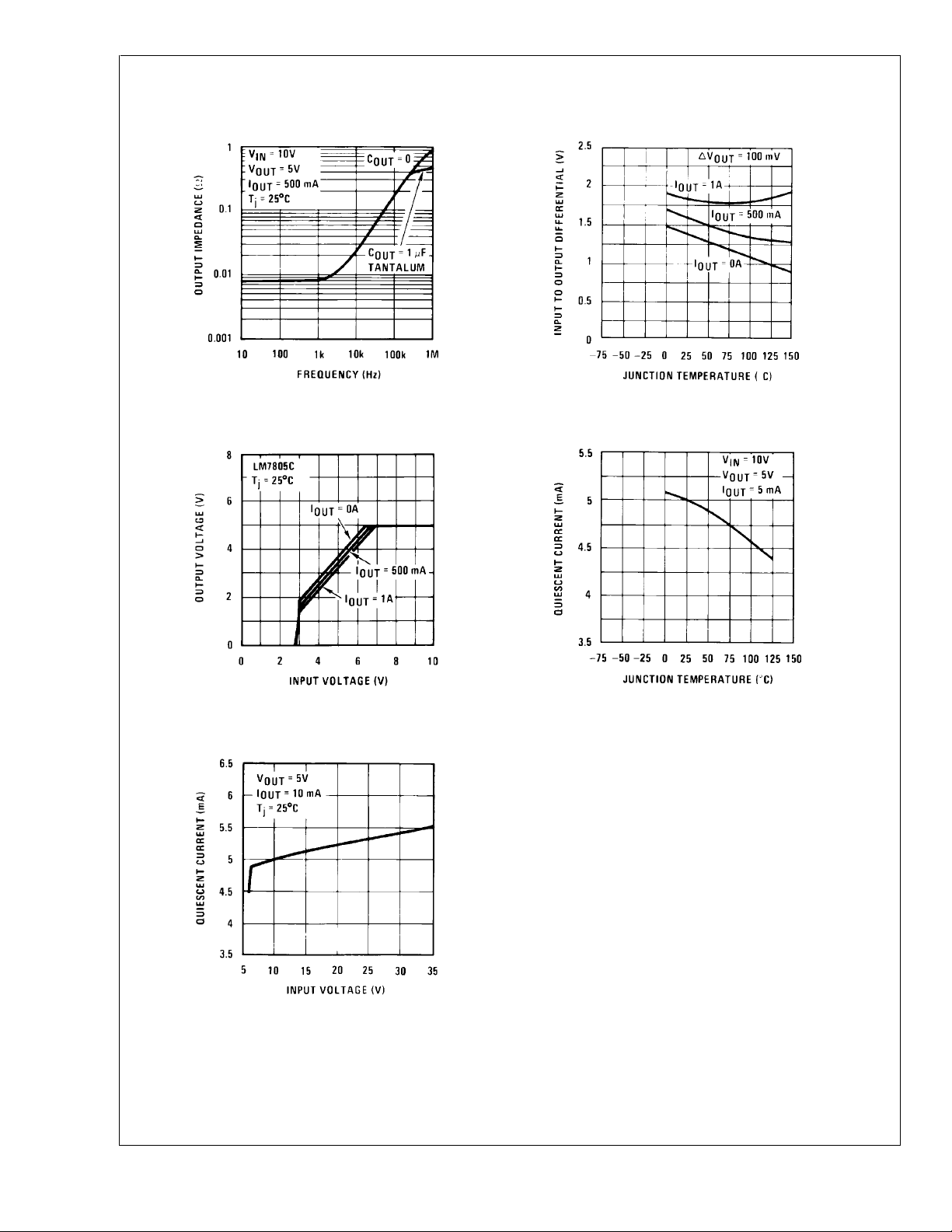

Output Impedance
Dropout Voltage
Dropout Characteristics
Quiescent Current
DS007746-11
DS007746-13
DS007746-12
Quiescent Current
DS007746-14
DS007746-15
www.national.com 6
Page 7
Physical Dimensions inches (millimeters) unless otherwise noted
LM78XX

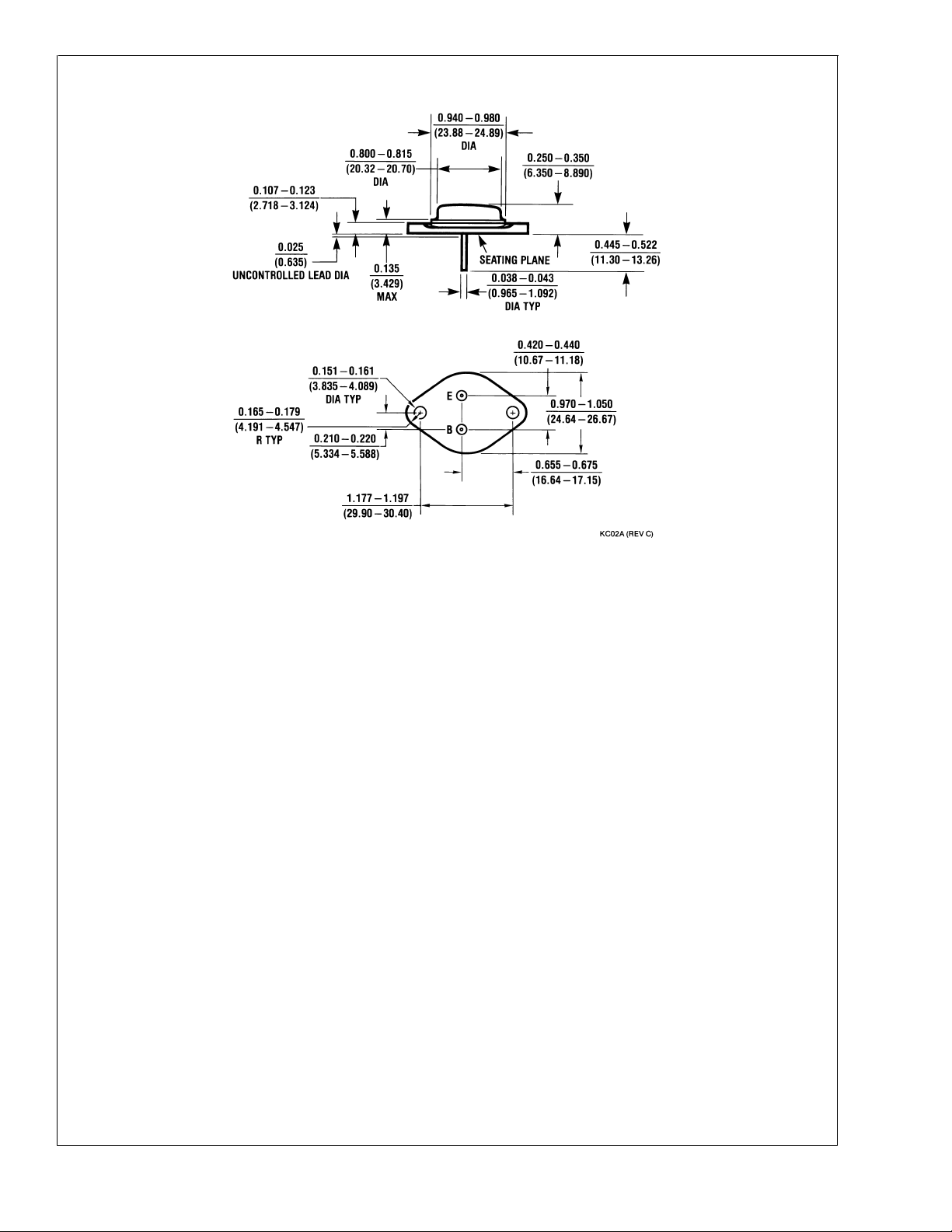

Aluminum Metal Can Package (KC)
Order Number LM7805CK, LM7812CK or LM7815CK
NS Package Number KC02A
www.national.com7
Page 8
Physical Dimensions inches (millimeters) unless otherwise noted (Continued)
LM78XX Series Voltage Regulators

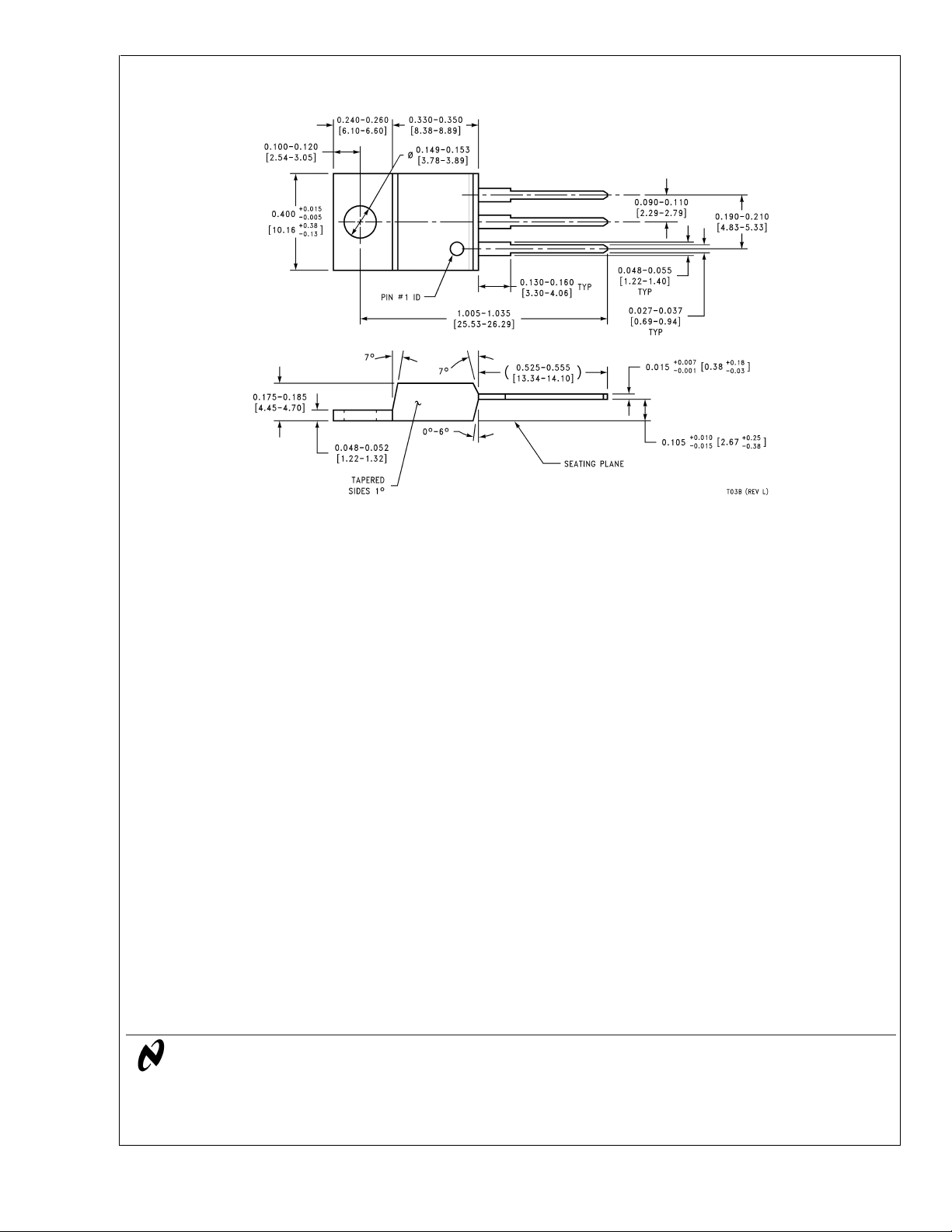

TO-220 Package (T)
Order Number LM7805CT, LM7812CT or LM7815CT
NS Package Number T03B
LIFE SUPPORT POLICY
NATIONAL’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT AND GENERAL COUNSEL OF NATIONAL SEMICONDUCTOR CORPORATION. As used herein:
1. Life support devices or systems are devices or systems which, (a) are intended for surgical implant into the body, or (b) support or sustain life, and whose failure to perform when properly used in accordance with instructions for use provided in the
2. A critical component is any component of a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to affect its safety or effectiveness.
labeling, can be reasonably expected to result in a significant injury to the user.
National Semiconductor Corporation
Americas Tel: 1-800-272-9959 Fax: 1-800-737-7018 Email: support@nsc.com
www.national.com
National does not assume any responsibility for use of any circuitry described, no circuit patent licenses are implied and National reserves the right at any time without notice to change said circuitry and specifications.
National Semiconductor Europe
Fax: +49 (0) 180-530 85 86
Email: europe.support@nsc.com Deutsch Tel: +49 (0) 69 9508 6208 English Tel: +44 (0) 870 24 0 2171 Français Tel: +33 (0) 1 41 91 8790
National Semiconductor Asia Pacific Customer Response Group
Tel: 65-2544466 Fax: 65-2504466 Email: ap.support@nsc.com
National Semiconductor Japan Ltd.
Tel: 81-3-5639-7560 Fax: 81-3-5639-7507
