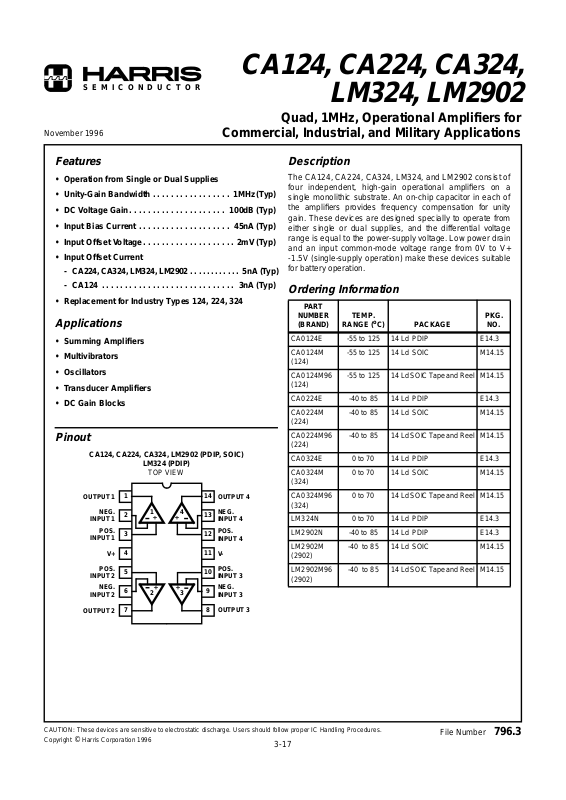

SEMICONDUCTOR
3-17
Features
• Operation from Single or Dual Supplies
• Unity-Gain Bandwidth . . . . . . . . . . . . . . . . . 1MHz (Typ)
• DC Voltage Gain . . . . . . . . . . . . . . . . . . . . . 100dB (Typ)
• Input Bias Current . . . . . . . . . . . . . . . . . . . . 45nA (Typ)
• Input Offset Voltage . . . . . . . . . . . . . . . . . . . . 2mV (Typ)
• Input Offset Current
- CA224, CA324, LM324, LM2902 . . . . . . . . . . . . 5nA (Typ)
- CA124 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3nA (Typ)
• Replacement for Industry Types 124, 224, 324
Applications
• Summing Amplifiers
• Multivibrators
• Oscillators
• Transducer Amplifiers
• DC Gain Blocks
Pinout
CA124, CA224, CA324, LM2902 (PDIP, SOIC)
LM324 (PDIP)
TOP VIEW
Description
The CA124, CA224, CA324, LM324, and LM2902 consist of
four independent, high-gain operational amplifiers on a
single monolithic substrate. An on-chip capacitor in each of
the amplifiers provides frequency compensation for unity
gain. These devices are designed specially to operate from
either single or dual supplies, and the differential voltage
range is equal to the power-supply voltage. Low power drain
and an input common-mode voltage range from 0V to V+
-1.5V (single-supply operation) make these devices suitable
for battery operation.
1
2
3
4
5
6
7
14
13
12
11
10
9
8
+
1
+
4
+2+
3
OUTPUT 1
OUTPUT 2
OUTPUT 4
V-
OUTPUT 3
V+
POS.
INPUT 2
POS.
INPUT 1
NEG.
INPUT 1
NEG.
INPUT 3
POS.
INPUT 3
POS.
INPUT 4
NEG.
INPUT 4
NEG.
INPUT 2
Ordering Information
PART
NUMBER
(BRAND)
TEMP.
RANGE (oC) PACKAGE
PKG.
NO.
CA0124E -55 to 125 14 Ld PDIP E14.3
CA0124M
(124)
-55 to 125 14 Ld SOIC M14.15
CA0124M96
(124)
-55 to 125 14 Ld SOIC Tape and Reel M14.15
CA0224E -40 to 85 14 Ld PDIP E14.3
CA0224M
(224)
-40 to 85 14 Ld SOIC M14.15
CA0224M96
(224)
-40 to 85 14 Ld SOIC Tape and Reel M14.15
CA0324E 0 to 70 14 Ld PDIP E14.3
CA0324M
(324)
0 to 70 14 Ld SOIC M14.15
CA0324M96
(324)
0 to 70 14 Ld SOIC Tape and Reel M14.15
LM324N 0 to 70 14 Ld PDIP E14.3
LM2902N -40 to 85 14 Ld PDIP E14.3
LM2902M
(2902)
-40 to 85 14 Ld SOIC M14.15
LM2902M96
(2902)
-40 to 85 14 Ld SOIC Tape and Reel M14.15
November 1996
CAUTION: These devices are sensitive to electrostatic discharge. Users should follow proper IC Handling Procedures.
Copyright
© Harris Corporation 1996
File Number 796.3
CA124, CA224, CA324,
LM324, LM2902
Quad, 1MHz, Operational Amplifiers for
Commercial, Industrial, and Military Applications
Page 2
3-18
CA124, CA224, CA324, LM324, LM2902
Absolute Maximum Ratings Thermal Information
Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32V or ±16V
Differential Input Voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32V
Input Voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to 32V
Input Current (VI < -0.3V, Note 1). . . . . . . . . . . . . . . . . . . . . . .50mA
Output Short Circuit Duration (V+ ≤ 15V, Note 2). . . . . . Continuous
Operating Conditions
Temperature Range
CA124. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -55oC to 125oC
CA224, LM2902 . . . . . . . . . . . . . . . . . . . . . . . . . . . -40oC to 85oC
CA324, LM324 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0oC to 70oC
Thermal Resistance (Typical, Note 3) θJA(oC/W)
PDIP Package. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
SOIC Package. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Maximum Junction Temperature (Die) . . . . . . . . . . . . . . . . . . 175oC
Maximum Junction Temperature (Plastic Package) . . . . . . . . 150oC
Maximum Storage Temperature Range . . . . . . . . . -65oC to 150oC
Maximum Lead Temperature (Soldering 10s). . . . . . . . . . . . . 300oC
(SOIC - Lead Tips Only)
CAUTION: Stresses above those listed in “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress only rating and operation
of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied
NOTES:
1. This input current will only exist when the voltage at any of the input leads is driven negative . This current is due to the collector base junction of
the input p-n-p transistors becoming forward biased and thereby acting as input diode clamps . In addition to this diode action, there is also lateral
n-p-n parasitic transistor action on the IC chip. This transistor action can cause the output v oltages of the amplifiers to go to the V+ voltage le v el
(or to ground for a large overdriv e) for the time duration that an input is driven negativ e. This transistor action is not destructive and normal output
states will re-establish when the input voltage, which was negative, again returns to a value greater than -0.3V.
2. The maximum output current is approximately 40mA independent of the magnitude of V+. Continuous short circuits at V+ > 15V can cause
excessive power dissipation and eventual destruction. Short circuits from the output to V+ can cause overheating and eventual destruction of the device.
3. θJA is measured with the component mounted on an evaluation PC board in free air.
Electrical Specifications Values Apply for Each Operational Amplifier. Supply Voltage V+ = 5V, V- = 0V,
Unless Otherwise Specified
PARAMETER
TEST
CONDITIONS
TEMP.
(
o
C)
CA124 CA224, CA324, LM324 LM2902
UNITSMIN TYP MAX MIN TYP MAX MIN TYP MAX
Input Offset
Voltage (Note 6)
25-25-27---mV
Full - - 7 - - 9 - - 10 mV
Average Input
Offset Voltage
Drift
RS = 0Ω Full - 7 - - 7 - - 7 - µV/oC
Differential Input
Voltage (Note 5)
Full - - V+ - - V+ - - V+ V
Input Common
Mode Voltage
Range (Note 5)
V+ = 30V 25 0 - V+ -1.5 0 - V+ -1.5 - - - V
V+ = 30V Full 0 - V+ -2 0 - V+ -2 - - - V
V+ = 26V Full - - - - - - 0 - V+ -2 V
Common Mode
Rejection Ratio
DC 25 70 85 - 65 70 - - - - dB
Power Supply
Rejection Ratio
DC 25 65 100 - 65 100 - - - - dB
Input Bias
Current (Note 4)
II+ or II- 25 - 45 150 - 45 250 - - - nA
II+ or II- Full - - 300 - - 500 - 40 500 nA
Input Offset
Current
II+ - II- 25- 330- 550- - -nA
I
I
+ - II- Full - - 100 - - 150 - 45 200 nA
Average Input
Offset Current
Drift
Full - 10 - - 10 - - 10 - pA/oC
CA124, CA224, CA324, LM324, LM2902
Page 3
3-19
CA124, CA224, CA324, LM324, LM2902
Large Signal
Voltage Gain
RL≥ 2kΩ, V+ = 15V
(For Large VO Swing)
25 94 100 - 88 100 - - - - dB
RL≥ 2kΩ, V+ = 15V
(For Large VO Swing)
Full 88 - - 83 - - 83 - - dB
Output
Voltage
Swing
RL = 2kΩ 25 0 - V+ -1.5 0 - V+ -1.5 - - - V
High
Level
RL =2kΩ, V+ = 30V Full 26 - - 26 -----V
R
L
=2kΩ, V+ = 26V Full - - - - - - 22 - - V
RL = 10kΩ, V+ = 30V Full 27 28 - 27 28 - 23 28 - V
Low
Level
RL = 10kΩ Full - 5 20 - 5 20 - 5 100 mV
Output
Current
Source VI+ = +1V, VI- = 0V,
V+ = 15V
25 20 40 - 20 40 - - - - mA
VI+ = 1V, VI- = 0,
V+ = 15V
Full 10 20 - 10 20 - 10 20 - mA
Sink VI+ = 0V, VI- = 1V,
V+ = 15V
25 10 20 - 10 20 - - - - mA
VI+ = 0V, VI- = 1V,
VO = 200mV
25 12 50 - 12 50 - - - - µA
VI- = 1V, VI+ = 0,
V+ = 15V
Full 5 8 - 5 8 - 5 8 - mA
Crosstalk f = 1 to 20kHz
(Input Referred)
25 - -120 - - -120 - - - - dB
Total Supply
Current
RL = ∞ Full - 0.8 2 - 0.8 2 - 0.7 1.2 mA
RL = ∞, V+ = 26V Full - - - ----1.53mA
NOTES:
4. Due to the PNP input stage the direction of the input current is out of the IC. No loading change exists on the input lines because the
current is essentially constant, independent of the state of the output.
5. The input signal voltage and the input common mode voltage should not be allowed to go negative by more than 0.3V. The positive limit
of the common mode voltage range is V+ - 1.5V, but either or both inputs can go to +32V without damage.
6. VO = 1.4V, RS = 0Ω with V+ from 5V to 30V, and over the full input common mode voltage range (0V to V+ - 1.5V).
Electrical Specifications Values Apply for Each Operational Amplifier. Supply Voltage V+ = 5V, V- = 0V,
Unless Otherwise Specified (Continued)
PARAMETER
TEST
CONDITIONS
TEMP.
(
o
C)
CA124 CA224, CA324, LM324 LM2902
UNITSMIN TYP MAX MIN TYP MAX MIN TYP MAX
Page 4
3-20
CA124, CA224, CA324, LM324, LM2902

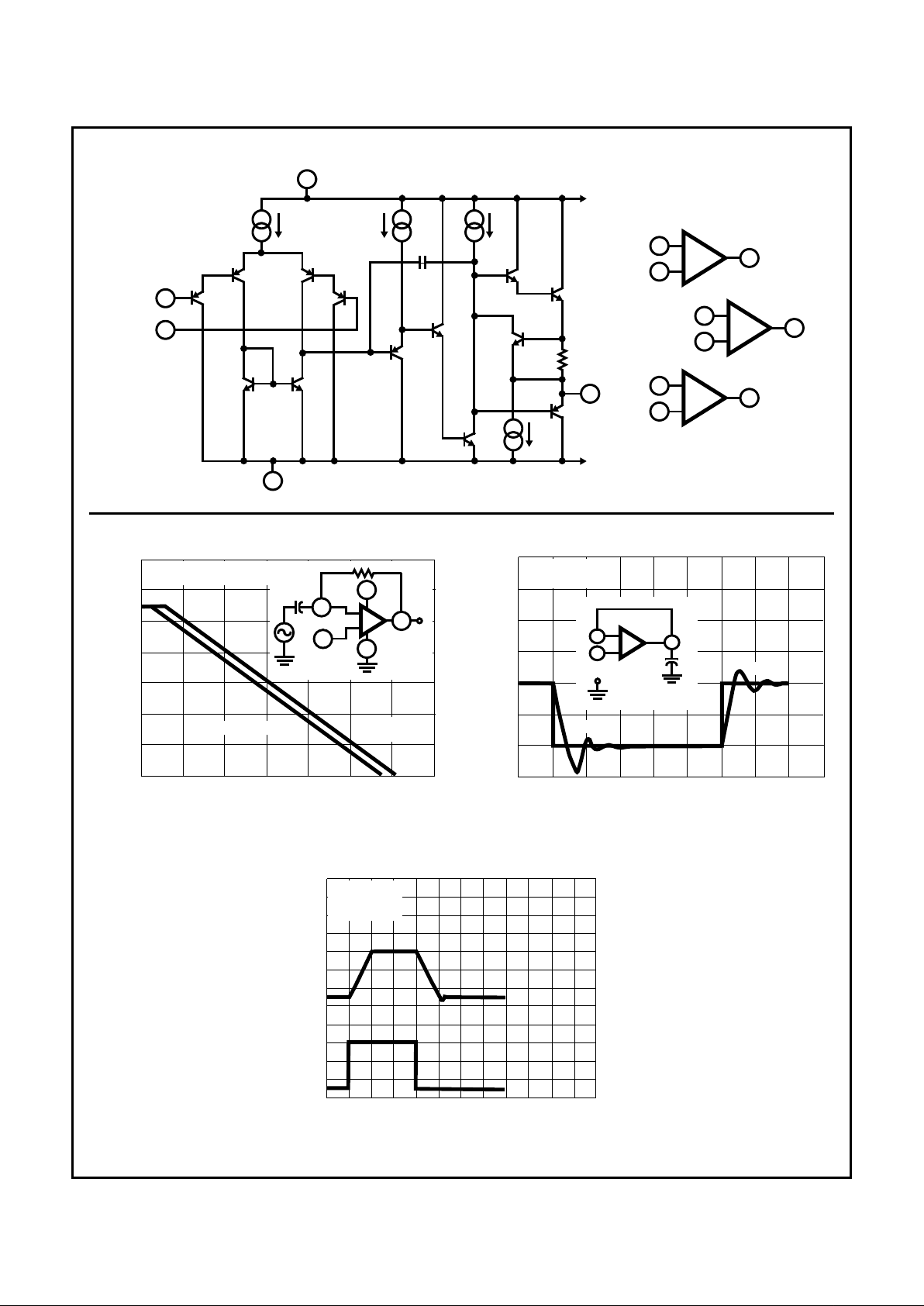

Schematic Diagram
(One of Four Operational Amplifiers)
11
3
2
4
1
6
5
+
-
2
7
9
10
+
-
3
8
13
12
+
-
4
4
TO 2, 3, 4
TO 2, 3, 4
V
O
R
SC
Q
6
Q
5
Q
7
Q
12
50µA
100
µA
Q
11
Q
10
C
COMP
4µA
6µA
Q
9
Q
4
Q
3
Q
2
V+
Q
8
Q
1
INPUTS
-
+
Q
13
V-
Typical Performance Curves
FIGURE 1. OPEN LOOP FREQUENCY RESPONSE FIGURE 2. VOLTAGE FOLLOWER PULSE RESPONSE (SMALL
SIGNAL)
FIGURE 3. VOLTAGE FOLLOWER PULSE RESPONSE (LARGE SIGNAL)
140
120
100
80
60
40
20
0
1 10 100 1K 10K 100K 1M 10M
FREQUENCY (Hz)
OPEN-LOOP VOLTAGE GAIN (dB)
TA = -40 ≤ TA≤ 85oC
V+ = 10 TO 15V
V+ = 26V
V+
V
O
V+/2
V
I
0.1µF
11
4
+
-
3
2
1
OUTPUT
INPUT
TA = 25oC
V+ = 30V
500
450
400
350
300
250
0123456789
TIME (µs)
OUTPUT VOLTAGE (mV)
V
O
V
I
50pF
1
2
3
-
+
TA = 25oC
V+ = 15V
RL = 2kΩ
4
3
2
1
010203040
4
3
2
1
0
OUTPUT VOLTAGE (V)
INPUT VOLTAGE (V)
TIME (µs)
CA124, CA224, CA324, LM324, LM2902
Page 5
3-21

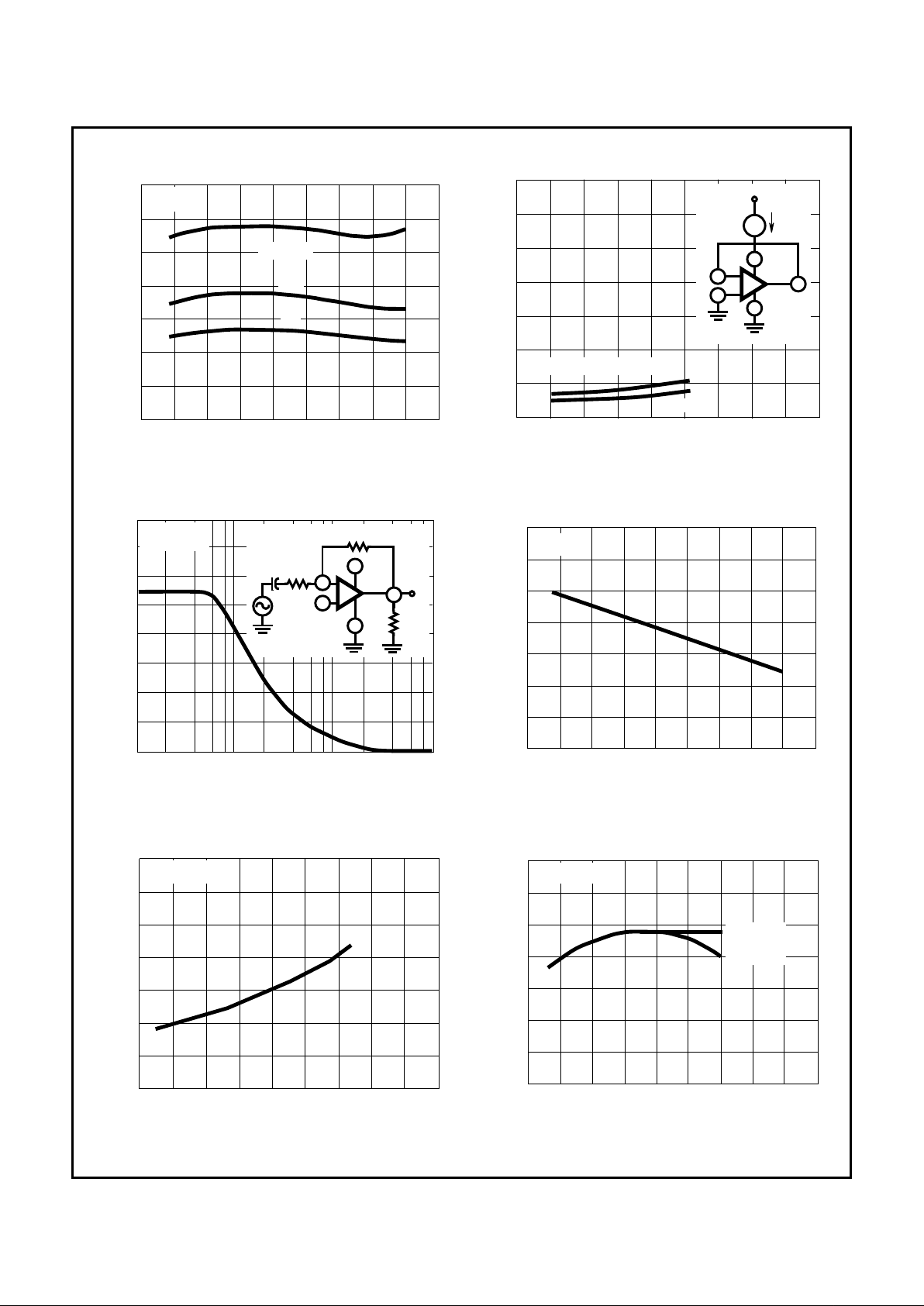

FIGURE 4. INPUT CURRENT vs AMBIENT TEMPERATURE FIGURE 5. SUPPLY CURRENT vs SUPPLY VOLTAGE
FIGURE 6. LARGE SIGNAL FREQUENCY RESPONSE FIGURE 7. OUTPUT CURRENT vs AMBIENT TEMPERATURE
FIGURE 8. INPUT CURRENT vs SUPPLY VOLTAGE FIGURE 9. VOLTAGE GAIN vs SUPPLY VOLTAGE
Typical Performance Curves
(Continued)
TEMPERATURE (oC)
INPUT CURRENT (nA)
-75 -50 -25 0 25 50 75 100 125
0
10
20
30
40
50
60
V
ICR
= 0V
V+ = 30V
15V
5V
4
3
2
1
0 5 10 15 20 25 30
POSITIVE SUPPLY VOLTAGE (V)
SUPPLY CURRENT (mA)
TA = 0oC TO 125oC
-55oC
0
I
D
V+
3
2
mA
1
-
+
11
4
20
15
10
5
0
1K 10K 100K 1M
FREQUENCY (Hz)
OUTPUT VOLTAGE SWING (V)
TA = 25oC
1kΩ
100kΩ
+15V
2kΩ
+7V
+
-
V
I
2
3
4
V
O
1
11
TEMPERATURE (oC)
OUTPUT SOURCE CURRENT (mA)
-75 -50 -25 0 25 50 75 100 125
0
10
20
30
40
50
60
70
V+ = 15V
TA = 25oC
75
50
25
0 10203040
POSITIVE SUPPLY VOLTAGE (V)
INPUT CURRENT (nA)
POSITIVE SUPPLY VOLTAGE (V)
OPEN LOOP VOLTAGE GAIN (dB)
0 10203040
0
25
50
75
100
125
150
TA = 25oC
RL = 20kΩ
RL = 2kΩ
CA124, CA224, CA324, LM324, LM2902
