LM2403
Monolithic Triple 4.5 nS CRT Driver
LM2403 Monolithic Triple 4.5 nS CRT Driver
August 1999
General Description
The LM2403 is an integrated high voltage CRT driver circuit
designed for use in high resolution color monitor applications. The IC contains three high input impedance, wide
band amplifiers which directly drive the RGB cathodes of a
CRT. Each channelhas its gain internally set to −14 and can
drive CRT capacitive loads as well as resistive loads presented by other applications, limited only by the package’s
power dissipation.
The IC is packaged in an industry standard 11 lead TO-220
molded plastic power package. See thermal considerations
on page 5.
Schematic and Connection Diagrams
Features
n Rise/fall times typically 4.5 nS with 8 pF load at 40 V
n Well matched with LM1283 video preamp
n Output swing capability: 60 V
n 1V to 5V input range
n Stable with 0 pF–20 pF capacitive loads and inductive
peaking networks
n Convenient TO-220 staggered lead package style
n Standard LM240X Family Pinout which is designed for
easy PCB layout
for VCC= 80V
pp
pp
Applications
n CRT driver for color monitors with display resolutions up
to 1600 x 1200
n Pixel clock frequency up to 160 MHz
DS100082-1
Top View
Order Number LM2403T
FIGURE 1. Simplified Schematic Diagram (One Channel)
© 1999 National Semiconductor Corporation DS100082 www.national.com
DS100082-2
Page 2
Absolute Maximum Ratings (Notes 1, 2)
If Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales Office/
Distributors for availability and specifications.
Supply Voltage (V
Bias Voltage (V
Input Voltage (V
Storage Temperature Range (T
Lead Temperature
(Soldering,
ESD Tolerance, Human Body Model 2 kV
Machine Model 250V
) +90V
CC
) +16V
BB
) −0.5V to V
IN
<
10 sec.) 300˚C
) −65˚C to +150˚C
STG
BIAS
+0.5V
Operating Range(Note 3)
V
CC
V
BB
V
IN
V
OUT
Case Temperature −20˚C to +100˚C
Do not operate the part without a heat sink.
Note 1: Absolute Maximum Ratings indicate limits beyond which damage to
the device may occur.
Note 2: All voltages are measured with respect to GND, unless otherwise
specified.
Note 3: Operating ratings indicate conditions for which the device is functional, but do not guarantee specific performance limits. For guaranteed
specifications and test conditions, see the Electrical Characteristics. The
guaranteed specifications apply only for the test conditions listed. Some performance characteristics may change when the device is not operated under
the listed test conditions.
+60V to +85V
+8V to +15V
+1V to +5V
+10V to +70V
Electrical Characteristics
(See
Figure 2
Unless otherwise noted: VCC= +80V, VBB= +12 V, VIN= +3.3 VDC,CL= 8 pF, LP= 0.22 µH, Output = 40 VPPat 1 MHz, TA=
25˚C.
Symbol Parameter Condition
I
CC
I
BB
V
OUT
A
V
∆A
V
LE Linearity Error (Notes 4, 5), No AC Input Signal 3.5
t
R
t
F
OS Overshoot 3
Note 4: Calculated value from Voltage Gain test on each channel.
Note 5: Linearity Error is the variation in dc gain from V
Note 6: Input from signal generator: t
for Test Circuit)
LM2403
Min Typical Max
Units
Supply Current Per Channel, No Output Load 26 mA
Bias Current All Three Channels 11.5 mA
DC Output Voltage No AC Input Signal, VIN= 2.8 V 48 52 56 V
DC Voltage Gain No AC Input Signal −12 −14 −16
Gain Matching (Note 4), No AC Input Signal 1.0 dB
Rise Time 10%to 90
Fall Time 90%to 10
1 nS.
IN
r,tf
<
%
%
= 1.5V to VIN=5V.
4.5 nS
4.5 nS
DC
%
%
AC Test Circuit
DS100082-3
FIGURE 2. Test Circuit (One Channel)
Figure 2
shows a typical test circuit for evaluation of the LM2403. This circuit is designed to allow testing of the LM2403 in a 50Ω
environment without the use of an expensive FET probe. The 4950Ω resistor at the output forms a 100:1 voltage divider when
connected to a 50Ω load.
www.national.com 2
Page 3
AC Test Circuit (Continued)
FIGURE 3. V
OUT
vs V
DS100082-4
IN
DS100082-7
FIGURE 6. Power Dissipation vs Frequency
FIGURE 4. Speed vs Temp.
DS100082-6
FIGURE 5. Pulse Response
DS100082-5
DS100082-8
FIGURE 7. Speed vs Offset
DS100082-9
FIGURE 8. Pulse Response with VCC=70V
www.national.com3
DC
Page 4
Theory of Operation
The LM2403 is a high voltage monolithic three channel CRT
driver suitable for high resolution display applications. The
LM2403 operates using 80V and 12V power supplies. The
part is housed in the industry standard 11-lead TO-220
molded plastic power package.
The simplified circuit diagram of the LM2403 is shown in
ure 1
. A PNP emitter follower, Q1, provides input buffering.
The 14 kΩ feedback resistor and the 1 kΩ input resistor sets
the gain of the inverting op-amp to -14. Emitter followers Q2
and Q3 isolate the output of the feedback amplifier from the
capacitance of the CRT cathode, and make the circuit relatively insensitive to load capacitance.
Figure 2
LM2403. This circuit is designed to allow testing of the
LM2403 in a 50Ω environment without the use of an expensive FET probe. In this test circuit, two low inductance resistors in series totaling 4.95 kΩ form a 100:1 wideband low capacitance probe when connected to a 50Ω cable and load.
The input signal from the generator is ac coupled to the base
of Q1.
Figure 9
sponse of the LM2403. The frequency response rolls off very
rapidly above the bandwidth limit of the amplifier. There are
two reasons for this fast response roll-off:
1. The LM2403 contains an input low pass filter to help re-
2. The internal feedback network of the closed loop ampli-
In both cases, the fast roll of the high frequency harmonics
will help to limit the creation of high frequency EMI harmonics, without limiting video rise and fall time characteristics.
However, due to the very fast switching speeds of the de-
shows a typical test circuit for evaluation of the
DS100082-16
FIGURE 9.
shows the large signal sine wave frequency re-
move unwanted high frequency harmonics that can
cause EMI problems. This filter does not significantly affect the rise and fall times of the signal as it operates
above the −3 dB bandwidth of the device.
fier holds the gain at −14 until the loop gain drops below
unity. Above this frequency, the amplifier response falls
with the open loop gain of the amplifier, as the feedback
ceases to have any significant effect. There is also a
change in the impedance match between the op-amp
and the emitter follower output stage with large signals
at higher frequencies. This creates a gain boost that extends the bandwidth, then gives a sudden roll off as
shown in
may vary slightly depending upon operating conditions,
signal amplitude etc.
Figure 9
. The exact response of this roll off
Fig-
vice, good layout design for EMI is CRITICAL. Path lengths
and loop areas of the video signals must be kept to a minimum.
Application Hints
INTRODUCTION
National Semiconductor (NSC) is committed to providing application information that assists our customers in obtaining
the best performance possible fromour products. The following information is provided in order to support this commitment. The reader should be aware that the optimization of
performance was done using a specific printed circuit board
designed at NSC. Variations in performance can be realized
due to physical changes in the printed circuit board and the
application. Therefore, the designer should know that component value changes may be required in order to optimize
performance in a given application. The values shown in this
document can be used as a starting point for evaluation purposes. When working with high bandwidth circuits, good layout practices are also critical to achieving maximum performance.
POWER SUPPLY BYPASS
Since the LM2403 is a high bandwidth amplifier, proper
power supply bypassing is critical for optimum performance.
Improper power supply bypassing can result in large overshoot, ringing and oscillation. A 0.1 µF capacitor should be
connected from the supply pin, Vcc, to ground, as close to
the supply and ground pins as is practical. Additionally, a
10 µF to 100 µF electrolytic capacitor should be connected
from the supply pin to ground. The electrolytic capacitor
should also be placed reasonably close to the LM2403’s
supply and ground pins. A 0.1µF capacitor should be connected from the bias pin, Vbb, to ground, as close as is practical to the part.
ARC PROTECTION
During normal CRT operation, internal arcing may occasionally occur. Spark gaps, in the range of 200V,connected from
the CRT cathodes to CRT groundwill limit the maximum voltage, but to a value that is much higher than allowable on the
LM2403. This fast, high voltage, high energy pulse can damage the LM2403 output stage. The application circuit shown
in
Figure 10
put of the LM2403 to a safe level. The clamp diodes should
have a fast transient response, high peak current rating, low
series impedance and low shunt capacitance. FDH400 or
equivalent diodes are recommended. D1 and D2 should
have short, low impedance connections to V
respectively.The cathode of D1 should be located very close
to a separately decoupled bypass capacitor. The ground
connection of the diode and the decoupling capacitor should
be very close to the LM2403 ground.This will significantly reduce the high frequency voltage transients that the LM2403
would be subjected to during an arcover condition. Resistor
R2 limits the arcover current that is seen by the diodes while
R1 limits the current into the LM2403 as well as the voltage
stress at the outputs of the device. R2 should be a 1/2W
solid carbon type resistor.R1 can be a 1/4W metal or carbon
film type resistor. Inductor L1 is critical to reduce the initial
high frequency voltage levels that the LM2403 would be subjected to. Having large value resistors for R1 and R2 would
be desirable, but this has the effect of increasing rise and fall
times. The inductor will not only help protect the device but it
is designed to help clamp the voltage at the out-
and ground
CC
www.national.com 4
Page 5
Application Hints (Continued)
will also help optimize rise and fall times as well as minimize
EMI. For proper arc protection, it is important to not omit any
of the arc protection components shown in
FIGURE 10. One Channel of the LM2403 with the Recommended Arc Protection Circuit
Figure 10
.
DS100082-10
OPTIMIZING TRANSIENT RESPONSE
Figure 10
Referring to
, there are three components (R1, R2
and L1) that can be adjusted to optimize the transient response of the application circuit. Increasing the values of R1
and R2 will slow the circuit down while decreasing overshoot. Increasing the value of L1 will speed up the circuit as
well as increase overshoot. It is very important to use inductors with very high self-resonant frequencies, preferably
above 300 MHz. Ferrite core inductors from J.W. Miller Magnetics (part
#
78FR12M) were used for optimizing the performance of the device in the NSC application board. The values shown in
Figure 10
can be used as a good starting point
for the evaluation of the LM2403. The NSC demo board also
has a position open to add a resistor in parallel with L1. This
resistor can be used to help control overshoot. Using variable resistors for R1 and the parallel resistor is a great way
to help dial in the values needed for optimum performance in
a given application.
Pull-up Resistors
Optimizing the performance of the LM2403 does require the
use of pull-up resistors at the outputs of the CRT driver.
These resistors are shown as R100, R101, and R102 in the
schematic. If you have a demo board form National please
note that these resistors have been added on the back of the
board since there is no PCB location for the pull-up resistors.
Because of the improved performance with these resistors,
all demo boards have been shipped with the added pull-up
resistors. The LM2403 does have some crossover distortion,
normal for any AB amplifier such as the LM2403. Adding the
pull-up resistors does add more bias to Q3 (
Figure 1
) thus
minimizing the crossover distortion. The LM2403 is normally
used in high end monitors, so it is highly recommended that
the 12k pull-up resistors be used in any design using the
LM2403. Selecting a 12k resistor provides the needed
pull-up current and limits the worst case power dissipation to
1/4W (white level at 25V).
In some applications pull-down resistors may be preferred.
Using 12k resistors gives acceptable performance, but this
will require the use of 1/2W resistors. Normally the power
save mode establishes whether pull-up or pull-down resistors are preferred. If the setup of the power save mode in the
monitor gives a low outputat the LM2403, then the pull-down
resistors would be preferred, if the 80V supply is still turned
on.
Effect of Load Capacitance
The output rise and fall times as well as overshoot will vary
as the load capacitance varies. The values of the output circuit (R1, R2 and L1 in
Figure 10
) should be chosen based on
the nominal load capacitance. Once this is done the performance of the design can be checked by varying the load
based on what the expected variation will be.
For example, suppose you needed to drive a 10 pF (
load with a 40V
of R1, R2 and L1 that give the desired response with a 10 pF
waveform. First, you would pick the values
p-p
±
20%)
load. Then you would test the design when driving an 8 pF
load and a 12 pF load. The table below summarizes the results from doing this exercise in a test board in the NSC lab.
The output signal swing was 40V
from 65V to 25V.
p-p
Parameter 8 pF 10 pF 12 pF
Rise Time 4.1 4.2 4.3
Overshoot 1
%
%
5
%
10
Fall Time 4.4 4.6 4.7
Overshoot 1
%
%
2
%
5
The example above clearly demonstrates the importance of
having a good estimate of the range of the load capacitance.
Effect of Offset
Figure 7
shows the variation in rise and fall times when the
output offset of the device is varied from 30 V
The rise time shows about twice as much variation as the fall
to 50 VDC.
DC
time, however the maximum variation relative to the center
data point (40 V
Operation with V
) is less than 10%.
DC
= 70V
CC
The closed loop topography of the LM2403 allows operation
down to 10V above ground. If the user can limit the white
level between 10V and 20V, then operation with V
is possible. Operating the LM2403 with V
quire the same current even though the supply voltage has
CC
= 70V
CC
= 70V will re-
dropped by 12.5%. This results in a power savings of 12.5
(as high a 1.5W), allowing a reduction in the size of the heatsink.
Figure 8
shows the output waveform of the LM2403 operating at a white level of 15V, and a peak-to-peak output
swing of 40V. Below is a summary of the LM2403 rise and
fall times with various output offset levels with V
CC
www.national.com5
= 70V.
%
Page 6
Application Hints (Continued)
Output
Swing
10V–50V 4.0 ns 5.0 ns
15V–55V 4.2 ns 4.8 ns
20V–60V 4.4 ns 5.0 ns
THERMAL CONSIDERATIONS
Figure 4
shows the performance of the LM2403 in the test
circuit shown in
The figure shows that the speed of the LM2403 decreases
by less than 10%as the case temperature increases from
50˚C to 100˚C. This corresponds to a speed degradation of
2%for every 10˚C rise in case temperature.
Figure 6
shows the total power dissipation of the LM2403 vs.
Frequency when all three channels of the device are driving
an 8 pF load with a 40V
active time (device operating at the specified frequency)
which is typical in a monitor application. The other 28%of
the time the device is assumed to be sitting at the black level
(65V in this case). This graph gives the designer the information needed to determine the heat sink requirement for his
application. The designer should note that if the load capacitance is increased the AC component of the total power dissipation will also increase.
The LM2403 case temperature must be maintained below
100˚C. If the maximum expected ambient temperature is
50˚C and the maximum power dissipation is 12W, then a
maximum heat sink thermal resistance can be calculated:
This example assumes a capacitive load of 8 pF and no resistive load.
TYPICAL APPLICATION
A typical application of the LM2403 is shown in
Used in conjunction with an LM1283, a complete video channel from monitor input to CRT cathode can be achieved. Performance is satisfactory for resolutions up to 1600 x 1200
and pixel clock frequencies up to 160 MHz.
schematic for the NSC demonstration board that can be
used to evaluate the LM1283/2403 combination in a monitor.
PC Board Layout Considerations
For optimum performance, an adequate ground plane, isolation between channels, good supply bypassing and minimizing unwanted feedback are necessary.Also,the length of the
signal traces from the preamplifier to the LM2403 and from
the LM2403 to the CRT cathode should be as short as possible. The following references are recommended:
Rise Time Fall Time
Figure 2
as a function of case temperature.
signal. The graph assumes a 72
p-p
Figure 11
Figure 11
is the
Ott, Henry W., “Noise Reduction Techniques in Electronic
Systems”, John Wiley & Sons, New York, 1976.
“Guide to CRT VideoDesign”, National SemiconductorApplication Note 861.
“Video Amplifier Design for Computer Monitors”, National
Semiconductor Application Note 1013.
Pease, Robert A., “Troubleshooting Analog Circuits”,
Butterworth-Heinemann, 1991.
Because of its high small signal bandwidth, the part may oscillate in a monitor if feedback occurs around the video channel through the chassis wiring. To prevent this, leads to the
video amplifier input circuit should be shielded, and input circuit wiring should be spaced as far as possible from output
circuit wiring.
NSC Demonstration Board
Figures 12, 13
show routing and component placement on
the NSC LM1283/2403 demonstration board. The schematic
%
of the board is shown in
good example of a layout that can be used as a guide for fu-
Figure 11
. This board provides a
ture layouts. Note the location of the following components:
C79—VCCbypass capacitor, located very close to pin 6
•
and ground pins
C55—VBBbypass capacitor,located close to pin 10 and
•
ground
C75–C77 — VCCbypass capacitors, near LM2403 and
•
V
clamp diodes. Very important for arc protection
CC
The routing of the LM2403 outputs to the CRT is very critical
to achieving optimum performance.
Figure 14
shows the
routing and component placement from pin 1 to the blue
cathode. Note that the components are placed so that they
almost line up from the output pin of the LM2403 to the blue
cathode pin of the CRT connector. This is done to minimize
the length of the video path between these two components.
Note also that D7, D8, R32 and D3 are placed to minimize
the size of the video nodes that they are attached to. This
minimizes parasitic capacitance in the video path and also
enhances the effectiveness of the protection diodes. The anode of protection diode D8 is connected directly to a section
.
of the the ground plane that has a short and direct path to the
LM2403 ground pins. The cathode of D7 is connected to V
very close to decoupling capacitor C77 (see
Figure 14
CC
)
which is connected to the same section of the ground plane
as D8. The diode placement and routing is very important for
minimizing the voltage stress on the LM2403 during an arc
over event. Lastly, notice that S1 is placed very close to the
blue cathode and is tied directly to CRT ground.
www.national.com 6
Page 7
Application Hints (Continued)
DS100082-12
Diodes FDH400
www.national.com7
PNP transistors MPSA92
NPN transistors 2N2369A
FIGURE 11. LM1283/2403 Demonstration Board Schematic
Unmarked capacitors 0.1 µF
Page 8
Application Hints (Continued)
FIGURE 12. Trace Side of NSC LM1283/2403 Demonstration Board
www.national.com 8
DS100082-13
Page 9
Application Hints (Continued)
FIGURE 13. Silk Screen and Trace of the LM1283/2403 Demonstration Board
DS100082-14
www.national.com9
Page 10
Application Hints (Continued)
FIGURE 14. Blue Channel Component Placement and Trace Routing
DS100082-15
www.national.com 10
Page 11

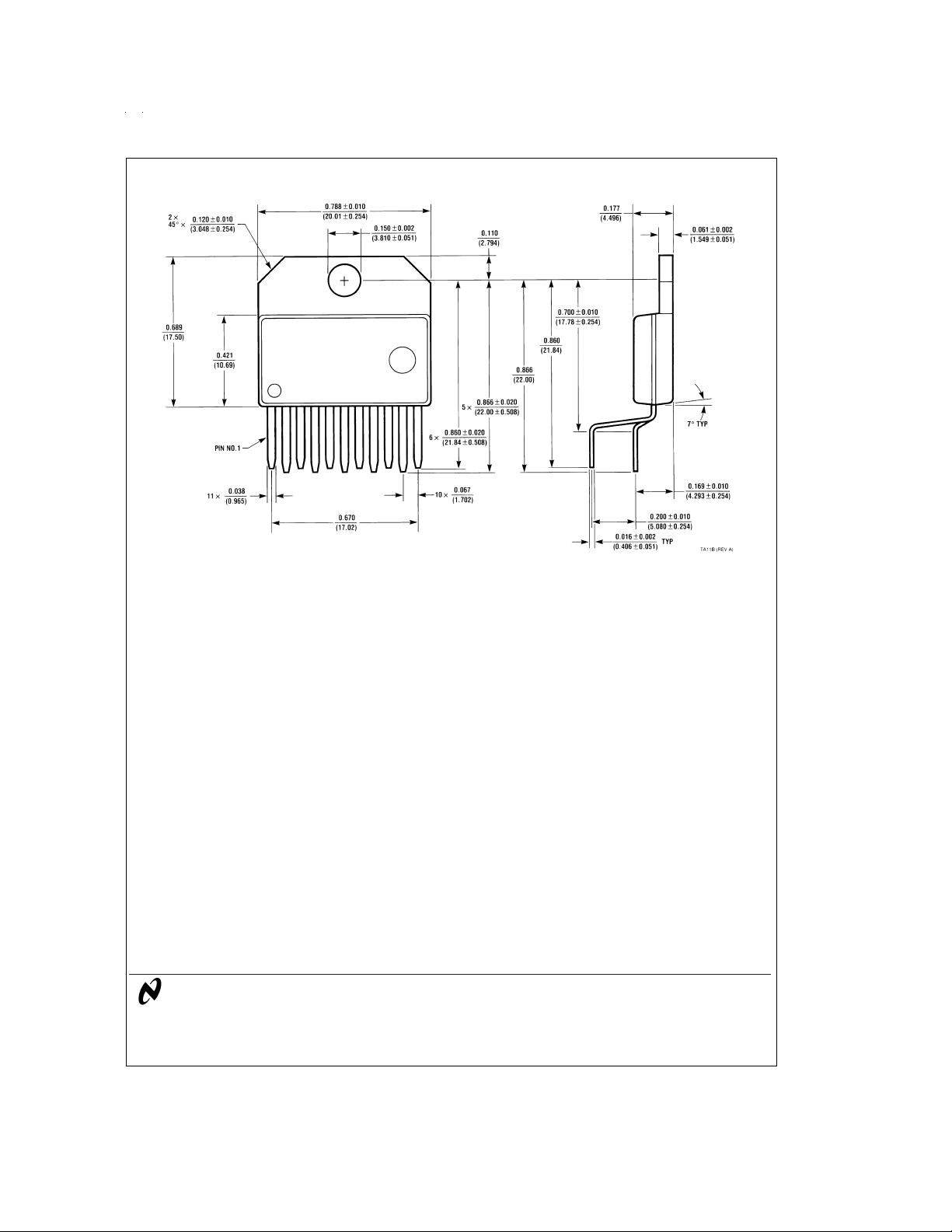

Physical Dimensions inches (millimeters) unless otherwise noted
NS Package Number TA11B
Order Number LM2403T
LM2403 Monolithic Triple 4.5 nS CRT Driver
LIFE SUPPORT POLICY
NATIONAL’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT AND GENERAL
COUNSEL OF NATIONAL SEMICONDUCTOR CORPORATION. As used herein:
1. Life support devices or systems are devices or
systems which, (a) are intended for surgical implant
into the body, or (b) support or sustain life, and
whose failure to perform when properly used in
accordance with instructions for use provided in the
2. A critical component is any component of a life
support device or system whose failure to perform
can be reasonably expected to cause the failure of
the life support device or system, or to affect its
safety or effectiveness.
labeling, can be reasonably expected to result in a
significant injury to the user.
National Semiconductor
Corporation
Americas
Tel: 1-800-272-9959
Fax: 1-800-737-7018
Email: support@nsc.com
www.national.com
National does not assume any responsibility for use of any circuitry described, no circuit patent licenses are implied and National reserves the right at any time without notice to change said circuitry and specifications.
National Semiconductor
Europe
Fax: +49 (0) 1 80-530 85 86
Email: europe.support@nsc.com
Deutsch Tel: +49 (0) 1 80-530 85 85
English Tel: +49 (0) 1 80-532 78 32
Français Tel: +49 (0) 1 80-532 93 58
Italiano Tel: +49 (0) 1 80-534 16 80
National Semiconductor
Asia Pacific Customer
Response Group
Tel: 65-2544466
Fax: 65-2504466
Email: sea.support@nsc.com
National Semiconductor
Japan Ltd.
Tel: 81-3-5639-7560
Fax: 81-3-5639-7507
Loading...
