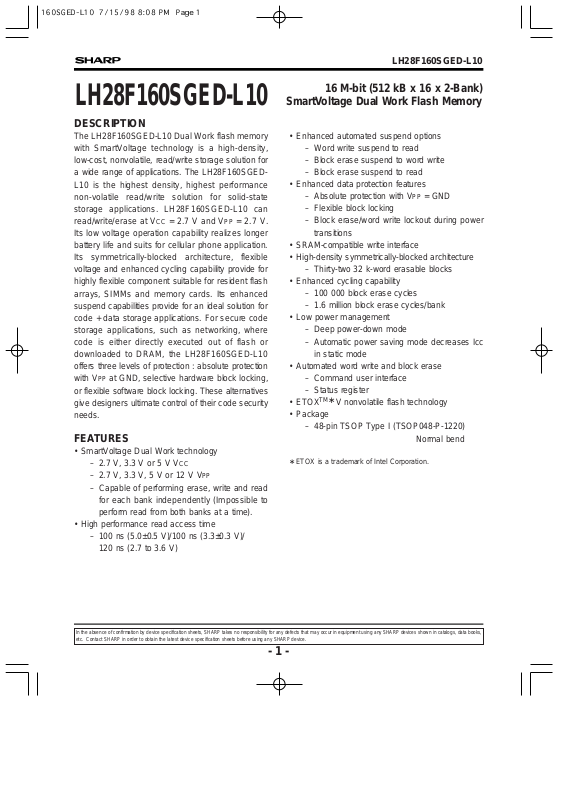

16 M-bit (512 kB x 16 x 2-Bank)

LH28F160SGED-L10

DESCRIPTION

The LH28F160SGED-L10 Dual Work flash memory
with SmartVoltage technology is a high-density,
low-cost, nonvolatile, read/write storage solution for
a wide range of applications. The LH28F160SGED­L10 is the highest density, highest performance
non-volatile read/write solution for solid-state
storage applications. LH28F160SGED-L10 can
read/write/erase at V
Its low voltage operation capability realizes longer
battery life and suits for cellular phone application.
Its symmetrically-blocked architecture, flexible
voltage and enhanced cycling capability provide for
highly flexible component suitable for resident flash
arrays, SIMMs and memory cards. Its enhanced
suspend capabilities provide for an ideal solution for
code + data storage applications. For secure code
storage applications, such as networking, where
code is either directly executed out of flash or
downloaded to DRAM, the LH28F160SGED-L10
offers three levels of protection : absolute protection

PP at GND, selective hardware block locking,

with V
or flexible software block locking. These alternatives
give designers ultimate control of their code security
needs.

FEATURES

• SmartVoltage Dual Work technology
– 2.7 V, 3.3 V or 5 V V
– 2.7 V, 3.3 V, 5 V or 12 V VPP
– Capable of performing erase, write and read

for each bank independently (Impossible to
perform read from both banks at a time).

• High performance read access time
– 100 ns (5.0±0.5 V)/100 ns (3.3±0.3 V)/

120 ns (2.7 to 3.6 V)

CC = 2.7 V and VPP = 2.7 V.

CC

SmartVoltage Dual Work Flash Memory

• Enhanced automated suspend options
– Word write suspend to read
– Block erase suspend to word write
– Block erase suspend to read

• Enhanced data protection features
– Absolute protection with V
– Flexible block locking
– Block erase/word write lockout during power

transitions

• SRAM-compatible write interface

• High-density symmetrically-blocked architecture
– Thirty-two 32 k-word erasable blocks

• Enhanced cycling capability
– 100 000 block erase cycles
– 1.6 million block erase cycles/bank

• Low power management
– Deep power-down mode
– Automatic power saving mode decreases Icc

in static mode

• Automated word write and block erase
– Command user interface
– Status register

TM

∗

• ETOX

• Package
– 48-pin TSOP Type I (TSOP048-P-1220)

∗ ETOX is a trademark of Intel Corporation.

V nonvolatile flash technology

LH28F160SGED-L10

PP = GND

Normal bend

In the absence of confirmation by device specification sheets, SHARP takes no responsibility for any defects that may occur in equipment using any SHARP devices shown in catalogs, data books,
etc. Contact SHARP in order to obtain the latest device specification sheets before using any SHARP device.

- 1 -

PIN CONNECTIONS

48-PIN TSOP (Type I)

(TSOP048-P-1220)

A15
A14
A13
A12
A11
A10

A9

A8
NC
NC

WE#

RP#

V

PP

WP#

NC
A

18

A17

A7

A6

A5

A4

A3

A2

A1

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25

A16
GND
DQ

15

DQ7
DQ14
DQ6
DQ13
DQ5
DQ12
DQ4
VCC
DQ11
DQ3
DQ10
DQ2
DQ9
DQ1
DQ8
DQ0
OE#
GND
BE

1#

BE

0#

A

0

LH28F160SGED-L10

TOP VIEW

- 2 -

BLOCK DIAGRAM

Bank0

Bank1

DQ0-DQ

15

VCC

WE#

OE#
WP#
RP#

A0-A

18

VCC
GND

V

PP

BE1#

BE

0#

I/O

LOGIC

COMMAND

USER

INTERFACE

INPUT

BUFFER

DATA

REGISTER

WRITE
STATE

MACHINE

PROGRAM/ERASE
VOLTAGE SWITCH

IDENTIFIER

REGISTER

OUTPUT
BUFFER

Y GATING

DATA

COMPARATOR

STATUS

REGISTER

OUTPUT

MULTIPLEXER

16

32 k-WORD

BLOCKS

Y DECODER

INPUT

BUFFER

ADDRESS

LATCH

ADDRESS
COUNTER

X DECODER

LH28F160SGED-L10

- 3 -

PIN DESCRIPTION

SYMBOL TYPE NAME AND FUNCTION

A

0-A18 INPUT

DQ0-DQ15

0#,

BE
BE1#

RP#

INPUT/

OUTPUT

INPUT

INPUT

OE# INPUT OUTPUT ENABLE : Controls the device's outputs during a read cycle.

WE# INPUT

WP# INPUT

V

PP

SUPPLY

VCC SUPPLY

GND SUPPLY GROUND : Do not float any ground pins.

NC NO CONNECT : Lead is not internal connected; recommend to be floated.

ADDRESS INPUTS : Inputs for addresses during read and write operations. Addresses
are internally latched during a write cycle.
DATA INPUT/OUTPUTS : Inputs data and commands during CUI write cycles; outputs
data during memory array, status register, and identifier code read cycles. Data pins
float to high-impedance when the chip is deselected or outputs are disabled. Data is
internally latched during a write cycle.
BANK ENABLE : Activates the device’s control logic, input buffers, decoders, and
sense amplifiers. When BE

0# are "low", bank0 is in active. When BE1# are "low", bank1

is in active. Both BE0# and BE1# must not be low at the same time. BE0#, BE1#-high
deselects the device and reduces power consumption to standby levels.
RESET/DEEP POWER-DOWN : Puts the device in deep power-down mode and resets
internal automation. RP#-high enables normal operation. When driven low, RP# inhibits
write operations which provide data protection during power transitions. Exit from deep
power-down sets the device to read array mode.
RP# at V
configuration with V

HH allows to set permanent lock-bit. Block erase, word write, or lock-bit

IH ≤ RP# ≤ VHH produce spurious results and should not be

attempted.

WRITE ENABLE : Controls writes to the CUI and array blocks. Addresses and data are
latched on the rising edge of the WE# pulse.

When V

WRITE PROTECT : Master control for block locking.

IL, locked blocks cannot be

erased and programmed, and block lock-bits cannot be set and reset.

BLOCK ERASE, WORD WRITE, LOCK-BIT CONFIGURATION POWER SUPPLY :

For erasing array blocks, writing words, or configuring lock-bits. With V
memory contents cannot be altered. Block erase, word write, and lock-bit configuration
with an invalid V

PP (see Section 6.2.3 "DC CHARACTERISTICS") produce spurious

results and should not be attempted.
DEVICE POWER SUPPLY : Internal detection configured the device for 2.7 V, 3.3 V or
5 V operation. To switch from one voltage to another, ramp V

CC to the new voltage. Do not float any power pins. With VCC ≤ VLKO, all write

ramp V

CC down to GND and then

attempts to the flash memory are inhibited. Device operations at invalid VCC voltage
(see Section 6.2.3 "DC CHARACTERISTICS") produce spurious results and should
not be attempted.

LH28F160SGED-L10

PP ≤ VPPLK,

- 4 -

1 INTRODUCTION

This datasheet contains LH28F160SGED-L10
specifications. Section 1 provides a flash memory
overview. Sections 2, 3, 4, and 5 describe the
memory organization and functionality. Section 6
covers electrical specifications. LH28F160SGED­L10 flash memory documentation also includes
ordering information which is referenced in
Section 7.

1.1 New Features

Key enhancements of LH28F160SGED-L10
SmartVoltage Dual Work flash memory are :

• SmartVoltage Dual Work Technology

• Enhanced Suspend Capabilities

• In-System Block Locking

• Permanent Lock Capability

Note following important differences :

PPLK has been lowered to 1.5 V to support

•V

3.3 V and 5 V block erase, word write, and lock­bit configuration operations. Designs that switch

PP off during read operations should make sure

V
that the V

PP voltage transitions to GND.

• To take advantage of SmartVoltage technology,
allow V

CC connection to 2.7 V, 3.3 V or 5 V.

• Once set the permanent lock bit, the blocks
which have been set block lock-bit can not be
erased, written forever.

1.2 Product Overview

The LH28F160SGED-L10 is a high-performance
16 M-bit SmartVoltage Dual Work flash memory
organized as 1 024 k-word of 16 bits. The 1 024 k­word of data is arranged in thirty-two 32 k-word
blocks which are individually erasable, lockable,
and unlockable in-system. The memory map is
shown in Fig. 1.

LH28F160SGED-L10

select one of banks. BE
pin which is CE# in LH28F800SGE-L10, BE
is assigned to No. 27 pin which is GND in
LH28F800SGE-L10. To select either bank (bank0)

0# must be "L", and to select another bank

BE
(bank1) BE

1# must be "L". Selecting both banks

(bank0 and bank1) at a time, except of read
operation (array read, status register read), turns
both BE

0# and BE1# to "L".

Operation mode of bank0 and bank1 as follows :

1) Both bank0 and bank1 are in deep power-down
(RP# = "L").

2) Both bank0 and bank1 are in standby

0# = BE1# = "H").

(BE

3) Bank0 is in standby and bank1 is in active state
of programming or erase, or bank0 is in active
state of programming or erase and bank1 is in
standby.

4) Both bank0 and bank1 are in active state
(impossible to perform simultaneous read from
both banks). In this case bank0 and bank1
perform independent operation, for example,
after input Erase command to bank0 erase or
program command to bank1 is succeeded,
bank0 and bank1 perform each operation
concurrently.

SmartVoltage technology provides a choice of V
and VPP combinations, as shown in Table 1, to
meet system performance and power expectations.

2.7 to 3.6 V V

CC consumes approximately one-fifth

the power of 5 V V
highest read performance. V
eliminates the need for a separate 12 V converter,

PP = 12 V maximizes block erase and word

while V
write performance. In addition to flexible erase and
program voltages, the dedicated V
complete data protection when V

0# is assigned to No. 26

1#

CC

CC. But, 5 V VCC provides the

PP at 3.3 V and 5 V

PP pin gives

PP ≤ VPPLK.

All pins except of BE# are shared by both banks,
and BE# is divided to BE

0# and BE1# in order to

- 5 -

LH28F160SGED-L10

Table 1 VCC and VPP Voltage Combinations

Offered by SmartVoltage Technology

VCC VOLTAGE VPP VOLTAGE

2.7 V 2.7 V, 3.3 V, 5 V, 12 V

3.3 V 3.3 V, 5 V, 12 V
5 V 5 V, 12 V

Internal VCC and VPP detection circuitry auto­matically configures the device for optimized read
and write operations.

A command User Interface (CUI) serves as the
interface between the system processor and
internal operation of the device. A valid command
sequence written to the CUI initiates device
automation. An internal Write State Machine (WSM)
automatically executes the algorithms and timing
necessary for block erase, word write, and lock-bit
configuration operations.

A block erase operation erases one of the device’s
32 k-word blocks typically within 1.2 second (5 V

CC, 12 V VPP) independent of other blocks. Each

V
block can be independently erased 100 000 times
(1.6 million block erases per device). Block erase
suspend mode allows system software to suspend
block erase to read data from, or write data to any
other block.

Writing memory data is performed in word
increments typically within 7.5 µs (5 V V
V

PP). Word write suspend mode enables the

CC, 12 V

system to read data from, or write data to any other
flash memory array location.

The selected block can be locked or unlocked
individually by the combination of thirty-two block
lock bits and the RP# or WP#. Block erase or word
write must not be carried out by setting block lock
bits and setting WP# to low and RP# to V
if WP# is high state or RP# is set to V

IH. Even

HH, block

erase and word write to locked blocks is prohibited
by setting permanent lock bit.

In each bank0, 1 contains of Status Registers. The
status register indicates when the WSM’s block
erase, word write, or lock-bit configuration operation
is finished.

The LH28F160SGED-L10 also incorporates a dual
bank-enable function with two input pins, BE

1#. For minimum chip designs, BE0# may be

BE
tied to ground and use BE

1# as the bank enable

0# and

input. The LH28F160SGED-L10 uses the logical
combination of these two signals to enable or
disable the entire chip. Both BE

0# and BE1# must

be active low to enable the device and if either one
becomes inactive, the bank will be disabled. This
feature allows the system designer to reduce the
number of control pins used in a large array of
16 M-bit devices.

The access time is 100 ns (t

AVQV) at the VCC

supply voltage range of 4.5 to 5.5 V over the
temperature range, –10 to +70˚C. At lower V

CC

voltage, the access time is 100 ns (3.0 to 3.6 V)
and 120 ns (2.7 to 3.6 V).

The Automatic Power Saving (APS) feature
substantially reduces active current when the
device is in static mode (addresses not switching).
In APS mode, the typical I

CC and 3 mA at 2.7 to 3.6 V VCC, both

5 V V

CCR current is 1 mA at

bank0, 1 are in active state.

When BE# and RP# pins are at V

CC, the ICC

CMOS standby mode is enabled. When the RP#
pin is at GND, deep power-down mode is enabled
which minimizes power consumption and provides
write protection during reset. A reset time (t

PHQV) is

required from RP# switching high until outputs are
valid. Likewise, the device has a wake time (t

PHEL)

from RP#-high until writes to the CUI are
recognized. With RP# at GND, the WSM is reset
and the status register is cleared.

- 6 -

LH28F160SGED-L10

32 k-Word Block
32 k-Word Block
32 k-Word Block
32 k-Word Block
32 k-Word Block
32 k-Word Block
32 k-Word Block
32 k-Word Block
32 k-Word Block
32 k-Word Block
32 k-Word Block
32 k-Word Block
32 k-Word Block
32 k-Word Block
32 k-Word Block
32 k-Word Block

15
14

13
12

11
10

9
8
7
6

5
4

3
2

1
0

7FFFF
78000

77FFF
70000

6FFFF
67FFF

68000
60000

5FFFF
58000

57FFF
50000

4FFFF
48000

47FFF
40000

3FFFF
38000

37FFF
30000

2FFFF
28000

27FFF
20000

1FFFF
18000

17FFF
10000

0FFFF
08000

07FFF
00000

32 k-Word Block
32 k-Word Block
32 k-Word Block
32 k-Word Block
32 k-Word Block
32 k-Word Block
32 k-Word Block
32 k-Word Block
32 k-Word Block
32 k-Word Block
32 k-Word Block
32 k-Word Block
32 k-Word Block
32 k-Word Block
32 k-Word Block
32 k-Word Block

15
14

13
12

11
10

9
8
7
6

5
4

3
2

1
0

7FFFF
78000

77FFF
70000

6FFFF
67FFF

68000
60000

5FFFF
58000

57FFF
50000

4FFFF
48000

47FFF
40000

3FFFF
38000

37FFF
30000

2FFFF
28000

27FFF
20000

1FFFF
18000

17FFF
10000

0FFFF
08000

07FFF
00000

Bank0

(BE

0# = "L")

Bank1

(BE1# = "L")

Fig.1 Memory Map

2 PRINCIPLES OF OPERATION

The LH28F800SGE-L10 SmartVoltage Dual Work
flash memory includes an on-chip WSM to manage
block erase, word write, and lock-bit configuration
functions. It allows for 100% TTL-level : control
inputs, fixed power supplies during block erasure,
word write, and lock-bit configuration, and minimal
processor overhead with RAM-like interface timings.

After initial device power-up or return from deep
power-down mode (see Table 2 "Bus Operations"),
the device defaults to read array mode.
Manipulation of external memory control pins allow
array read, standby, and output disable operations.

Status register and identifier codes can be
accessed through the CUI independent of the V
voltage. High voltage on VPP enables successful

PP

block erasure, word writing, and lock-bit
configuration. All functions associated with altering
memory contents—block erase, word write, lock-bit
configuration, status, and identifier codes—are
accessed via the CUI and verified through the
status register.

Commands are written using standard micro­processor write timings. The CUI contents serve as
input to the WSM, which controls the block erase,
word write, and lock-bit configuration. The internal
algorithms are regulated by the WSM, including
pulse repetition, internal verification, and margining
of data. Addresses and data are internally latched
during write cycles. Writing the appropriate
command outputs array data, accesses the
identifier codes, or outputs status register data.

- 7 -

LH28F160SGED-L10

Interface software that initiates and polls progress
of block erase, word write, and lock-bit configuration
can be stored in any block. This code is copied to
and executed from system RAM during flash
memory updates. After successful completion,
reads are again possible via the Read Array
command. Block erase suspend allows system
software to suspend a block erase to read/write
data from/to blocks other than that which is
suspended. Word write suspend allows system
software to suspend a word write to read data from
any other flash memory array location.

2.1 Data Protection

Depending on the application, the system designer
may choose to make the V
switchable (available only when memory block
erases, word writes, or lock-bit configurations are
required) or hardwired to V
accommodates either design practice and
encourages optimization of the processor-memory
interface.

When V

PP ≤ VPPLK, memory contents cannot be

altered. The CUI, with two-step block erase, word
write, or lock-bit configuration command sequences,
provides protection from unwanted operations even
when high voltage is applied to V
functions are disabled when V
lockout voltage V

LKO or when RP# is at VIL. The

device’s block locking capability provides additional
protection from inadvertent code or data alteration
by gating erase and word write operations.

PP power supply

PPH1/2/3. The device

PP. All write

CC is below the write

The first task is to write the appropriate read mode
command (Read Array, Read Identifier Codes, or
Read Status Register) to the CUI. Upon initial
device power-up or after exit from deep power­down mode, the device automatically resets to read
array mode. Five control pins dictate the data flow
in and out of the component : BE#, OE#, WE#,
RP# and WP#. BE# and OE# must be driven
active to obtain data at the outputs. BE# is the
device selection control, and when active enables
the selected memory device. OE# is the data
output (DQ

0-DQ15) control and when active drives

the selected memory data onto the I/O bus. WE#
must be at V

IH and RP# must be at VIH or VHH.

Fig. 13 illustrates read cycle.

3.2 Output Disable

With OE# at a logic-high level (VIH), the device
outputs are disabled. Output pins DQ

0-DQ15 are

placed in a high-impedance state.

3.3 Standby

BE# at a logic-high level (VIH) places the device in
standby mode which substantially reduces device
power consumption. DQ

0-DQ15 outputs are placed

in a high-impedance state independent of BE#. If
deselected during block erase, word write, or lock­bit configuration, the device continues functioning,
and consuming active power until the operation
completes.

3.4 Deep Power-Down

RP# at VIL initiates the deep power-down mode.

3 BUS OPERATION

The local CPU reads and writes flash memory in­system. All bus cycles to or from the flash memory
conform to standard microprocessor bus cycles.

3.1 Read

Information can be read from any block, identifier
codes, or status register independent of the V
voltage. RP# can be at either VIH or VHH.

PP

In read modes, RP#-low deselects the memory,
places output drivers in a high-impedance state and
turns off all internal circuits. RP# must be held low
for a minimum of 100 ns. Time t

PHQV is required

after return from power-down until initial memory
access outputs are valid. After this wake-up interval,
normal operation is restored. The CUI is reset to
read array mode and status register is set to 80H.

- 8 -

LH28F160SGED-L10

7FFFF

78004
78003
78002
78001
78000

0FFFF

08004
08003
08002
08001
08000
07FFF

00004
00003
00002
00001
00000

Reserved for

Future Implementation

Reserved for

Future Implementation

Reserved for

Future Implementation

Reserved for

Future Implementation

Reserved for

Future Implementation

Block 15 Lock Configuration Code

Block 15

Block 1

Block 0

(Blocks 2 through 14)

Block 1 Lock Configuration Code

Permanent Lock Configuration Code

Block 0 Lock Configuration Code

Device Code

Manufacture Code

Bank0

(BE

0# = "L")

7FFFF

78004
78003
78002
78001
78000

0FFFF

08004
08003
08002
08001
08000
07FFF

00004
00003
00002
00001
00000

Block 15 Lock Configuration Code

Block 15

Block 1

Block 0

(Blocks 2 through 14)

Block 1 Lock Configuration Code

Permanent Lock Configuration Code

Block 0 Lock Configuration Code

Device Code

Manufacture Code

Bank1

(BE

1# = "L")

Reserved for

Future Implementation

Reserved for

Future Implementation

Reserved for

Future Implementation

Reserved for

Future Implementation

Reserved for

Future Implementation

During block erase, word write, or lock-bit
configuration modes, RP#-low will abort the operation.
Memory contents being altered are no longer valid;
the data may be partially erased or written. Time
t

PHWL is required after RP# goes to logic-high (VIH)

before another command can be written.

As with any automated device, it is important to
assert RP# during system reset. When the system
comes out of reset, it expects to read from the flash
memory. Automated flash memories provide status
information when accessed during block erase,
word write, or lock-bit configuration modes. If a
CPU reset occurs with no flash memory reset,
proper CPU initialization may not occur because
the flash memory may be providing status
information instead of array data. SHARP’s flash

memories allow proper CPU initialization following a
system reset through the use of the RP# input. In
this application, RP# is controlled by the same
RESET# signal that resets the system CPU.

3.5 Read Identifier Codes

The read identifier codes operation outputs the
manufacture code, device code, block lock
configuration codes for each block, and the
permanent lock configuration code (see Fig. 2).
Using the manufacture and device codes, the
system CPU can automatically match the device
with its proper algorithms. The block lock and
permanent lock configuration codes identify locked
and unlocked blocks and permanent bank lock-bit
setting.

Fig. 2 Device Identifier Code Memory Map

- 9 -

LH28F160SGED-L10

3.6 Write

Writing commands to the CUI enable reading of
device data and identifier codes. They also control
inspection and clearing of the status register.

The Block Erase command requires appropriate
command data and an address within the block to
be erased. The Word Write command requires the
command and address of the location to be written.
Set Permanent Bank and Block Lock-Bit
commands require the command and address
within the device (Permanent Bank Lock) or block
within the device (Block Lock) to be locked. The
Clear Block Lock-Bits command requires the
command and address within the device.

The CUI does not occupy an addressable memory
location. It is written when WE# and BE# are

Table 2 Bus Operations

MODE NOTE RP# BE0#BE1# OE# WE#

Bank0

Read Bank1

Disable VIL VIL

Output Disable

Bank0

Standby Bank1

Bank0, 1 VIH VIH

1, 2, V
7, 8 V

V

IH

V

IH or

HH

or VHHXXVIH VIH X X High Z

IH or

V

HH

Deep Power-Down 3 VIL X X X X X X High Z

Bank0

Read Identifier Codes Bank1 7, 8

Disable VIL VIL
Bank0

Write Bank1 5, 6, 7

Bank0, 1 VIL VIL

V

V

IH or

HH

V

IH or

V

HH

NOTES :

1. Refer to Section 6.2.3 "DC CHARACTERISTICS".
When V

PP ≤ VPPLK, memory contents can be read, but

not altered.

2. X can be V
V

PPLK or VPPH1/2/3 for VPP. See Section 6.2.3 "DC

CHARACTERISTICS" for V

3. RP# at GND±0.2 V ensures the lowest deep power­down current.

IL or VIH for control pins and addresses, and

PPLK and VPPH1/2/3 voltages.

active. The address and data needed to execute a
command are latched on the rising edge of WE# or
BE# (whichever goes high first). Standard
microprocessor write timings are used. Fig. 14 and
Fig. 15 illustrate WE# and BE# controlled write
operations.

4 COMMAND DEFINITIONS

When the VPP ≤ VPPLK, read operations from the
status register, identifier codes, or blocks are
enabled. Placing V
successful block erase, word write and lock-bit
configuration operations.

Device operations are selected by writing specific
commands into the CUI. Table 3 defines these
commands.

IL VIH

V

VIH VIL VIL VIH XXDOUT

IH VIL

V
VIL VIH X X X X High Z

IL VIH

V
VIH VIL VIL VIH

IL VIH

V
VIH VIL VIH VIL XXDIN

4. See Section 4.2 for read identifier code data.

5. V

IH < RP# < VHH produce spurious results and should

not be attempted.

6. Refer to Table 3 for valid D

7. Don’t use the timing both OE# and WE# are V

8. Impossible to perform simultaneous read from both
banks at a time. Both BE
at the same time.

PPH1/2/3 on VPP enables

ADDRESS

See

Fig. 2

IN during a write operation.

0# and BE1# must not be low

VPP DQ0-15

(NOTE 4)

X

IL.

- 10 -

LH28F160SGED-L10

COMMAND

Table 3 Command Definitions

BUS CYCLES

REQ’D.

NOTE

Oper

(NOTE 1)

FIRST BUS CYCLE SECOND BUS CYCLE

Addr

(NOTE 9)

(NOTE 2)

Data

(NOTE 3)

Oper

(NOTE 1)

Addr

(NOTE 2)

Data

Read Array/Reset 1 Write X FFH
Read Identifier Codes ≥ 2 4 Write X 90H Read IA ID
Read Status Register 2 Write X 70H Read X SRD
Clear Status Register 1 Write X 50H
Block Erase 2 5 Write BA 20H Write BA D0H
Word Write 2 5, 6 Write WA
Block Erase and
Word Write Suspend
Block Erase and
Word Write Resume

1 5 Write X B0H

1 5 Write X D0H

40H or 10H

Write WA WD

Set Block Lock-Bit 2 7 Write BA 60H Write BA 01H
Set Permanent Bank
Lock-Bit

2 7 Write X 60H Write X F1H

Clear Block Lock-Bits 2 8 Write X 60H Write X D0H

NOTES :

1. BUS operations are defined in Table 2.

2. X = Any valid address within the device.
IA = Identifier code address : see Fig. 2.
BA = Address within the block being erased or locked.
WA = Address of memory location to be written.

3. SRD = Data read from status register. See Table 6 for a

description of the status register bits.

WD = Data to be written at location WA. Data is latched

on the rising edge of WE# or BE# (whichever
goes high first).

ID = Data read from identifier codes.

4. Following the Read Identifier Codes command, read
operations access manufacture, device, block lock, and
permanent lock codes. See Section 4.2 for read
identifier code data.

5. If the block is locked and the permanent lock-bit is not
set, WP# must be at V
enable block erase or word write operations. Attempts to
issue a block erase or word write to a locked block while
WP# is V

IH or RP# is VHH.

IH or RP# must be at VHH to

6. Either 40H or 10H is recognized by the WSM as the
word write setup.

7. If the permanent bank lock-bit is set, WP# must be at
V

IH or RP# must be at VHH to set a block lock-bit. RP#

must be at V
permanent lock-bit is set, a block lock-bit cannot be set.
Once the permanent lock-bit is set, permanent lock-bit
reset is unable.

8. If the permanent bank lock-bit is set, clear block lock-bits
operation is unable. The clear block lock-bits operation
simultaneously clears all block lock-bits. If the permanent
lock-bit is not set, the Clear Block Lock-Bits command
can be done while WP# is V

9. Commands other than those shown above are reserved
by SHARP for future device implementations and should
not be used.

HH to set the permanent lock-bit. If the

IH or RP# is VHH.

(NOTE 3)

- 11 -

LH28F160SGED-L10

4.1 Read Array Command

Upon initial device power-up and after exit from
deep power-down mode, the device defaults to
read array mode. This operation is also initiated by
writing the Read Array command. The device
remains enabled for reads until another command
is written. Once the internal WSM has started a
block erase, word write or lock-bit configuration, the
device will not recognize the Read Array command
until the WSM completes its operation unless the
WSM is suspended via an Erase Suspend or Word
Write Suspend command. The Read Array
command functions independently of the V

PP

voltage and RP# can be VIH or VHH.

4.2 Read Identifier Codes Command

The identifier code operation is initiated by writing
the Read Identifier Codes command. Following the
command write, read cycles from addresses shown
in Fig. 2 retrieve the manufacture, device, block
lock configuration and permanent lock configuration
codes (see Table 4 for identifier code values). To
terminate the operation, write another valid
command. Like the Read Array command, the
Read Identifier Codes command functions
independently of the V
V

IH or VHH. Following the Read Identifier Codes

command, the following information can be read :

Table 4 Identifier Codes

CODE

Manufacture Code 00000H 00B0H
Device Code 00001H 0050H
Block Lock Configuration

•Unlocked DQ0 = 0

•Locked DQ0 = 1

•

Reserved for future enhancement

Permanent Lock Configuration 00003H

•Unlocked DQ0 = 0

•Locked DQ0 = 1

•

Reserved for future enhancement

NOTES :

1. X selects the specific block lock configuration code to be
read. See Fig. 2 for the device identifier code memory
map.

PP voltage and RP# can be

ADDRESS

XX002H

DATA

(NOTE 1)

DQ1-15

DQ1-15

4.3 Read Status Register Command

The status register may be read to determine when
a block erase, word write, or lock-bit configuration is
complete and whether the operation completed
successfully. It may be read at any time by writing
the Read Status Register command. After writing
this command, all subsequent read operations
output data from the status register until another
valid command is written. The status register
contents are latched on the falling edge of OE# or
BE#, whichever occurs. OE# or BE# must toggle to

IH before further reads to update the status

V
register latch. The Read Status Register command
functions independently of the V
can be V

IH or VHH.

PP voltage. RP#

4.4 Clear Status Register Command

Status register bits SR.5, SR.4, SR.3, and SR.1 are
set to "1"s by the WSM and can only be reset by
the Clear Status Register command. These bits
indicate various failure conditions (see Table 6). By
allowing system software to reset these bits,
several operations (such as cumulatively erasing or
locking multiple blocks or writing several words in
sequence) may be performed. The status register
may be polled to determine if an error occurred
during the sequence.

To clear the status register, the Clear Status
Register command (50H) is written. It functions
independently of the applied V
be V

IH or VHH. This command is not functional

PP voltage. RP# can

during block erase or word write suspend modes.

4.5 Block Erase Command

Erase is executed one block at a time and initiated
by a two-cycle command. A block erase setup is
first written, followed by a block erase confirm.
This command sequence requires appropriate
sequencing and an address within the block to be
erased (erase changes all block data to FFH).
Block preconditioning, erase, and verify are handled
internally by the WSM (invisible to the system).

- 12 -

LH28F160SGED-L10

After the two-cycle block erase sequence is written,
the device automatically outputs status register data
when read (see Fig. 3). The CPU can detect block
erase completion by analyzing the output data of
the status register bit SR.7.

When the block erase is complete, status register
bit SR.5 should be checked. If a block erase error
is detected, the status register should be cleared
before system software attempts corrective actions.
The CUI remains in read status register mode until
a new command is issued.

This two-step command sequence of set-up
followed by execution ensures that block contents
are not accidentally erased. An invalid Block Erase
command sequence will result in both status
register bits SR.4 and SR.5 being set to "1". Also,
reliable block erasure can only occur when V

CC1/2/3 and VPP = VPPH1/2/3. In the absence of this

V

CC =

high voltage, block contents are protected against
erasure. If block erase is attempted while V

PPLK, SR.3 and SR.5 will be set to "1". Successful

V

PP ≤

block erase requires that the corresponding block
lock-bit be cleared or, if set, that WP# = V
= V

HH. If block erase is attempted when the

IH or RP#

corresponding block lock-bit is set and WP# = V
and RP# = VIH, SR.1 and SR.5 will be set to "1".
Once permanent lock-bit is set, the blocks which
have been set block lock-bit are unable to erase
forever. Block erase operations with V

HH produce spurious results and should not be

V

IH < RP# <

attempted.

4.6 Word Write Command

Word write is executed by a two-cycle command
sequence. Word write setup (standard 40H or
alternate 10H) is written, followed by a second write
that specifies the address and data (latched on the
rising edge of WE#). The WSM then takes over,
controlling the word write and write verify algorithms
internally. After the word write sequence is written,
the device automatically outputs status register data

when read (see Fig. 4). The CPU can detect the
completion of the word write event by analyzing the
status register bit SR.7.

When word write is complete, status register bit
SR.4 should be checked. If word write error is
detected, the status register should be cleared. The
internal WSM verify only detects errors for "1"s that
do not successfully write to "0"s. The CUI remains
in read status register mode until it receives another
command.

Reliable word writes can only occur when V

CC1/2/3 and VPP = VPPH1/2/3. In the absence of this

V
high voltage, memory contents are protected
against word writes. If word write is attempted while
V

PP ≤ VPPLK, status register bits SR.3 and SR.4 will

be set to "1". Successful word write requires that
the corresponding block lock-bit be cleared or, if
set, that WP# = V

IH or RP# = V HH. If word write is

attempted when the corresponding block lock-bit is
set and WP# = V

IL and RP# = VIH, SR.1 and SR.4

will be set to "1". Once permanent lock-bit is set,
the blocks which have been set block lock-bit are
unable to write forever. Word write operations with

IH < RP# < VHH produce spurious results and

V

IL

should not be attempted.

4.7 Block Erase Suspend Command

The Block Erase Suspend command allows block
erase interruption to read or word write data in
another block of memory. Once the block erase
process starts, writing the Block Erase Suspend
command requests that the WSM suspend the
block erase sequence at a predetermined point in
the algorithm. The device outputs status register
data when read after the Block Erase Suspend
command is written. Polling status register bits
SR.7 and SR.6 can determine when the block
erase operation has been suspended (both will be
set to "1"). Specification t
erase suspend latency.

WHRH2 defines the block

CC =

- 13 -

LH28F160SGED-L10

At this point, a Read Array command can be
written to read data from blocks other than that
which is suspended. A Word Write command
sequence can also be issued during erase suspend
to program data in other blocks. Using the Word
Write Suspend command (see Section 4.8), a
word write operation can also be suspended.
During a word write operation with block erase
suspended, status register bit SR.7 will return to
"0". However, SR.6 will remain "1" to indicate block
erase suspend status.

The only other valid commands while block erase is
suspended are Read Status Register and Block
Erase Resume. After a Block Erase Resume
command is written to the flash memory, the WSM
will continue the block erase process. Status
register bits SR.6 and SR.7 will automatically clear.
After the Erase Resume command is written, the
device automatically outputs status register data
when read (see Fig. 5). V
V

PPH1/2/3 (the same VPP level used for block erase)

PP must remain at

while block erase is suspended. RP# must also
remain at V
block erase). WP# must also remain at V

IH or VHH (the same RP# level used for

IL or VIH

(the same WP# level used for block erase). Block
erase cannot resume until word write operations
initiated during block erase suspend have
completed.

4.8 Word Write Suspend Command

The Word Write Suspend command allows word
write interruption to read data in other flash memory
locations. Once the word write process starts,
writing the Word Write Suspend command requests
that the WSM suspend the word write sequence at
a predetermined point in the algorithm. The device
continues to output status register data when read
after the Word Write Suspend command is written.
Polling status register bits SR.7 and SR.2 can
determine when the word write operation has been
suspended (both will be set to "1"). Specification
t

WHRH1 defines the word write suspend latency.

At this point, a Read Array command can be
written to read data from locations other than that
which is suspended. The only other valid
commands while word write is suspended are Read
Status Register and Word Write Resume. After
Word Write Resume command is written to the
flash memory, the WSM will continue the word
write process. Status register bits SR.2 and SR.7
will automatically clear. After the Word Write
Resume command is written, the device
automatically outputs status register data when
read (see Fig. 6). V

PP must remain at VPPH1/2/3

(the same VPP level used for word write) while in
word write suspend mode. RP# must also remain

IH or VHH (the same RP# level used for word

at V
write). WP# must also remain at V

IL or VIH (the

same WP# level used for word write).

4.9 Set Block and Permanent Bank
Lock-Bit Commands

The combination of the software command
sequence and hardware WP#, RP# pin provides
most flexible block lock (write protection) capability.
The word write/block erase operation is restricted
by the status of block lock-bit, WP# pin, RP# pin
and permanent lock-bit. The status of WP# pin,
RP# pin and permanent lock-bit restricts the set
block bit. When the permanent lock-bit has not
been set, and when WP# = V
block lock bit can be set with the status of the RP#
pin. When RP# = V

HH, the permanent lock-bit can

be set with the permanent lock-bit set command.
After the permanent lock-bit has been set, the
write/erase operation to the block lock-bit can never
be accepted. Refer to Table 5 for the hardware
and the software write protection.

Set block lock-bit and permanent lock-bit are
executed by a two-cycle command sequence. The
set block or permanent lock-bit setup along with
appropriate block or device address is written
followed by either the set block lock-bit confirm (and
an address within the block to be locked) or the set

IH or RP# = VHH , the

- 14 -

LH28F160SGED-L10

permanent lock-bit confirm (and any device
address). The WSM then controls the set lock-bit
algorithm. After the sequence is written, the device
automatically outputs status register data when
read (see Fig. 7). The CPU can detect the
completion of the set lock-bit event by analyzing the
status register bit SR.7.

When the set lock-bit operation is complete, status
register bit SR.4 should be checked. If an error is
detected, the status register should be cleared. The
CUI will remain in read status register mode until a
new command is issued.

This two-step sequence of set-up followed by
execution ensures that lock-bits are not accidentally
set. An invalid Set Block or Permanent Lock-Bit
command will result in status register bits SR.4 and
SR.5 being set to "1". Also, reliable operations
occur only when V

PPH1/2/3. In the absence of this high voltage, lock-

V

CC = VCC1/2/3 and VPP =

bit contents are protected against alteration.

A successful set block lock-bit operation requires
that the permanent lock-bit be cleared and WP# =
V

IH or RP# = VHH. If it is attempted with the

permanent lock-bit set, SR.1 and SR.4 will be set
to "1" and the operation will fail. Set block lock-bit
operations while V

IH < RP# < VHH produce

spurious results and should not be attempted. A
successful set permanent lock-bit operation requires
that RP# = V

HH. If it is attempted with RP# = VIH,

SR.1 and SR.4 will be set to "1" and the operation
will fail. Set permanent lock-bit operations with V
< RP# < VHH produce spurious results and should
not be attempted.

4.10 Clear Block Lock-Bits Command

All set block lock-bits are cleared in parallel via the
Clear Block Lock-Bits command. With the
permanent lock-bit not set and WP# = V

HH, block lock-bits can be cleared using the

= V
Clear Block Lock-Bits command. If the permanent
lock-bit is set, clear block lock-bits operation is
unable. See Table 5 for a summary of hardware
and software write protection options.

Clear block lock-bits option is executed by a two­cycle command sequence. A clear block lock-bits
setup is first written. After the command is written,
the device automatically outputs status register data
when read (see Fig. 8). The CPU can detect
completion of the clear block lock-bits event by
analyzing the status register bit SR.7.

When the operation is complete, status register bit
SR.5 should be checked. If a clear block lock-bits
error is detected, the status register should be
cleared. The CUI will remain in read status register
mode until another command is issued.

This two-step sequence of set-up followed by
execution ensures that block lock-bits are not
accidentally cleared. An invalid Clear Block Lock­Bits command sequence will result in status register
bits SR.4 and SR.5 being set to "1". Also, a reliable
clear block lock-bits operation can only occur when

CC = VCC1/2/3 and VPP = VPPH1/2/3. In a clear

V
block lock-bits operation is attempted while V

PPLK, SR.3 and SR.5 will be set to "1". In the

V

IH

absence of this high voltage, the block lock-bit
contents are protected against alteration. A
successful clear block lock-bits operation requires
that the permanent lock-bit is not set and WP# =

IH or RP# = VHH. If it is attempted with the

V
permanent lock-bit set or WP# = V

IH, SR.1 and SR.5 will be set to "1" and the

V
operation will fail. A clear block lock-bits operation

IH < RP# < VHH produce spurious results and

with V
should not be attempted.

IH or RP#

PP ≤

IL and RP# =

- 15 -

LH28F160SGED-L10

If a clear block lock-bits operation is aborted due to

PP or VCC transition out of valid range or WP# or

V
RP# active transition, block lock-bit values are left

lock-bits is required to initialize block lock-bit
contents to known values. Once the permanent
lock-bit is set, it cannot be cleared.

in an undetermined state. A repeat of clear block

(NOTE 1)

OPERATION

Block Erase

or

Word Write

Set Block

Lock-Bit

Set Permanent

Bank Lock-Bit

(NOTE 1)

Clear Block

Lock-Bits

Table 5 Write Protection Alternatives

PERMANENT

LOCK-BIT

BLOCK

LOCK-BIT

# RP# EFFECT

WP

X0XVIH or VHH Block Erase and Word Write Enabled

IH VIH or VHH

V

0V

1V

IL

V

1XX

Block Lock-Bit Override.
Block Erase and Word Write Enabled
Block Lock-Bit Override.

HH

Block Erase and Word Write Enabled
Block is Locked.

IH

Block Erase and Word Write Disabled
Permanent Lock-Bit is set.
Block Erase and Word Write Disabled

VIH VIH or VHH Set Block Lock-Bit Enabled

0V

XV

1XX

XXX

IL VHH Set Block Lock-Bit Enabled
IL VIH Set Block Lock-Bit Disabled

Permanent Lock-Bit is set.
Set Block Lock-Bit Disabled

V

HH Set Permanent Lock-Bit Enabled

VIH Set Permanent Lock-Bit Disabled

VIH VIH or VHH Clear Block Lock-Bits Enabled

0V

XV

1XX

IL VHH Clear Block Lock-Bits Enabled
IL VIH Clear Block Lock-Bits Disabled

Permanent Lock-Bit is set.
Clear Block Lock-Bits Disabled

NOTE :

1. There are two banks (bank0 and bank1). Each bank has it’s own permanent lock-bit.

- 16 -

LH28F160SGED-L10

Table 6 Status Register Definition

WSMS ESS ECLBS WWSLBS VPPS WWSS DPS R

76543210

SR.7 = WRITE STATE MACHINE STATUS (WSMS)

1 = Ready
0 = Busy

SR.6 = ERASE SUSPEND STATUS (ESS)

1 = Block Erase Suspended
0 = Block Erase in Progress/Completed

SR.5 =

ERASE AND CLEAR LOCK-BITS STATUS (ECLBS)
1 = Error in Block Erase or Clear Lock-Bits
0 = Successful Block Erase or Clear Lock-Bits

SR.4 =

WORD WRITE AND SET LOCK-BIT STATUS

(WWSLBS)

1 = Error in Word Write or Set Permanent/Block

Lock-Bit

0 = Successful Word Write or Set Permanent/Block

Lock-Bit

SR.3 = V

PP STATUS (VPPS)

1= VPP Low Detect, Operation Abort

PP OK

0= V

SR.2 = WORD WRITE SUSPEND STATUS (WWSS)

1 = Word Write Suspended
0 = Word Write in Progress/Completed

SR.1 = DEVICE PROTECT STATUS (DPS)

1 = Permanent Lock-Bit, Block Lock-Bit and/or

WP#/RP# Lock Detected, Operation Abort

0 = Unlock

SR.0 =

RESERVED FOR FUTURE ENHANCEMENTS (R)

NOTES :

Check RY#/BY# or SR.7 to determine block erase, word
write, or lock-bit configuration completion. SR.6-0 are invalid
while SR.7 = "0".

If both SR.5 and SR.4 are "1"s after a block erase or lock-bit
configuration attempt, an improper command sequence was
entered.

SR.3 does not provide a continuous indication of V
The WSM interrogates and indicates the V
Block Erase, Word Write, Set Block/Permanent Lock-Bit, or
Clear Block Lock-Bits command sequences. SR.3 is not
guaranteed to reports accurate feedback only when V
V

PPH1/2/3.

SR.1 does not provide a continuous indication of permanent
and block lock-bit values. The WSM interrogates the
permanent lock-bit, block lock-bit, WP# and RP# only after
Block Erase, Word Write, or Lock-Bit configuration command
sequences. It informs the system, depending on the attempted
operation, if the block lock-bit is set, permanent lock-bit is set,
and/or WP# is not V
and permanent lock configuration codes after writing the Read
Identifier Codes command indicates permanent and block
lock-bit status.

SR.0 is reserved for future use and should be masked out
when polling the status register.

IH, RP# is not VHH. Reading the block lock

PP level only after

PP level.

PP ≠

- 17 -

LH28F160SGED-L10

Block Erase

Complete

Start

Write 20H,

Block Address

Write D0H,

Block Address

Read

Status Register

0

SR.7 =

1

Full Status

Check if Desired

Repeat for subsequent block erasures.
Full status check can be done after each block erase or after

a sequence of block erasures.
Write FFH after the last block erase operation to place device

in read array mode.

BUS

OPERATION

Write

Write

Read

Standby

COMMAND

Erase Setup

COMMENTS

Data = 20H
Addr = Within Block to be Erased

Data = D0H
Addr = Within Block to be Erased

Status Register Data

Check SR.7
1 = WSM Ready
0 = WSM Busy

SR.3 =

FULL STATUS CHECK PROCEDURE

Read Status Register

Data (See Above)

V

PP Range Error

1

0

SR.1 =

Device Protect Error

1

0

BUS

OPERATION

COMMAND

COMMENTS

Standby

Standby

Check SR.1
1 = Device Protect Detect
RP# = V

IH, Block Lock-Bit is Set

Only required for systems
implementing lock-bit configuration

Check SR.5
1 = Block Erase Error

SR.5, SR.4, SR.3 and SR.1 are only cleared by the Clear
Status Register command in cases where multiple blocks
are erased before full status is checked.

If error is detected, clear the status register before attempting
retry or other error recovery.

No

Suspend

Block Erase

Yes

Suspend Block

Erase Loop

Erase

Confirm

Block Erase

Successful

SR.4, 5 =

Command Sequence

Error

1

0

SR.5 =

Block Erase

Error

1

0

Standby

Check SR.3
1 = V

PP Error Detect

Standby

Check SR.4, 5
Both 1 = Command Sequence Error

Fig. 3 Automated Block Erase Flowchart

- 18 -

LH28F160SGED-L10

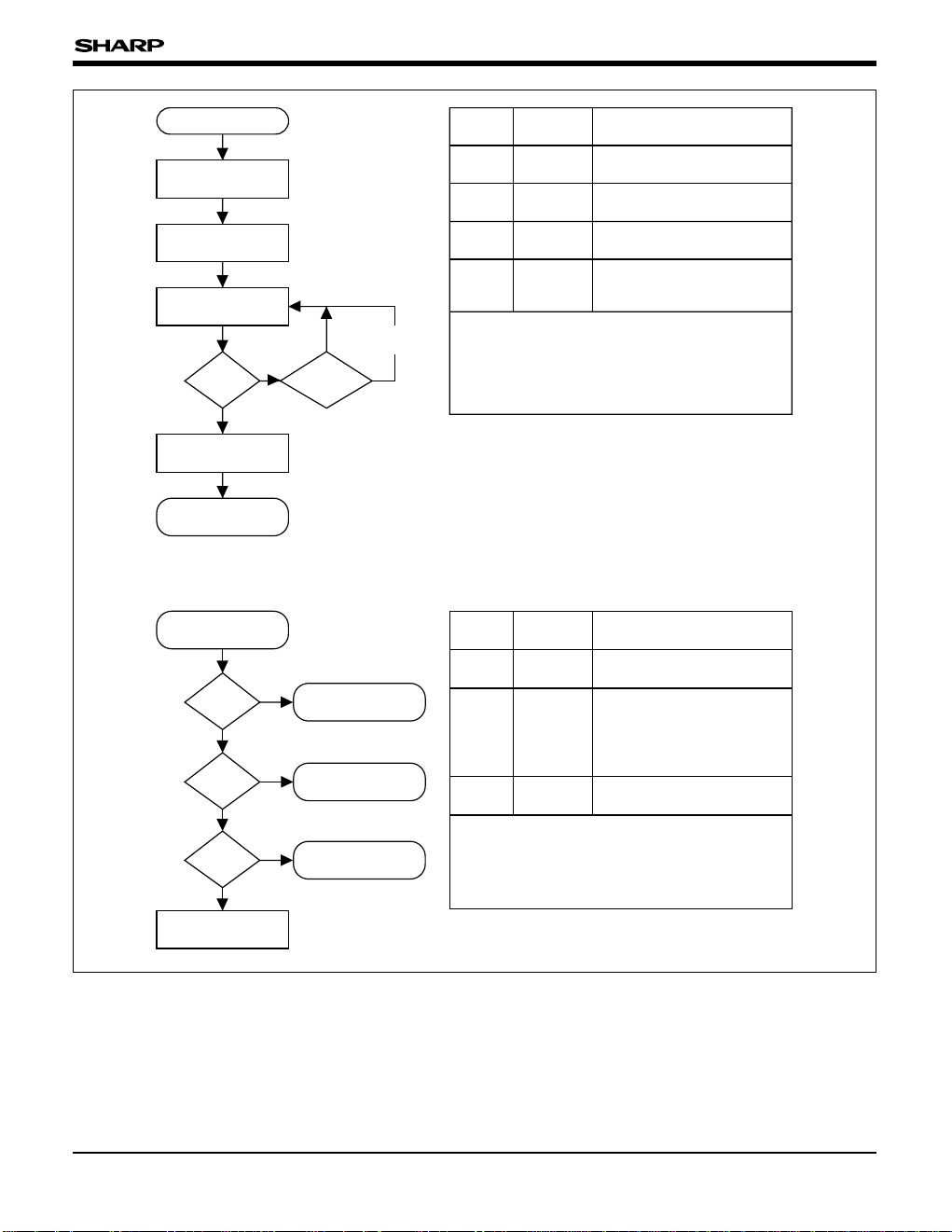

Word Write

Complete

Start

Write 40H,

Address

Write Word

Data and Address

Read

Status Register

0

SR.7 =

1

Full Status

Check if Desired

Repeat for subsequent word writes.
SR full status check can be done after each word write or

after a sequence of word writes.
Write FFH after the last word write operation to place device

in read array mode.

BUS

OPERATION

Write

Write

Read

Standby

COMMAND

Setup

Word Write

COMMENTS

Data = 40H
Addr = Location to be Written

Data = Data to be Written
Addr = Location to be Written

Status Register Data

Check SR.7
1 = WSM Ready
0 = WSM Busy

SR.3 =

FULL STATUS CHECK PROCEDURE

Read Status Register

Data (See Above)

V

PP Range Error

1

0

SR.1 =

Device Protect Error

1

0

BUS

OPERATION

COMMAND

COMMENTS

Standby

Check SR.1
1 = Device Protect Detect
RP# = V

IH, Block Lock-Bit is Set

Only required for systems
implementing lock-bit configuration

SR.4, SR.3 and SR.1 are only cleared by the Clear Status
Register command in cases where multiple locations are
written before full status is checked.

If error is detected, clear the status register before attempting
retry or other error recovery.

No

Suspend

Word Write

Yes

Suspend Word

Write Loop

Word Write

Word Write
Successful

SR.4 =

Word Write Error

1

0

Standby

Check SR.3
1 = V

PP Error Detect

Standby

Check SR.4
1 = Data Write Error

Fig. 4 Automated Word Write Flowchart

- 19 -

LH28F160SGED-L10

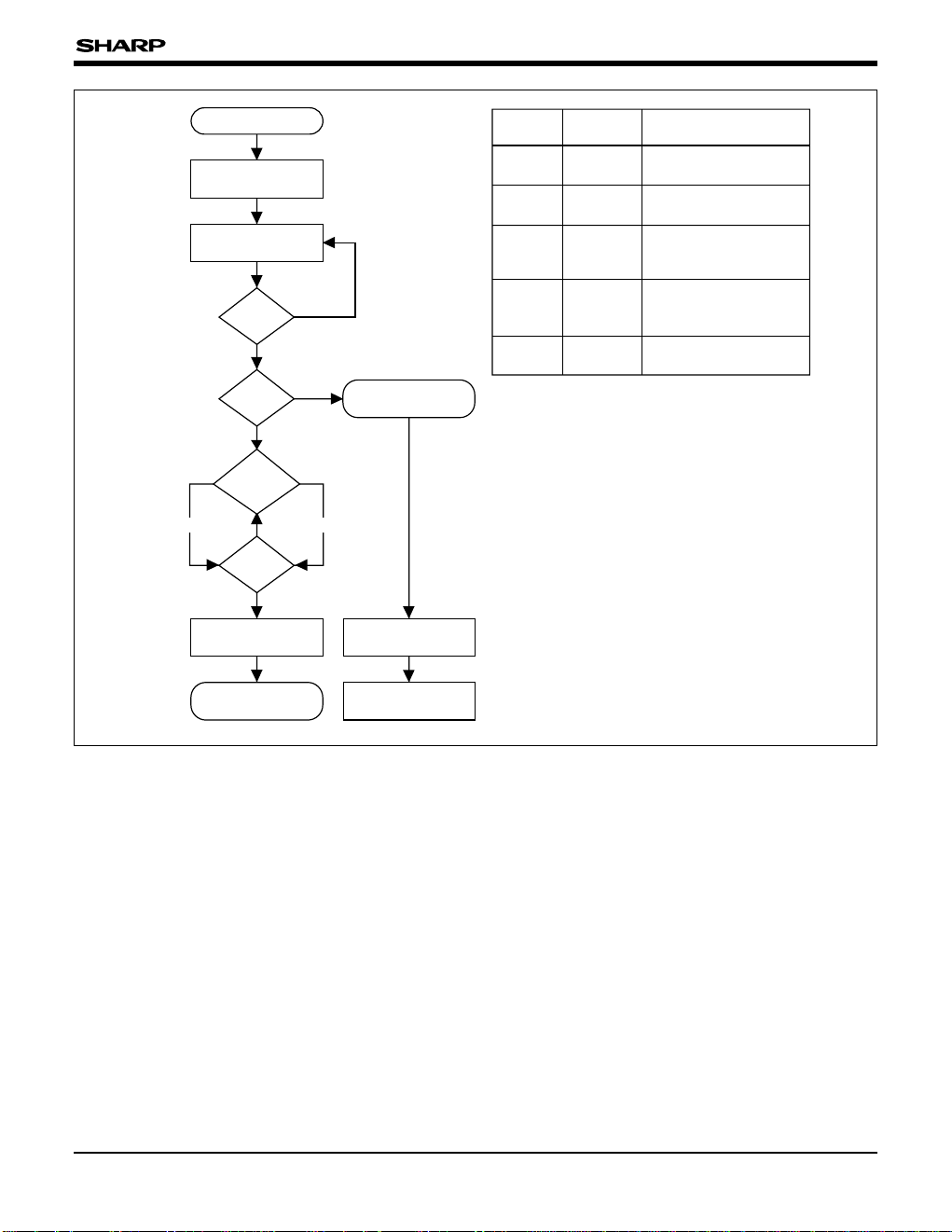

Block Erase

Resumed

Start

Write B0H

Read

Status Register

0

SR.7 =

1

Word Write

BUS

OPERATION

Write

Read

Standby

Standby

COMMAND

Erase

Suspend

COMMENTS

Data = B0H
Addr = X

Status Register Data
Addr = X

Check SR.7
1 = WSM Ready
0 = WSM Busy

Check SR.6
1 = Block Erase Suspended
0 = Block Erase Completed

Erase

Resume

SR.6 =

Done?

Write D0H

Block Erase

Completed

Write FFH

Read

Array Data

1

0

No

Yes

Write

Data = D0H
Addr = X

Read

or Word

Write?

Read

Word Write LoopRead Array Data

Fig. 5 Block Erase Suspend/Resume Flowchart

- 20 -

LH28F160SGED-L10

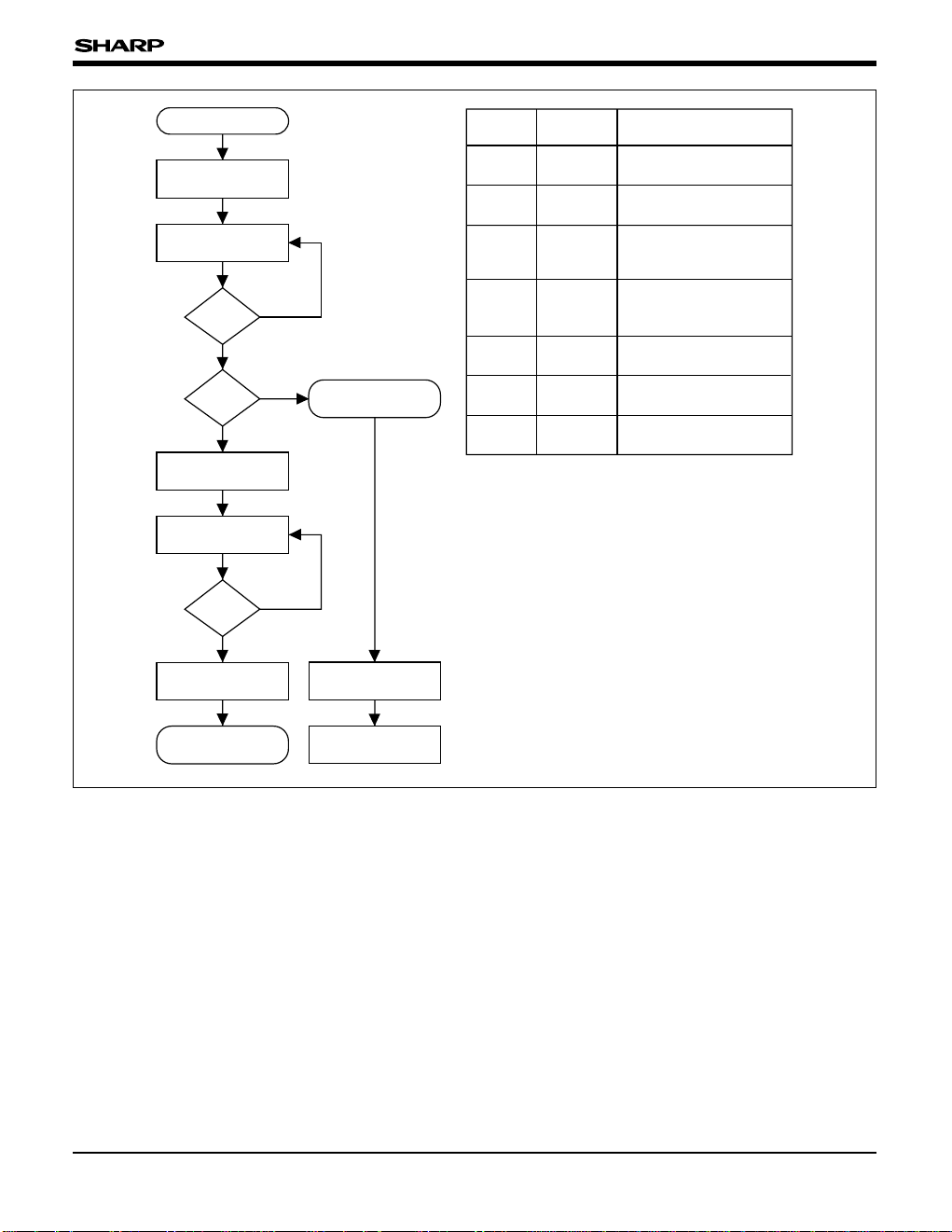

Word Write Resumed

Start

Write B0H

Read

Status Register

0

SR.7 =

1

Write FFH

BUS

OPERATION

Write

Read

Standby

Standby

COMMAND

Word Write

Suspend

COMMENTS

Data = B0H
Addr = X

Status Register Data
Addr = X

Check SR.7
1 = WSM Ready
0 = WSM Busy

Check SR.2
1 = Word Write Suspended
0 = Word Write Completed

Read Array

SR.2 =

Read

Array Data

Done

Reading

Write D0H

Word Write
Completed

Write FFH

Read

Array Data

1

0

No

Yes

Write

Read

Write

Word Write

Resume

Data = FFH
Addr = X

Read array locations other
than that being written.

Data = D0H
Addr = X

Fig. 6 Word Write Suspend/Resume Flowchart

- 21 -

LH28F160SGED-L10

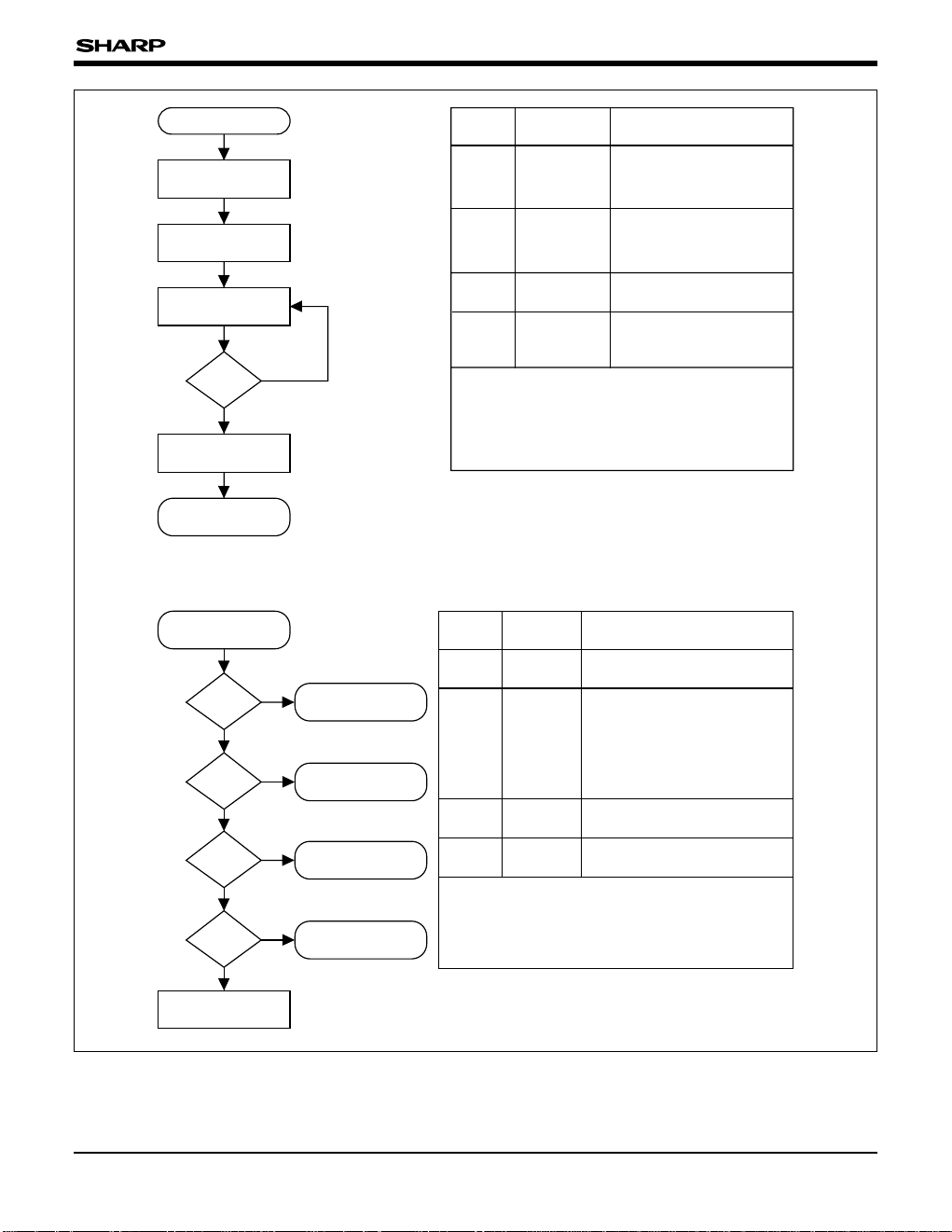

Set Lock-Bit

Complete

Start

Write 60H,

Block/Device Address

Write 01H/F1H,

Block/Device Address

Read

Status Register

0

SR.7 =

1

Full Status

Check if Desired

Repeat for subsequent lock-bit set operations.
Full status check can be done after each lock-bit set

operation or after a sequence of lock-bit set operations.
Write FFH after the last lock-bit set operation to place device

in read array mode.

BUS

OPERATION

Write

Write

Read

Standby

COMMAND

Set

Block/Permanent

Lock-Bit

Setup

COMMENTS

Data = 60H
Addr = Block Address (Block),

Device Address (Permanent)

Data = 01H (Block),

F1H (Permanent)

Addr = Block Address (Block),

Device Address (Permanent)

Status Register Data

Check SR.7
1 = WSM Ready
0 = WSM Busy

SR.3 =

FULL STATUS CHECK PROCEDURE

Read Status Register

Data (See Above)

V

PP Range Error

1

0

SR.1 =

Device Protect Error

1

0

BUS

OPERATION

COMMAND

COMMENTS

Standby

Standby

Check SR.1
1 = Device Protect Detect
RP# = V

IH

(Set Permanent Lock-Bit Operation)

WP# = V

IL and RP# = VIH or

Permanent Lock-Bit is Set

(Set Block Lock-Bit Operarion)

Check SR.4
1 = Set Lock-Bit Error

SR.5, SR.4, SR.3 and SR.1 are only cleared by the Clear
Status Register command in cases where multiple lock-bits
are set before full status is checked.

If error is detected, clear the status register before attempting
retry or other error recovery.

Set

Block or Permanent

Lock-Bit
Confirm

Set Lock-Bit

Successful

SR.4, 5 =

Command Sequence

Error

1

0

SR.4 =

Set Lock-Bit

Error

1

0

Standby

Check SR.3
1 = V

PP Error Detect

Standby

Check SR.4, 5
Both 1 = Command Sequence Error

Fig. 7 Set Block and Permanent Lock-Bit Flowchart

- 22 -

LH28F160SGED-L10

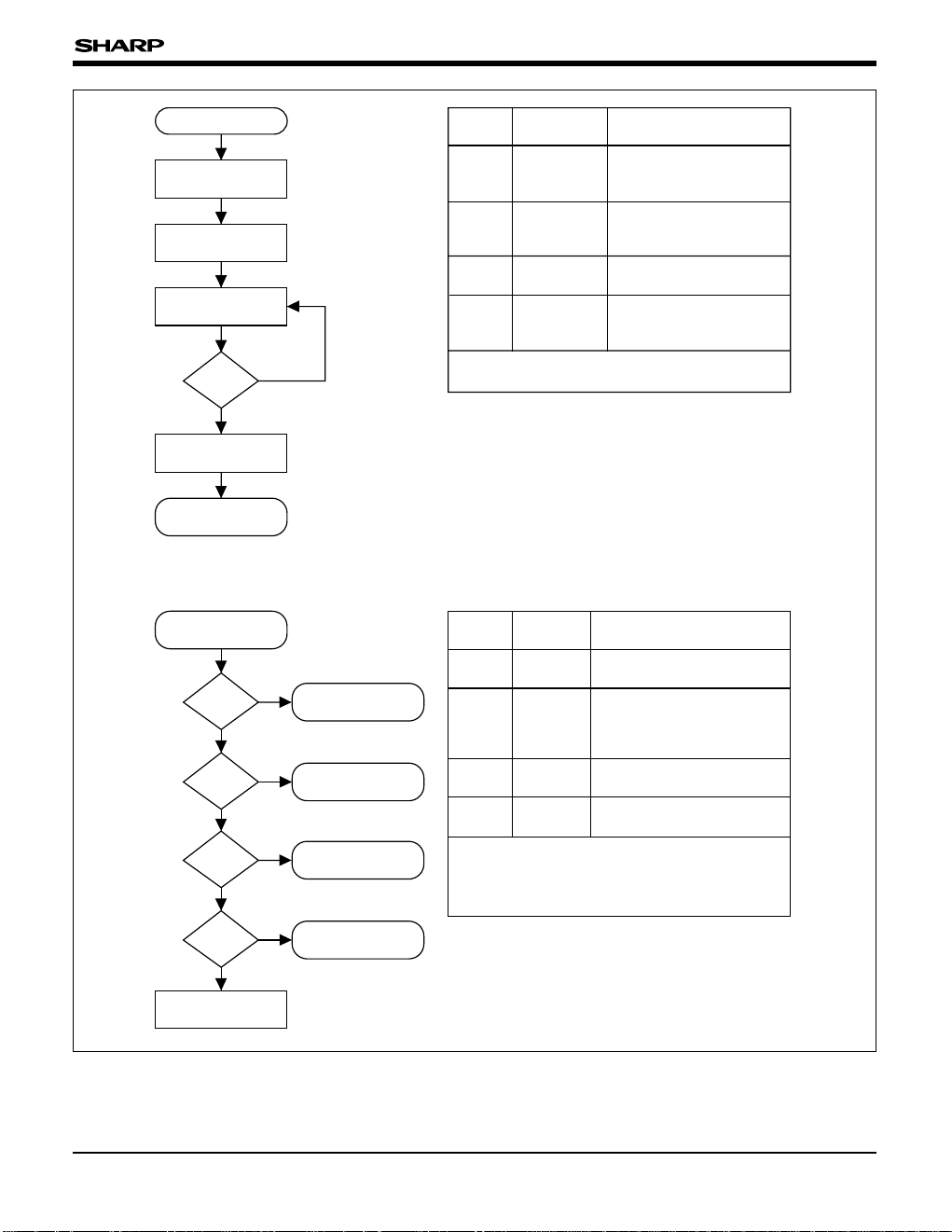

Clear Block Lock-Bits

Complete

Start

Write 60H

Write D0H

Read

Status Register

0

SR.7 =

1

Full Status

Check if Desired

Write FFH after the last clear block lock-bits operation to place
device in read array mode.

BUS

OPERATION

Write

Write

Read

Standby

COMMAND

Clear Block

Lock-Bits

Setup

COMMENTS

Data = 60H
Addr = X

Data = D0H
Addr = X

Status Register Data

Check SR.7
1 = WSM Ready
0 = WSM Busy

SR.3 =

FULL STATUS CHECK PROCEDURE

Read Status Register

Data (See Above)

V

PP Range Error

1

0

SR.1 =

Device Protect Error

1

0

BUS

OPERATION

COMMAND

COMMENTS

Standby

Standby

Check SR.1
1 = Device Protect Detect
WP# = V

IL and RP# = VIH or

Permanent Lock-Bit is Set

Check SR.5
1 = Clear Block Lock-Bits Error

SR.5, SR.4, SR.3 and SR.1 are only cleared by the Clear
Status Register command.

If error is detected, clear the status register before attempting
retry or other error recovery.

Clear Block

Lock-Bits

Confirm

Clear Block Lock-Bits

Successful

SR.4, 5 =

Command Sequence

Error

1

0

SR.5 =

Clear Block Lock-Bits

Error

1

0

Standby

Check SR.3
1 = V

PP Error Detect

Standby

Check SR.4, 5
Both 1 = Command Sequence Error

Fig. 8 Clear Block Lock-Bits Flowchart

- 23 -

5 DESIGN CONSIDERATIONS

5.1 Three-Line Output Control

The device will often be used in large memory
arrays. SHARP provides three control inputs to
accommodate multiple memory connections. Three­line control provides for :

a. Lowest possible memory power consumption.
b. Complete assurance that data bus contention

will not occur.

LH28F160SGED-L10

5.3 VPP Trace on Printed Circuit Boards

Updating flash memories that reside in the target
system requires that the printed circuit board
designers pay attention to the V
trace. The V

PP pin supplies the memory cell current

for word writing and block erasing. Use similar trace
widths and layout considerations given to the V
power bus. Adequate VPP supply traces and
decoupling will decrease V
overshoots.

PP power supply

CC

PP voltage spikes and

To use these control inputs efficiently, an address
decoder should enable BE# while OE# should be
connected to all memory devices and the system’s
READ# control line. This assures that only selected
memory devices have active outputs while
deselected memory devices are in standby mode.
RP# should be connected to the system
POWERGOOD signal to prevent unintended writes
during system power transitions. POWERGOOD
should also toggle during system reset.

5.2 Power Supply Decoupling

Flash memory power switching characteristics
require careful device decoupling. System
designers are interested in three supply current
issues; standby current levels, active current levels
and transient peaks produced by falling and rising
edges of BE# and OE#. Transient current
magnitudes depend on the device outputs’
capacitive and inductive loading. Two-line control
and proper decoupling capacitor selection will
suppress transient voltage peaks. Each device
should have a 0.1 µF ceramic capacitor connected
between its V
and GND. These high-frequency, low inductance
capacitors should be placed as close as possible to
package leads. Additionally, for every eight devices,
a 4.7 µF electrolytic capacitor should be placed at
the array’s power supply connection between V
and GND. The bulk capacitor will overcome voltage
slumps caused by PC board trace inductance.

CC and GND and between its VPP

CC

5.4 VCC, VPP, RP# Transitions

Block erase, word write and lock-bit configuration
are not guaranteed if V

PPH1/2/3 range, V CC falls outside of a valid VCC1/2/3

V

PP falls outside of a valid

range, or RP# ≠ VIH or VHH. If VPP error is
detected, status register bit SR.3 is set to "1" along
with SR.4 or SR.5, depending on the attempted
operation. Then, the operation will abort and the
device will enter deep power-down. The aborted
operation may leave data partially altered.
Therefore, the command sequence must be
repeated after normal operation is restored. Device
power-off or RP# transitions to V

IL clear the status

register.

The CUI latches commands issued by system
software and is not altered by V

PP or BE#

transitions or WSM actions. Its state is read array
mode upon power-up, after exit from deep power­down or after V

CC transitions below VLKO.

After block erase, word write, or lock-bit
configuration, even after V

PPLK, the CUI must be placed in read array mode

V

PP transitions down to

via the Read Array command if subsequent access
to the memory array is desired.

5.5 Power-Up/Down Protection

The device is designed to offer protection against
accidental block erasure, word writing, or lock-bit
configuration during power transitions. Upon power-

- 24 -

LH28F160SGED-L10

up, the device is indifferent as to which power
supply (V

PP or VCC) powers-up first. Internal

circuitry resets the CUI to read array mode at
power-up.

A system designer must guard against spurious
writes for V

CC voltages above VLKO when VPP is

active. Since both WE# and BE# must be low for a
command write, driving either to V

IH will inhibit

writes. The CUI’s two-step command sequence
architecture provides added level of protection
against data alteration.

In-system block lock and unlock capability prevents
inadvertent data alteration. The device is disabled
while RP# = V

IL regardless of its control inputs

state.

5.6 Power Consumption

When designing portable systems, designers must
consider battery power consumption not only during
device operation, but also for data retention during
system idle time. Flash memory’s nonvolatility
increases usable battery life because data is
retained when system power is removed.

In addition, deep power-down mode ensures
extremely low power consumption even when
system power is applied. For example, portable
computing products and other power sensitive
applications that use an array of devices for solid­state storage can consume negligible power by
lowering RP# to V
access is again needed, the devices can be read
following the t
required after RP# is first raised to V

6.2.4 through 6.2.6 "AC CHARACTERISTICS ­READ-ONLY and WRITE OPERATIONS" and
Fig. 13, Fig. 14 and Fig. 15 for more information.

IL standby or sleep modes. If

PHQV and tPHWL wake-up cycles

IH. See Section

- 25 -

LH28F160SGED-L10

6 ELECTRICAL SPECIFICATIONS

6.1 Absolute Maximum Ratings

Operating Temperature

During Read, Block Erase, Word Write,

....

and Lock-Bit Configuration
Temperature under Bias

Storage Temperature

........................

Voltage On Any Pin

(except VCC, V

VCC Supply Voltage

PP,

and RP#)..–2.0 to 7.0 V

.................

VPP Update Voltage during

Block Erase, Word Write and
Lock-Bit Configuration

RP# Voltage with Respect to

GND during Lock-Bit
Configuration Operations

Output Short Circuit Current

–10 to +70°C

.............

– 65 to +125°C

–2.0 to +7.0 V

....

– 2.0 to +14.0 V

...

–2.0 to +14.0 V

................

–10 to +80°C

100 mA

∗

(NOTE 1)

(NOTE 2)

(NOTE 2)

(NOTE 2, 3)

(NOTE 2, 3)

(NOTE 4)

NOTICE : The specifications are subject to
change without notice. Verify with your local
SHARP sales office that you have the latest
datasheet before finalizing a design.

∗

WARNING : Stressing the device beyond the

"

Absolute Maximum Ratings" may cause
permanent damage. These are stress ratings only.
Operation beyond the "Operating Conditions" is not
recommended and extended exposure beyond the
"Operating Conditions" may affect device reliability.

NOTES :

1. Operating temperature is for commercial product defined

by this specification.

2. All specified voltages are with respect to GND. Minimum

DC voltage is –0.5 V on input/output pins and –0.2 V on
V

CC and VPP pins. During transitions, this level may

undershoot to –2.0 V for periods < 20 ns. Maximum DC
voltage on input/output pins and V
which, during transitions, may overshoot to V
for periods < 20 ns.

3. Maximum DC voltage on V

to +14.0 V for periods < 20 ns.

4. Output shorted for no more than one second. No more

than one output shorted at a time.

PP and RP# may overshoot

CC is VCC+0.5 V

CC+2.0 V

6.2 Operating Conditions

SYMBOL

TA Operating Temperature –10 +70 ˚C Ambient Temperature
VCC1 VCC Supply Voltage (2.7 to 3.6 V) 2.7 3.6 V
VCC2 VCC Supply Voltage (3.3±0.3 V) 3.0 3.6 V
VCC3 VCC Supply Voltage (5.0±0.5 V) 4.50 5.50 V

6.2.1 CAPACITANCE

SYMBOL

CIN Input Capacitance 2 14 20 pF VIN = 0.0 V

OUT Output Capacitance 18 24 pF VOUT = 0.0 V

C

NOTES :

1. Sampled, not 100% tested.

0# and BE1# have half the value of this.

2. BE

PARAMETER MIN. MAX. UNIT TEST CONDITION

(NOTE 1)

TA = +25˚C, f = 1 MHz

PARAMETER NOTE TYP. MAX. UNIT CONDITION

- 26 -

LH28F160SGED-L10

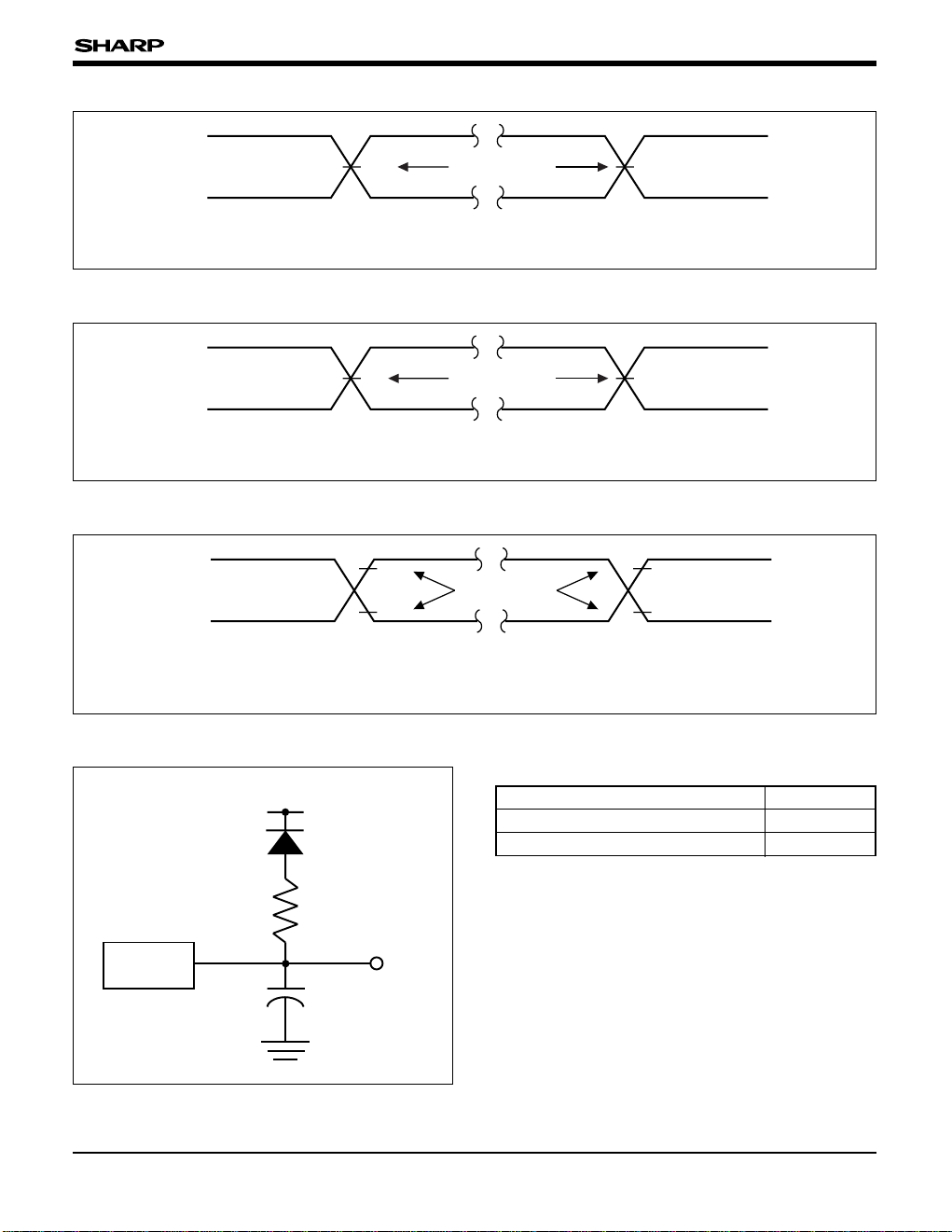

TEST POINTSINPUT OUTPUT

1.35

1.35

2.7

0.0

1.5

1.5

3.0

0.0

TEST POINTSINPUT OUTPUT

2.0

0.8

2.0

0.8

2.4

0.45

TEST POINTSINPUT OUTPUT

DEVICE
UNDER

TEST

C

L Includes Jig

Capacitance

RL = 3.3 kΩ

CL

OUT

1.3 V

1N914

6.2.2 AC INPUT/OUTPUT TEST CONDITIONS

AC test inputs are driven at 2.7 V for a Logic "1" and 0.0 V for a Logic "0". Input timing begins, and output
timing ends, at 1.35 V. Input rise and fall times (10% to 90%) < 10 ns.

Fig. 9 Transient Input/Output Reference Waveform for VCC = 2.7 to 3.6 V

AC test inputs are driven at 3.0 V for a Logic "1" and 0.0 V for a Logic "0". Input timing begins, and output
timing ends, at 1.5 V. Input rise and fall times (10% to 90%) < 10 ns.

Fig. 10 Transient Input/Output Reference Waveform for VCC = 3.3±0.3 V

AC test inputs are driven at VOH (2.4 VTTL) for a Logic "1" and VOL (0.45 VTTL) for a Logic "0". Input timing
begins at V

IH (2.0 VTTL) and VIL (0.8 VTTL). Output timing ends at VIH and VIL. Input rise and fall times (10% to

90 %) < 10 ns.

Fig. 11 Transient Input/Output Reference Waveform for VCC = 5.0±0.5 V

Test Configuration Capacitance Loading Value

TEST CONFIGURATION CL (pF)

VCC = 3.3±0.3 V, 2.7 to 3.6 V 50

CC = 5.0±0.5 V 100

V

Fig. 12 Transient Equivalent Testing

Load Circuit

- 27 -

LH28F160SGED-L10

6.2.3 DC CHARACTERISTICS

Following is the supply current of one bank. For the supply current of one device total, refer to the NOTE 8.

SYMBOL

LI Input Load Current 1 ±0.5 ±1 µA

I

LO Output Leakage Current 1 ±0.5 ±10 µA

I

PARAMETER NOTE

VCC= 2.7 to 3.6 V

TYP. MAX. TYP. MAX.

ICCS VCC Standby Current 1, 5, 8

VCC Deep Power-Down

ICCD

Current IOUT = 0 mA

ICCR VCC Read Current

11216µA

1, 4,

5, 8

VCC Word Write or

ICCW

Set Lock-Bit Current

VCC Block Erase or Clear

ICCE

Block Lock-Bits Current

I

CCWS VCC Word Write or Block

ICCES Erase Suspend Current
IPPS

VPPStandby or Read Current

IPPR 200 200 µA VPP > VCC

VPP Deep Power-Down

IPPD

Current
VPP Word Write or

IPPW

Set Lock-Bit Current

VPP Block Erase or Clear

IPPE

Block Lock-Bits Current

I

PPWS VPP Word Write or Block

IPPES Erase Suspend Current

1, 6, 8 17 35 mA V

1, 6, 8 17 30 mA V

1, 2, 8 6 10 mA BE# = V

1, 8

1 5 5 µA RP# = GND±0.2 V

1, 6, 8 80 80 mA V

1, 6, 8 40 40 mA V

1, 8 200 200 µA VPP = VPPH1/2/3

VCC = 5.0±0.5 V

UNIT

CC = VCC Max.

V

TEST

CONDITIONS

VIN = VCC or GND

CC = VCC Max.

V
VOUT = VCC or GND
CMOS inputs

100 100 µA V

CC = VCC Max.

BE# = RP# = V
TTL inputs

22mAV

CC = VCC Max.

BE# = RP# = VIH
RP# = GND±0.2 V

CMOS inputs
V

CC = VCC Max.

25 50 mA

BE# = GND
f = 5 MHz (3.3 V, 2.7 V),

8 MHz (5 V)

I

OUT = 0 mA

TTL inputs
V

CC = VCC Max.

30 65 mA

BE# = GND
f = 5 MHz (3.3 V, 2.7 V),

8 MHz (5 V)

IOUT = 0 mA

17 — — mA V

PP = 2.7 to 3.6 V
PP = 5.0±0.5 V

12 30 mA VPP = 12.0±0.6 V
17 — — mA V

PP = 2.7 to 3.6 V
PP = 5.0±0.5 V

12 25 mA VPP = 12.0±0.6 V

IH

±15 ±15 µA V

80 — — mA V

PP ≤ VCC

PP = 2.7 to 3.6 V
PP = 5.0±0.5 V

30 30 mA VPP = 12.0±0.6 V
40 — — mA V

PP = 2.7 to 3.6 V
PP = 5.0±0.5 V

30 30 mA VPP = 12.0±0.6 V

CC±0.2 V

- 28 -

LH28F160SGED-L10

6.2.3 DC CHARACTERISTICS (contd.)

SYMBOL

PARAMETER NOTE

VCC= 2.7 to 3.6 V

MIN. MAX. MIN. MAX.

VIL Input Low Voltage 6 –0.5 0.8 – 0.5 0.8 V

IH Input High Voltage 6 2.0

V

V

OL Output Low Voltage 6 0.4 0.45 V IOL = 5.8 mA (VCC = 5 V),

Output High Voltage

OH1

V

(TTL)

6 2.4 2.4 V

0.85 0.85
V

Output High Voltage

VOH2

(CMOS)

6

CC VCC IOH = –2.5 µA

V

CC VCC

– 0.4 –0.4 IOH = –100 µA

VPP Lockout Voltage during

PPLK

V

Normal Operations
V

PP Voltage during

V

PPH1 Word Write, Block Erase 2.7 3.6 — — V

3, 6 1.5 1.5 V

or Lock-Bit Operations
V

PP Voltage during

V

PPH2 Word Write, Block Erase 4.5 5.5 4.5 5.5 V

or Lock-Bit Operations
V

PP Voltage during

V

PPH3 Word Write, Block Erase 11.4 12.6 11.4 12.6 V

or Lock-Bit Operations

VLKO VCC Lockout Voltage 2.0 2.0 V

HH RP# Unlock Voltage 7 11.4 12.6 11.4 12.6 V

V

NOTES :

1. All currents are in RMS unless otherwise noted. Typical
values at nominal V

2. I

CCWS and ICCES are specified with the device de-

selected. If reading or word writing in erase suspend
mode, the device’s current draw is the sum of I

CCES and ICCR or ICCW, respectively.

I

3. Block erases, word writes, and lock-bit configurations are
inhibited when V
range between V

PPH1 (max.) and VPPH2 (min.), between VPPH2 (max.)

V

PPH3 (min.), and above VPPH3 (max.).

and V

4. Automatic Power Saving (APS) reduces typical I
1 mA at 5 V V
operation.

5. CMOS inputs are either V
inputs are either V

6. Sampled, not 100% tested.

CC voltage and TA = +25°C.

CCWS or

PP ≤ VPPLK, and not guaranteed in the
PPLK (max.) and VPPH1 (min.), between

CCR to

CC and 3 mA at 2.7 to 3.6 V VCC in static

CC±0.2 V or GND±0.2 V. TTL

IL or VIH.

VCC = 5.0±0.5 V

CC

V

+0.5 +0.5

2.0

CC

V

UNIT

V

V

CC = VCC Min.

IOL= 2.0 mA (V

CC = VCC Min.

V
IOH= –2.5 mA (V
IOH= –2.0 mA (V
VCC = VCC Min.

V

CC = VCC Min.

V

V

TEST

CONDITIONS

CC

= 3.3 V, 2.7 V)

CC

CC

= 3.3 V, 2.7 V)

Set permanent lock-bit
Override block lock-bit

7. Permanent lock-bit set operations are inhibited when
RP# = V
inhibited when the permanent lock-bit is set or RP# =
V
inhibited when the corresponding block lock-bit is set
and RP# = V
is set. Block erase, word write, and lock-bit configuration
operations are not guaranteed with V
and should not be attempted.

8. These are the values of the current which is consumed
within one bank area. The value for the bank0 and
bank1 should added in order to calculate the value for
the whole chip. If the bank0 is in write state and bank1
is in read state, the I
in standby mode, the value for the device is 2 times the
value in the above table.

IH. Block lock-bit configuration operations are

IH and WP# = VIL. Block erases and word writes are

IH and WP# = VIL or the permanent lock-bit

IH < RP# < VHH

CC = ICCW + ICCR. If both banks are

= 5 V)

,

- 29 -

LH28F160SGED-L10

6.2.4 AC CHARACTERISTICS - READ-ONLY OPERATIONS

• VCC = 2.7 to 3.6 V, TA = –10 to +70˚C

(NOTE 1)

VERSION LH28F160SGED-L10

SYMBOL

PARAMETER NOTE MIN. MAX.

tAVAV Read Cycle Time 120 ns
tAVQV Address to Output Delay 120 ns
tELQV BE# to Output Delay 2 120 ns
tPHQV RP# High to Output Delay 600 ns
tGLQV OE# to Output Delay 2 50 ns
tELQX BE# to Output in Low Z 3 0 ns
tEHQZ BE# High to Output in High Z 3 55 ns
tGLQX OE# to Output in Low Z 3 0 ns
tGHQZ OE# High to Output in High Z 3 25 ns

t

OH

Output Hold from Address, BE# or OE# Change,
Whichever Occurs First

30 ns

•VCC = 3.3±0.3 V, TA = –10 to +70˚C

VERSION LH28F160SGED-L10

SYMBOL

PARAMETER NOTE MIN. MAX.

tAVAV Read Cycle Time 100 ns
tAVQV Address to Output Delay 100 ns
tELQV BE# to Output Delay 2 100 ns
tPHQV RP# High to Output Delay 600 ns
tGLQV OE# to Output Delay 2 45 ns
tELQX BE# to Output in Low Z 3 0 ns
tEHQZ BE# High to Output in High Z 3 45 ns
tGLQX OE# to Output in Low Z 3 0 ns
tGHQZ OE# High to Output in High Z 3 20 ns

t

OH

Output Hold from Address, BE# or OE# Change,
Whichever Occurs First

30 ns

UNIT

UNIT

•VCC = 5.0±0.5 V, TA = –10 to +70˚C

VERSION LH28F160SGED-L10

SYMBOL

PARAMETER NOTE MIN. MAX.

tAVAV Read Cycle Time 100 ns
tAVQV Address to Output Delay 100 ns
tELQV BE# to Output Delay 2 100 ns
tPHQV RP# High to Output Delay 400 ns
tGLQV OE# to Output Delay 2 50 ns
tELQX BE# to Output in Low Z 3 0 ns
tEHQZ BE# High to Output in High Z 3 55 ns
tGLQX OE# to Output in Low Z 3 0 ns
tGHQZ OE# High to Output in High Z 3 15 ns

OH

t

Output Hold from Address, BE# or OE# Change,

Whichever Occurs First

30 ns

NOTES :

1. See AC Input/Output Reference Waveform (Fig. 9 through Fig. 11) for maximum allowable input slew rate.

2. OE# may be delayed up to t

3. Sampled, not 100% tested.

ELQV-tGLQV after the falling edge of BE# without impact on tELQV.

- 30 -

UNIT

LH28F160SGED-L10

Standby

Device

Address Selection

Data Valid

ADDRESSES (A)

BE

X

# (E)

OE# (G)

WE# (W)

RP# (P)

High Z High Z

Address Stable

VIH

VIL

VIH
VIL

VIH
VIL

VIH

VIL

VOH

VOL

VCC

VIH
VIL

tAVAV

tEHQZ

tGHQZ

tOH

Valid Output

t

ELQV

tGLQV

tGLQX

tELQX

tAVQV

tPHQV

DATA (D/Q)

(DQ

0-DQ15)

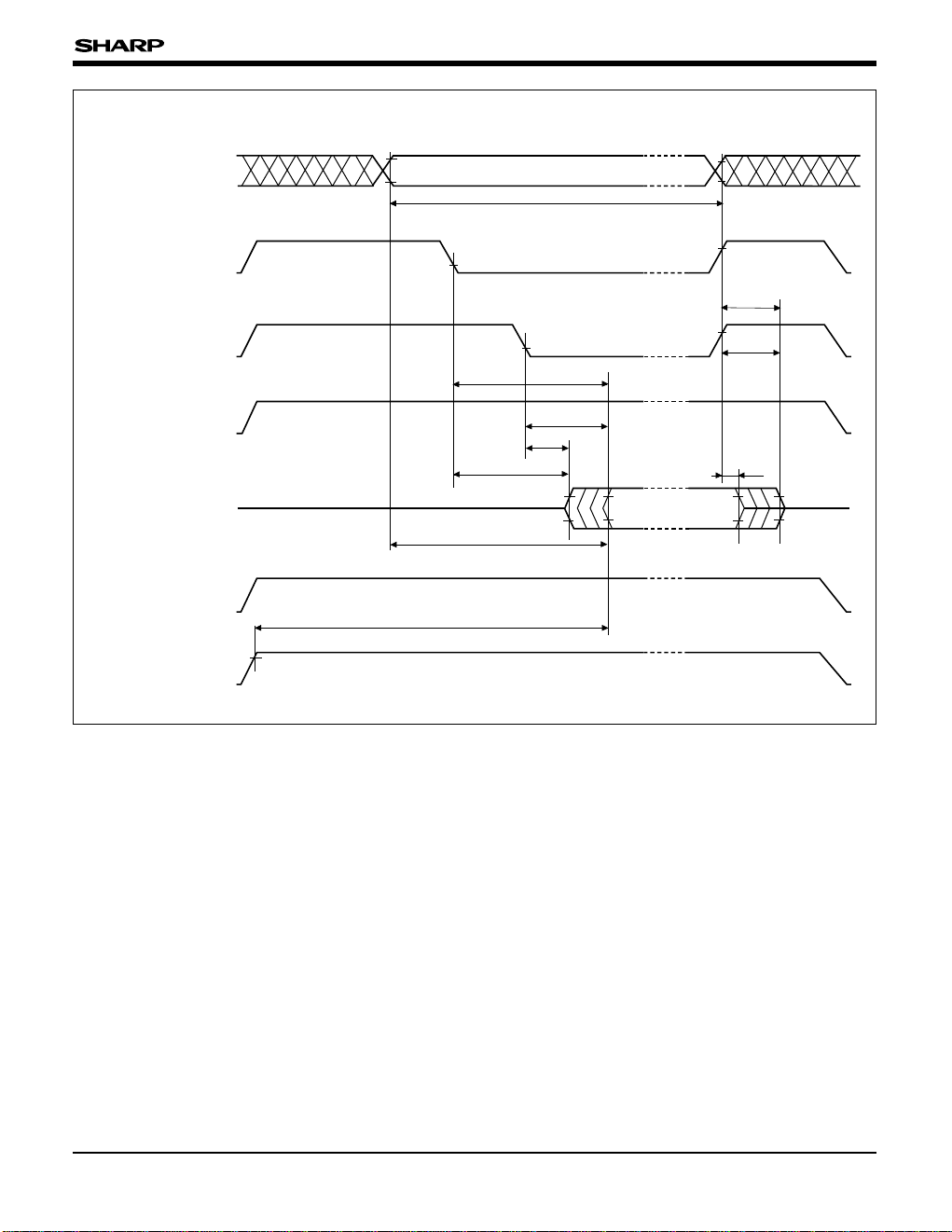

Fig. 13 AC Waveform for Read Operations

- 31 -

LH28F160SGED-L10

6.2.5 AC CHARACTERISTICS FOR WE#-CONTROLLED WRITE OPERATIONS

• VCC = 2.7 to 3.6 V, TA = –10 to +70˚C

(NOTE 1)

VERSION LH28F160SGED-L10

SYMBOL

PARAMETER NOTE MIN. MAX.

tAVAV Write Cycle Time 120 ns
tPHWL RP# High Recovery to WE# Going Low 2 1 µs
tELWL BE# Setup to WE# Going Low 10 ns
tWLWH WE# Pulse Width 50 ns
tPHHWH RP# VHH Setup to WE# Going High 2 100 ns
tVPWH VPP Setup to WE# Going High 2 100 ns
tAVWH Address Setup to WE# Going High 3 50 ns
tDVWH Data Setup to WE# Going High 3 50 ns
tWHDX Data Hold from WE# High 5 ns
tWHAX Address Hold from WE# High 5 ns
tWHEH BE# Hold from WE# High 10 ns
tWHWL WE# Pulse Width High 30 ns
tWHGL Write Recovery before Read 0 ns
tQVVL VPP Hold from Valid SRD 2, 4 0 ns
t

QVPH RP# VHH Hold from Valid SRD 2, 4 0 ns

•VCC = 3.3±0.3 V, TA = –10 to +70˚C

VERSION LH28F160SGED-L10

SYMBOL

PARAMETER NOTE MIN. MAX.

tAVAV Write Cycle Time 100 ns
tPHWL RP# High Recovery to WE# Going Low 2 1 µs
tELWL BE# Setup to WE# Going Low 10 ns
tWLWH WE# Pulse Width 50 ns
tPHHWH RP# VHH Setup to WE# Going High 2 100 ns
tVPWH VPP Setup to WE# Going High 2 100 ns
tAVWH Address Setup to WE# Going High 3 50 ns
tDVWH Data Setup to WE# Going High 3 50 ns
tWHDX Data Hold from WE# High 5 ns
tWHAX Address Hold from WE# High 5 ns
tWHEH BE# Hold from WE# High 10 ns
tWHWL WE# Pulse Width High 30 ns
tWHGL Write Recovery before Read 0 ns
tQVVL VPP Hold from Valid SRD 2, 4 0 ns

QVPH RP# VHH Hold from Valid SRD 2, 4 0 ns

t

NOTES :

4. V

1. Read timing characteristics during block erase, word
write and lock-bit configuration operations are the same
as during read-only operations. Refer to Section 6.2.4
"AC CHARACTERISTICS" for read-only operations.

2. Sampled, not 100% tested.

3. Refer to Table 3 for valid A
word write, or lock-bit configuration.

IN and DIN for block erase,

PP should be held at VPPH1/2/3 (and if necessary RP#

should be held at V
erase, word write, or lock-bit configuration success
(SR.1/3/4/5 = 0).

HH) until determination of block

UNIT

UNIT

- 32 -

LH28F160SGED-L10

6.2.5 AC CHARACTERISTICS FOR WE#-CONTROLLED WRITE OPERATIONS (contd.)

(NOTE 1)

•VCC = 5.0±0.5 V, TA = –10 to +70˚C

VERSION LH28F160SGED-L10

SYMBOL

PARAMETER NOTE MIN. MAX.

tAVAV Write Cycle Time 100 ns
tPHWL RP# High Recovery to WE# Going Low 2 1 µs
tELWL BE# Setup to WE# Going Low 10 ns
tWLWH WE# Pulse Width 40 ns
tPHHWH RP# VHH Setup to WE# Going High 2 100 ns
tVPWH VPP Setup to WE# Going High 2 100 ns
tAVWH Address Setup to WE# Going High 3 40 ns
tDVWH Data Setup to WE# Going High 3 40 ns
tWHDX Data Hold from WE# High 5 ns
tWHAX Address Hold from WE# High 5 ns
tWHEH BE# Hold from WE# High 10 ns
tWHWL WE# Pulse Width High 30 ns
tWHGL Write Recovery before Read 0 ns
tQVVL VPP Hold from Valid SRD 2, 4 0 ns
tQVPH RP# VHH Hold from Valid SRD 2, 4 0 ns

NOTES :

PP should be held at VPPH1/2/3 (and if necessary RP#

1. Read timing characteristics during block erase, word
write and lock-bit configuration operations are the same
as during read-only operations. Refer to Section 6.2.4
"AC CHARACTERISTICS" for read-only operations.

2. Sampled, not 100% tested.

3. Refer to Table 3 for valid A
word write, or lock-bit configuration.

IN and DIN for block erase,

4. V
should be held at V
erase, word write, or lock-bit configuration success
(SR.1/3/4/5 = 0).

HH) until determination of block

UNIT

- 33 -

VPP (V)

RP# (P)

DATA (D/Q)

WE# (W)

OE# (G)

BEx# (E)

ADDRESSES (A)

t

WHQV1/2/3/4

tWHWL

Valid
SRD

DIN

tVPWH tQVVL

WP# (S)

t

QVSL

tSHWH

VIH

VIH

VIH

VIH

VIH

VIH

VIL

VIL

VIL

VIL

VIL

VIL
VPPH1/2/3

VPPLK
VIL

VIH

VIL

(NOTE 1) (NOTE 2) (NOTE 3) (NOTE 4) (NOTE 5) (NOTE 6)

A

IN

A

IN

tAVAV tAVWH tWHAX

tELWL

tWHGL

tWHDX

DIN DIN

High Z

t

PHWL

tWHEH

tDVWH

tWLWH

NOTES :

1. VCC power-up and standby.

2. Write block erase or word write setup.

3. Write block erase confirm or valid address and data.

4. Automated erase or program delay.

5. Read status register data.

6. Write Read Array command.

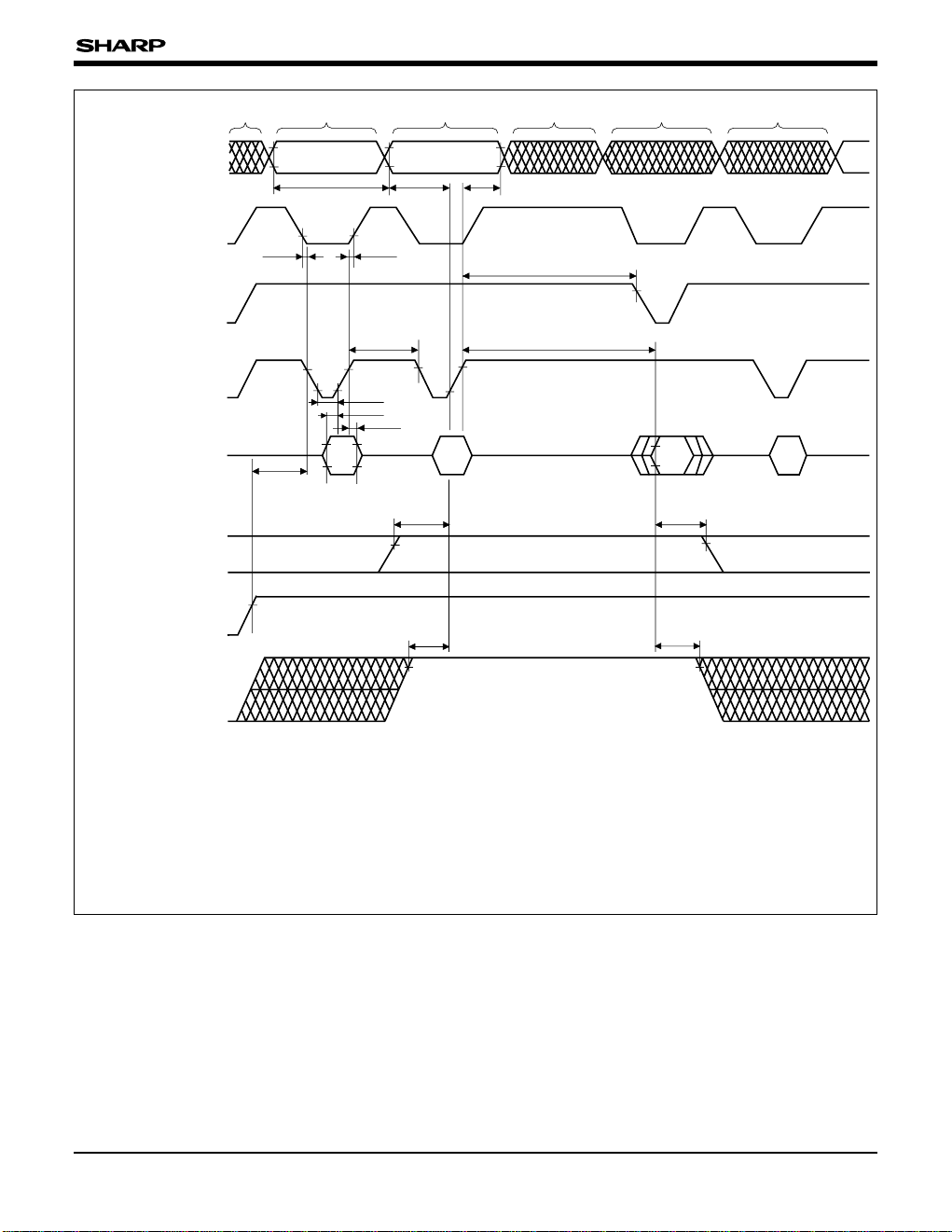

Fig. 14 AC Waveform for WE#-Controlled Write Operations

LH28F160SGED-L10

- 34 -

LH28F160SGED-L10

6.2.6 AC CHARACTERISTICS FOR BE#-CONTROLLED WRITES OPERATIONS

(NOTE 1)

•VCC = 2.7 to 3.6 V, TA = –10 to +70˚C

VERSION LH28F160SGED-L10

SYMBOL

PARAMETER NOTE MIN. MAX.

tAVAV Write Cycle Time 120 ns
tPHEL RP# High Recovery to BE# Going Low 2 1 µs
tWLEL WE# Setup to BE# Going Low 0 ns
tELEH BE# Pulse Width 70 ns
tPHHEH RP# VHH Setup to BE# Going High 2 100 ns
tVPEH VPP Setup to BE# Going High 2 100 ns
tAVEH Address Setup to BE# Going High 3 50 ns
tDVEH Data Setup to BE# Going High 3 50 ns
tEHDX Data Hold from BE# High 5 ns
tEHAX Address Hold from BE# High 5 ns
tEHWH WE# Hold from BE# High 0 ns
tEHEL BE# Pulse Width High 25 ns
tEHGL Write Recovery before Read 0 ns
tQVVL VPP Hold from Valid SRD 2, 4 0 ns

QVPH RP# VHH Hold from Valid SRD 2, 4 0 ns

t

•VCC = 3.3±0.3 V, TA = –10 to +70˚C

VERSION LH28F160SGED-L10

SYMBOL

PARAMETER NOTE MIN. MAX.

tAVAV Write Cycle Time 100 ns
tPHEL RP# High Recovery to BE# Going Low 2 1 µs
tWLEL WE# Setup to BE# Going Low 0 ns
tELEH BE# Pulse Width 70 ns
tPHHEH RP# VHH Setup to BE# Going High 2 100 ns
tVPEH VPP Setup to BE# Going High 2 100 ns
tAVEH Address Setup to BE# Going High 3 50 ns
tDVEH Data Setup to BE# Going High 3 50 ns
tEHDX Data Hold from BE# High 5 ns
tEHAX Address Hold from BE# High 5 ns
tEHWH WE# Hold from BE# High 0 ns
tEHEL BE# Pulse Width High 25 ns
tEHGL Write Recovery before Read 0 ns
tQVVL VPP Hold from Valid SRD 2, 4 0 ns
t

QVPH RP# VHH Hold from Valid SRD 2, 4 0 ns

NOTES :

4. V

1. In systems where BE# defines the write pulse width
(within a longer WE# timing waveform), all setup, hold,
and inactive WE# times should be measured relative to
the BE# waveform.

2. Sampled, not 100% tested.

3. Refer to Table 3 for valid A
word write, or lock-bit configuration.

IN and DIN for block erase,

PP should be held at VPPH1/2/3 (and if necessary RP#

should be held at V
erase, word write, or lock-bit configuration success
(SR.1/3/4/5 = 0).

HH) until determination of block

UNIT

UNIT

- 35 -

LH28F160SGED-L10

6.2.6 AC CHARACTERISTICS FOR BE#-CONTROLLED WRITES OPERATIONS (contd.)

(NOTE 1)

•VCC = 5.0±0.5 V, TA = –10 to +70˚C

VERSION LH28F160SGED-L10

SYMBOL

PARAMETER NOTE MIN. MAX.

tAVAV Write Cycle Time 100 ns
tPHEL RP# High Recovery to BE# Going Low 2 1 µs
tWLEL WE# Setup to BE# Going Low 0 ns
tELEH BE# Pulse Width 50 ns
tPHHEH RP# VHH Setup to BE# Going High 2 100 ns
tVPEH VPP Setup to BE# Going High 2 100 ns
tAVEH Address Setup to BE# Going High 3 40 ns
tDVEH Data Setup to BE# Going High 3 40 ns
tEHDX Data Hold from BE# High 5 ns
tEHAX Address Hold from BE# High 5 ns
tEHWH WE# Hold from BE# High 0 ns
tEHEL BE# Pulse Width High 25 ns
tEHGL Write Recovery before Read 0 ns
tQVVL VPP Hold from Valid SRD 2, 4 0 ns
t

QVPH RP# VHH Hold from Valid SRD 2, 4 0

NOTES :

PP should be held at VPPH1/2/3 (and if necessary RP#

1. In systems where BE# defines the write pulse width
(within a longer WE# timing waveform), all setup, hold,
and inactive WE# times should be measured relative to
the BE# waveform.

2. Sampled, not 100% tested.

3. Refer to Table 3 for valid A
word write, or lock-bit configuration.

IN and DIN for block erase,

4. V
should be held at V
erase, word write, or lock-bit configuration success
(SR.1/3/4/5 = 0).

HH) until determination of block

UNIT

ns

- 36 -

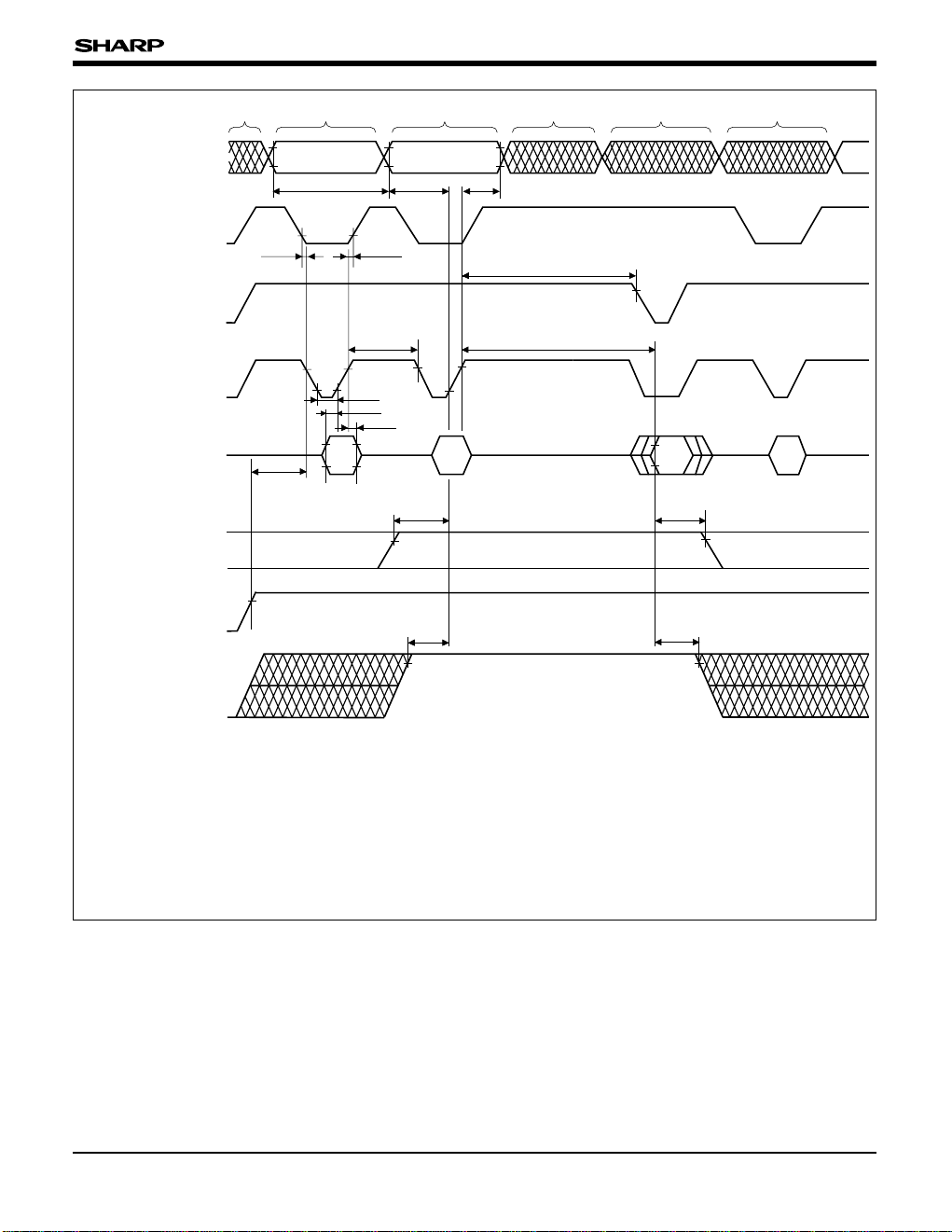

tAVAV

AIN AIN

tAVEH tEHAX

tWLEL

tEHGL

tEHQV1/2/3/4tEHEL

tELEH

tEHDX

DIN DIN

High Z

t

PHEL

Valid
SRD

DIN

tVPEH

tQVVL

tEHWH

tQVSL

tSHEH

tDVEH

(NOTE 1) (NOTE 2) (NOTE 3) (NOTE 4) (NOTE 5) (NOTE 6)

VPP (V)

RP# (P)

DATA (D/Q)

BE

X# (E)

OE

X# (G)

WE# (W)

ADDRESSES (A)

WP# (S)

V

IH

VIH

VIH

VIH

VIH

VIH

VIL

VIL

VIL

VIL

VIL

VIL
VPPH1/2/3

VPPLK
VIL

VIH

VIL

LH28F160SGED-L10

- 37 -

VIH

VIL

(A) Reset During Read Array Mode

(B) Reset During Block Erase, Word Write, or Lock-Bit Configuration

(C) V

CC Rising Timing

t

PLPH

RP# (P)

VIH

VIL

tPLPH

RP# (P)

VIH

2.7 V/3.3 V/5 V

VIL

VIL

VCC

t235VPH

RP# (P)

6.2.7 RESET OPERATIONS

LH28F160SGED-L10

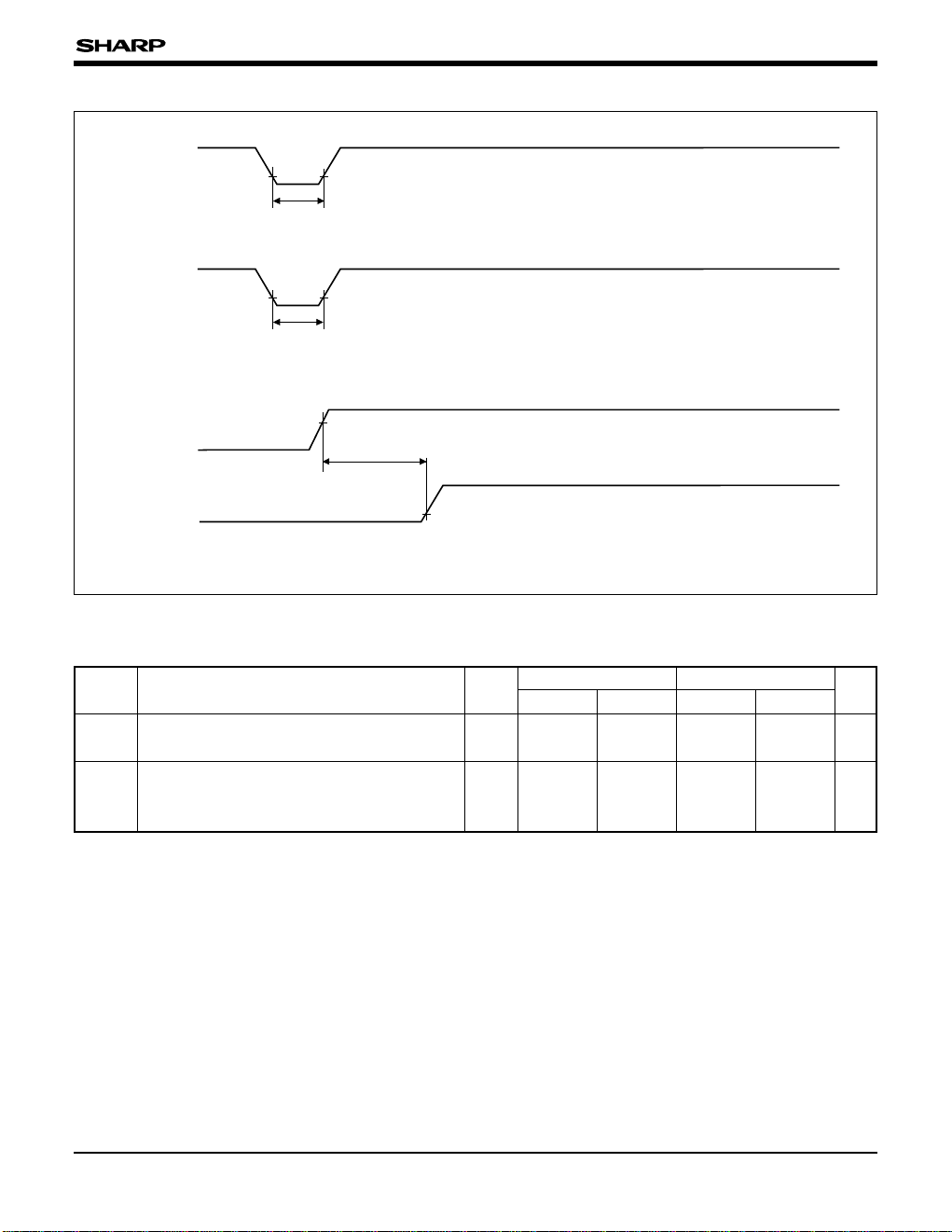

Fig. 16 AC Waveform for Reset Operation

Reset AC Specifications

SYMBOL

t

PLPH

235VPH VCC 3.0 V to RP# High 1 100 100 ns

t

RP# Pulse Low Time (If RP# is tied to VCC,
this specification is not applicable)
VCC 2.7 V to RP# High

VCC 4.5 V to RP# High

NOTES :

1. When the device power-up, holding RP#-low minimum 100 ns is required after V CC has been in predefined range and also
has been in stable there.

PARAMETER NOTE

VCC = 2.7 to 3.6 V VCC = 5.0±0.5 V

MIN. MAX. MIN. MAX.

100 100 ns

UNIT

- 38 -

LH28F160SGED-L10

6.2.8 BLOCK ERASE, WORD WRITE AND LOCK-BIT CONFIGURATION PERFORMANCE

•VCC = 2.7 to 3.6 V, TA = –10 to +70˚C

SYMBOL

WHQV1

t
tEHQV1

PARAMETER NOTE

Word Write Time 2 49 63 20 28 15.4 µs
Block Write Time 2 1.7 2.1 0.7 1.0 0.56 s

WHQV2

t
tEHQV2
tWHQV3
tEHQV3

Block Erase Time 2 3.0 2.0 1.9 s

Set Lock-Bit Time 2 44 28 24.4 µs

tWHQV4 Clear Block Lock-Bits
tEHQV4 Time
tWHRH1 Word Write Suspend
tEHRH1 Latency Time to Read

WHRH2

t

EHRH2 Time to Read

t

•V

SYMBOL

WHQV1

t
tEHQV1

Erase Suspend Latency

CC = 3.3±0.3 V, TA = –10 to +70˚C

PARAMETER NOTE

Word Write Time 2 35 45 14 20 11 µs

Block Write Time 2 1.2 1.5 0.5 0.7 0.4 s
tWHQV2
tEHQV2
tWHQV3
tEHQV3

Block Erase Time 2 2.1 1.4 1.3 s

Set Lock-Bit Time 2 31 20 17.4 µs
tWHQV4 Clear Block Lock-Bits

tEHQV4 Time

WHRH1 Word Write Suspend

t
tEHRH1 Latency Time to Read

WHRH2

t
t

EHRH2 Time to Read

Erase Suspend Latency

NOTES :

1. Typical values measured at TA = +25˚C and nominal
voltages. Assumes corresponding lock-bits are not set.
Subject to change based on device characterization.

VPP = 2.7 to 3.6 V VPP = 5.0±0.5 V VPP = 12.0±0.6 V

MIN.

TYP.

(NOTE 1)

MAX. MIN.

TYP.

(NOTE 1)

MAX. MIN.

TYP.

(NOTE 1)

MAX.

2 3.8 2.6 2.3 s

12.6 10.5 10.5 µs

34.1 20.2 20.2 µs

VPP = 3.3±0.3 V VPP = 5.0±0.5 V VPP = 12.0±0.6 V

MIN.

TYP.

(NOTE 1)

MAX. MIN.

TYP.

(NOTE 1)

MAX. MIN.

TYP.

(NOTE 1)

MAX.

2 2.7 1.8 1.6 s

9 7.5 7.5 µs

24.3 14.4 14.4 µs

2. Excludes system-level overhead.

3. Sampled, not 100% tested.

(NOTE 3)

UNIT

UNIT

- 39 -

LH28F160SGED-L10

6.2.8

BLOCK ERASE, WORD WRITE AND LOCK-BIT CONFIGURATION PERFORMANCE (contd.)

•VCC = 5.0±0.5 V, TA = –10 to +70˚C

SYMBOL

WHQV1

t
tEHQV1

PARAMETER NOTE

Word Write Time 2 10 14 7.5 µs

VPP = 5.0±0.5 V VPP = 12.0±0.6 V

(NOTE 1)

MIN.

TYP.

MAX. MIN.

Block Write Time 2 0.4 0.5 0.25 s

WHQV2

t
tEHQV2
tWHQV3
tEHQV3
tWHQV4
tEHQV4
tWHRH1
tEHRH1
tWHRH2

EHRH2

t

Block Erase Time 2 1.3 1.2 s

Set Lock-Bit Time 2 18 15 µs

Clear Block Lock-Bits Time 2 1.6 1.5 s

Word Write Suspend Latency Time to Read 7.5 6 µs

Erase Suspend Latency Time to Read 14.4 14.4 µs

NOTES :

1. Typical values measured at TA = +25˚C and nominal
voltages. Assumes corresponding lock-bits are not set.
Subject to change based on device characterization.

2. Excludes system-level overhead.

3. Sampled, not 100% tested.

TYP.

(NOTE 1)

MAX.

(NOTE 3)

UNIT

- 40 -

LH28F160SGEDL-10

Device Density
160 = 16 M-bit

Package
E = 48-pin TSOP (I) (TSOP-048-P-1220) Normal bend

Architecture
S = Symmetrical Block

Power Supply Type
G = SmartVoltage Technology

Operating Temperature = –10 to +70°C

Product line designator for all SHARP Flash products

Dual Work technology

Access Speed (ns)

10 : 100 ns (5.0±0.5 V), 100 ns (3.3±0.3 V),

120 ns (2.7 to 3.6 V)

LH28F160SGED-L10

7 ORDERING INFORMATION

VALID OPERATIONAL COMBINATIONS

CC

= 2.7 to 3.6 V VCC= 3.3±0.3 V VCC= 5.0±0.5 V

OPTION ORDER CODE

1 LH28F160SGED-L10 120 ns 100 ns 100 ns

V

50 pF load, 50 pF load, 100 pF load,

1.35 V I/O Levels 1.5 V I/O Levels TTL I/O Levels

- 41 -

1.2

0.1

±0.2

±0.05

±0.1

MAX.

±0.2

TYP.

25

48

24

1

12.0

48

_

0.2

0.5

0.1

0.10

±0.08

20.0

±0.3

18.4

0.125

M

0.125

19.0

±0.1

1.0

±0.1

Package base plane

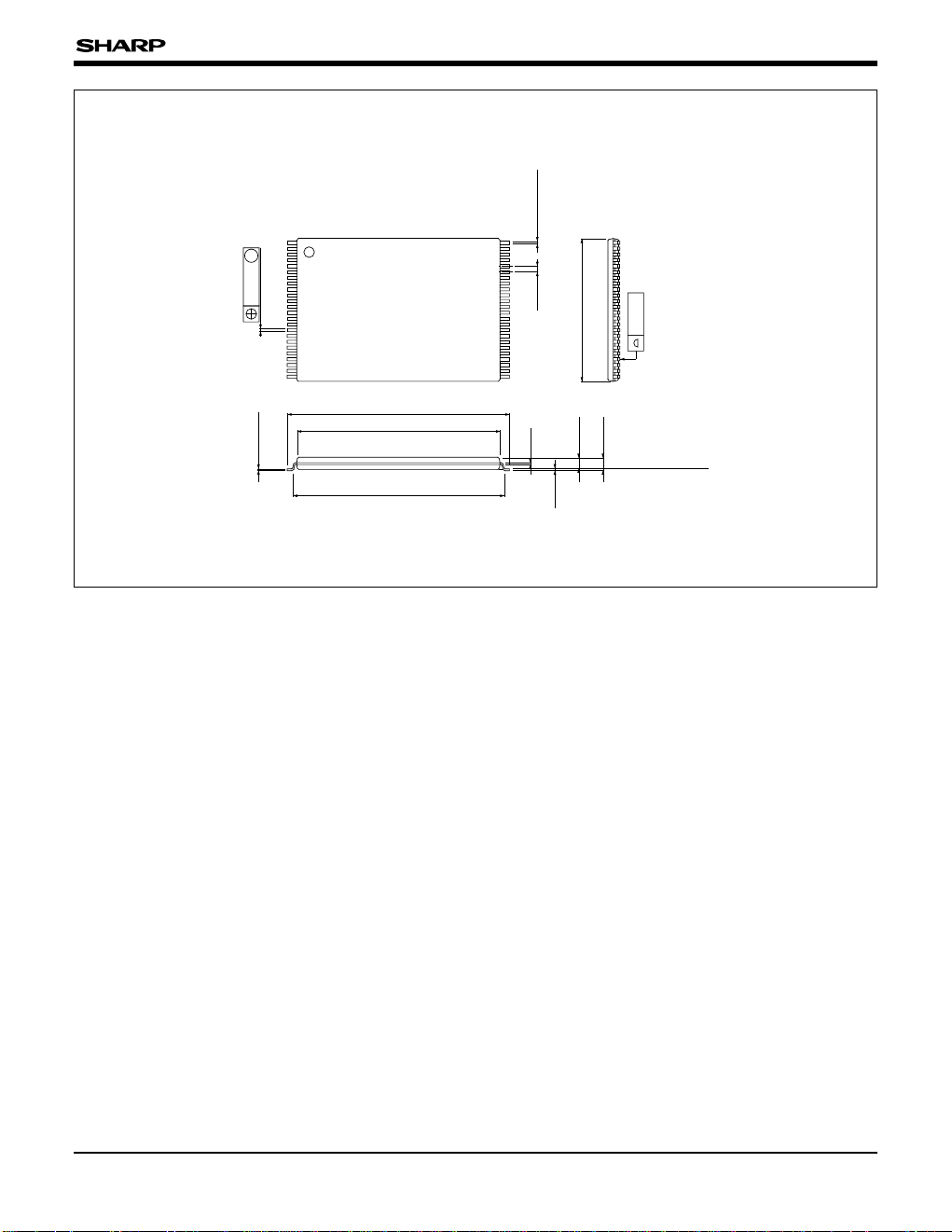

48 TSOP (TSOP048-P-1220)

PACKAGING
